Name: XTool KS-1 Smart Key Emulator for Toyota Lexus All Keys Lost
Description:
XTool KS-1 Smart Key Emulator for Toyota Lexus All Keys Lost works with XTool X100 PAD2 / PAD3.
For Toyota or Lexus, once all the keys are lost, the smart box and other modules in the car need to be disassembled, then turn on the ignition switch, so that the smart key can be removed and added, and the operation is complicated.
XTool KS-1 five-in-one simulation card can eliminate the need to disassemble the smart box and other modules.
As long as the original car data is read from the OBD to generate the simulation card, the ignition switch can be turned on to realize the function of clearing and adding the smart key.
Highlights:
1. Supports Toyota / Lexus All Key Lost. No need to disassemble.
2. Read the original car data from OBD to generate emergency simulation key, directly drive the car without disassemble, intelligent and efficient.
3. Intelligently generate new keys.
4. Through reading of the original car data, a smart key is generated, which can be operated according to the process of adding a key. Supports generation, copying and simulation functions of the key chip.

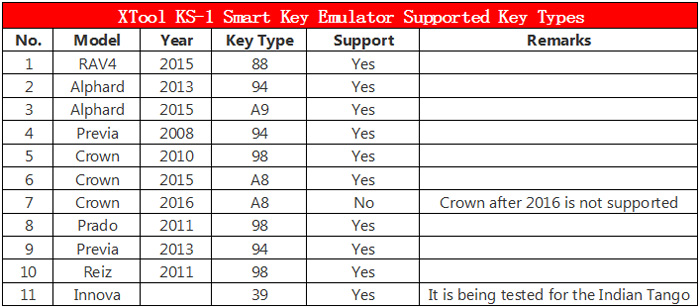

5. Supports Toyota 94 / D4, 98, 39, 88 / A8, A9 type smart key all-key-lost matching. Matching speed is fast.
6. The simulation card can be reused. After matching the key, turn off the power or remove the battery to restore the initial state.
Specifications:

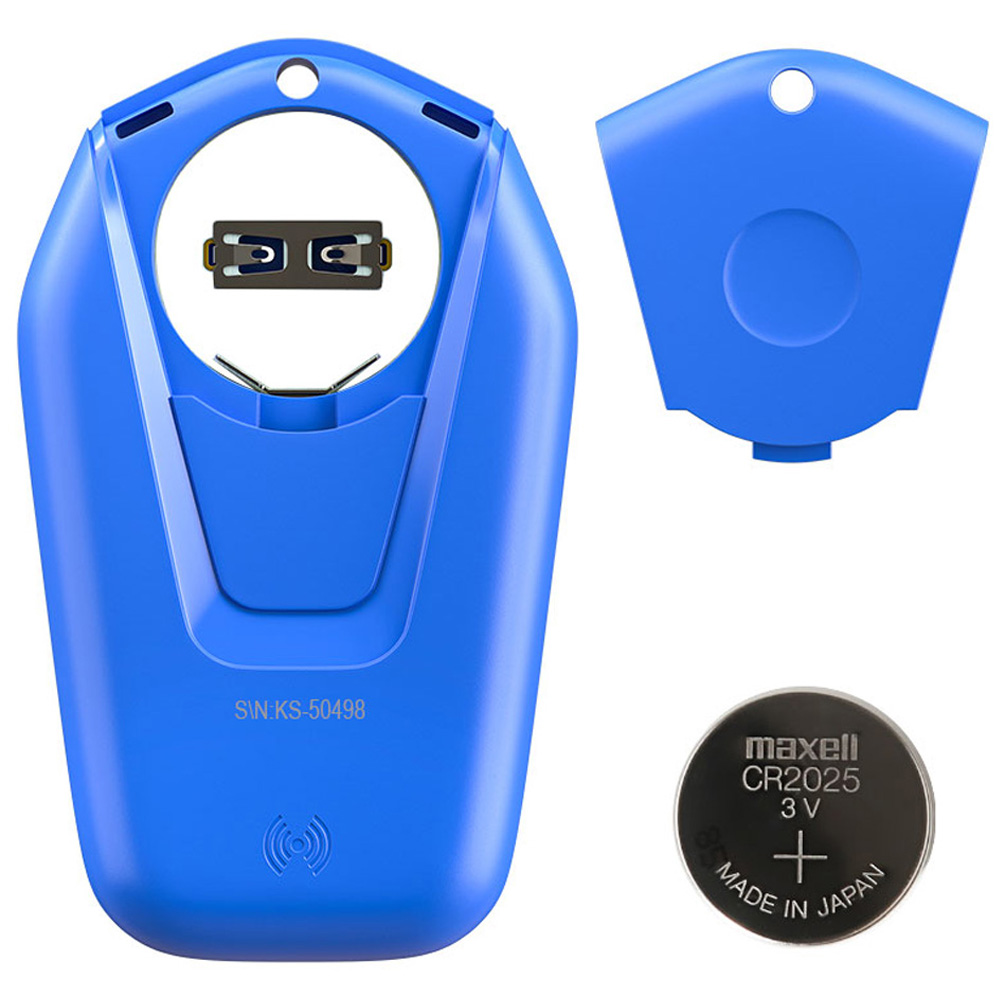

Battery: CR2025 3V 165mAh
Standby Current: ≤2μA
Reading and Writing Frequency: 125KHz
Status Indicator Lamp: turn on and light up for 2s and then extinguish; flash 0.5s / time when writing or reading
Update: firmware can be updated with KC100
Working Temperature: -20 to 60 degree centigrade
Storage temperature: -20 to 70 degree centigrade

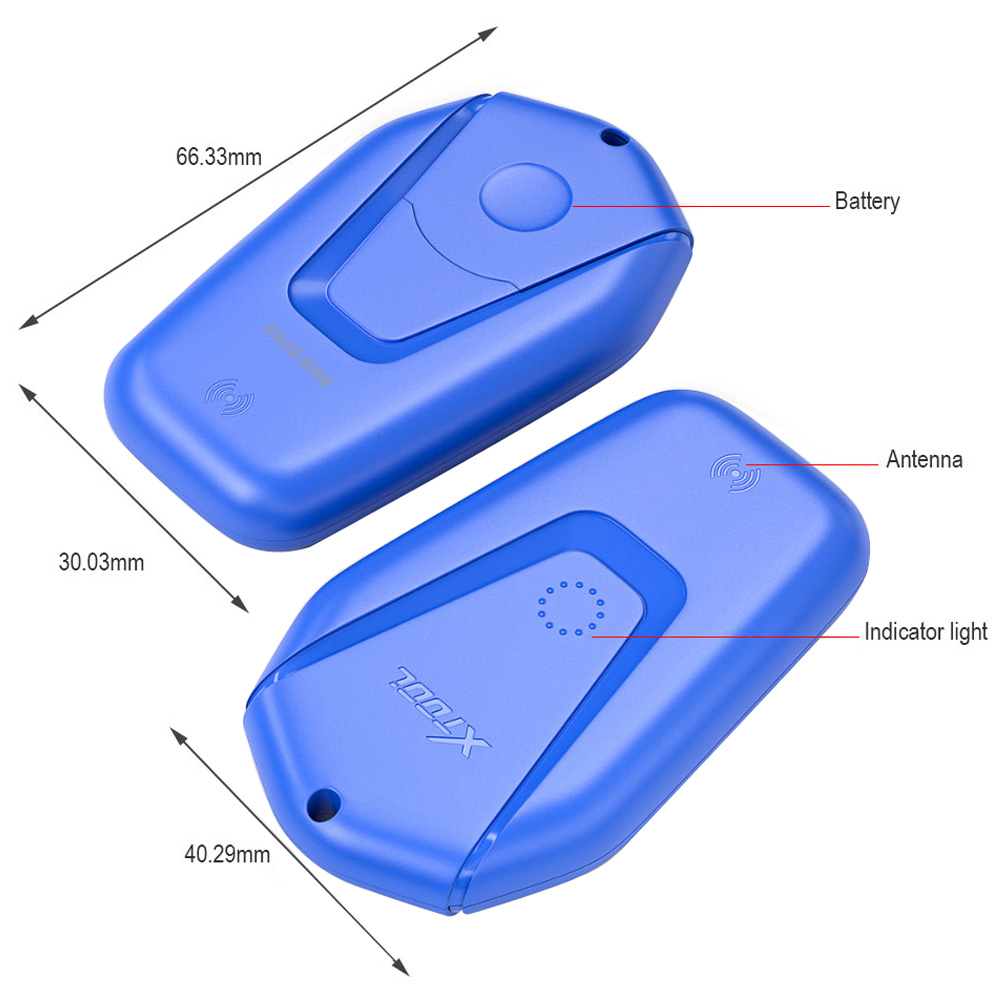

Size: 66*40*12mm
|
