Name: JDiag M100 Motorcycle Scanner 12V Battery Tester Intelligent Dual System Moto Scan Tool
Description:

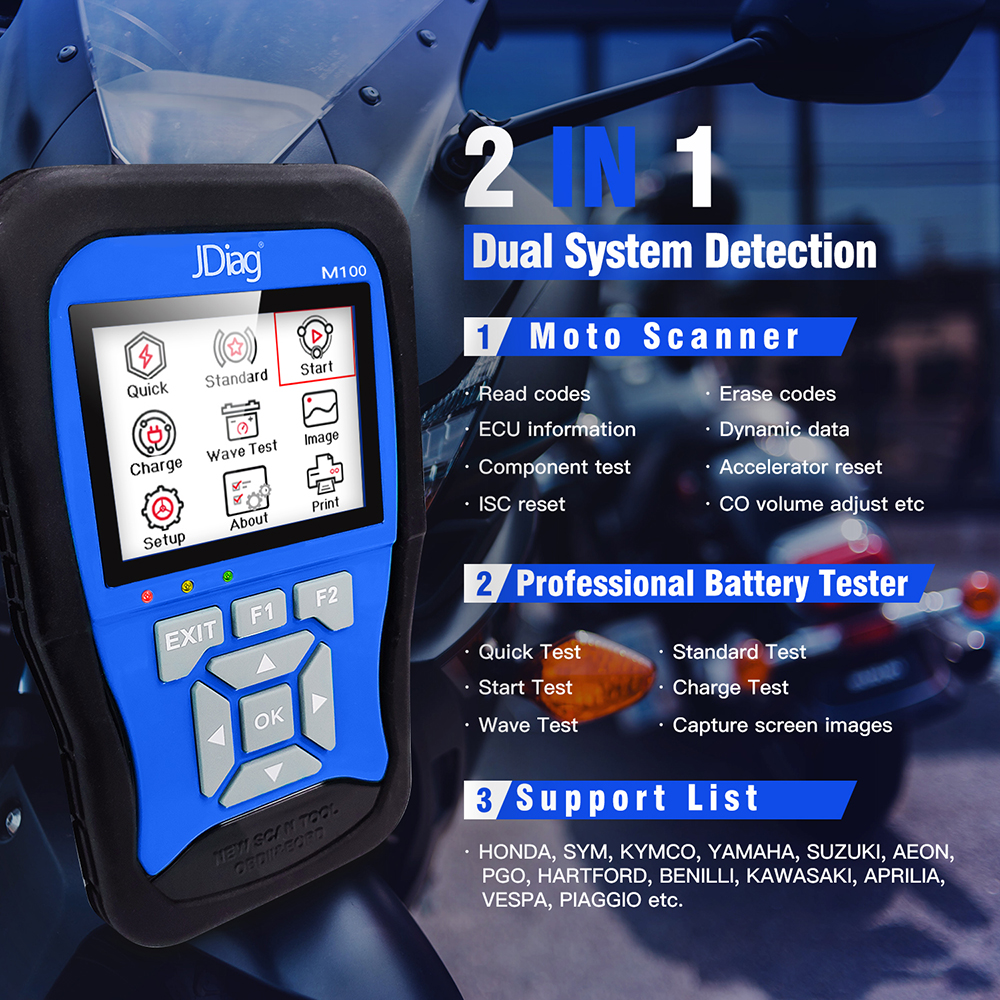

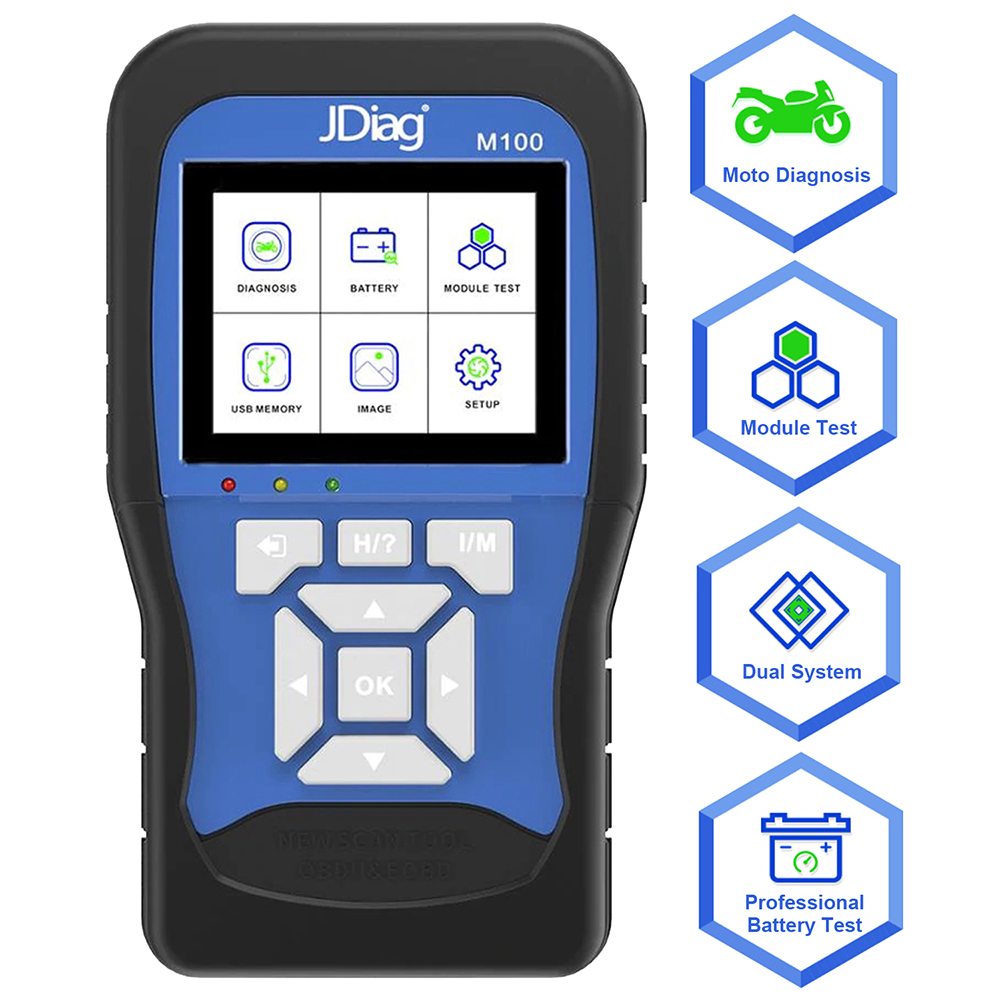

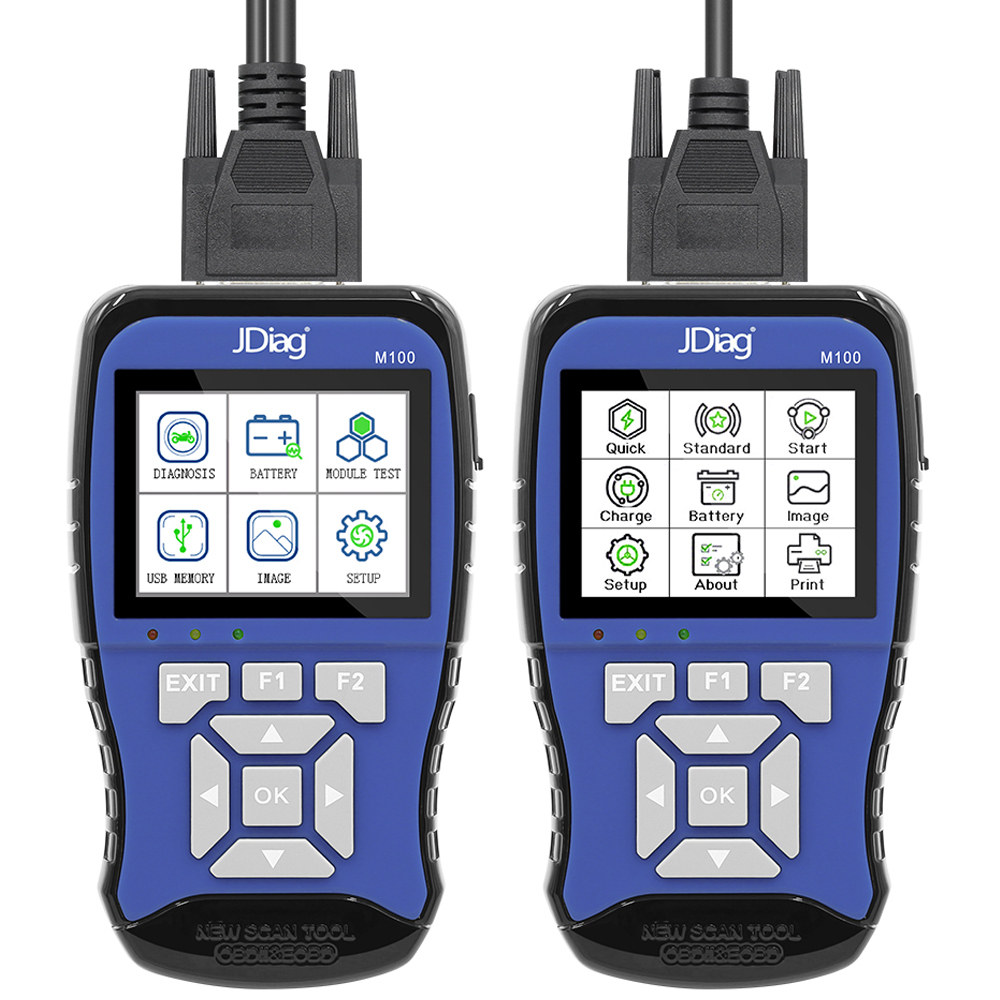

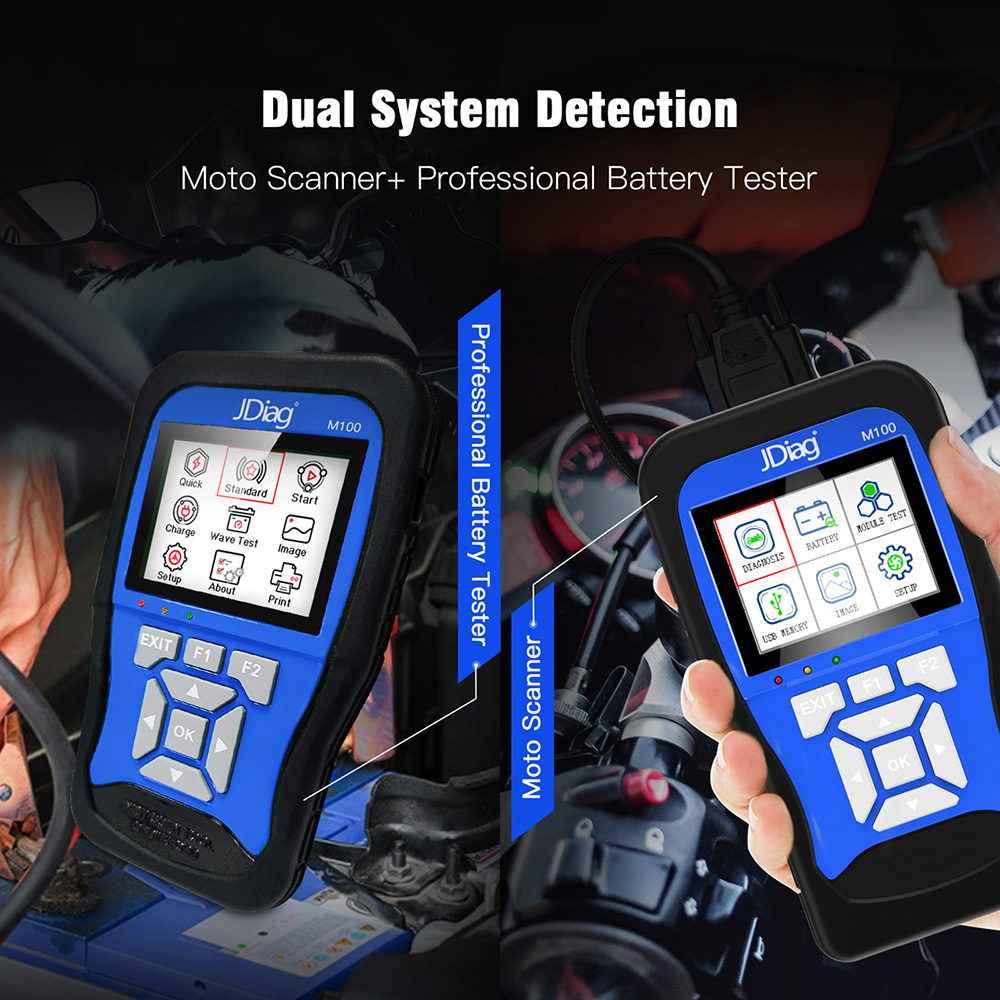

JDiag M100 is a Dual System Motorcycle Diagnostic Tool for Motorcycle Diagnosis and Battery Test.
JDiag M100 Moto Scanner is the new generation Handheld Motorcycle diagnostics tool. It covers virtually all major manufacturers diagnostic functions.
JDiag M100 helps the technician to diagnose problems and make repairs faster; many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).
M100 allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor (TPS), re-setting auto adaptive parameters, and making idling adjustments.

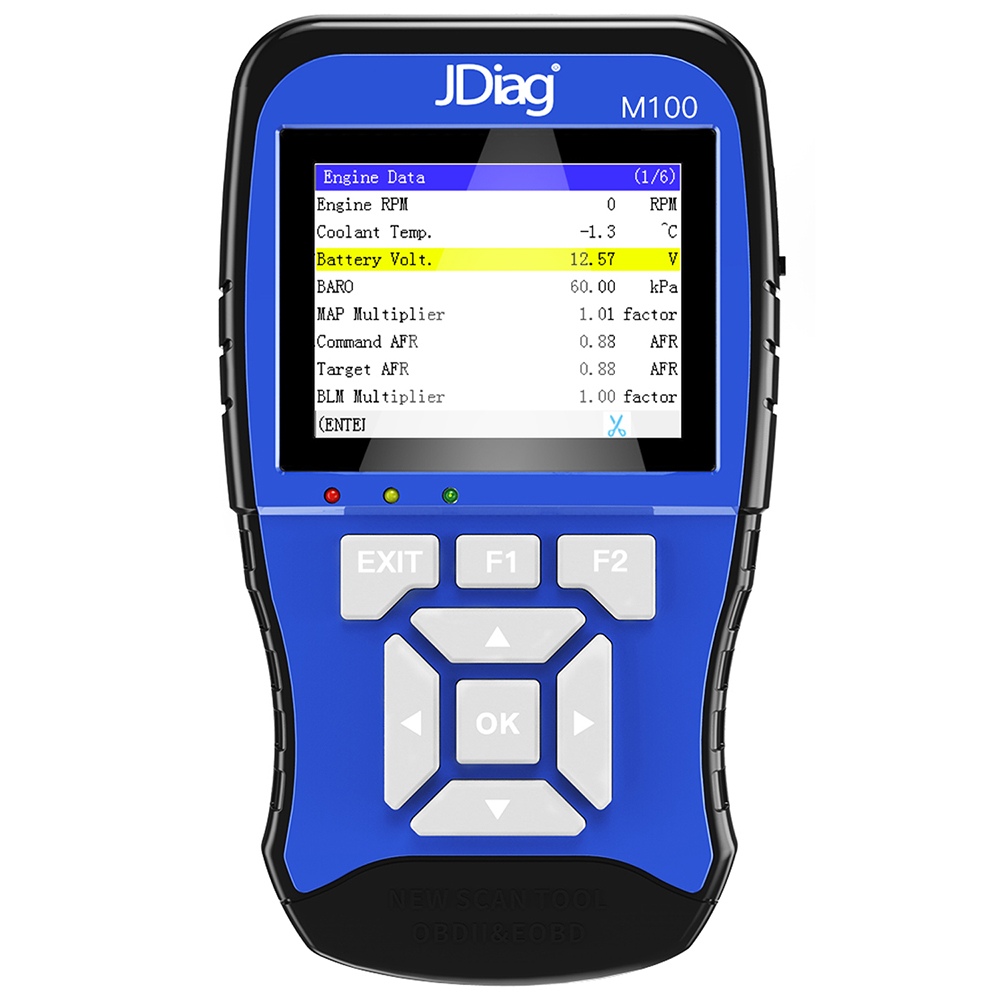

JDiag M100 shows live data, displays ECU data, reads stored faults (history) or live data (RPM, battery voltage, throttle angle).
Features:
1. Handheld operation, convenient and flexible to use
2. Support for SD cards to store data and upgrades,
3. Reserved CAN BUS interface
4. 3.2-inch color screen for clear display.
5. Dynamic data with numerical and waveform.

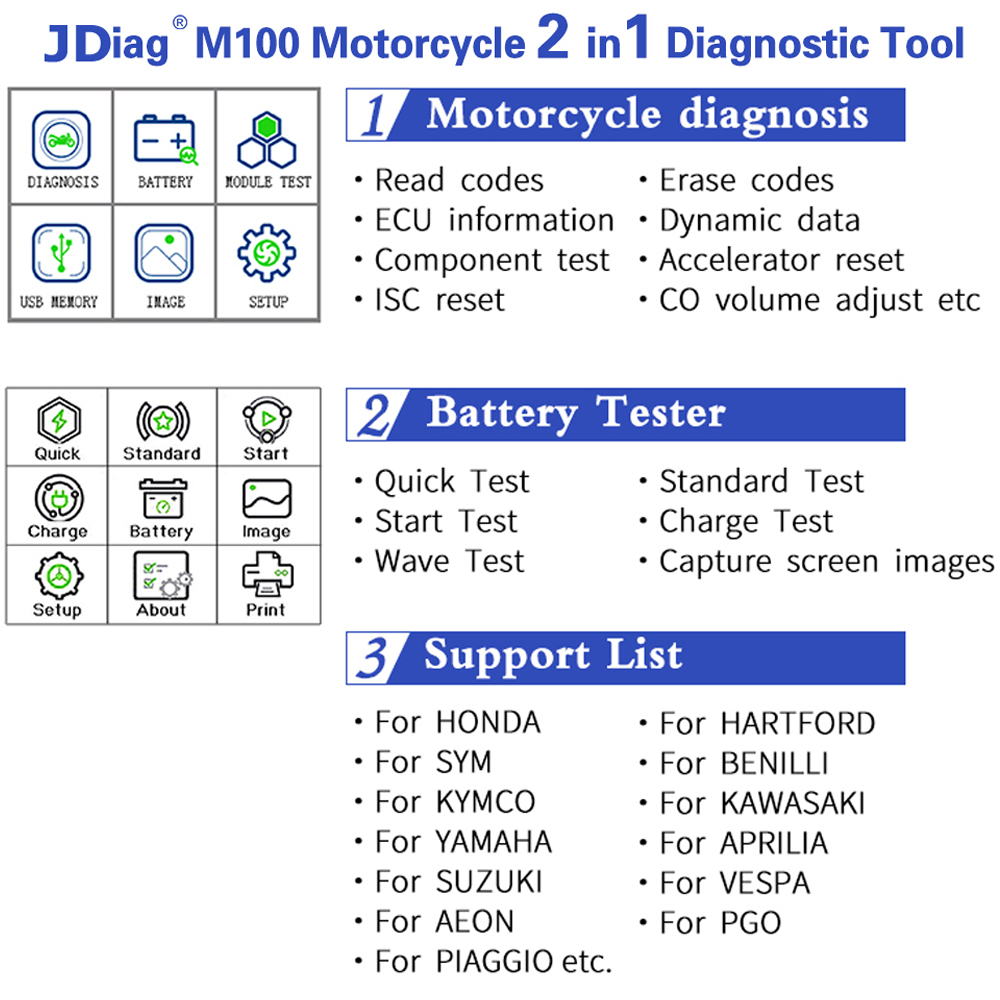

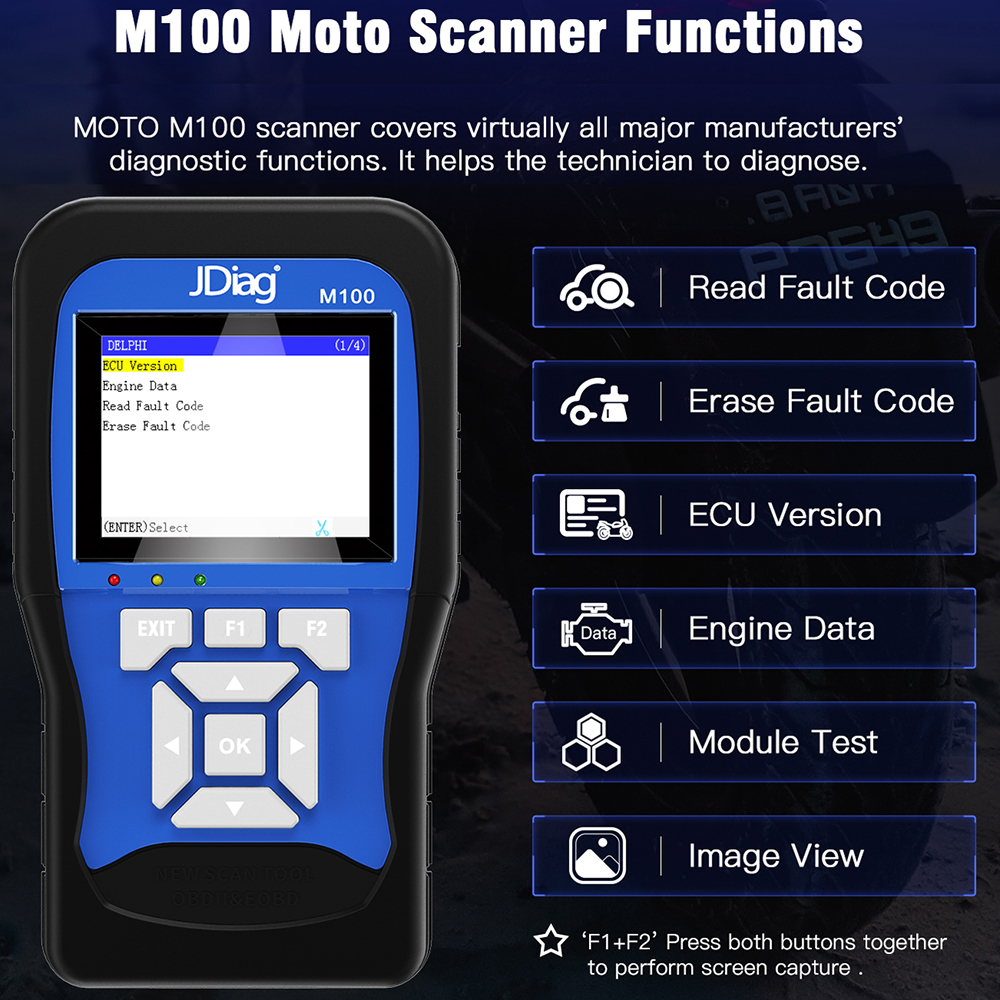

Moto Diagnosis System Functions:
1. Read System Information
2. Read Data Stream
3. Read Fault Code
4. Erase Fault Code
5. Freeze Data
6. CO Idle Speed Adjustment
7. Actuators Test
8. ABS System Test
9. Trouble Shooting Guidance
10. Tire Pressure System Test
11. Anti-theft System Test

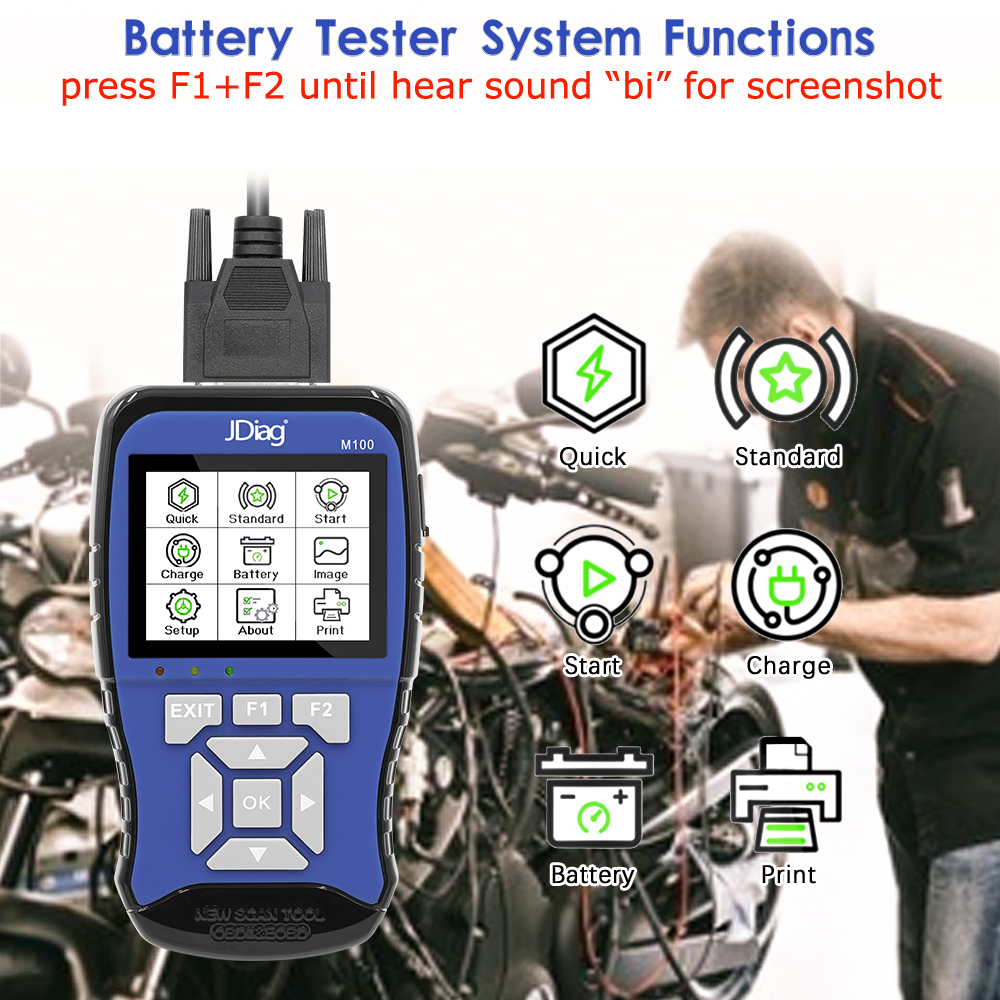

Battery Tester System Functions:
1. Battery Tester- Quick Tester and Standard Test
2. Cranking Test
3. Charging Test
4. Wave Test
5. Test Result Printing
Supported Languages:
English, Spanish, Thai, Indonesian, Vietnamese, Chinese
Supported Motorcycles:
Aeon, Apprilia, Benelli, Hartford, Honda, Kawasaki, KTM, Kymoc, Piaggio, PGO, Suzuki, SYM, Vespa, Yamaha, OBD-II
Specifications:
Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 to 85 degree centigrade
Operating temperature: 0 to 70 degree centigrade
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

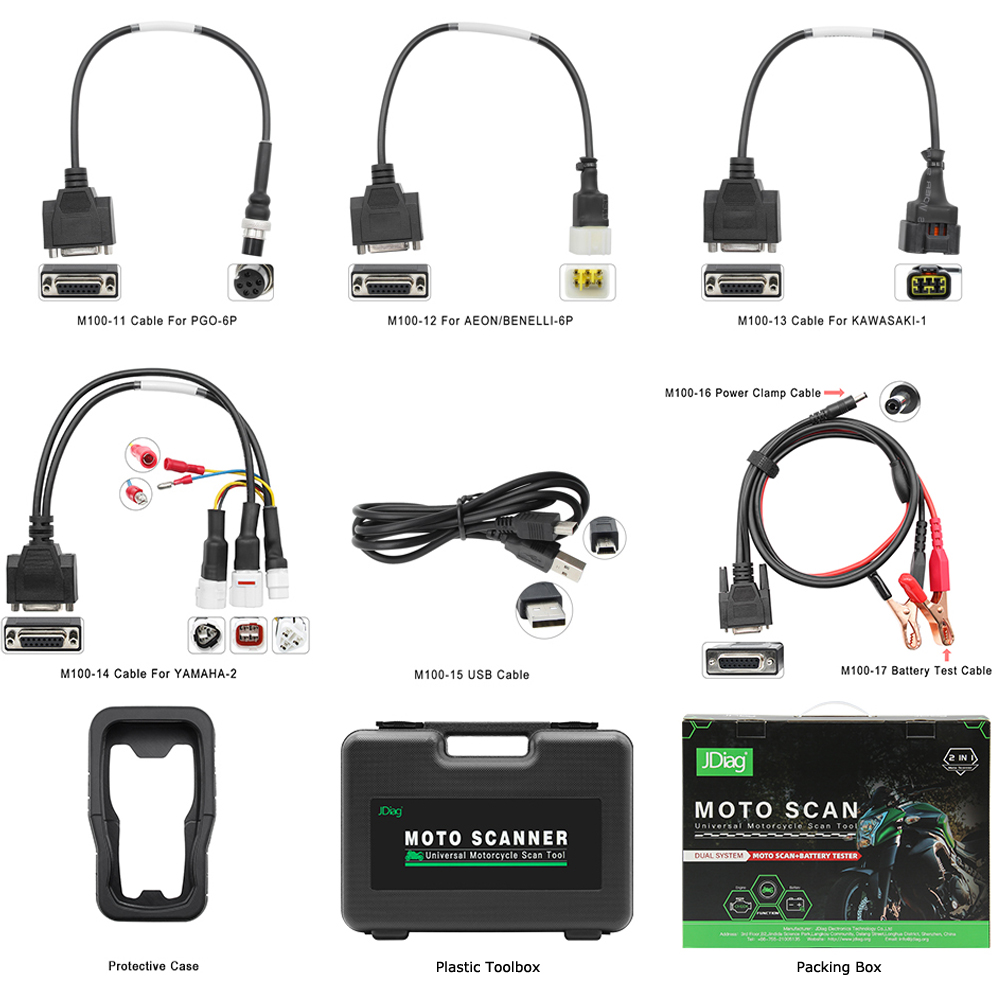

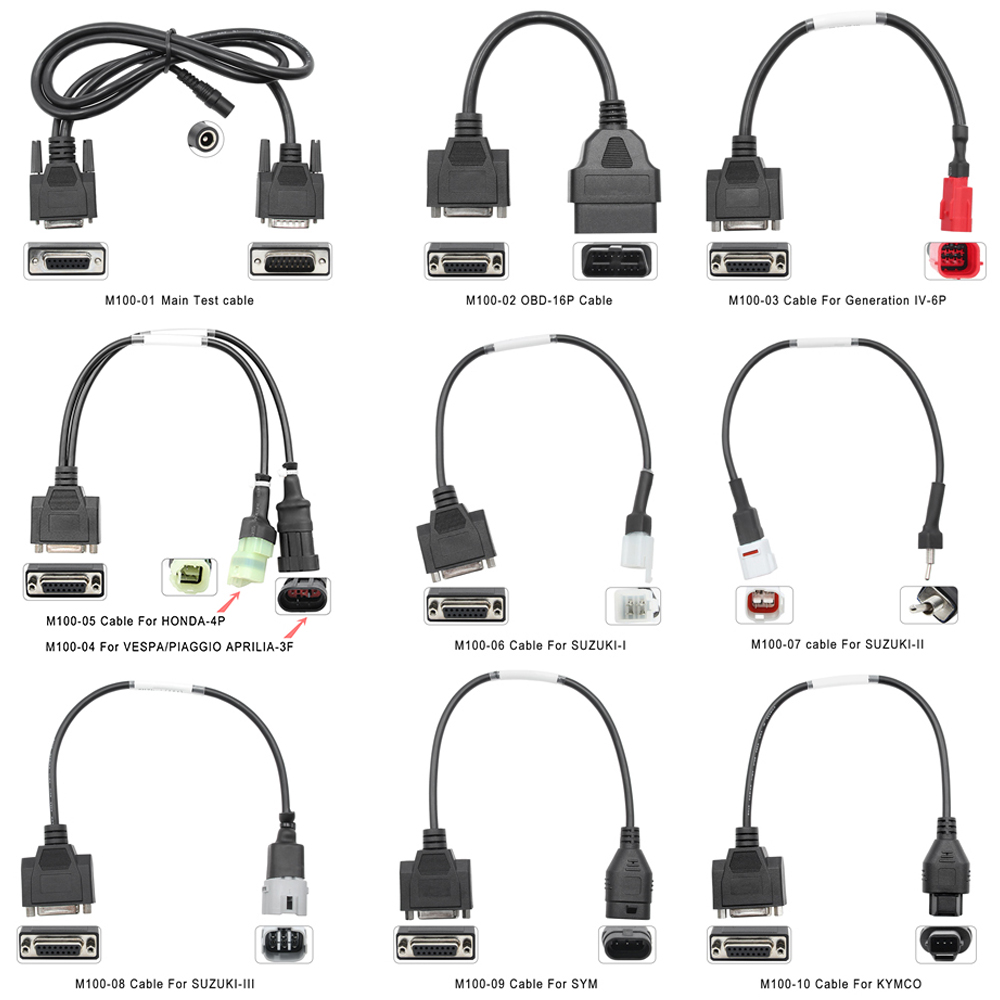

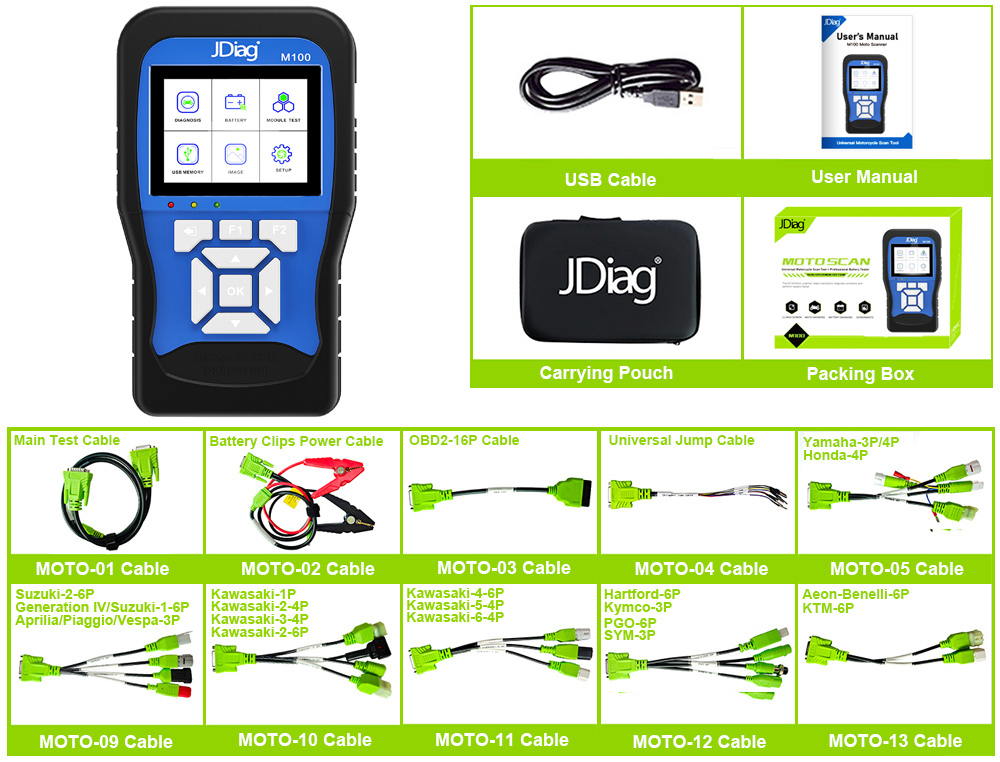

Packing List:
JDiag M100 Motorcycle Scanner
Test Cable Kit
USB Cable
User Manual
Protective Case
Plastic Toolbox
|
