Description:



Launch X431 CRP909E Professional full system diagnostic tool with 15 Reset Service + Auto VIN Scan + Live Data Stream + Data Playback + Vehicle Health Report Generate Share and Print + Battery Voltage + DTC Lookup + Diagnostic Feedback...



Software Update: one year free update online



Supported Languages: English, French, German, Spanish, Portuguese, Russian, Italian, Japanese, Korean



Functions:



1. Full 10 Mode OBD-II / EOBD / JOBD Car Diagnostics Functions:



This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)



Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.



Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.



I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.



Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display. 6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.



O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.



On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.



Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.



Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

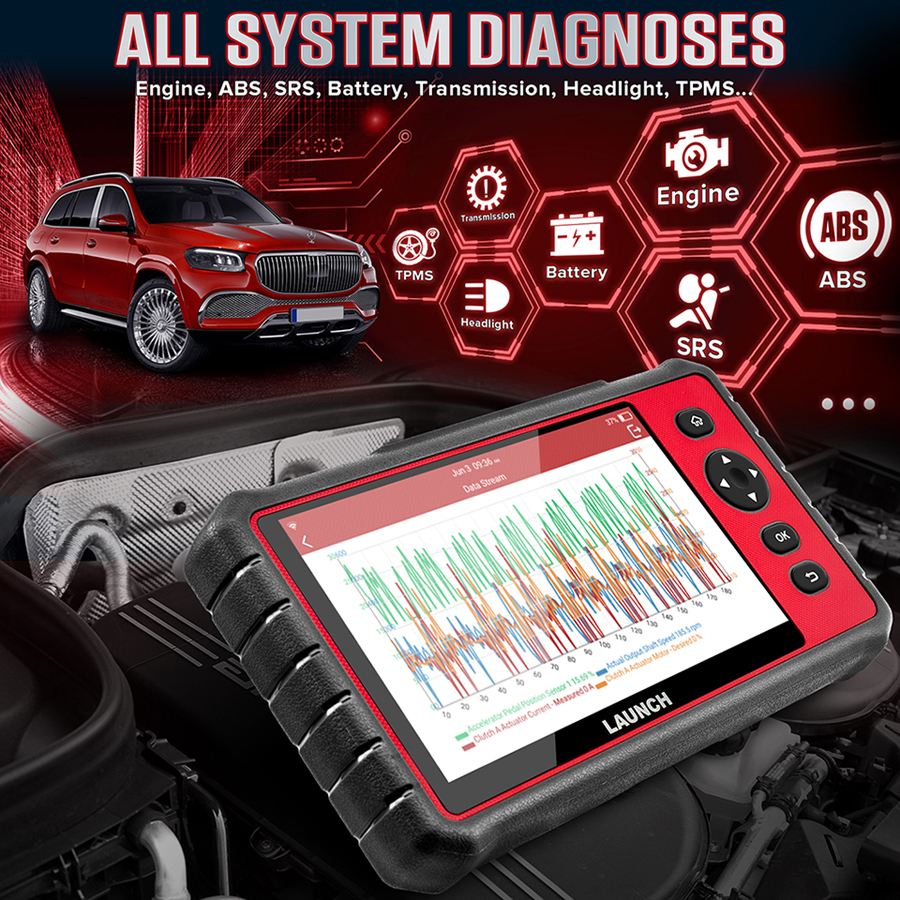

2. All System Diagnostic Tool



Launch CRP909E read and clear fault codes for all system of car :ABS system, Engine system, SAS system, TPMS system, Immobilizer system, Battery system, Oil service system , SRS system, Parking assist system, Body systems, Seats, Doors, Gateway, Steering Angle ,Fuel burning heater, Air Conditioning system, Body System, AWD, Door Lock System, 4WD system , audio Systems ect.



LAUNCH X431 CRP909E Car Diagnostic Tablet is an newest evolutionary Android smart solution for 12V passenger car, light duty, pickup truck diagnosis & maintenance. Covering more than 57 car brands. It is developed for car repair garage, car beauty service parlors, auto mechanic and DIY car owners auto scanner. This CRP909E OBD2 Scanner support all systems diagnosis, all OBD-II functions, 15 reset all OBD-II functions.

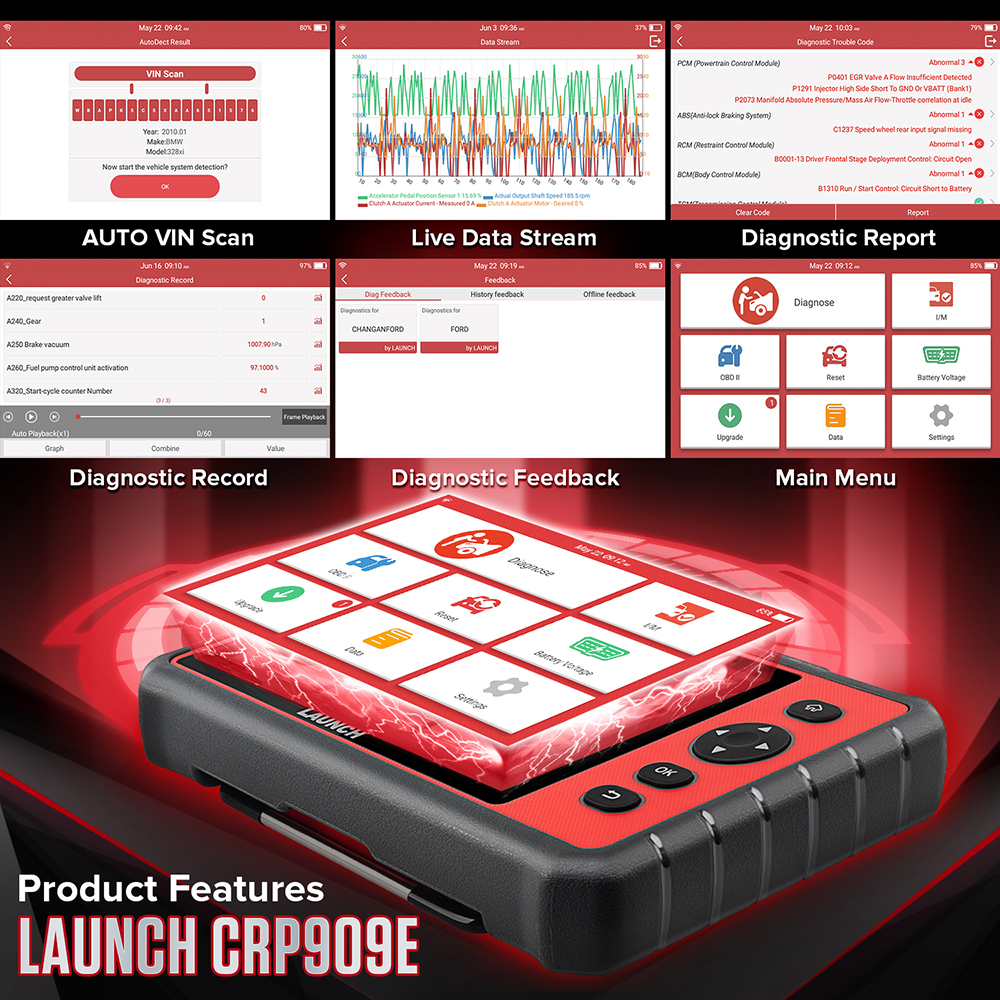

3. Auto VIN Scan



Auto VIN functions allowing you to quickly figure out Vehicle Identification No. (VIN), Calibration ID(s), Calibration Verification Nos. (CVNs). This function is especially useful when you want to know if the manufacturer had ever issued a recall of the vehicle and whether the repairs were made, or retrieve the history report of a used car to know its accidents or repairs.

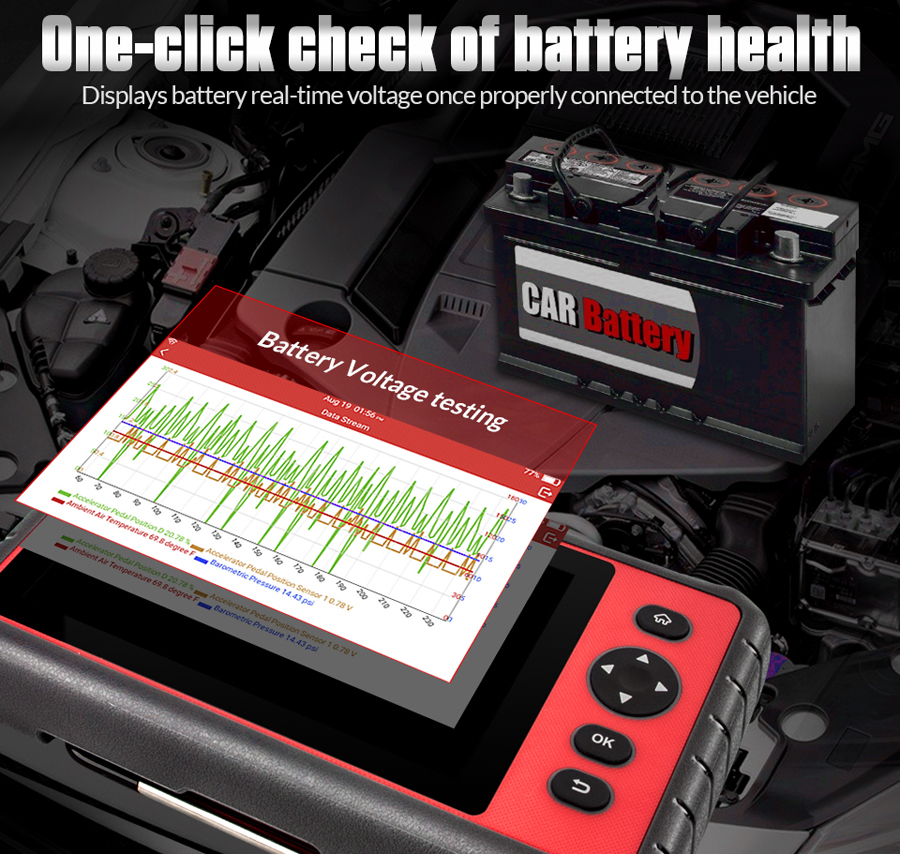

4. Perfect Performs Vehicle Battery Analysis



For 12V car, SUV, Van, Light Truck, Pickup. Detect real-time data from 12V batteries and display BATTERY DATA with fluctuations ranging from 8V to 16V. The discharge voltage of a normal battery is about 12V, the starting voltage is generally 12V, and the charging voltage is about 14V.



5. Live Data Stream Graphing Share Record Playback



Launch CRP909E shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.



Data recording functionality is amazing, customer can record the live data stream for up to 4, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format. Playback supports two graphs (independent) or 4 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.



Launch CRP909E OBD2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared to email then print.



The diagnostic report can help you save time to analyze the problem. It is very great for repair shop , mechanics can print out the vehicle report for customer.



6. 15 Reset Service Functions



Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.



EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.



BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.



IMMO Reset The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.



ABS Bleeding ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.



Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.



Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.



Gearbox (Transmission) Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.



AFS Headlamp Reset

'AFS' means Adaptive Front Lighting System (at night with the Bi-Xenon headlights). It swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.



Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.



Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.



Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

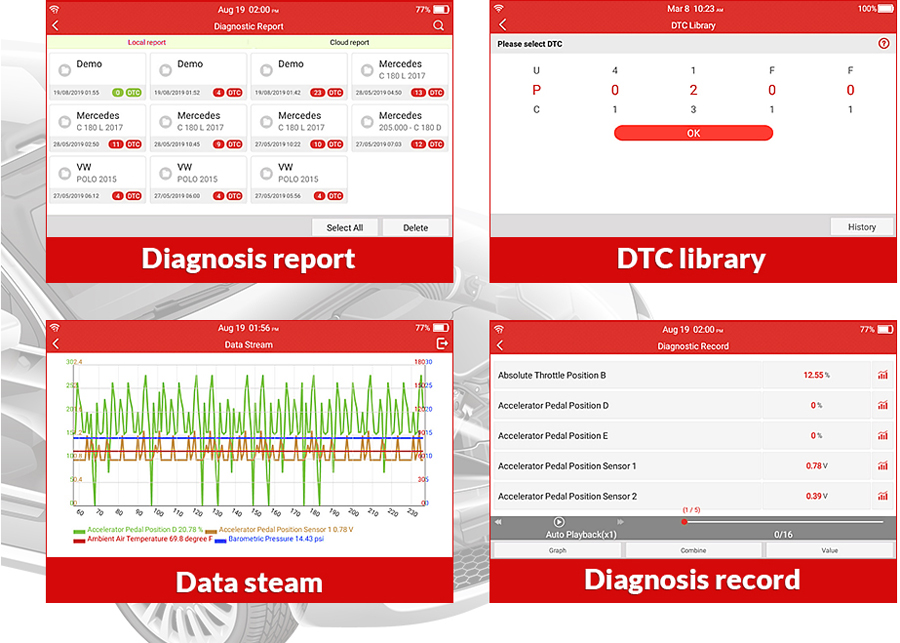

7. Other Feature of LAUNCH X431 CRP909E



1). DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.



2). Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and the report can be saved offline.



3). Diagnose Report Share & Printed: you can share the diagnose report to your Email, then printed via computer.

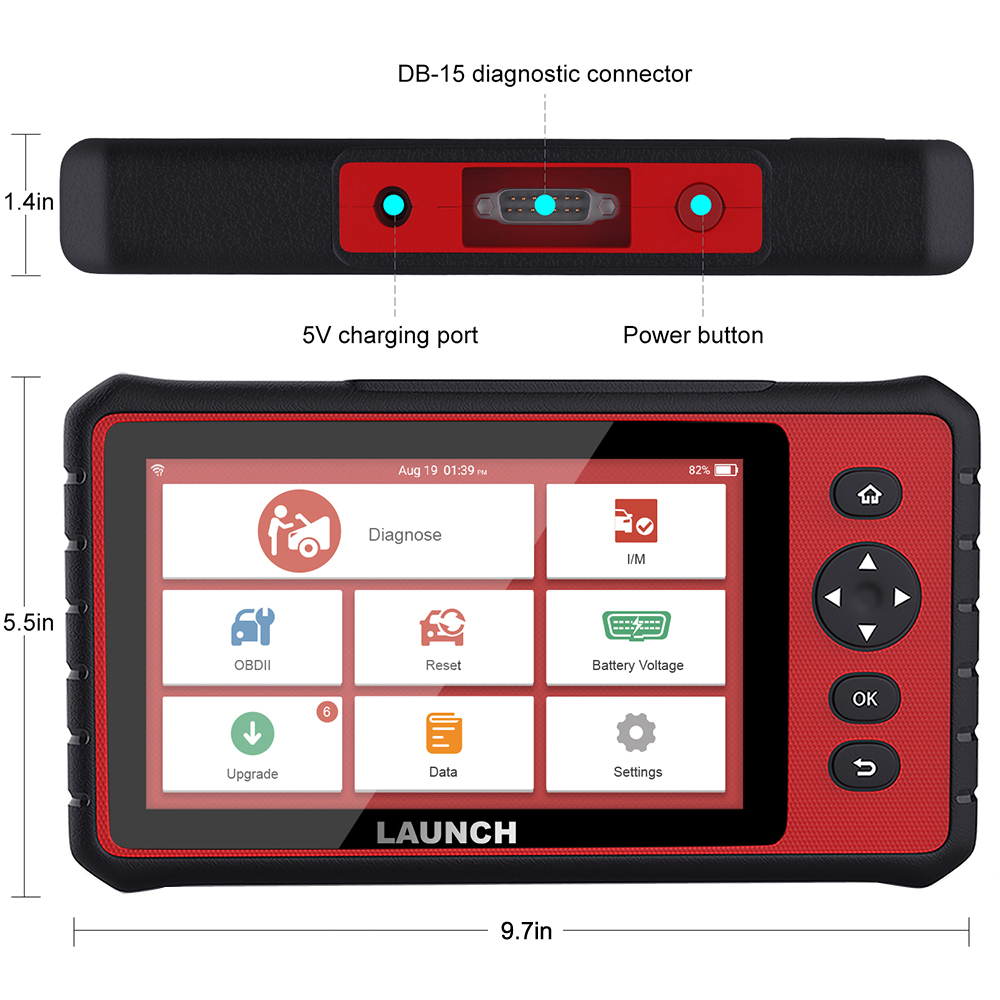

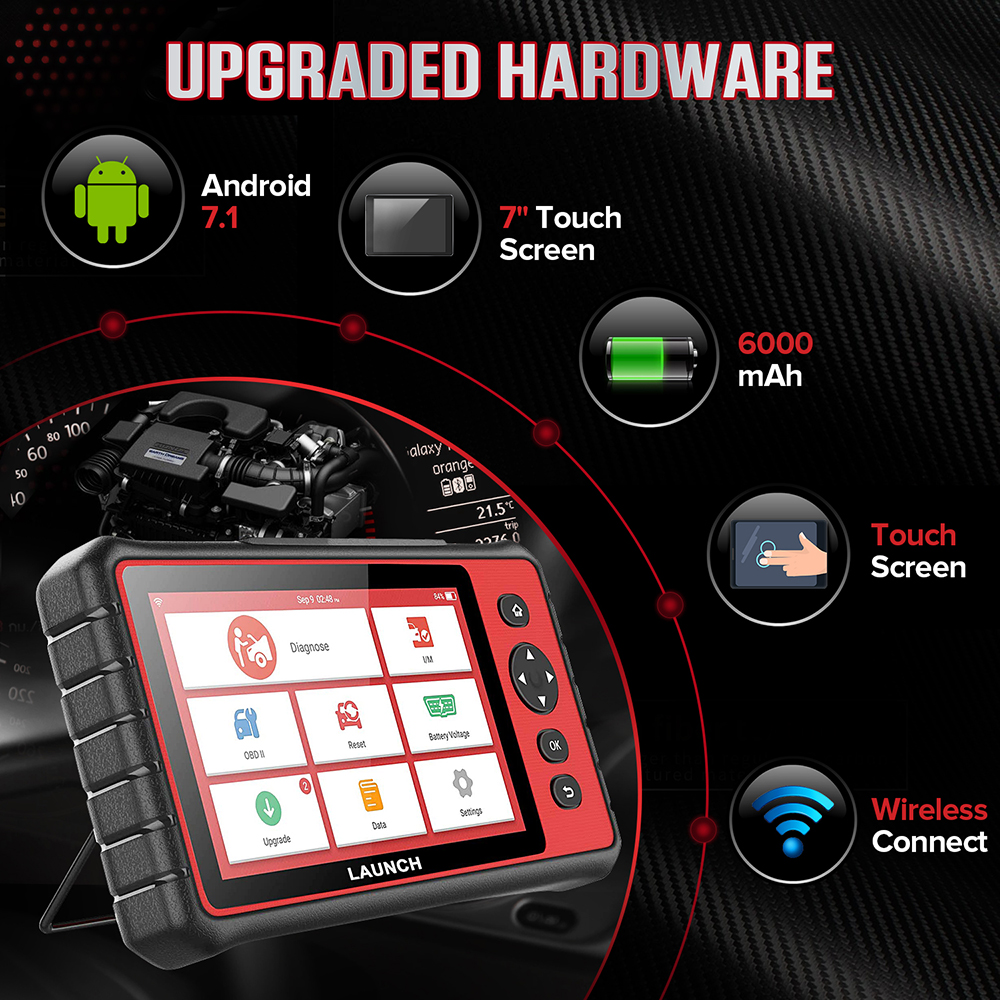

Technical Parameters:



Operating System: Android 7.1

Processor: powerful Quad-Core Processor

RAM: 1GB

ROM:16GB

Display: 7 inch IPS touch screen

Connectivity: mini USB 2.0; Wi-Fi

Battery: 6000mAh lithium-polymer battery

Battery Life: more than 8 hours

Size: 9.8*5.5*1.5 inch

Net Weight: 700g

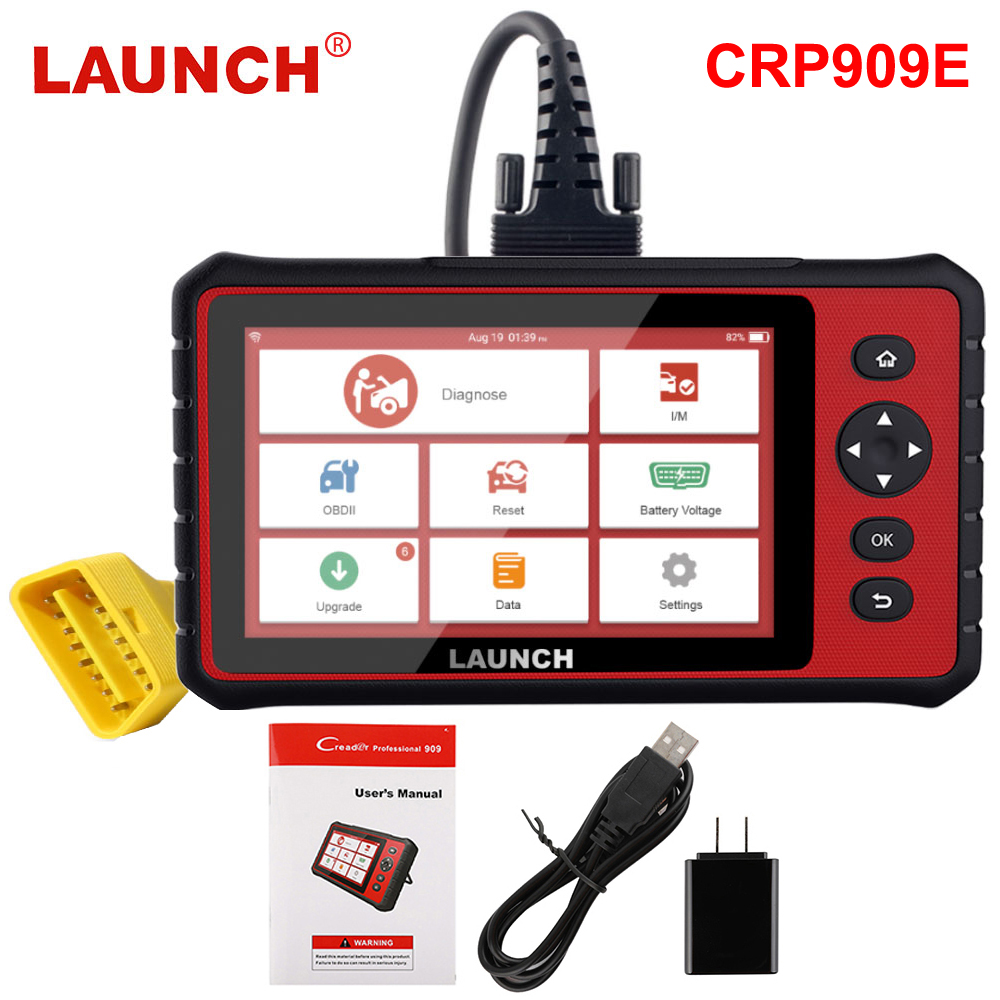

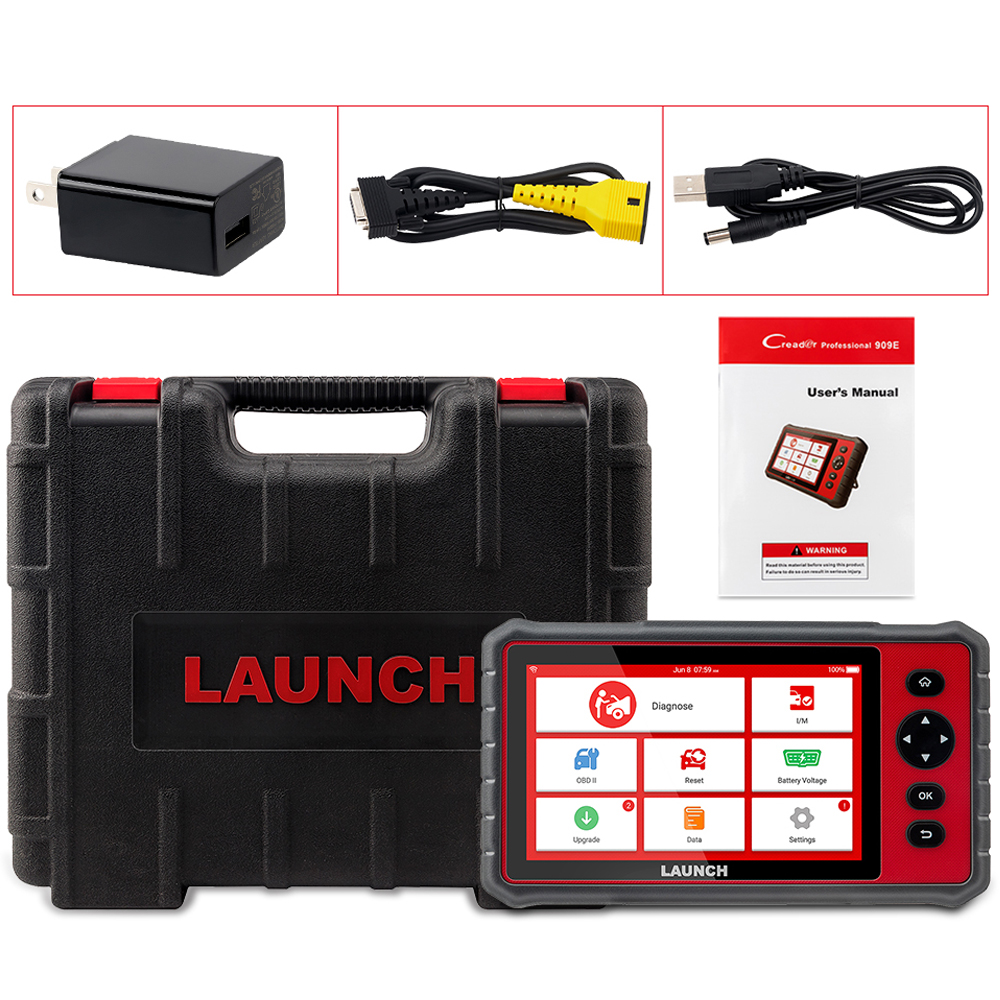

Packing List:



Launch X431 CRP909E Android Scanner

OBD-II Diagnostic Cable

USB Cable

Power Supply Adapter

User Manual

Plastic Toolbox

Packing Box
