Name: OBDSTAR MS50 Special Kit
Description:
OBDSTAR MS50 Special Kit works with the OBDSTAR MS50 Standard Version and OBDSTAR MS50 Basic Version for motorcycle IMMO. It enable the OBDSTAR MS50 support Key Programming, ECU Programming & Clone and Odometer Correction.
It is a handy tool in motorcycle maintenance & repair garage and fast repair shops for Asian and European motorcycles.
Attention:
Please tell us serial number of your OBDSTAR MS50 so we can enable the functions of Key Programming, ECU Programming & Clone and Odometer Correction.

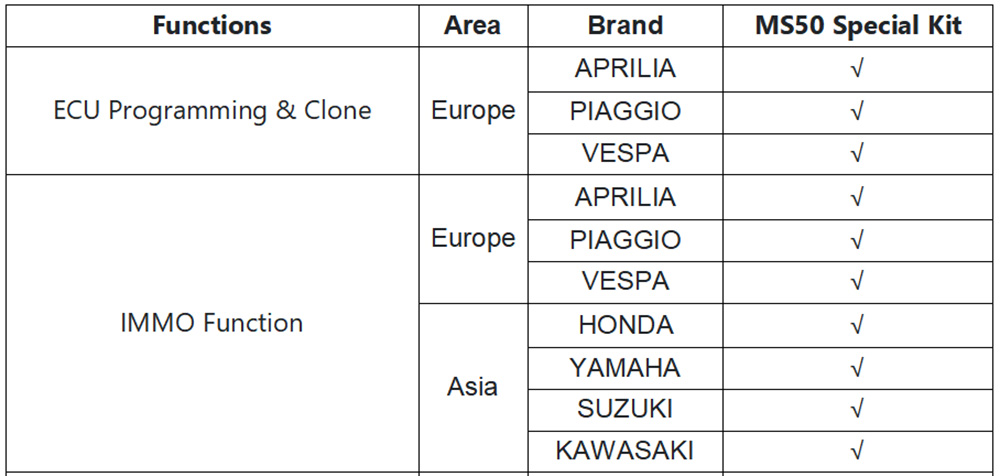

Functions:
Key Programming
ECU Programming & Clone

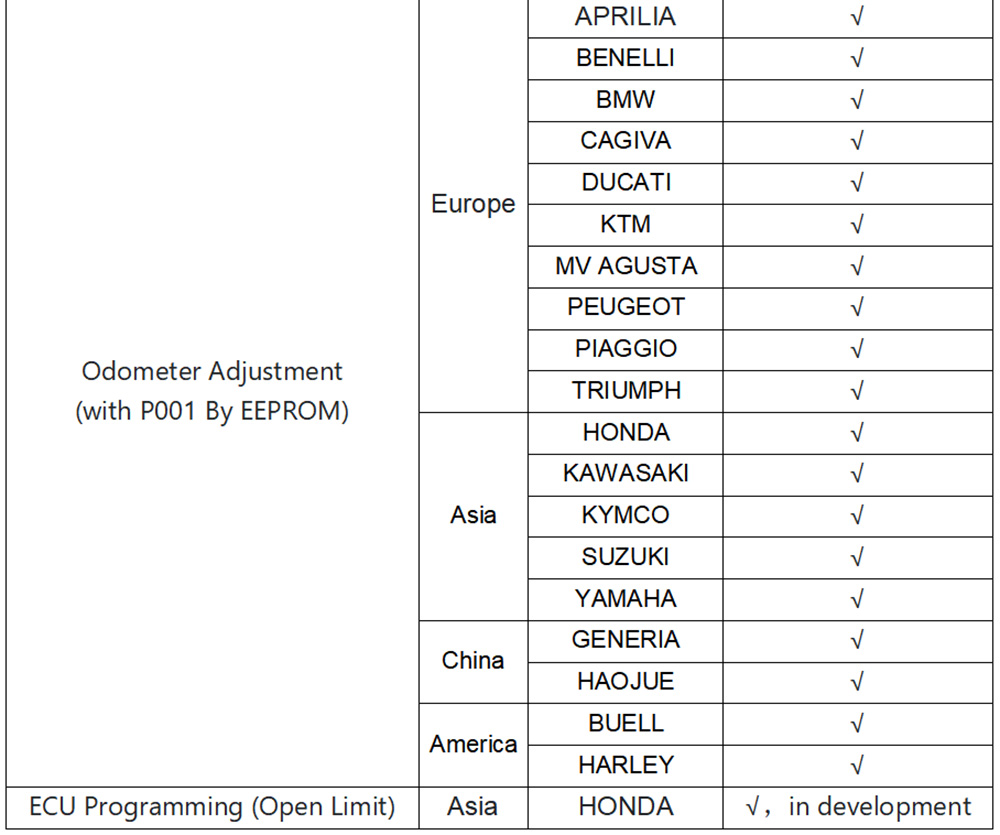

Odometer Correction (with P001 by EEPROM)
Portable Design
Easy Operation
High Performance
Supported Motorcycle Models:
1. APRILIA / PIAAGIO / VESPA free pincode key programming(OBD / BENCH mode) for ECU types below:
ACI100
ACI500/ 501/ 502/ 503/ 504/ 505
ACI600/ 601/ 602/ 603/ 604/ 605/ 606
ACI1/ AC2I/ AC5I/ AC8I/ AC13I/ AC21I/ AC23/ AC23
AC19I/ AC20I/ AC27I
AC24I/ AC25I/ AC32I
IAW15
IAW 5AW_HW103/ HW610
IMMO 003/ IMMO 006
MIU1/ MIU2/ MIU4
MIU G3
PGN 04
PGS 06
RIU1
2. HONDA BENCH mode proximity key programming for models below:
SH125/ SH150
SH MODE
PCX
X-ADV
SUPER CUB
ADV
FOZZA
AIR BLADE
CLICK
LEAD
VARIO
VISION
BEAT
SCOOPY
3. KAWASAKI OBD free pincode add proximity key:
EX250S 2007-2021
EX400J 2007-2021
ZG1400A 2007-2021
ZG1400A/B 2007-2021
ZG1400B 2007-2021
ZG1400C 2007-2021
ZG1400C/D 2007-2021
ZG1400D 2007-2021
ZG1400E 2007-2021
ZXT02P 2007-2021
ZXT02R 2007-2021
4. SUZUKI BENCH mode proximity key programming for models below:
GSX-R150
RAIDER R150 FI
5. YAMAHA BENCH mode proximity key programming for models below:
AEROX
GRAND FILANO
JANUS
NUX
QBIX
XMAX
T-MAX
T-MAX DX
T-MAX SX SPORT
T-MAX IRON MAX
NMAX
FREE GO
LEXI
More models will be upgraded soon...

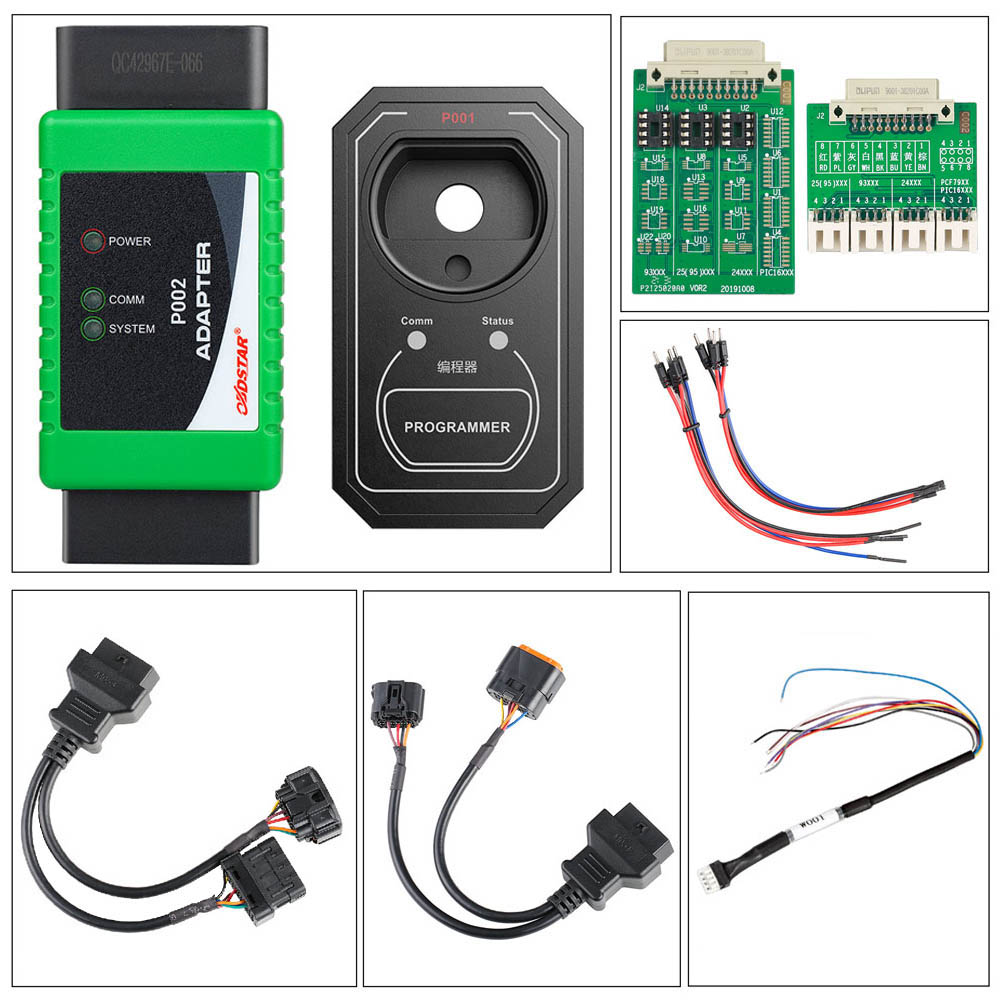

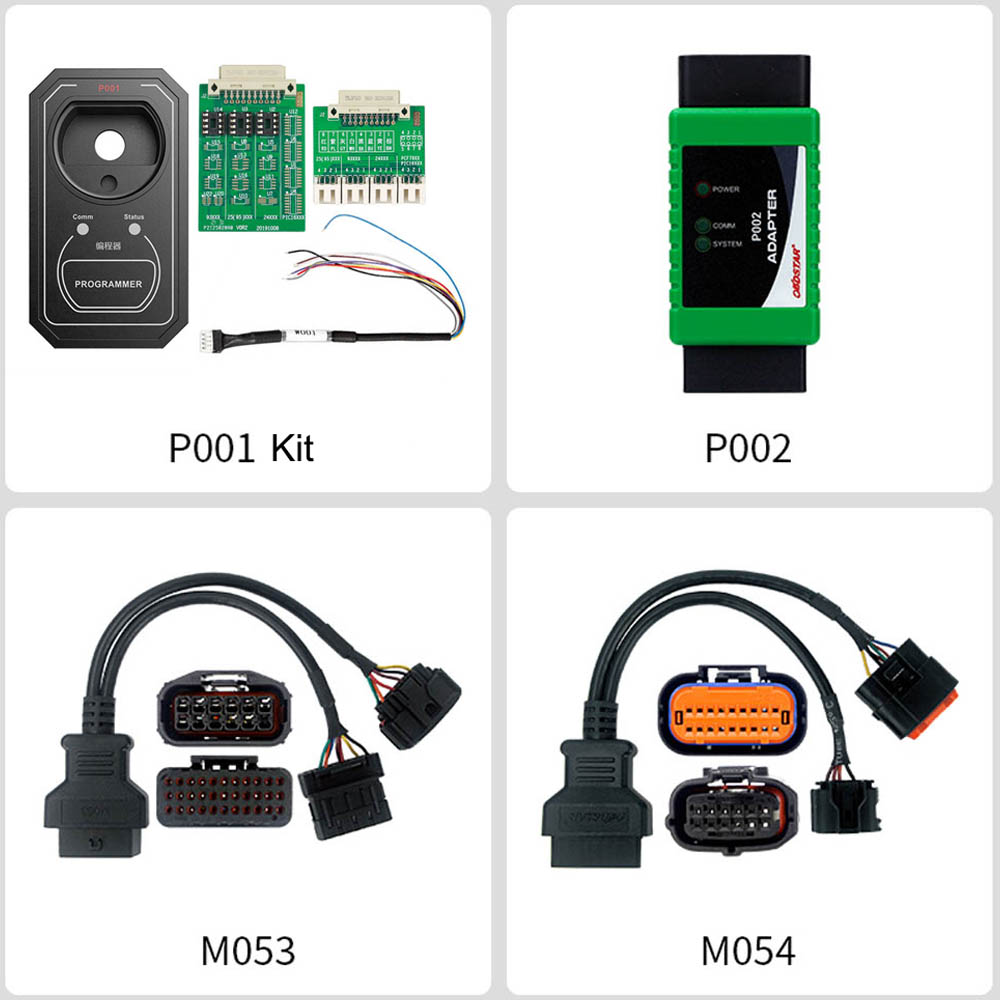

Packing List:
OBDSTAR P001 IMMO Kit

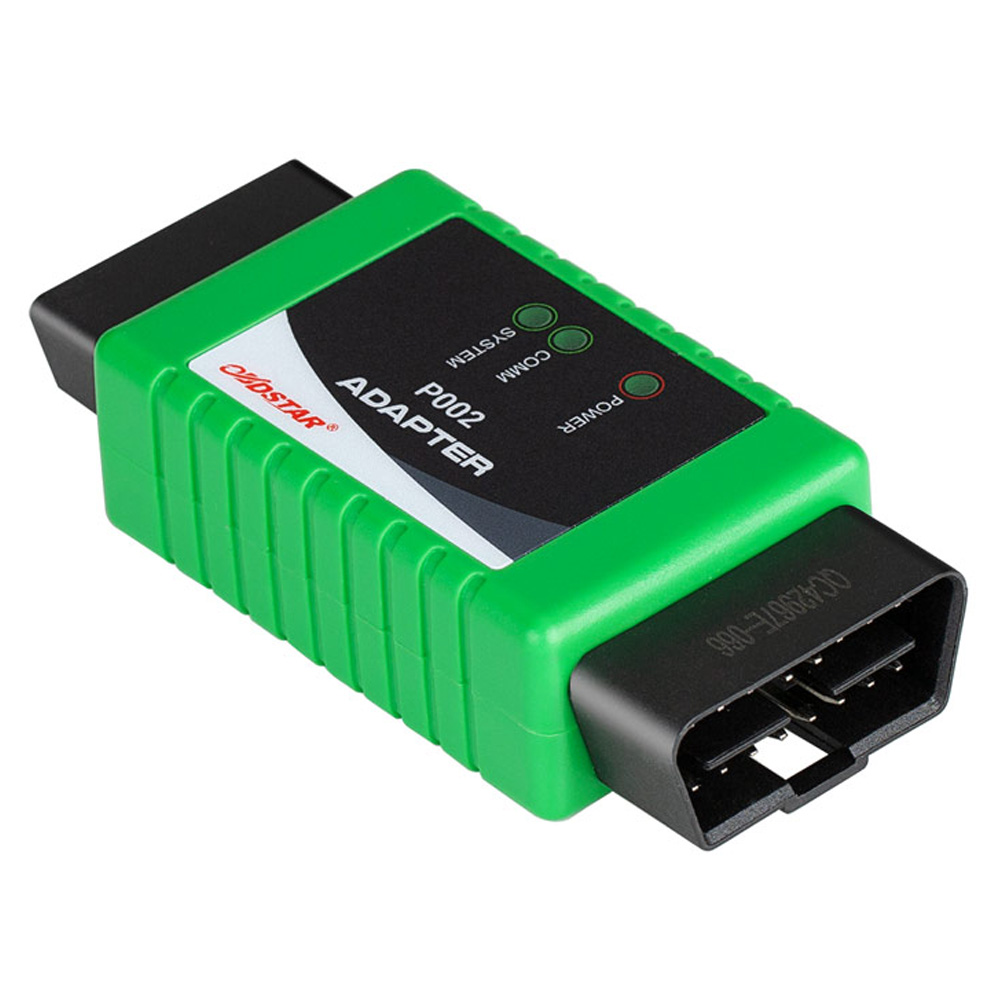

OBDSTAR P002 HONDA / SUZUKI / YAMAHA (Proximity BENCH)

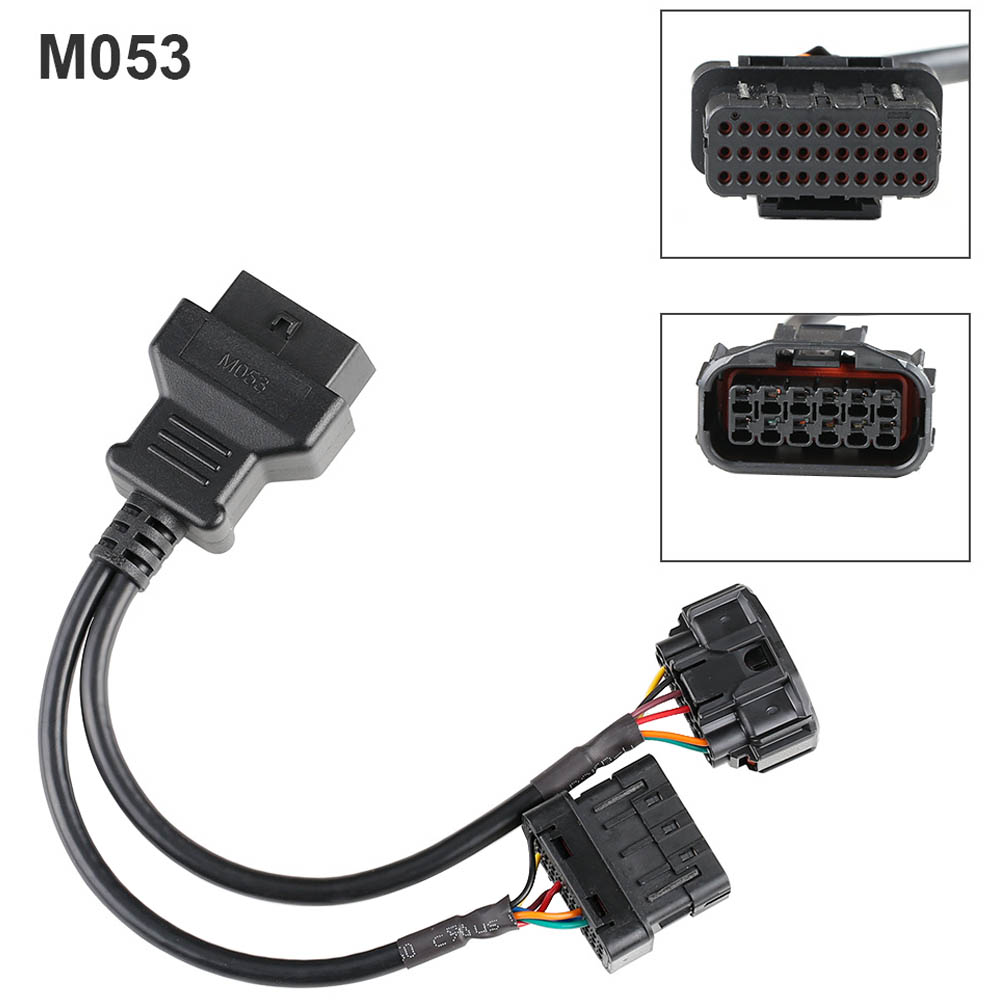

M053 (Proximity BENCH)

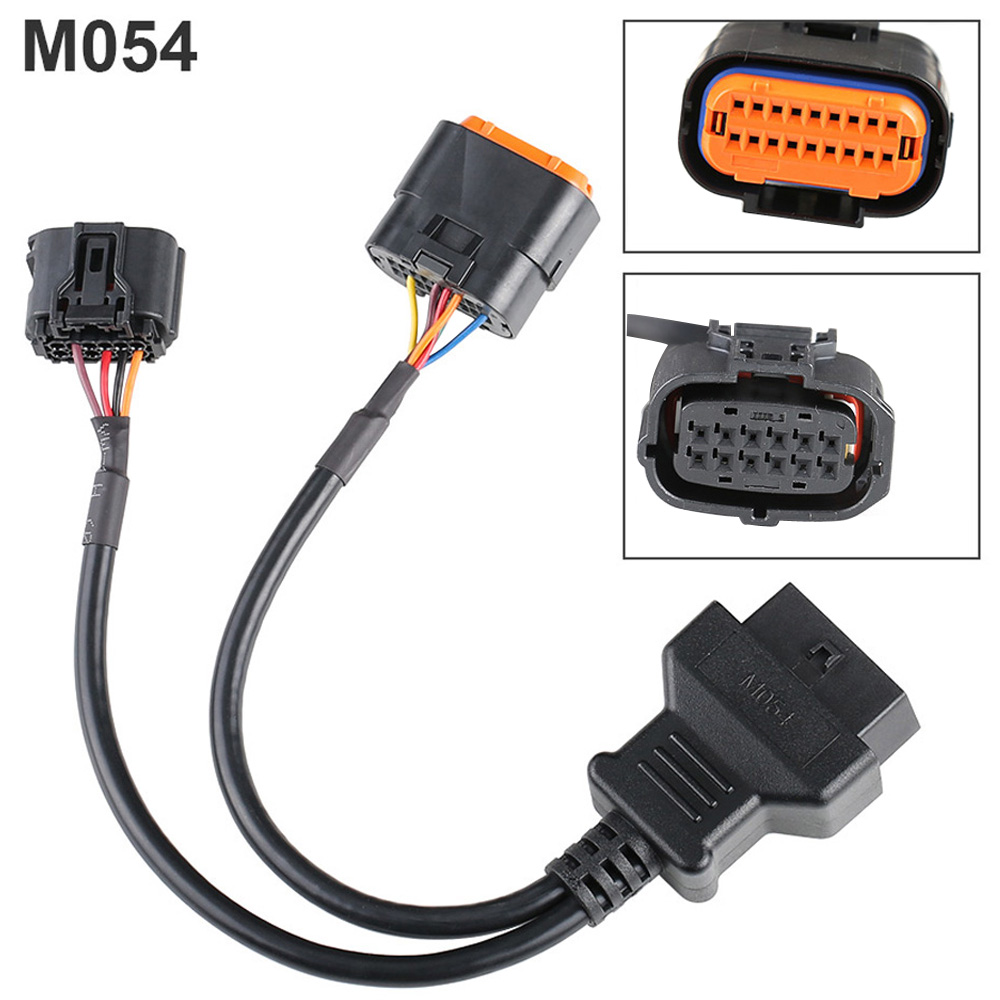

M054 SUZUKI / YAMAHA (Proximity BENCH)
|
