Description:



New ThinkCar ThinkScan Max is a professional automotive code reader for full system with free 28 Reset Function + Free Upgrade more than 100+ Car Brands + Bluetooth / WiFi + Auto VIN Scan + ECU Coding + A/F Reset + Action Test.



ThinkScan Max is the highest-level full OBD-II diagnostic device for DIY users. It supports Code Reading, Clearing Data Stream, Actuation Test, Special Functions etc.



Supported Languages: English, French, Spanish, Portuguese, German, Italian, Russian, Japanese



Software Update: 1 year free update



Features:



1. Free system-wide code reading, code clearing, data streaming and upgrades for all models.



2. The full 28 reset functions are free to use (Currently 16 and will be increased to 26-28 later).



3. After subscribing to the software, the whole system can be diagnosed with full functions (action test, special function, coding can be carried out).



4. Android system can be upgraded online.



5. The whole system diagnoses more than 93 car brands.



6. Diagnosis covers all models that support OBD protocol after 1996.



7. Equipped with VIN code intelligent identification models.



8. 5.99 inch display is convenient for you to diagnose the car in real time



9. 2G RAM / 16G ROM. Support Bluetooth and WiFi connection



10. Pay for one car model software can enjoy Free Upgrade 1 year the full system, such as ECU Coding / Action Test and other Special Function.

(Cost: USD49.95/year. You can buy from ThinkCar Store directly)



Functions:



1. 10 Modes OBD-II /EOBD / JOBD Full System Diagnosis



Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)



Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.



Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.



I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.



Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.



View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.



O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.



On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.



Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration Verification Number), etc.



Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability



2. 28 Maintenance Reset Functions:



(Note: All 28 Reset Functions are Life-time Free Update! Currently 16 functions are available and will be increased to 26 - 28 later)



1). Oil Reset

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.



2). EPB Reset

It is important in the maintenance of electronic braking system safety and efficiency.



3). BMS Reset

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



4). DPF Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



5). SAS Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



6). TPMS Reset

Makes sense in displaying sensor IDs from the vehicle ECU, inputting TPMS sensor replacement IDs and testing sensors.



7). IMMO Reset

It is mainly used to disable the lost vehicle keys and program a new replacement key fob.



8). ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion.



9). Throttle Reset

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair



10). Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.



11). Gear Learning

After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC “tooth not learned” is present, tooth learning must be performed.



12). Suspension Matching

Adjust the vehicle height sensor for level calibration.



13). Sunroof Initialization

Set the sunroof lock off, close in rain, memory function of sliding 1 tilting sunroof, outside temperature threshold, etc.



14). Battery Matching

By clearing the original breakdown information about the lack of battery power, rematch the battery.



15). A/F Reset

Applied to set or lean Air/Fuel ratio parameters.



16). Steering Angle Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



3. Actuation Test, Bi-Directional Test and ECU Coding:



Actuation Test / Bi-Directional Test and ECU Coding also supported at additional costs USD49.95/year (You can buy from ThinkCar Store directly).



Actuation Test function is used to test whether the execution components in the electronic control system can work normally.



ECU Coding function is used to re-flash the vehicle control modules. It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts; Provide solutions for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts etc.; Brake the limitations and restrictions; make full use of the car hidden features, like change the warn beeps on car, set how many times the one-touch signal flickers for one touch, remember settings for Start / Stop systems, and more.



4. Auto VIN Scan Smart Diagnosis



1). Read Version Information: Read the current version information of the car ECU.



2). Read Fault Code: Help you quickly identify the cause of the vehicle breakdown.



3). Clear Fault Code: Serves to clear the DTC of the ECU memory of the tested system.



4). Read Data Stream: Help you read and display real-time data and parameters of the car ECU, learn the vehicle performance and offer maintenance suggestions.



5). Actuation Test: Test whether the execution components in the electronic control system can work normally.



6). Keep Diagnosis History: Keep all previous records on the screen no need to start a new.



Supported Systems:



Engines, Auto Transmission, Airbags, Immobilizer, Key Coding, ABS, Cruise Control, Instruments, Self Leveling Suspension Systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tyre Pressure, Rain Sensors, 4WD System, Stabilizer, Intelligent Parking Assist, Door Motors, Audio Systems, Air Conditioning, Tiptronic, Anti Theft, Soft Top, Headlamp Leveling, Central Locking, Automatic Clutch,  DPF Reset, Electric Windows, Plip Programming, Heated Rear Window, Xenon Headlights, Wash Wipe, Fuel Burning Heater, Transfer Box, Seat Memory, Oil Life Service Reset, Sliding Doors, Electronic Throttle, Navigation System, Rollover Sensor, Cruise Control,  Multi Function Steering Wheel, Aux Heating, Electronic Parking Brake, Clutch Electronics etc.



FAQ:



Q1: Why does it have no responses when connected to a car computer?

A1: Check whether the connection with the vehicle diagnostic socket is normal, whether the ignition switch is on, and whether the tool supports the car.



Q2: Why does the system stop while reading the data stream?

A2: This may be caused by loose diagnostic dongles. Please unplug the dongle and reconnect it firmly.



Q3: Why shows communication error with vehicle ECU?

A4: Please confirm:

1. Whether diagnostic dongle is correctly connected.

2. Whether ignition switch is ON.

3. If all checks are normal, send vehicle year, make, model and VIN number to us using Feedback feature.



Q4: Why does the host screen flash when the engine ignition starts?

A4: It is normal and caused by electromagnetic interference.



Q5: How to upgrade the system software?

A5:

1. Start the tool and ensure a stable Internet connection.

2. Go to "Set up” -> "App Update", click  "OTA" and then click "check version" to enter the system upgrade interface.

3. Complete the process by following the instructions on the screen step by step. It may take a few minutes depending on the internet speed. Please be patient. After successfully completing the upgrade, the tool will automatically restart and enter the main interface.



Q6: Please explain the account and points.

A6: To use THINKSCAN Max, you need to register an account. Each account has the opportunity to earn points by recommending others to buy products and participating in official events. 1 point equals 1 USD dollar when purchasing products or services.



Q7: How to capture a screenshot?

A7: "Screenshot" icon is always floating on the screen. Tap it to capture the current screen and the screenshot is saved in the Think File module.

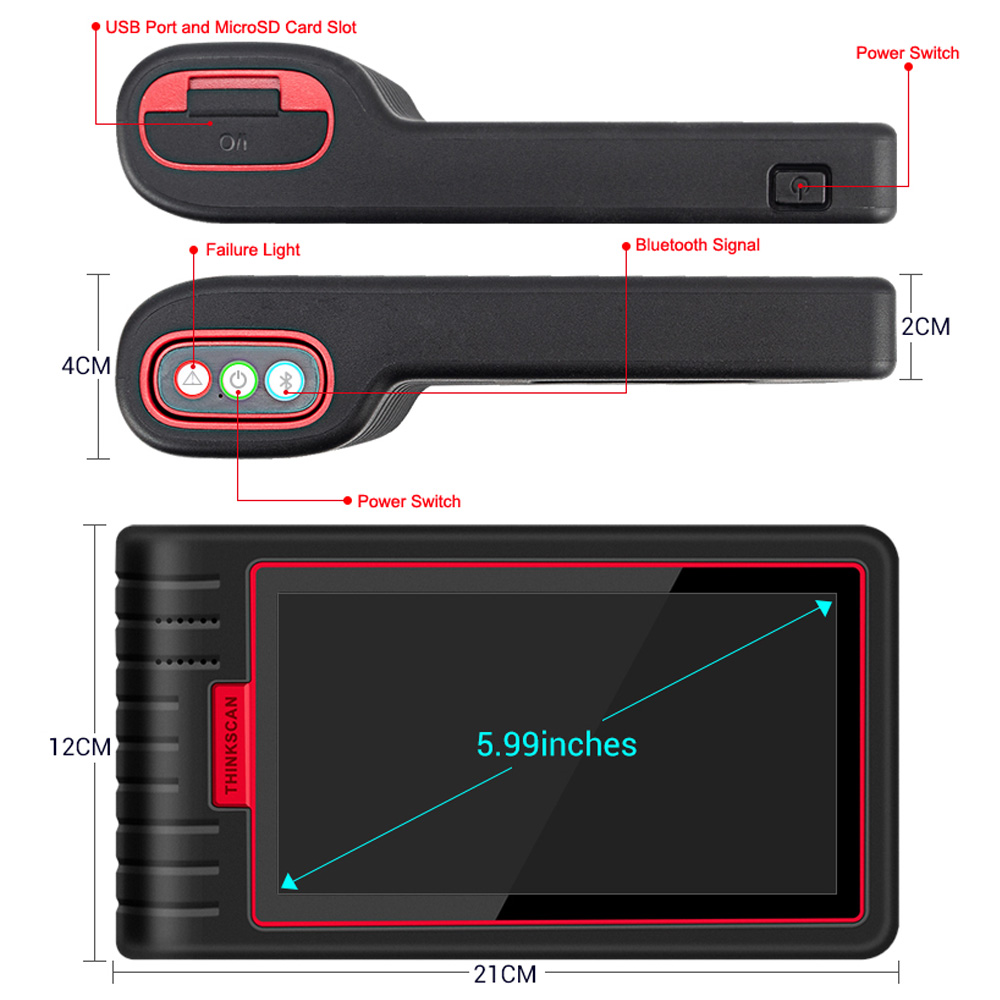

Specifications:



Display: 5.99-Inch TFT (IPS) screen

Connection: Wi-Fi / Bluetooth

Memory: 2G RAM; 16G ROM

Working Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

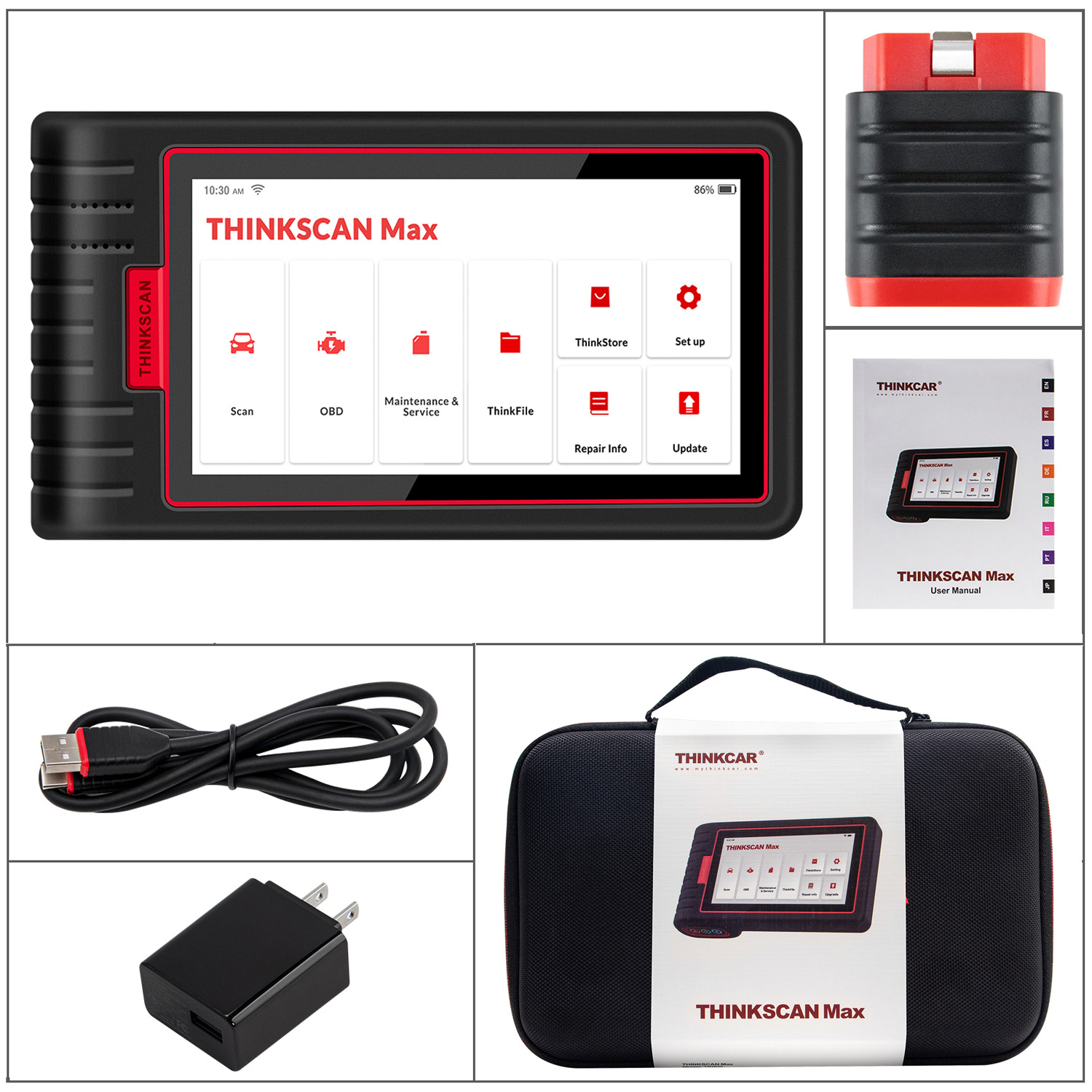

Packing List:



ThinkCar ThinkScan Max

Bluetooth Connector

USB Cable

Power Charging Adapter

User Manual

Password Envelope

Carrying Pouch

Packing Box
