Description:



ThinkCar ThinkTool Pro is a bi-directional scanner full systems diagnostic scan tool with 31+ reset functions.



ThinkCar ThinkTool Pro is a well-balanced bi-directional scan tool. It offers a decent number of OBD2 functions in addition to bidirectional tests. Experience comprehensive and OE-Level OBD2 Diagnostics, ECU Coding, Live data streaming, Active Testing and AutoVIN technology for identifying vehicles easily. You will love it if you are a DIY mechanic or enthusiast.

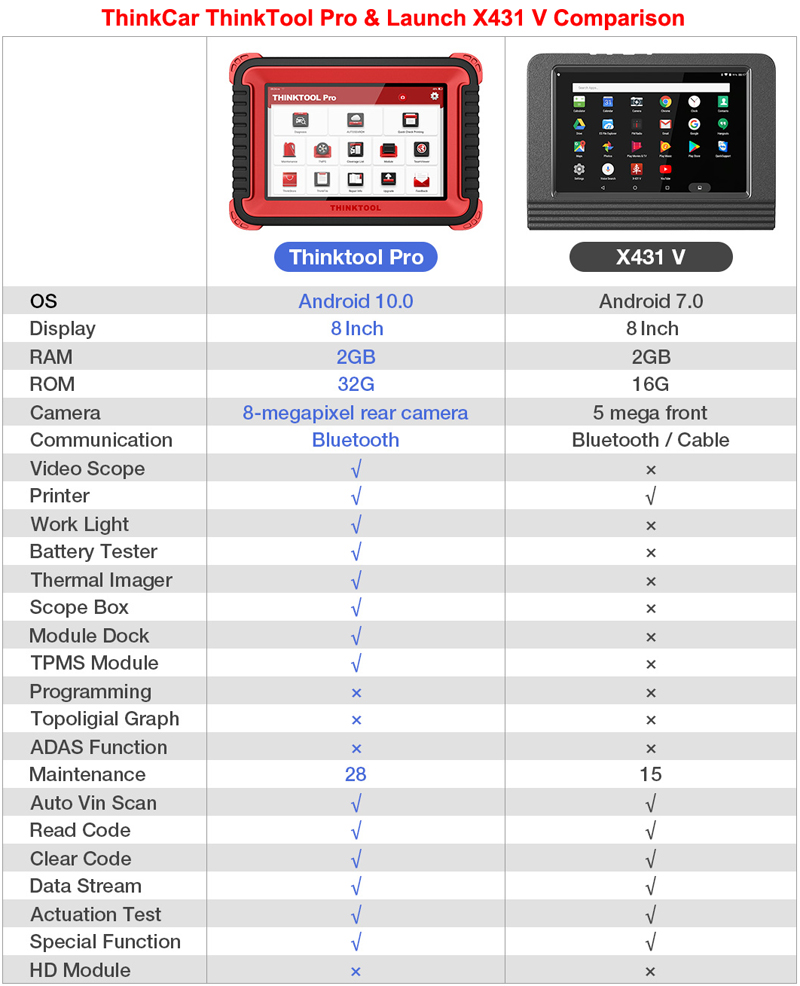

ThinkCar ThinkTool Pro has same function as Launch X431 V / Launch X431 Pro.



ThinkCar ThinkTool Pro is professional automotive scanner for mechanicians & enthusiasts.



Software Update: 2 years free update online

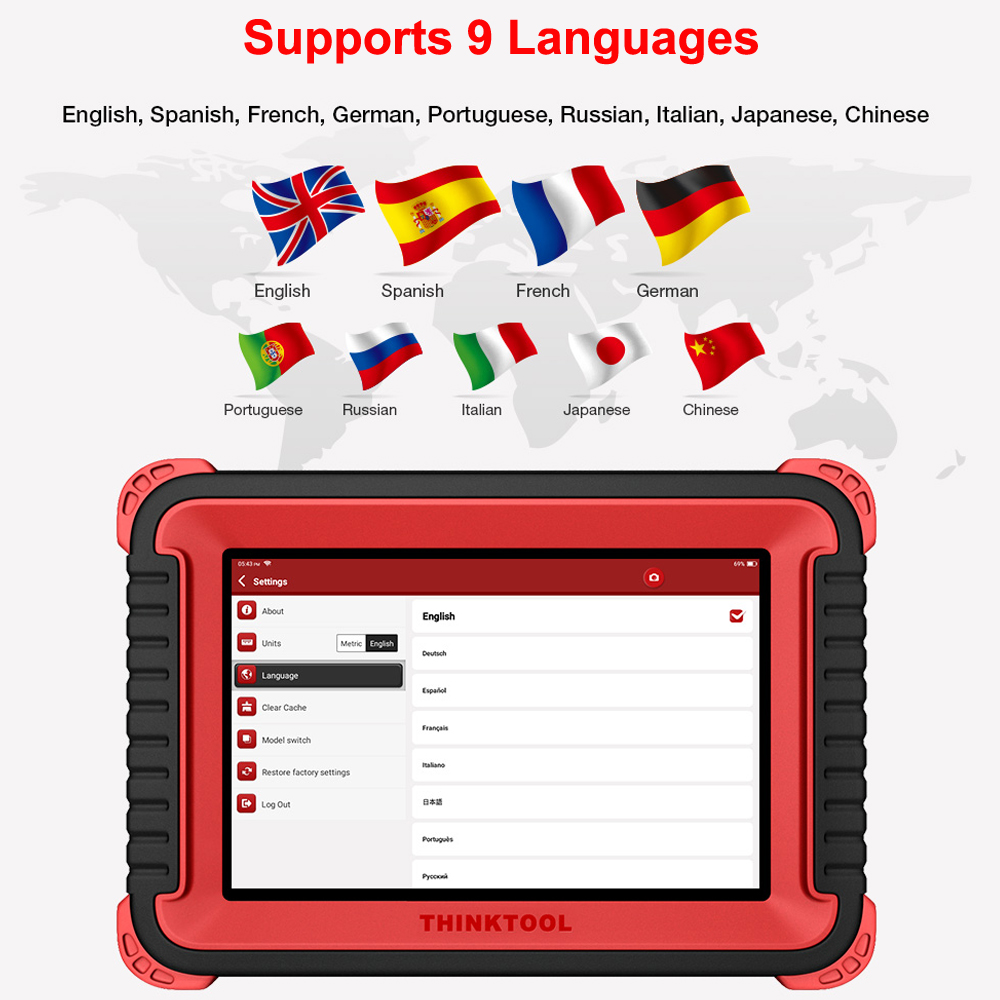

Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Japanese, Chinese



Advanced Functions:

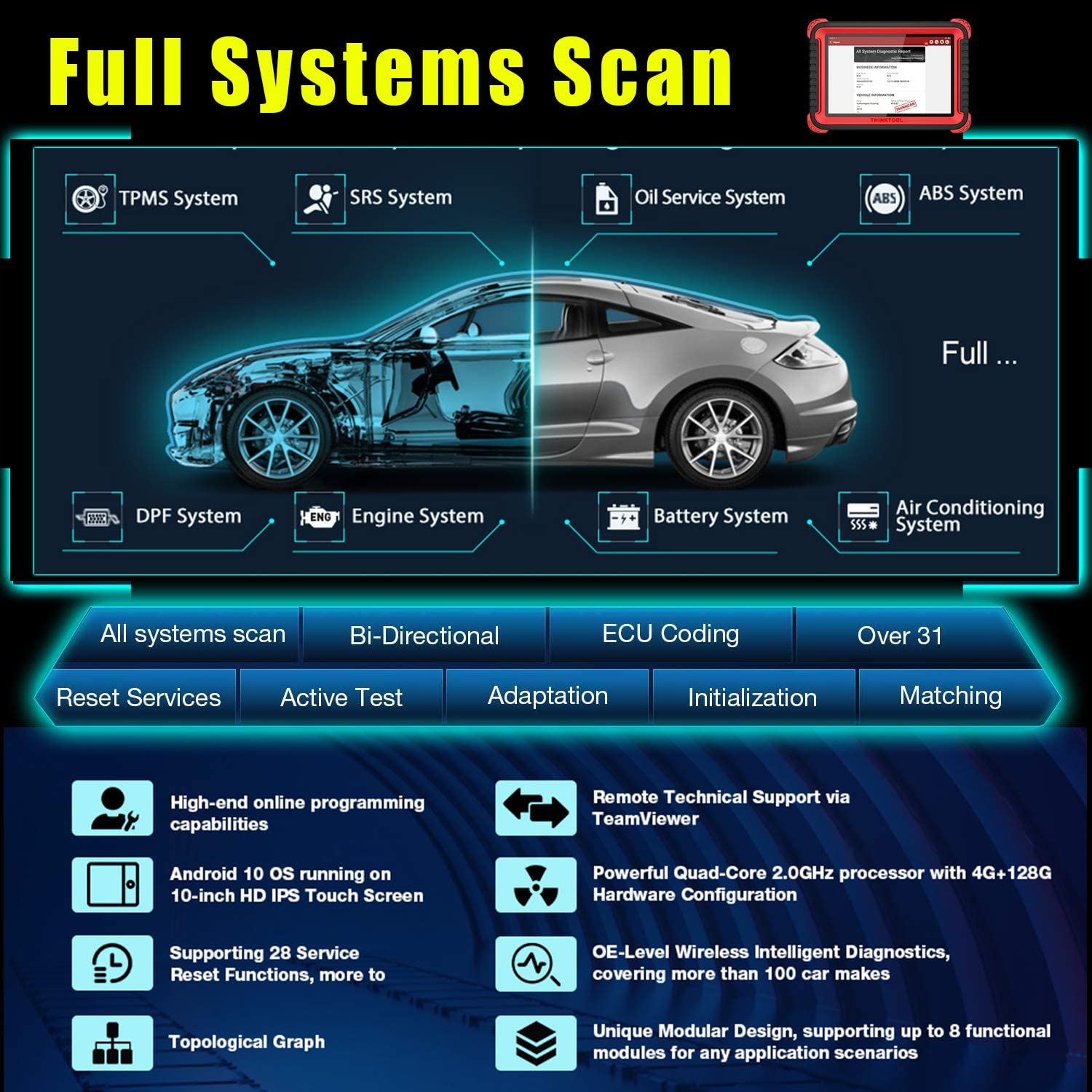

1. Full System Diagnostic for 96 Car Makes and 10000+ Car Modes



ThinkTool Pro can read / erase codes, view live data, retrieve ECU version information, do active test and service functions for all systems including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, Fuel System, Light System and A/C system etc. Covers car brands from Europe ,Asia, Brazil etc.



2. ECU Coding + Actuation Test Bi-Directional Control Powerful Functions



Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements. it can actuate solenoids and actuators for active testing, send commands to many systems/components to test their working status, without using the vehicle controls.



3. Auto VIN Read Function + 31 Reset Services



ThinkTool Pro supports Auto VIN detect, helps you get car info at once, Gear Reset, SAS Reset, TPMS Reset, DPF REG., Key Coding, BMS Reset, Throttle Matching, Oil Reset, ABS Bleeding, Brake Reset, Injector Coding etc all of special functions, helping you safely and effectively access to the vehicle systems to reset partial parameters status after repair and maintenance work.

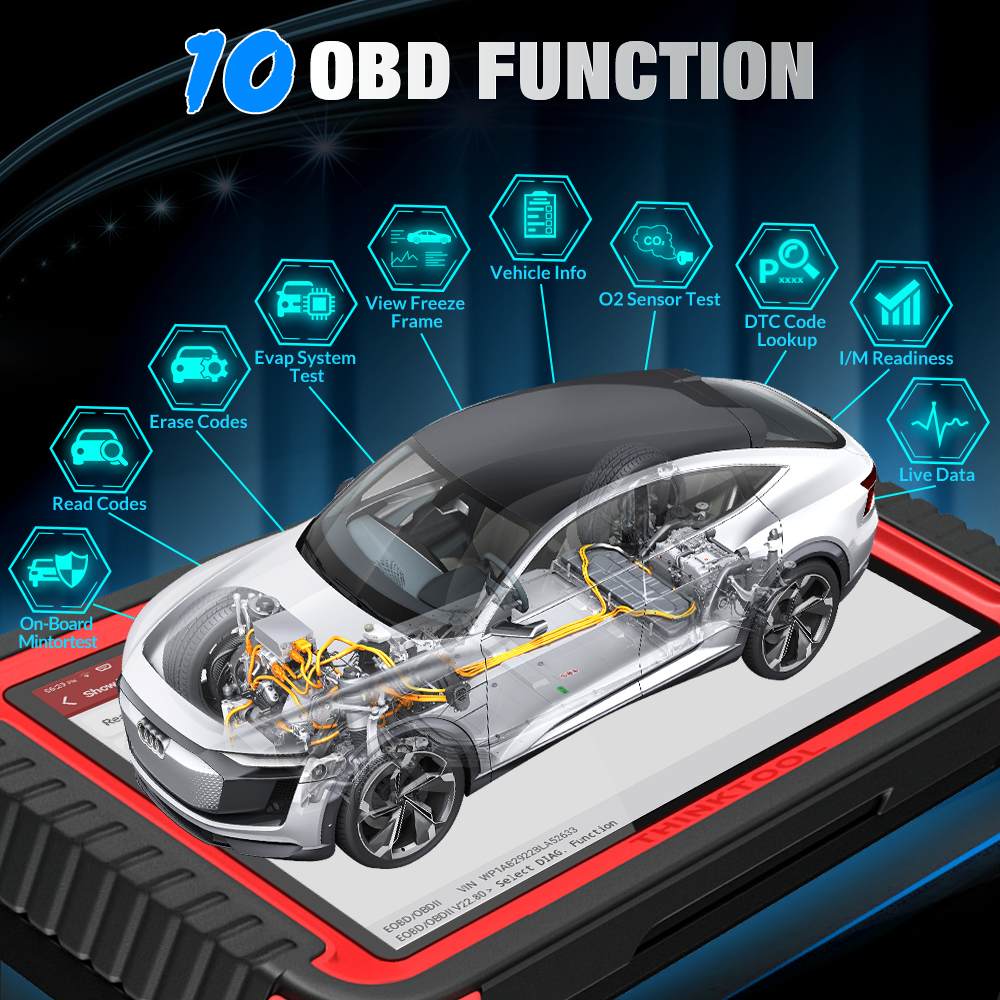

4. Supports Complete OBD2 Functions


Reading Codes:

Show the detailed description of the Diagnostic Trouble Code (DTCs)



Erasing Codes & Reset:

Turns off Check Engine Light (MIL), clears codes and resets monitors.



Data Stream:

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.



I/M Readiness Status:

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.



Read Live Data Stream:

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.



View Freeze Frame Data:

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.



O2 Sensor Test:

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.



On-Board Monitor Test:

Retrieves and displays test results for emission-related powertrain components and systems.



Read Vehicle Information:

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.



Component Test:

Certain vehicle components can be actuated by commands sent from the scanner to test their operability.



5. 31+ Maintenance Functions



1). Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.



2). Elec.Throttle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.



3). Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.



4). Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.



5). ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.



6). Break-pad Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.



7). DPF Regeneration DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8). Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.



9). IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced, anti-theft key matching must be performed.



10). Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.



11). TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL. Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.



12). Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.



13). AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.



14). A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (or car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.



15). Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.



16). EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.



17). ODO Reset

A. ODo reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.



B. Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do odo reset after maintenance.



18). Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.



19). Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.



20). A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.



21). Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).



22). NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.



23). AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.



24). Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.



25). Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.



26). Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.



27). Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.



28). Language Change

This function is used to change the system language of the vehicle central control panel.



More functions will be added with continuous update of ThinkCar ThinkTool Pro software and program.



Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, ) and more and more function will be improved and optimized ...



6. TPMS Diagnostic Function + Modular Expansion

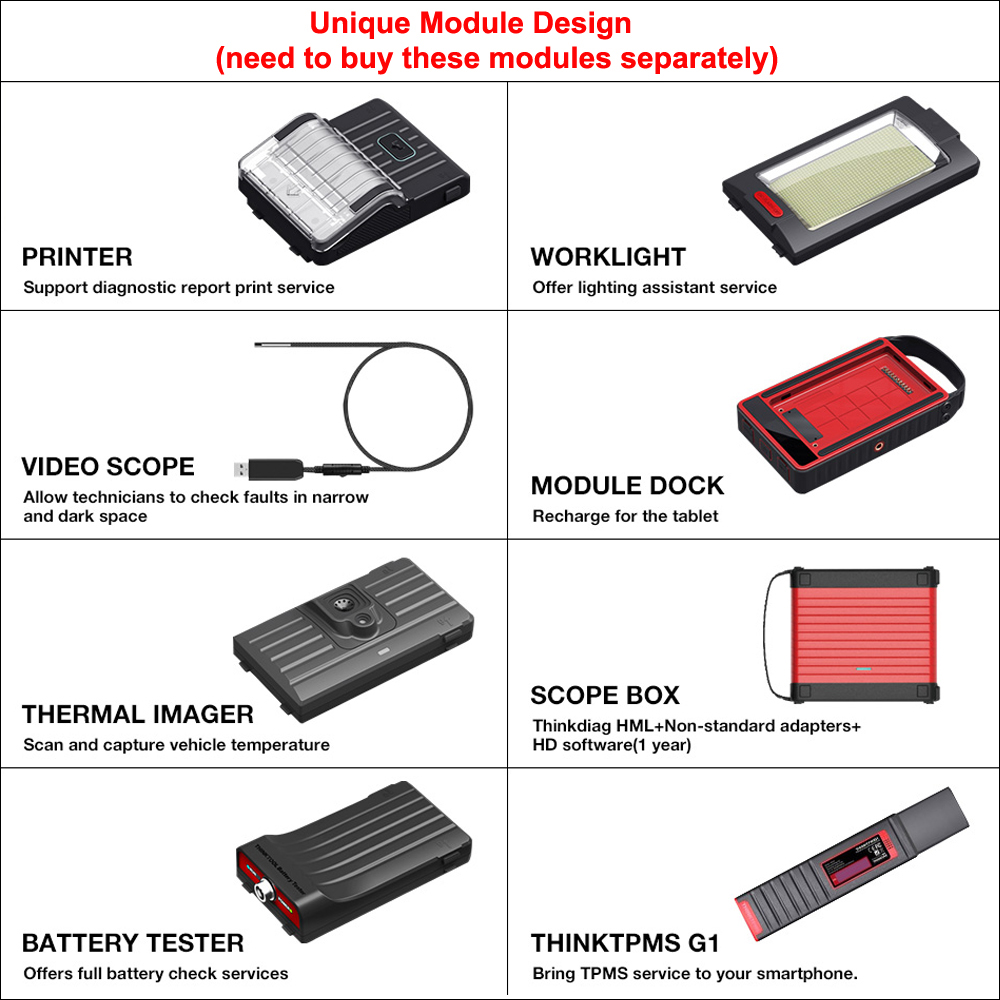

A : 8 Optional Modules: Printer, Work Light, Video Scope, Battery Tester, Scope Box, Thermal Imager, Module Dock, Wireless TPMS Tool (Note: you can buy those modules on ThinkStore).



B: Work with wireless tire pressure diagnostic tool (optional accessory) to achieve the features of TPMS activation, programming and learning.



1). Activation: To activate the sensor's lD, wheel pressure, sensor frequency, tire temperature and battery status.



2). Programming: To program sensor data to a blank ThinkCar sensor, so as to replace a sensor that is in low battery and does not function properly. There are three sensor programming methods available: automatic, manual, and via activation replication.



3). Learning: To write the sensor ID into the vehicle ECU for sensor identification.



Specifications:



Display: 8-inch TFT screen (IPS)

Operating System: Android 10 OS

RAM/ROM: 2G/32G

Connection Mode: Bluetooth 5.0 / WiFi (WLAN80211b/g/n)

Camera: 8MP rear

Battery: 6000mAh/7.6V

Tablet Size: 275*40*190mm

Work Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

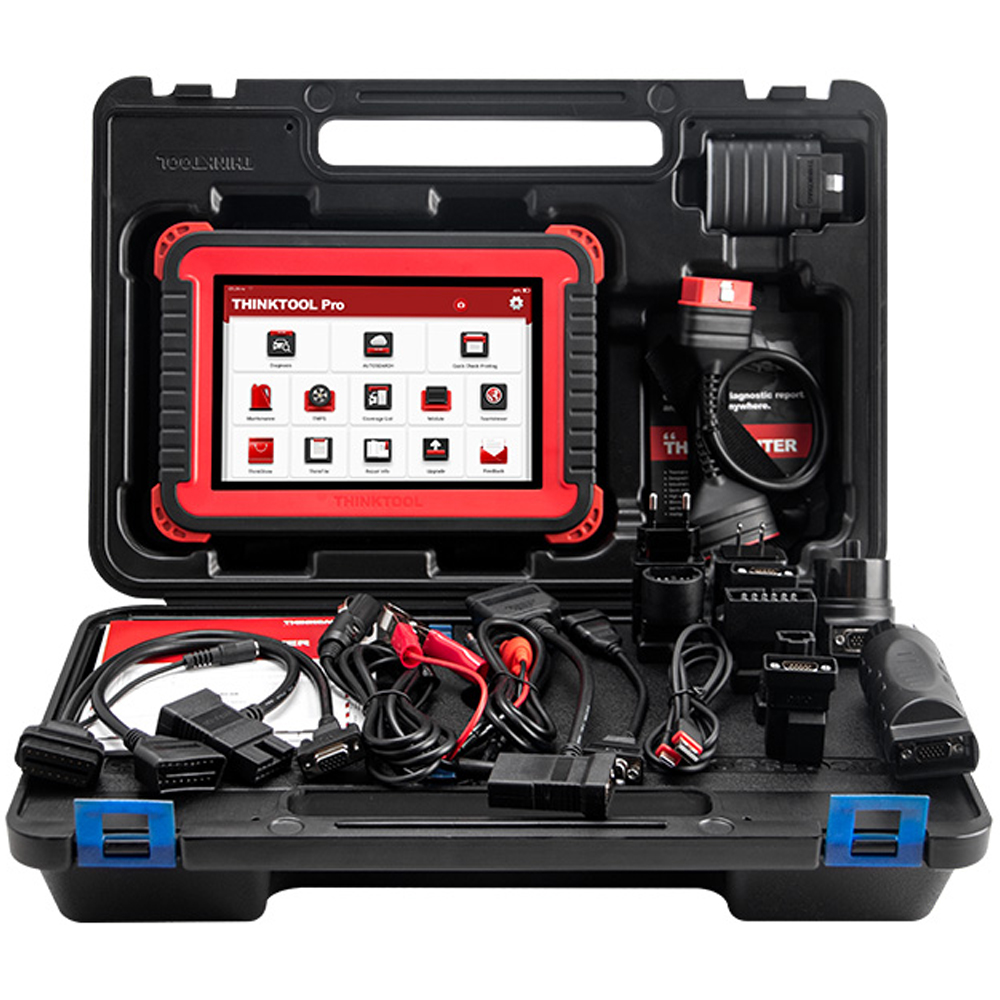

Packing List:
