Name: ThinkCar ThinkTPMS G1 for ThinkTool Pro / ThinkTool Pros / ThinkTool Pros+
Description:

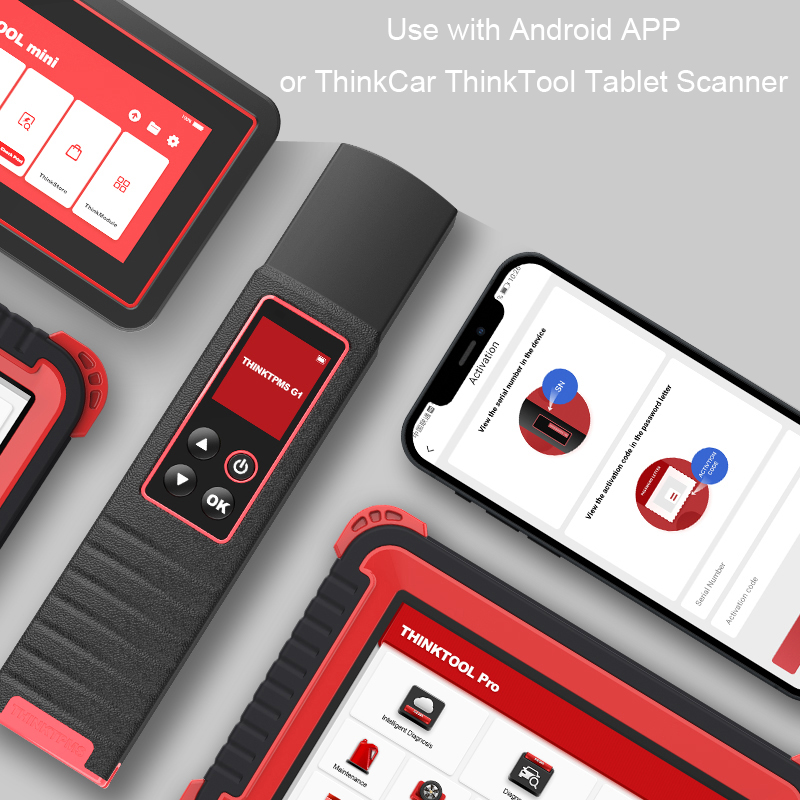

ThinkCar Think TPMS G1 Module is the first full function tire pressure tool connected via Bluetooth through the app. TPMS G1 integrates TPMS sensor activation, reading, relearning and programming.

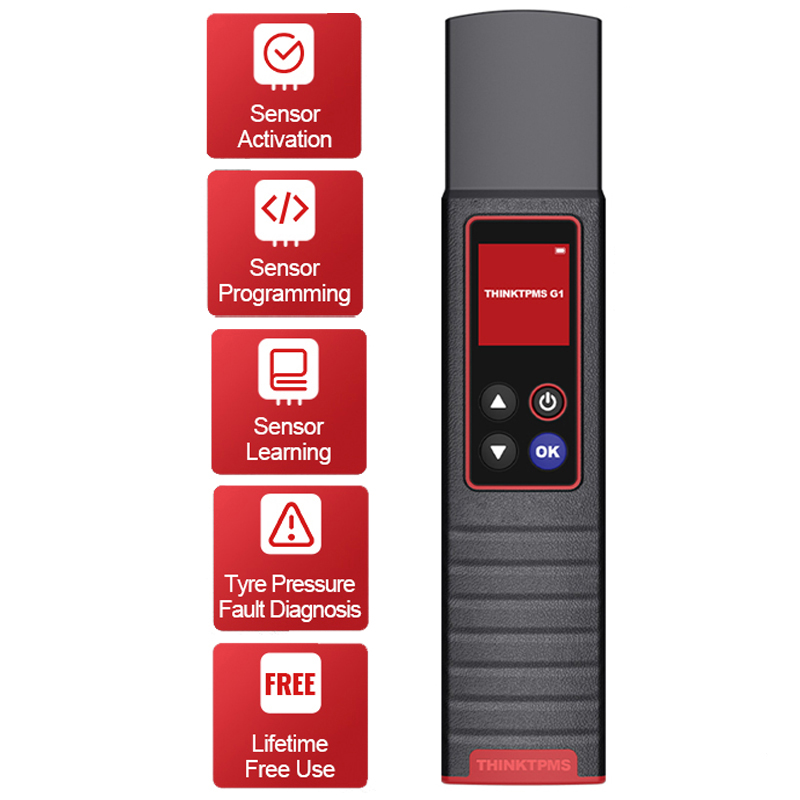

Functions:
1. Activation and Reading
TPMS G1 can read and activate tire pressure real-time data, such as Sensor ID, Tire Pressure, Temperature, and Battery health condition, which will be displayed on the app and G1 display simultaneously.

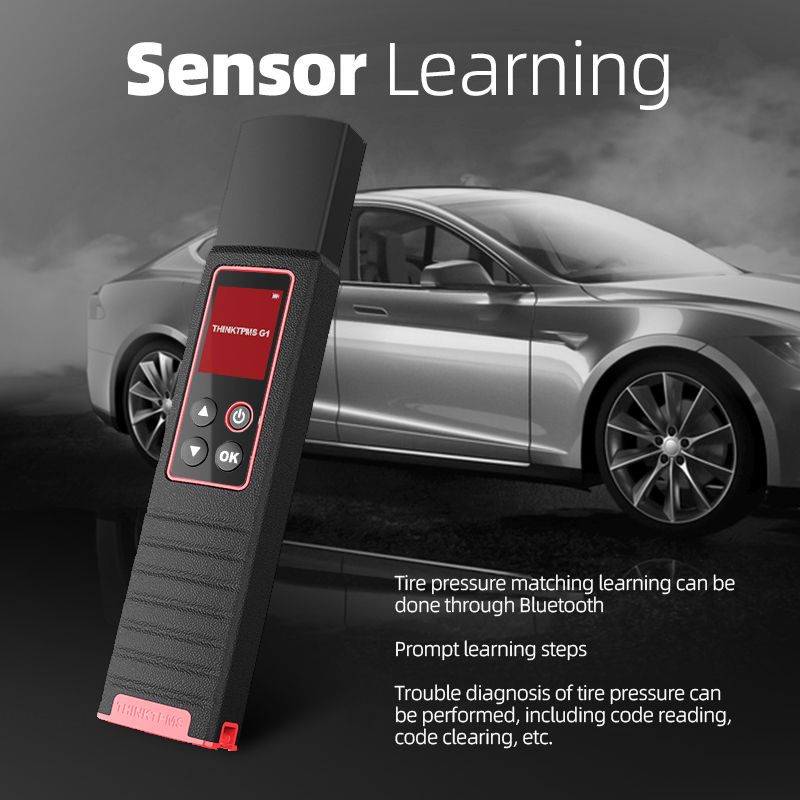

2. Relearning
TPMS G1 can perform diagnostic and relearning functions with the ThinkCar diagnostic device. ThinkDiag can be used to diagnose faults in TPMS, including reading clearing codes.

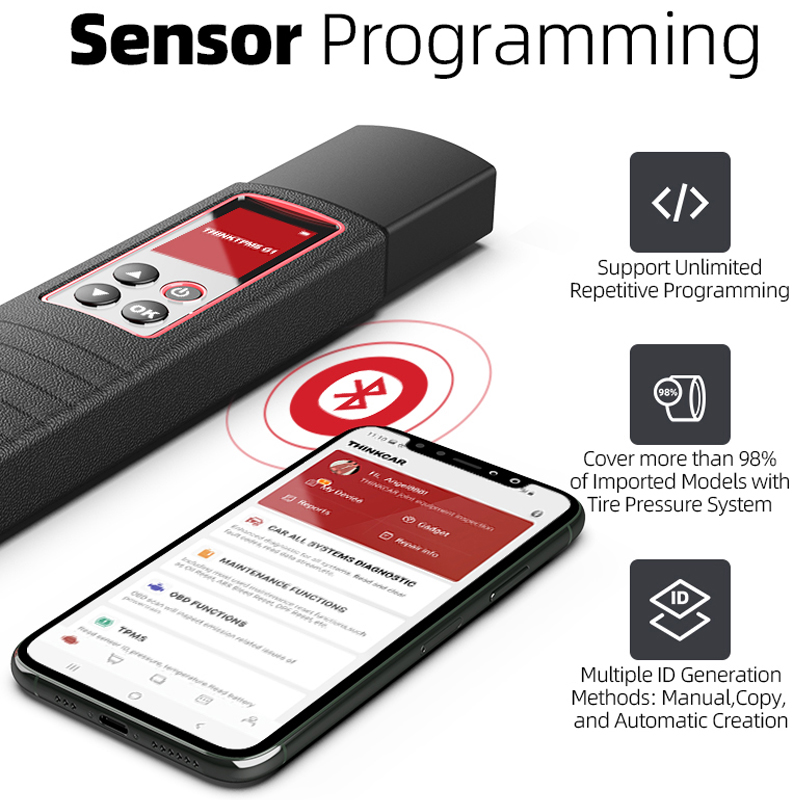

3. Programming
TPMS G1 supports three programming methods:
1). Automatic Programming
2). Manual Input
3). Through Replication
Specifications:
Model: TKG01
Screen Size: 1.77 inch
Display Resolution: 168*128 pixel
Long Life Span: 4-6 years
Battery Capacity: 3000mAh
Working Voltage: 5V
Working Current: ≤1A
Size: 252*54*30mm
Working Temperature: -10 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrade

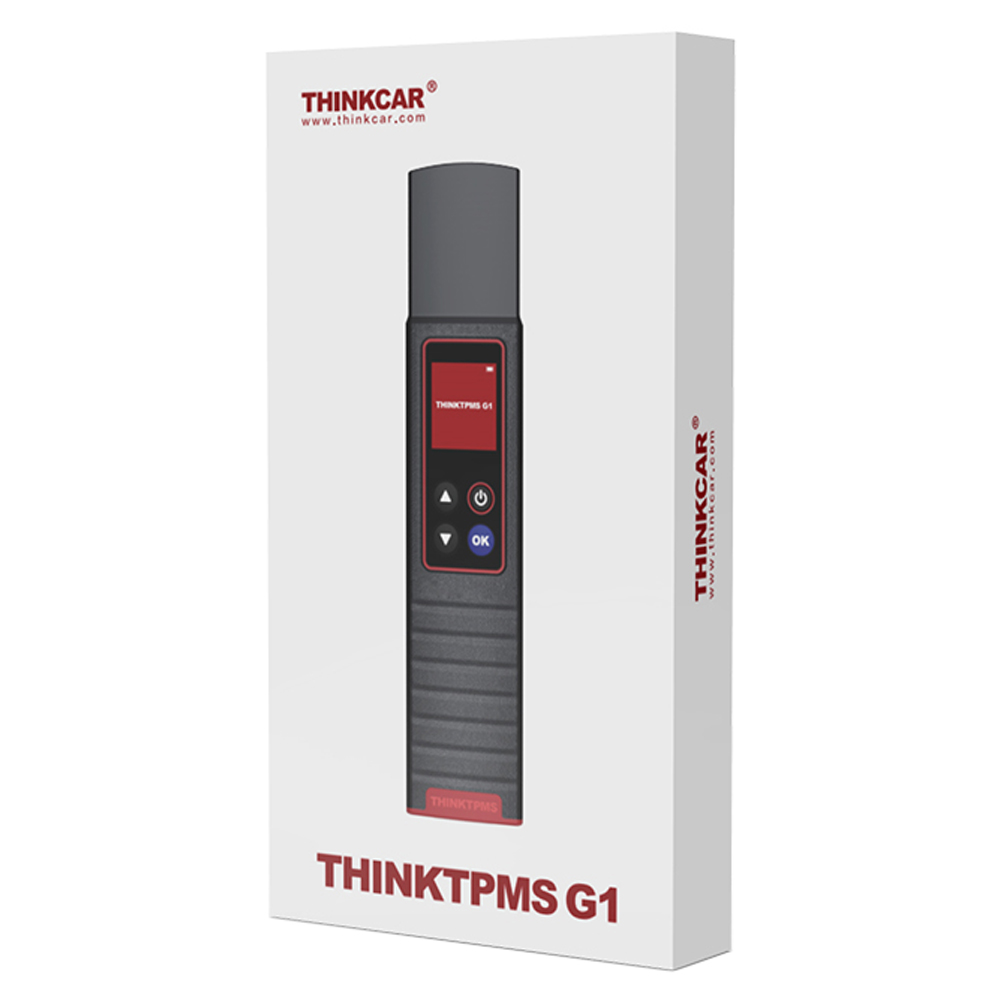

Packing List:
ThinkCar ThinkTPMS G1
Type-C Cable
Power Charger Adapter
User Manual
Packing Box
|
