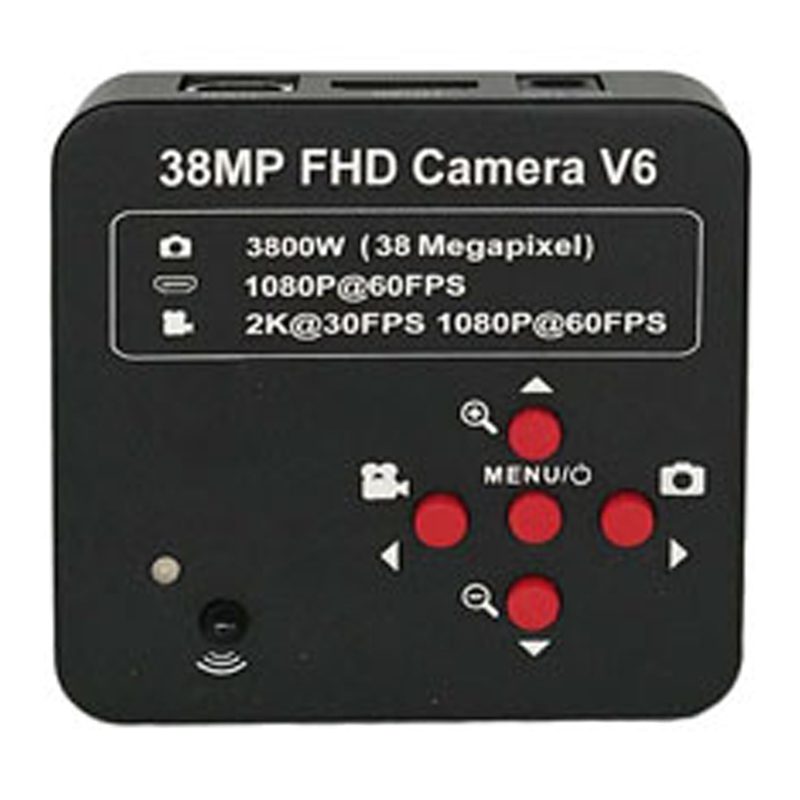

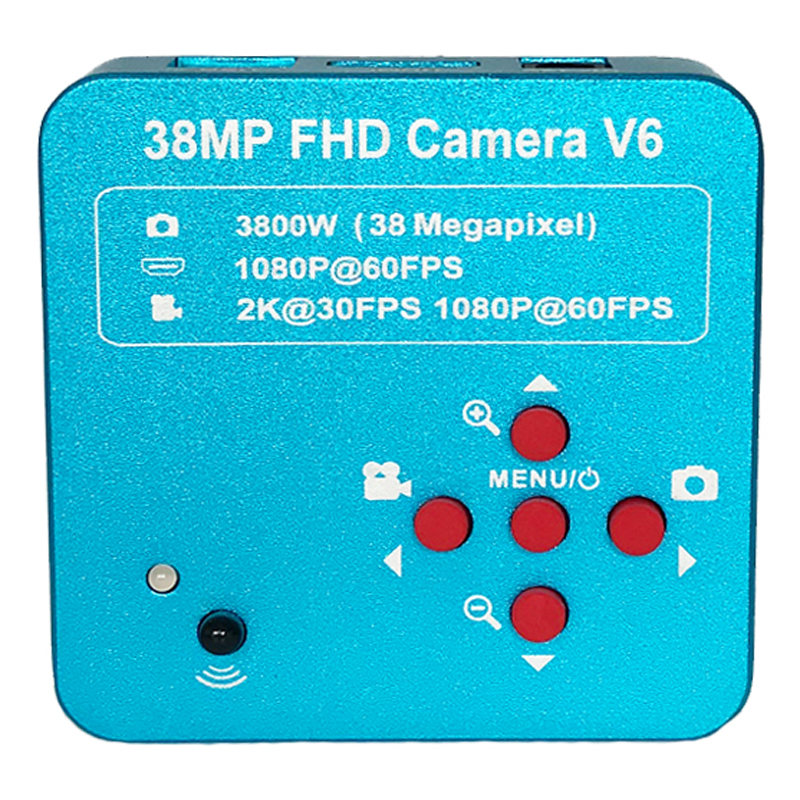

Name: 130X Zoom Lens 1080P 38MP Electronic HDMI USB Digital Video Microscope Camera
Description:

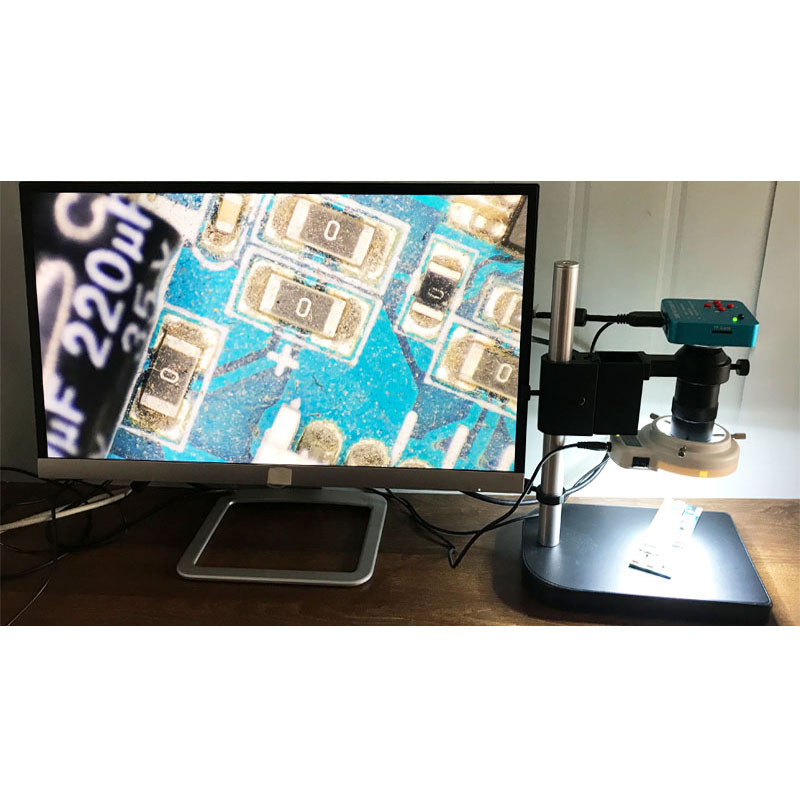

130X Zoom Lens 1080P 38MP Electronic HDMI USB Digital Video Microscope Camera with 56 LED Ring Lights for industrial repair.
Supported Languages: English / Simplified Chinese
Features:
Sensor Panasonic: 38 Mega Pixel / 38 million pixels CMOS
Optical Format: 1 / 2.3 inch
Pixel Size: 1.335μm x1.335μm

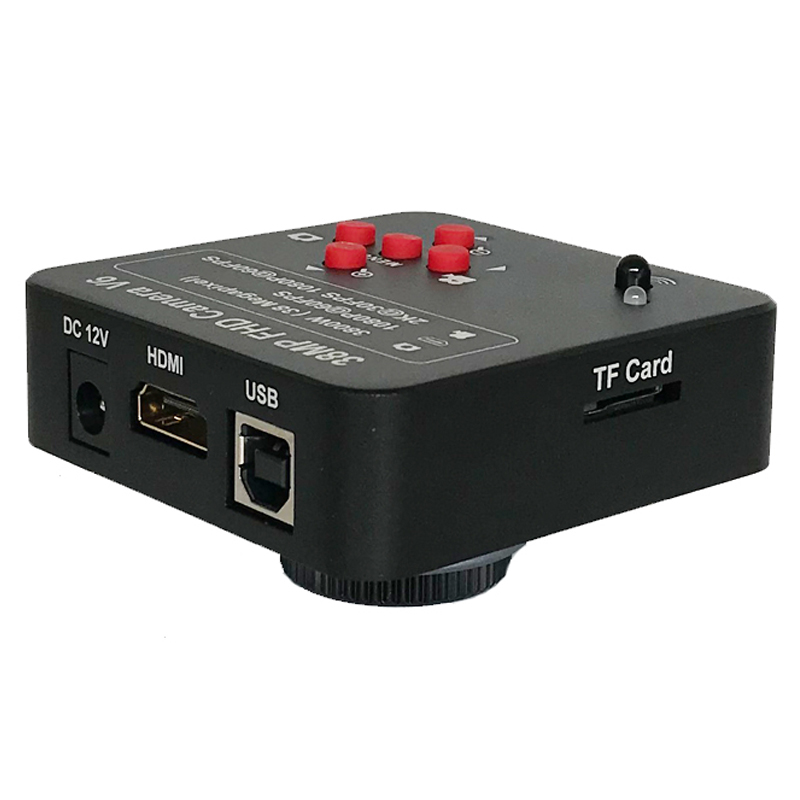

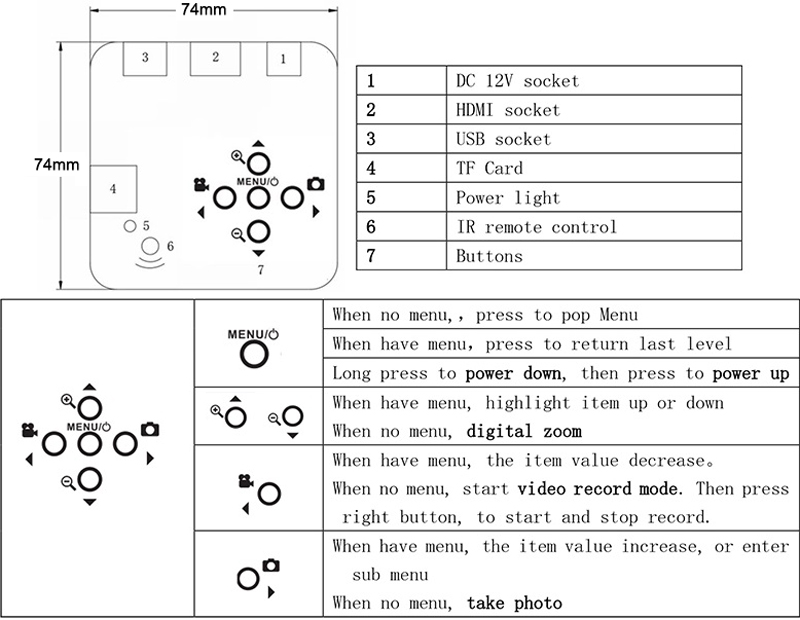

Interface: HDMI (Type A) / USB (Type B) / TF Card
Image Resolution: 21 Mega Pixel
Video Record Resolution: 2K @ 30FPS / 1080p @ 60FPS
HDMI Resolution: 1920*1080p 60FPS (Can output with USB cable at the same time.)
HDMI Scale: support 4:3, 16:9, 16:10 screen
USB 2.0 (Drive Free): 1920*1080 @ 30FPS; 1280*720 @ 30FPS; 640*480 @ 30FPS (Can output with HDMI cable at the same time.)
TF Card: maximum 64GB

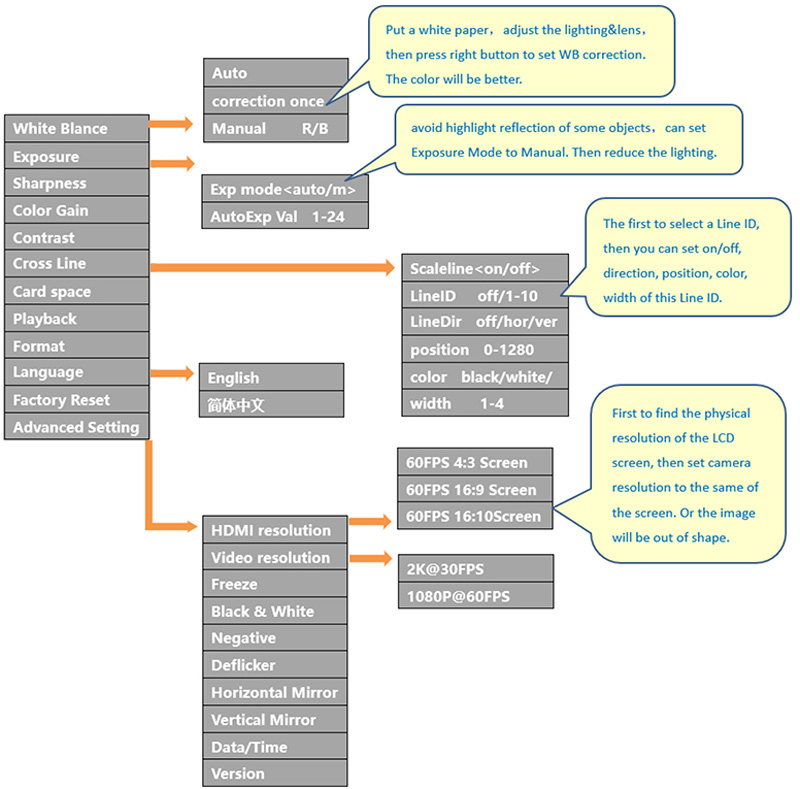

AWB: WB color correction / auto / manual
Color: R.G.B value setting independent
Exposure: auto / manual (AE value can set)
Cross lines: 8 lines (Can set color & width & position.)
Scale Mark Lines: 2 lines.
Dotted Lines: 2 lines (Can set color & width & position.)
Sharpness Contrast Color Gain: support
Mono Negative: support
Mirror: horizontal mirror / vertical mirror
Digital Zoom: support
IR Remoter: support
Specifications:
Voltage In: DC 12V 55-21mm size
Power Consumption: maximum 0.15W @ 12V/ 0.12A
Lens Interface: C / CS
Camera Size:74*74*35mm
Net Weight: 180g
Gross Weight: 400g

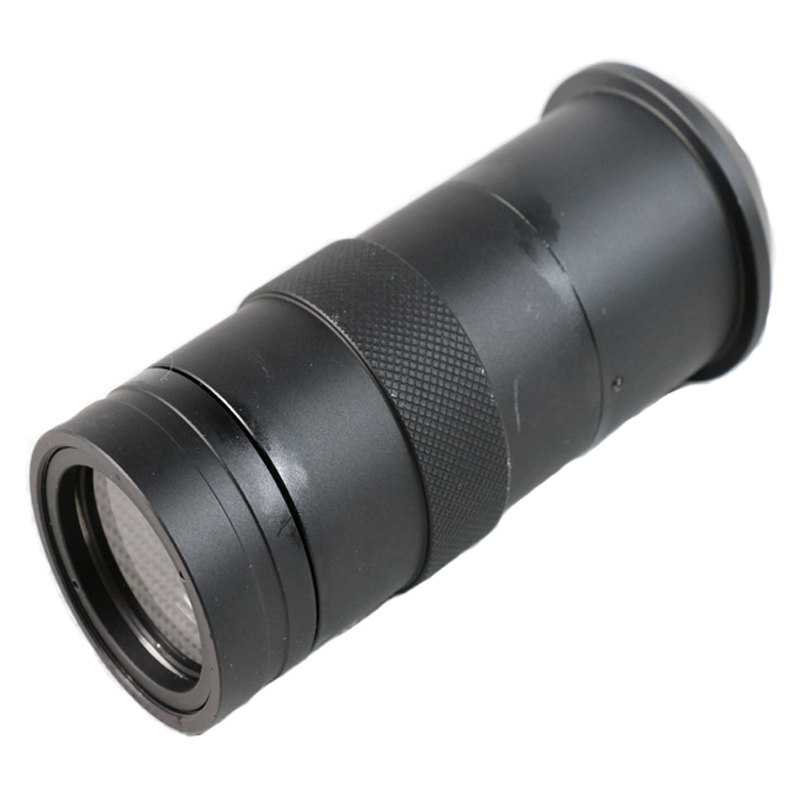

Zoom C-Mount Lens:
Magnification Power by 0.12 - 2X (about 8X - 130X on the display)
Work Distance: 50 - 200mm
Visual Field : 2.4 - 32mm
Size: 115*40mm
Weight: 210g
FAQs:
LCD has no video or flicker.
1. Check power supply. Make sure green LED is on. Press Power key to turn it on.
2. Check lens cover. Increase the lighting.
LCD has black bar image warp.
1. Change LCD resolution.
2. Change camera resolution.
Have dirty spot.
1. Check camera and lens, find the dust, then clean it with absolute ethyl alcohol or cleanser

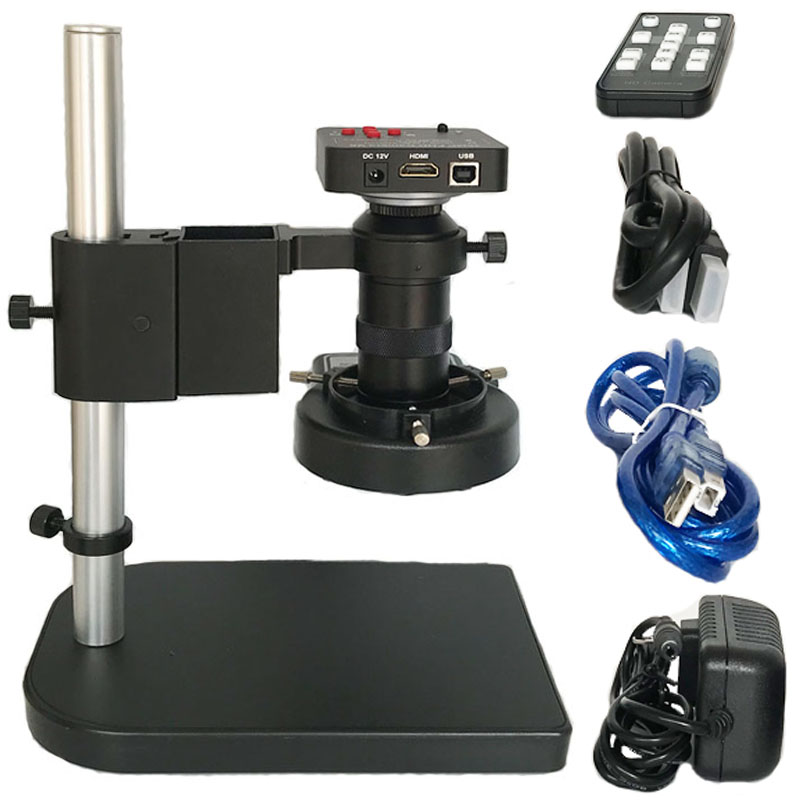

Packing List:
Microscope Camera
IR Remoter
HDMI Cable
USB Cable
130X Lens

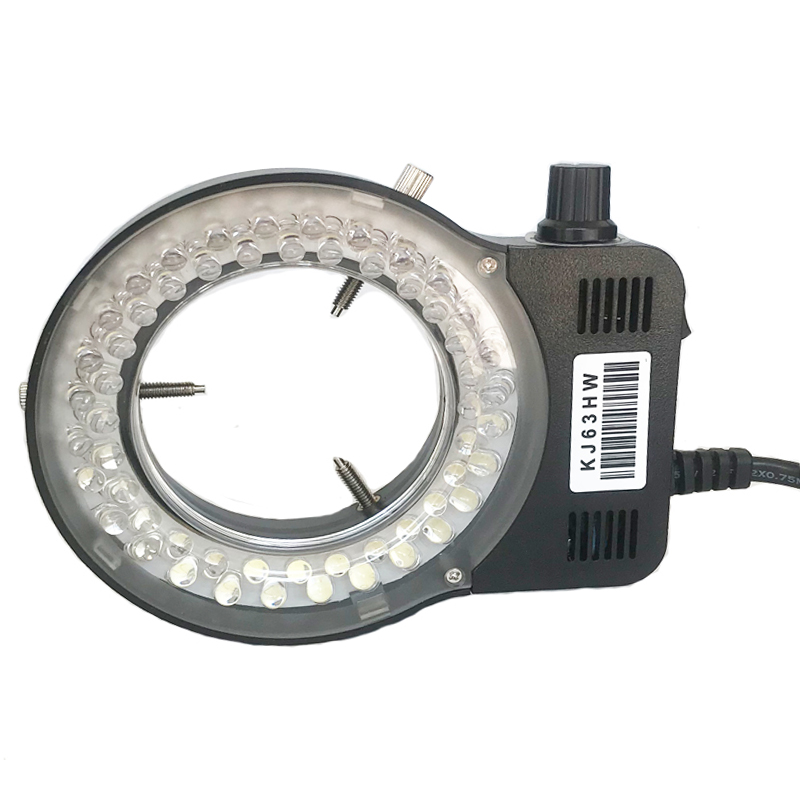

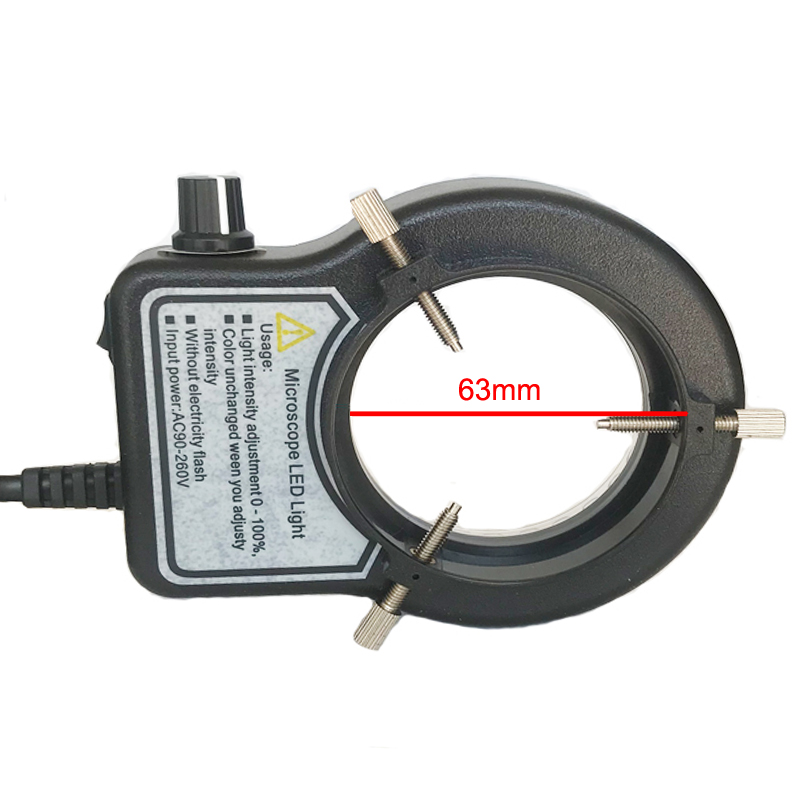

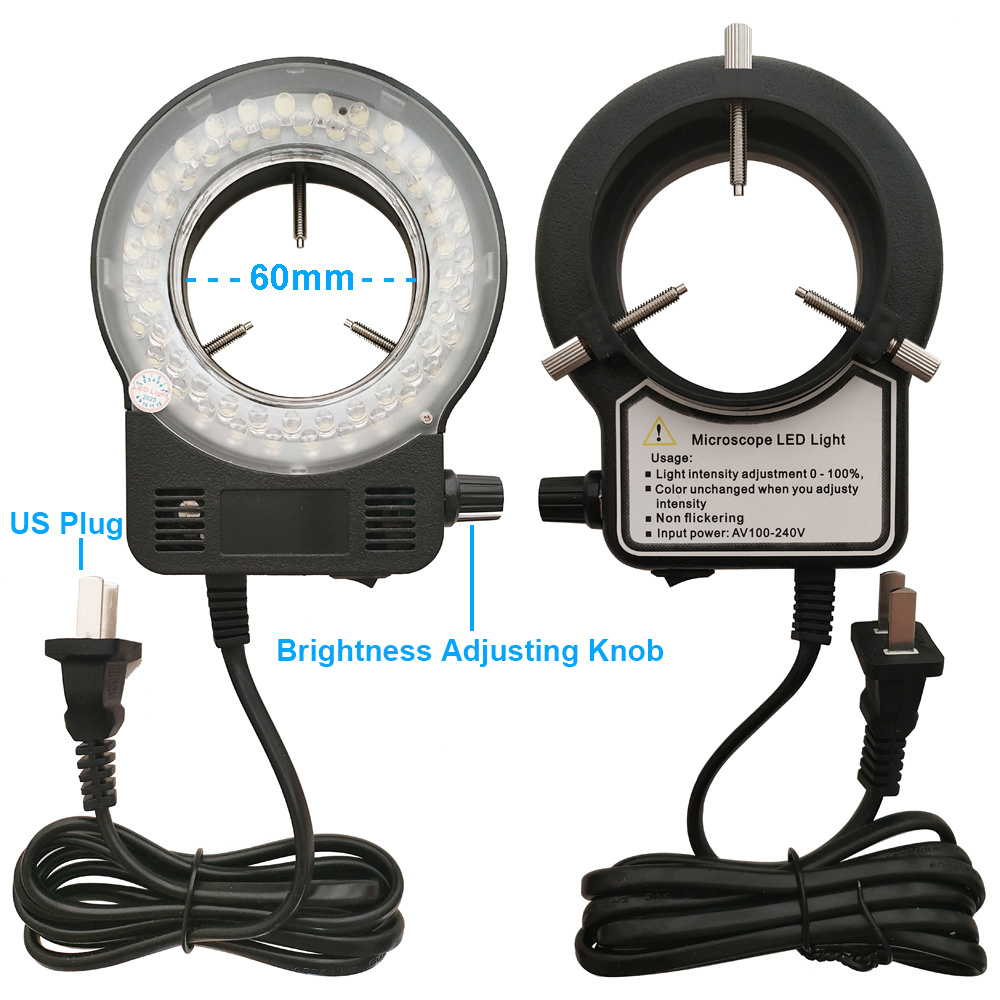

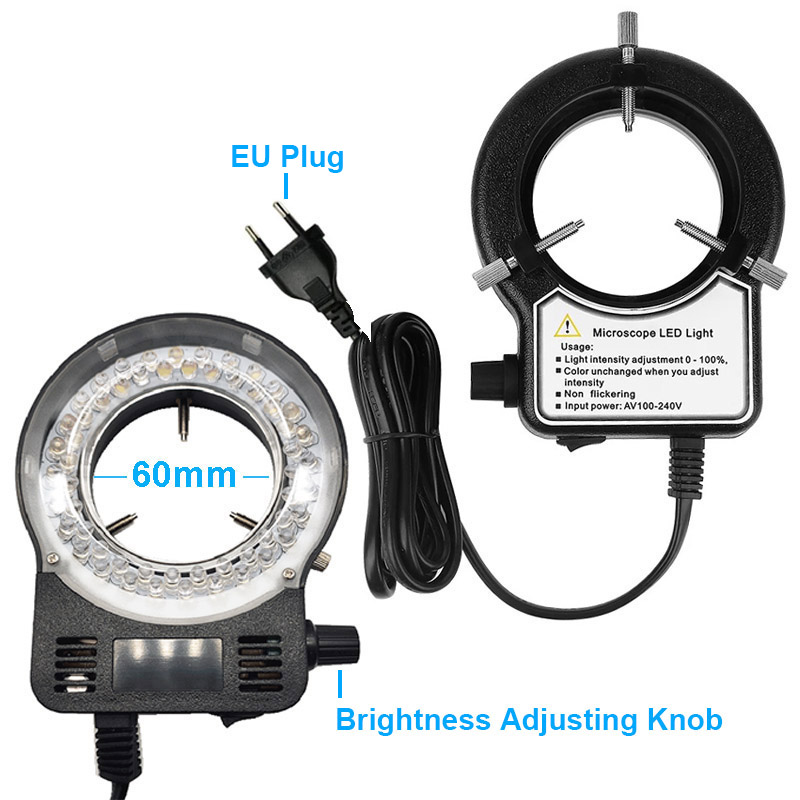

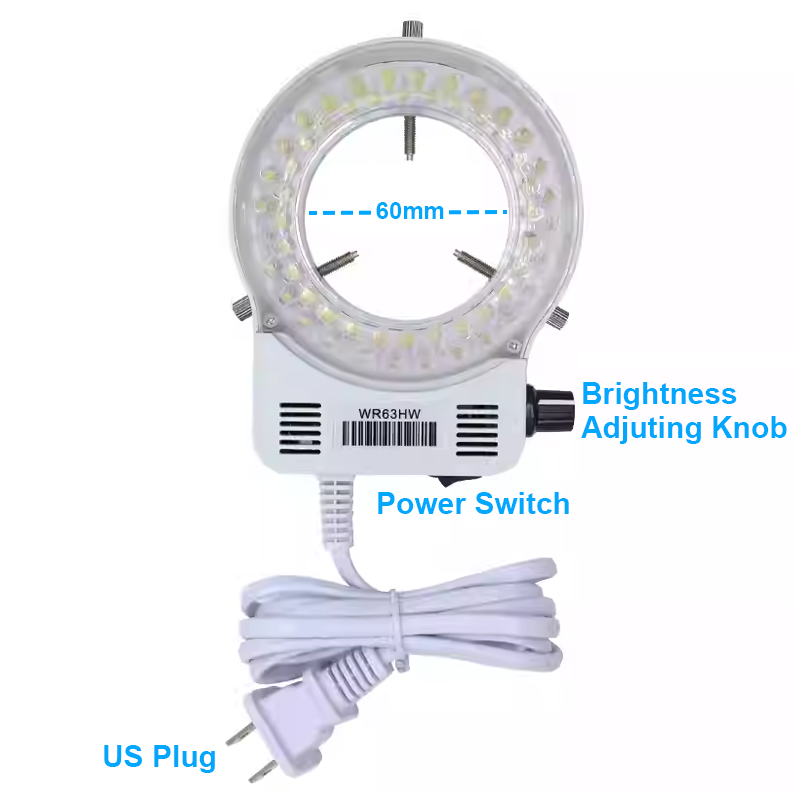

LED Ring Lights

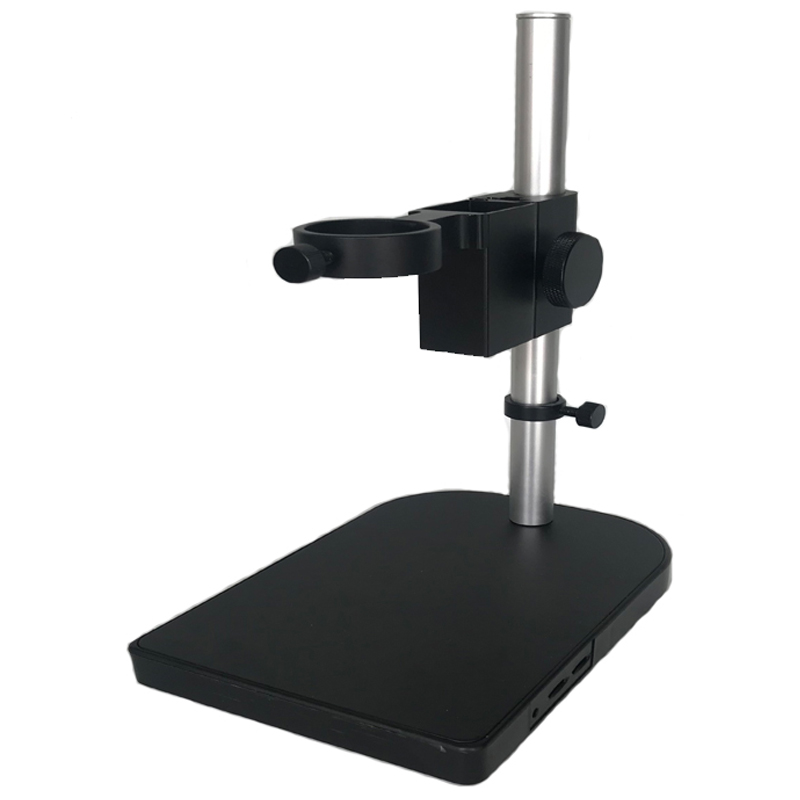

Stand
Power Adapter
User Manual
Packing Box
|
