Name: Launch CReader CRP123
Description:
Launch CReader Professional CRP123 main functions do not only include OBD / EOBD standard protocol diagnosis, but also cover professional diagnostic software for multiple models which can perform comprehensive diagnosis on four main systems (ENG \ ABS \ SRS \ AT).

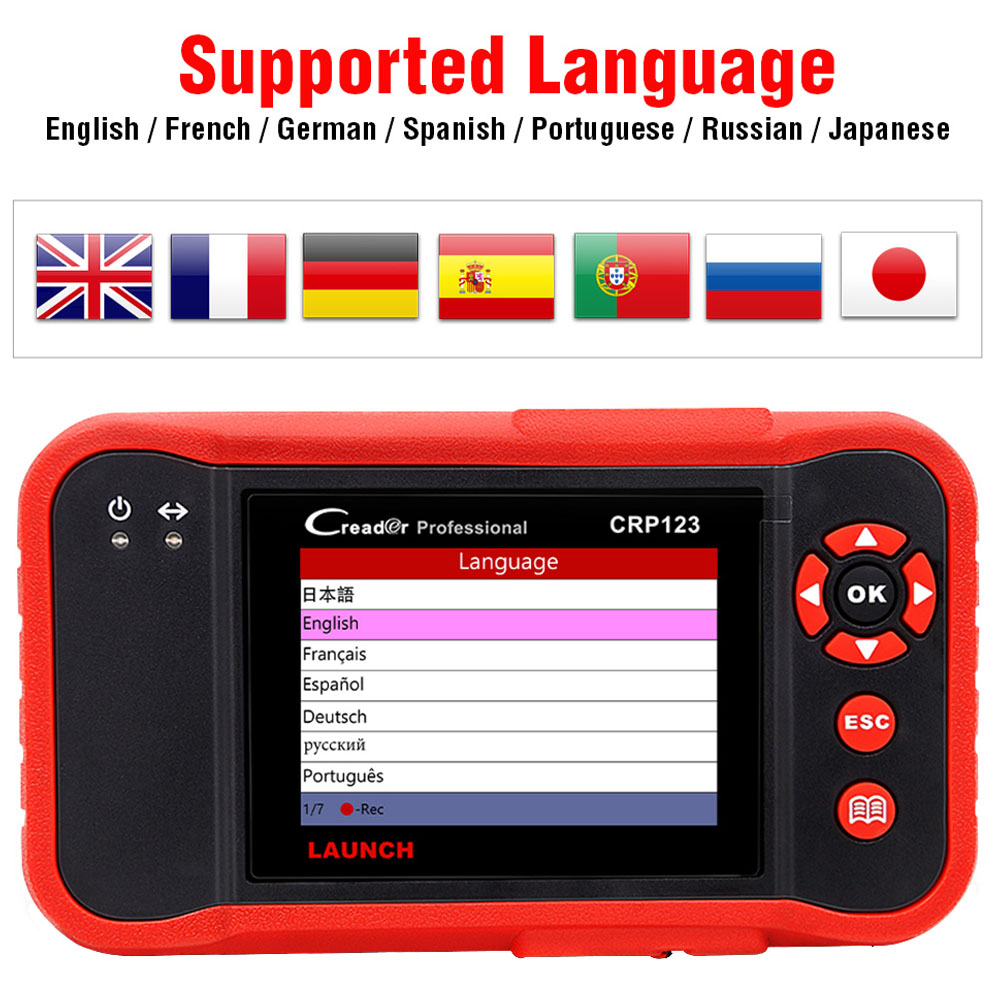

Supported Languages: English, French, German, Spanish, Portuguese, Russian, Japanese
Software Update: lifetime free update online
Feature:
1. 3.5 inch TFT color display with higher resolution and sharper colors.
2. Works on ALL 1996 and newer vehicles (OBD-II & CAN).
3. Retrieves generic (P0, P2,P3 and U0), manufacturer specific (P1, P3 and U1) codes, and pending codes.
4. Easily determines the cause of Check Engine Light.
5. Turns off MIL, clears codes and resets monitors.
6. Displays DTS definitions on the 320*480 TFT color screen.
7. Views freeze frame data.
8. Displays monitor and I/M readiness status.
9. Reads live PCM data stream.
10. Displays live O2 sensor test data.
11. Performs modules present test.
12. Enhanced OBD-II Mode 6.
13. Graphs Display, Data Record & Replay and DTCs tips guide users to the root cause of trouble code faster.
14. Saving diagnosing and repairi time.
15. Retrieves vehicle information (VIN, CIN and CVN ).
16. Support large extension memory card
17. Multilingual menus, DTC definitions.
18. Extremely easy to use and highly reliable
19. Prints data via PC.
20. Internet upgrade.

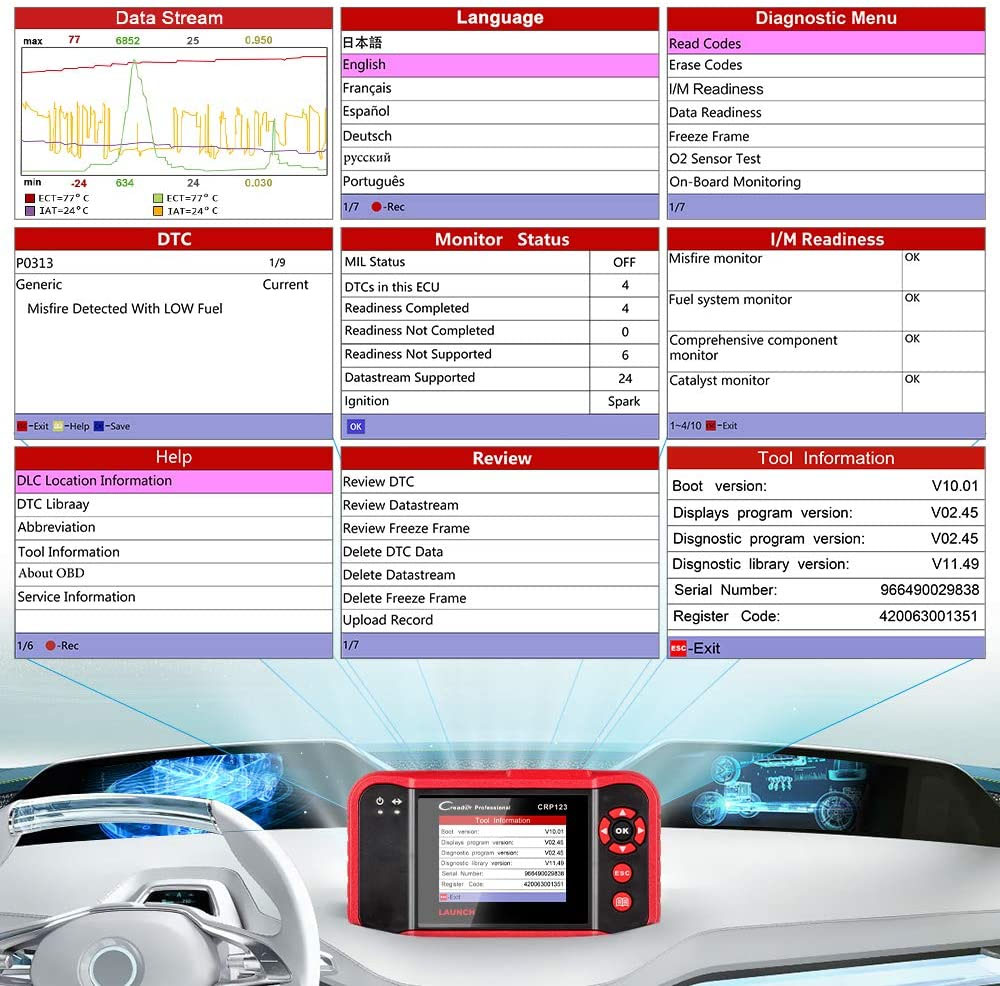

Full OBD2 Functions:

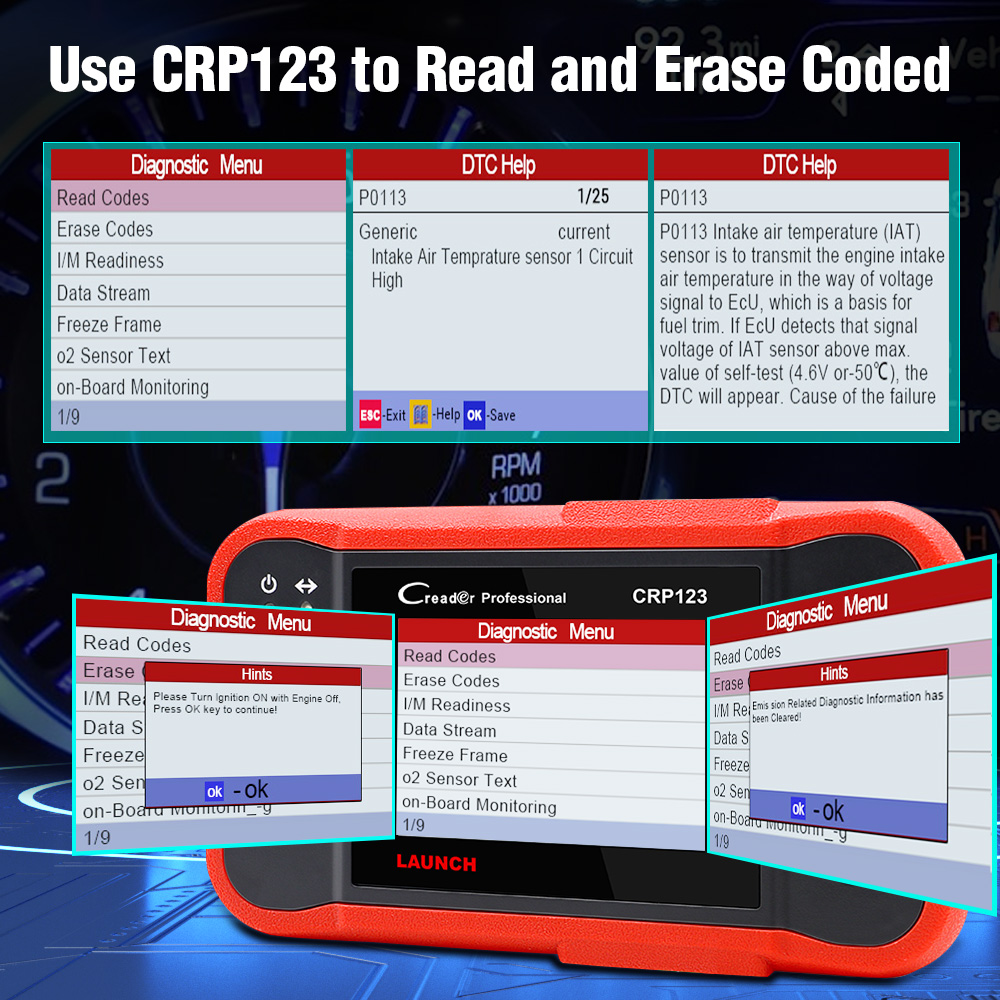

Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs).
Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

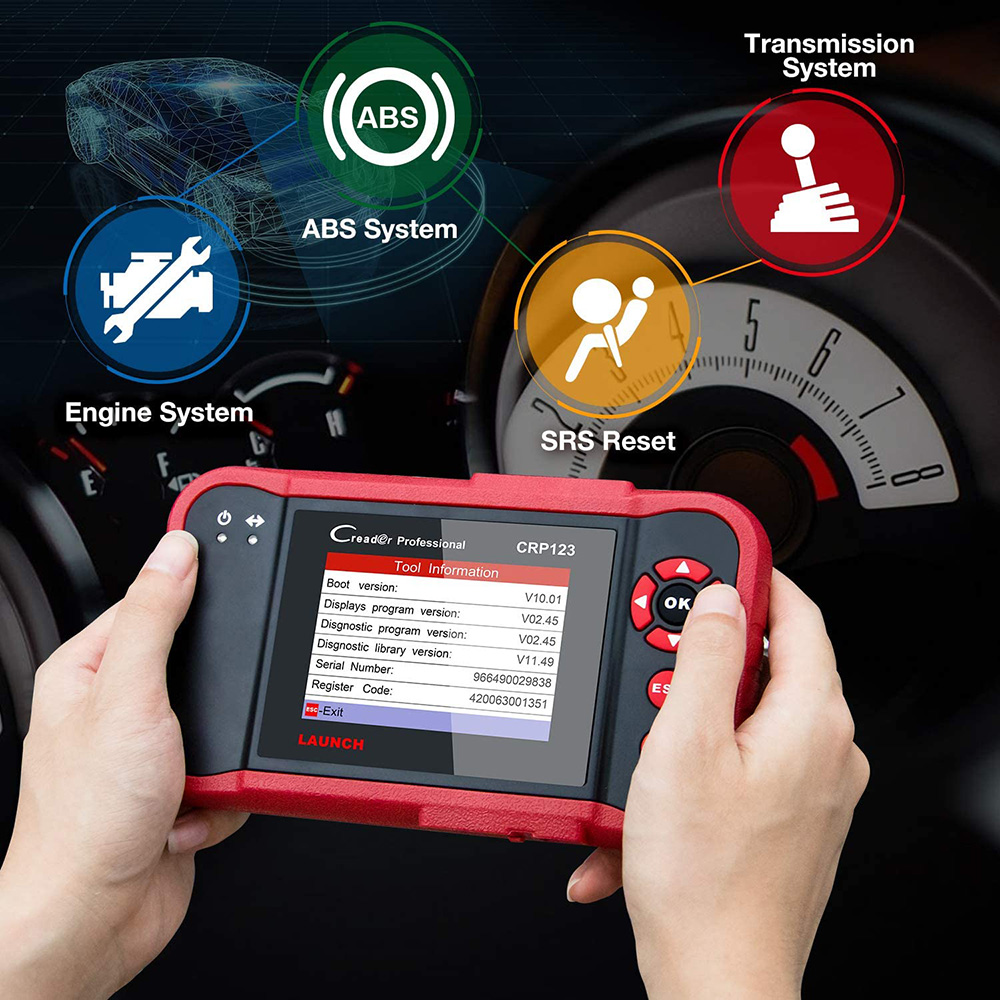

Engine / ABS /SRS /Transmission Diagnosis:
Engine System
Launch CRP123 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
Anti-Lock Braking System (ABS system)
Read and clear DTCs data flow in the ABS system. Performs various tests to check the operating conditions of Anti-lock Braking System, and turn off the warning light.
Supplemental Restraint System (SRS System)
Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.Read and clear fault code in SRS (Airbag) system and turn off warning light of airbag for making sure engine work properly and safely.
Transmission System
Read and clear codes and view live data in transmission systems, keeps the transmission systems output optimally adapted to the speed and load. Retrieve the error information from Automatic Transmission (AT) which is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually.
Free Update and Data Print:

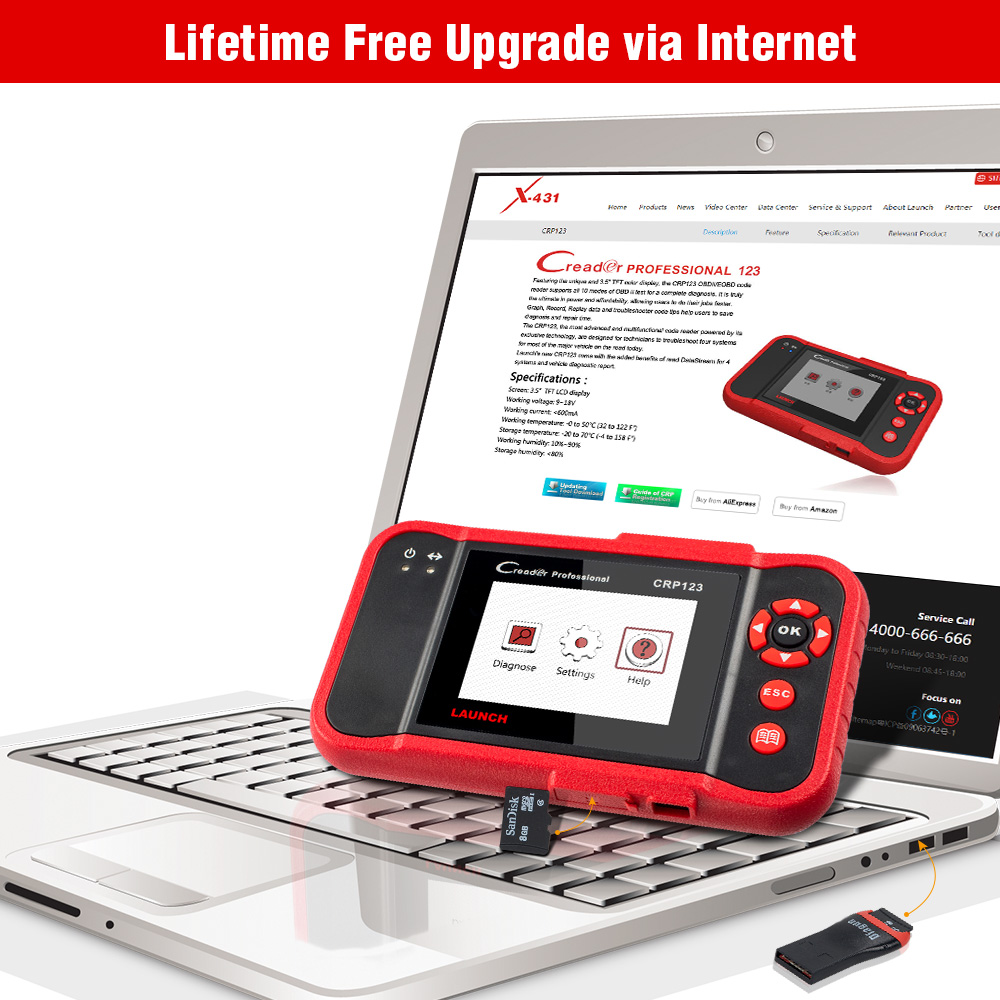

1. Lifetime free update online via a TF card or a USB cable on Launch official website.

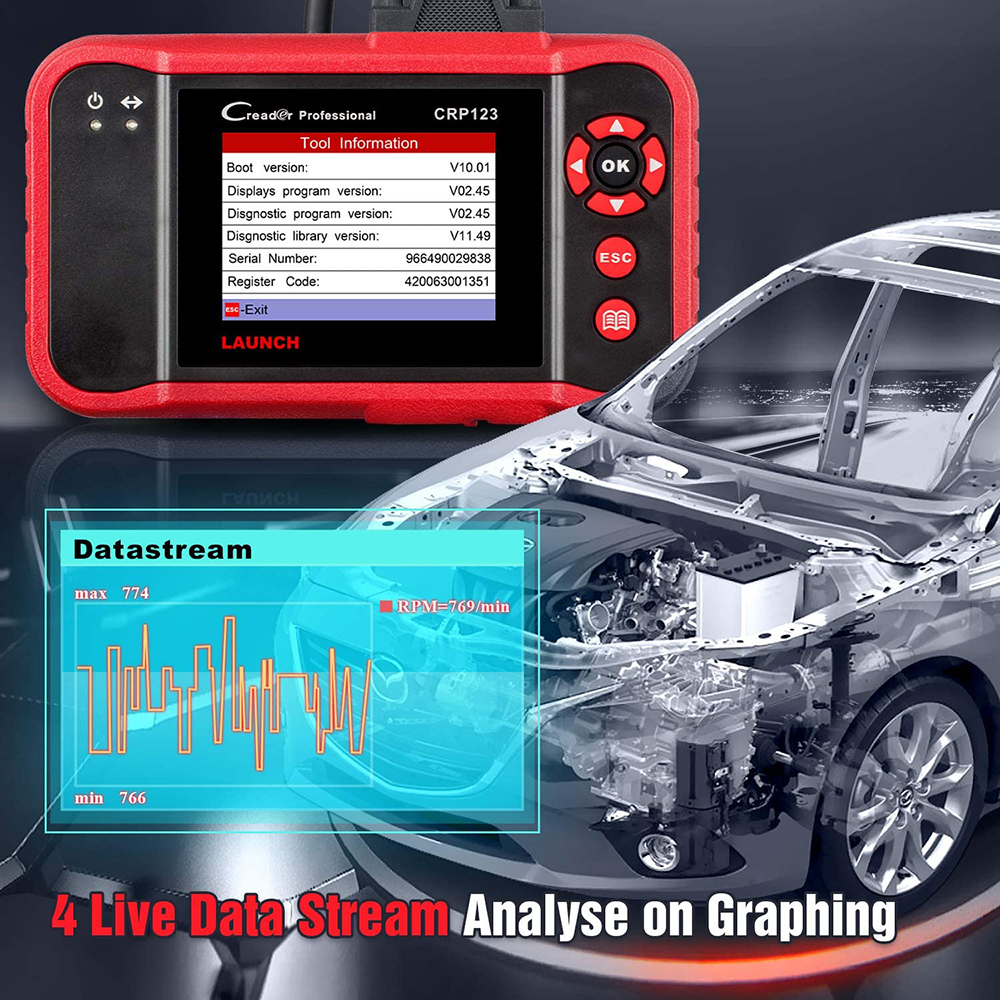

2. Live data are displayed in a time-based chart to help customers to better analyze the abnormal parameter.This function will let you see Engine / ABS / SRS / TCM performance information whether there are any trouble codes or issues with your ECU / ABS / SRS / TCM . You also can print the diagnostic data on computer.
Specifications:
Screen: 3.5 inch 320*480 TFT LCD true color display
Input Voltage: 9 to 18V
Connection: standard 16-pin OBD diagnostic interface
Working Temperature: 0 to 50 degree centigrade
Storage Ambient Temperature: -20 to 70 degree centigrade

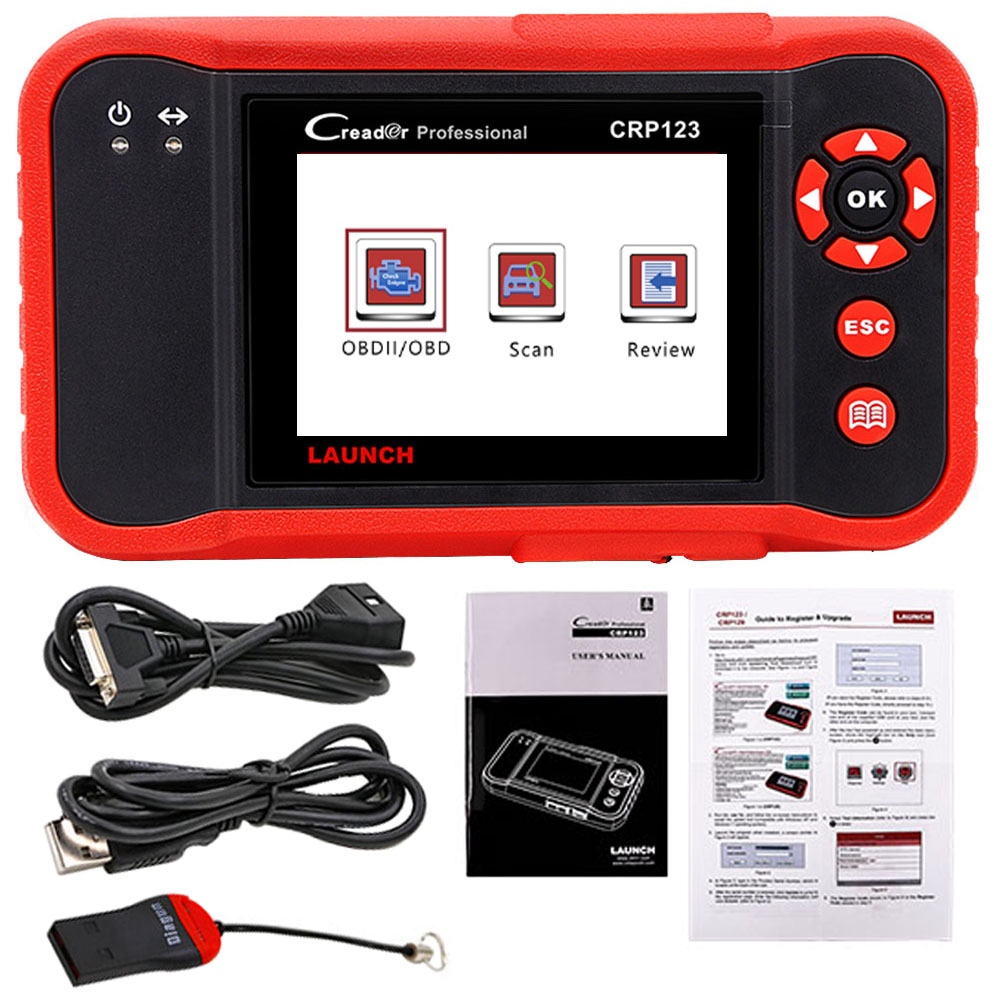

Packing List:
Launch CReader CRP123
Diagnostic Cable
USB Cable
Card Reader
User Manual
Quick Start Guide
Packing Box
|
