Description:



OBDSTAR iScan Ducati is a new generation intelligent and professional Ducati motorcycle diagnostic scanner. It is a portable tablet scanner with stylish appearance. Designed with ingenuity and practicality, it is a perfect tool for Ducati motorcycle maintenance and repair. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, OBDSTAR iScan Ducati brings its customers professional diagnostic experience and good user experience.



Functions:



Automatic Scanning, VIN Recognition

Control Module Programming and Coding

ECU Setting, Instrument Coding

Tire Pressure Monitoring System

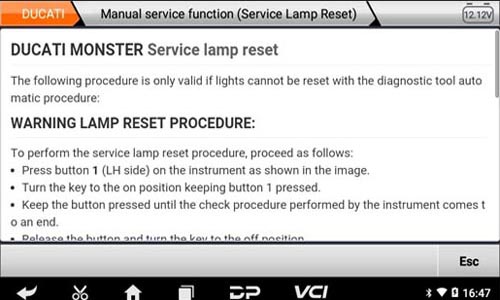

Maintenance Light Reset

CO Adjustment

Idle Speed Adjustment

A/F Value Reset

ABS Control Unit Setting

EOL Mode

Transmission Memory Reset

Clear Computer Memory

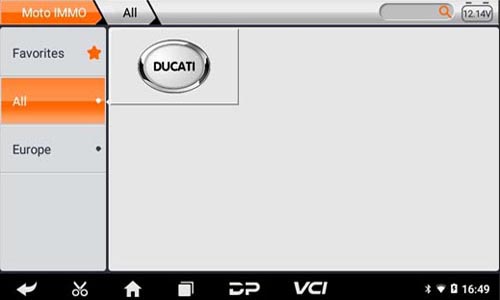

Key Programming

...



Highlights:



1. New Android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly understand how to use the tablet;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu selection is more convenient and quick;

5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote help function, OBDSTAR technical staff offer remote assistance.

8. Lightweight and portable, your motorcycle repair helper.



Advanced Functions:

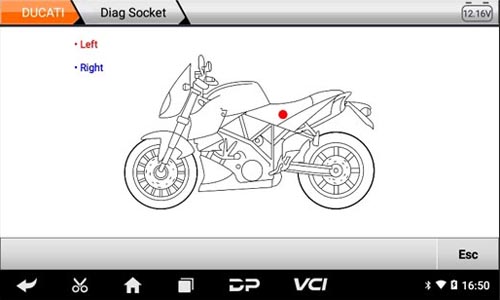

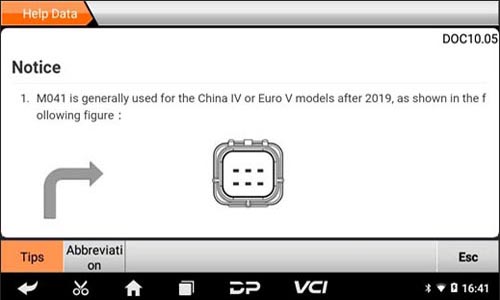

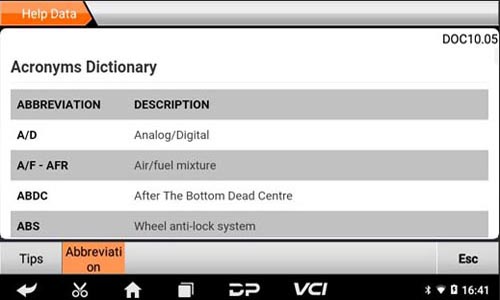

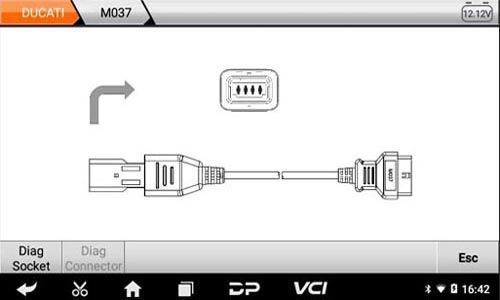

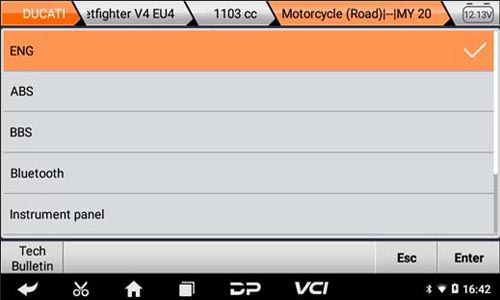

1. The first fault guidance, help data, technical bulletin, diag socket and so on help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allow you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.



Specifications:



Operation System: Android 5.1.1

CPU: RK3128 quad-core ARM cortex A7

Storage Capacity: 16GB

LCD: 5.0 inch

LCD resolution 800*480

Touch screen: capacitive touch screen

Extension Memory Card: 32G microSD (TF) card supported

WiFi: supported

Battery: 2600mA rechargeable polymer lithium battery

Working Temperature: -20 to 55 degree centigrade

Storage temperature -20 to 70  degree centigrade

Weight: about 700g

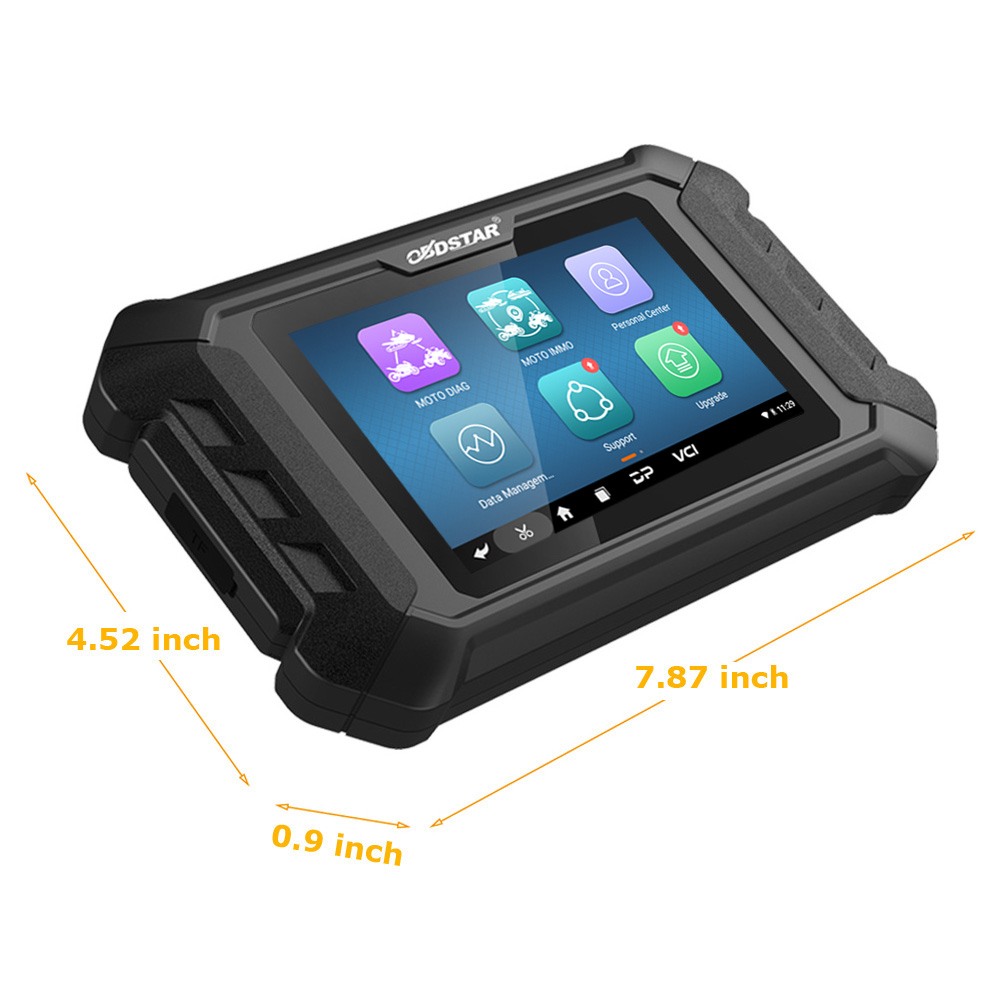

Dimension: 198*115**31mm

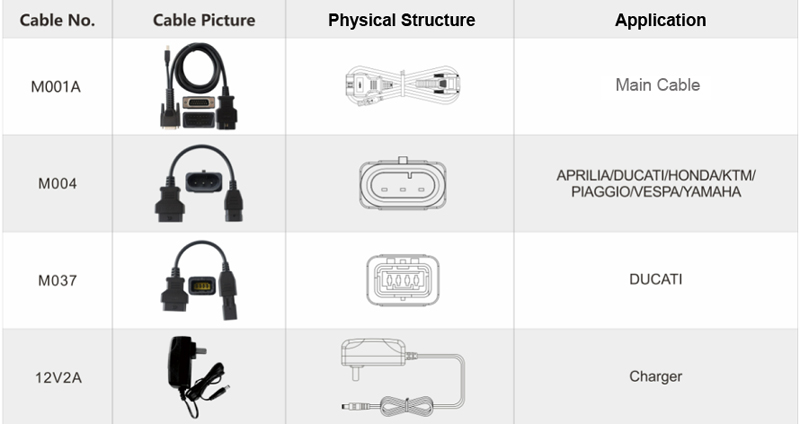

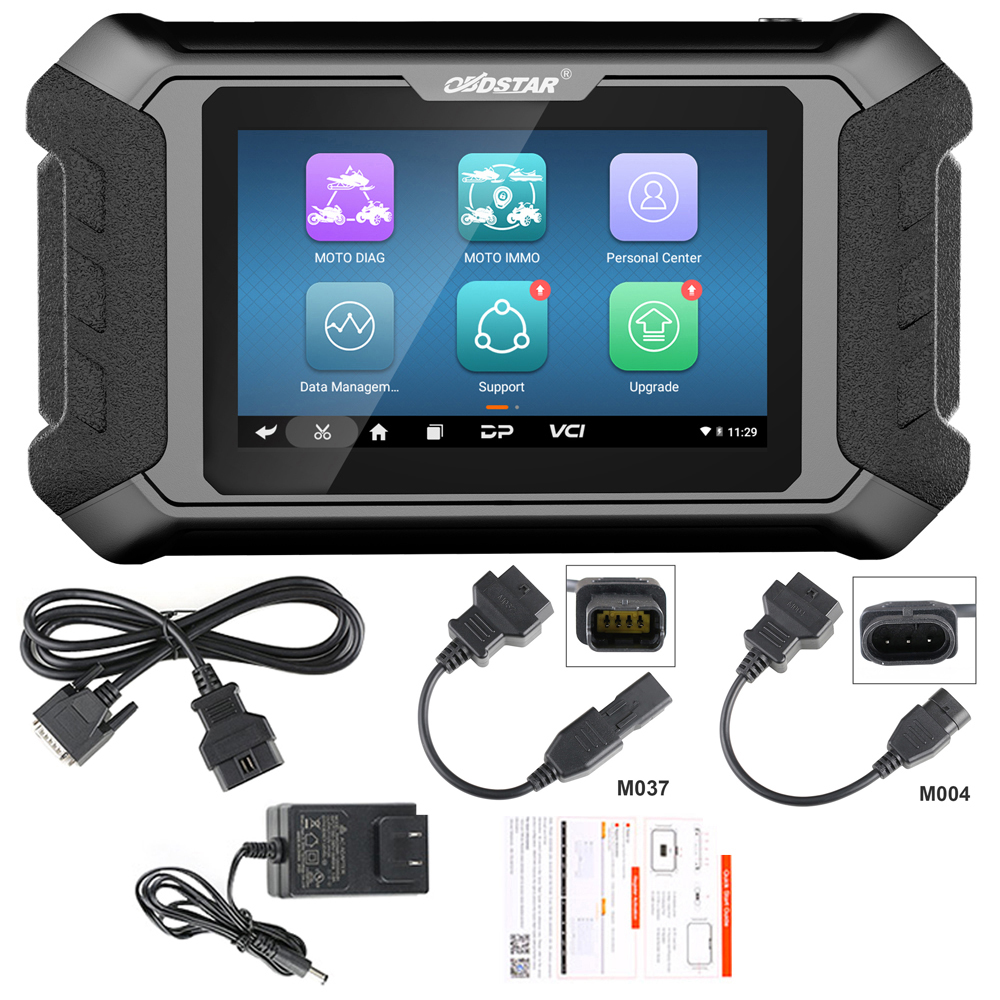

Packing List:

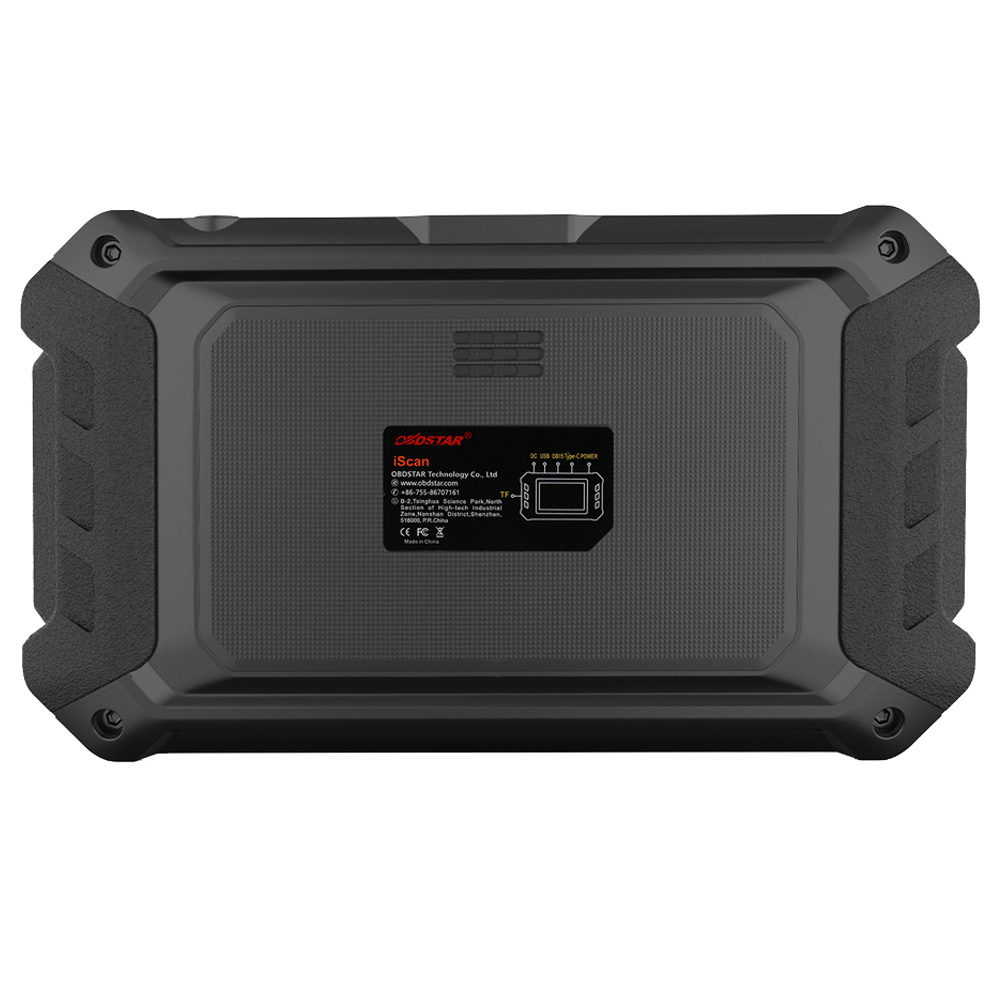

OBDSTAR iScan Ducati Motorcycle Scanner

M001A Main Cable

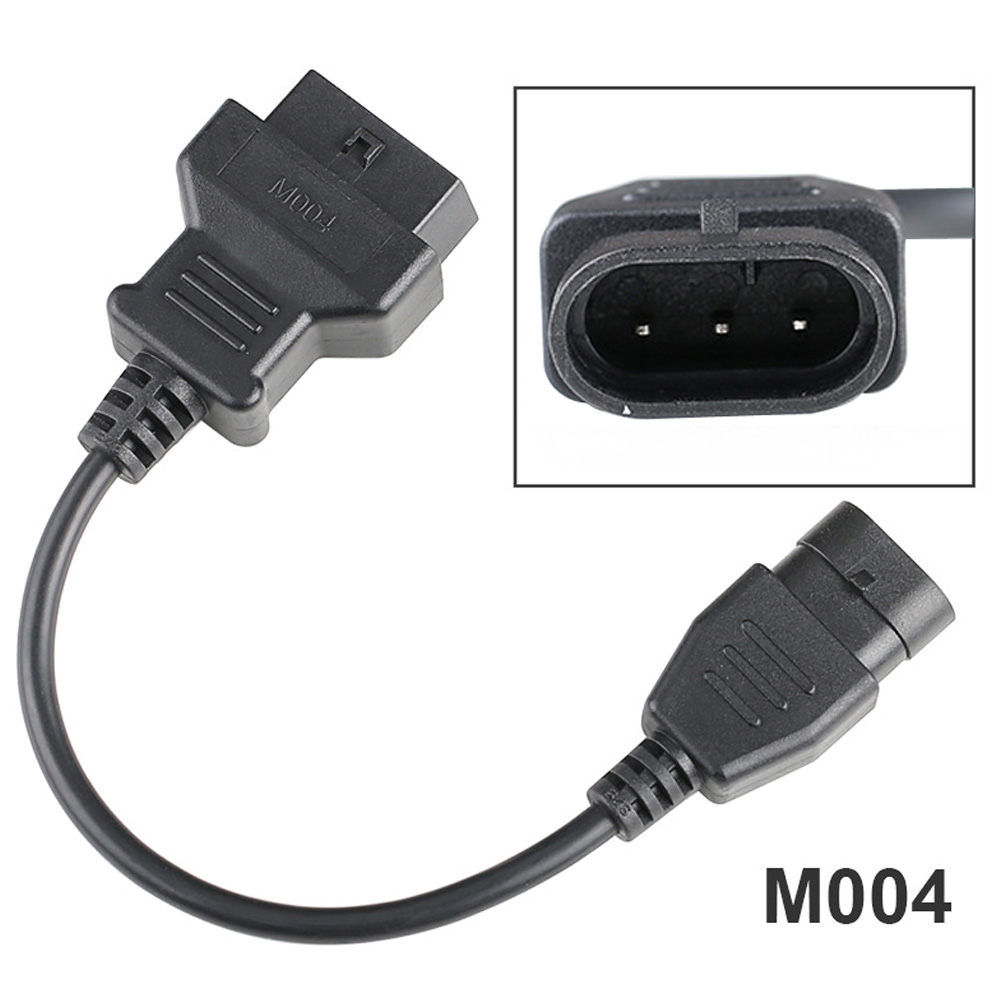

M004 Cable

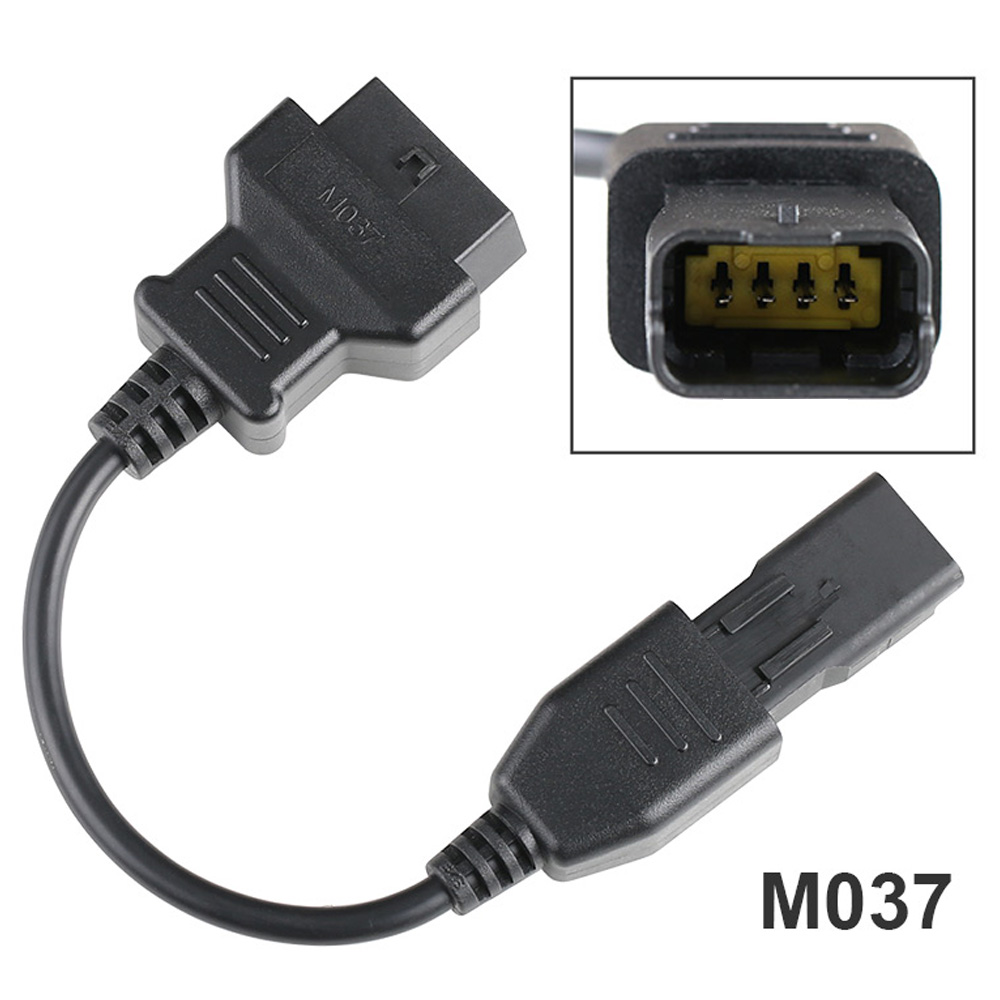

M037 Ducati Cable

12V2A Power Charger

Quick Start Guide

Packing Box
