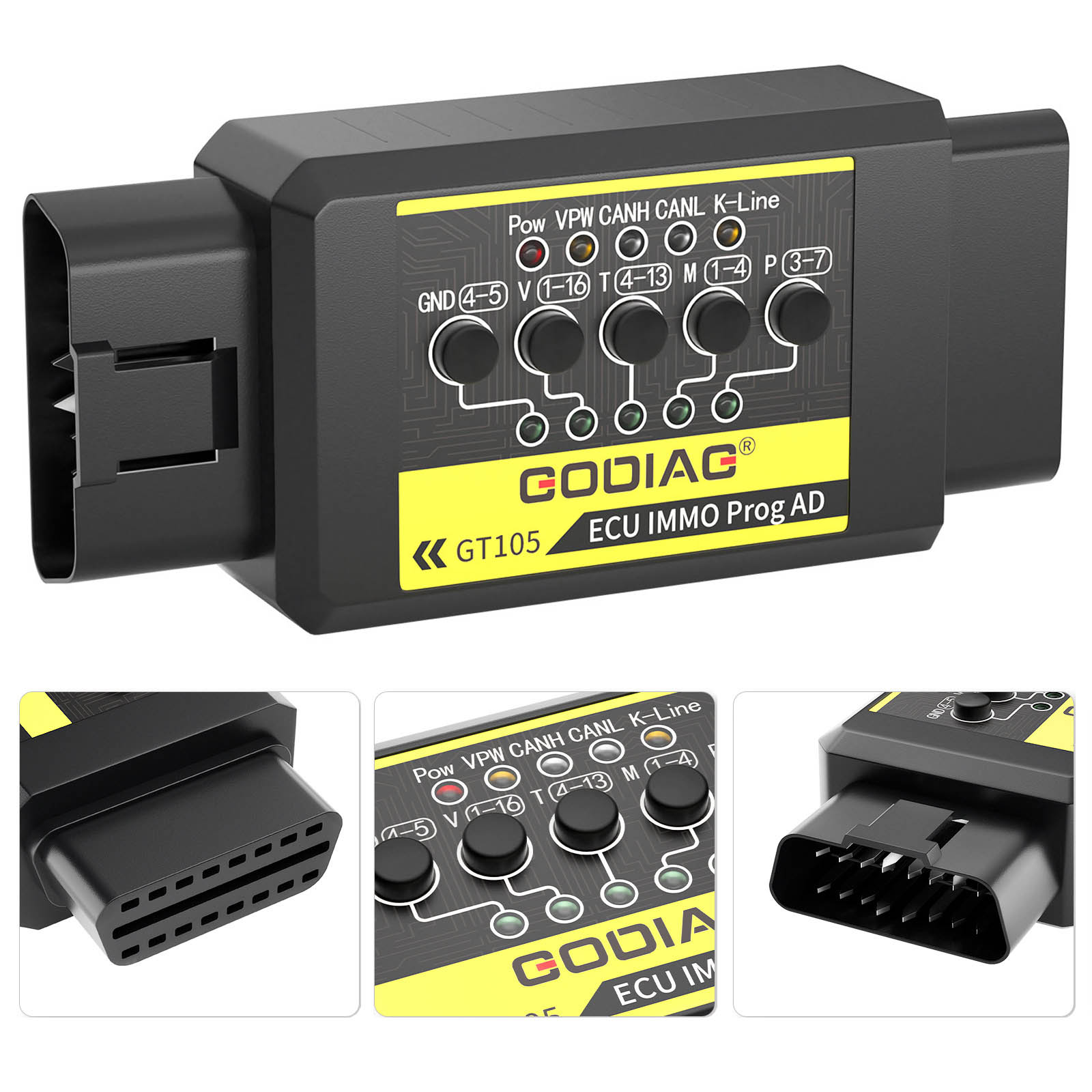

Name: GODIAG GT105 ECU IMMO Prog AD OBD-II Breakout Box ECU Connector



Description:



GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, anti-theft matching technicians, ECU programming engineers, etc. Since the power source of the product can be converted from a battery to a DC12V power supply, it can also be used to charge some tablets or supply power for independent diagnostic equipment.



GODIAG GT105 OBD2 Break Out Box is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate.



The product is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.

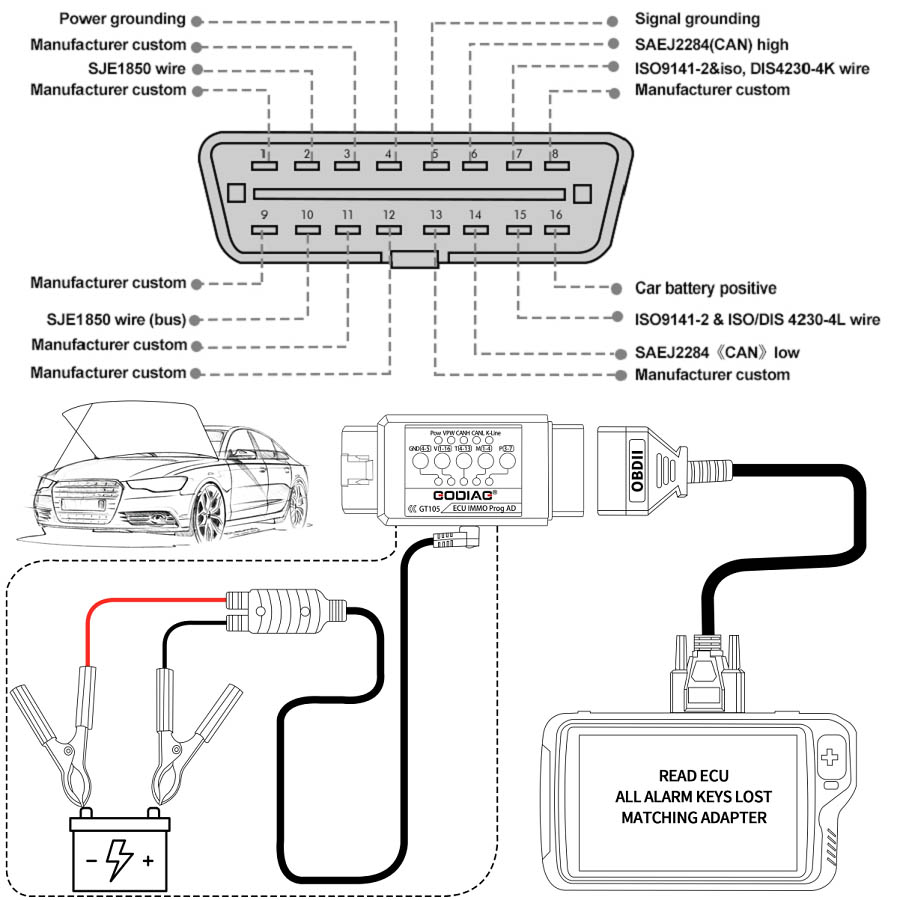

The device provides OBD2 independent PIN4 body GND, PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power. The device has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.



Features:



A full-protocol ECU connection cable for ECU programming power adjustment

OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.

PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.

Standard OBD2 independent PIN4, PIN5.

Pure copper female seat supports repeated insertion and removal, and has a long service life.

Battery clip treated with environmentally friendly salt spray, with a thickness of 0.5mm.

The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.

The DC connector has a resettable 7A fuse.

DC power interface, dedicated laboratory power connector



Functions:



Safe and Easy Operate for IMMO

To avoid disassembling the ECU of Ford, Mitsubishi, Volkswagen for short-circuit.



IMMO AD Power Adapter Function

After 2016,  for Ford all smart keys lost, GT105 cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.



All Car Keys Lost Matching

Wake up the dashboard or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for anti-theft key learning.)



VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device.  (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)

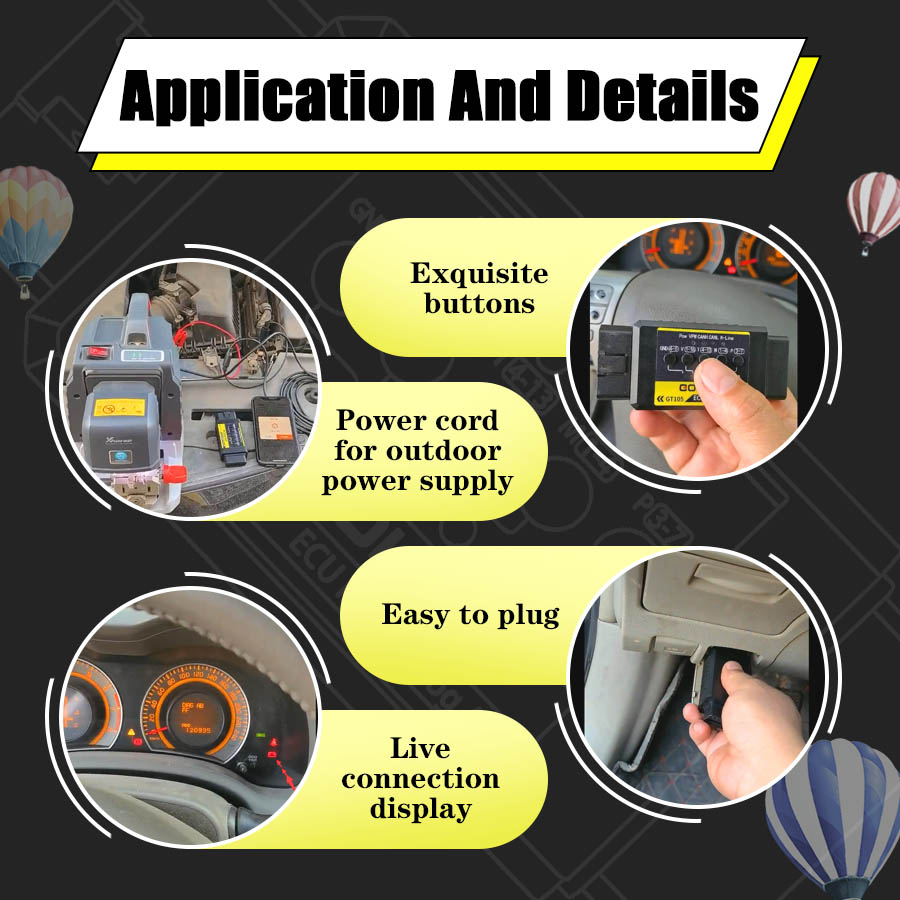

GT105 Power Adapter Cable obtains 12V power from the car battery. (For programming equipment such as XHorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, Autel MaxiIM IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ anti-theft ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )



Provide 12V power supply for the key cutter (12V).



Standard OBD2 full protocol ECU programming line. (Works with MPPS, FGTech, Kess V2, etc., for ECU Data Reading and Writing, ECU Cloning, ECU Tuning, etc.) (Note: OBD2 full protocol ECU programming cable is purchased separately)



Assist in the detection of communication: When you use a device to test on car and it indicates that there is no communication, then you can use GT105 OBD assistant to plug into the car, detect whether there is communication between the car and the GT105 OBD assistant. If there is no problem with the communication between the car and GT105,  maybe your device is faulty or not supported.



Notice:

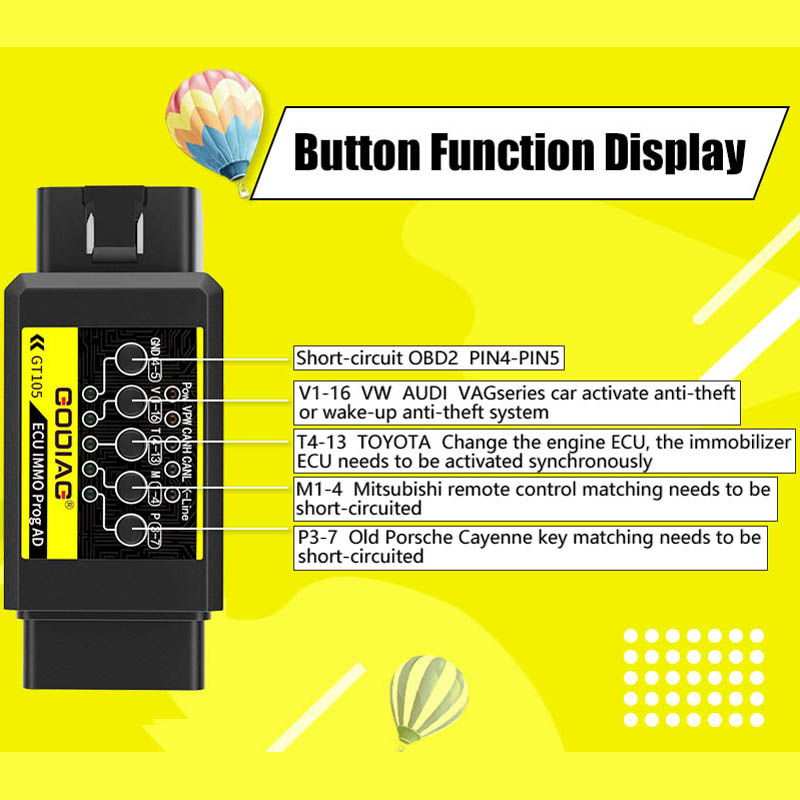

A. Porsche and VW 4th generation smart, 5th generation card key (model examples: new A6L, Touareg, A4, Q5, A7) Press the V1-16 switch to short-circuit PIN 16----PIN 1, after lighting the dashboard, the key matching tool is connected to carry out data collection. Some vehicle dashboards do not light up, but data collection can also be performed, such as: A6L,Q7.



B. Toyota needs to short-circuit PIN13-PIN4 to replace the engine ECU or do key matching when all keys are lost for some key matching equipment.



C. Mitsubishi needs to short-circuit PIN1-PIN4 to do key matching or remote control key setting when all keys are lost.



D. Porsche needs to short-circuit PIN3-PIN7 to do anti-theft wake-up.



Packing List:

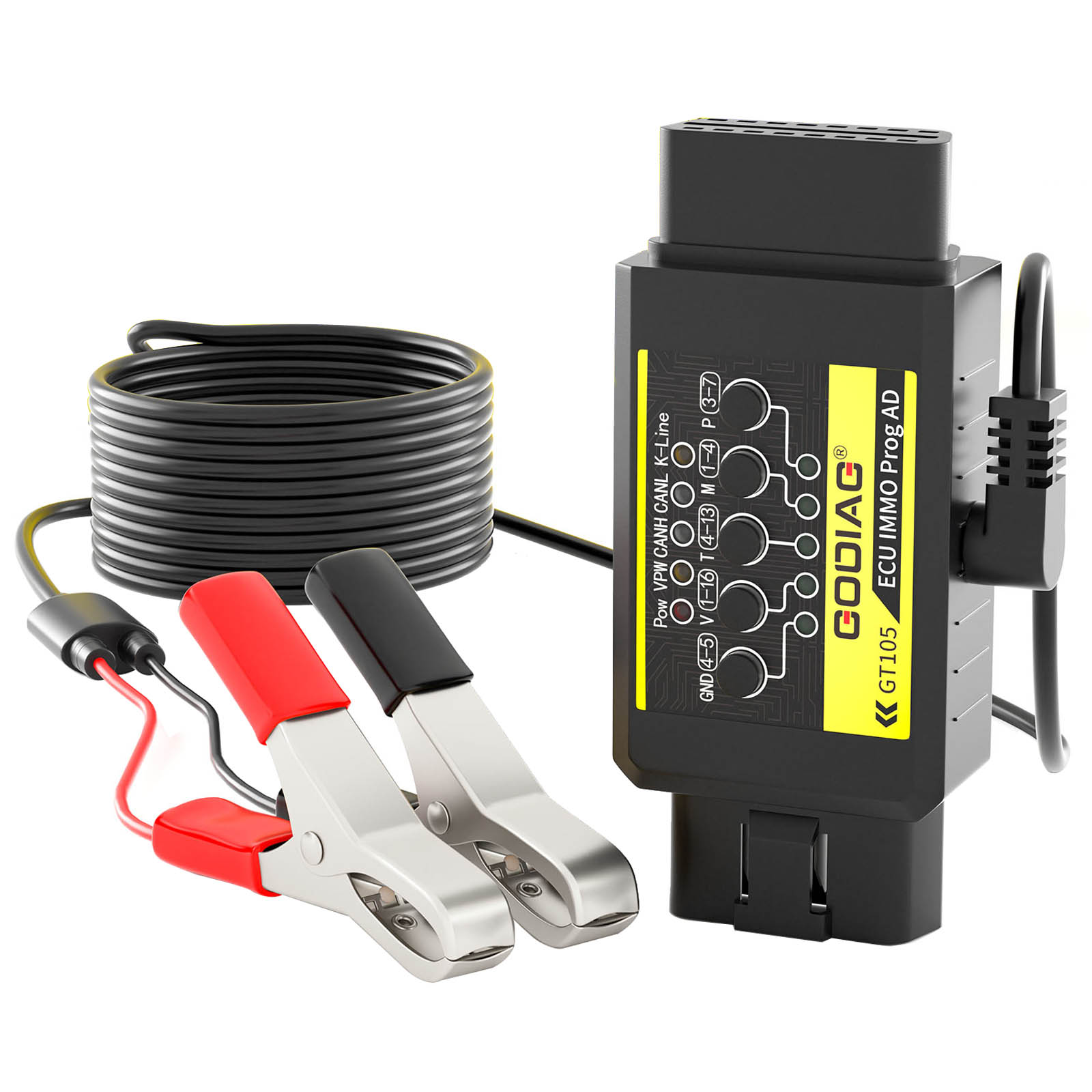

GODIAG GT105 OBD-II BreakOut Box

Power Cable Battery Clip

Packing Box
