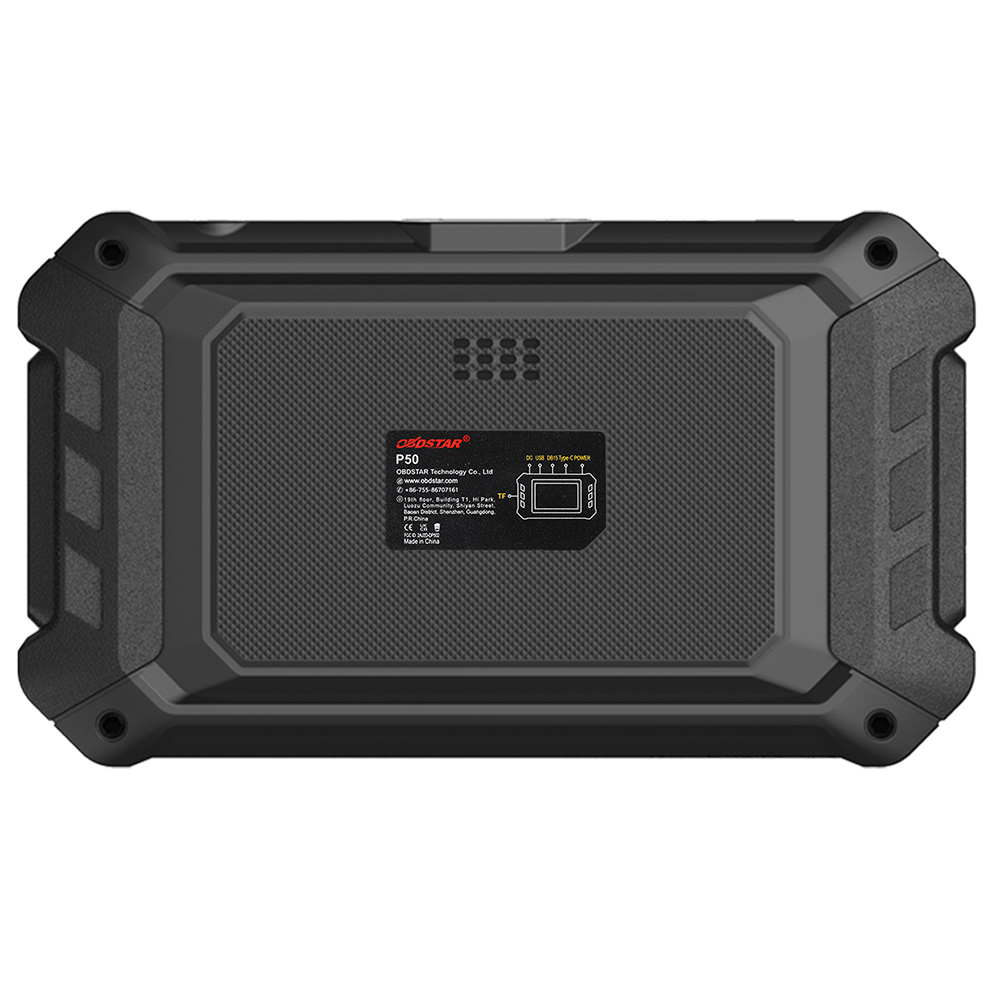

Name: OBDSTAR P50 Airbag Reset Tool
Description:
OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 38 brands and over 4600+ ECU part No., some MCU.
OBDSTAR P50 is based on RK3128 quad-core processor. It runs extremely fast and smoothly.
Functions:
1. Supports one-click airbag reset for 38 brands and over 4600+ ECU part No..
2. Supports fuzzy search for ECU part No..
3. Contains clear BENCH mode wiring diagram.
4. Contains powerful and complete description files for fault code.
More functions are in developing...

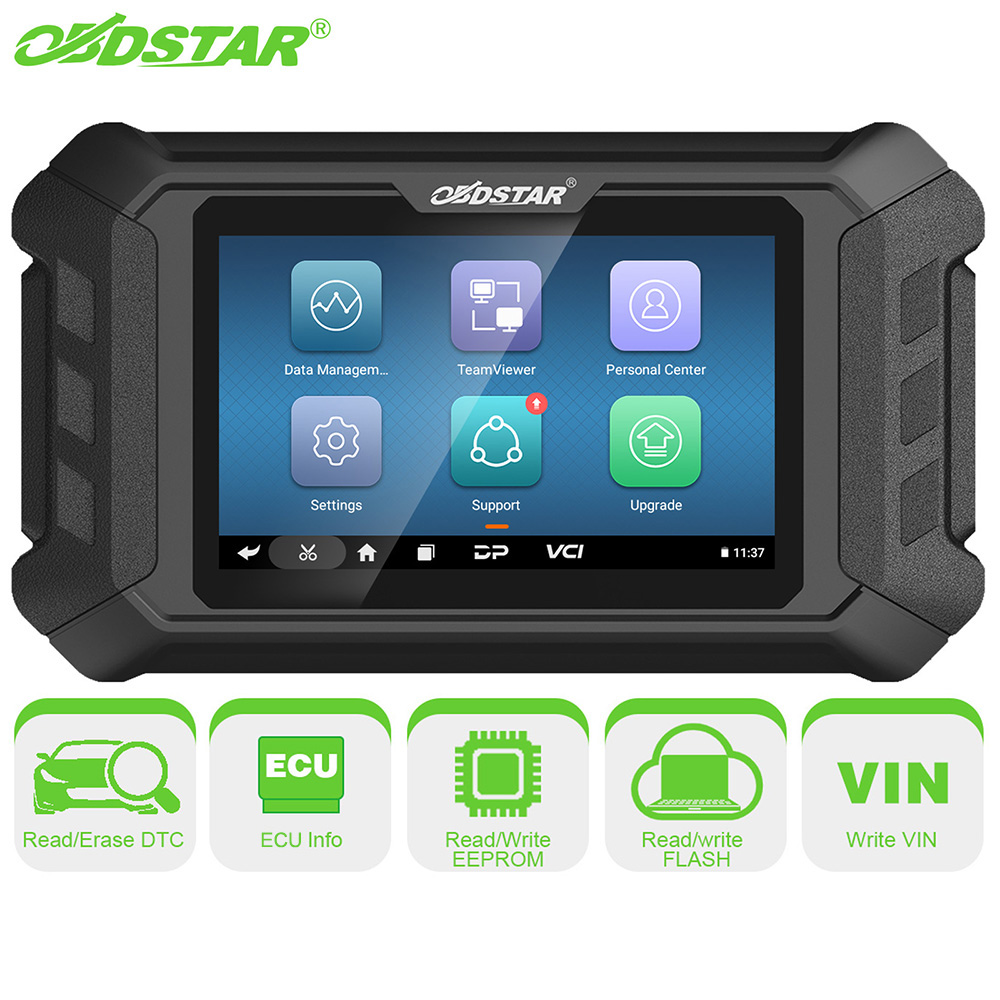

Advanced Functions:
All by OBD or BENCH
ECU Info
Read DTC
Erase DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH
Erase Crash
Write VIN
...
Notice:
Supported Language: English only.
Supported List:
1. Supported Brands(38 Brands)
Acura, Audi, Benz, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Dodge, Ford, GMC, Great Wall, Honda, Hyundai, Infiniti, Jaguar, Jeep, Kia, Land Rover, Lincoln, Maserati, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Subaru, Suzuki, Tesla, Toyota, VW, Volvo
2. Over 3000 ECU Part No.(Supports fuzzy search.)
3. MCU Types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

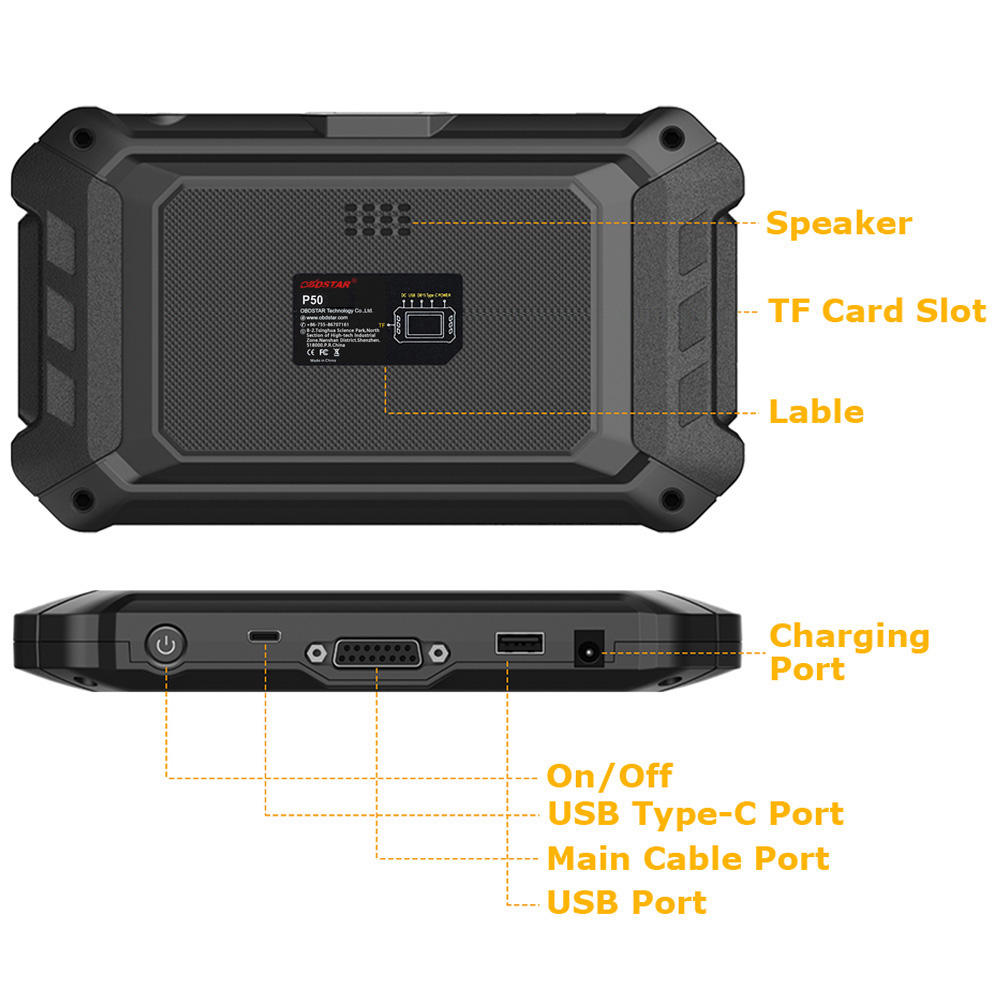

Specifications:
Operation System: Android 5.1.1
CPU: RK3128 quad-core ARM cortex A7
LCD: 5.0 inch capacitive touch screen with 800*480 resolution
Battery: 2600mA rechargeable polymer lithium battery
Extension Memory Card: 32G microSD (TF) card supported
Storage Capacity: 16GB
WiFi: supported
Working Temperature: -20 to 55 degree centigrade
Storage temperature: -20 to 70 degree centigrade
Weight: about 700g
Dimension: 198*115*31mm

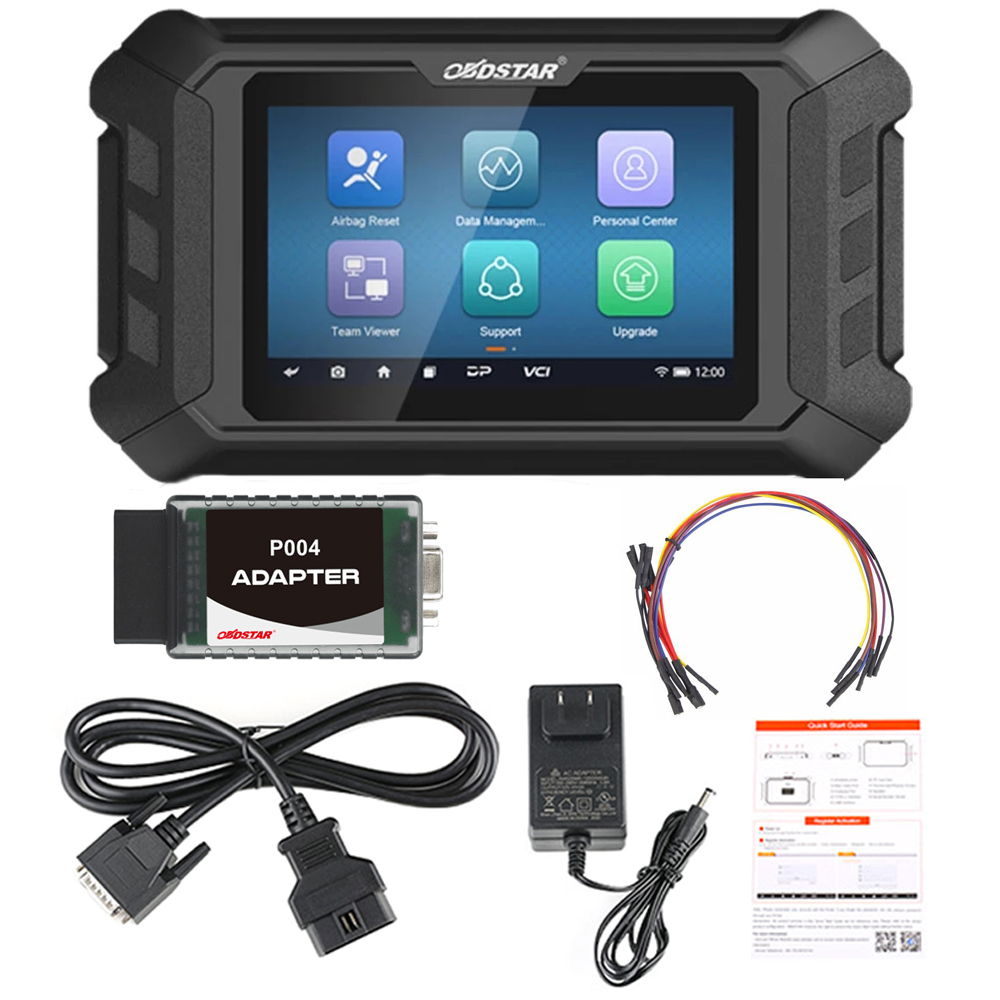

Packing List:
OBDST P50 Airbad Reset Tool
Main Cable

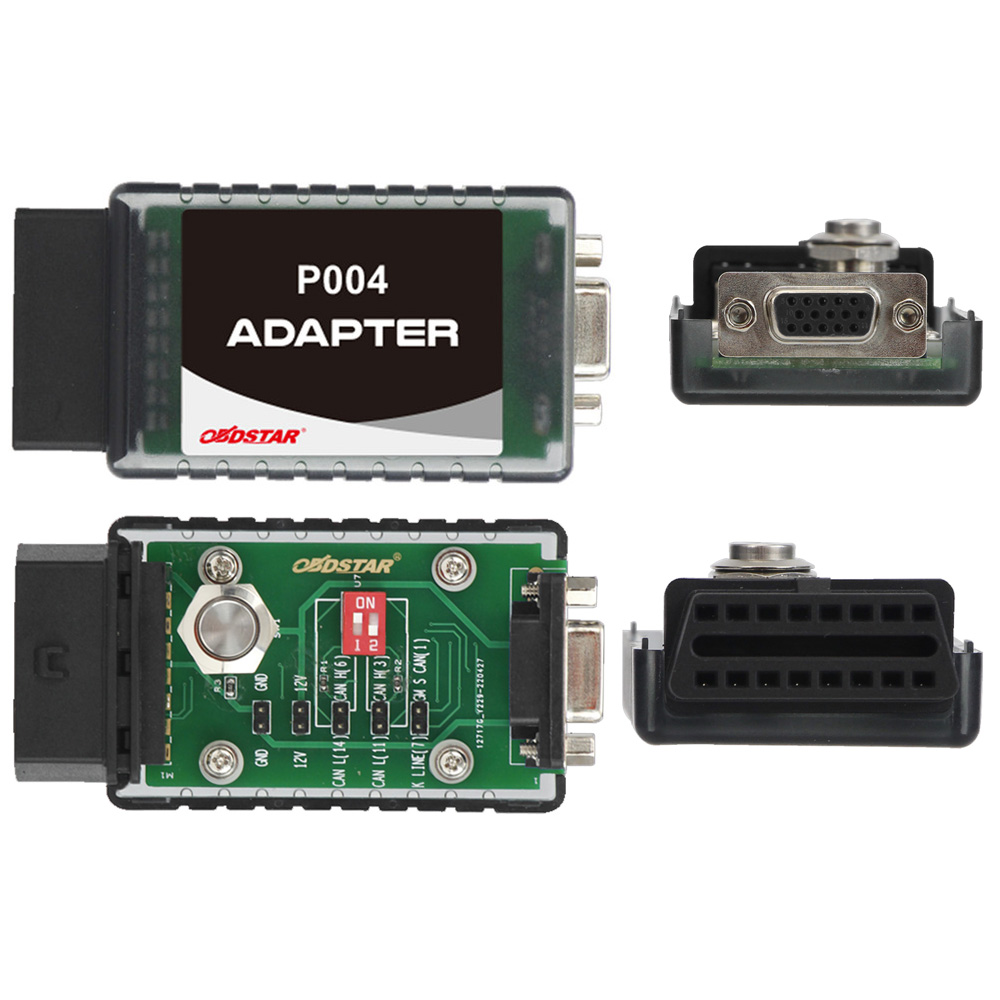

P004 Adapter
P004 Jumper
12V/2A Power Charger
Quick Start Guide

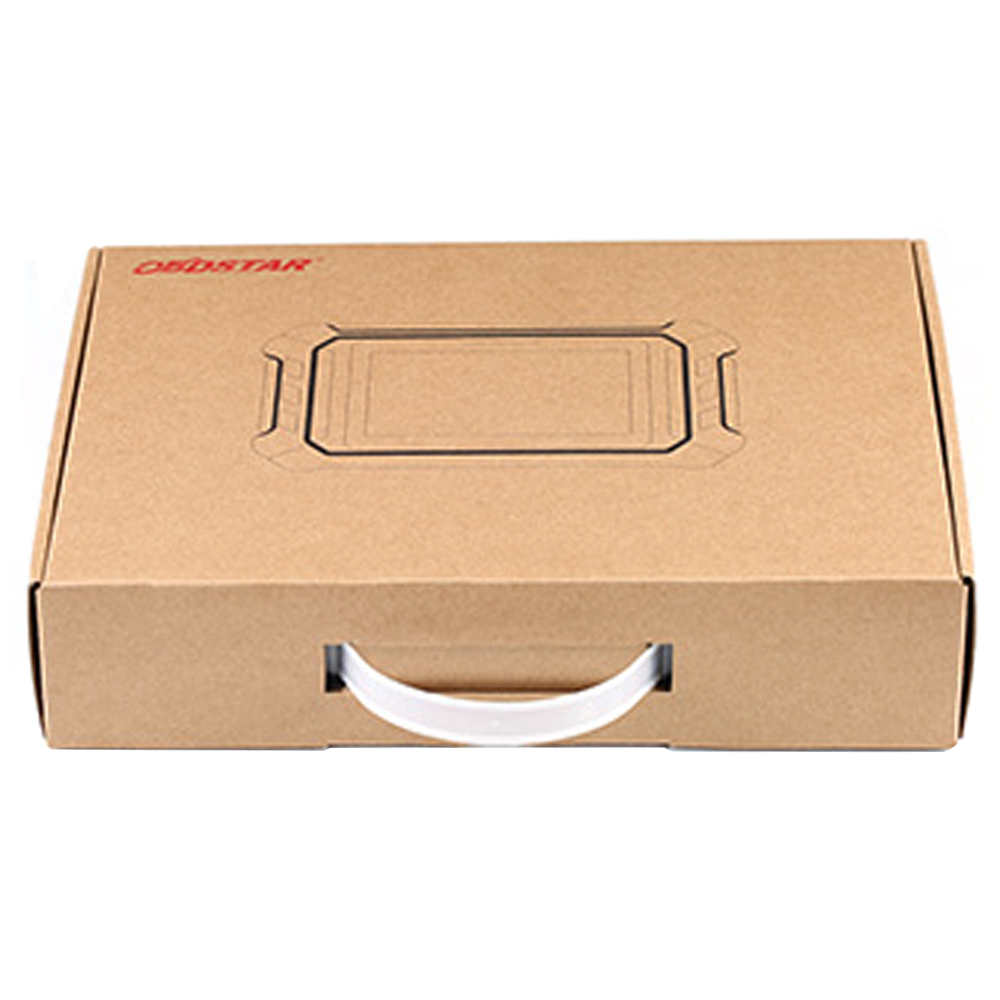

Packing Box
|
