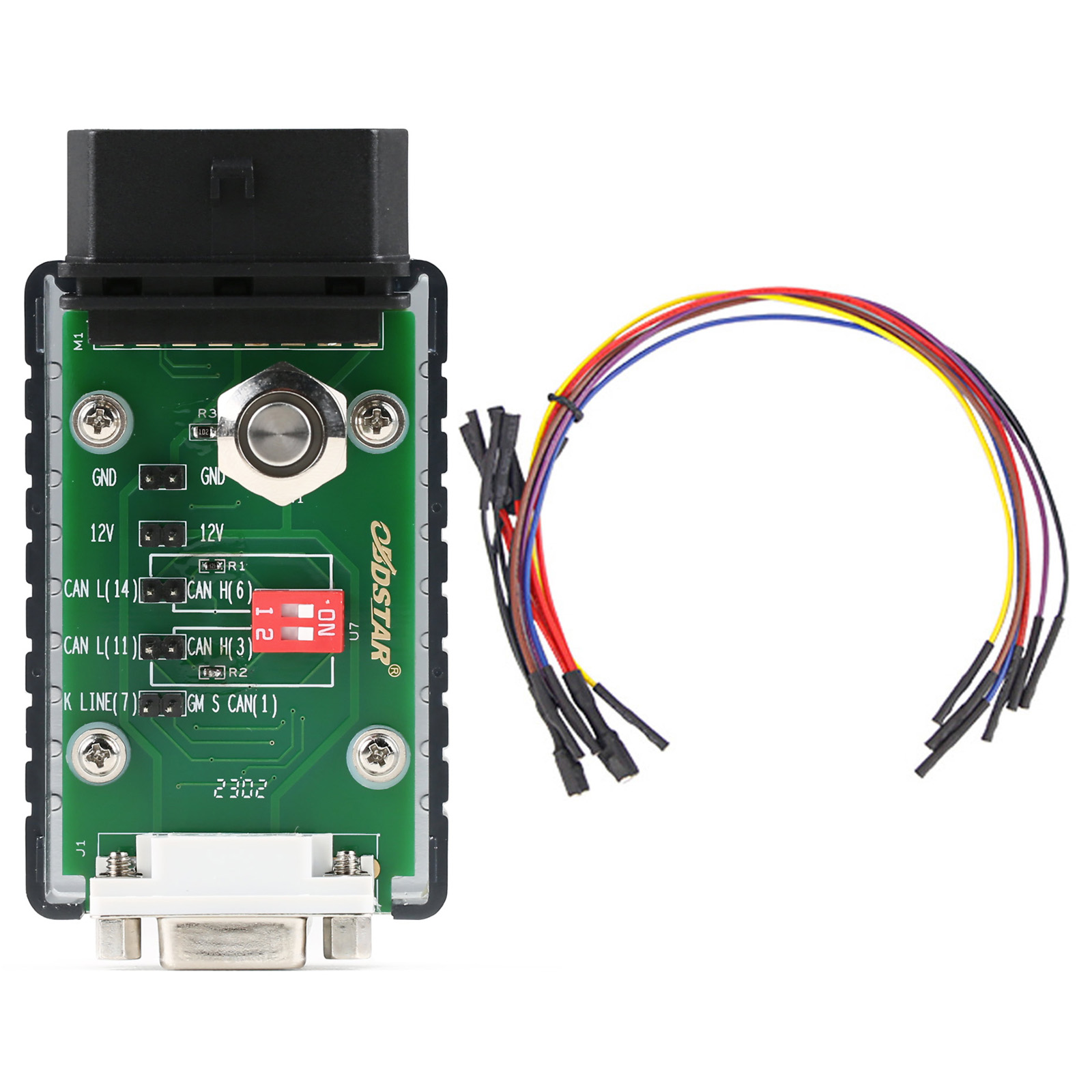

Name: OBDSTAR Airbag Reset Kit P004 Adapter + P004 Jumper
Description:
OBDSTAR Airbag Reset Kit P004 Adapter + P004 Jumper covers 38 brands and over 3000 ECU part No..
Highlights:
1. OBDSTAR Airbag Reset Kit works with X300 DP Plus C Full Configuration and OBDSTAR Odo Master Full Configuration for airbag reset. With OBDSTAR Airbag Reset Kit, multi-functions can be completed in one tablet device. It is friendly, economical, convenient for vehicle repair plants and fast repair shops.
2. OBDSTAR P004 Adapter is designed for ECU programming, reading or writing data in bench mode.
Features:
1. Programming devices keep in normal communication no matter the 12V power button is turned on or off;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6 & 14 and 3 & 11 CANBUS communication at the same time;
4. Support GM single CAN(GM SCAN);
5. Support K communication;
6. OBDSTAR P004 Jumper can connect with multiple wires at the same time, make wiring clearer and easier;
7. DB15 connector can communicate with any OBD2 I/O interface.
Basic Functions:
1. Supports one-click airbag reset for 38 brands and over 3000 ECU part No..
2. Supports fuzzy search for ECU part No..
3. Contains clear BENCH mode wiring diagram .
4. Contains powerful and complete description files for fault code.
5. Calculate PinCode.
6. More functions are in developing...
Advanced Functions:
ECU Info. / Read DTC / Erase DTC / Read EEPROM / Write EEPROM
Read Flash / Write Flash / Erase Crash / Write VIN...
Supported List:
1. Supported 38 Brands
Acura, Audi, Benz, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Dodge, Ford, GMC, Great Wall, Honda, Hyundai, Infiniti, Jaguar, Jeep, Kia, Land Rover, Lincoln, Maserati, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Subaru, Suzuki, Tesla, Toyota, VW, Volvo
2. Over 3000 ECU part No. (Support fuzzy search.)
3. MCU Types
H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570
Notice:
1. OBDSTAR X300 DP Plus Full Configuration need to buy only OBDSTAR Airbag Reset Kit for airbag reset.
2. OBDSTAR Odo Master needs to buy Airbag Reset Software + OBDSTAR Airbag Reset Kit for airbag reset.
Packing List:
OBDSTAR P004 Adapter
OBDSTAR P004 Jumper
|
