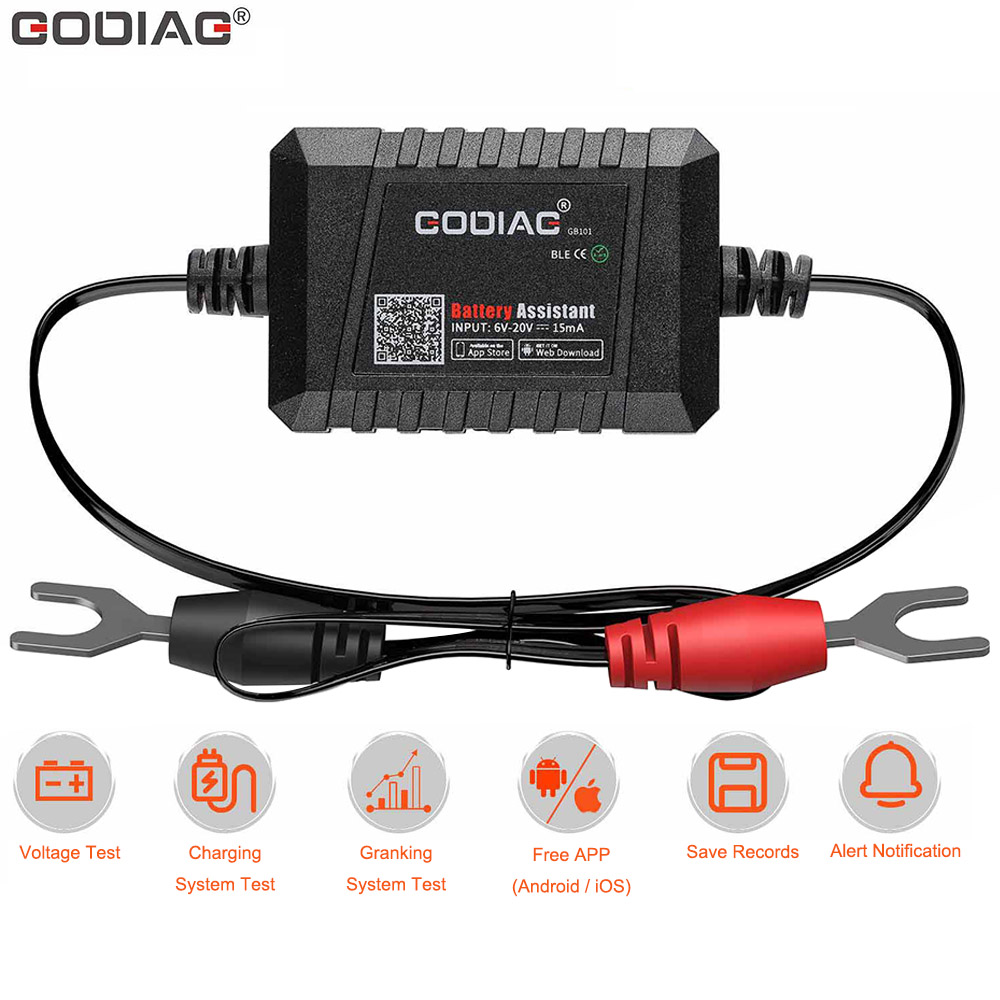

Name: GODIAG GB101 Battery Assistant for Android & iOS
Description:
GODIAG GB101 Battery Assistant is used to monitor the car battery, starting system and charging system. After being installed on the battery, the mobile phone can monitor the starting status and charging status of the battery in real time via the Bluetooth 4.0 connection.
Features:
Easy to Install on Battery
Real-Time Battery Health Monitor
Tests Vehicle Cranking System
Tests Vehicle Charging System
Stores and Displays Historical Data
Save Test Records
Automatic Synchronization
Free APP (Android / iOS) Download
Monitor Multiple Device on Mobile Phone
Alert Notification
Bluetooth 4.0 GODIAG GB101 Battery Tester is suitable for:
DIY Users
Battery Service Station
Car Service Garage / Workshop
Tool Store
Vehicle / Battery Manufacturer
Functions:
1. Compatible with all 12V vehicle batteries and installed in the car battery real-time monitoring via mobile phone APP.

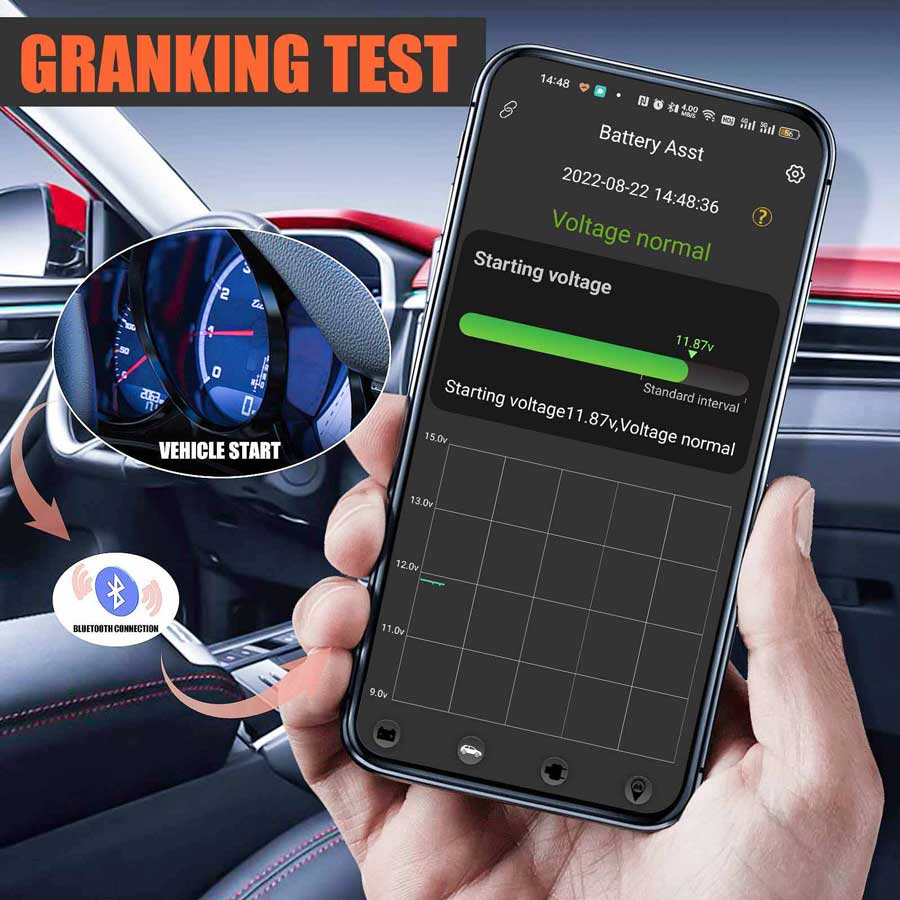

2. Check the starting system (cranking) at each engine start and check the starting voltage every hundredths of a second when the engine starts.
3. Engine start is automatically detected and check the charging and starting systems (alternator).
4. Receive battery condition notification when you enter Bluetooth range and notify mobile phone when some data is abnormal.
5. View short circuit and reverse connection protection and voltage and charge information. When the user is close to the vehicle, the APP does not need to be opened.
6. List the time of each trip and check historical data graphically.
Operation Instructions:
1. Open the car battery cover, find the battery positive and negative.
2. Screw the positive and negative, install the product's red and black connector to the positive and negative pole of the battery accordingly. Then tighten the screw.
3. Press the app on your phone, it should connect to the device. As it is Bluetooth 4.0, it does not need to pair and connect the automatic battery monitor automatically.
4. Release all permissions while running the APP(Battery-Asst).
5. Check the feature details.
6. When a red letter appears on the top left, please press to reconnect the Bluetooth 4.0.
7. System configuration.
8. Notification bar message.
Specifications:
Average Current: 1mA
Input Voltage: 6 - 20V
Bluetooth: 4.0
Voltage Accuracy: 9 to 16V (±0.03V)
Bluetooth Name: Battery Asst
App Name: Battery Asst
Supported Functions: Short-Circuit Protection / Reverse Connection Protection
Operating Temperature: -40 to 90 degree centigrade

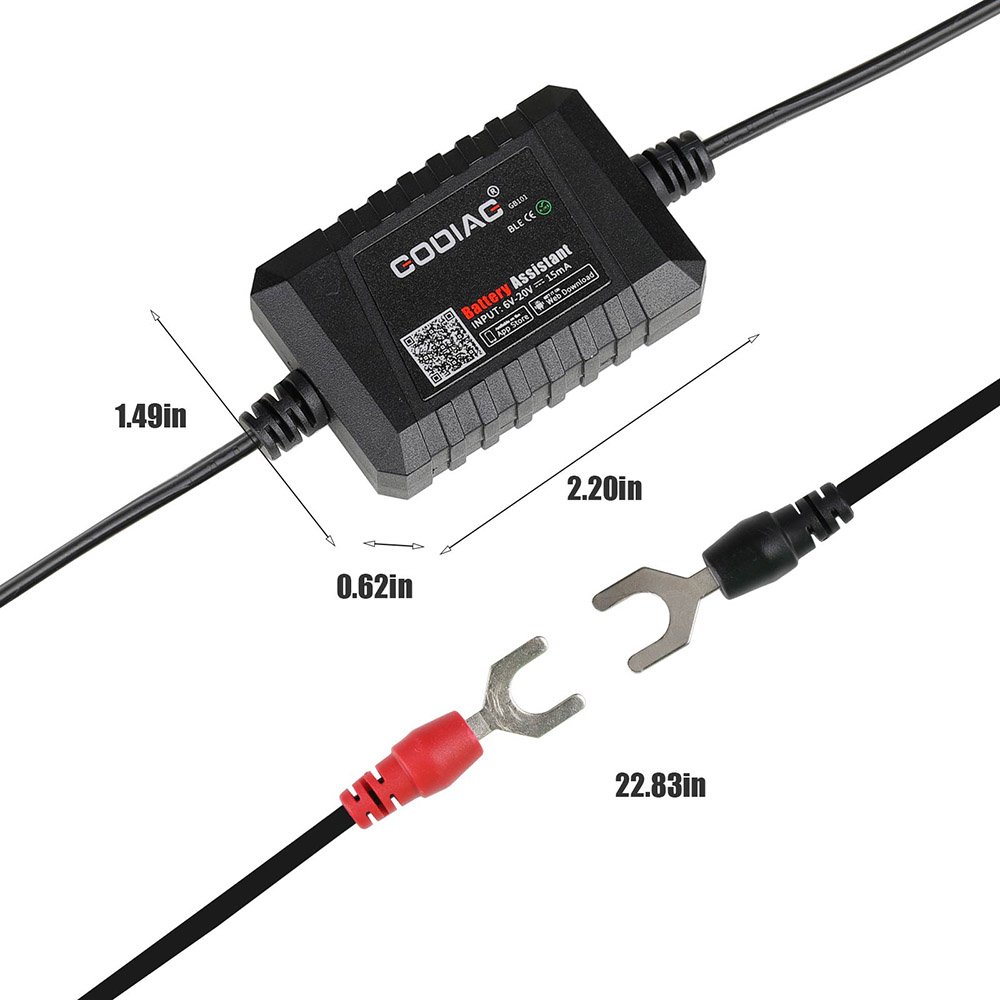

Dimensions: 5.6*4*1.6cm
|
