Description:

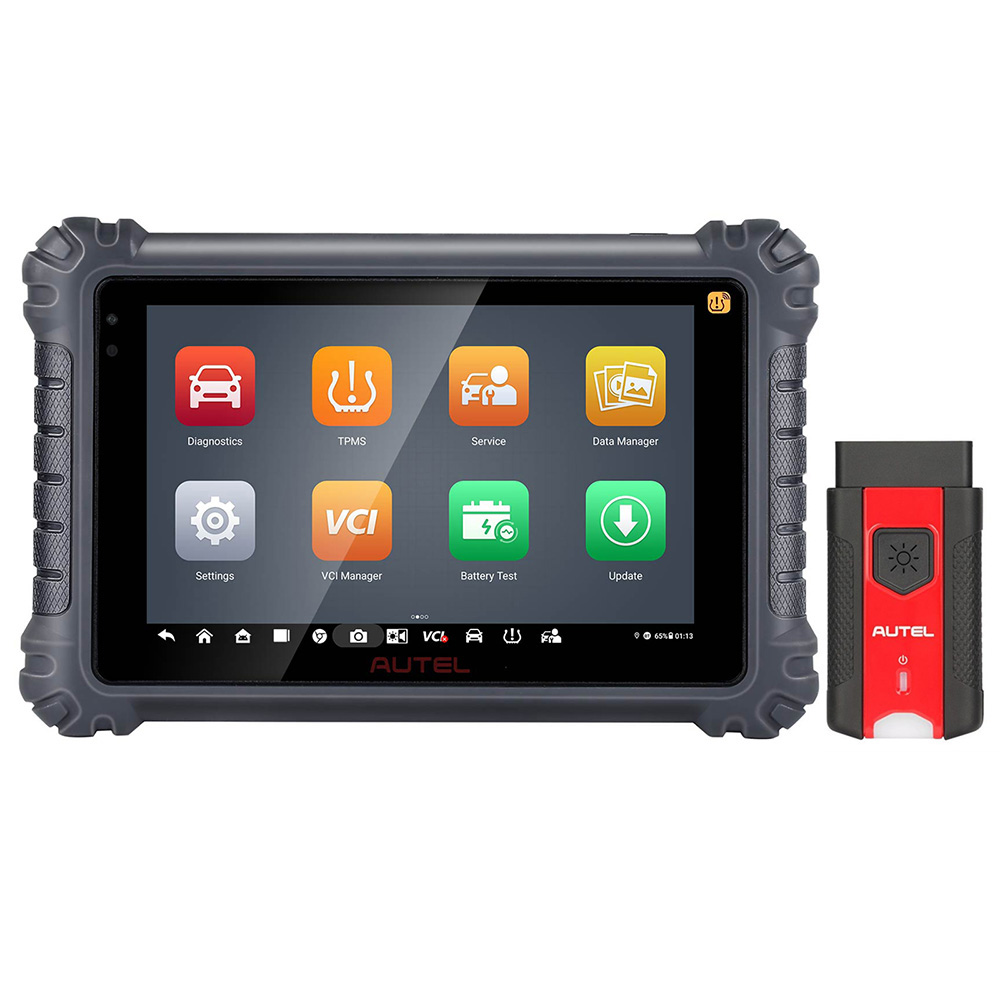

Autel MaxiCOM MK906Pro-TS is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs comprehensive TPMS servicing including 1-Sensor programming to its extensive vehicle diagnostics capability including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most of common maintenance tasks.



Version: global version without IP limit



Software Update: one year free update online



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Turkish, Dutch, Polish, Swedish, Persian, Hebrew, Arabic, Indonesian, Thai, Vietnamese, Japanese, Korean, Traditional Chinese



Highlights:



1. Advanced ECU Coding: compatible with BMW, Porsche, VW, Nissan, Infiniti, Hyundai and etc.

2. VAG Guided Functions: Detailed operation guidance and operating condition statement for easiest operation.

3. Offline Adaptation: Compatible with Ford, Mazda, Jaguar, Opel and etc.

4. Full TPMS Functions: TPMS Diagnostics, TPMS Sensor Activation, Programming MX-Sensors, Relearn Universal OEM Sensors, TPMS Retrofit, etc.

5. Full Bi-directional Control: i.e.: Active test for mutual communication with on-board systems.

6. 36+ Services: Meet all the most useful and practical daily service demands, ECU information etc.

7. Battery Test: Working with Autel MaxiBAS BT506 for real-time battery/ cold cranking / charging system health (not included).

8. DoIP/ CAN FD Protocols: Working on more newer vehicles to date, yet with stable & speedy performance.

9. Quickest Vehicle Identification: Auto Scan / Auto VIN / Scan VIN / Scan Plate.

10. Cloud Report Management, Print via WiFi and more.

11. Support Australia Holden and Ford.



Functions:

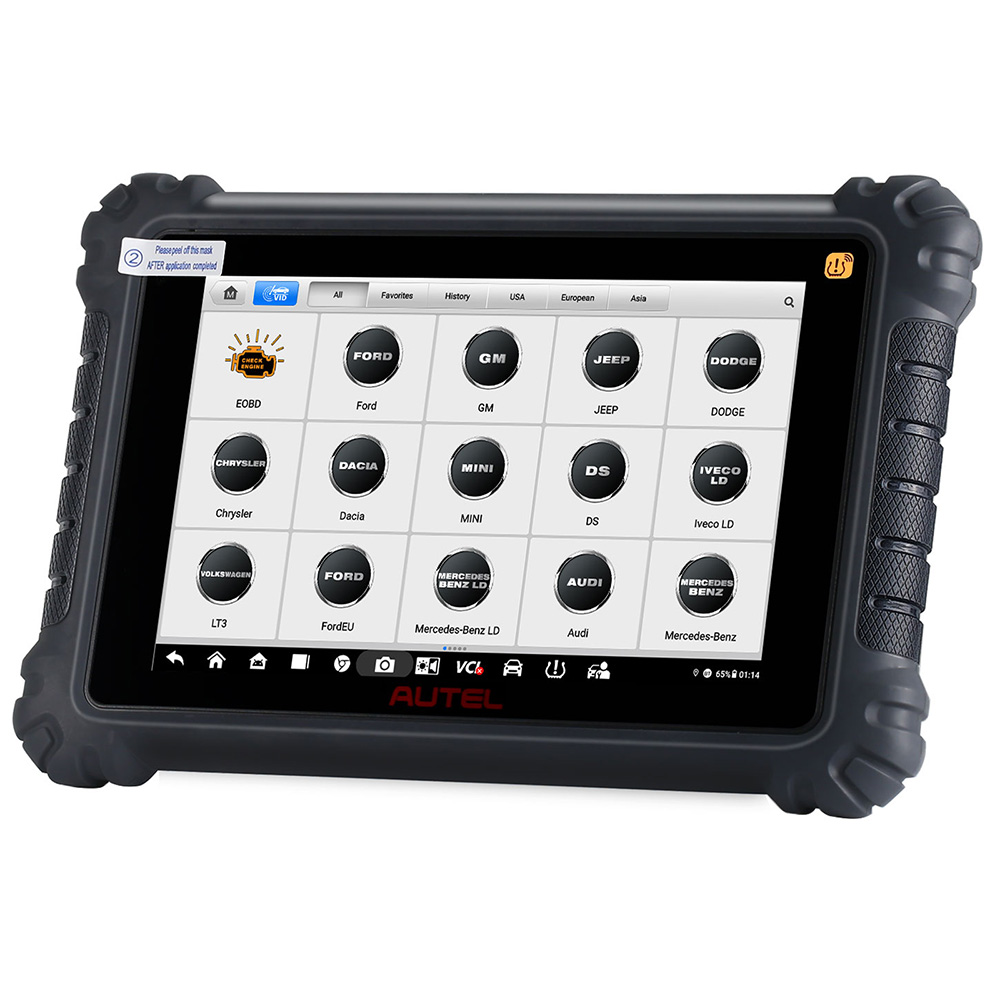

1. OE-Level Wireless Diagnostic /10000+ Vehicle Coverage



Autel MaxiCOM MK906 Pro-TS car diagnosis scan tool can read/ clear DTCs and data streams (live data & freeze frame) for all available vehicle systems, and perform active test on the most extensive vehicles.



Read Live Data: Engine Coolant Temperature, Short Term Fuel Trims, Long Term Fuel Trims, RPMs, lntake Air Temperature, Ox Sensors and etc.



View Freeze Frame: Capture the data when the electronic control unit detected a malfunction. For example, when an engine misfire is detected, a snapshot of the current sensor values is captured.



Support DoIP/ CAN FD Protocols: Working on more newer vehicles to date, with stable & speedy performance.



10000+ Vehicle Coverage: Support the widest vehicle on the road, support FCA Autoauth access, Renault Gateway.



For Instance:



Engines / Auto Transmission / Airbags / Immobilizer / Brake / Cruise Control/Instruments / Self Leveling Suspension systems/Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Parking Brake & Motor Assisted / Power Steering / Tyre Pressure  / Rain Sensors  / Stabilizer / Intelligent Parking Assist / Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti-Theft / Soft Top / Headlamp Leveling / Automatic Clutch / Headlights / Wash Wipe / Cruise Control / Multi Function Steering Wheel / Aux Heating / Clutch Electronics, etc.



1). Active Tests (Full Bi-directional Control)

With Autel MaxiCOM MK906 Pro-TS, you are able to run component test/ action test on the all the available modules/ subsystems, working perfectly for troubleshooting and re-check after repair. Active Tests includes EVAP Test, EGR Test, Injector Buzz Test, Fuel Pump & Valve Tests, Modulate The Throttle, Switch Cylinder Correction Off/On, Turn On/Off Wipers / Windows / Mirror / Sunroof / Headlamp / Sound Horn and so on.



2). VAG Guided Functions

VAG Guided function, which means Autel MaxiCOM MK906 Pro TS scanner provides detailed step-by-step operation guidance to simplify all the complicated functions implement, even a beginner can finish the diagnostics and services at ease. This function is compatible with VW, Audi, Seat, Skoda cars.



3). Personalization



2. Professional ECU Coding



Autel MaxiCOM MK906 Pro-TS has the same level advanced ECU Coding functions as Autel MaxiSys MS908 / MK908 scanner. Average diagnostic scan tools on the market only enables to read / clear codes, Autel MaxiCOM MK906 Pro-TS enables to recode adaptative data and make customized settings to vehicles, to improve the driving performance with optimal settings. A real professional and reliable diagnostic tool to help you get the work done with double the result.



1). Online Coding: Access to online data from the OEM server to do high-level repairs, Autel MaxiCOM MK906 Pro-TS enables BMW F and E Chassis Coding, Porsche Coding, VW Online Coding, NISSAN Coding and Infiniti Coding.



2). Offline Coding: Read the code from the original module and write the code to the new module, Offline Coding works on Ford, Mazda, Jaguar and etc.



3). Module Replacement: Match the adaptive data to new replaced module, works on Honda, Chrysler, VAG, GM, Peugeot, Citroen, Mitsubishi, Suzuki, etc.



4). Refresh Hidden Features: Unlock hidden functions pre-programmed or change default settings, works on Toyota, VW, BMW, etc.



NOTE:



1). ECU Coding does not imply changing the software! It only changes pre-programmed options already existent in the software.



2). To perform ECU Coding, the device should be in active software subscription period.



3. 36+ Maintenance & Special Functions



Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter.



ABS Brake Bleed: Bleed the air of a brake system to restore ABS brake sensitivity.



Airbag Reset: Reset the Airbag data and clear the collision data.



Power Balance Test: Use this test along with a cylinder compression and cylinder leakage test to pinpoint the problem.



Cam Crank Relearn: Resets the positional information in the PCM's memory and replaces it with updated information from the new crankshaft sensor.



TPMS Sensor Programming/ Relearning/ Activation/ Reset: Relearn TPMS sensors, program new MX-Sensors the car, reset TPMS warning light.



EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.



BMS Reset: Battery registration after replacing the new battery.



IMMO Keys: Disable the lost vehicle k-eys and program a new k-ey fob (for some Asian cars only).



SAS Calibration: Match the steering angle after replacing the steering angle position sensor, restore the current steering wheel position, clear SAS warning light.



DPF Regeneration: Perform the regeneration procedure to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.



Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.



Suspension Calibration: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.



And Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Trans Adaption, etc.



4. TPMS Expert



1). TPMS System Diagnostic: Autel MK906 Pro-TS is able to run in-depth diagnostics on TPMS system to detect multi-function reasons, and turn off TPMS warning light.



2). Activate TPMS Sensor: Autel MK906 Pro-TS can activates all known OEM or Autel TPMS sensors (315MHz & 433Mhz) to view sensor data, such as sensor ID, tire pressure, tire temperature, sensor battery condition and sensor position.



3). TPMS Sensor Relearn: Autel MaxiCOM MK906 Pro-TS supports TPMS Sensor relearn on almost all the sensors on the market to write original sensor IDs into the vehicle ECU for sensor recognition with 3 options: Stationary Relearn, Automatic Relearn, OBD Relearn. Mechanics can choose among the most convenient one to relearn the new one to the vehicle on-board system, among which OBD Relearn is applicable on 80% vehicles on the road.



4). TPMS Sensor Program: Autel MaxiCOM MK906 Pro-TS allows users to program the sensor data to Autel MX-Sensor to replace faulty sensors with low battery life or broken ones. Just like any other diagnostic scan tools (Autel MaxiSys MS906 Pro-TS / MS906TS / Autel MaxiPRO MP808TS ) with TPMS services, Autel MaxiCOM MK906 Pro-TS also provides 4 TPMS programming methods working on Autel 315MHz & 433MHz MX-Sensor: Copy by Activation, Copy by OBD, Copy by Input, Auto Create.



5). TPMS Retrofitting: Knowing the real-time condition of the tire and tire pressure system is essential for driving safely and extending the tire service life. Retrofit the TPMS modules into the ECU and connect the new sensor information to display the real-time TPMS data (tire pressure, temperature, sensor) on the dashboard. Following the on-screen step-by-step instructions to finishing the Retrofit in seconds.



NOTE:



TPMS Retrofit does not work on all the cars, please check compatibility if you are intended for this function.



5. Battery Test with Autel MaxiBAS BT506(Need additional purchase.)



Autel MaxiCOM MK906 Pro-TS is compatible with Autel BT506 Battery Tester. You can perform in-vehicle test as well as out-of-vehicle test for all kinds of 100-2000 CCA transportation vehicles. In-vehicle test includes battery health check, cranking / charging systems, alternative test. Out-of-vehicle mode supports testing on individual battery, all kinds of vehicle batteries are compatible.



6. Built-in Demo



New to Autel Diagnostic Scan tools? No worries at all! Autel MaxiCOM MK906 Pro TS Scanner is integrated with Demo App on its menu. You can run trial diagnostic/ advanced functions by choosing the same vehicle model before you actually use it on the car. Um-obstructively apply the Autel MK906 Pro-TS scanner in your car even you are a green hand in car maintenance!



7. Autel Cloud Services



Accessible to Autel Cloud for Cloud-Based Reports and Management, generating detailed pre and post diagnostic reports and share it on the Autel Cloud to your customers.



Remote Expert for remote module programmers with active OE subscriptions, just like a bunch of experts at your reach for complex questions.



8. Print via WiFi



Autel older scanner such as Autel MS908BT, MS906TS MK908 MS908 and etc require users to print via computer, Autel MaxiCOM MK906 Pro-TS scanner can connect to the printer directly. Select "Print Via WIFI" in "Print Setting" as defaulted, printing out the reports is so simplified.



Notice:



Oscilloscopes are not supported.

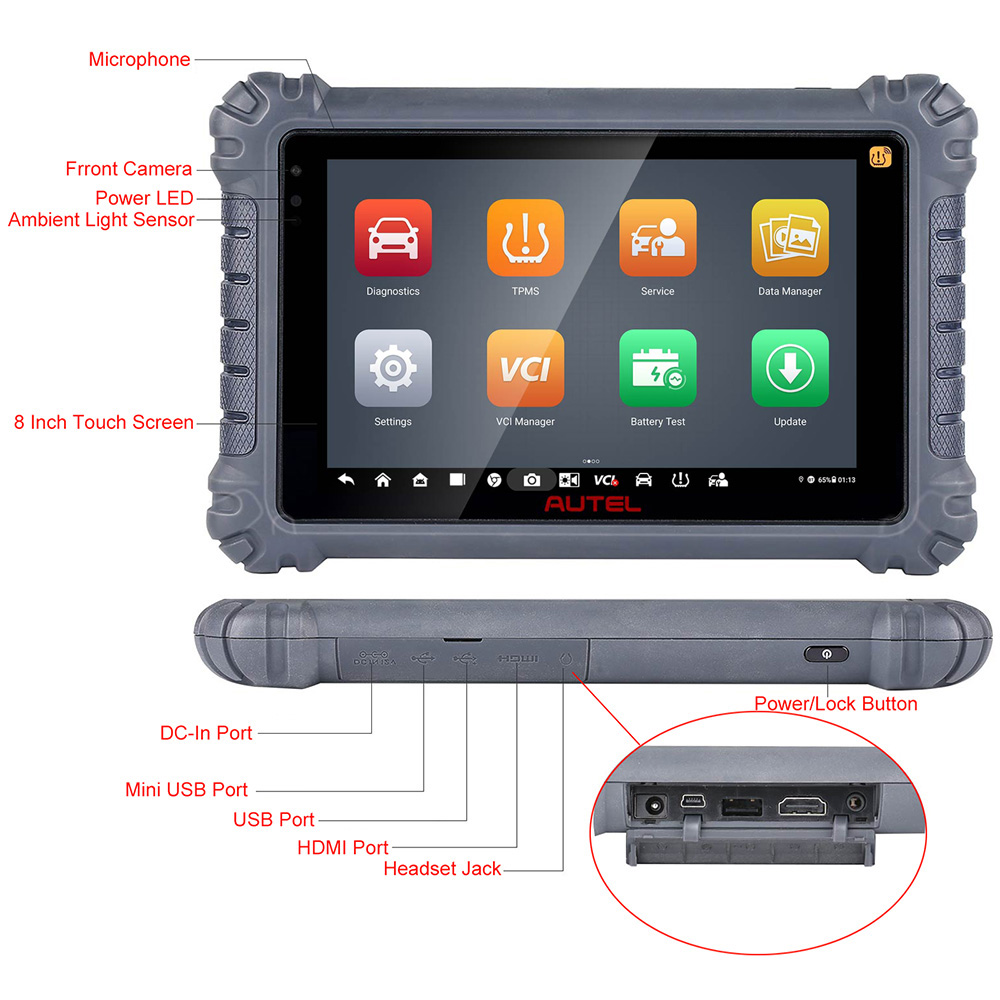

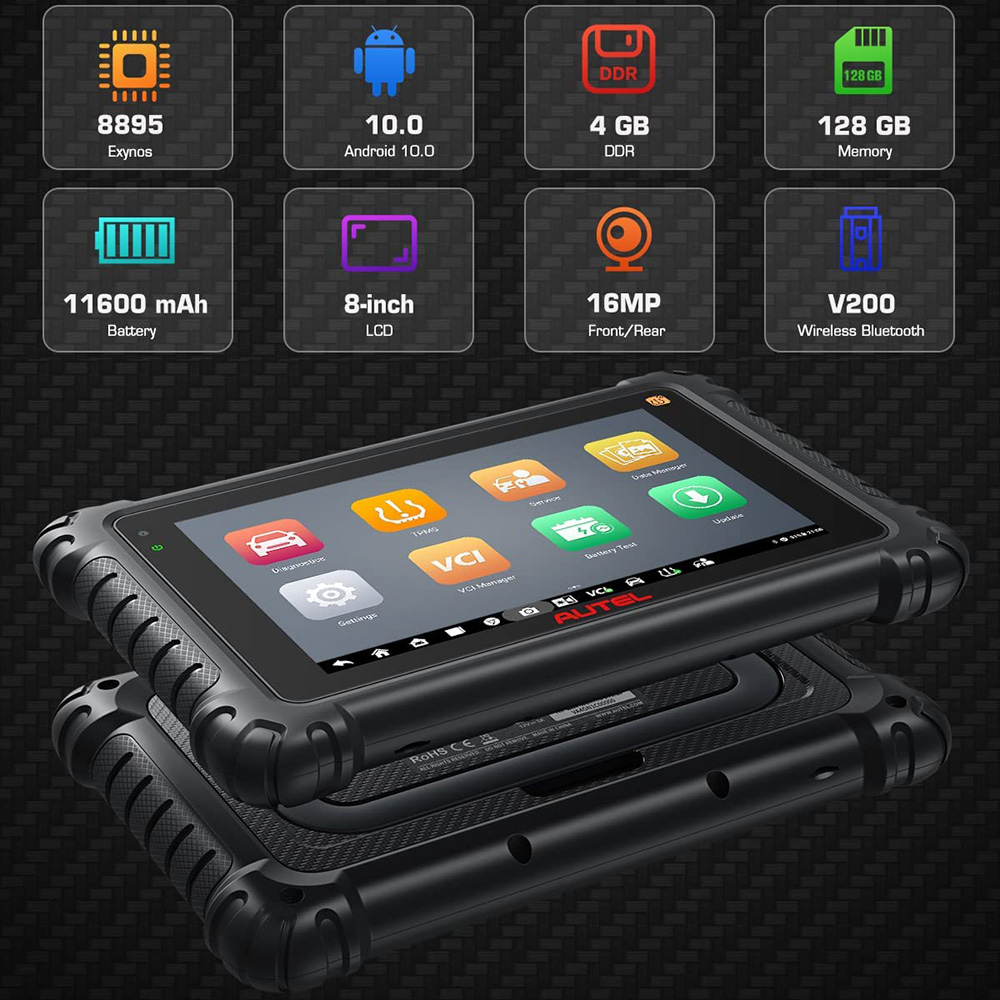

Specifications:



Processor: 8895 Exynos Processor

OS: Android 10.0

Display: 8-inch LCD screen with 1920*1200 resolution

RAM: 4GB

Memory: 128GB

Battery: 11600mAh

Front and Rear Camera: 16MP

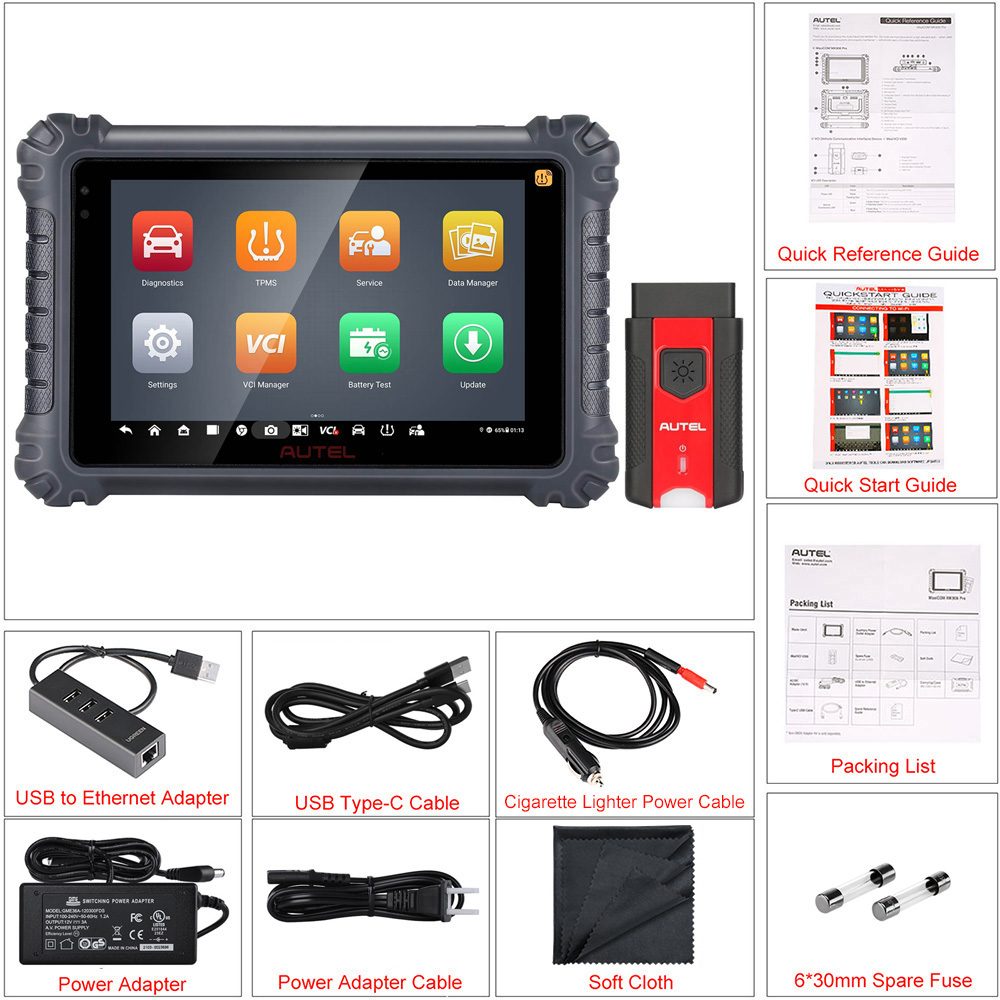

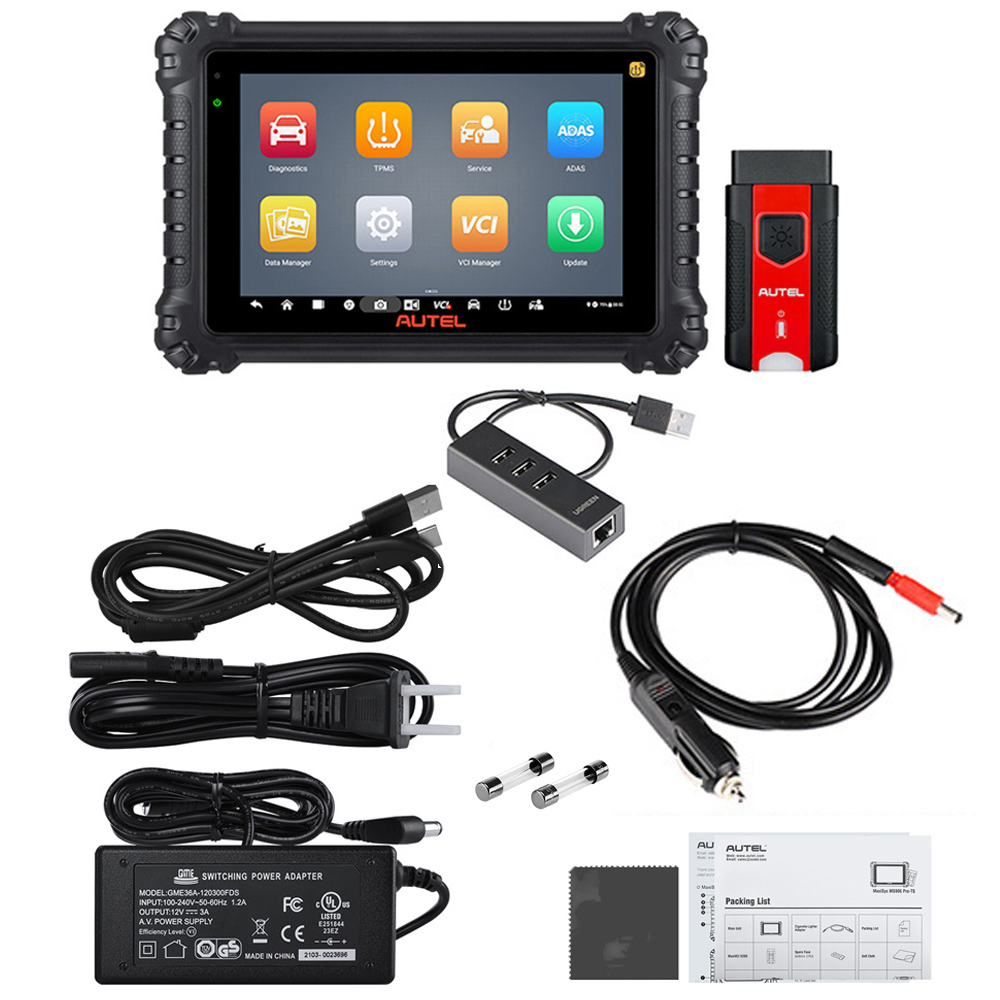

Packing List:



Autel MaxiCOM MK906 Pro-TS

Autel MaxiVCI V200

USB Type-C Cable

USB to Ethernet Adapter

Cigarette Lighter Power Cable

Power Adapter

6*30mm Spare Fuse (2 pcs)

Soft Cloth

Quick Reference Guide

Packing List

Plastic Toolbox

Packing Box
