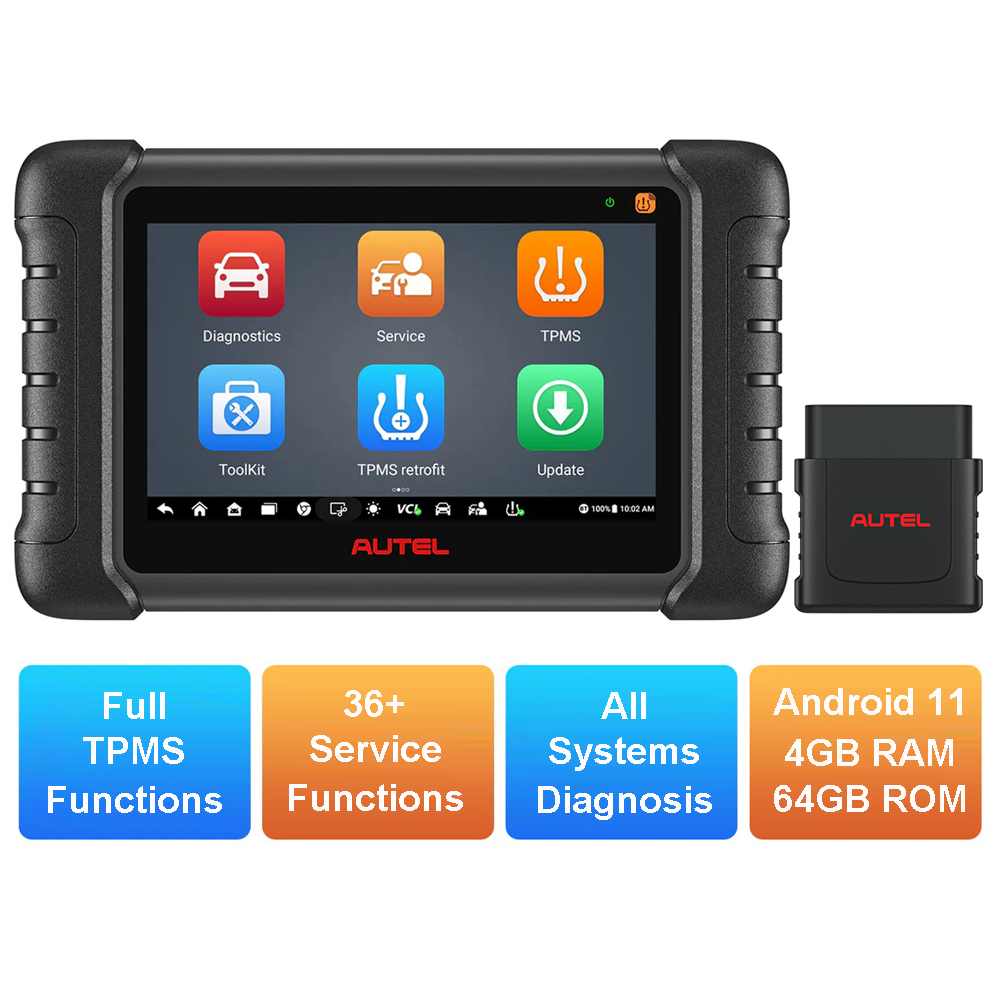

Name: Autel MaxiCheck MX808S-TS



Description:



Autel MaxiCheck MX808S TS is the perfect combination of professional diagnostic tool and tailored TPMS tool, which empowers you to deal with TPMS module related issues as well as professional diagnosis.



Software Update: one year free update online (USD210/year for further update)



Supported Languages:



English, French, German, Spanish, Portuguese, Russian, Italian, Dutch, Polish, Swedish, Korean, Japanese



(Notice: Default language is English, if you need other language, please send us serial number for authorizing online.)



Features:



1. Advanced Hardware

Upgraded from MK808TS, featuring 5 times faster processor, the latest Android 11.0, 4GB RAM, much better diagnostic response; designed to economize diagnostic effort while delivering accuracy of identifying faults.



2. Complete TPMS Functions

4 ways to program, 3 options to relearn, thousands of TPMS relearn procedures, 99% all brand sensor activating, accurate sensor data reading and advanced TPMS Retrofit function.



3. Bi-Directional Control / Active Test

Testing vehicle-specific components (relays, injectors, coils, solenoids valves, actuators, etc.) without manual control; deliver fast results in 5 minutes.



4. 36+ Special Functions

In-depth and OE(Original Equipment)-level Reset Functions meet all your maintenance requirements.



5. Auto VIN Technology

Automatically identify the vehicle make, model, year information quickly.



6. 1-Stop Multitasking

Designed for ideal management of workshop operations to keep all Data Files, Customer Info, Vehicle Records well organized.



7. Online Wi-Fi Update

Automatic system and software updates with real-time push message notifications via Wi-Fi.



Functions:



1. Complete TPMS Functions

Equipped with professional complete TPMS functions, Autel MX808S-TS can work as both a highly advanced car code scanner and a professional TPMS tool. It is enough to meet the needs of the professional tire shops. As the great combo of Autel MaxiTPMS TS508/TS601/TS608, TPMS programming & relearn tool MK808S TS can perform all TPMS service.



1). Advanced TPMS Diagnostics:

Check the TPMS Module Status: Read/Clear Trouble Codes from TPMS, Read Live Data to check the module status, Turn Off the Error Light.



2). Autel MX-Sensor Programming:

Replace the Broken TPMS Sensors, Fast & Easily: Wirelessly program the Autel MX-sensors (315MHz/433MHz) to replace the broken TPMS tire sensors with low batteries or other problems.



4 Ways to Program TPMS Sensors: Copy by Activation, Copy by OBD, Copy by Input, Auto Create



(Notice: Only Autel MX-sensors can be programmed.)



3). 99% TPMS Sensor Relearn:

Help Newly Replaced TPMS Sensors Work Properly: Relearn TPMS sensors to the vehicle ECU after changing or rotating tires, or installing new sensors to ensure if the information stored in ECU matches perfectly with the equipped TPMS Sensor ID and location.



3 Ways to Relearn TPMS Sensors: Stationary Relearn, Automatic Relearn, OBD Relearn



4). All-Brand Sensor Activation:

Trigger 99% of TPMS Sensors Wirelessly: Autel MK808S-TS can activate 99% of TPMS sensors (315MHz/433MHz), including the OE sensors and other sensors in the market.



5). TPMS Sensor Data Reading:

Check the TPMS Sensor Status Quickly: Read sensor ID, pressure, temperature, battery condition, etc., to help you quickly pinpoint the issue.



6). TPMS by OEM Part No.:

An efficient method to quickly and accurately determine the current vehicle model, year, frequency info., avoiding TPMS matching failure caused by incorrect selection.



2. TPMS Retofitting

Autel TPMS relearn tool MX808S-TS can retrofit your car with an OEM tire pressure module, and then program & relearn the sensors to the car.



How to Perform the TPMS Retrofit Functions?



Step 1: Back up the original vehicle data;

Step 2: Code Autel TPMS module;

Step 3: Install Autel TPMS module on the vehicle following the instruction;

Step 4: Program the Autel TPMS sensors (Note: For the OE tire sensors, this step can be skipped);

Step 5: Activate Autel TPMS sensors or OE sensors;

Step 6: Relearn the sensors with on-board TPMS module;



Notice: Once you finish the above steps and sit back to the seat, you will surprisingly find out the pressure of each tire has been shown on the dashboard.



3. Bi-Directional Control (Active Test)

Updated of OBD-II scanner Autel MX808TS / MK808TS, Autel MX808S TS is not only an affordable OBD2 tablet scanner, but also a bi-directional scan tool. It inherits the powerful Bi-Directional Control / Active Tests which makes Autel MK808STS the most cost-effective Autel scanner.



In addition to reading/clearing codes and reading data from all modules, this bi-directional scan tool MK808S TS can also send data to command the vehicle ECUs and monitor the operation of the actuators, even the relays, to track down the problem.



Such As: A/C Configuration; Adaptive Headlamp Adjustment; Window Wipers Setting; Doors Turn on/off; Sunroof Switch on/off; Mirrors Folding/Unfolding; Active Tests on Interior lights, Inside Mirrors, Steering Wheel Heating, Windows, Horn, etc.

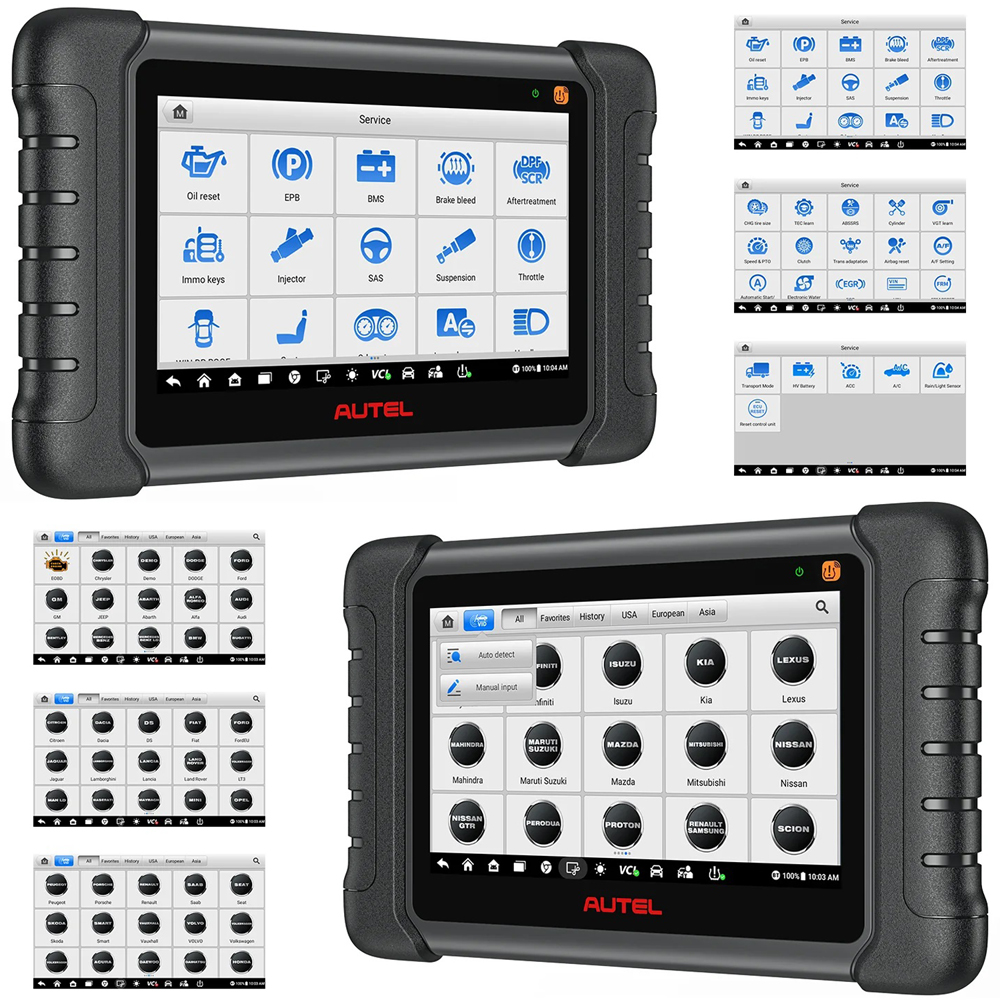

4. 36+ Service Functions

Autel Scanner MX808S-TS offers over 36+ Services Functions and is the most cost-effective diagnostic scan tool in the market.



Such as Following Popular Services Functions: Oil Reset; EPB; TPMS; BMS; Brake Bleed; Aftertreatment; IMMO Keys; Injector; SAS; Suspension; Throttle; WIN DR; ROOF; Seats; Odometer; Lang Change; Headlamp; CHG Tire Size; TEC Learn; ABS; SRS; Cylinder; VGT Learn; Speed & PTO; Clutch; Trans Adaptation; Airbag Reset; A/F Setting; Automatic Start/Stop; Electronic Water Pump Start; EGR; VIN; FRM RESET; Transport Mode; HV Battery; ACC; A/C; Rain/Light Sensor; Reset Control Unit; CCS/ACC...



Oil Reset: Reset the oil life system and turn off the oil light after oil or oil filter replacements.



EPB Reset: Reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.



BMS Reset: Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors. Brake/ABS Bleed: bleed the brake system when the ABS system contains air to restore its braking sensitivity.



DPF Regeneration: Clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.



IMMO Keys: Disable the lost vehicle keys and program the replacement key fob.



Injector Coding: Write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.



SAS Calibration: Calibrate the steering angle after replacing steering related parts.



Suspension Level Calibration: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.



Throttle Adaption: Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.



Sunroof Initialization: Initialize the sunroof data to set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.



Seats Calibration: Specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.



Notice: The reset service feature is not available on all models.



5. OE-Level All Systems Diagnostic

Autel all system diagnostic tool MaxiCOM MX808S-TS works well on 150+ car makes and models worldwide (1996 and newer) to Read / Clear Codes, Read ECU info., View Live Data, do Active Tests, and perform Special Functions for all available systems, allowing you to repair cars with dealer-like capabilities.



1). Read / Clear DTCs to locate problems and clear the codes after certain repairs.

2). Read ECU Information of the control units including unit type, version numbers, etc.

3). View Live Data of each parameter item in various modes, such as text, waveform, or combination (4 in 1 data stream).

4). Active Test / Bi-directional Control to accurately figure out whether a specific system, component, or subsystem in certain parts goes well or not.

5). Special Functions to do various daily automotive maintenance functions on certain systems.



It will scan all available electronic systems of cars and troubleshoot the issue in minutes:



Engine, Auto Transmission, Anti-lock Brake System (ABS), Electronic Parking Brake (EPB), Battery Manage System (BMS), Tire Pressure Monitoring System (TPMS), Supplemental Restraint System (SRS), Immobilizer, Suspension, Cruise Control System, Steering Angle System, Air Conditioning System, Audio System, Body System, Gateway, etc.



1). For Engine System: Diagnostic tool MX808S-TS can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.



2). For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.



3). For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.



4). For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status



And many more ...



6. More Advanced Functions

1). AutoAuth for FCA SGW Access:

Autel OBD2 Scanner MX808S-TS supports AUTOAUTH for FCA SGW access, allowing you to clear codes, do Bi-Directional Control (Active Tests), and perform Special Functions for Chrysler FCA models after 2018 without the need for a bypass cable.



(Notice: AutoAuth account needs to be purchased by yourself. Compatible with Fiat, Chrysler, Alfa Romeo, Dodge, etc. from 2018-2023).



2). Battery Test Work with Autel MaxiBAS BT506:

Autel MX808S-TS can work with Autel BT506 Battery Tester to perform professional Cranking / Charging System Test and In-Vehicle & Out-of Vehicle Battery Test, and with over 95% accuracy result with advanced Adaptive Conductive Technology, which is far more accurate than the 50% of market average accuracy.



Autel automotive battery test tool MaxiBAS BT506 can test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries, and compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA standards.

3). Digital Inspection Work with Autel MaxiVideo MV108:

This is a very practical and useful functions, which allows you to have a further wear situation check on your car engine/transmission internal structure, to avoid further damage or avoid potential dangerous driving.



4). Clound Report Management:

With it, you can upload diagnostic reports to Autel Cloud and share reports with your customers through QR Code/Email/Text Message easily, and they can view the reports anytime. Like other cloud space to help you enhance data centralization, share simply and quickly, reduce memory burden and improve work efficiency.

7. 4 Methods for Vehicle Identification:

1). Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.



2). Manual VIN Input: For vehicles not supporting Auto VIN Scan function, you may manually enter the vehicle VIN.



3). Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer



4). Manual Selection: When the vehicle VIN is not automatically retrievable through the vehicle ECU, or the specific VIN is unknown, the vehicle can be manually selected.



8. Useful APPs for Shops and DIYs:

1). Shop Manager:

You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.



2). Data Manager:

In case of any issues while performing diagnostics or services functions, please reproduce the issue and go to Data Manager- Data Logging to upload data log to Autel server and send us the serial number(at the back of the unit) to follow up the case until it is resolved satisfactorily.



3). Remote Desk:

You can directly get ad-hoc remote support from Autel via Team Viewer.



9. Vehicle Coverage

2023 newly upgraded scanner Autel MaxiCheck MX808S TS positioned itself as the scanner to pursue unmatched vehicle coverage and works well on 150+ car brands, 10000+ American, European, Asian car models, and even some of the latest car models.



Specifications:



OS: Android 11

Display: 7 inch capacitive touch screen with 1024*600 resolution

CPU: Rockchip RK3566 quad-core ARM Cortex-A55 (1.8GHz)

RAM: 4GB

ROM: 64GB

WiFi: 2.4GHz & 5GHz
Connectivity: mini USB 2.0/USB 2.0/Wi-Fi/HDMI type A/micro SD card (supports up to 32GB)
Sensors: light sensor for brightness auto changing
Audio Input/Output: Input: N/A; Output: buzzer
Power and Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply
Tested Battery Life: around 7 hours of continuous use
Battery Charging Input: 5V/1.5 A
Power Consumption: 600mA (LCD on with default brightness, Wi-Fi on) @ 3.7V
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -10 to 60 degree centigrade
Operating Humidity: 5% - 95% non-condensing
Dimensions: 270.8*176*36mm
Net Weight: 885g
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-Speed/Middle-Speed/Low-Speed/Single-Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

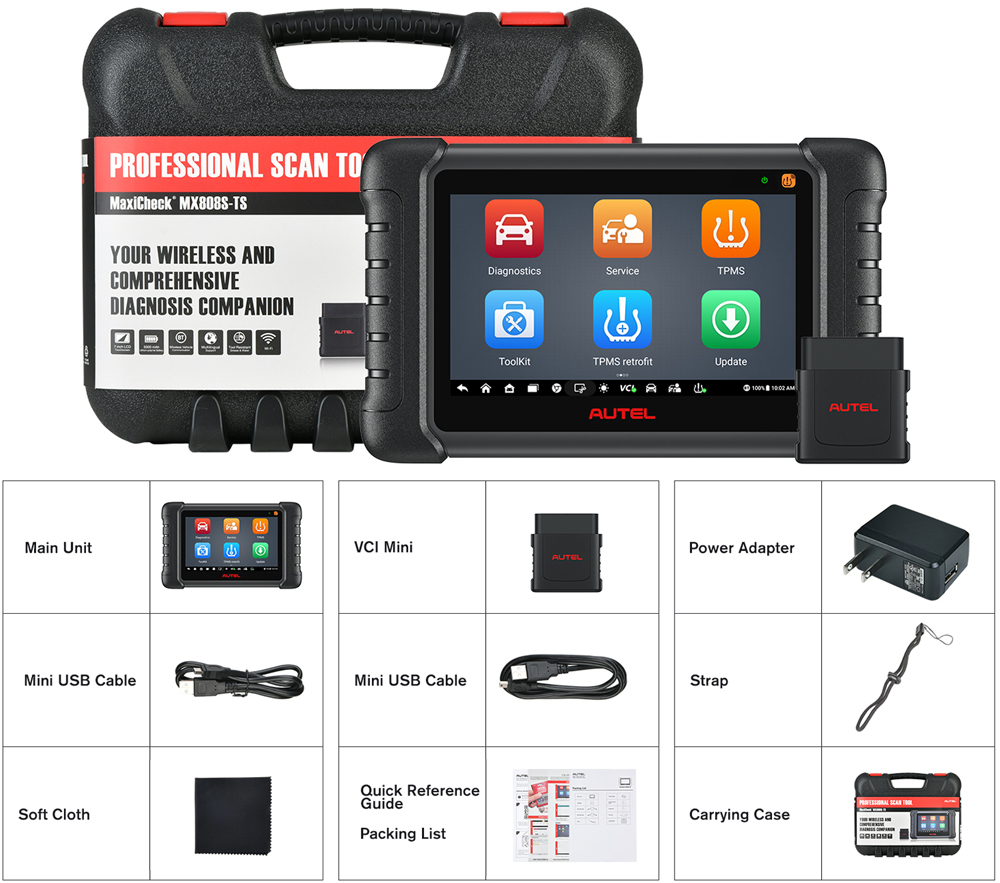

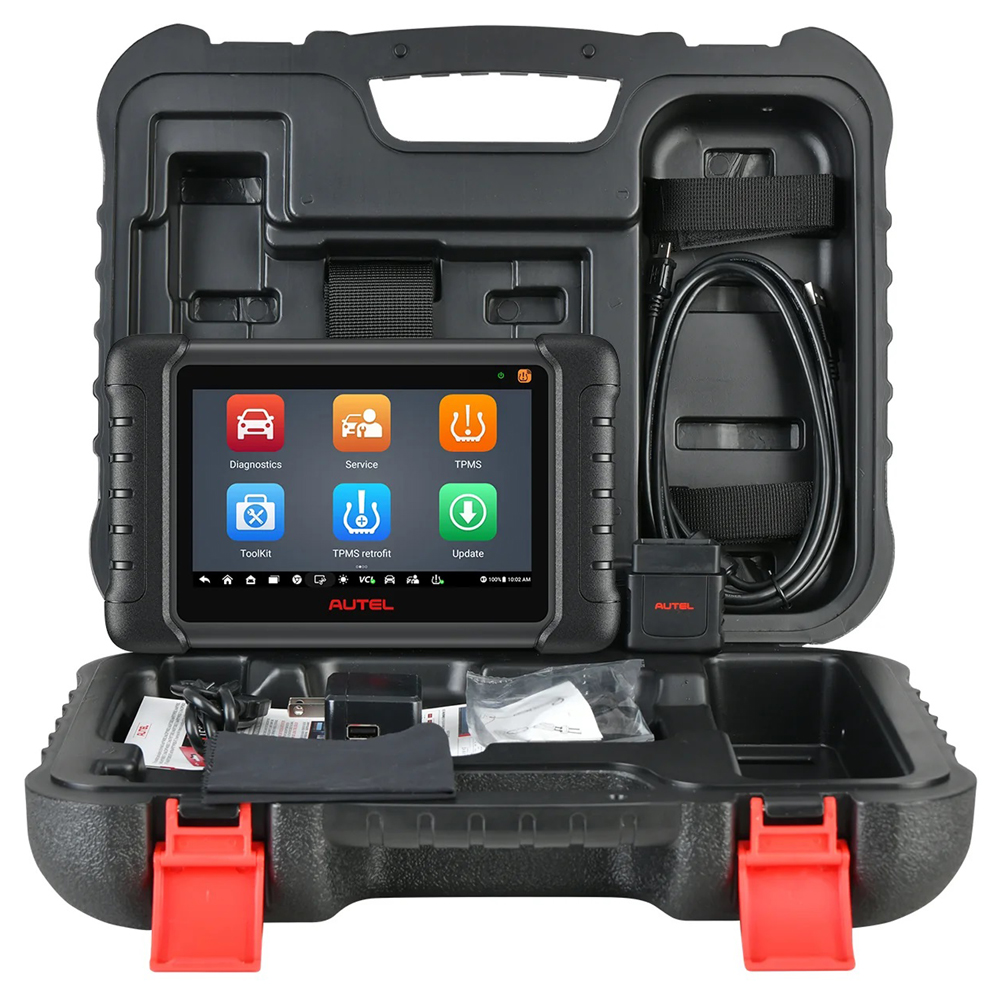

Packing List:

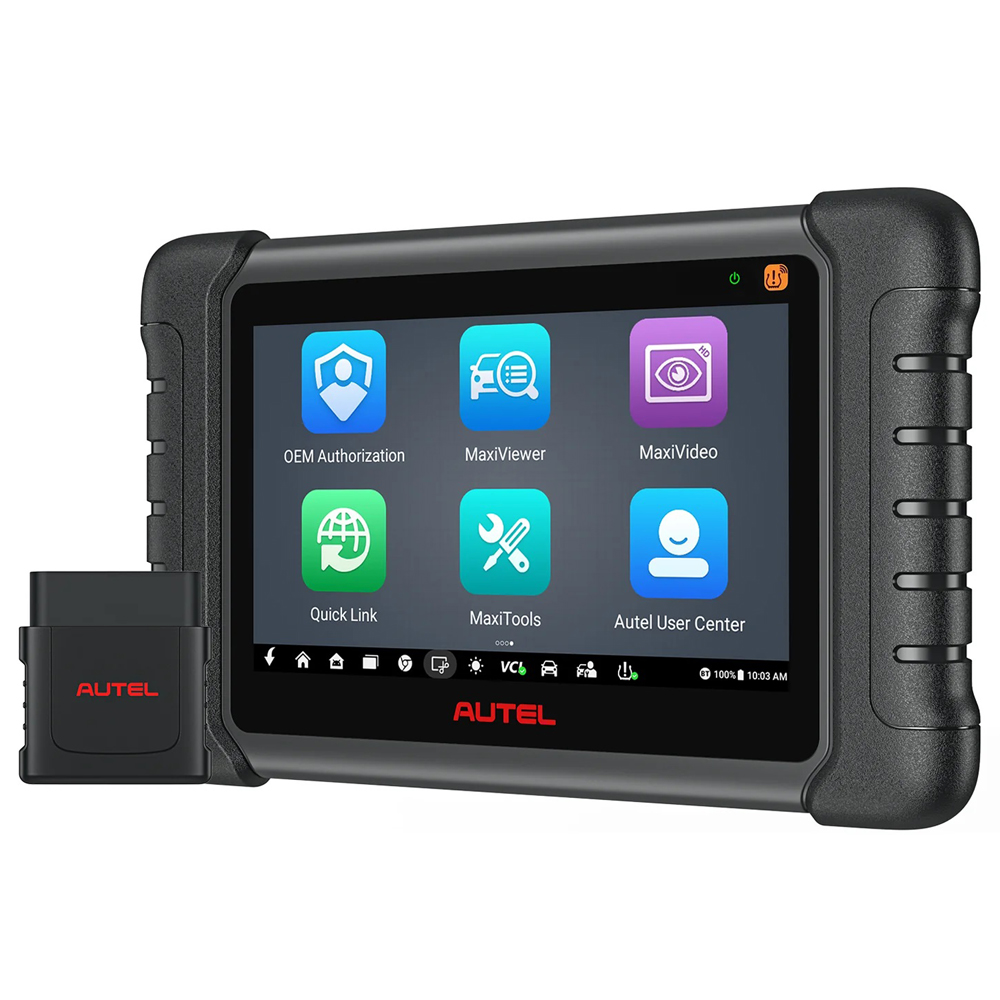

Autel MX808S-TS Scanner

Autel MaxiVCI Mini

USB Cable

USB Cable for Charging

Power Adapter

Strap

Soft Cloth

Quick Reference Guide

Packing List

Plastic Toolbox
