Description:

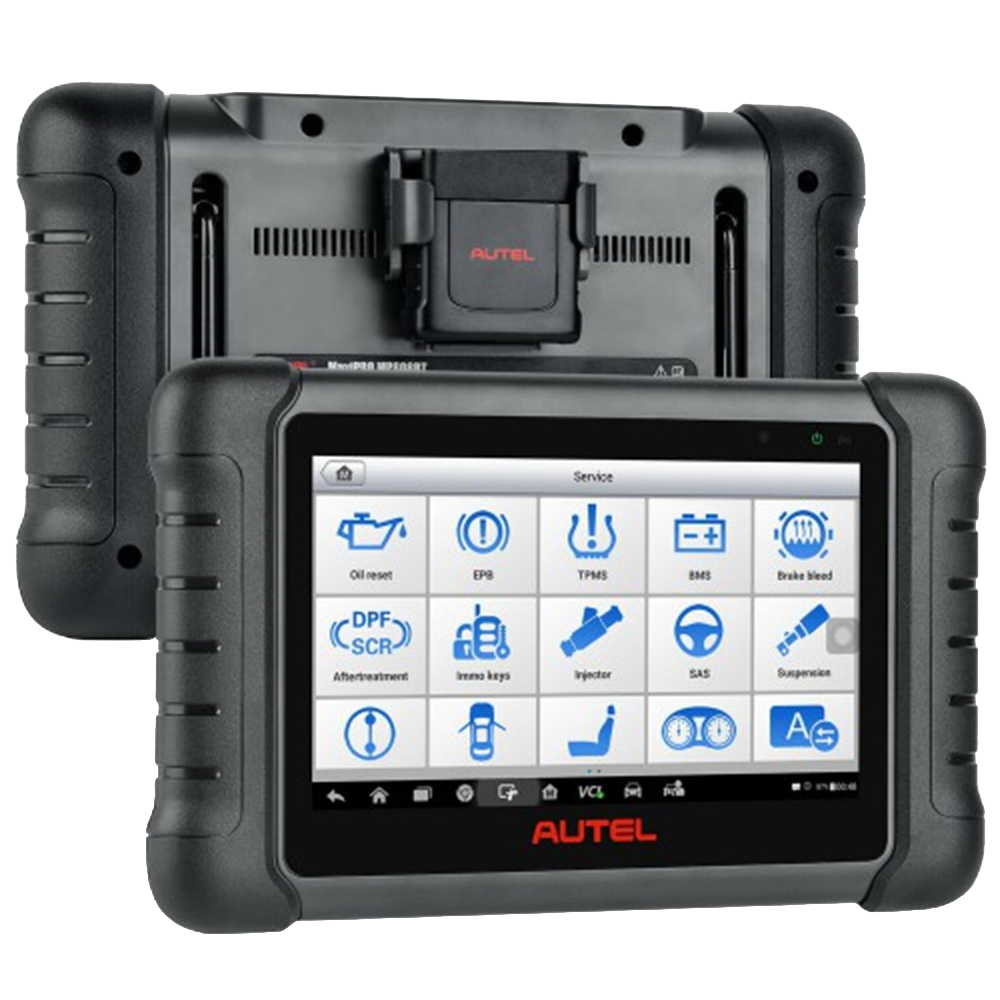

Autel MaxiPRO MP808BT with an extensive coverage of OE-level diagnostics, BT communication range up to 10m, comprehensive 31+ Service Functions, Bi-Directional Control, wider vehicle coverage, a fast quad-core processor, offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen displays with 1024*600 resolution.



Autel MaxiPRO MP808BT comes with complete set Autel OBD-I Connector Kit for wider vehicle coverage and more features.



Newest Enhanced Features:



1. Guided Functions: Compatible with Volkswagen/ Audi / Skoda / Seat etc.



2. Refresh Hidden Functions: Compatible with Volkswagen / Audi etc.



3. Key Fob Programming: For low anti-theft level vehicles.



4. FCA "AutoAuth" Access: Supports "AutoAuth" gateway for 2018 & newer FCA cars(Chrysler/Dodge/Jeep,etc) for America, Canada and Mexico market.



5. Battery Test: This function needs to work with Autel MaxiBAS BT506 (not included).



6. Digital Inspection: This function needs to work with Digital Inspection Camera Autel MaxiVideo MV105/108 (not included).



7. Actuator Test:

Injector Test, Turn Off ACC, Lane Keeping Assist, Turn On/Off Front and Rear Side ACM Solenoid, Turning The Fuel Pump On And Off, Cycling The A/C ,Clutch On and Off, Left Clutch Electromagnetic Coil Test, Acceleration Device Test, Oil Pressure Control Test, Dynamic Camera Aiming, Vehicle Level Position Calibration, Brake Vacuum Pump, Inlet and Outlet Valve Tests, Open Brakes Tests, Parking Brake Motors, Wheel Speed Sensor Supply, Parking Brake Tests...



Notice: Functions vary by car models.



8. Bi-directional Control for High-End Diagnostics Scanner:

Autel MaxiPRO MP808BT comes with Bi-Directional Control function can transmit control commands to operate the vehicle systems, provides specific subsystem and component tests, fast pinpoint the specific subsystem/ component faults, such as Turning the Fuel Pump On and Off, Cycling The A/C Clutch On and Off, Performing an Evaporative Emissions Leak Test, etc.



9. Autel MaxiMP MP808BT comes with Autel MaxiVCI Mini which enables you to access and diagnose various vehicles wirelessly with a working range up to 10 meter.



Software Update: 2 years free update online



Supported Languages:



English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Russian, Italian, Japanese, Korean



Functions:



1. OE-Level All System Diagnostic:

The OE-level compatibility of this diagnostic device is high with access to European, Asian and American applications for resets, module coding. By establishing a data link to the electronic control units of the vehicle being serviced directly, the full car diagnose system allows you to:



1). To retrieve ECU information of tested control units including unit type, version numbers, and other specifications;



2). Read & erase DTCs to locate problem areas and clear the codes easily;



3). View live data of each parameter item;



4). Get access to all vehicle systems and subsystems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel System, Light System, Wiper System, Body, Powerstrain, Chassis, and etc. Perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related.



2. Bi-Directional Control:

Autel MaxiPro MP808BT Bi-Directional Scanner can control various vehicle parts or components to perform Active Tests (also known as Component Tests, Functional Tests) like Turn Fuel Pump On/Off, Cycling The A/C Clutch On/Off, EVAQ Test, Testing Individual Fuel Injectors, Windows, Doors, Sunroof, Wipers, to monitor the operations to check whether they are functioning properly and quickly locate the fault causes.



3. 30+ Special Service Functions

Autel MaxiPRO MP808BT supports 30+ Reset Services and VW & Audi Guided Functions & Customization. Following are commonly-used Service Functions:



1). Oil Reset Service

Oil Reset Service function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.



2). Tire Pressure Monitor System (TPMS) Service (TPMS)

TPMS Service function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire.



3). Electric Parking Brake (EPB) Service

EPB Service has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.



4). ABS/SRS Services

ABS/SRS Services function allows you to perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.



5). Steering Angle Sensor (SAS) Service

SAS Service function allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.



6). Injector Coding

Coding the new injector after replacement.



7). DPF Regeneration Service

Diesel Particulate Filter Service function performs the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.



4. Key Fob Programming

Autel MaxiPRO MP808BT diagnostic tablet scanner can add new car keys, disable lost keys and perform remote learning on low IMMO level system vehicles. With the Key Fob Programming function, it can erase lost key information to prevent your vehicle from being stolen. It also supports adding new keys and remote learning.



5. Auto VIN Scan

Autel MP808BT features the latest VIN-based Auto VIN technology that can identify vehicle make, model, year instantly for efficient diagnostics. Combined with the Auto Scan function, it can perform a comprehensive scanning over all available modules present to locate fault causes.



6. Helpful Functions for Mechanics & Auto Repair Shops



1). MaxiFix

Comes with an online troubleshooter database that provides you with all common DTCs database for most vehicles and allows you to network with other users.



2). Remote Desk

Works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.



3). Shop Manager

Owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.



4). Data Manager

Supports to store, print, and review the saved files.



5). Academy

Provides tutorials and technical bulletins written by top-notch technicians and product experts.



Notice:



1. Autel MP808BT does NOT have ECU Programming capability.

2. Service and Special Functions are NOT universally compatible.

3. The Key Fob Programming is designed for Asian vehicles that have Low-Level Anti-Theft Systems and NOT intended for Audi, Benz, BMW, VW which have Advanced IMMO Systems. If you need IMMO function, please buy Autel MaxiIM IM508 /  IM608 professional Key Programming Tool.

4. Bi-Directional Control does not work on ALL vehicles.



Supported Protocols:



ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898 (High-Speed, Middle-Speed, Low-Speed and Single-Wire CAN, Fault-Tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6



Supported Cars:



Europe:

Benz, Sprinter, BMW, Fiat, Land Rover, Maserati, Opel, Peugeot, Porsche, Lancia, Maybach, MINI, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Ford, Jaguar, Lambor Ghini...



US:

Ford, Chrysler, GMC, Jeep, Chevrolet, Chevrolet, Buick, Hummer, Lincoln, Dodge...



Asia:

Toyota, Daewoo, Hondai, JP-Isuzu, Kia, Mazada, Mitsubishi, Nissan, Subaru Suzuki...

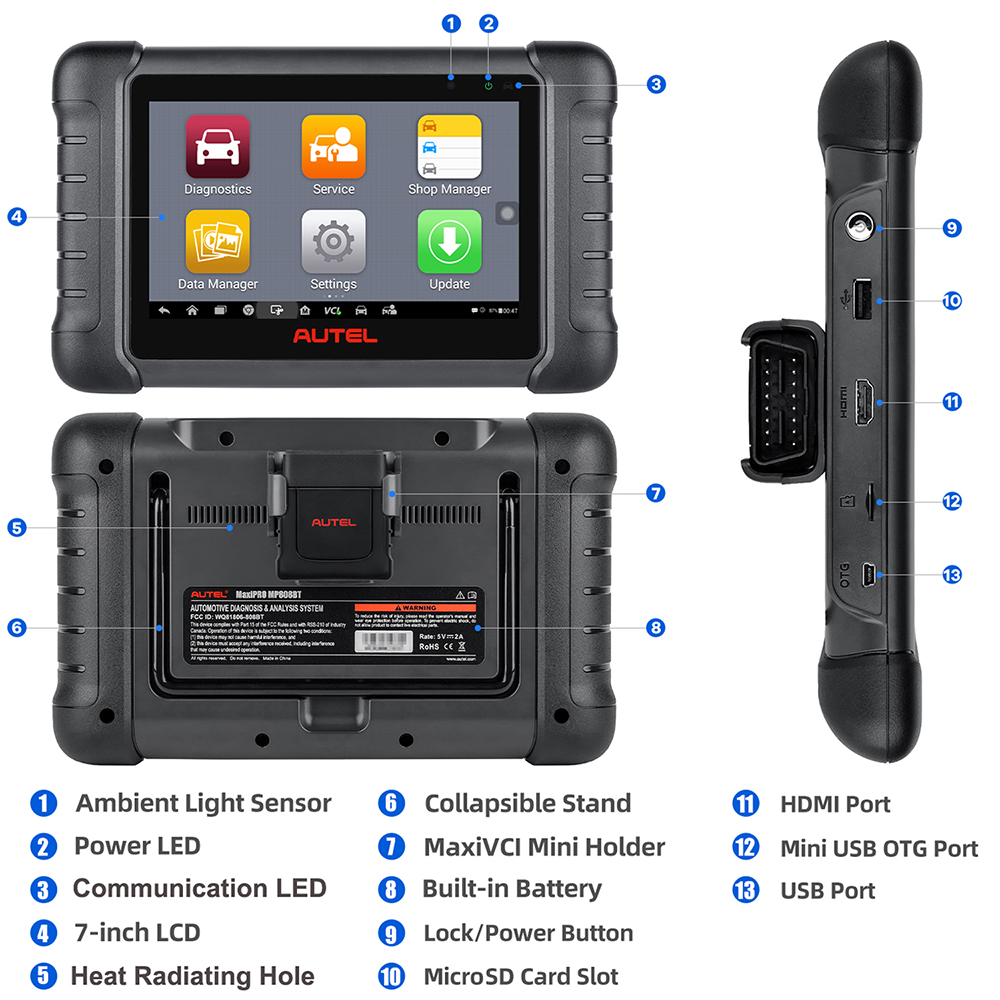

Specifications:



Operating System: Android 4.4.4, KitKat

Processor: Cortex-A9 quad-core processor (1.4 GHz)

Memory: 64GB

Display:7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity: Mini USB 2.0 / USB 2.0 / Wi-Fi / MicroSD card (supports up to 32GB)

Sensors: ambient light sensor for brightness auto changing

Audio Input: N/A

Audio Output: buzzer

Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply

Tested Battery Life: around 4.5 hours of continuous use

Battery Charging Input: 5V/1.5A

Power Consumption: 500mA (LCD on with default brightness, Wi-Fi on) @ 3.7V

Operating Temperature: 0 to 55 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

Operating Humidity: 5% - 95% non-condensing

Dimensions (W*H*D): 237.8*148.6*35.5mm

Net Weight: 788g

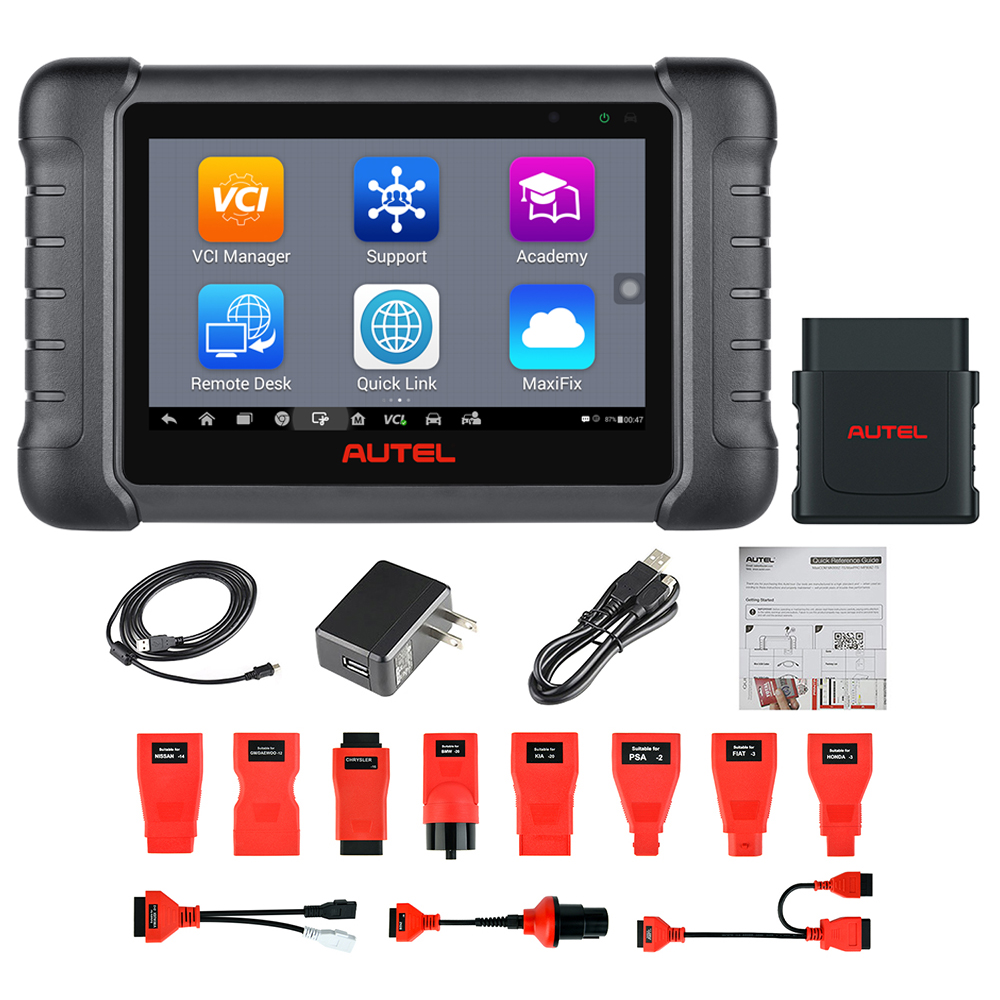

Packing List:



Autel MaxiPro MP808BT

USB Cable for Diagnosing

USB Cable for Charging

Power Adapter

Quick Start Guide

Quick Reference Guide

Packing List

Plastic Toolbox



Autel OBD-I Connector Kit:



Benz-14 Connector (for EU Version only)

BMW-20 Connector

Chrysler-16 Connector (for US Version only)

GM/Daewoo-12 Connector

Honda-3 Connector

Kia-20 Connector

Mitsubishi/Hyundai-12+16 Connector

Nissan-14 Connector

VW/Audi-2+2 Connector

Plastic Toolbox
