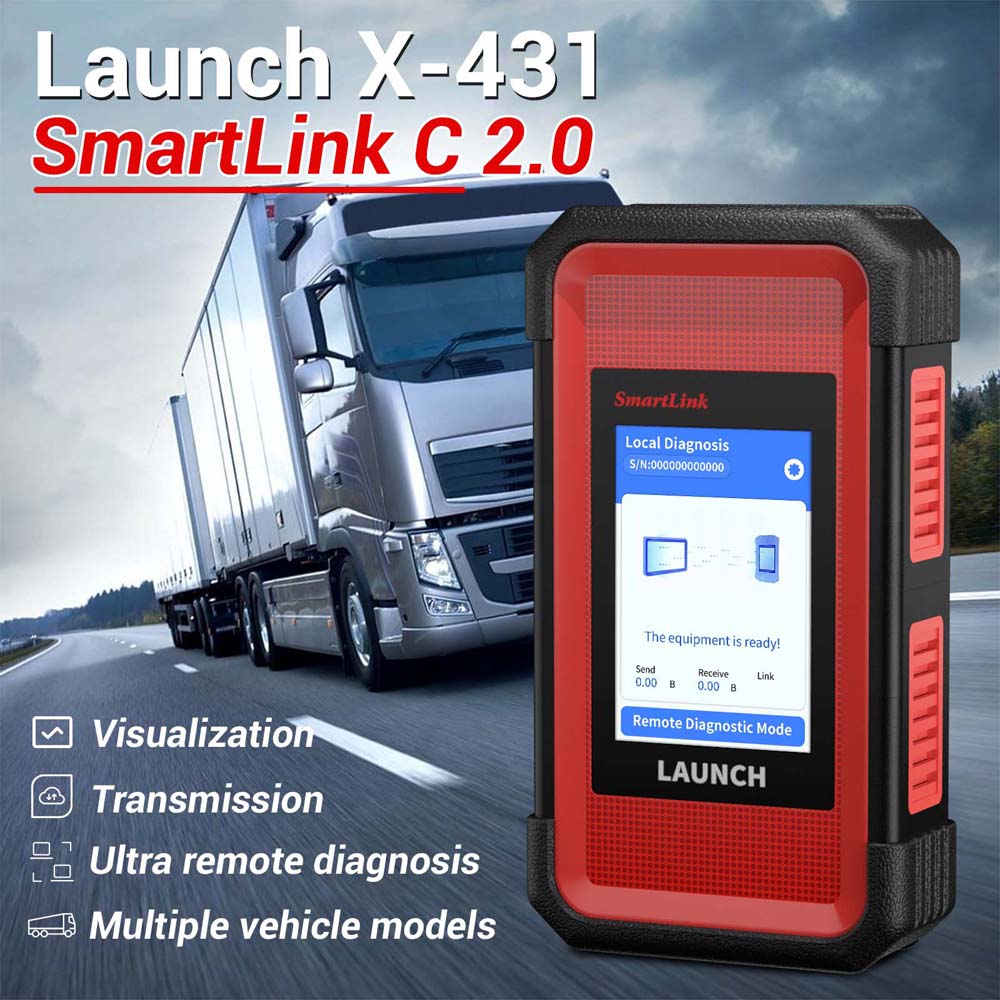

Name: Launch X431 SmartLink C 2.0 Heavy Duty Truck Module
Description:

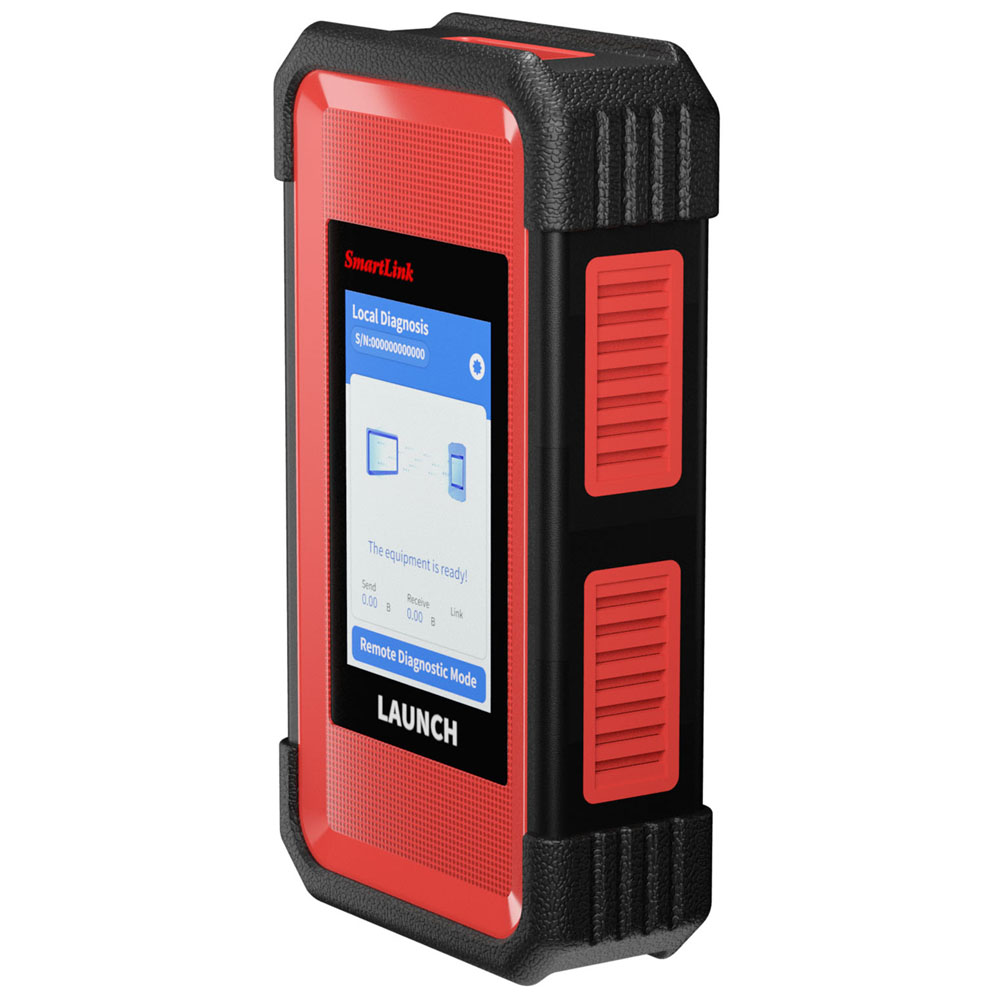

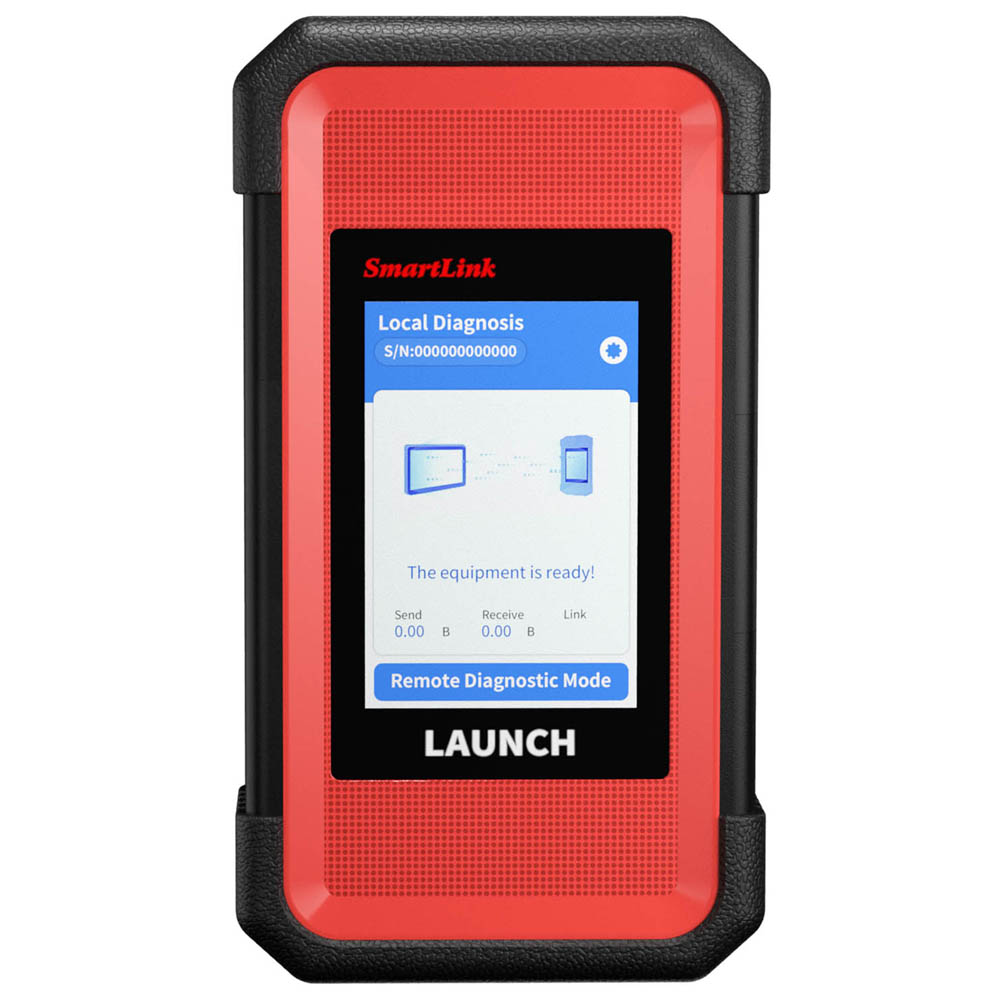

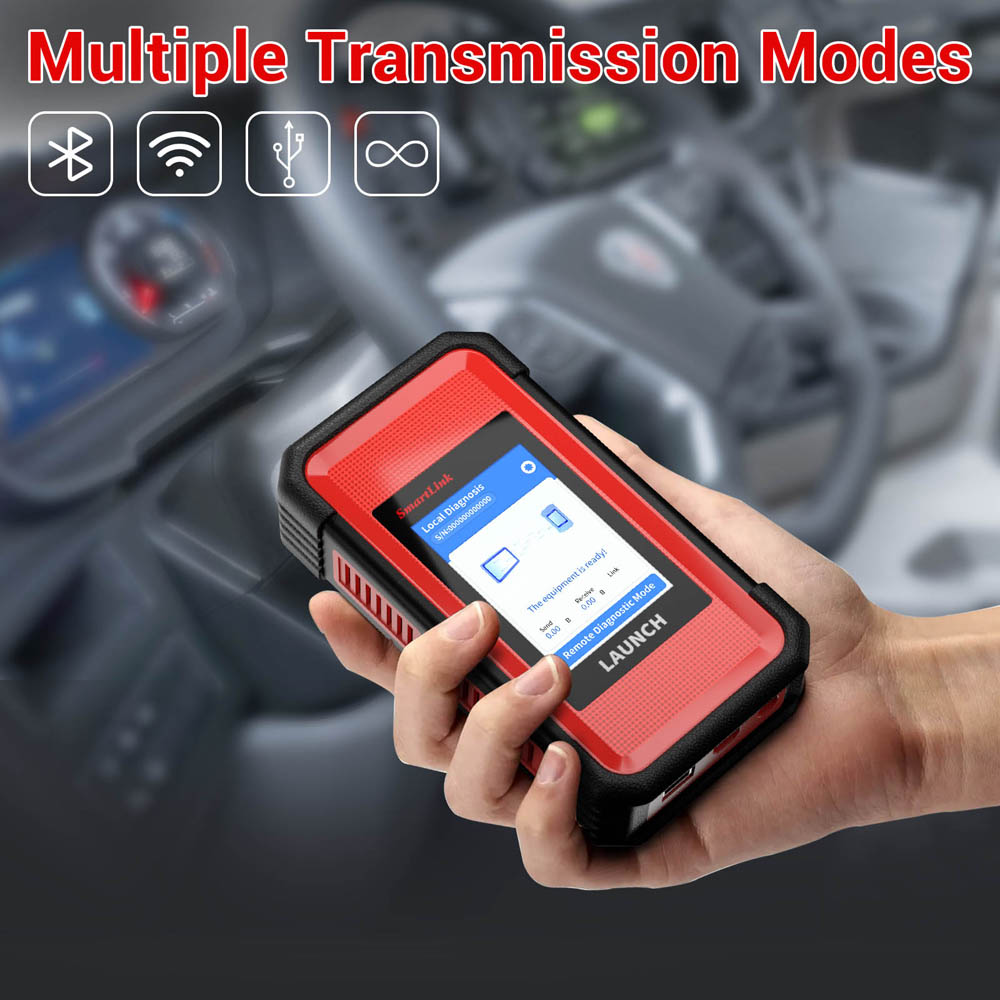

Launch X-431 SmartLink C V2.0 is a heavy-duty vehicle diagnostic module developed by Launch based on Linux system, it is equipped with a dual processor Cortex-A7+Cortex-M7, 8GB storage, 256M RAM, 320*480 resolution display. It supports Bluetooth, Wi-Fi, USB and other communication methods. Launch X431 HD SmartLink C 2.0 can be used with Launch X431 PRO3S and PRO5 series scanners.

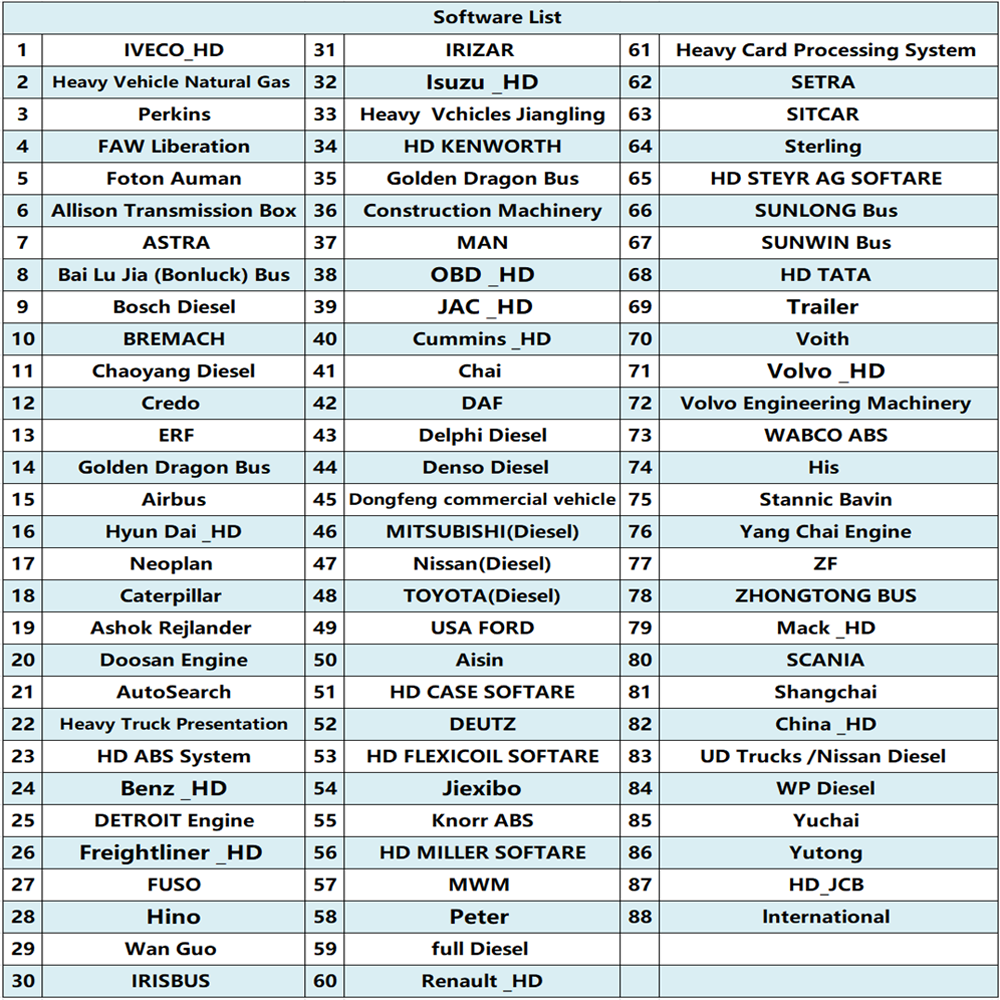

Launch X431 SmartLink C 2.0 HD supports full system fault diagnosis, with functions such as Code Reading, Code Clearing, Data Stream Reading, Special Functions, Action Test. Covering Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports Trucks, Buses, Construction machinery, Agricultural Machinery, Trailers, Ships and other types of vehicles.
Software Update: 2 years free update online
Features:
Launch heavy-duty truck module is used to expand the configuration of passenger cars equipped with DBScar lower computer to the integrated configuration of passenger and business, and it is mainly supporting commercial vehicles.
1. Compared with X-431 HDIII, Launch SmartLink C 2.0 is more powerful in function.
2. Transmission speed is faster and more stable.

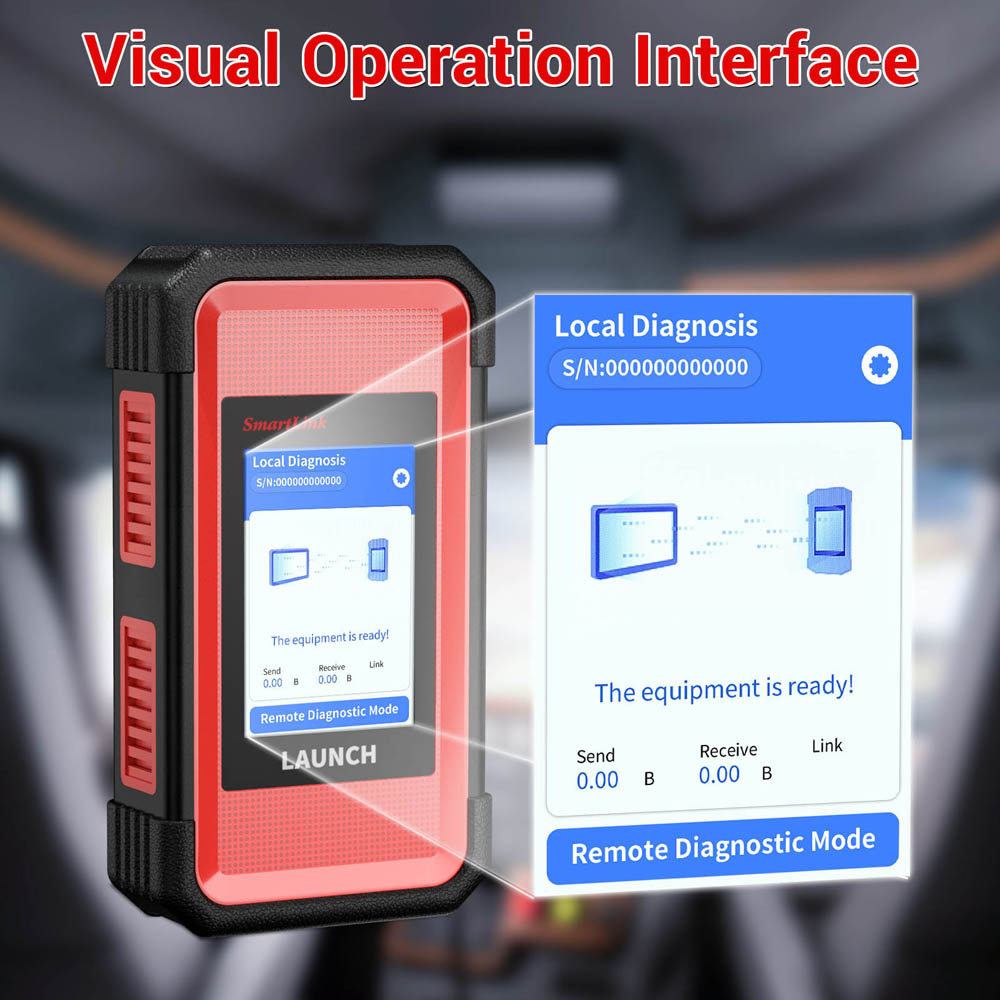

3. The visual operation interface makes it more convenient.
4. It supports commercial vehicles, passenger vehicles, new energy and other models.
5. It supports super remote diagnosis.

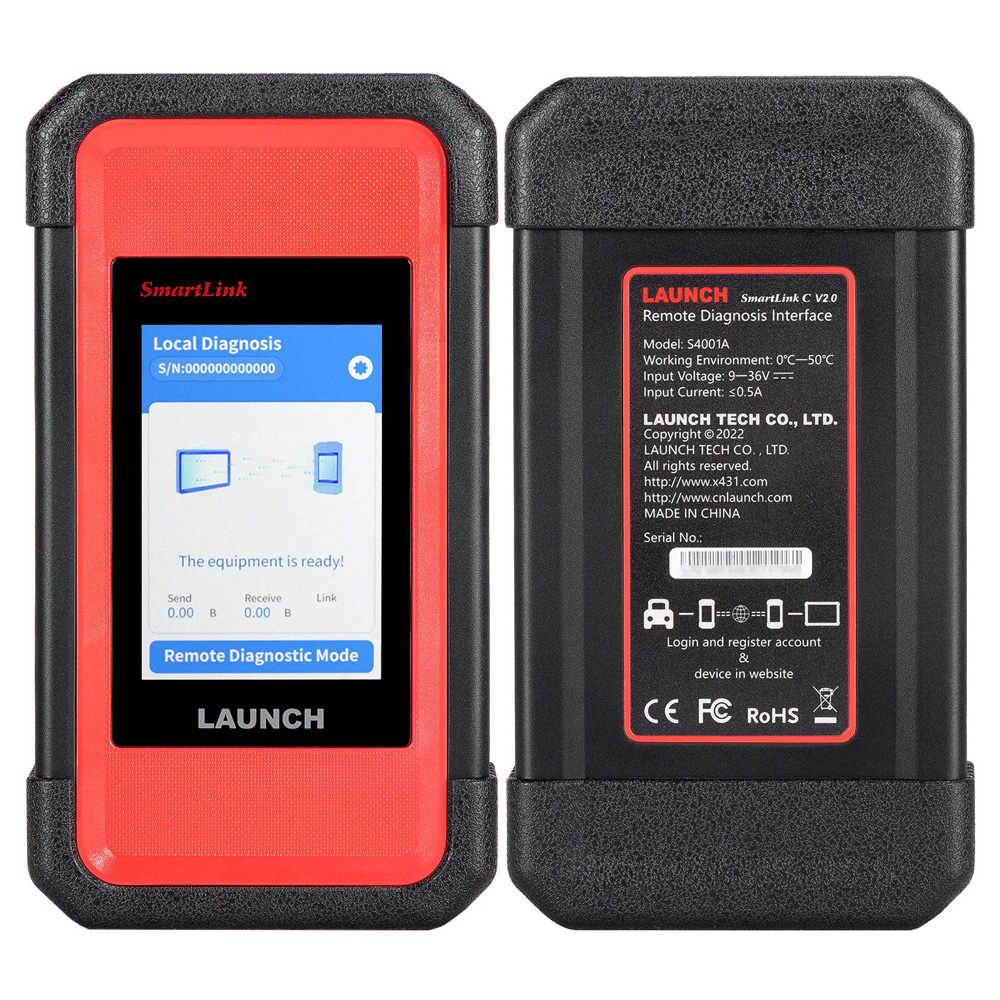

Specifications:
CPU: Cortex-A7+Cortex-M7 dual processor
Operating System: Linux
Display Resolution: 320*480
RAM: 256M
Storage: 8GB

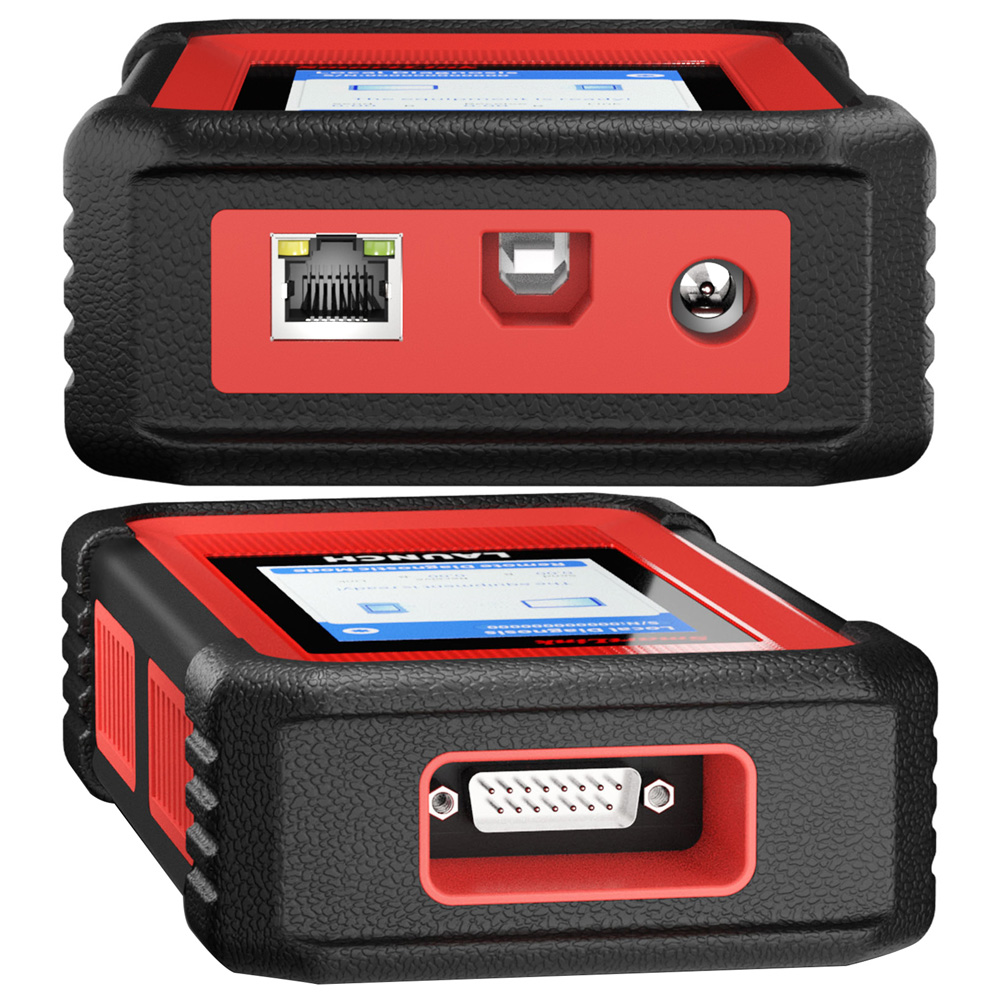

Communications: WiFi / Bluetooth / Ethernet
Working Voltage: DC 9V - 36V
Power: < 6W
Working Temperature: 0 to 50 degree centigrade
Dimensions : 200*110*47mm

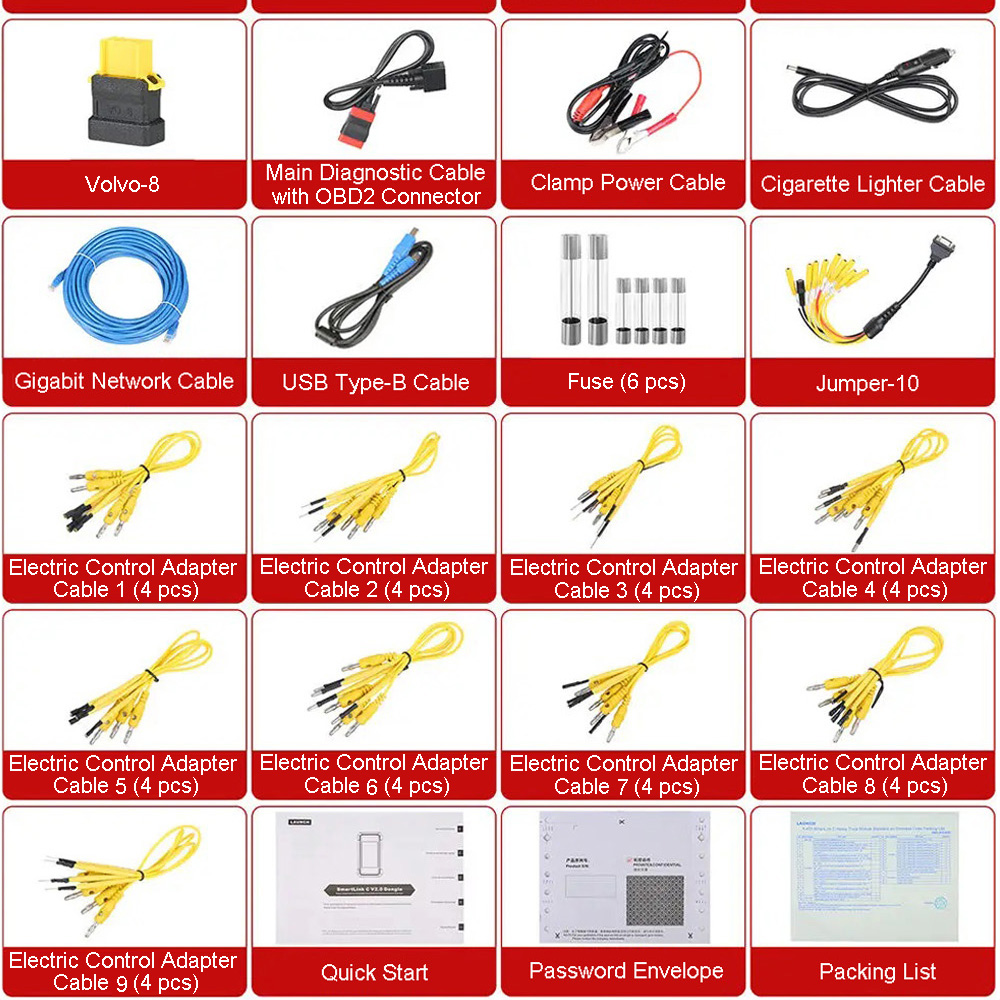

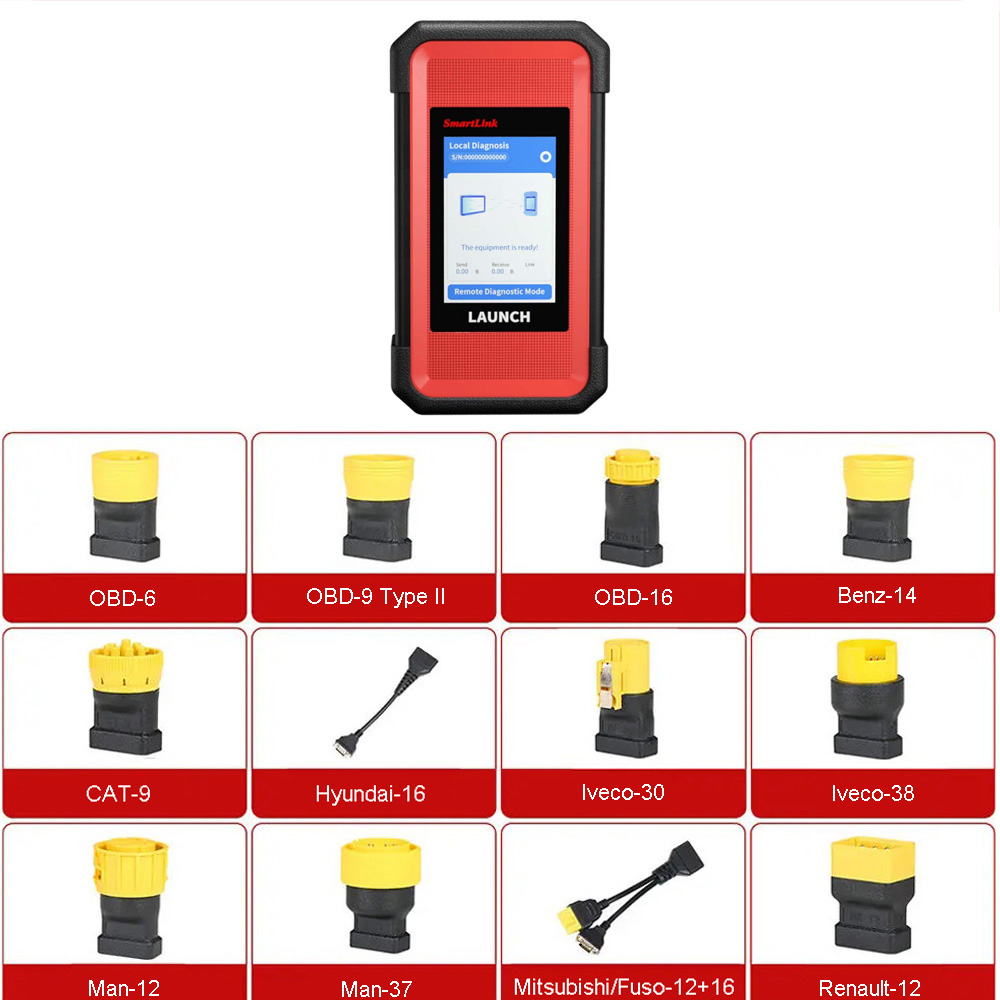

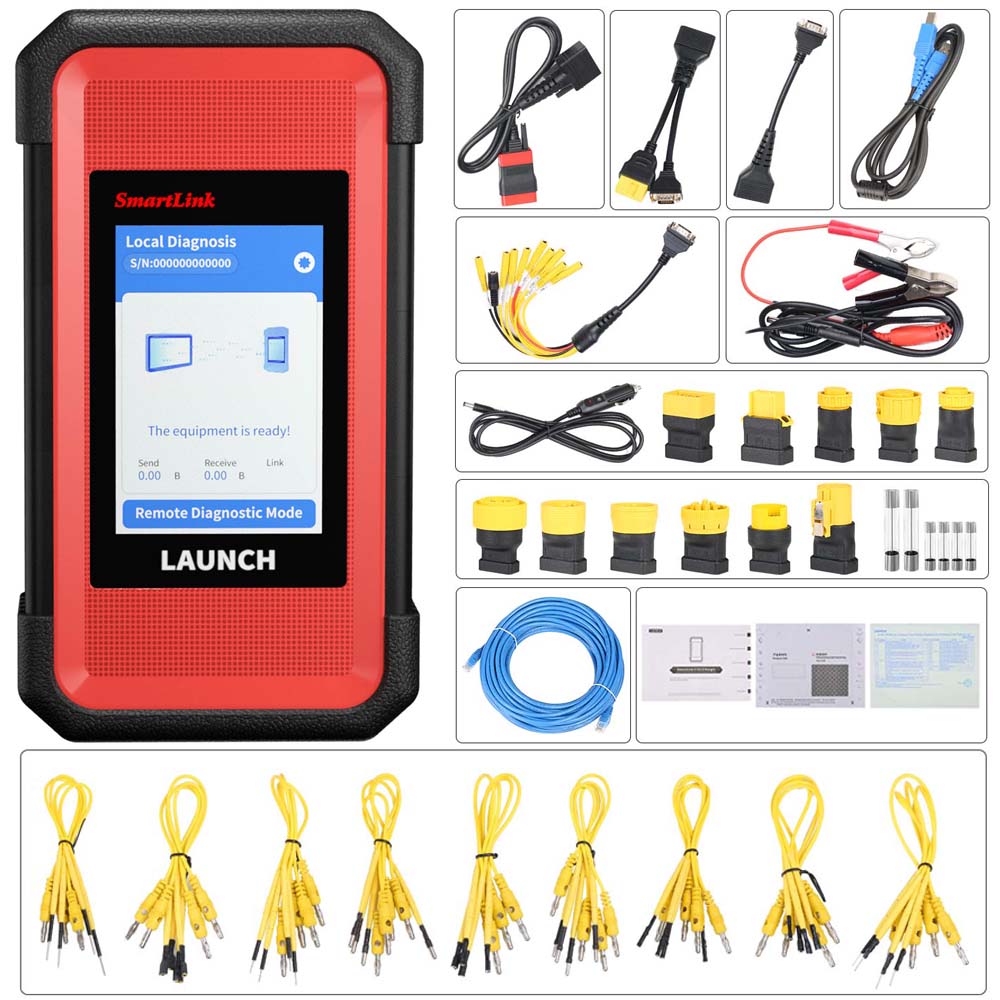

Packing List:
Launch X431 SmartLink C V2.0 Heavy-Duty Truck Module
Main Diagnostic Cable
OBD-II 16-Pin Diagnostic Connector
OBD-6 Diagnostic Connector
OBD-9 Diagnostic Connector Type II
OBD-16-Pin Connector
Benz-14 Diagnostic Connector
CAT-9 Diagnostic Connector
Hyundai-16 Diagnostic Connector
Iveco-30 Diagnostic Connector
Iveco-38 Diagnostic Connector
Man-12 Diagnostic Connector
Man-37 Diagnostic Connector
Mitsubishi/Fuso-12+16 Diagnostic Connector
Renault-2 Diagnostic Connector
Volvo-8 Diagnostic Connector
Jumper-10 Diagnostic Connector
Electric Control Adapter Cable 1 (4 pcs)
Electric Control Adapter Cable 2 (4 pcs)
Electric Control Adapter Cable 3 (4 pcs)
Electric Control Adapter Cable 4 (4 pcs)
Electric Control Adapter Cable 5 (4 pcs)
Electric Control Adapter Cable 6 (4 pcs)
Electric Control Adapter Cable 7 (4 pcs)
Electric Control Adapter Cable 8 (4 pcs)
Electric Control Adapter Cable 9 (4 pcs)
Clamp Power Cable
Cigarette Lighter Cable
Gigabit Network Cable (15 Meter)
USB Type-A to Type-B Cable
Fuse (AC250V/5A, φ5*20mm) (4 pcs)
Fuse (AC250V/5A, φ6*30mm) (2 pcs)
Password Envelope
Multilingual Quick Start
Packing List

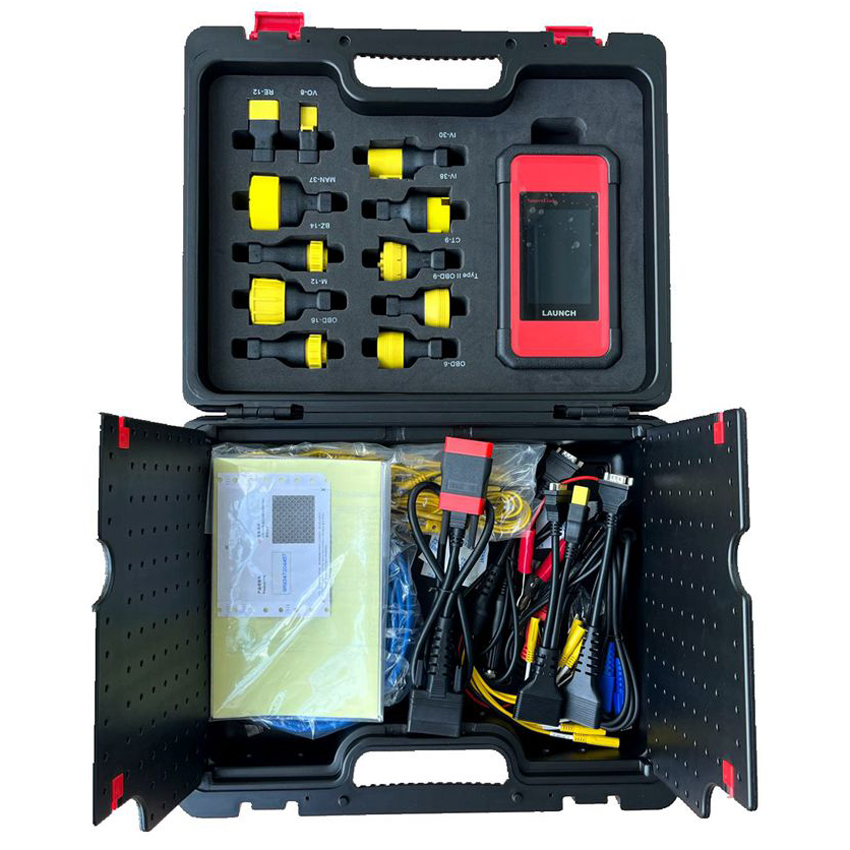

Plastic Toolbox
Packing Box
|
