Description:

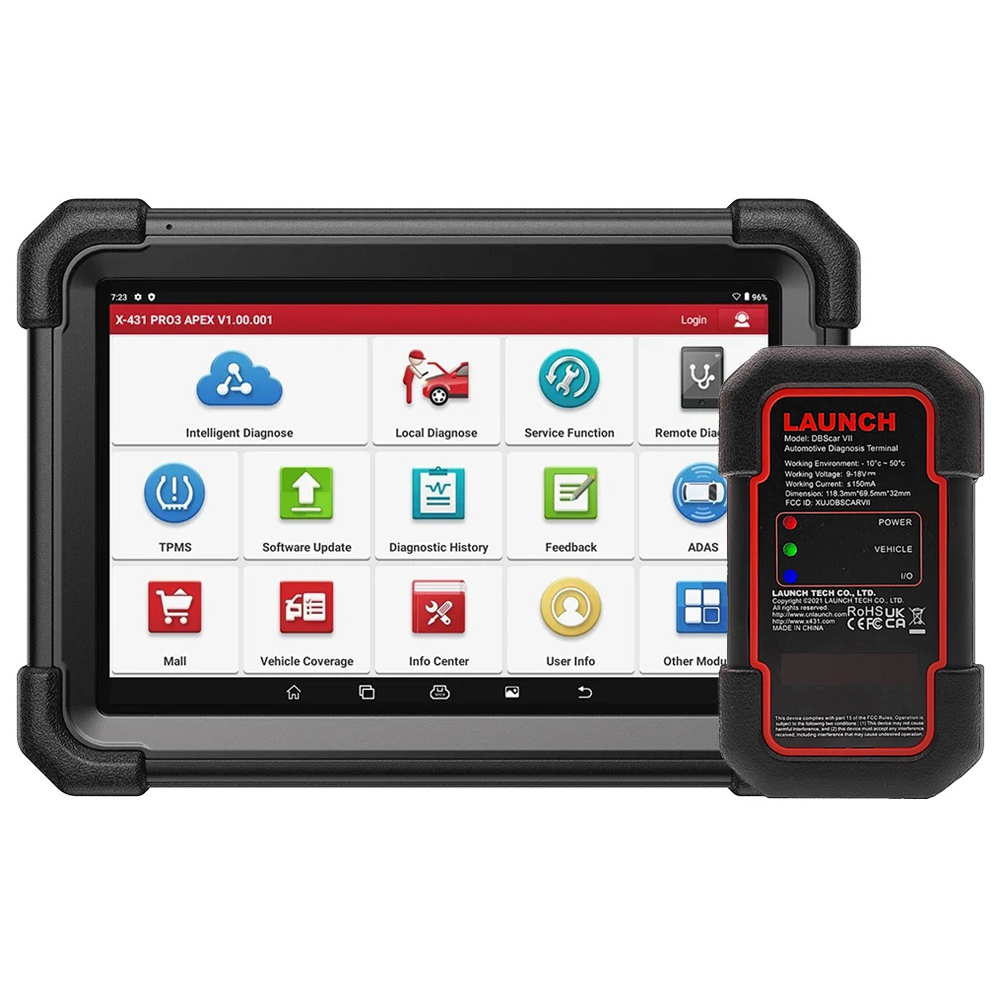

2023 Launch X431 PRO3 APEX cover 99% of vehicles and include 160+ brands & and 100000+ models. Power by enhanced software configuration, this Launch X431 PRO3 APEX universal scanner provides perfect solutions to incompatible vehicle models, non-supported vehicle protocols, limited gateway, etc.



Launch X-431 PRO3 APEX is upgraded version of Launch X431 V+. Launch X431 PRO3 APEX OBD2 scanner diagnostic tool has inherited all the strengths of Launch X431 V+ scanner and deeply researched & and developed new functions of the 2023 year to enhance diagnostic capacities.



Software Update: 2 years free update online



Supported Languages:



English, French, German, Spanish, Portuguese, Italian, Russian, Turkey, Arabic, Dutch, Greek, Polish, Hungarian, Denish, Farsi, Romanian, Serbian, Finish, Swedish, Czech, Japanese, Korean



Highlights:



1. Topology Mapping + 37+ Services + Online/Offline ECU Coding + CAN FD & DoIP +FCA & Renault SGW Access + PMI functions for Lincoln & Mazda, etc.



2. Powerful ECU Coding, Abundant Code Data:

1) ECU Coding is used to replace/match.relearn/recode new modules;

2) Coding Backup/Reserve salvages failed coding operation;

3) Online Coding & Personalization & OE-setting Customization;

4) VAG Guided Functions ease complex repair;

5) PMI for Mazda/Ford. Note: Not available for all models.



3. All System Diagnostics + Bidirectional Control

4. Vehicle Coverage 160+ brands and 1996-2024 models, cover 99% of vehicles.

5. 37+ Services & 25+ Languages

6. Compatible with Add-On Extensive Modules:

1). X431 HDIII: enlarge diagnostic services to 24V heavy-duty trucks.

2). X431 BST360: Monitor vehicle battery health status.

3). Video Scope: Check the hard-to-reach parts (pump, engine, pipes, etc).

4). X431-PROG3: For advanced key programming & module clone.

5). ADAS Mobile/PRO: Calibrate driver assistance systems.

6). WiFi Printer: To print out diagnostic reports, live data, and other information without taking too much time.

7). Scopebox: To quickly acquire circuit signals.

8). Sensorbox: To simulate vehicle sensor faults.

9). Multimeter: Allow you to measure the physical parameters such as voltage, resistance, frequency, etc.



New Advantageous Functions:



1. New Topology Mapping:

Intuitively present vehicle communication status & and problem location. Effectively increase 5x faster.



2. New CAN FD & DoIP:

Communicate with more vehicles at a higher diagnostic speed and data transfer.



3. New Guided Functions:

Provide corresponding tips, auto log-in services, matching, setting, and coding instructions.



4. New FCA SGW Vehicles:

Provide secure access to perform more diagnostics without gateway limitation.



5. New 24V Heavy Duty Truck Support:

Work with X431 HD3 Module(not included) to diagnose heavy-duty vehicles & and commercial cars.



Features:



1. 37+ Reset Functions: Operate various module reset / relearn / adaptation/calibration after repair and recovering functionality.



2. OE-Level System Diagnostics: Perform the same diagnostic process as the OEM scanner to scan all the system faults.



3. Bi-Directional Control: Operate active tests to quickly pinpoint problems and improve diagnostic efficiency.



4. Online Coding: Access the online data from the OEM server.



5. Component Matching: Match the new ECUs after replacement.



6. Customization: Customize preset function to the users needs.



Functions:

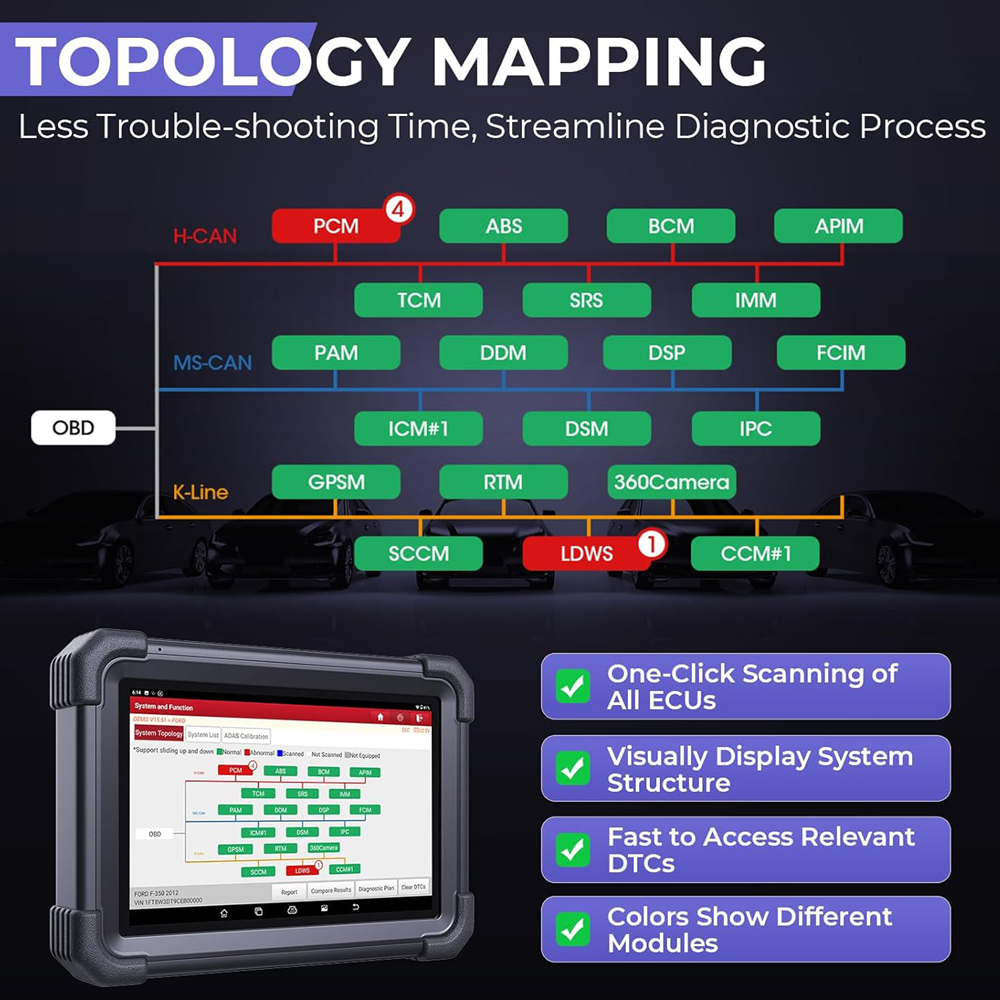

1. Topology Mapping with Clearer DTC Display

This is the first application of topology mapping in automotive diagnostics. On the visual side, the Launch X431 PRO3 APEX diagnostic scan tool displays all the vehicle system health states in different colors and the communication between modules. As to the utility, it can quickly tell the mechanics how many fault codes each system has to solve.



2. ECU Coding

ECU diagnosis has always been an important part of high-end repair. The complexity of the ECU-coded data is often confusing. ECU coding involves matching, relearning, and modification to all the ECU modules, which can fix complex ECU issues. Compared with other diagnostic scanners, Launch automotive scanner ECU coding functions feature more nature: larger vehicle coverage, no-fee function supports, higher diagnostic accuracy, more complete code data, accessible OEM data, etc.



Refers to updating existing code in the ECU with specific values or parameters.

Rewrite the code to match the replaced component after repair or replacement.

Modify codes to activate preset functions as customers needs.

Online coding for automatically getting code data from the cloud server.

For Ford, Mazda, Jaguar, Vauxhall, Opel, Benz, BMW, Audi, Porsche, VW, Nissan, Infiniti, Hyundai, etc.



Flash Hidden Functions

Apply to personalize/customize preset functions: Mirrors Automatic Folding and Unfolding; Seat Belt Beep Sounds; Brightness of Dashboard; Acoustic Pedestrian Protection; Air Conditioning Setting Memory, etc.



Easy ECU Coding Process

Online Coding - Download Code Data - Automatically Code Adaptive Data - Clear DTCs (Note: Detailed operating steps vary by models.)



3. 37+ Reset Functions:

Compared to high-end diagnostic tools in the same price range, the Launch X431 PRO3 APEX OBD scanner holds more diagnostic functions than other brands and keeps updating for newer functions & and coverage. 37+ maintenance functions involve all aspects of Reset/Relearn/Match/Calibration to 99% of vehicles.



Oil Reset: Reset the oil life system and turn off the oil light to start a new cycle.

EPB Reset: Reset the calipers, brake discs, or pads after replacing the electronic parking brake system.

TPMS Reset: Reset the tire pressure system and turn off the MIL light.

BMS Reset: Re-match the battery module and motoring sensor.

IMMO Reset: Disable the lost k~e~ys and add new k~e~ys

Throttle Matching: Initialize the throttle actuators to the default situation.

Windows Calibration: Perform door window matching to recover ECU's original mode.

Seat Calibration: Calibrate the memory in replaced or repaired seats.

Lang. Change: Change the instrument displaying language.

Headlamp: Initialize the adaptive headlamp system.

Injector Coding: Code the in~jector after replacing or adjusting it to correct the fu~el injection volume of each cylinder more accurately.

Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.

Sunroof Reset: Reset sunroof loccking & closing, closing on rainy days, slide/tilt sunroof memory function, outside temperature threshold, etc.



Note:



Explore more maintenance functions by accessing menus of “Vehicle Brand - Car System - Car Module - Service Functions”. Available functions vary by model, make, year, etc.



4. Programmable Module Installation:

Launch X431 PRO3 APEX automotive tools for mechanics feature PMI (Programmable Module Installation) functions that can be used to replace or initialize a new/used module when you need to copy the data from the original module and install it to the new unit to finish the module replacement.



5. IMMO Programming

Launch X431 PRO3 APEX can perform the anti-theft key matching for the following cases: Reset IMMO ECU, Add New Keys, Deleting Key Data, Match Remote Control, etc. When working with X-PROG3 (sold separately), this programming tool, read-write, EEPROM, MCU, and EEPROM/FLASH data of vehicle engine/gearbox ECU.



6. Bi-Directional Control

Launch bidirectional scan tool can send the commands to all ECUs and conduct mutual control with the vehicle sub-systems & components to quickly pinpoint the problems, saving you from messy vehicle diagnostics and shortening diagnostic time. The active test usually functions on all systems such as headlamps, windscreen wipers, windows & doors, sunroofs, mirrors, etc.



7. VAG Guided Functions

Differentiating from traditional diagnostics, Launch diagnostic tool equipped with guided functions, provides OE-level operating instruction for diagnostic reference and simplifies the complicated diagnostics. Targeted on different car models and configurations, there is related operation guidance that provides corresponding tips, auto log-in, matching, setting and coding.



8. 12-in-1 Live Data Graph

Launch X431 PRO3 APEX automotive scanner can display 12-in-1 live data in a graph to help mechanics intuitively monitor vehicle status and accurately analyze/diagnose vehicle problems. All the diagnostic data can be well stored/ recorded/ played back/ viewed.



9. Global Vehicle Coverage: 160+ Brands + HD Truck Diagnostics + FCA & Renault SGW Vehicles

2023 Launch X431 PRO3 APEX tools for mechanics cover 99% of vehicles and include 160+ brands & and 100000+ models on the road. Power by enhanced software configuration, this Launch X431 PRO3 APEX scan tool for all vehicles provides perfect solutions to incompatible vehicle models, non-supported vehicle protocols, limited gateway, etc.



CAN FD & DoIP:

CAN FD empowers data transfer to be faster and improves diagnostic efficiency for newer 2024-year vehicles. Unlike other scanners, Launch DBScar VII VCI provides a stable CAN FD connection without buying extra CAN FD cables. Another DoIP support even improves 300-400 times quicker work efficiency. (Note: Buying additional DoIP cables is needed.)



FCA SGW Access:

For the 2018+ FCA vehicles (Fiat, Chrysler, Jeep, Alfa Romeo, etc.) equipped with the Security Gateway module, the Launch X431 PRO3 APEX car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.



Renault SGW Access:

Serve 2019+ Renault SGW vehicles include CLIO V, CAPTUR II, CAPTUR II CN, MEGANE IV ph2, ESPACE V ph2, TALISMAN/SM6 ph2, NEW ZOE, ARKANA CN, XM3/NEW ARKANA, NEW SANDERO/LOGAN, etc. Unlocking security gateway to perform service function, active test, coding, programming, etc.

 (Note: We provide FCA & Renault operation guidance. You can message our post-sale team if needed.)



1996 - 2023 Vehicles:

Work well with global main vehicles from 1996-2023. [America] Ford, Lincoln, Chrysler, Dodge, GM, Cadillac, Chevrolet, Buick, GMC, etc. [Europe] VW, Seat, Skoda, Peugeot, Citroen, Renault, Volvo, Vauxhall, Smart, Saab, Porsche, Mini, Lancia, BMW, Jaguar, Fiat, Citroen, Benz, Bentley, Au~di, etc. [Asia] Acura, Lexus, Suzuki, Subaru, Mitsubishi, Mazda, Kia, Isuzu, Infiniti, Hyundai, Honda, Daihatsu, Daewoo, etc.



New DC 9 to 36V & 24V HD Truck Diagnostics:

Launch X431 scanner can work with X-431 HD III Heavy Duty Module (Need to buy sperately.) to extend stable & high-speed diagnostics for heavy-duty vehicles: Benz, Man, Volvo, DAF, Scania, Iveco, Renault, Freightliner, International, Kenworth, Peterbilt, Steering, Western Star, Mack, Fuso, Isuzu, UD, etc.



Vehicle Coverage Check:

Launch X431 scan tool provides a ‘Vehicle Coverage Check’ function that you can check whether the coverage (models, diagnostic systems, functions, etc.) includes your car model before operating diagnostics, thus reducing unnecessary time waste and effort.



10. Repair Information Center Guides Easy Maintenance:

Same as Snap-on tools, the Launch team invests great development in integrating repair information to help global users obtain valuable diagnostic information and reduce the repair difficulty, including Operation Tips, DTC Help, Technology Handbook, Product Manual, FAQ, etc





11. Diagnostic Report

The Launch car diagnostic scanner can automatically generate diagnostic reports and be stored in diagnostic history. You can self-serve download/print/and share these reports whenever you want! If you need some repair help, you can attach the diagnostic reports to your message/diagnostic feedback and help our professional technicians locate the problem causes.



12. Remote Diagnostics

No need Team Viewer, this Launch self-developed remote diagnostics technology supports both super remote diagnostics (Launch Scanner with Launch Scanner & Launch Scanner with PC) and WEB remote diagnostics, which aims to help repair shops or technicians Launch instant messaging and remote repair, making the job get fixed faster.



13. Online Diagnostic Feedback:

This function allows you to submit your diagnostic problems to the Launch team for professional analysis and troubleshooting and timely get repair solutions.



Specifications:



Processor: 2.0GHz 4 cores

Operating System: Android 10.0

RAM: 4GB

Storage: 64GB

Battery: 47880mWh (7.6V / 6300mAh)

Display: 10.1 inches with 1280*800 reslution

Rear Camera: 8 million pixels

WIFI: 2.4GHz/5GHz (dual band)

Interface: USB Type A / USB Type C

Working Temperature: 0 to 50 degree centigrade

Size: 274*190.5*40.5mm

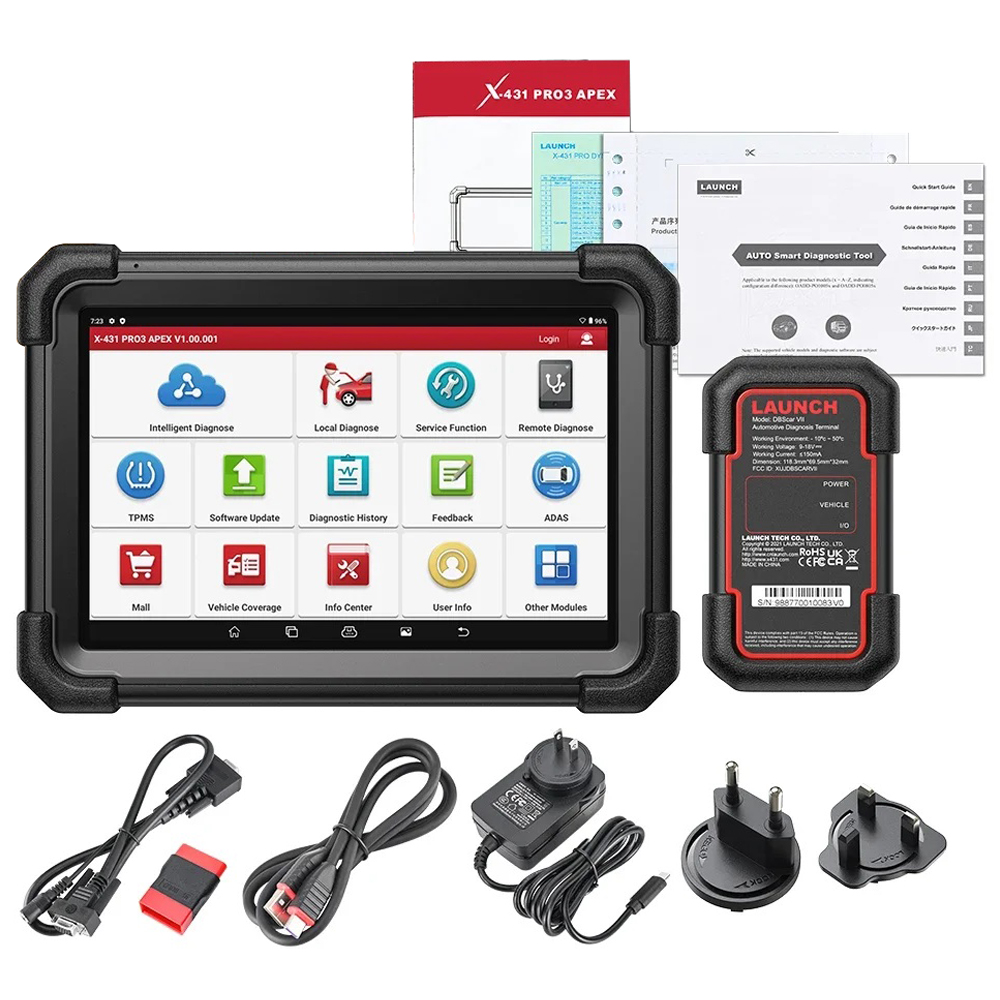

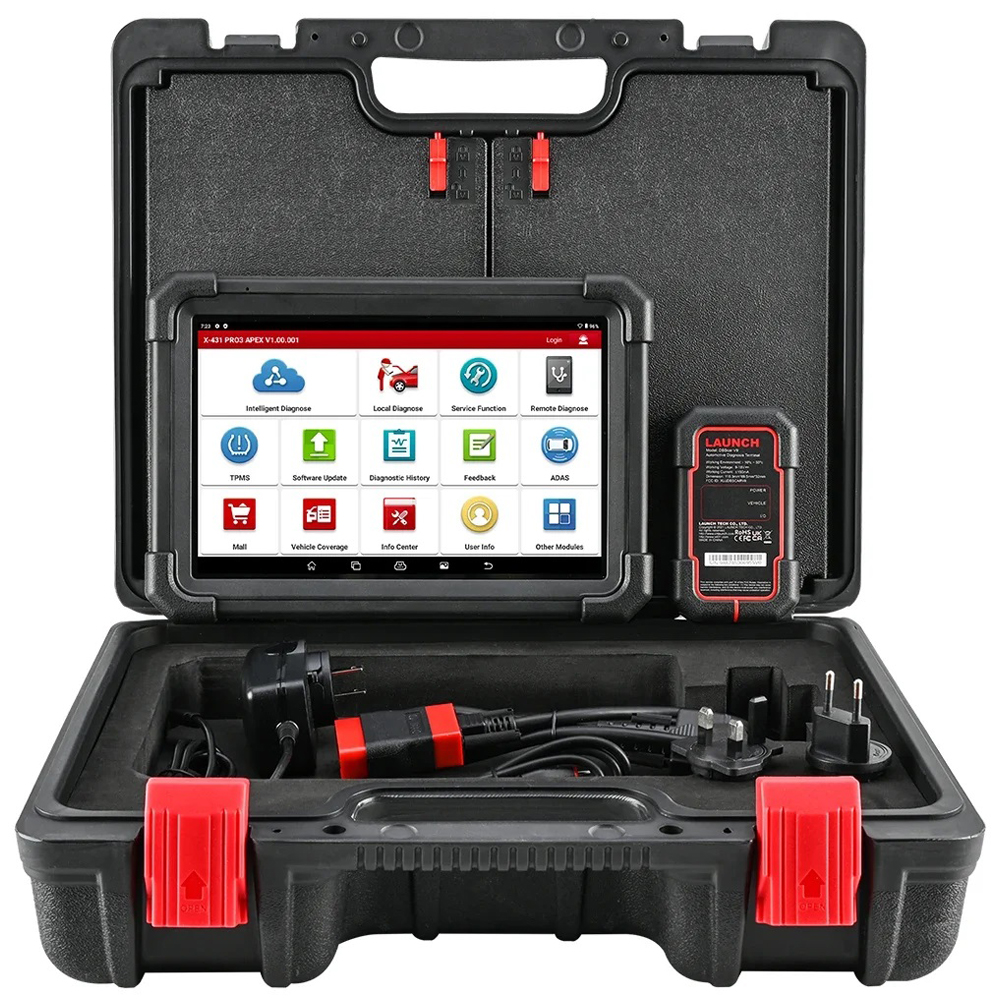

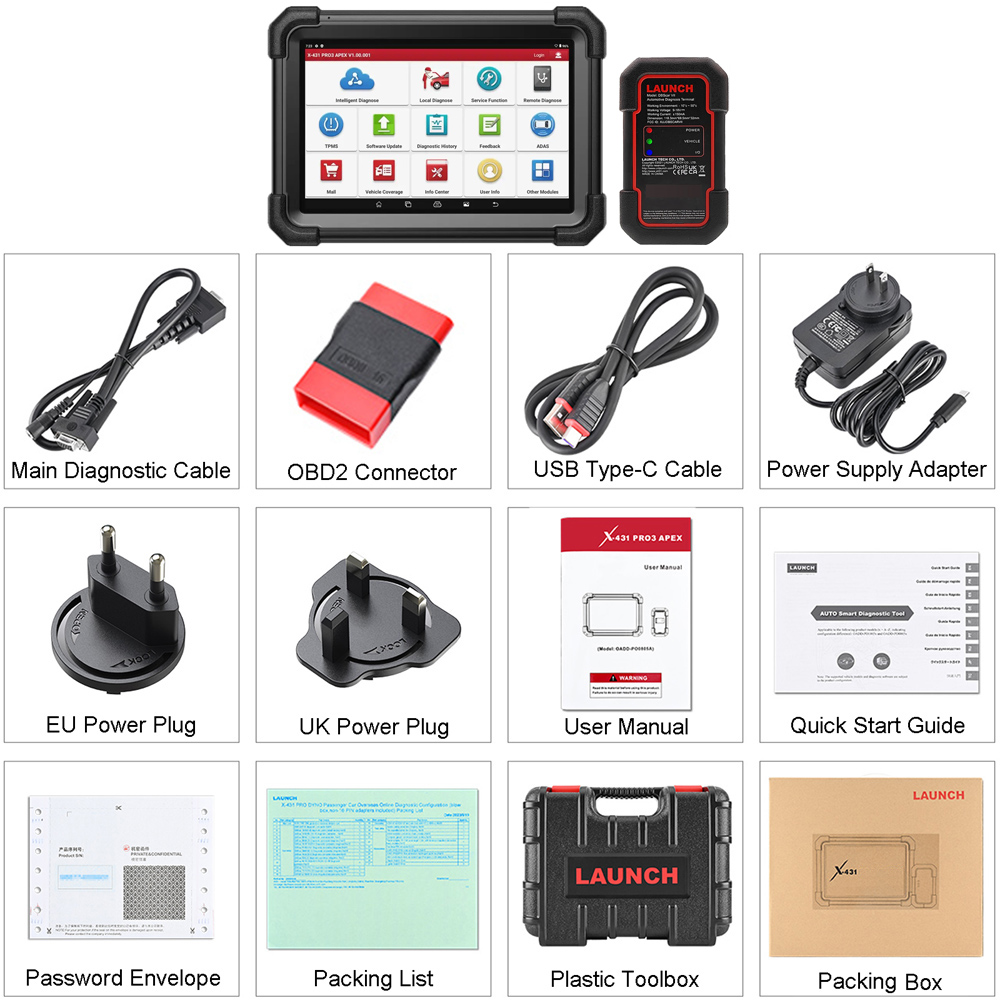

Packing List:



Launch X-431 RPO3 APEX

DBScar VII

Main Diagnostic Cable

OBD2 Connector

USB Type-C Cable

Power Supply Adapter

EU Power Plug

US Power Plug

UK Power Plug

User Manual

Quick Start Guide

Password Envelope

Packing List

Plastic Toolbox

Packing Box
