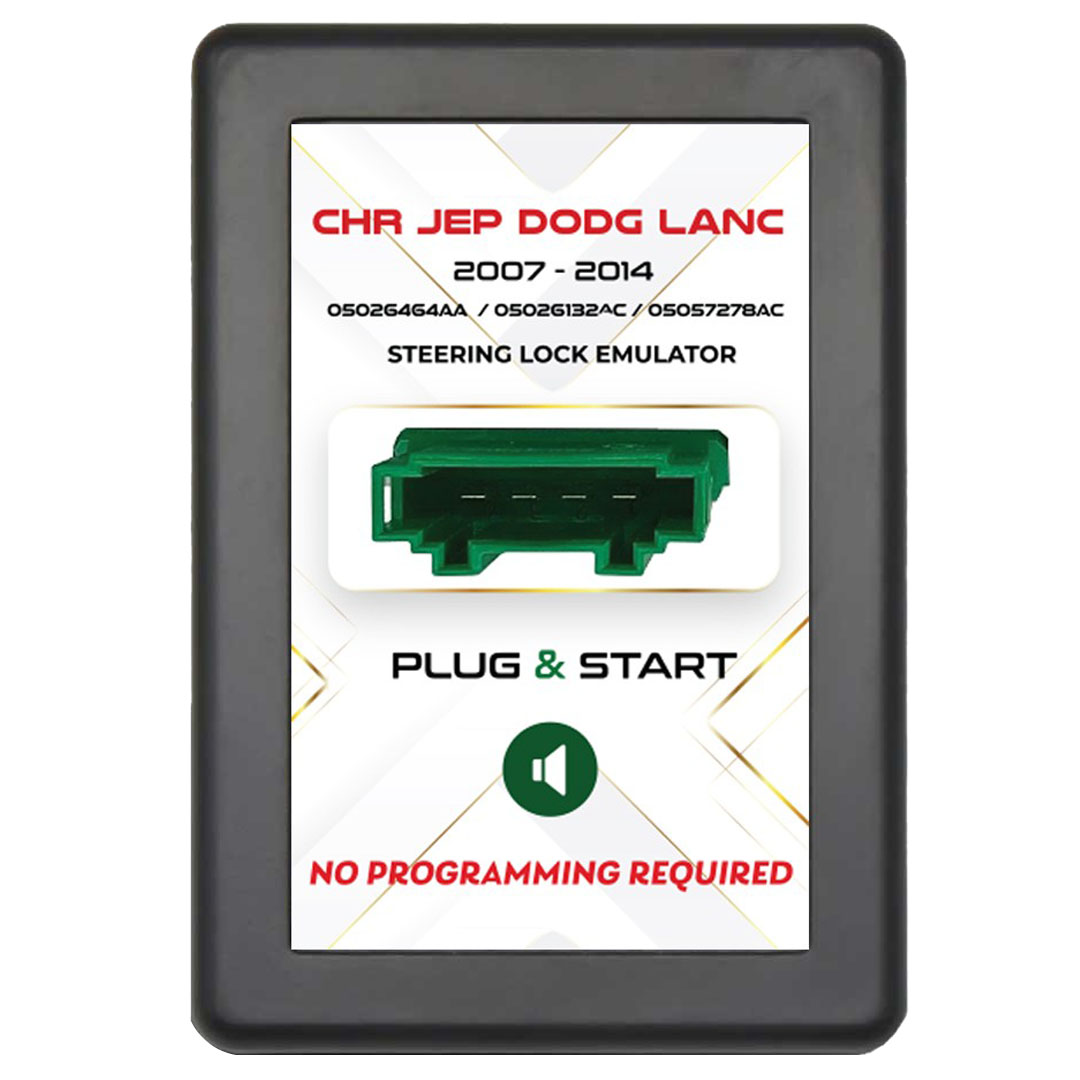

Name: Chrysler Dodge Jeep ESL Emulator with Lock Sound
Description:
Chrysler Jeep Dodge Lancia ESL Emulator Electronic Steering Lock Simulator with Lock Sound.
Plug and Start. No programming is required.
Need to check whether the car has green plug ESL. If some type does not work, please try this emulator on another car models.
ELV error is a self-occurring mechanical failure in the steering column lock. The occurrence of the fault does not depend on any fault.
In case of ELV malfunction, even if there is no problem on vehicle key, the working key will not start the vehicle because the ELV steering column lock will not be activated.
Steering lock problem is one among the foremost frequent problems in starting system. Usually, dealer needs to order new steering lock and program it which is just too much costly and time wasting.
Electronic Steering Lock Emulator will fix your steering lock malfunction error. And Steering Lock Emulator will bypass ELV always.
No coding is required. Simply connect it and it will fix the ESL failure.
LED Status:
1. After connecting to the car or to the testing cables, insert the car key to the switch. If emulator LED lights in green that mean it is connected well and therefore the car is ready to start.
2. If emulator LED lights in red that mean the key does not belong to an equivalent EIS / EZS, or you have EIS problem.
3. If emulator LED does not light on, you need to check the the car and cables
Pinout:
Pin1: +12v
Pin2: GND
Pin3: not used
Pin4: LIN line
Installation Steps:
1. Unplug The ESL cable from the car steering lock.
2. If vehicle steering lock is in lock mode, Please put the steering lock far away from the car.
3. Connect Chrysler Jeep Dodge Lancia ELV Emulator to the car.
4. Now you can start the car.
Supported Models:
Chrysler 300 2008 - 2010
Dodge Ram
Fiat
Jeep Grand Cherokee 2008 - 2010
Compatible Part Number:
5026132AC
5026464AA
5057278AC
|
