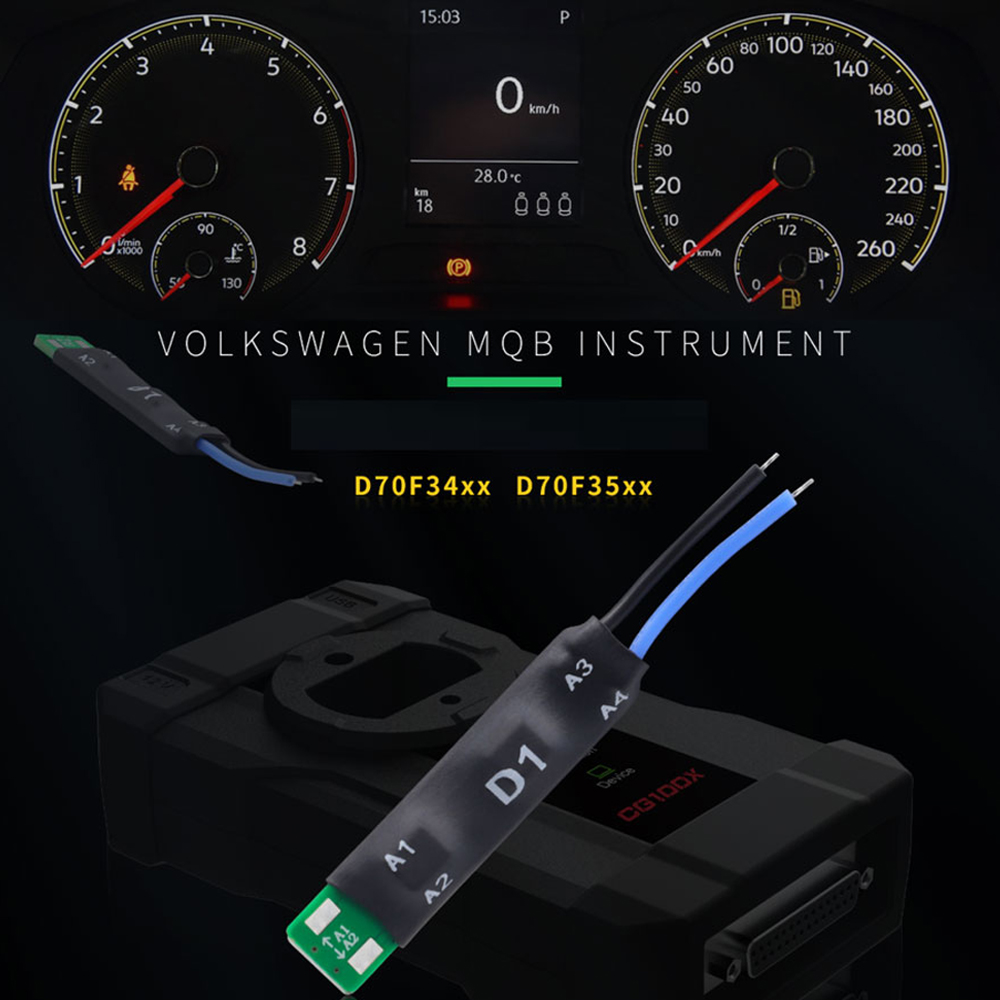

Name: CG100X D1 Adapter for VAG MQB D70F34xx D70F35xx
Description:
Newest CG100X D1 Adapter for VAG MQB D70F34xx D70F35xx Mileage Repair. No Soldering! No Lift Pin!
CG100X D1 Adapter is used to repair/change VAG MQB D70F34XX and D70F35XX processor mileage without soldering.
CG100X Software V1.3.5.1 Update:
Added D1 Adapter for supporting VW D70F34/35xx remove capacitor way mileage repair.

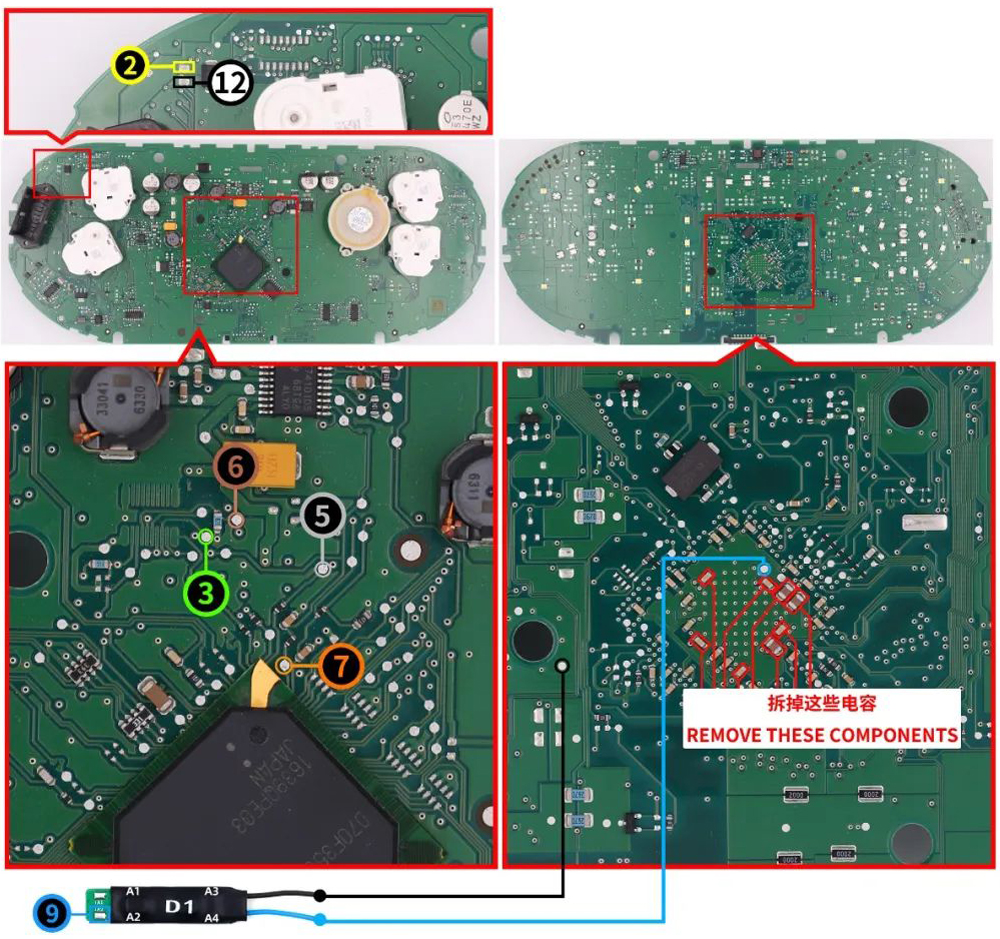

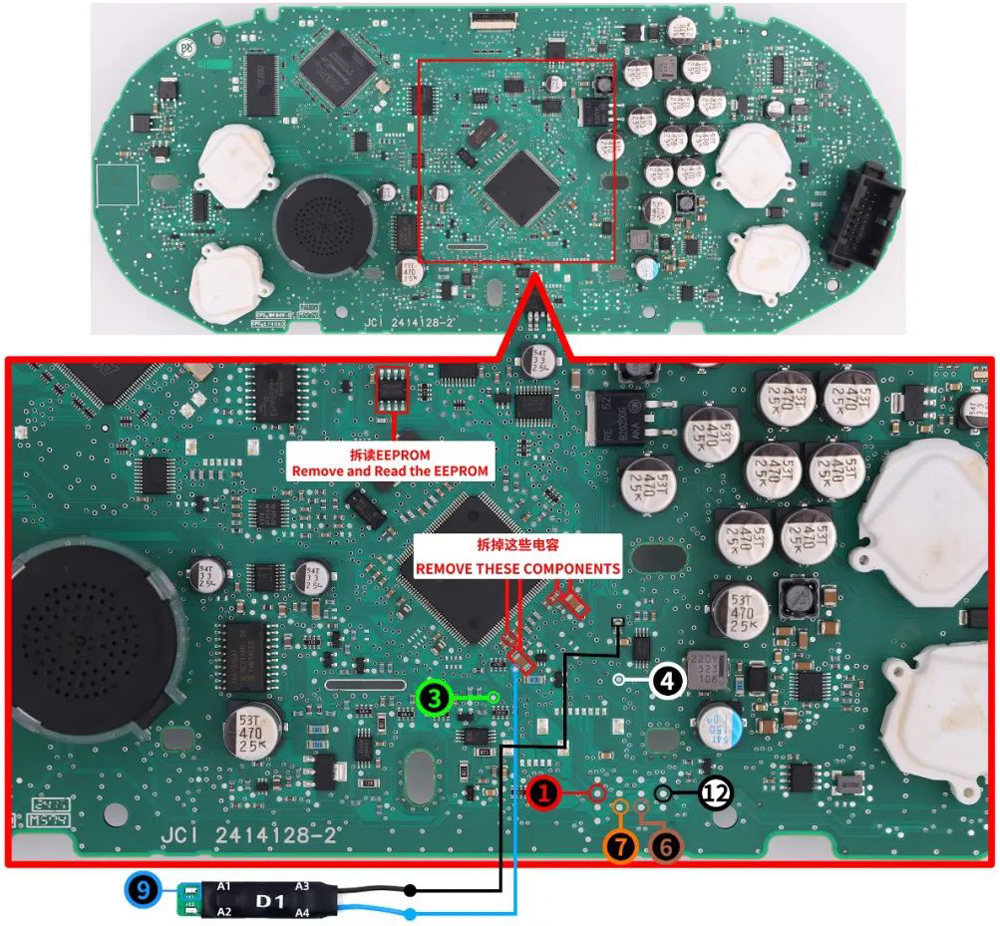

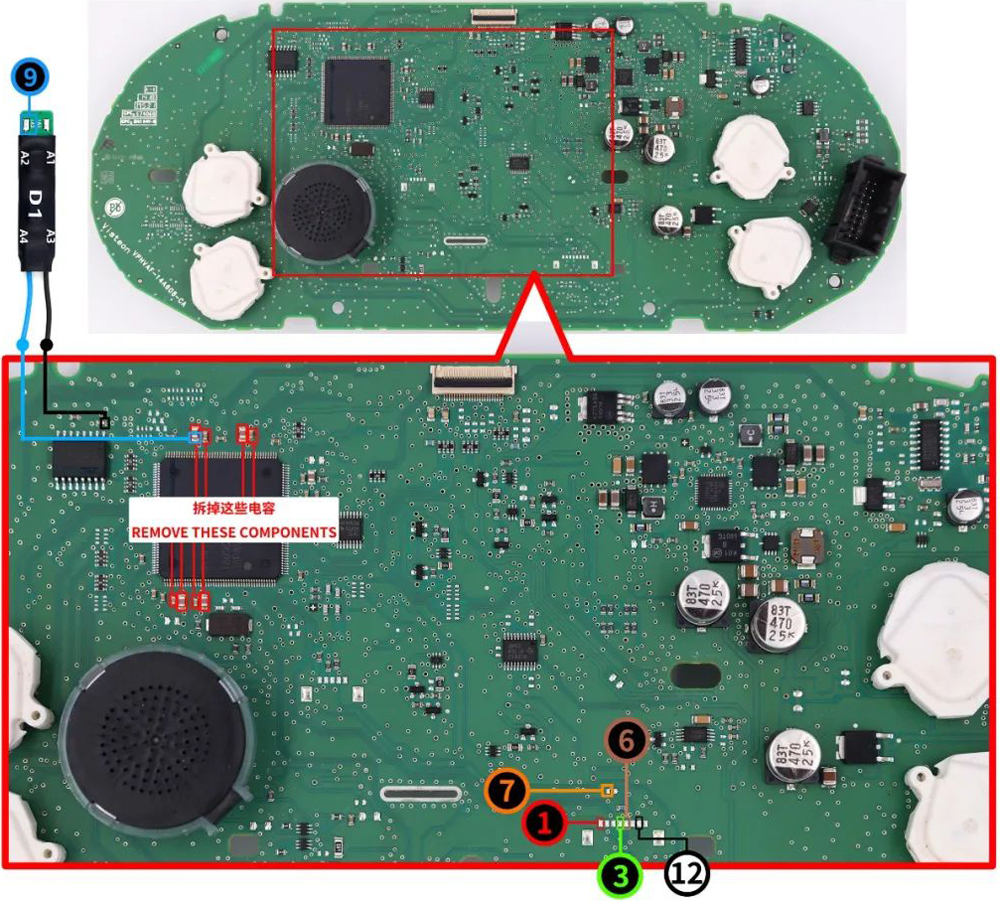

CG100X and D1 Adapter Pinouts to VAG MQB Cluster:
Notice:
1. This repair method requires CG100X D1 Adapter.

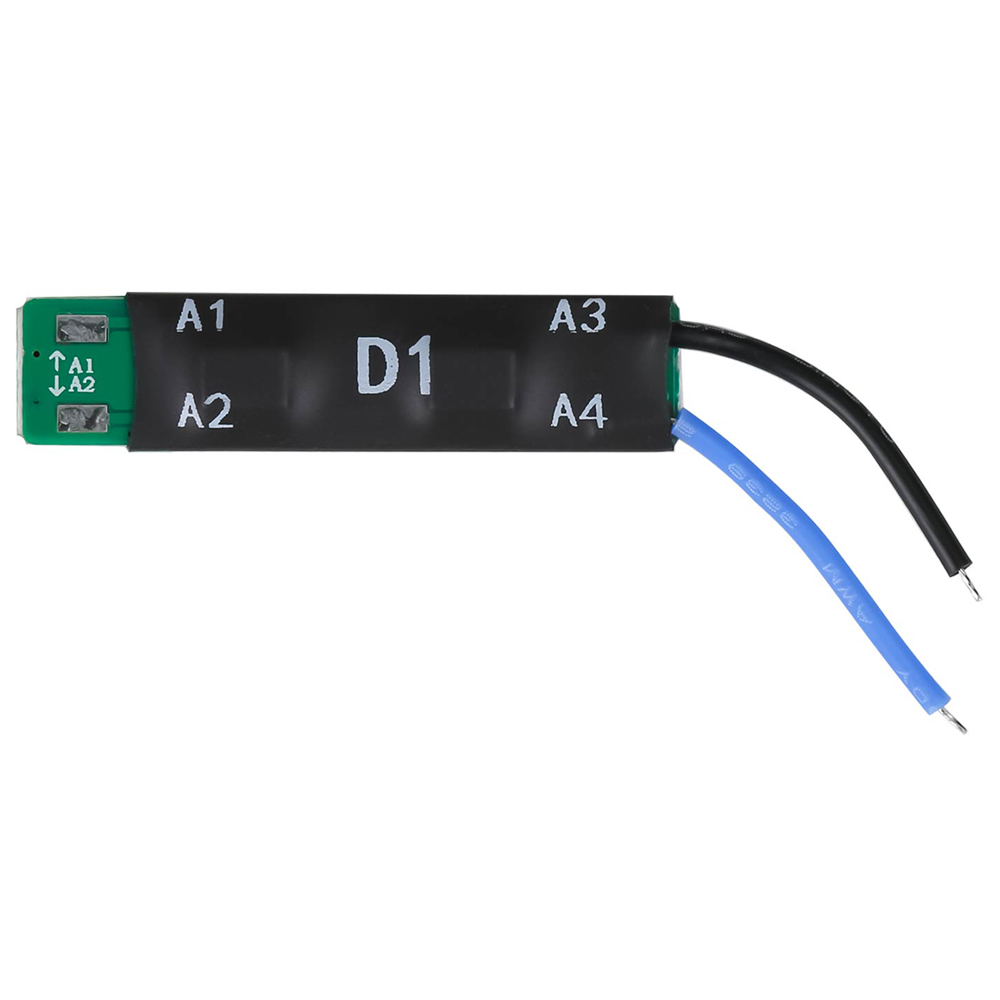

2. Pay attention to the direction of the four corners of the D1 Adapter on the wiring diagram.
|
