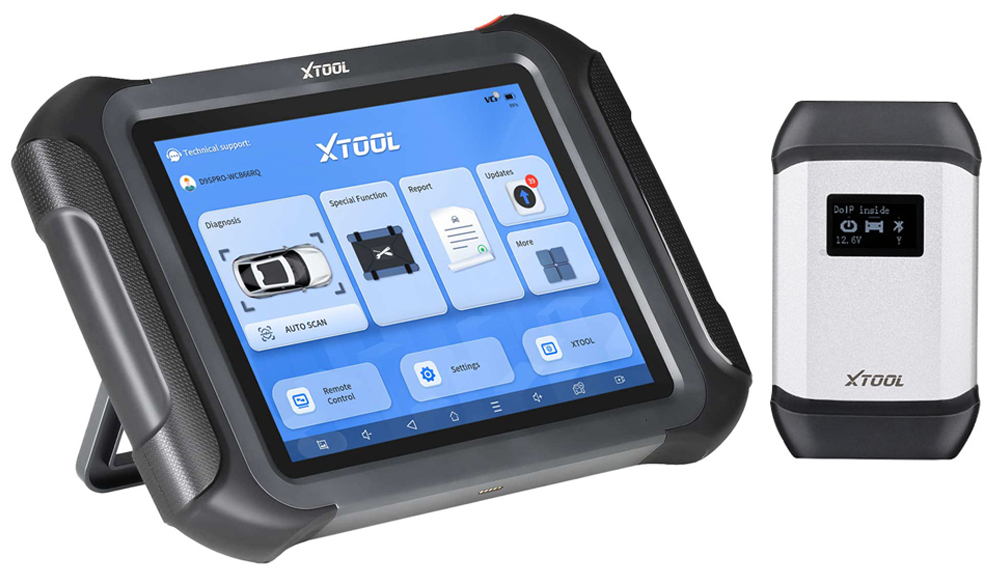

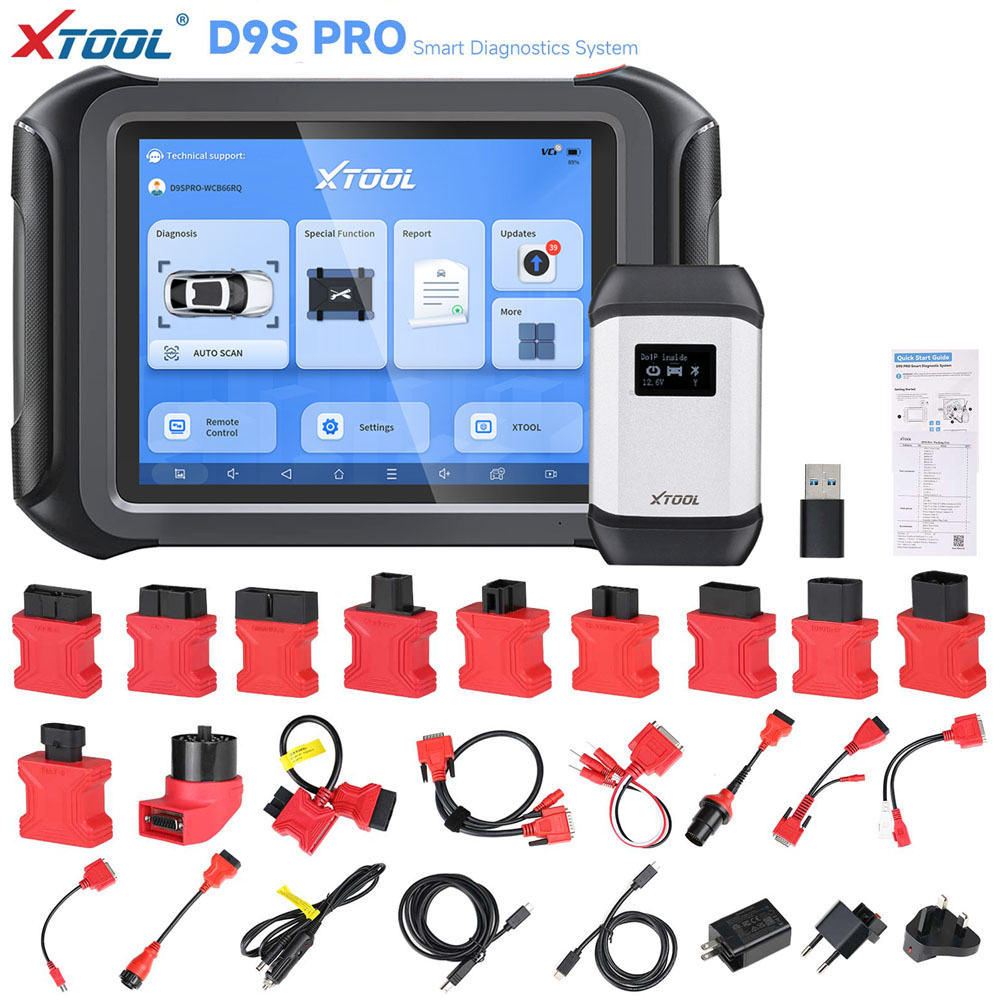

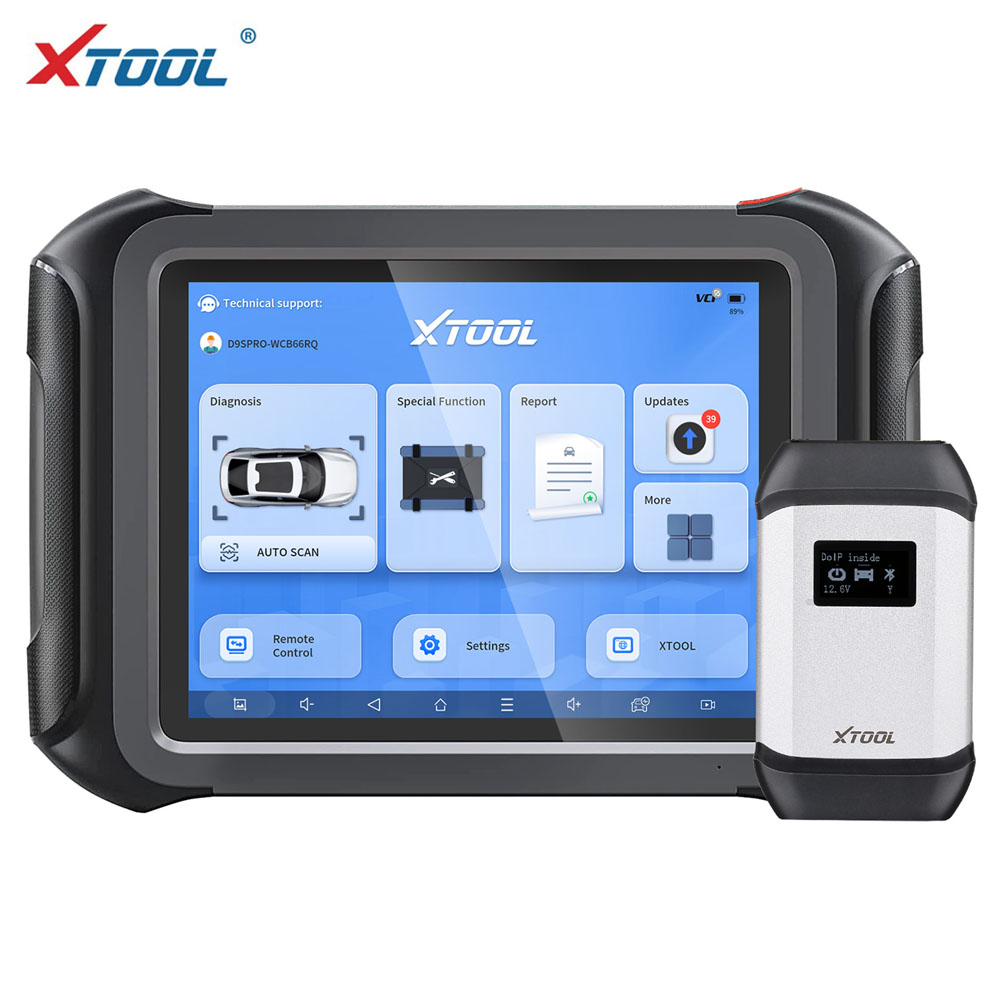

Description:



XTool D9S Pro is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI.



XTool D9SPro is designed for mechanics, electricians, and automotive repair stores, it provides Full-System Automotive Diagnostics, Live Data, Bi-Directional Control Tests, ECU Coding and Programming. XTool D9S PRO also supports 42 standard Special Functions such as Throttle Adaptation, ABS Bleeding, Service Light Reset, EPB Test, SAS Calibration, BMS Reset, Injector Coding, DPF Regeneration, TPMS Reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, XTool D9S PRO is a versatile and reliable tool for any automotive professional.



Supported Languages:



English, French, German, Spanish, Portuguese, Russian,  Italian, Turkish, Dutch, Farsi, Saudi Arabian, Finnish, Norwegian, Hungarian, Polish, Indonesian, Vietnamese, Thai, Japanese, Korean, Taiwanese



Software Update: 3 years free update online



Advantages:



1. WiFi Connection Diagnosis:

Compared with Bluetooth and cable connection diagnostics, WIFI Connection Diagnostics has a faster transmission speed and a longer Communication Distance, more free and not limited by the length of diagnostic cable, make work is more efficient, convenient and stable. (The WIFI connection distance is about 30-100M)



2. Full System Diagnostics:

XTool D9S Pro is an OE-level full diagnostic scanner as it can scan ECUs in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, Read /Clear Codes, View Live Data from each available system, perform active tests to check the work status of modules.



3. 42+ Maintenance Services:

XTool D9S Pro is designed for mechanics and workshop, garages. Along with the 42+ maintenance service functions like Oil Reset, EPB, SAS Adjustment, DPF Regeneration, Reset Control Unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, VIN Write, etc.



4. ECU Programming for Benz / BMW / VW + Flash Hidden Functions:

XTool D9S PRO supports ECU Programming for BMW / Benz / VW.  After replaced the existing software/firmware in the electronic control unit, program new ECUs, and fix software-controlled driving performance and emission issues. Reflash/reprogram hidden functions for ECM, TCM, BCM and other modules to customize your car is supported.



5. Supports DoIP & CAN FD:

XTool D9S Pro can works for the DoIP protocol and CAN FD. CAN-FD data frame newly adds EDL bit, BRS bit, ESI bit in the control field, and adopts new DLC encoding method and new CRC algorithm (CRC field is extended to 21 bits).



6. Module Topology Map:

Faster system-wide diagnostics with Topplogy Map for a clear view of the communication structure between modules, as well as all conditions per system tp read/clear codes, real-time data PID graphics for all vehicle systems.



7. Bi-Directional Control / Active Test:

XTool D9S PRO supports Active Test / Bi-Directional Control. It is allowing commands to be sent from a tablet to control vehicle modules and systems to perform specific functions and tests. Like Turn On/Off Windows/Doors/Wipers/Sunroof, Cycling ABS Motor Pump, EVAP Test, Component Match, etc.



8. Auto Scan & Auto VIN:

AutoVIN functions allowing you to quickly figure out Vehicle Identification No. (VIN) to perform fast diagnostic.



Highlights:



1. XTool D9S Pro is upgrade version of XTool D9 Pro

2. Support WiFi & Wired Connection

3. Global Version without IP Limitation

4. OE-Level Full System Diagnostic with Topplogy Module Mapping

5. 42+ Maintenance Services & Full Special Functions

6. Advanced ECU Coding & Refresh Hidden Functions

7. Key Programming/IMMO Reprogram New Keys + Add New Fobs + Keyless Remote + Disable Lost Keys

8. Support CAN FD & DoIP Protocols

9. VAG Guide Functions

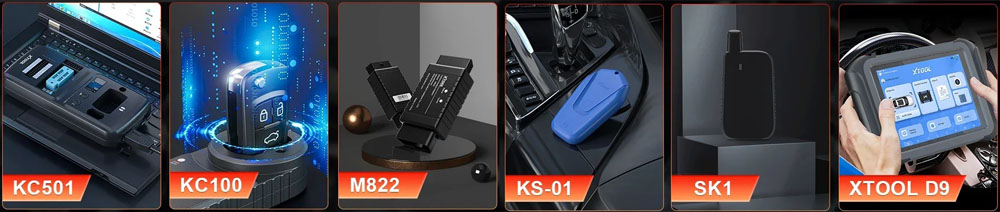

10. Advanced Add-On Extension Accessories (Need to buy accessories separately.)

1). Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)

2). KC501 (For Benz Infrared Key Programming / VW 4th, 5th IMMO, /  EEPROM / Chips Programming)

3). KC100 (For VW 4th and 5th IMMO)

4). KS01(For Toyota All Keys Lost Programming)

5). M822( For Toyota 8A/4A All Keys Lost Programming)

6). M821(For Mercedes-Benz All Keys Lost Programming)



Functions:



1. Advanced ECU Programming

XTool D9S Pro professional diagnostic scan tool can perform Online ECU Programming for BMW/Mercedes Benz/Volkswagen, Offline ECU Programming for Ford/Lincoln/Mazda and ECU Coding for Volkswagen/Audi/Skoda. Program/Reflash ECUs, Perform Online Calibrations, Online Parameterizations, and Customize Car Settings.



1). Perform Online ECU Programming on ECM, PCM, BCM of Specific for BMW/Benz/VW:

Replace the existing software, firmware in the ECU;

Program/reflash new modules after ECU replacement;

Fix software -controlled driving performance and emission issues.



2). Perform Offline ECU Programming on Specific for For/Lincoln/Mazda:

Copy the codes from old module to the new one when you have swapped the ECU/Module from a doner car;

Perform Programmable Module Installation(PMI) to reprograms the adaptive data for certain components after repairs or replacements.



3). Advanced ECU Coding(Online Coding):

Used to reflash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements. You can use XTool D9SPRO to stimulate all the possibilities of the vehicles.



After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner. Before the coding, please read and record the original module's information.



For Example:

Recode Changed Modules; Optimize Vehicle Performance; Re-Flash Hidden Functions; Renew ECUs Coordination; Reprogram; Adaptive Data; Improve Fuel Efficiency; Reduce Power Loss; Improve the Durability of Mechanical Parts,etc.



Note:



ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is NOT universally compatible and varies for different vehicles.



2. Bi-Directional Controls / Active Tests

XTool D9S Pro is a bi-directional scan tool with ECU codding, allows you to receive information to and from the vehicle's onboard computer and can send commands to the vehicle ECU to perform active tests without using the vehicle's controls, like A/C Clutch On/Off, Fuel Injectors, (Cycling) ABS Pump Motor, Window, Door, Sunroof, etc. That is helpful for DIY mechanics, speeding up the troubleshooting process when it is time to make repairs. Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle related actuators.



Turn on The Radiator Fan

Modulate the Throttle

Open/Close Windows

Operate Mirrors

Turn On/Off the Lights

Turn On/Off the Sound Horn

Test Door Lock



3. 42+ Maintenance Services

1). ECU Configuration:

Re-flash the hidden function of the car and customize the vehicle as need.



2). ABS Bleeding:

Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.



3). Fuel Trim Reset:

Reset the fuel trims provides for a chance that your adaptive fuel map could become stable.



4). IMMO / Key Programming:

Disable a lost vehicle key to protect the vehicle from being stolen and add the new key.



5). Oil Reset:

Reset the new calculation of Engine Oil Life System for an accurate reading of the next oil change.



6). EPB:

Reset the calipers, brake discs or pads after the electronic parking brake system is repaired.



7). BMS Match:

Reset after replacing the battery to clear the low battery fault information of the original battery and protect the new battery.



8). DPF Regeneration:

Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.



9). Injector Coding:

Code a new injector to better identify injectors to accurately control fuel injection.



10). SAS Adjustment:

Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.



11). Throttle Relearn:

Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.



12). Airbag Repair:

After replacing the Airbag, reset the Airbag data and clear the collision data.



TPMS Reset, Air Suspension, Gear Learning(Crankshaft Relearn), Gearbox (Transmission) Match, Headlight Adjustment, Window Initialization, Seat Configurations, Power Balance, Electronic Pump Activation, Disable Transportation, Tire Refit, A/F Reset, Start/Stop Reset, Language Change, Transmission Service Fast Relearn, Fuel Injector Balance, Crankshaft Sensors Relearn, Idle Learn, Zero- Point Calibration, Fuel Alcohol Composition Reset, Actuator Calibration Test, WCS Reset, VIN Registration(Write), Injector Balance Rate Programming...



Note:



Reset Service functions may vary on different car make/model/year.



4. Powerful Key Programming

IMMO Service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like Programming New Key Fobs, Read PIN Code/PIN Code Calculation, Check Number of Keys, Generate Key, Add Key, All Keys Lost.



Read PIN Code/Pin Code Calculation

Check Number of Keys

Generate Dealer Key

All Key Lost

Add Key

Delete Key



Note:



Key Programming function is NOT universally compatible on all models.



5. Auto Vin Auto Scan

Simplify the vehicle diagnostic process with just one click. XTool D9S PRO scanner tool adopts the latest car VIN technology, allowing technicians or repairers to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.



6. 8 In 1 Live Data Graphing

Up to 8 real-time data PIDs can be viewed at the same time, such as oil pressure, fuel temperature, coolant temperature, transmission oil temperature, fuel trim, O2 sensor, etc., displayed in text or graph form.



7. Support CAN FD/DoIP Protocols

With CAN FD Protocol covers for GM MY2020+ models. No extra CAN FD Adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle.

8. VAG Guided Functions



9. Intelligent Topology Map

XTool D9SPRO intelligent diagnostic tool has a module topology, which can scan all available car modules, and the topology map displays the diagnostic status in different colors, showing the communication structure between modules, which greatly improves the maintenance efficiency of the workshop.



Note:



Topology Map is now compatible with GM/Chrysler/Jeep/Dodge/Ford/Toyota/Nissan/Honda/BMW/Benz/Hyundai/Mazda(more car models are coming).



10. OE-Level Full System Diagnostics
XTool D9S Pro is an OE-level full diagnostic scanner as it can scan ECUs in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, read /clear codes, view the live data from each available system, perform active tests to check the work status of modules, providing you with a dealership- level only diagnosis, getting the accurate and in-depth results across all automotive systems.


Wide Coverage for 99.9% Vehicles Including DoIP, CAN FD Protocol New Models:



XTool D9S PRO diagnostic tablet can work on 10,000 global vehicles to perform all systems diagnostics and emission check. It supports cars, SUVs, minivans, 12V light-duty trucks, GM 2020+ vehicles that are CAN FD compliant, BMW E/F/G Chassis / Jaguar / Land Rover vehicle makes that are DoIP protocol compliant, and 99.9% OBD-II/EOBD vehicles for emission check.



America:

BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA), GM, JEEP, LINCOLI, GM(BRAZIL)



Europe:

ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI,CITROEN , DACIA, DR, EUROFORD, FERRARI, FIAT, GAZ, OPEL(SOUTHAFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LANDROVE, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW, BORGWARD, ASTON MARTINA.



Asia:

ACURA, DAEWOO, DAIHATSU, HM, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, IKCO, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI,MAZDA, MITSUBISHI, MVM, NISSAN, GTR(NISSAN, PERODUA, PERODUA(MALAYSIA, PROTON, PROTON(MALAYSIA, SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TLISUZU, TOYOTA, UNITED PAKISTAN, VINFAST



China:

BRILLIANC, BYD, CHANGAN, CHANGAN-FORD, , CHANGHE, CHBUICK, CHCADILLAC, CH CHEVROLET, CHERY, CHSUZUKI, DFCIROEN, HONDA(DF), DFNISSAN, DFEUGEOT, ECUAID, FAW(TIANJIN, FOTON, GOLDEN(XIAMEN, GONOW, MITSUBISHI(GAC, GREAT WALL, HONDA(GAC, HAFEI, HAIMA, HCBMW, JAC, JIANGHUAI, JMC, JOYLONG, LIFAN, LYNKCO, MG(SAIC, NJFIAT, QOROS, MAXUS, SGM, TOYOTA(CHINA, VENUCIA, WULING, XINKAI, YQMAZDA, ZHONGGSHUN, ZHONGXING, ZOTYE, SOUEAST, ROEWE(SAIC), JIQING(FAW), HUANGHAI, LANDWIND, EXEEDTY, NISSAN(ZHENGZHOU), DFPV, JETOR, DFFX, CHERY EV

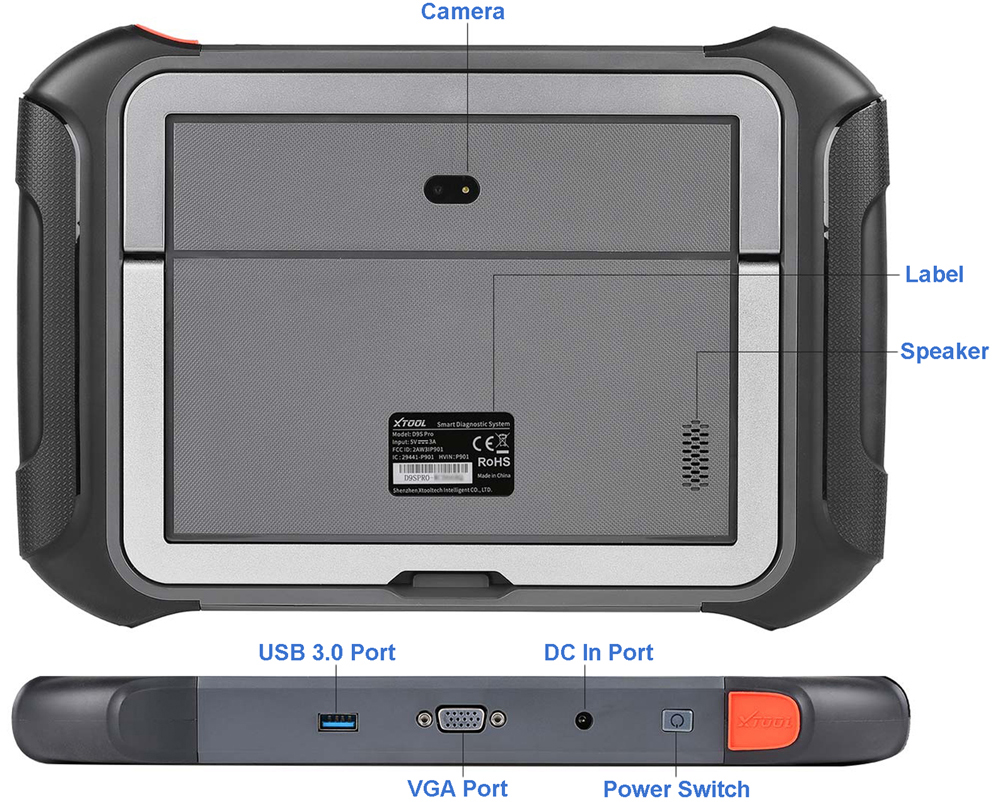

Specifications:



Operating System: Android 10

Processor: 4 core 1.50GHz

RAM: 4GB

Storage: 128GB

Display 9.7 inch capacitive touch screen with 1024*768P resolution

Communication: WIFI

Connectivity: WIFI 2.4/5GHZ / USB Type C

Camera: 8.0 megapixel rear camera, AF with flashlight

Sensor: gravity accelerometer / ambient light sensor

Audio Input: microphone

Audio Output: speaker

Working Voltage: 9 to 36V

Operating Temperature: -10 to 40 degree centigrade

Storage Temperature: -40 to 60 degree centigrade

Humidity: <90%

Dimension(L*W*H): 313*218*30mm

Weight: 7.22Kg
