Name: 13MP Digital Video Microscope Camera 180X HDMI VGA
Description:
Professional 13MP Industrial Digital Video Microscope Camera 180X Zoom supports HDMI / VGA.
Specifications:

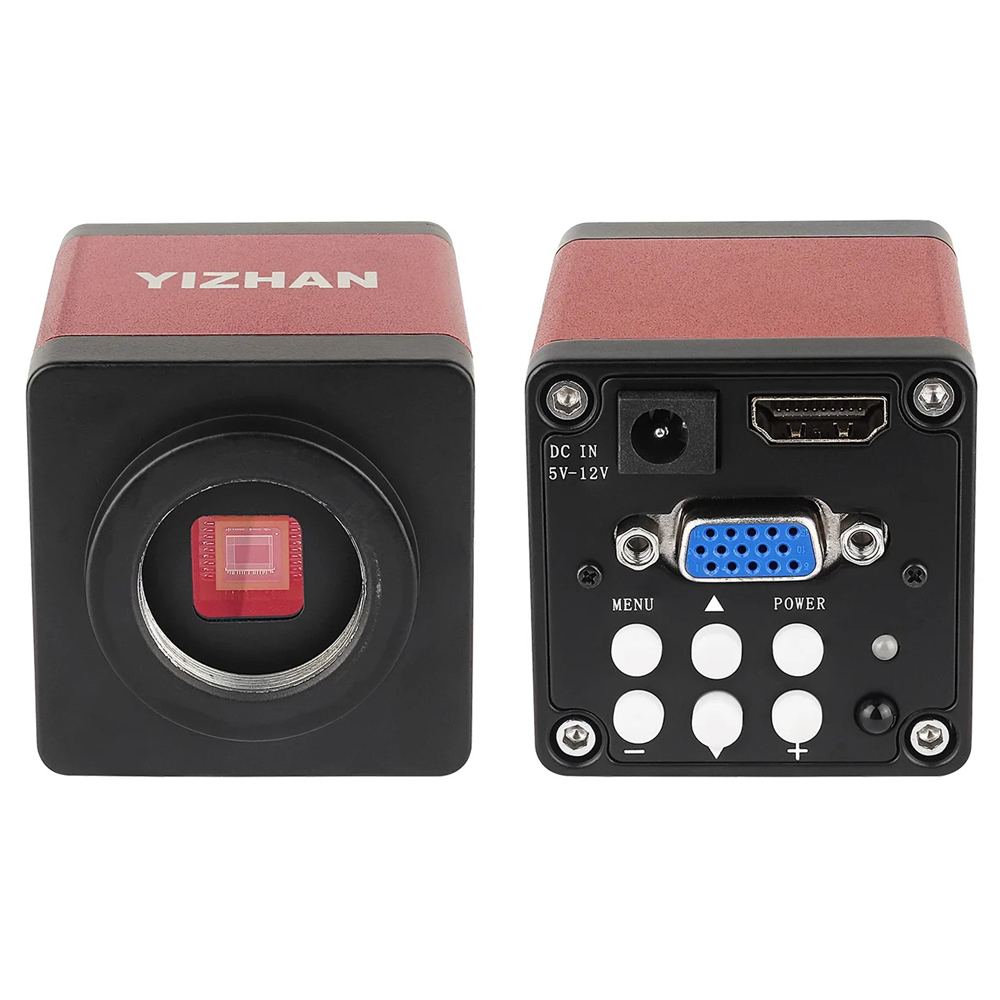

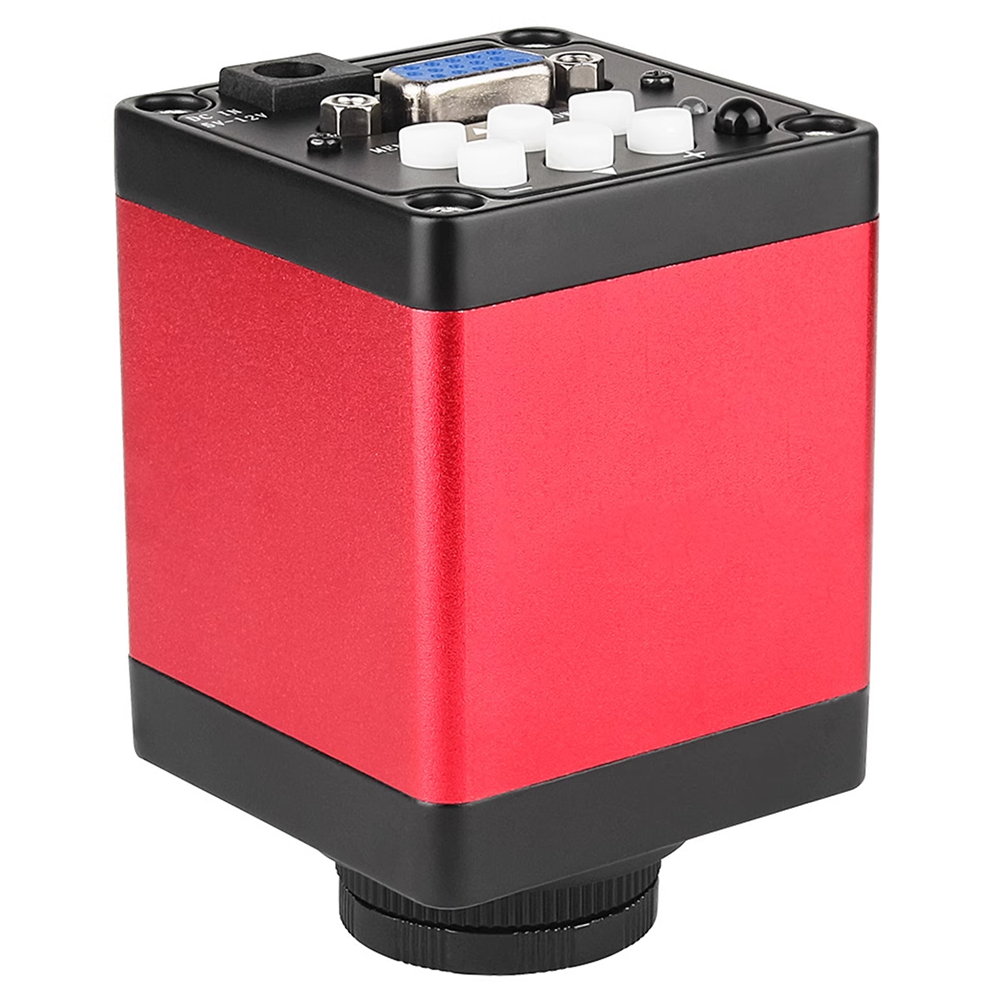

Model: XVH2001
Sensor: gc2053

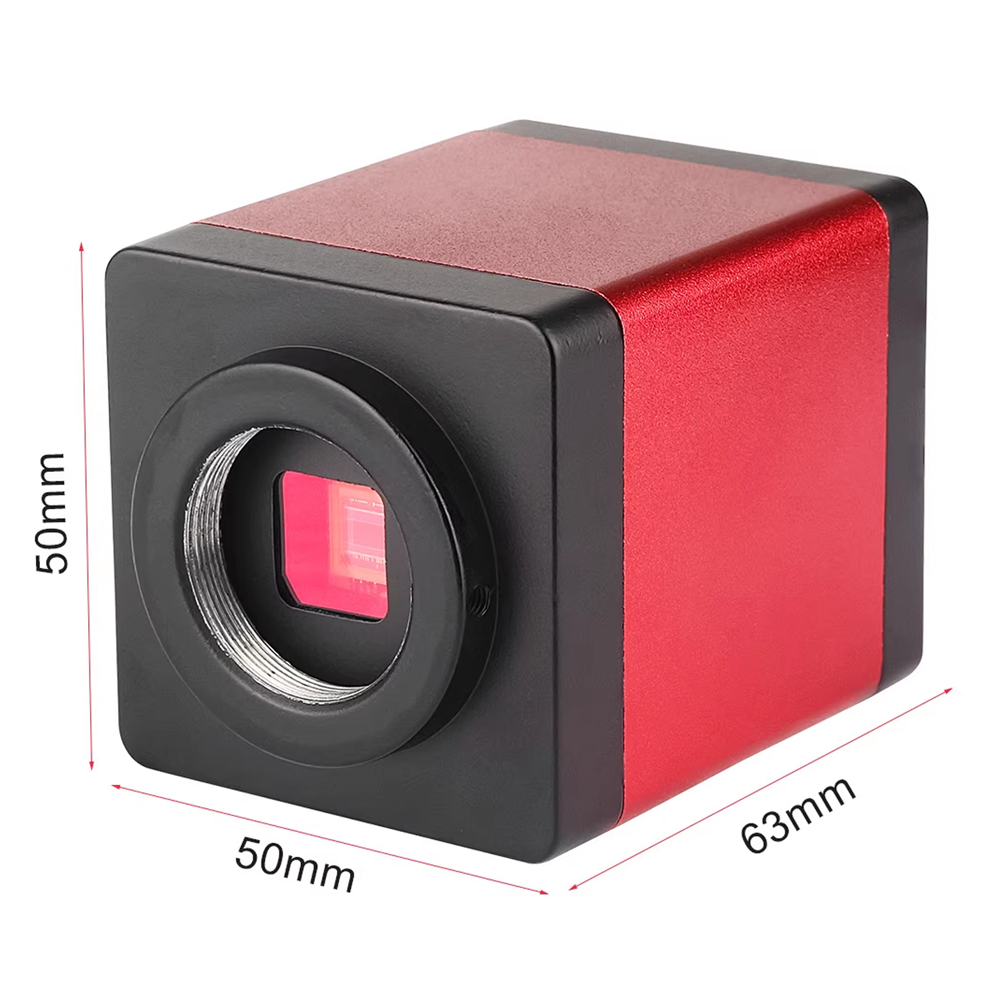

Overall Dimension: 75*50*50mm
Video Interface: HDMI / VGA
Lens: CS
Working Voltage: 12V
Working Current: 150mA
Optical Format: 1/3"
Pixel Size: 2.8um*2.8um
TV Lines: 1200 TV Lines
Max. Image FPS: 60FPS
Scanning Mode: progressive
Shutter Mode: electronic shutter
Dynamic Range: 65dB
S/N Radio: 45dB
OSD Languages: English, Chinese
AWB Mode: one time white balance / manual / auto
HDR: adjustable
Cross Line: support 8 colors / adjustable line width
B/W: allow
Negative: allow
Mirror Flip: left / right / up / down
Freeze: supported
Compare: supported
Manual Set Bright / Contrast / Sharp / Saturation: supported
Output of Display HDMI Output Resolution: 16:9, 4:3 / VGA: above 1920*1080P

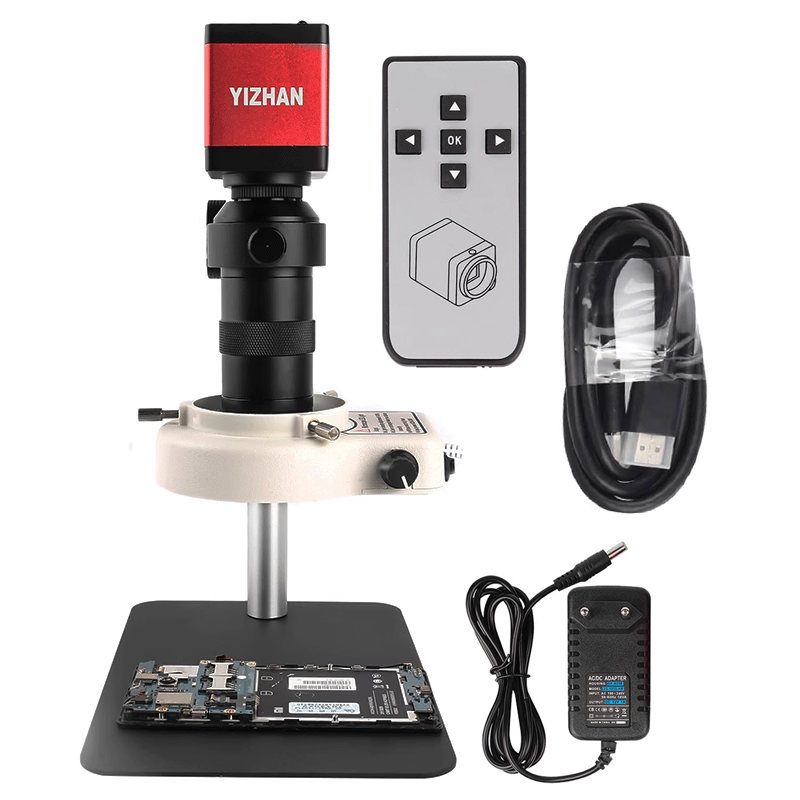

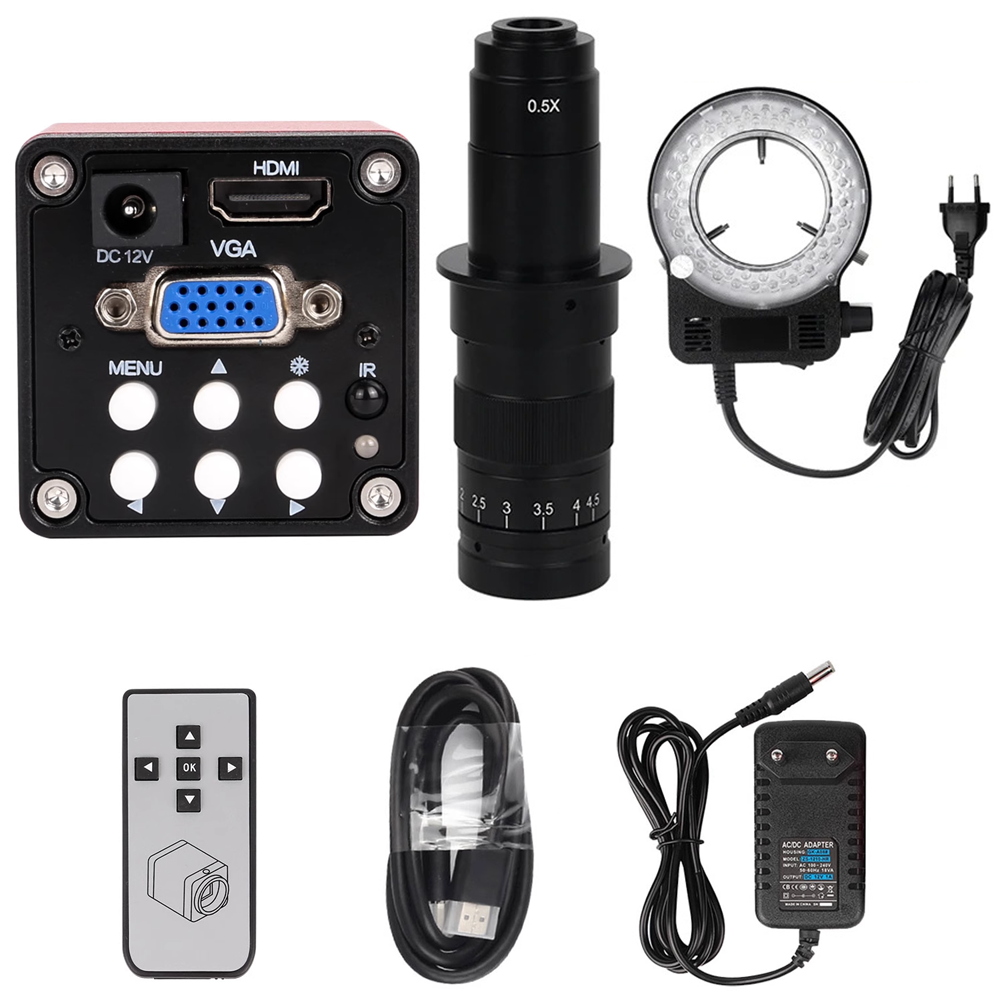

Packing List:

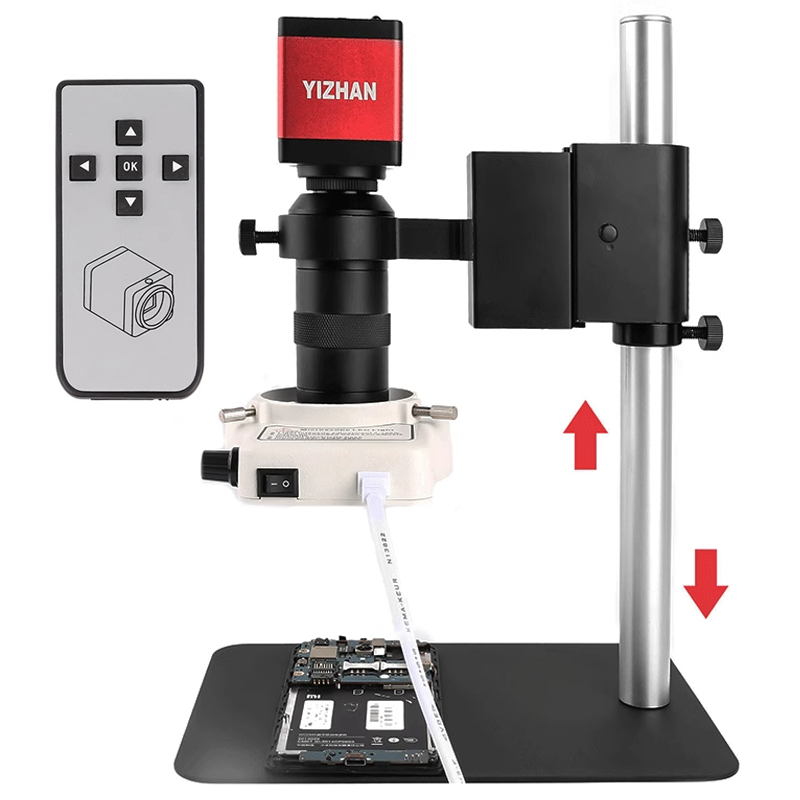

13MP HDMI Digital Video Microscope (HDMI / VGA)
Camera Remote

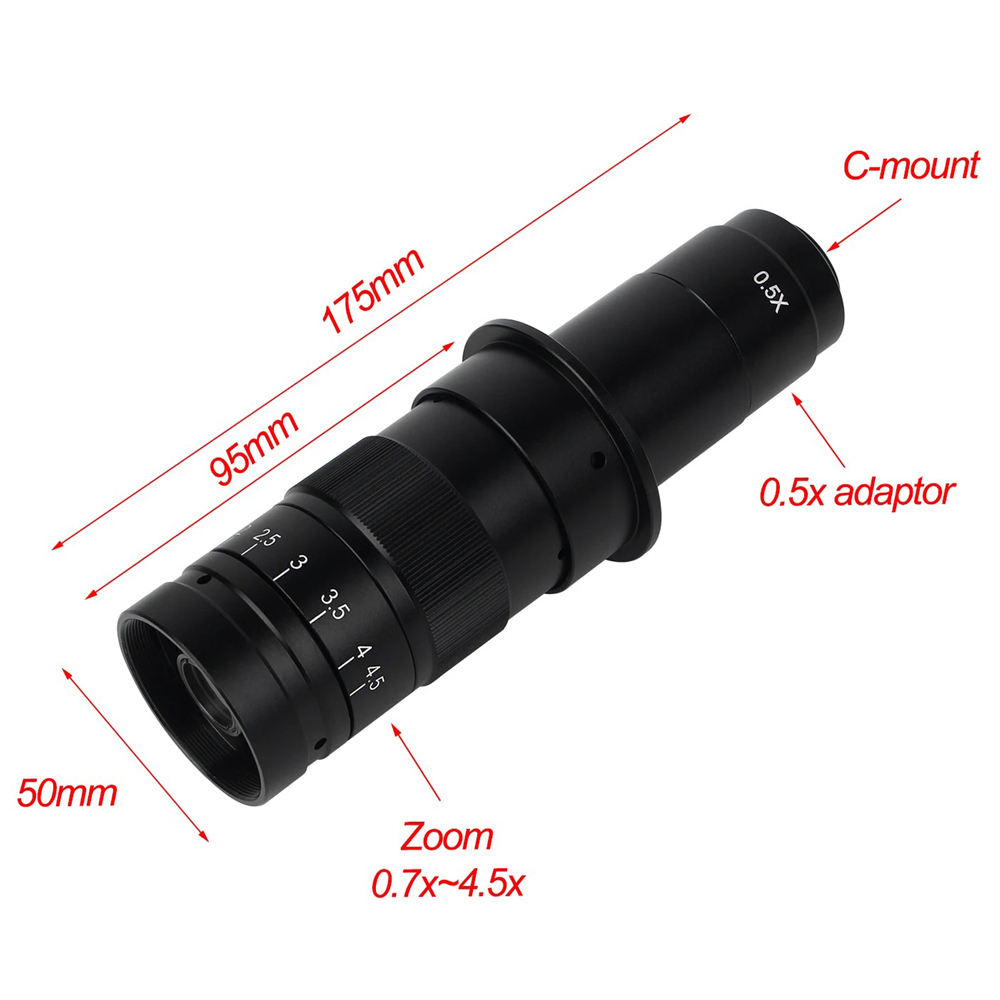

180X Lens

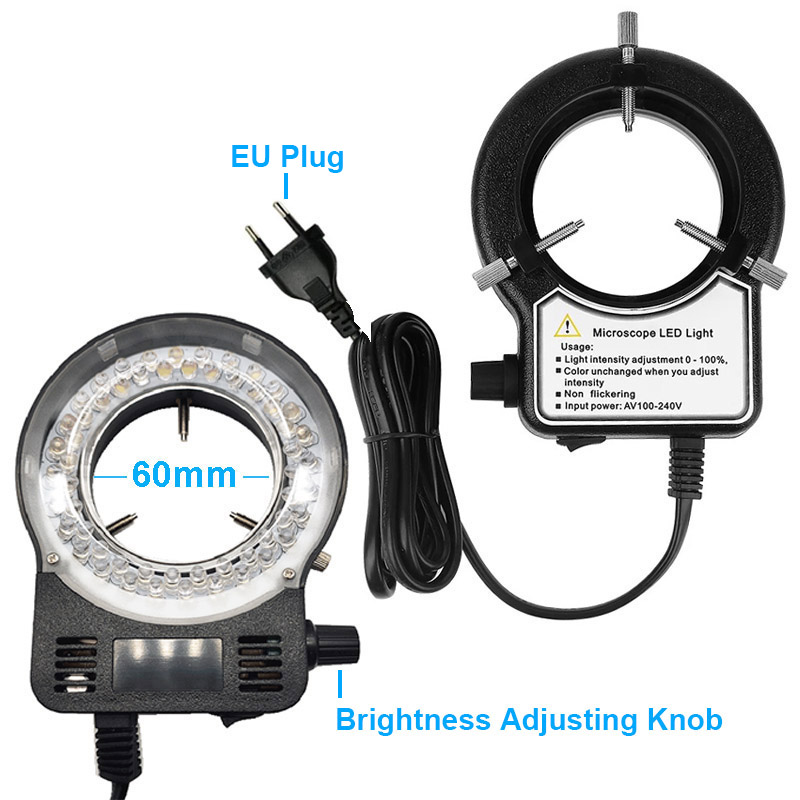

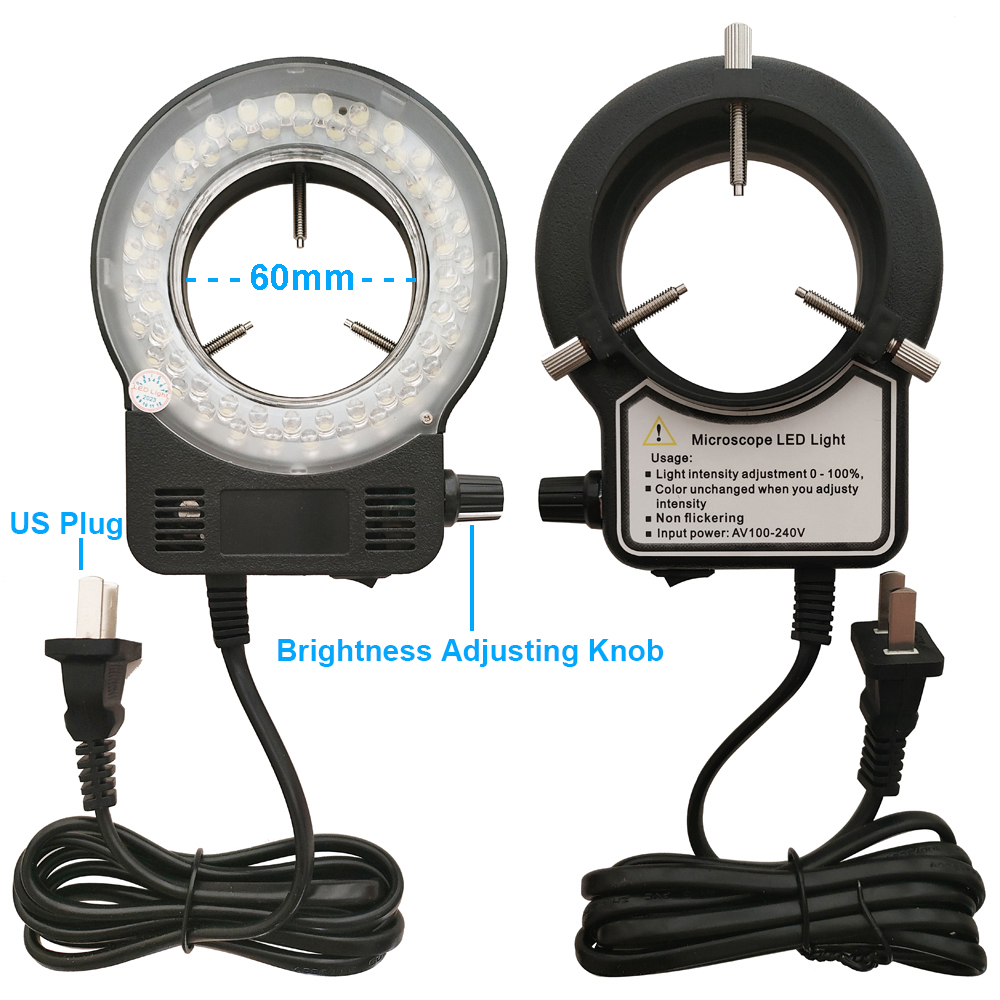

LED Ring Lights

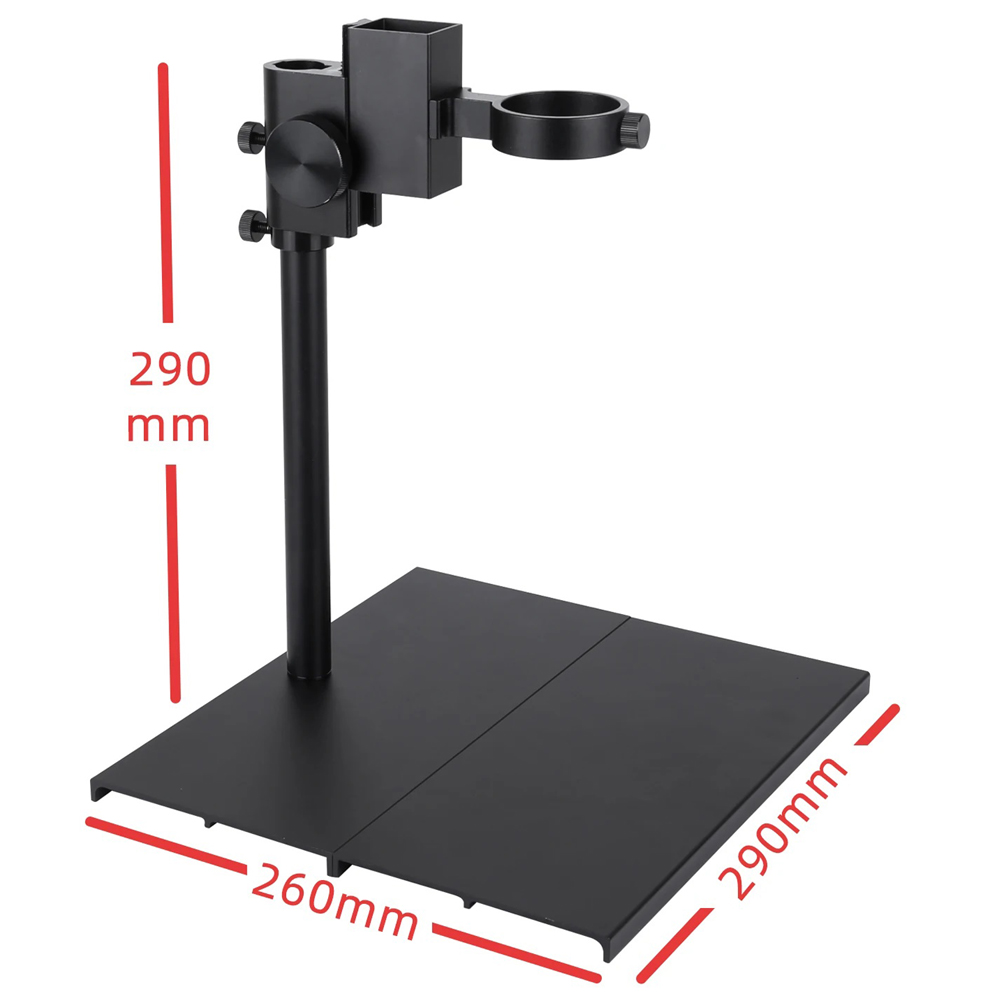

Stand
HDMI Cable
100V-240V Power Adapter (EU / UK / AU Adapters for free)
Packing Box
Solutions To Common Problems:
Problem 1: no image on display
(1). Check whether the power supply is normal.
(2). Check whether the green power indicator is always on. If it flashes, means power supply is insufficient, please use the 12V DC power supply.
(3). Press and hold "↓" first, then power on, output low resolution, and change to the resolution of the monitor when there is an image
Problem 2: display has black edges
(1). Adjust the display resolution.
(2). Adjust the camera output resolution.
Problem 3: image has black spots
Check the camera and lens, confirm the dust location, and wipe with a professional lens cleaner or anhydrous alcohol (anhydrous ethanol).
|
