Description:

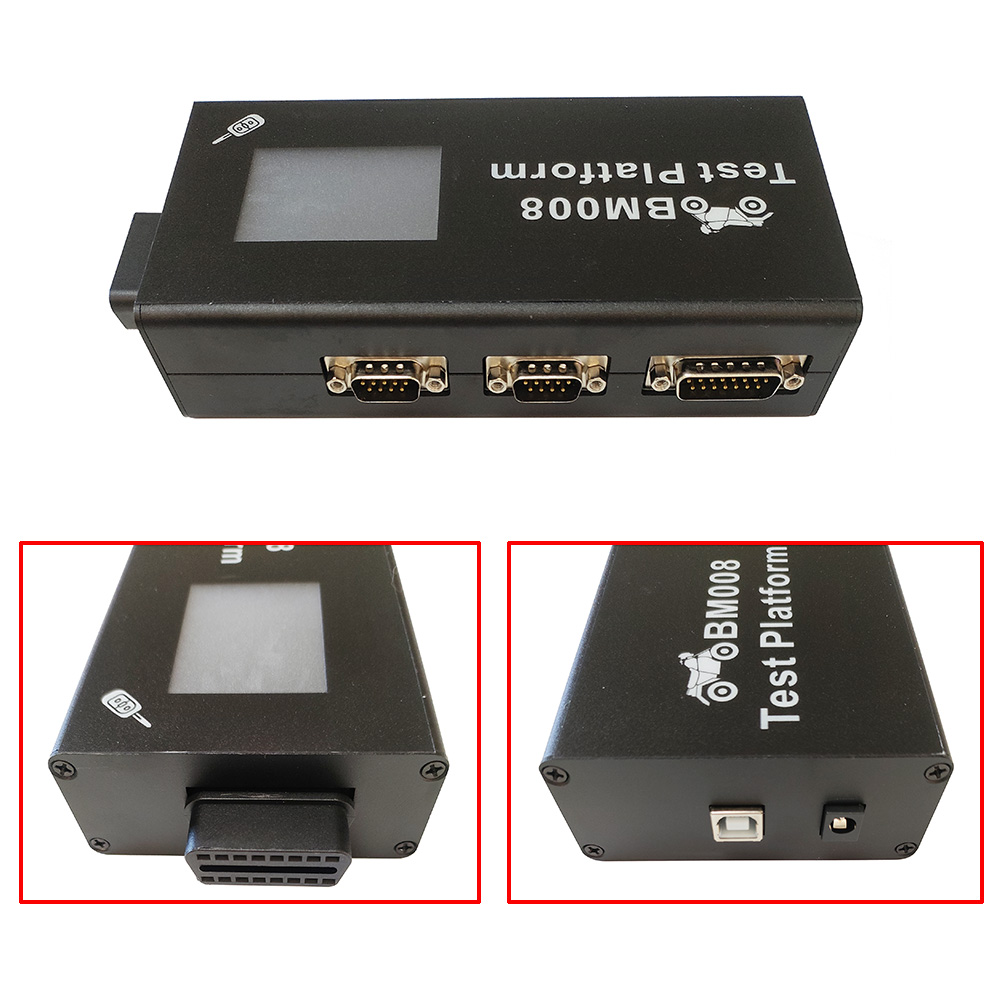

BM008 BMW Motorcycle IMMO Test Platform is a professional BMW Motorcycle Immobilizer Bench Station for 8A / ID46 / 4D Transponder Key Programming & ECU Offline Testing.



BMW BM008 Motorcycle IMMO Test Platform is a dedicated offline bench test equipment developed exclusively for BMW motorcycle anti-theft system maintenance. BM008 BMW Motorcycle Test Platform designed to solve immobilizer programming when vehicles cannot power up or OBD onboard communication fails. BMW BM008 supports offline reading & writing of original data from BMW motorcycle EWS immobilizer modules, DME engine ECUs and TFT instrument clusters, completing All-Key-Lost programming for 8A, ID46, 4D chip keys without vehicle wiring installation. Built-in mini LCD control panel with physical navigation keys for easy manual switch of ACC/DC power output status, stable bench power supply for bare module activation and fault diagnosis.



BM008 BMW Motorbike IMMO Test Platform is an ideal tool for professional motorcycle repair shop, auto locksmith store, BMW specialized service center for spare key duplication, all-lost key making, immobilizer fault repair and dashboard calibration.



Features:



1. BM008 Test Platform is fully compatible with BMW motorcycle ID46 mechanical key, 4D semi-smart key, 8A keyless smart card key, covers classic EWS2/EWS3 and new SLZ keyless entry anti-theft systems.



2. All-Keys-Lost (AKL) Offline Solution:

No original key required, directly read immobilizer ISN code & security data from bare ECU/EWS modules on bench to program new blank keys.



3. Built-In Adjustable Power Control:

Onboard screen & button control to toggle ACC/DC power switch, simulate vehicle ignition ON/OFF state without vehicle battery connection.



4. ECU Repair & Data Backup:

Backup original IMMO/ECU raw data before modification; repair corrupted immobilizer data from damaged BMW motorcycle control units.



5. Work with OBDEMOTO 900Pro Key Programmer:

Matches perfectly with OBDEMOTO 900 Pro Key Programmer, combining onboard OBD Online Programming + Bench Offline Programming for full BMW motorcycle key service.

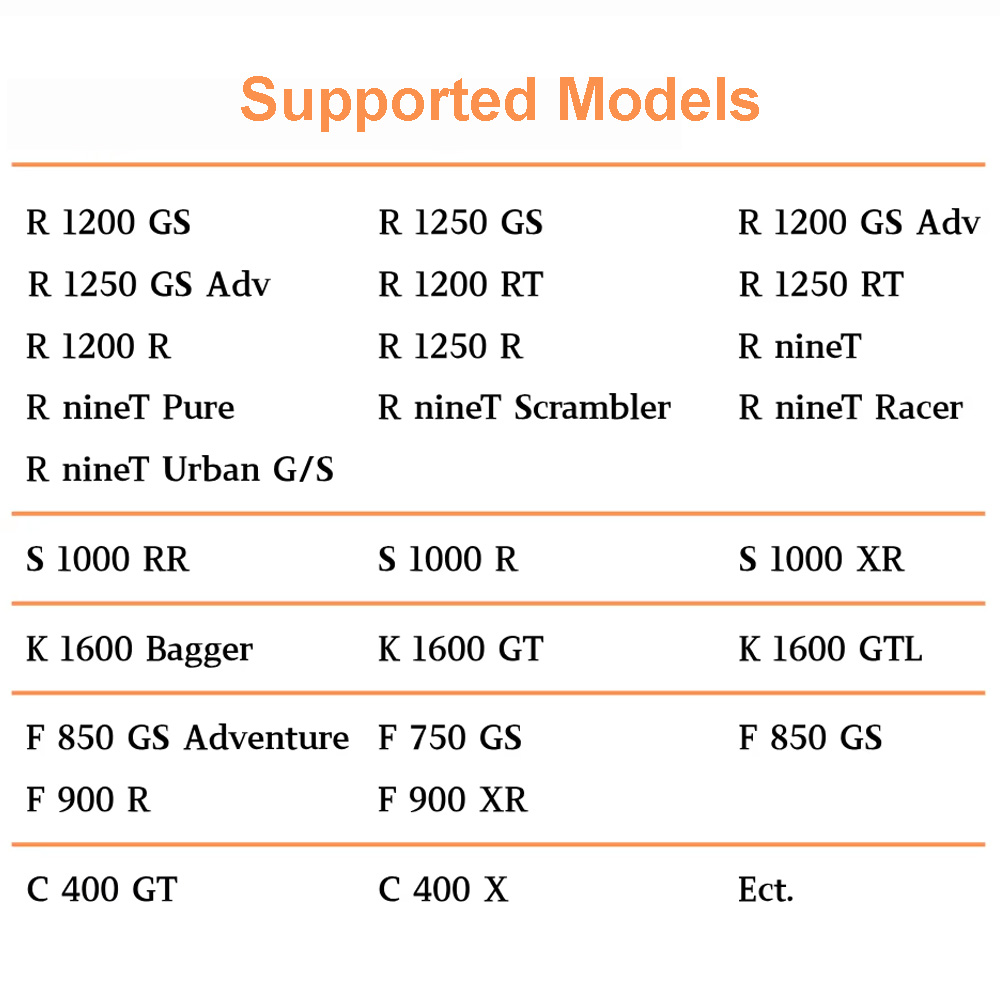

6. Supports Various BMW Motorcycle Models:

Covers mainstream BMW bikes: R1200GS/R1250GS/R1300GS, S1000RR, K1300/K1600, F series, HP4 and other models equipped with EWS/SLZ immobilizer system.

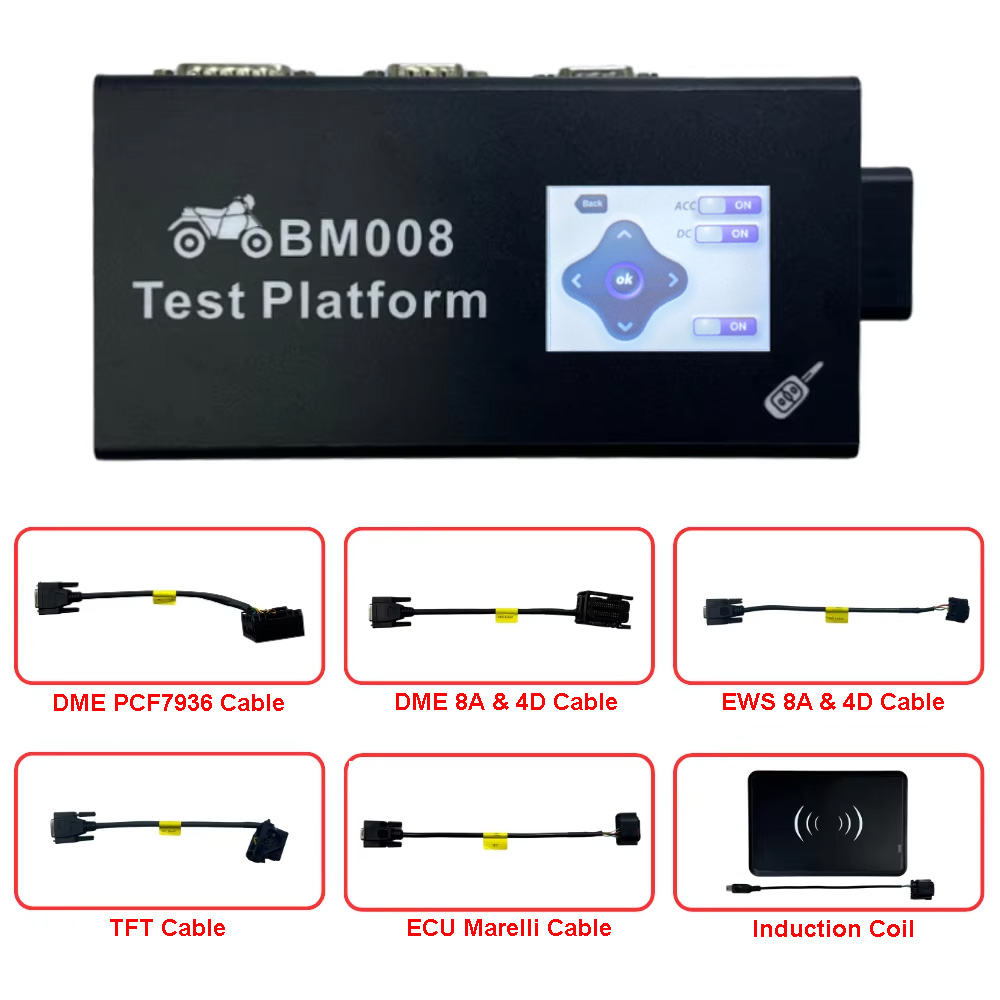

Standard Accessory List:



1. DME PCF7936 Cable

Special jumper for PCF7936 chip DME engine ECU offline data reading & key matching.



2. DME 8A & 4D Cable

Dedicated wire for BMW 8A/4D chip type DME ECU bench connection.



3. EWS 8A & 4D Cable

Adapter harness for EWS immobilizer module (8A/4D/ID46 keys) bench wiring.



4. TFT Cable

Connection line for BMW TFT dashboard cluster, dashboard mileage & IMMO data calibration



5. ECU Marelli Cable

Special wire for Marelli-made motorcycle ECU bench test & anti-theft data extraction.



6. Induction Coil

Antenna induction coil for transponder chip signal detection, key chip identification & on-bench key learning.



Important Notes:



1. Use regulated 12V DC power input during bench testing to avoid sudden power cut to prevent ECU data damage.





2. Backup original ECU/IMMO data before any key programming or parameter revision operation.



3. Select the corresponding dedicated wiring harness according to motorcycle ECU type before bench connection.

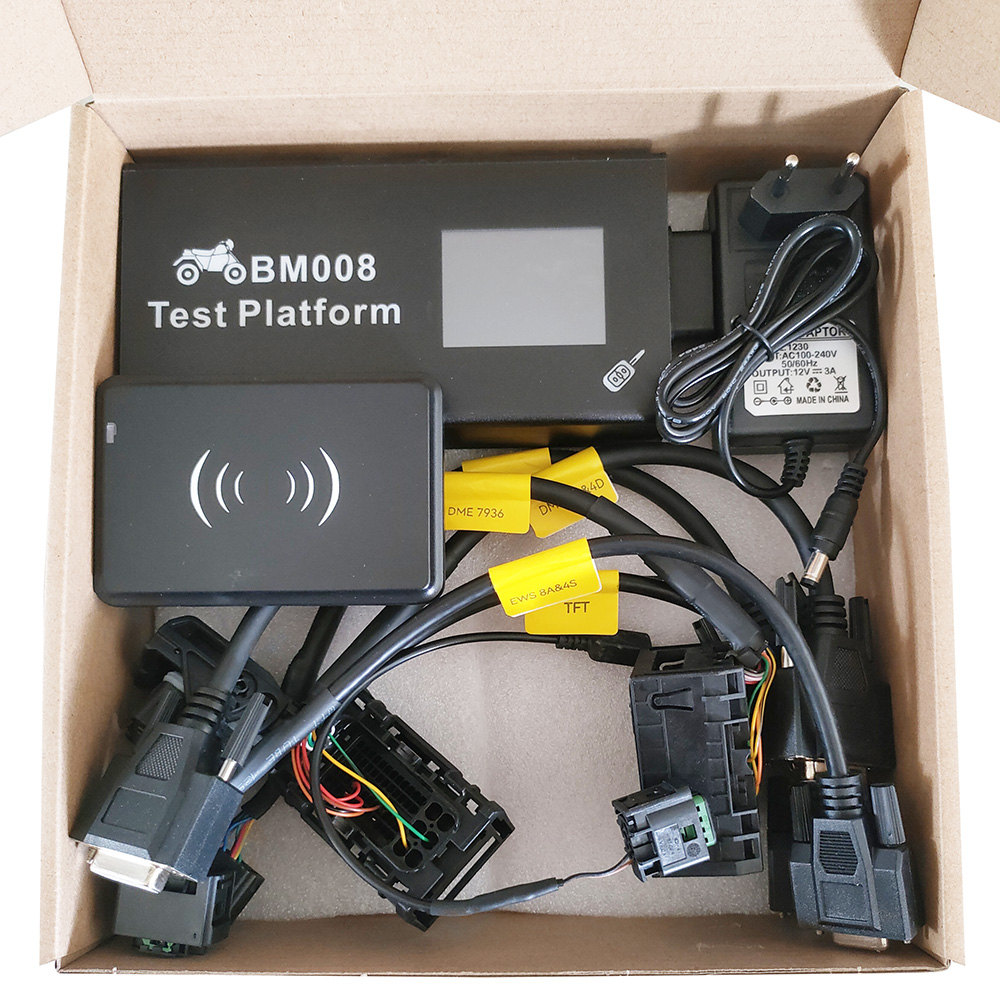

Packing List:



BM008 BMW Motorcycle Key Test Platform

DME PCF7936 Cable

DME 8A & 4D Cable

EWS 8A & 4D Cable

TFT Cable

ECU Marelli Cable

Induction Coil

Packing Box
