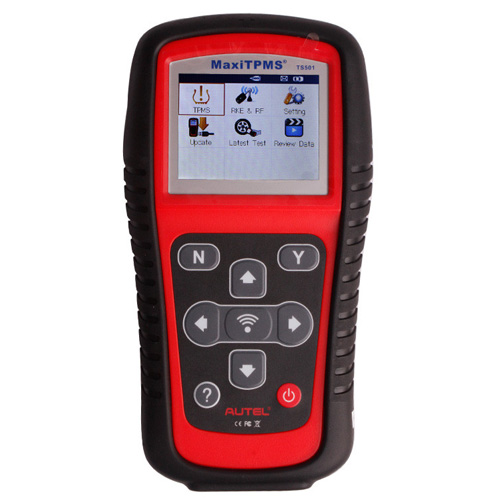

Name: Autel MaxiTPMS TS501 Description: Autel MaxiTPMS TS501 diagnostic & service tool is specially designed to program vehicles that do not have a TPMS relearn facility in the ECU. It is also able to work with ALL known magnetic and frequency triggered tire sensors for ALL vehicles sold worldwide. Functions:
Programs vehicle ECU to learn sensor IDs and positions Activates magnetic, frequency and tire deflation triggered sensors using 125 KHz continuous or modulated wave signals Receives 315MHz, 433.92MHz and 309MHz signals Reads sensor ID from vehicle ECU Reads/clears codes of TPM system and resets malfunction indicator light Built-in rechargeable Li-ion battery On-screen code definitions Simplifies the diagnostic process including four and five wheel vehicles by showing vehicle graphs Decodes sensor data and provides visual and audible responses to confirm sensors are working properly Interprets data including sensor ID, tire pressure, temperature, battery status and OE part No. Pre-selection process offers faster activation and diagnostics Accurate diagnosing results - a tool users can trust Easy-to-use with intuitive navigation and step-by-step on-screen One year free upgrade on the internet via USB port
Features:

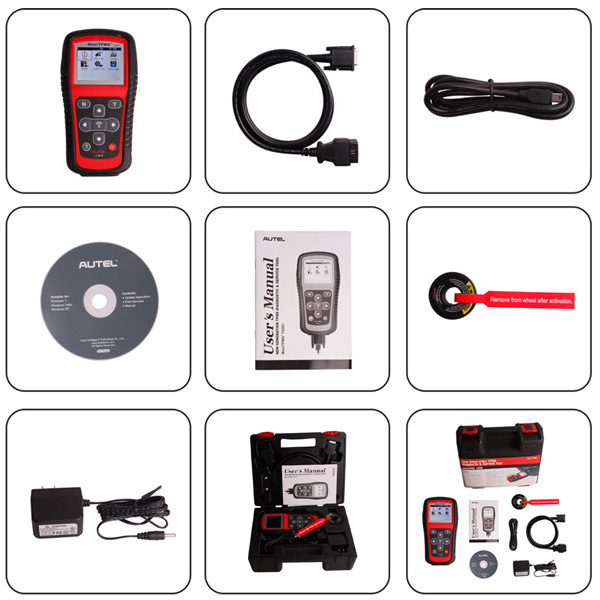

Prints TPMS sensor data via PC Automatic power-off to preserve battery life Proper LF signal to prevent being fooled by other RF signals Saves up to 16 TPMS records If a failed sensor is detected, the tool displays the replacement part number Set Includes: Autel MaxiTPMS TS501 tool OBD-II cable USB cable Magnet (for early model TPMS sensors) User manual Software CD Carrying case
|
