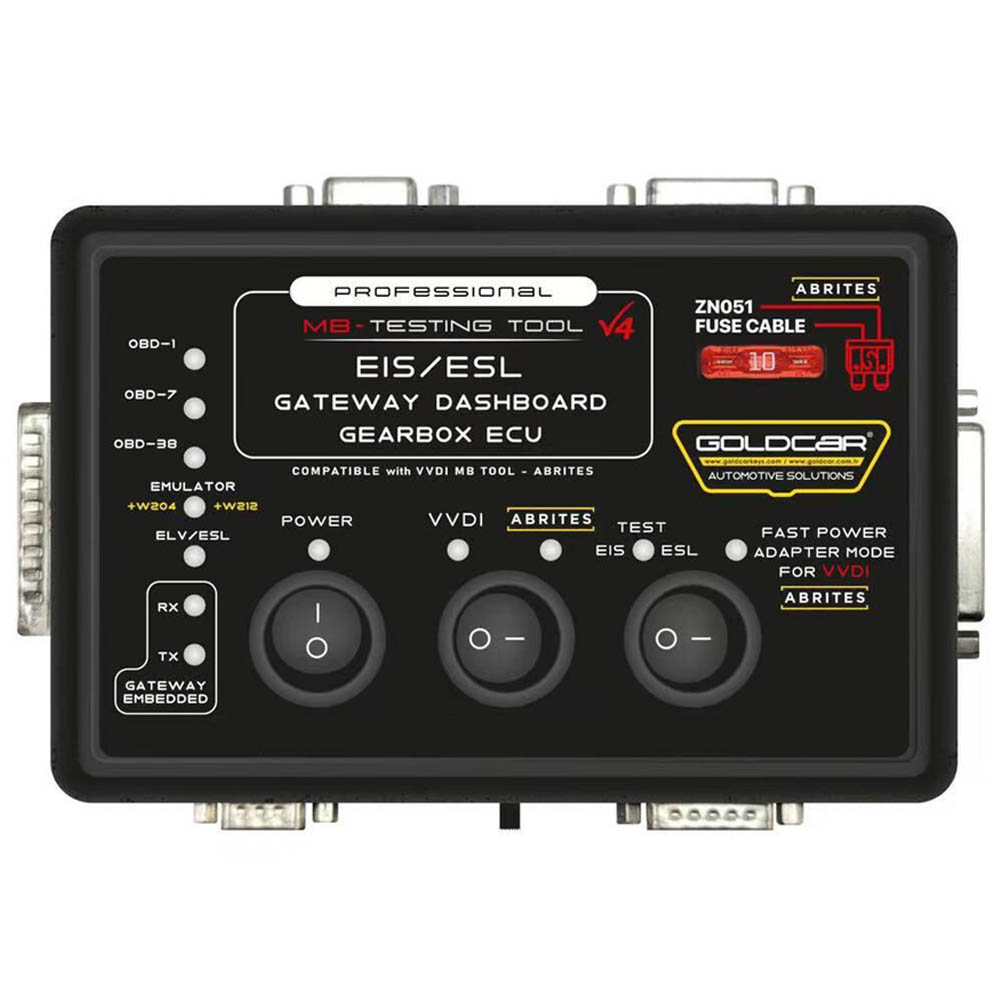

Name: EIS ESL Dashboard Gateway Testing Tool Supports FBS4
Description:
New Professional EIS ESL Dashboard Gateway Testing Tool supports FBS4.
Features:
1. The new device designed for on-bench testing of EZS (EIS), ESL (ELV), Dashboard & Gateway comes with built in ESL Emulator inside and has automatically mode switching.
2. It enables you to test the EIS with the car ESL or with the emulator if original ESL / ELV is not available using Emulation mode.
3. You can test both old (Motorola based EZS) and new (NEC based) units without the car - just connect them with special set of cables.
4. The new Generation comes with built in ESL / ELV emulator for W204, W207 to test the EIS without the original ESL / ELV (must be programmed before testing).
Highlights:
1. Supports old and new FBS4 EIS testing.
2. Built in Gateway enable you testing the EIS without connecting extra gateway.
3. Compatible with Mercedes key programmers such as:

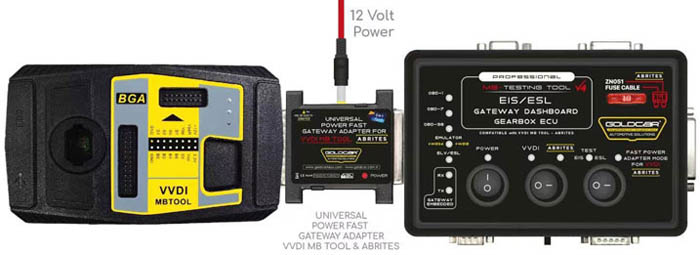

XHorse VVDI MB Tool

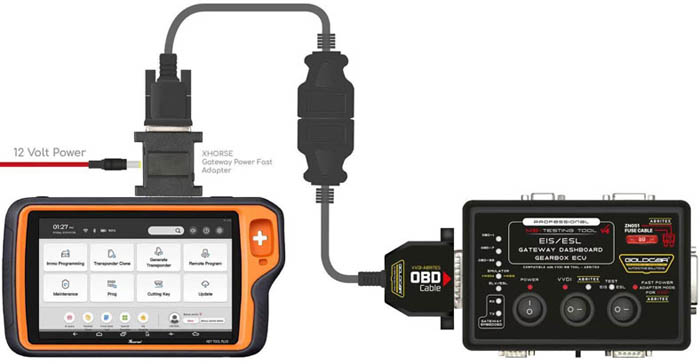

XHorse VVDI Key Tool Plus

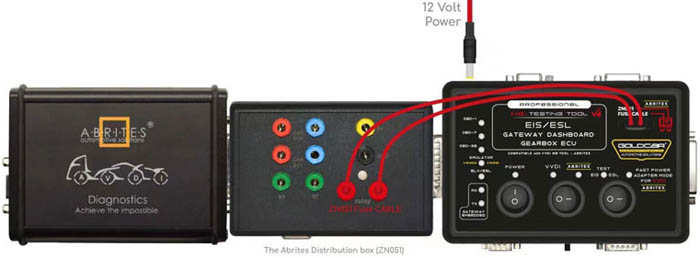

Abrites AVDI
ZED-FULL

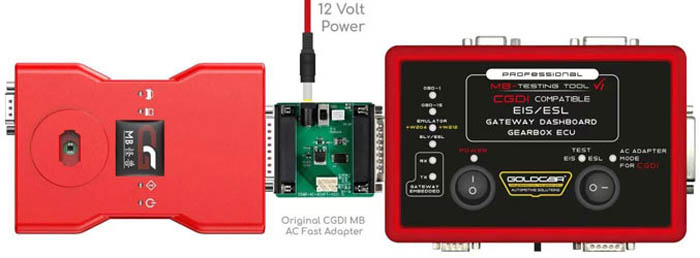

CGDI MB Prog
MBE TOOLS

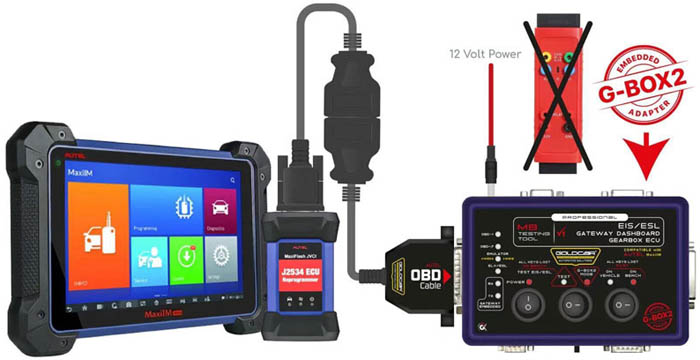

Autel MaxiIM IM608 Pro
Autel MaxiIM IM508
and others …
4. VVDI MB Tool / ABRITES are compatible for reading password.
5. Test EZS / EIS. Thanks to the emulator inside our device.
6. Thanks to the multiplexer inside our device, you can control ELV.
7. There is no requirement for extra gateway connection with gold car box.
8. This test platform can help you with the bench work.
Supported EIS / EZS:
W208 / W210 (Embedded Emulator) Abrites and VVDI MB Tool read password + ELV control + OBD control
W209 / W211 (Embedded Emulator & Embedded Gateway) Abrites and VVDI MB Tool read password + ELV control + OBD control
W169 / W245 (Embedded Emulator & Embedded Gateway) Abrites and VVDI MB Tool read password + ELV control + OBD control
W203 / W639 / VITO (Embedded Emulator) Abrites and VVDI MB Tool read password + ELV control + Dash board control + OBD control
W906 / CRAFTER / SPRINTER (Embedded Emulator) Abrites and VVDI MB Tool read password + ELV control + Dashboard control + OBD control
W215 / W220 Abrites and VVDI MB Tool read password + OBD control
W204 / W207 / W212 Abrites and VVDI MB Tool read password(W204/W212 Embedded Emulator) + ELV control + OBD control + Dashboard control
W164 Abrites and VVDI MB Tool read password (Embedded Gateway)+ OBD control
W221 Abrites and VVDI mbtool read password + OBD control
W246 Abrites and VVDI mbtool read password + Dashboard control + OBD control
New - W212 Abrites and VVDI mbtool read password + Dashboard control + OBD control
New - W447 / W176 new model (FBS4 + FBS3) read password ready + Dashboard control + ELV control + OBD control
New - W222 / W205 new model (FBS4 + FBS3) read password ready + Dashboard control + OBD control
Supported ESL / ELV:
W204 / W207 / W212 ELV cable ELV read and write OBD control (EZS+ELV Personalize)
W208 / 210 ELV cable ELV read and write OBD control (EZS+ELV Personalize)
W209 / W211 ELV cable ELV read and write OBD control (EZS+ELV Personalize)
W203 / W639 / VITO ELV cable ELV read and write OBD control (EZS+ELV Personalize)
W906 / CRAFTER / SPRINTER ELV cable read and write OBD control (EZS+ELV Personalize)
NEW - W447 / W176 ELV cable ELV read and write OBD control (EZS+ELV Personalize)
NEW - GEARBOX ECU OUT
|
