  OBDSOS PRODUCTS Car Key Programmer
Product ID SK242-C
Product Name Autel MaxiIM IM608 Pro Auto Key Programmer & Diagnostic Tool
Product Price USD3600
Actual Weight (Kg) 7.5
Volumetric Weight (Kg) 8.5
Package Size (cm) 52*19*42
Related Download
Order Quantity:
In Stock
Frequently Buy Together +   Related Products
Name: Original Autel MaxiIM IM608 Pro Auto Key Programmer & Diagnostic Tool

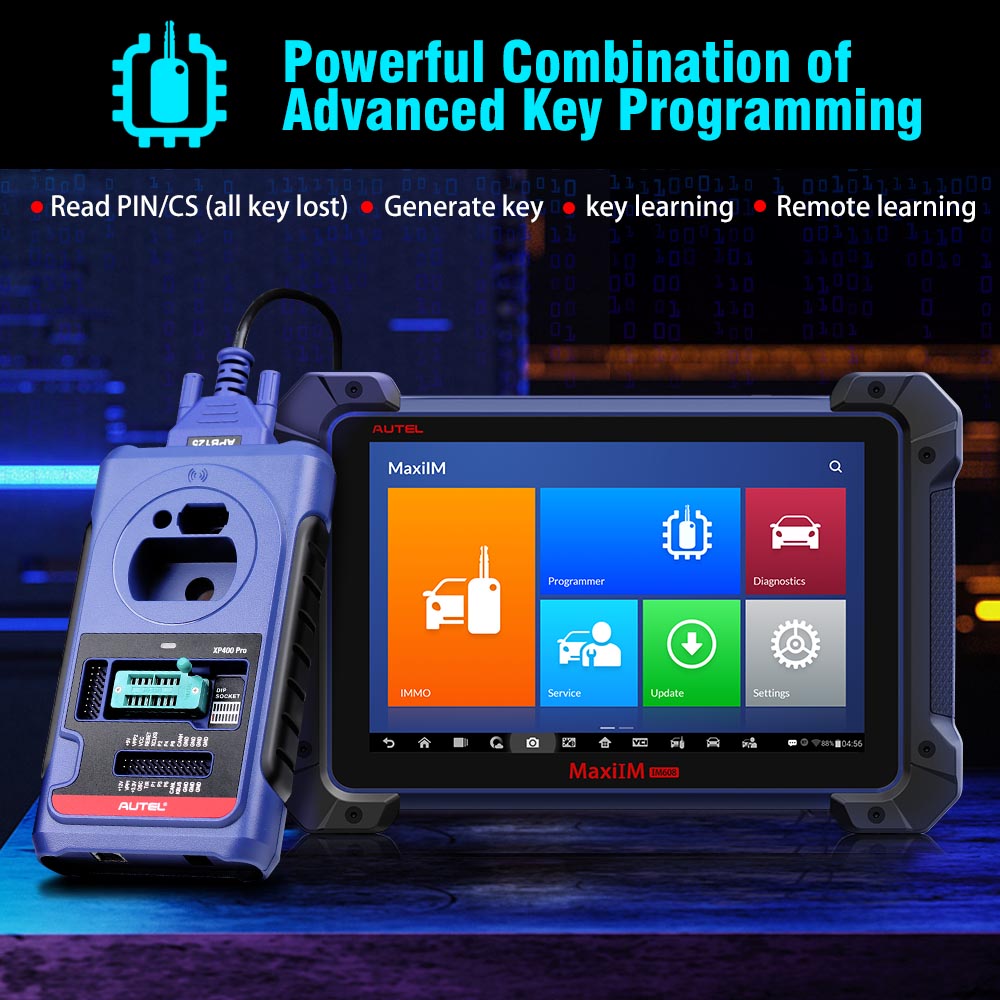

Autel MaxiIM IM608 Pro with upgraded Autel XP400 Pro Key Programmer is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android-based 10.1-inch touch screen tablet.
Autel MaxiIM IM608 Pro features an automated and guided Smart Mode to help technicians perform key learning effortlessly, and an Expert Mode to provide experienced technicians with quick access to desired functions. It supports all the functions of the previous MaxiIM IM608 with more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key.

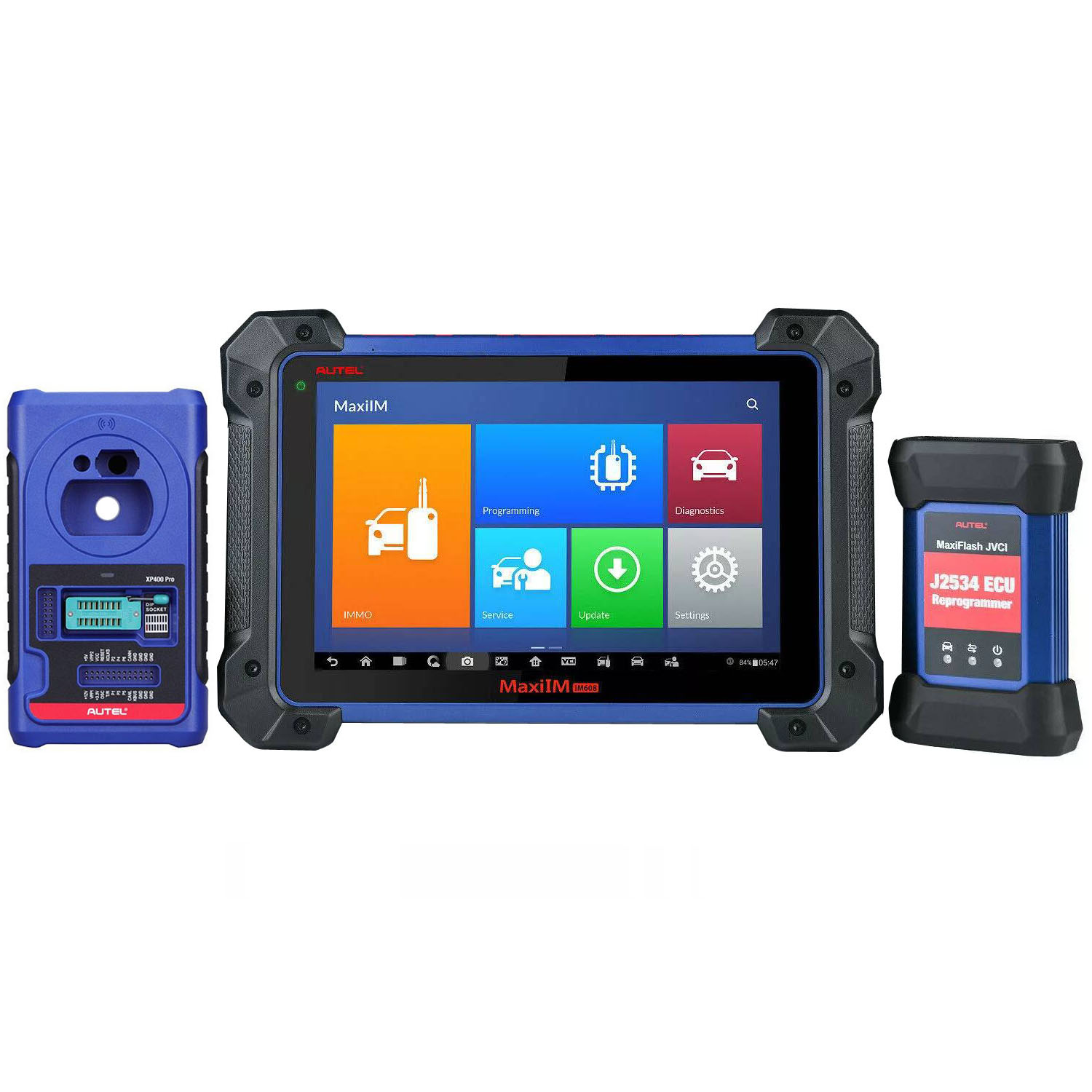

Autel IM608 Pro Key Programming Kit is a comprehensive Immobilizer and Key Programming device composed of Autel MaxiIM IM608 10.1-inch Android touchscreen tablet and Autel XP400 Pro Key and Chip Programmer, the wireless JVCI J2534 pass thru programming device and the optional Autel IMKPA Key Programming Adapter Kit.
Autel IM608 Pro enables key learning directly through the OBD-II port for 85% of vehicles in North America. Autel IM608 tablet can read the immobilizer pins and passwords directly from the vehicle and stores this information to use later when learning the newly programmed keys to vehicle.  The IM608 tablet provides all the diagnostics capabilities of Autel MaxiSys MS908S including all system AutoSCAN, active tests, special functions, coding, initialization and memory relearns.
Autel IMKPA Programming Adapter Kit is compatible with the Autel XP400 Pro Key and Chip Programmer, includes 12 adapters for the XP400 Pro that enables read / write / erase for Mercedes Benz ESL_W209/W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen / Audi / BMW/ Benz Key Unlock.
1. Autel MaxiIM IM608 Pro is upgraded version of Autel MaxiIM IM608.
2. One year FREE update online on Autel official website.
3. Aute IM608 Pro comes with Autel XP400 Pro which adds more functionality for BMW, Mercedes-Benz as well as EEPROM reading.
4. Could be used with Autel IMKPA Key Programming Accessories Kit (Need to Buy Separately) which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read / write / erase.

Autel MaxiIM IM608 Pro comes with XP400 Pro:
Expanded EEPROM Functions for More Component Access
170+ Types Odometer Component Reading Funcitons
180+ Immobilizer ECU Component Types
40+ Engine ECU Component Types
2000+ MCU Component Types
440+ EEPROM Component Types

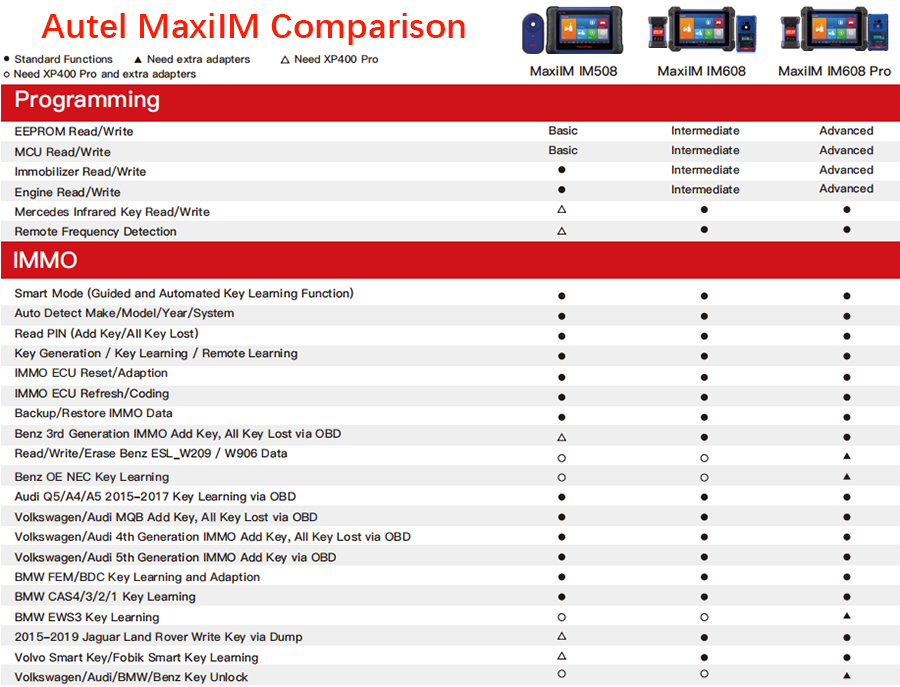

Compare with Autel MaxiIM IM608, the New Autel IM608 Pro has following new features:
1. BMW EWS3 Key Learning (with APB114 Adapter)
2. Mercedes-Benz W209 EIZ Read / Write / Erase (with APB118 Adapter)
3. OEM Mercedes-Benz NEC Key Learning (with APB115 Adapter)
Read / Write Data:
EEPROM - added 60 chip types, now supports 445 types (with APB119, 121, 122, 123 and 126 Adapters);
MCU - added 32 chip types, now supports 2067 types (with APB120, 127 and 128 Adapters);
Odometer – will add 162 chip types, will be able to support 171 types in July;
Engine ECU – added 1 chip type, now supports 41 chip types;
Immobilizer ECU – added 3 chip types, now supports 181 chip types.
Key Unlock – supports 11 key types (with APB113 Adapter).
In a word, Autel MaxiIM IM608 Pro supports all the functions of the previous MaxiIM IM608 with a more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key with a more stable EEPROM platform.
1. IMMO Functions
Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaptation
BMW CAS4 Key Learning and Adaptation
Mercedes Key Learning
2015-2018 Land Rover & Jaguar Write Key via Dump
Volvo Smart Key Learning / Knob-style Smart Key
Advanced Programming Functions
EEPROM Read / Write
MCU Read / Write
Key Programming
Mercedes Key Read / Write
Remote Frequency Detect
OE-Level Diagnostics
2. All system diagnostics and Advanced Service Functions (works with the Autel MaxiFlash JVCI (J2534 ECU Reprogrammer)
Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/Audi Component Protection
Complete Service Functions
What is the Difference Between Autel IM608 and Autel IM608 Pro?
Autel IM608 Tablet and Autel IM 608Pro Tablet have no difference in terms of hardware and software. All keep the same.
The only difference is between XP400 and XP400 Pro, the main difference is Autel XP400 Pro has a more powerful hardware upgrade.
XP400 Pro programmer upgrade and improvement compare with XP400:
1. Fixed the problem of connecting the XP400 to the vehicle ODB connector causing the burnout of the device.
2. Fixed the stability problem of using APB102 IR key to read/write.
3. Upgrade the hardware of programmer, Chip read/write function is more stable and support more EEPROM chips.
4. Fixed the problem of EERPOM adaptor APB101 can’t read/write EEPROM chip and rename it as APA129.
5. Rename accessories APA104、APA105、APA106 as APA107、APA108、APA109.
6. APA108 and APA109 cable length is shorter than before, reducing the signal interference.
7. XP400 Pro adds support for following chips:
EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase
8. Autel XP400 Pro adds support for following adapter board:
APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC Adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adapter board1
APB123 AM29FXXX adapter board2
APB126 M35080/D80 adapter board
APB127 MC68HC0(7)05BXX adapter board
APB128 MC68HC05X32 adapter board
9. XP400 Pro supports 12 types of unlocking smart key:
BMW E Chassis remote control
OE 315 remote refresh
OE 868 remote refresh
Aftermarket remote control refresh
BMW F Chassis remote control
315 remote refresh
433 remote refresh
868 remote refresh
Audi--semi smart key
Audi--smart key

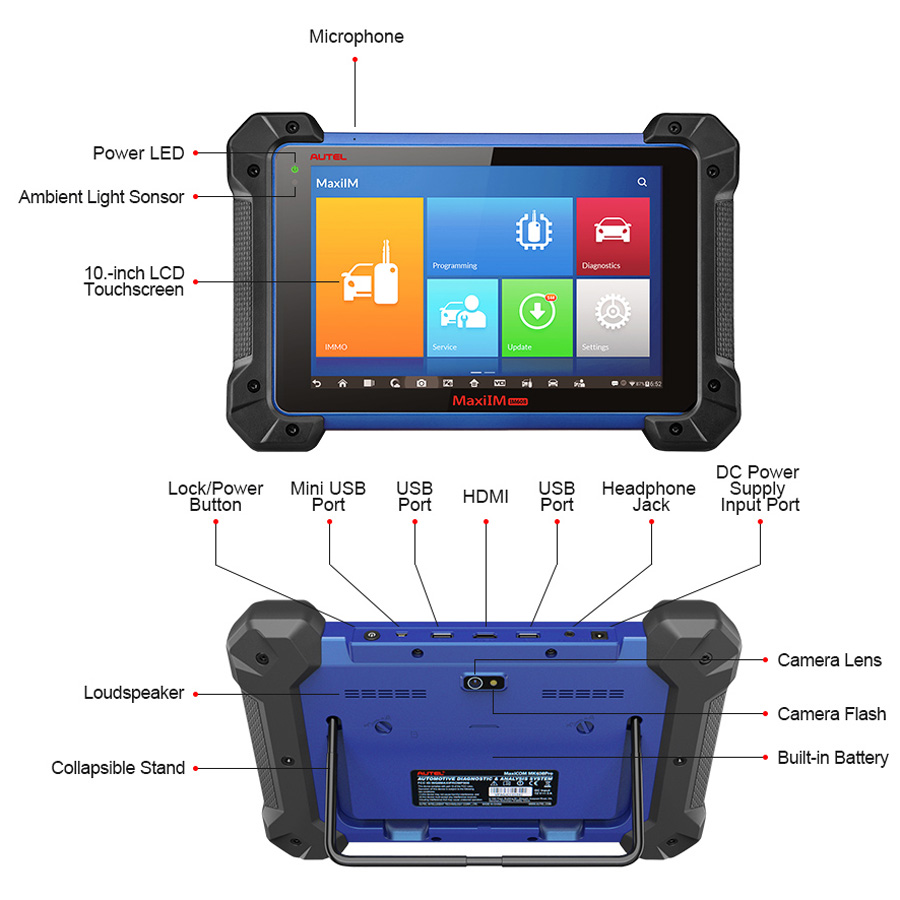

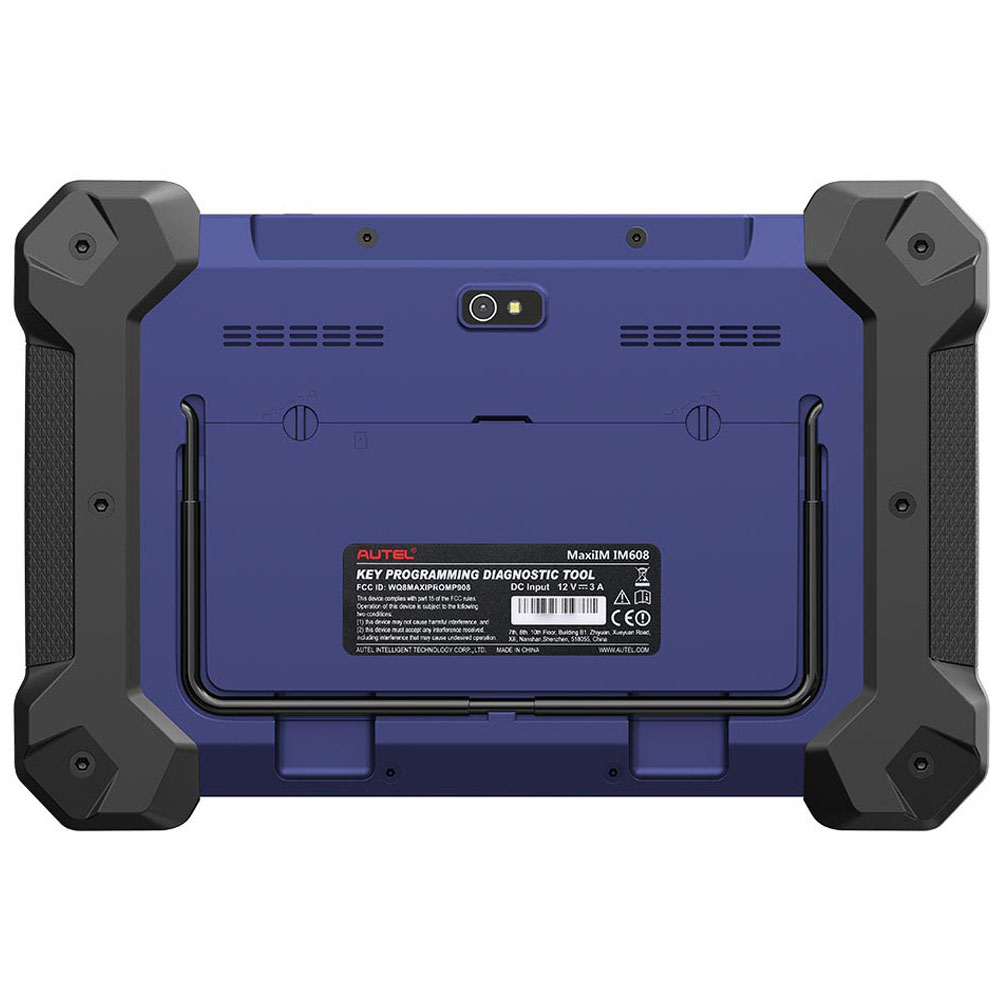

Operation System: Android 4.4.2, KitKat
Processor: Samsung Exynos hex-core processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 64GB
Display: 10.1-inch LED capacitive touch screen with 1920*1200 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB 2.0; BT V.2.1+EDR
Ports: SD Card (support up to 32GB); HDMI
Rear Camera: 8.0 megapixel, AF with flashlight
Sensors: gravity accelerometer, ambient light sensor (ALS)
Audio: microphone; dual speakers
Input / Output: 3-band 3.5mm stereo / standard headset jack
Power and Battery: charging via 12V AC/DC power supply with the temperature between 0 to 45 degree centigrade
Input Voltage: 12V (9-24V)
Power Consumption: 6.5W
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrae

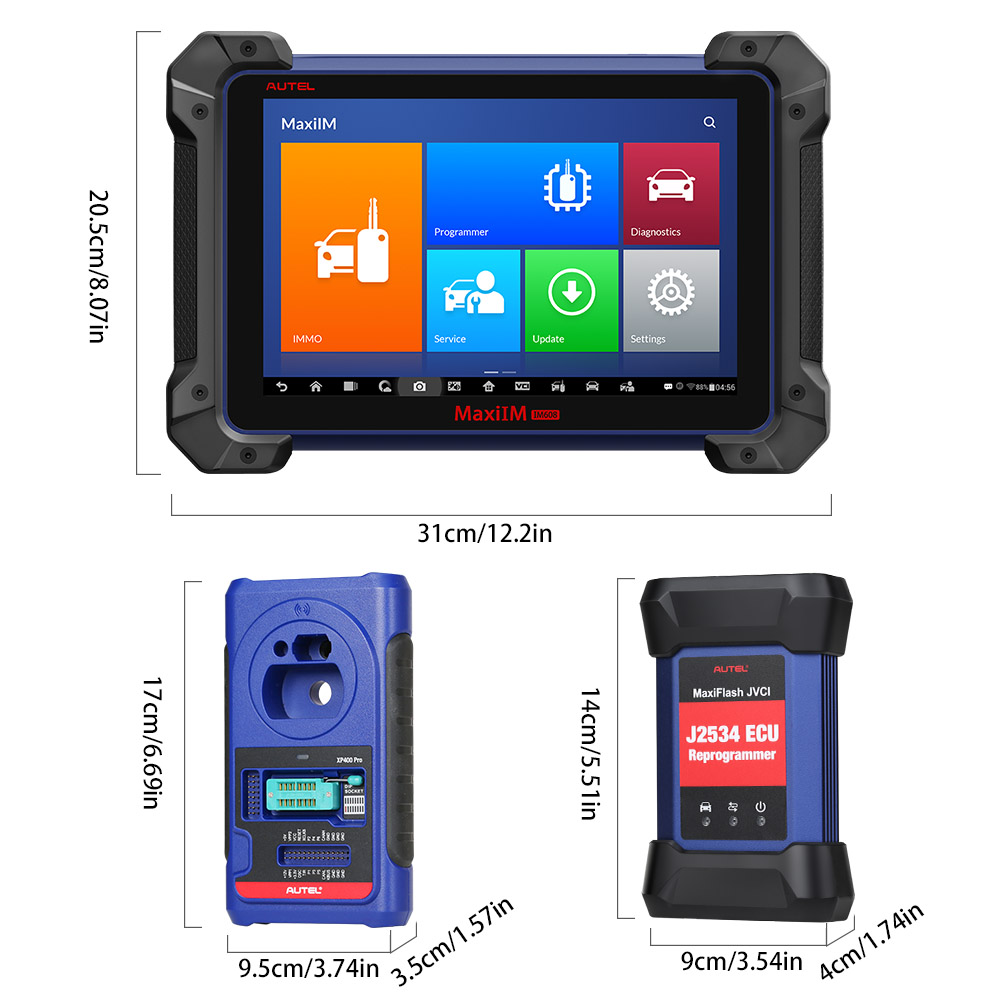

Dimensions(W*H*D): 300*220*50mm
Net Weight: 1.42Kg
Gross Weight: 8.655Kg
Supported Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L-line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWN, CAN ISO11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, GM, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN

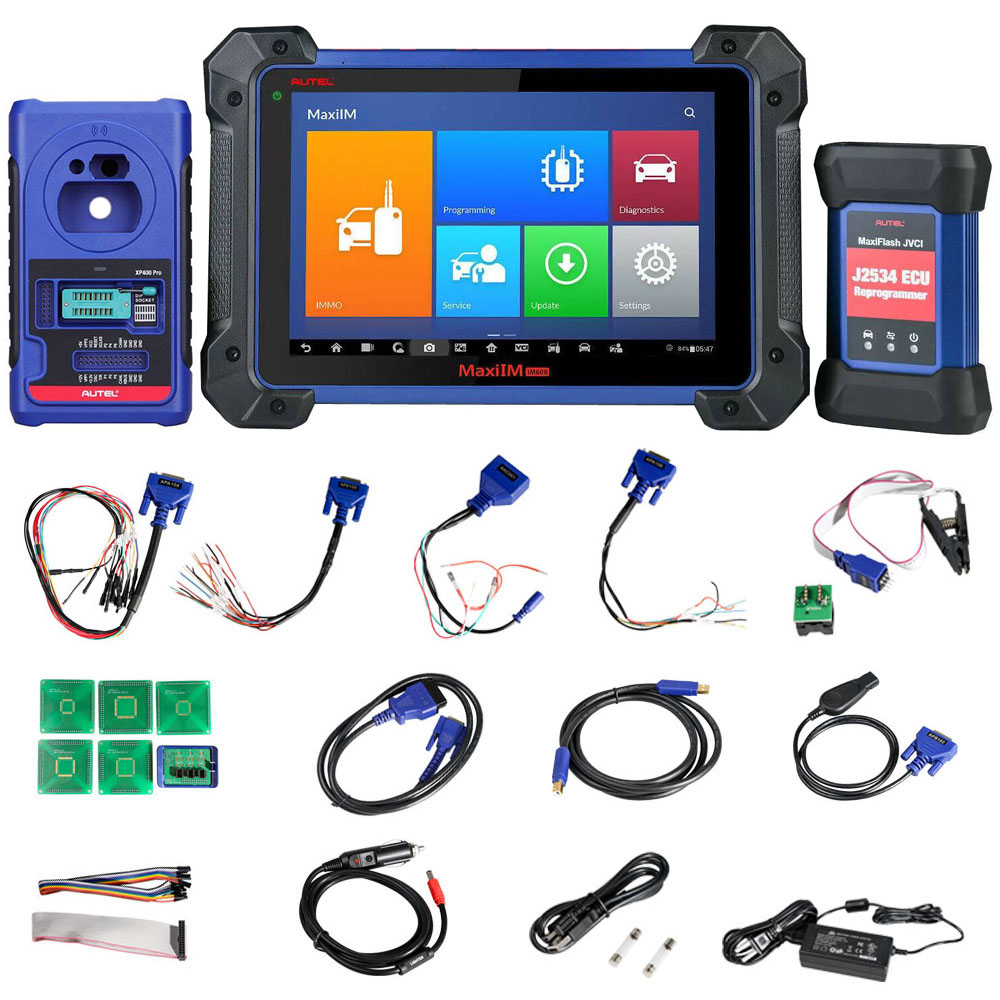

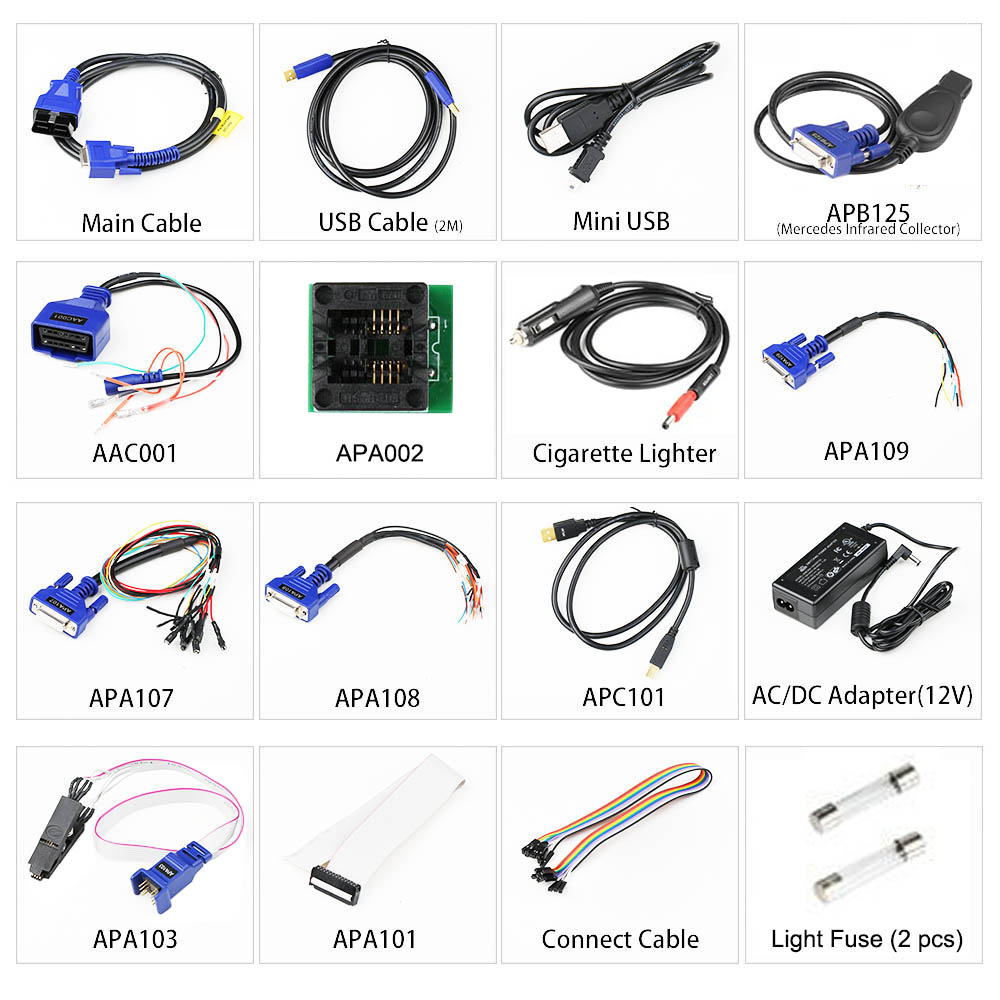

Packing List:
Autel MaxiIM IM608 Tablet
Autel XP400 Pro Key Programmer
Autel MaxiFlash JVCI ECU Reprogrammer
Main Cable
USB Cable (2m)
Mini USB Cable
12V AC/DC Adapter
6*30mm Light Fuse (2 pcs)
Cigarette Lighter
APC101 (USB Cable)

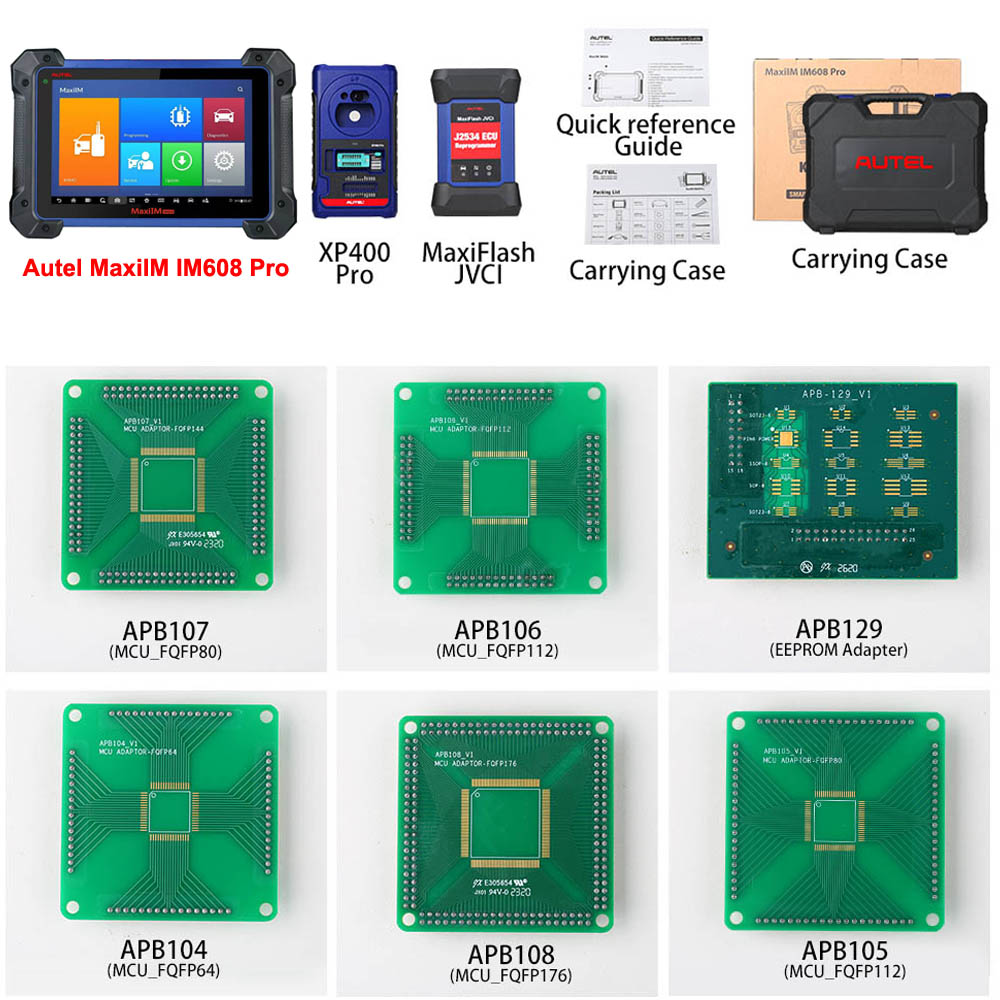

APB129 (EEPROM Adapter)
APB125 (Mercedes Infrared Collector)
APB106 (MCU_FQFP112)
APB107 (MCU_FQFP144)
APB108 (MCU_FQFP176)
APB110 (MCU_FQFP176)
APB111 (MCU_FQFP176)
APA002 (EEPROM Socket)
APA101 (Signal Cable)
APA103 (EEPROM Clamp)
APA107 (ECU Clamp)
APA108 (MCU Clamp)
APA109 (MC9S12 Clamp)
Connect Cable
Packing List
Plastic Toolbox
Packing Box
