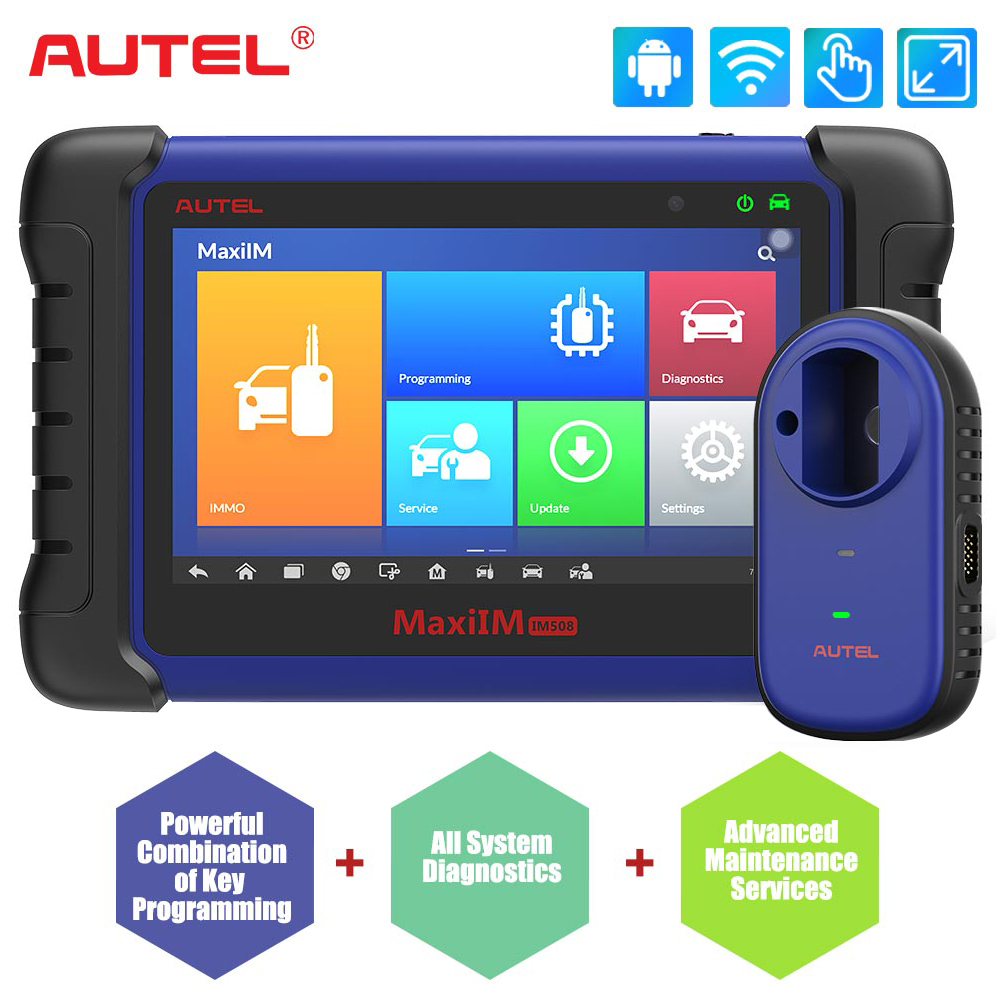

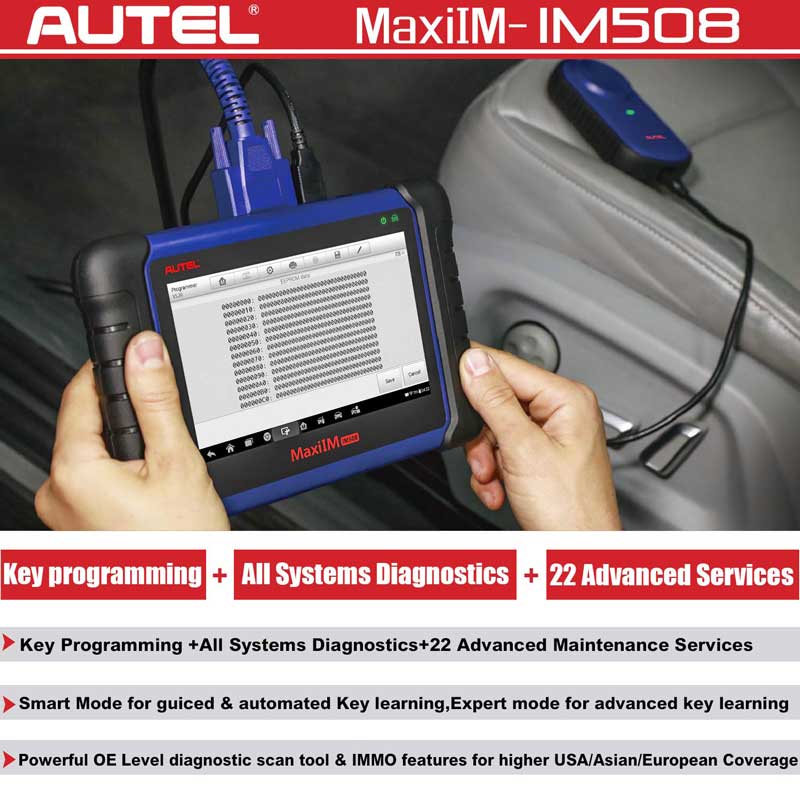

Name: Autel MaxiIM IM508 Advanced IMMO & Key Programmer



Description:



Autel MaxiIM IM508 is a fast, easy-to-use, and ultra portable immobilizer and key programming device. Autel IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.



Features:

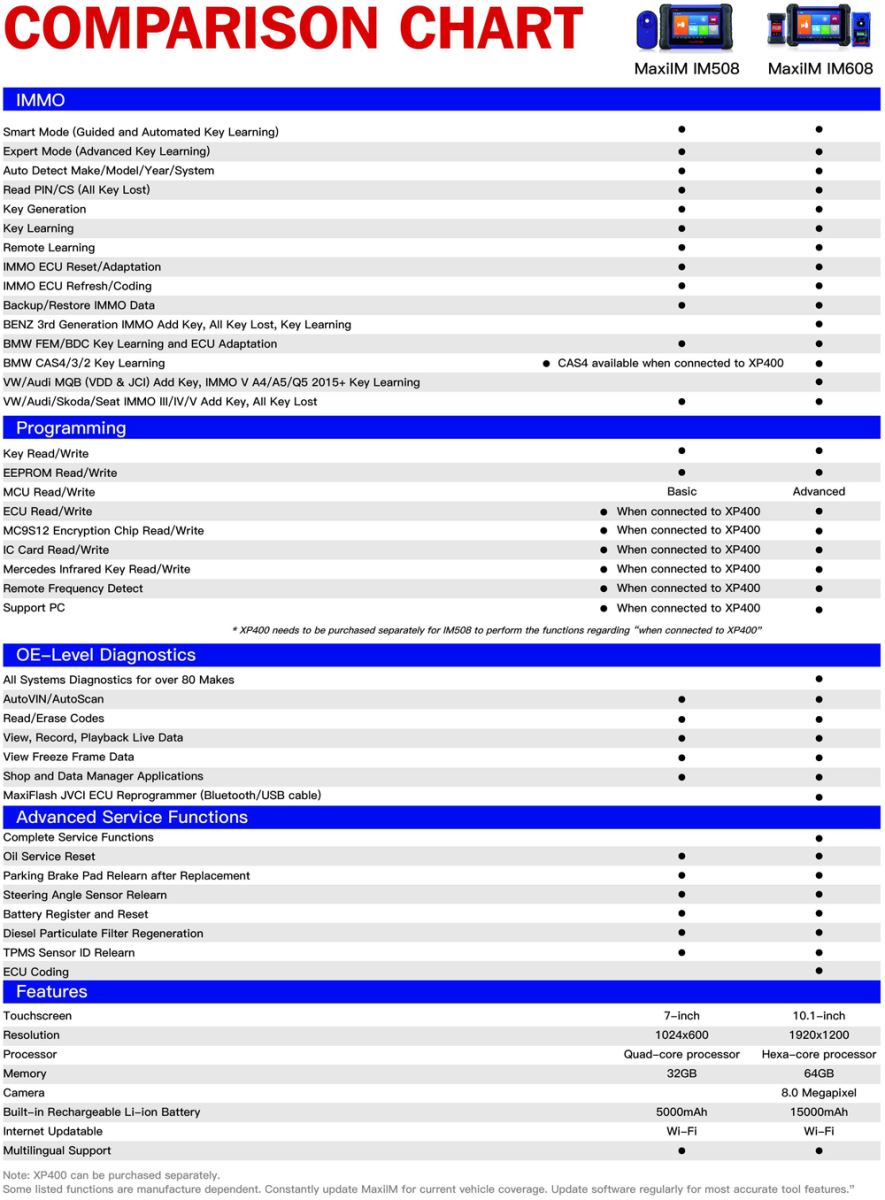

COMPARISON WITH AUTEL MAXIIM IM608:

With XP200 Key Programmer, Autel IM508 Key Programmer Tool has all IMMO functions as Autel IM608 except for Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning availability. With nearly 1/3 of its price, IM508 is a perfect affordable IMMO tool alternative for Autel IM608. IM508 is a professional automotive key programming tool that combines key programming, all car systems diagnosis and advanced service functions.



COMPREHENSIVE IMMO & KEY CHIP PROGRAMMING:

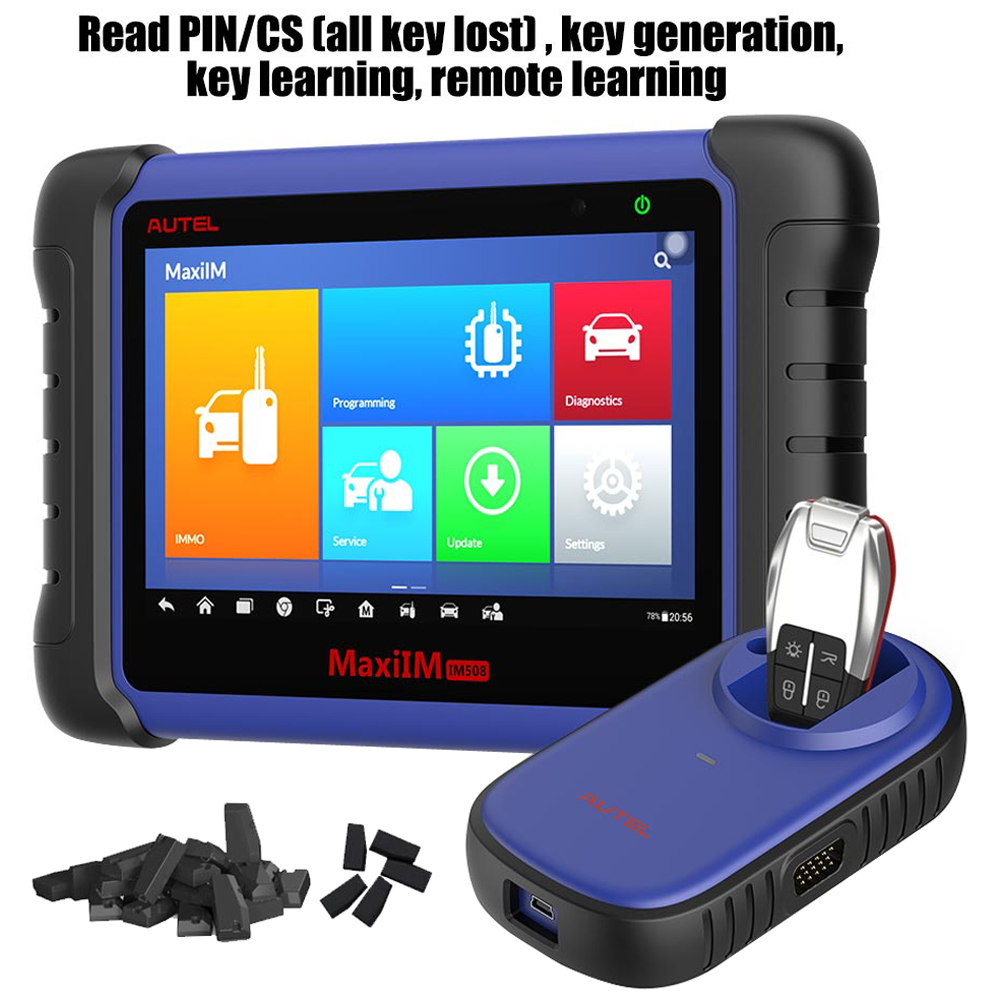

IM508 Diagnostic Scan Tool can perform: Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transponder read & write, EEPROM/MCU read & write. Being compatible with XP400 Key Programmer, you may choose to upgrade its programming capabilities further with XP400.



MOST USEFUL SERVICE FUNCTIONS:

As a professional diagnostic scanner, IM508 comes with most useful service functions like Oil Reset, Reset Parking Brake Pads after replacement, SAS Calibration, TPMS Sensors ID Relearn, BMS and performing active tests to test the integrity or functionality of individual system or component.



OE-LEVEL ALL MODULES DIAGNOSIS:

Autel MaxiIM IM508 automotive scan tool can quickly diagnose all modules of more than 80 US, Asian and European makes and models on the market. To check compatibility with your vehicles, please send VIN to auteldirect@outlook.com or contact us through Q/A. With complete capabilities for codes, live data, ECU Info, adaptation, matching, coding and etc, IM508 is the perfect automotive diagnostic tool pick for technicians and mechanics.



12 MONTHS FREE SOFTWARE UPDATES:

IM508 Key Programmer Scan Tool comes with 12 Months Free Software Updates and is backed by 45 Day Money Back Guarantee and 12 Months US Seller Warranty. Place your risk-free purchase now and start protecting your cars from being stolen!

Supported Languages:

Function List:



All Systems Diagnostics

AutoVIN / AutoScan

Read / Erase Codes

View, Record, Playback Live Data

View Freeze Frame Data

Shop and Data Manager Applications

Key Read / Write

EEPROM / MCU Read / Write

Read PIN / CS (All Key Lost)

Key Generation

Key Learning

Remote Learning

Backup / Restore IMMO Data

IMMO ECU Reset / Adaptation

IMMO ECU Refresh / Coding

BMW FEM / BDC Key Learning and ECU Adaptation

VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All

Key Lost, and More



Professional Key Programmer

Autel IM508 is a professional car diagnostic scanner that provides extraordinary service functions for the immobilizer system, including: immobilizer system status, key learning, key add, all keys lost, remote control learning, remote control add, chip read and write. It’s a professional solution for car keys and remote controls and prevents your car from being stolen!

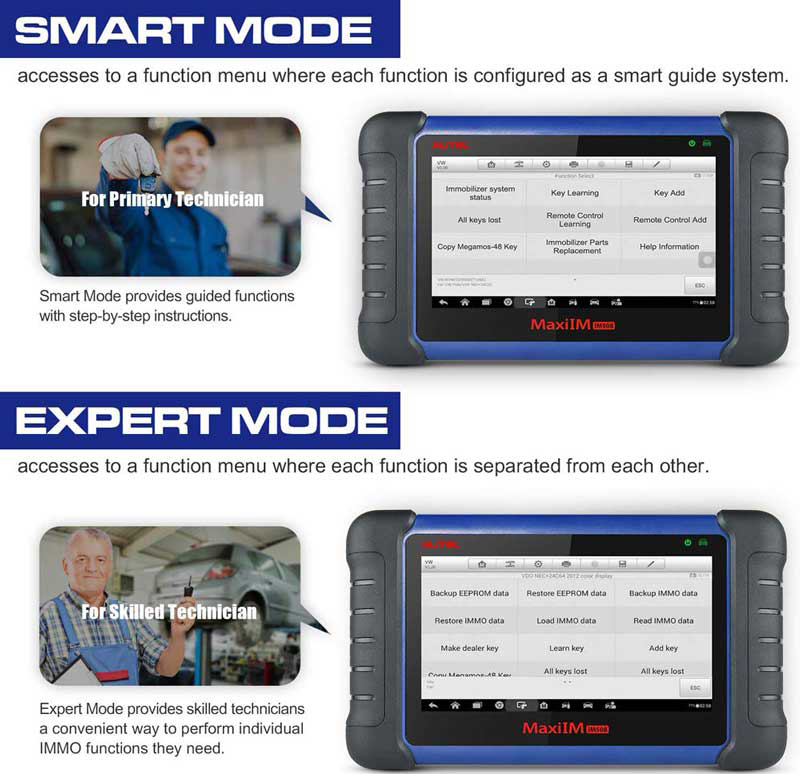

Smart Mode & Expert Mode

Smart Mode – accesses to a function menu where each function is configured as a smart guide system.

Expert Mode – accesses to a function menu where each function is separated from each other.

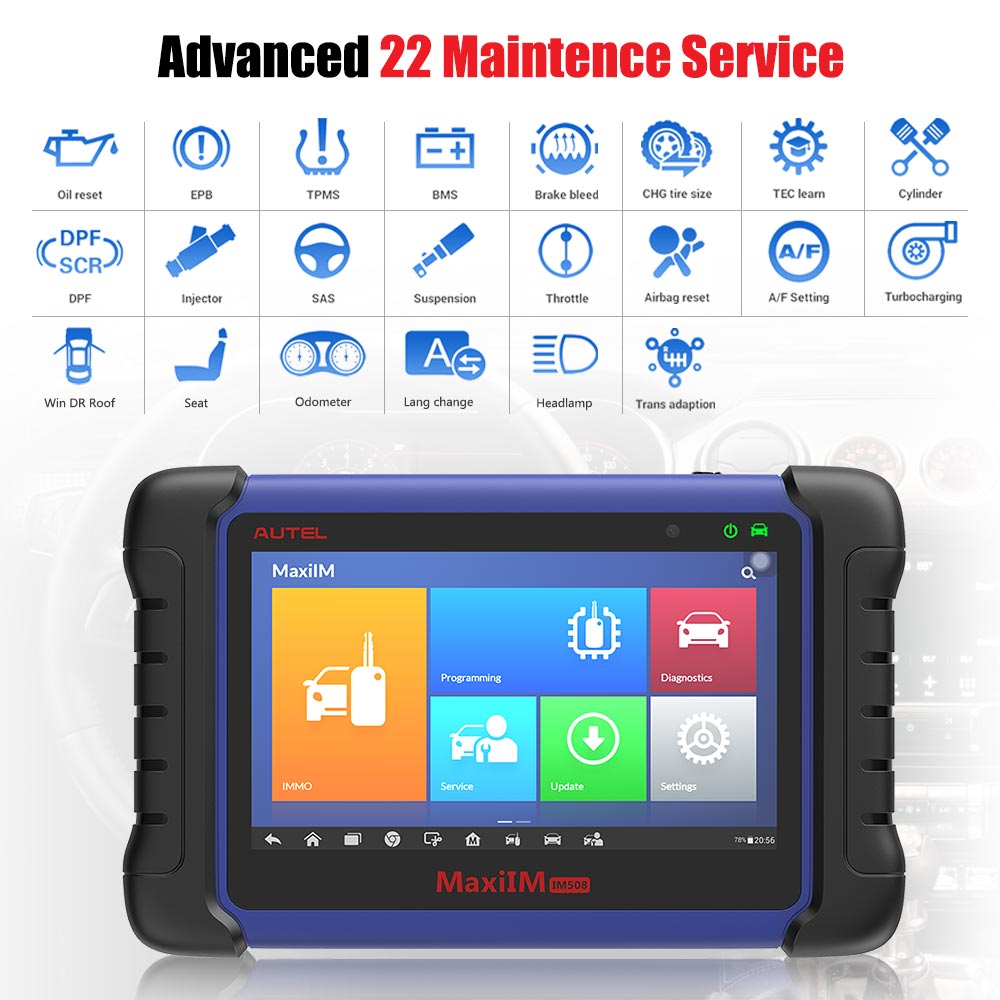

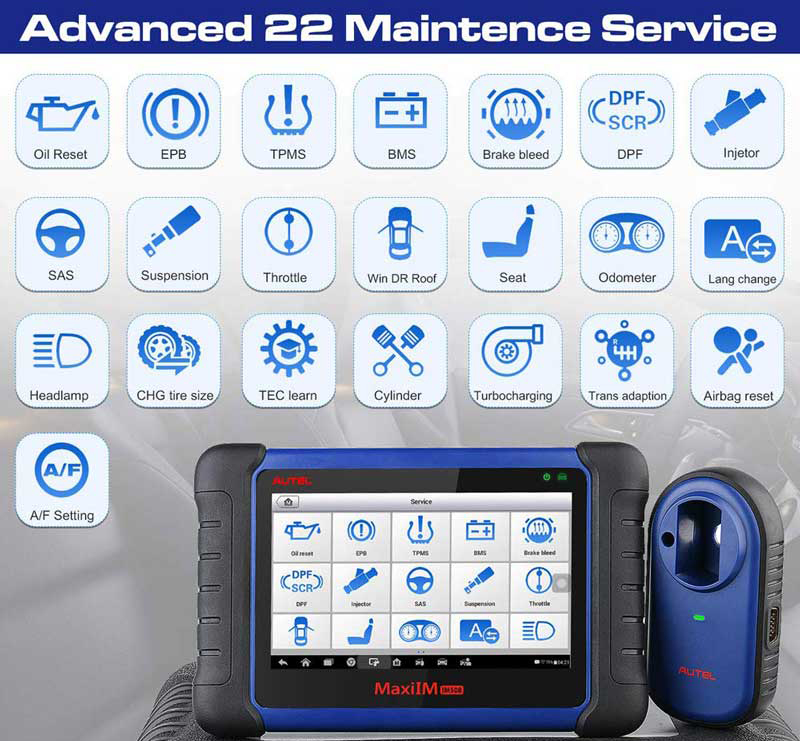

Most Commonly Used Reset Services

Oil Rest Service: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle

driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.



EPB Service:

This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake

control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.



SAS Service:

Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore,

the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.



TPMS Service:

This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.



BMS Service:

The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement

and activate the rest state of the vehicle.



DPF Service:

This function is used to manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



OE-Level All Systems Diagnosis

Autel IM508 Car Scanner can perform OE-Level diagnosis on all car electronic systems like ABS, SRS, Engine, Transmission and etc and show live data of multiple sensors.

It is compatible with more than 80 American, Asian and European makes and models.



Auto Scan Technology

The Autel IM508 professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems

faults and retrieve DTCs for efficient diagnosis.

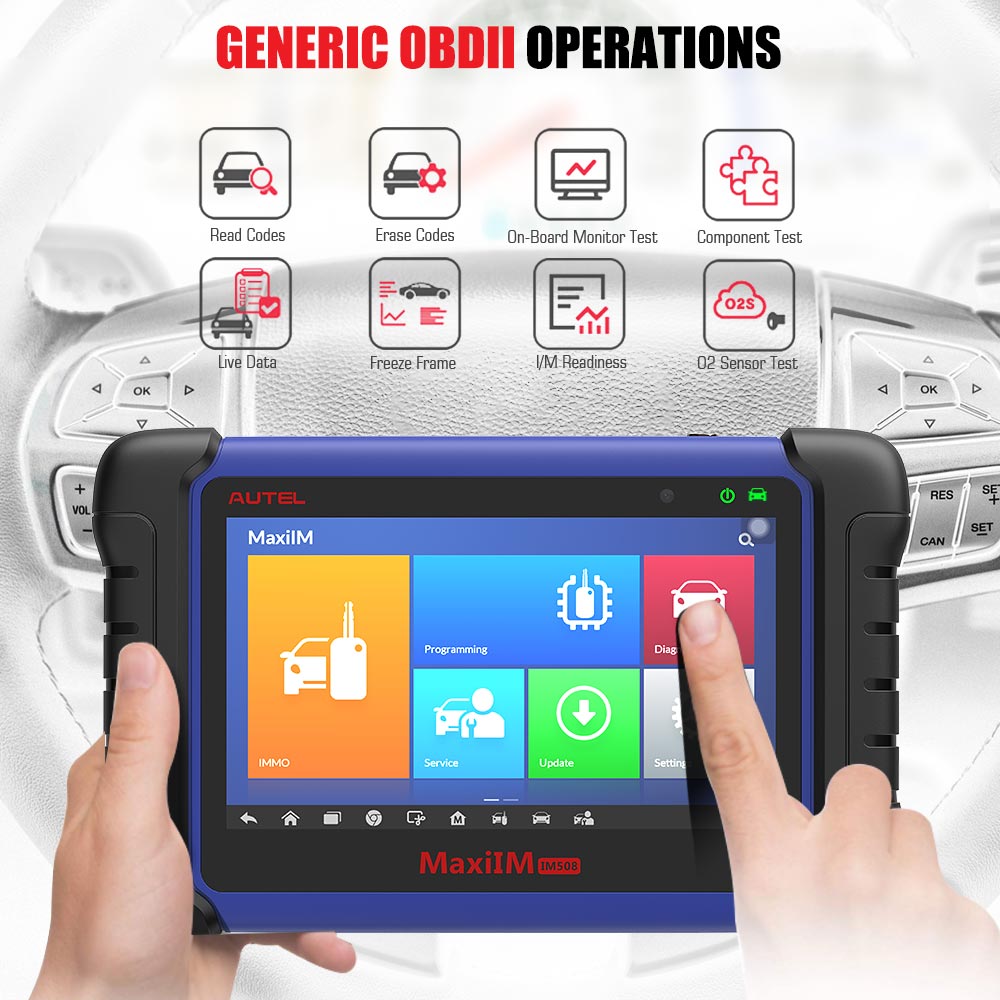

Live Data & Review Freeze Frame Data

The IM508 car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the

recorded data frames of live data streams.



Remote Technical Support

The Remote Desk application launches the Team Viewer Quick Support program, which is a simple, fast and secure remote control screen. You can use the application

to receive ad-hoc remote support from Autel support center, colleagues, or friends, by allowing them to control your MaxiIM tablet on their PC via the TeamViewer software.

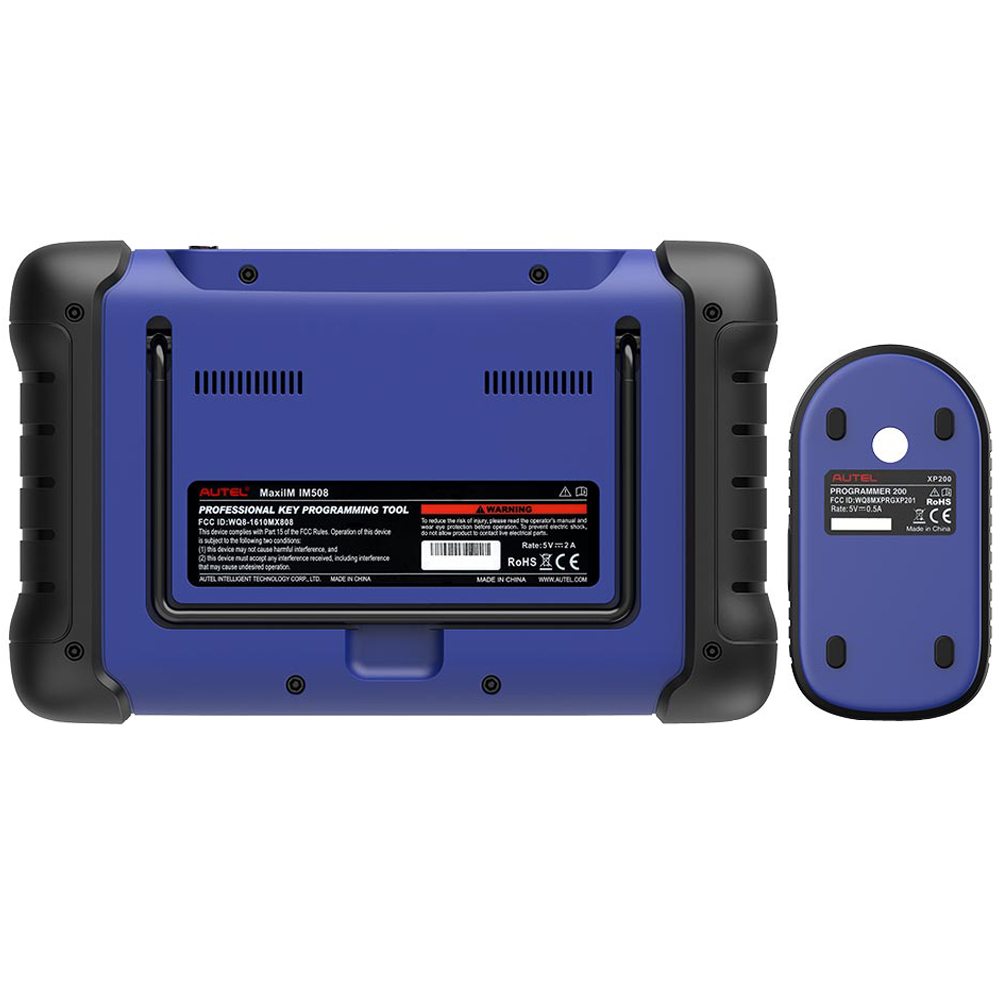

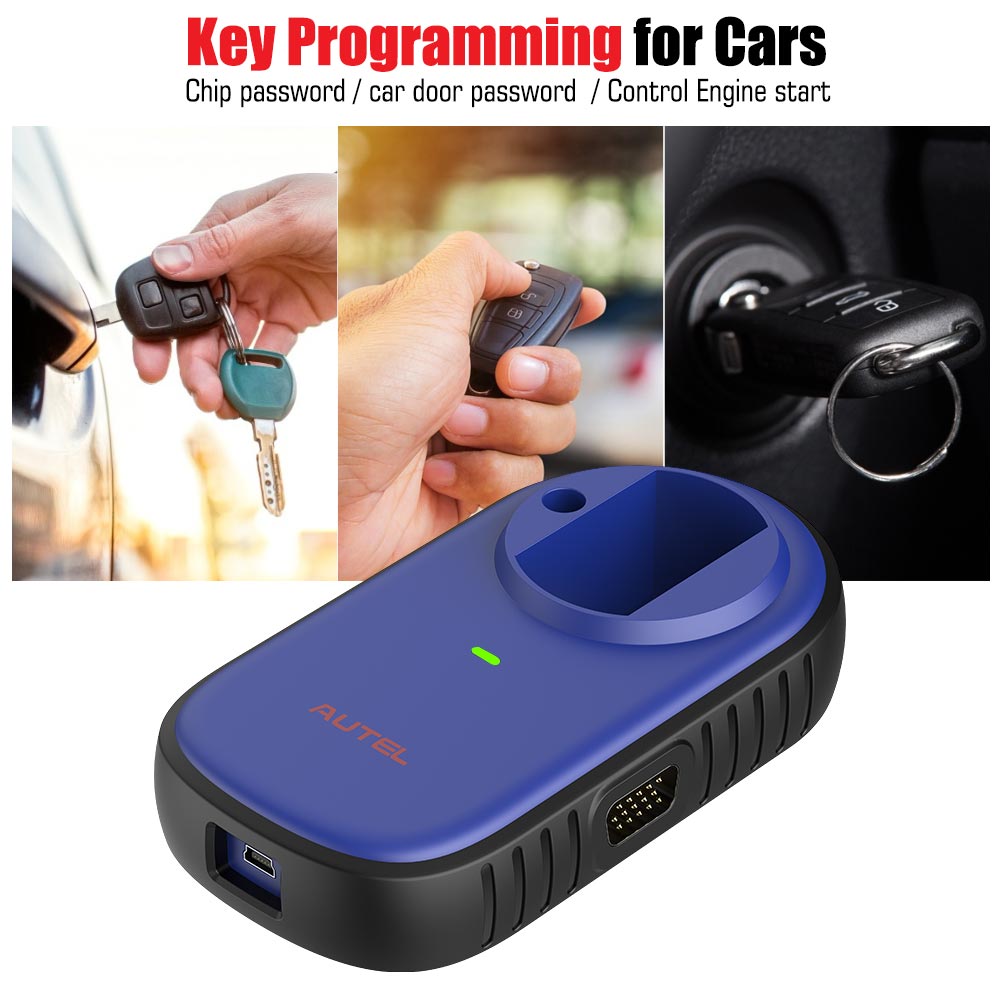

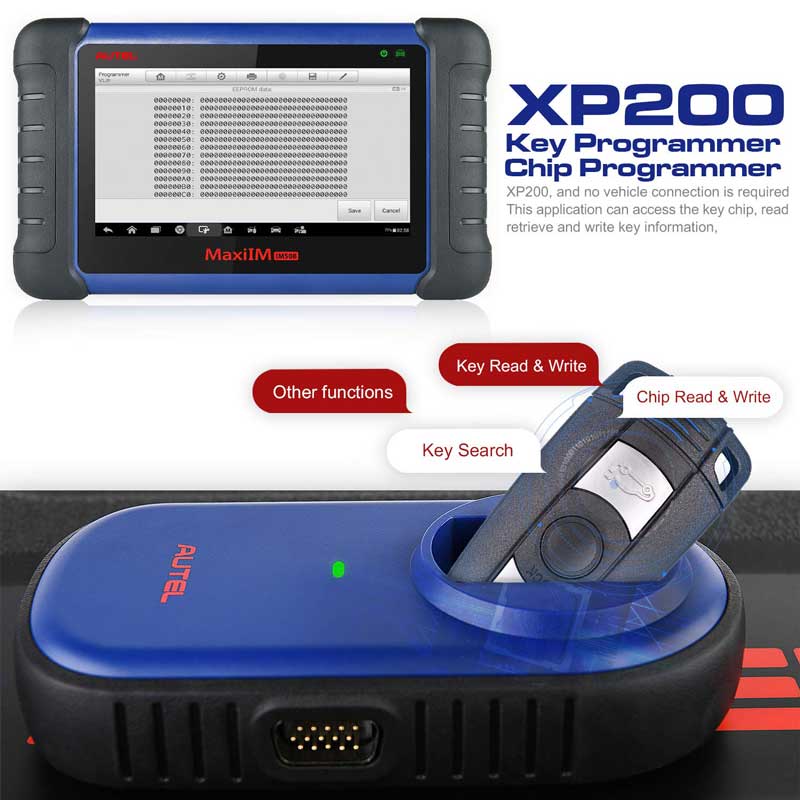

XP200 Key & Chip Programmer:

XP200, and no vehicle connection is required. This application can access the key chip, read retrieve and write key information.



EEPROM Read/Write Supported Types:



ATMEL

AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024,AT24C128_1.8

AT24C256_1.8,AT24C512_1.8,AT24C01A,AT25010,AT25020,AT25040,AT25080,AT25160,AT25320,AT25640,AT25128,AT25256

AT25512,AT25010_1.8,AT25020_1.8,AT25080_1.8,AT25320_1.8,AT25640_1.8,AT25128_1.8,AT25256_1.8,AT59C11,AT59C22

AT93C46A,AT59C13,AT93C46,AT93C46R,AT93C56,AT93C57,AT93C66,AT93C76,AT93C86



CATALYST

CAT25C01,CAT25C02,CAT25C04,CAT25C08,CAT25C16,CAT25C32,CAT25C64,CAT25C128,CAT25C256



FAIRCHILD

NM24C16U,NM24C16UT,NM24C17U,NM24C17UT,FM93CS46T



MICROCHIP

85C72,85C82,85C92,25xx080,25xx160,25xx320,25xx640,25xx040_TSSOP,25xx320_TSSOP,25xx640_TSSOP,93C06,25xx040

93C46X,93C46A,93C46,93C46AX,93C46BX_93C46CX,93C56A,93C56,93C66A,93C66,93C76A,93C76,93C86A,93C86



NXP

PCF8582C,PCF8594C,PCF8598C



NATIONAL

NM93C13,NM93C14,NM93CS06,NM93C14TM8,NM93CS46,NM93CS56,NM93CS66



OKI

MSM16911



SONY

CXK1011,CXK1012,CXK1013



Seiko

S_24S45,S_24H30,S_24H30_SOP8,S_24H45,S_24H45_SOP8,S_24S30



ST

M24C01,M24C02,M24C04,M24C08,M24C16,M24C32,M24C64,ST24x01/ST25x01,ST24x02/ST25x02,ST24x04/ST25x04

ST24x08/ST25x08,ST24x16,ST25x16,AT25040_1.8,AT25160_1.8,M95010,M95020,M95160,M95040,M95080,M35080,M95320

M95640,M95256,M95128,M95512,M93C46,M93C56,M93C66,M93C76,M93C86,M93S46,M93S56,M93S66



TOSHIBA

TC89101,TC89102,TC89121,TC89122



TMC

TMC93LC46,TMC93LC56,TMC93LC57,TMC93LC66,TMC93LC86



XICOR

X5043,X5045,X25043,X25045,X24C44



9S12 Read/Write Supported Types

FREESCALE

MC9S12DG128



How to Update Autel MaxiIM IM508?



1. Make sure the Display Table is connected to power source with stable access to the Internet.



2. Tap the Update application button from the MaxiIM Job Menu;or tap the update notification message when received one;or tap the Update icon on Vehicle Menu in Diagnostics application.The Update application screen displays.



3. Check all available updates:

►If you device to update all the items of IMMO software,select IMMO Tab and then tap the Update All button;if you want to update all items of diagnostic software,select Diagnose Tab and then tap the Update All button.



►If you only want to update one or some of the item(s),tap the Update button on the right colum of the specific item(s).



4. Tap the Pause buttons to suspend the updating process.Tap Continue to resume the update and the process will continue from the pause point.

5.When the updating process is completed,the firmware will be installed automatically.The version will replace the older version.



FAQs:



Question 1: Does MaxIM IM508 program the smart key for the 2015 Chrysler 200?

Answer 1:  Yes, it can. Please check the detailed compatibility chart for your vehicle: https://pro.autel.com/measurecarAPP-1-2.html?m=94&operatorType=5&pageNo=0



Question 2: Can it do remote control learning?

Answer 2: Yes, sure. IM508 Professional Key Programmer does come with this capability.



Question 3: Can it read and clear abs codes?

Answer 3: Yes, it sure does



Question 4: Will MaxIM IM508 program the smart key for 2000 Toyota Camry, 2002 Dodge Ram and 2007 Chevy suburban? I tried following the link but it will not work.

Answer 4: If not all keys lost, IM508 can add new keys to 2000 Toyota Camry, 2002 Dodge Ram and 2007 Chevy suburban.



Question 5: Can it do Benz 3rd generation IMMO add key?

Answer 5: No, it can not. We recommend IM608 for this work.

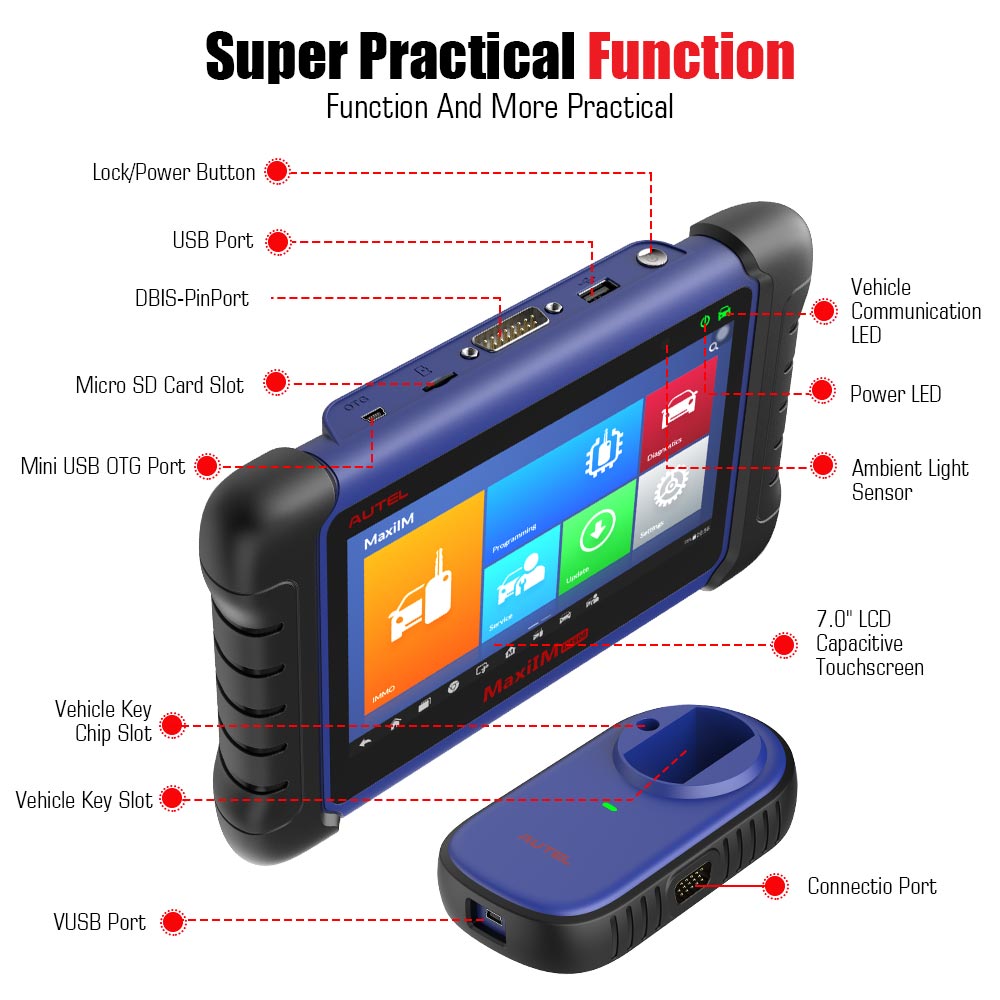

Specifications:



Processor: 1.6 GHz powerful Cortex-A9 processor

Operating System: Android 4.4.4:

Display: 7 inch 1024*600 LCD capacitive touch screen

Memory: internal reliable 32GB Memory

Connectivity: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (supports up to 32GB)

Sensors: ambient light sensor for brightness auto changing

Audio Input / Output: Input: N/A; Output: buzzer

Power and Battery: 3.7V/5000mAh lithium-polymer battery; charges via 5V DC power supply

Tested Battery Life: around 4.5 hours of continuous use

Battery Charging Input: 5V/1.5A

Power Consumption: 500mA (LCD on with default brightness; Wi-Fi on) @ 3.7V

Operating Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

Operating Humidity:  5% - 95% non-condensing

Net Weight: 788g (2.42 lb.)



Supported Automotive Protocols:



ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6



Note:



For customers from UK, Portugal, Spain, please do not buy Autel IM508 from China. Otherwise, your device will get locked, please buy from your local distributors.

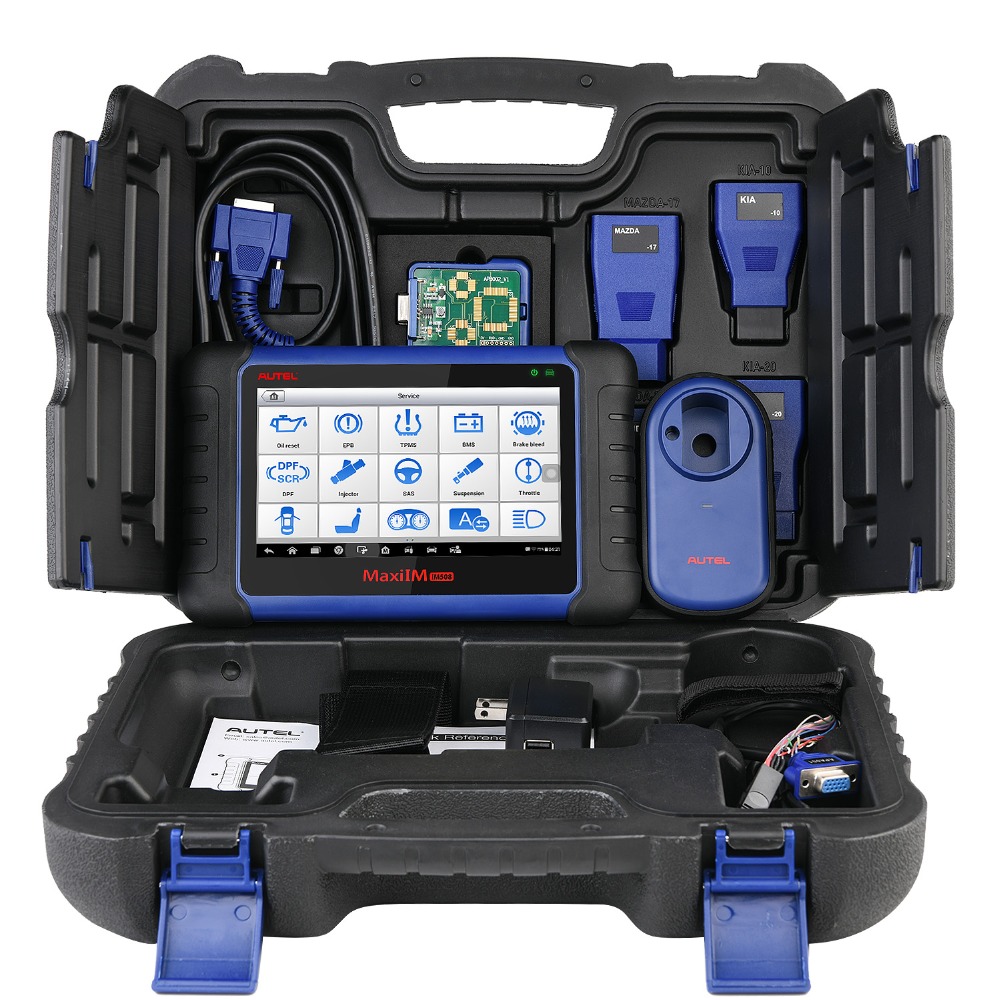

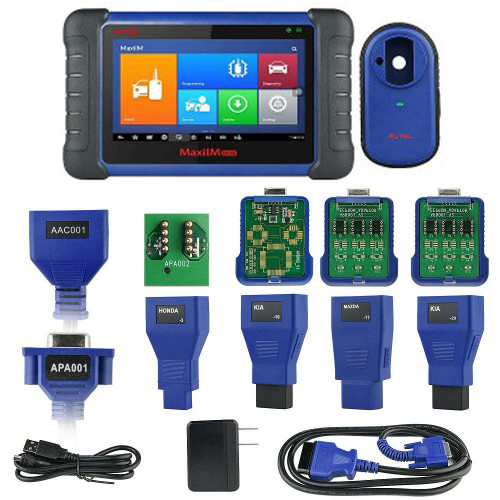

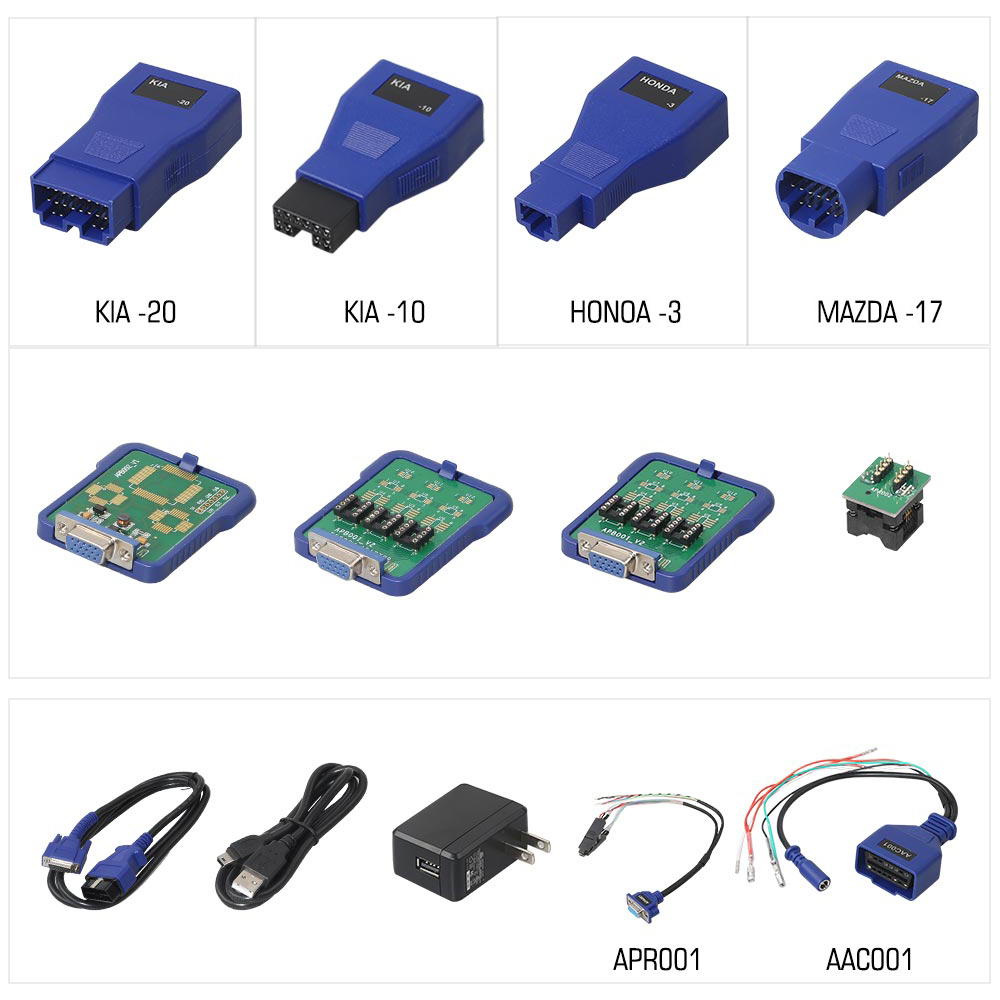

Packing List:



Autel MaxiIM IM508

XP200 Key Programmer

Main Cable
Mini USB Cable

AAC001 - MED17 Cable

APA001 (EEPROM Clamp Integrated MC9S12 Cable)

APA002 (EEPROM Socket)

APB001 (EEPROM Adapter)

APB002 (68HC908 Adapter)Honda-3 Adapter

Honda-3 Adapter
Kia-20 Adapter

Kia-10 Adapter

Mazda-17 Adapter

USB External Power Adapter

User Manual
Quick Reference Guide

Packing List

Plastic Toolbox

Packing Box
