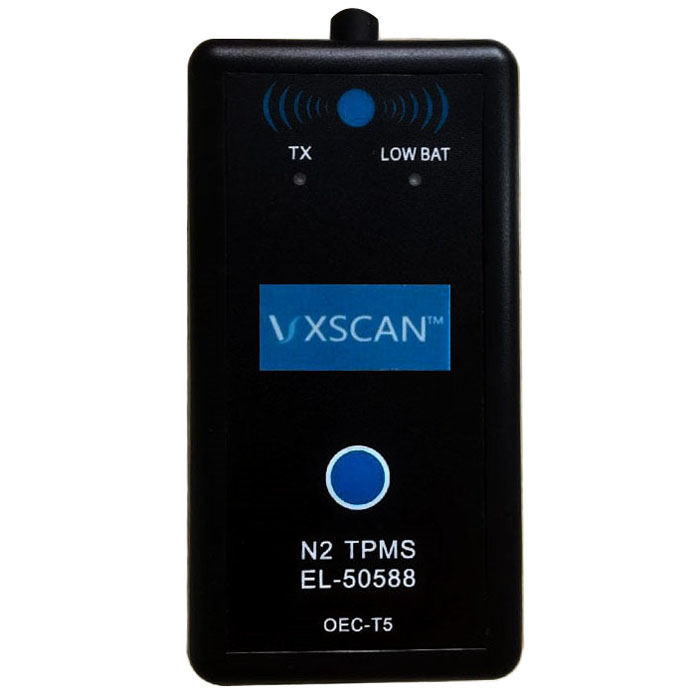

Name: VXSCAN EL-50588 GM Tire Pressure Monitor Sensor
Description:
EL-50588 GM Chevrolet TPMS Relearn Tool works on vehicles 2010 - 2016 year, and a partial 2017 year models.
EL50588 is updated version for EL-50448
Note:
1. It does not work on trucks, please do not use it on GM Chevrolet trucks. 2. The package does not include the charger and battery.
How to use?
Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and do as the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor.
Step 1 - Enter leaning mode Set the gearshift lever to "P" Turn the ignition switch to “ON” Enter the interface of tire pressure display by DIC DIC shows "Press Set / Ctrl to re-learn" Press “Set / Ctrl” The turn signal lights for 3 seconds and horn beeps sound twice to enter the learning mode Step 2 - Read tire pressure sensor information of front-left wheel VXSCAN EL-50588 TPMS Tool antenna up against the valve core position & close to the rim of the tire sidewall.
Starts the switch of El-50588 TPMS tool, when the horn bleeps once ,it is successful to read the tire pressure sensor information Step 3 - Same method to read other tire pressure information Follow the instruction above to read tire pressure of the front-right, rear-right, rear-left wheels. Turn signals lights for 3 seconds and the horn bleeps twice when the learning completes.
|
