  OBDSOS PRODUCTS Car Tyre Pressure Tester / Sensor

Product ID AD125
Product Name Autel MaxiTPMS TS608 TPMS Diagnostic and Service Tool
Product Price USD700
Actual Weight (Kg) 4.5
Volumetric Weight (Kg)
Package Size (cm)
Related Download
  Autel MaxiTPMS TS608 Manual.pdf
Order Quantity:
In Stock



Related Products
Description

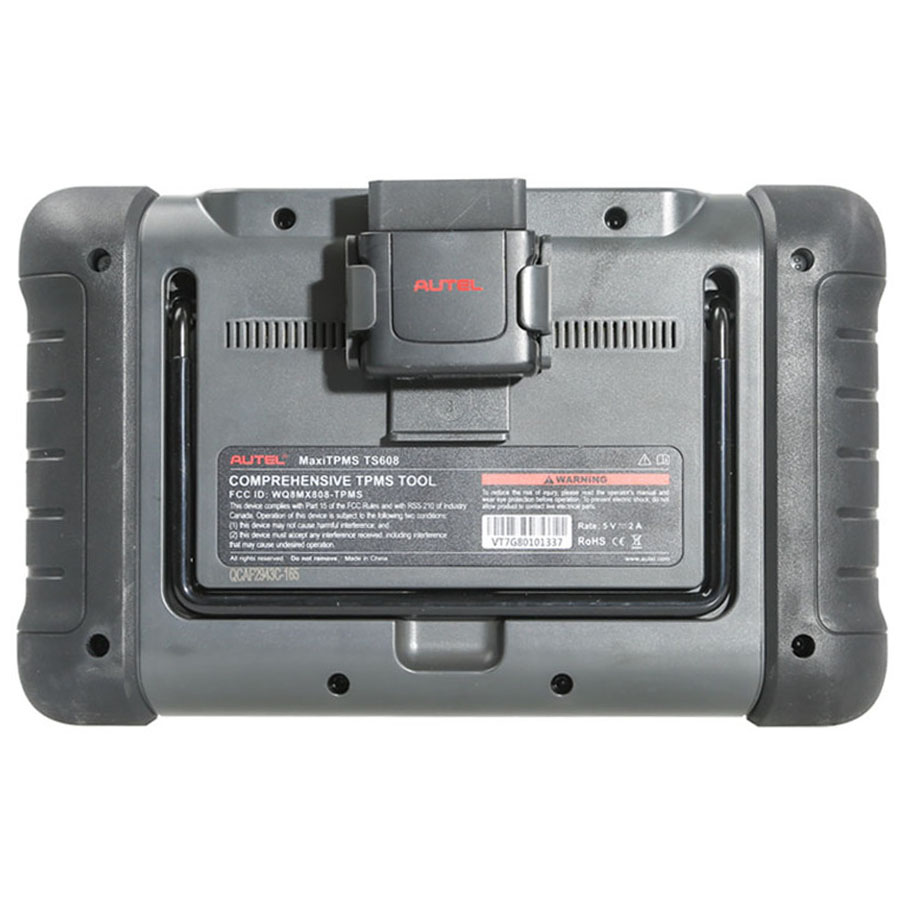

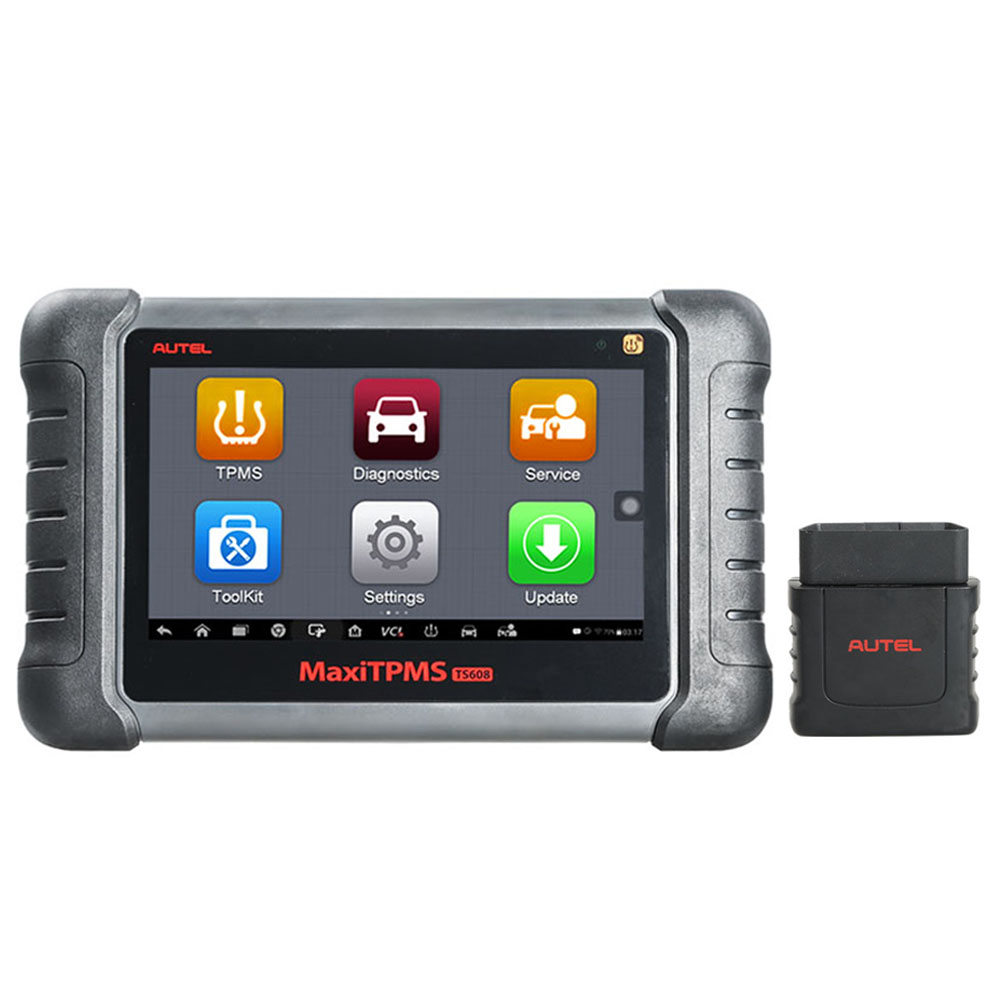

Name: Autel MaxiTPMS TS608 TPMS Diagnostic and Service Tool

Description:

Autel MaxiTPMS TS608 is a complete TPMS & all system service tablet tool combine with Autel MaxiTPMS TS601, Autel MaxiDiag Elite MD802 and Autel MaxiCheck Pro 3 in 1.

As the first comprehensive TPMS & Diagnostic tool in the market, Autel MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, Autel MaxiTPMS TS608 is setting new standards for TPMS service tools.

Software Update: 1 year free update online

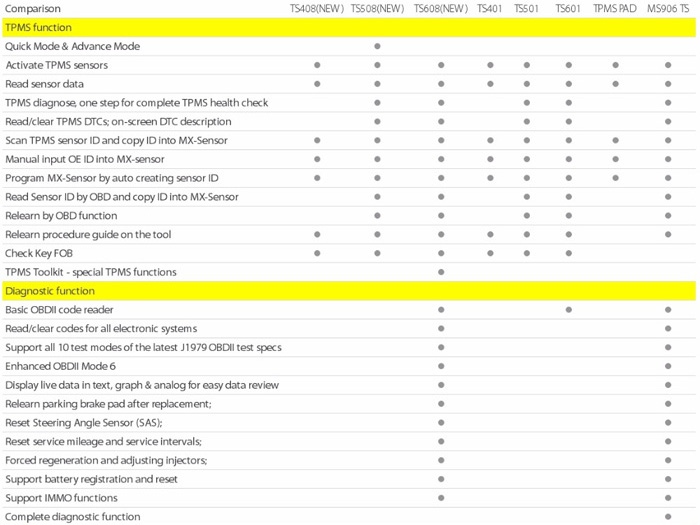

Complete TPMS Functions:

1. Activate all known TPMS sensors and read sensor status;

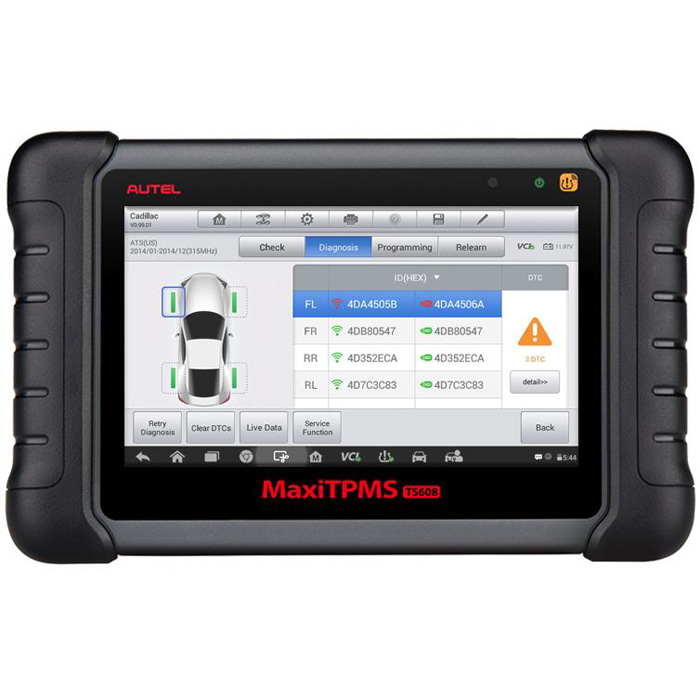

2. Diagnose ECU for complete TPMS health check with DTC description;
3. Read DTCs from ECU and erase DTCs;

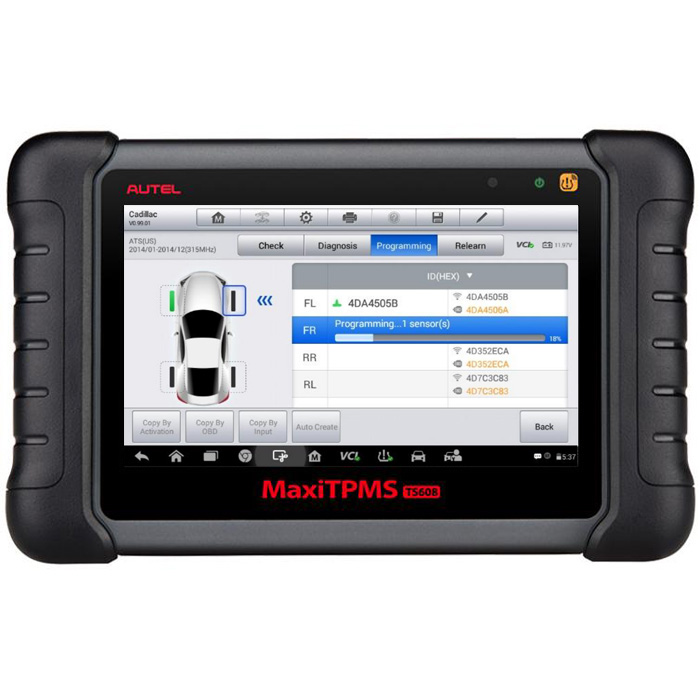

4. Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
5. On-tool relearn procedure and wide OBD relearn coverage;
6. Toolkit, special TPMS functions;

All Systems Diagnostics:

1. Read/clear codes for all available electronic systems;
2. Turn off warning lights;
3. Display live data in text, graph & analog for easy data review;
4. Supports all 10 test modes of the latest J1979 OBD II test specs;
5. Enhanced OBDII Mode 6;

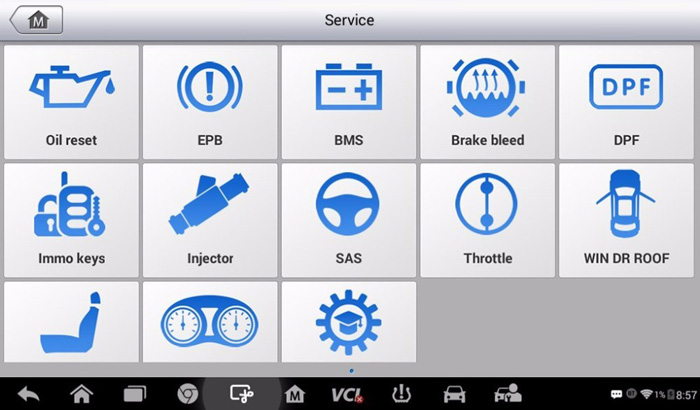

Advanced Service Features:

1. Relearn parking brake pad after replacement;
2. Reset Steering Angle Sensor (SAS);
3. Reset service mileage and service intervals;
4. Forced regeneration and adjusting injectors;
5. Support battery registration and reset;
6. Support IMMO functions;

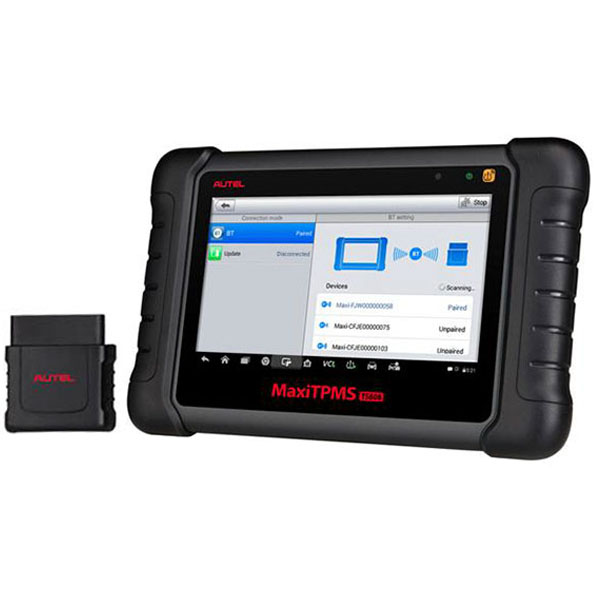

Wireless Bluetooth MaxiVCI Mini:

The latest compact size Wireless Bluetooth MaxiVCI Mini OBD-II connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless Bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.

Supported Protocols:

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-Speed, Middle-Speed, Low-Speed and Single Wire CAN, Fault-Tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Specifications:

Operating System: Android™ 4.4.2, KitKat
Processor: Cortex-A9 processor (1.6GHz)
RAM: 1GB DDR3
ROM: 32GB
Display: 7-inch LCD capacitive touch screen with 1024*600 resolution

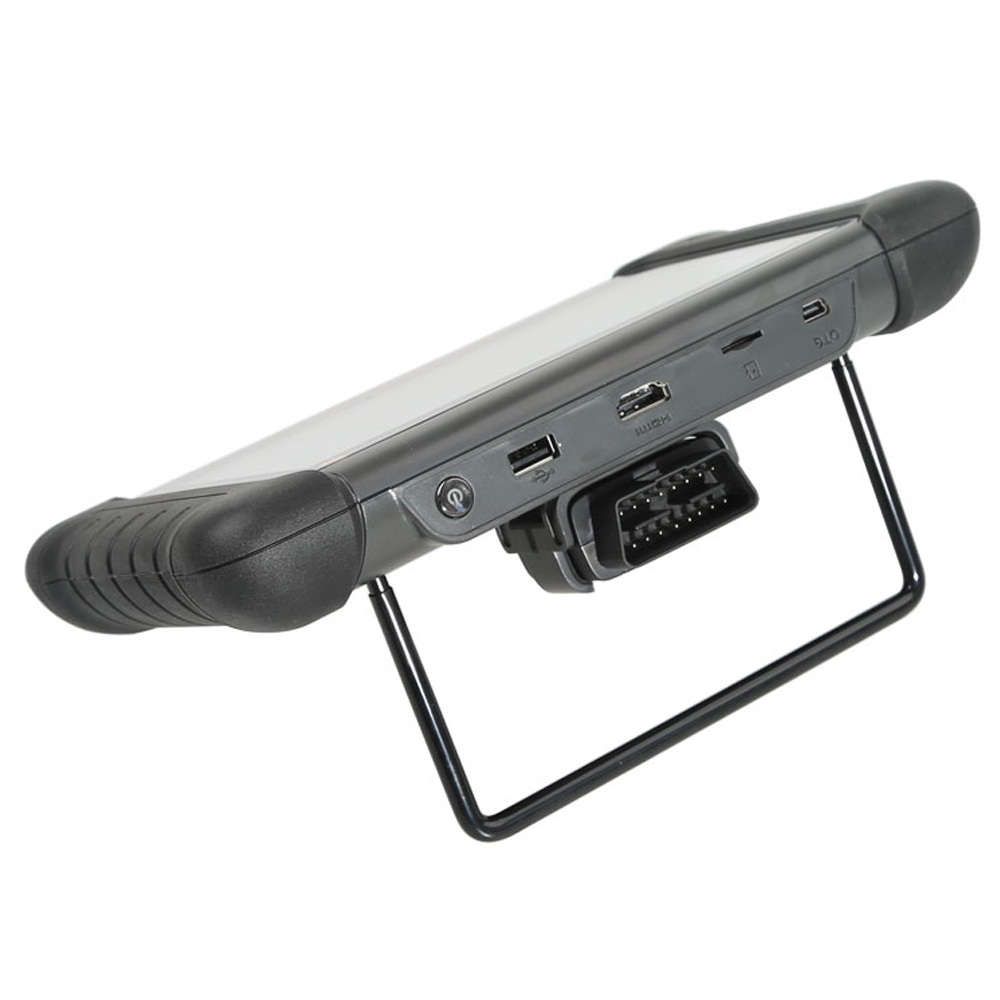

Connectivity: mini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; MicroSD card slot (supports up to 32GB)
Sensors: light sensor for brightness auto adjust
Audio Input: N/A
Audio Output: beep
Power and Battery: 3.7V/5000mAh lithium-polymer battery charges via 5V DC power supply
Tested Battery Life: around 7 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 600mA(LCD on with default brightness, Wi-Fi on) @ 3.7V
Operating Temperature: -10 to 60 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Operating Humidity: 5% - 95% non-condensing
Dimensions (W*H*D): 270.8*176*36mm
Net Weight: 885g
Recommended Use Environment: indoor

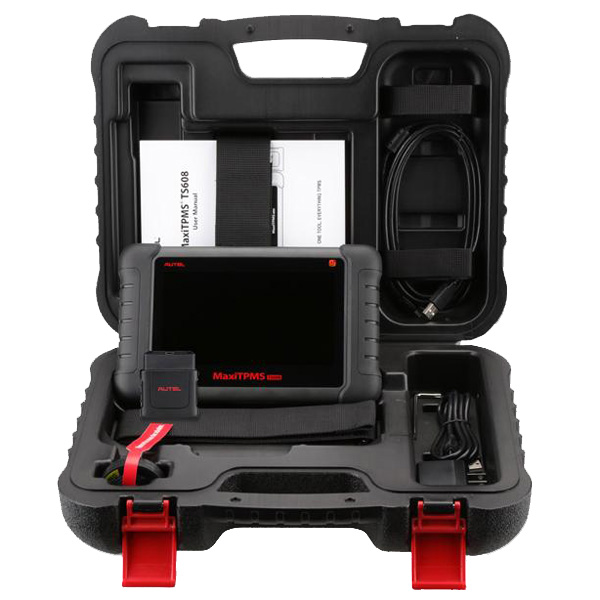

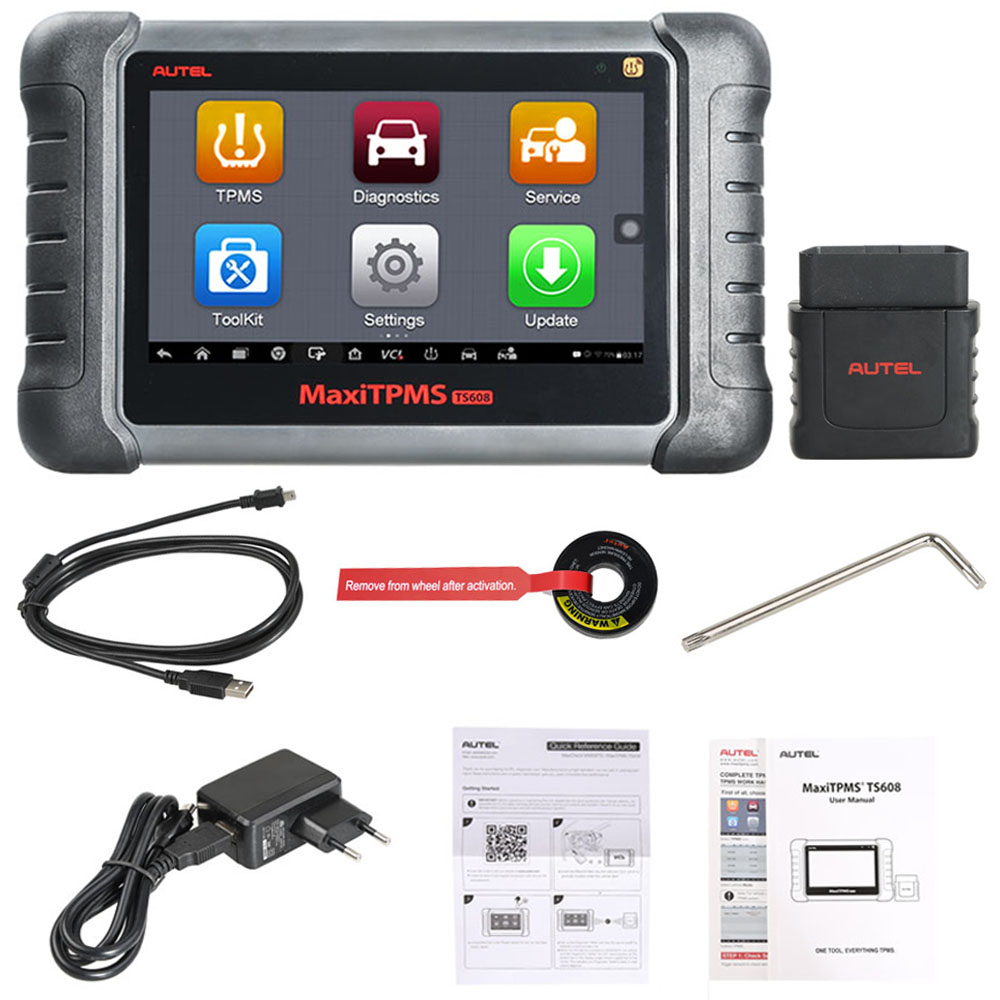

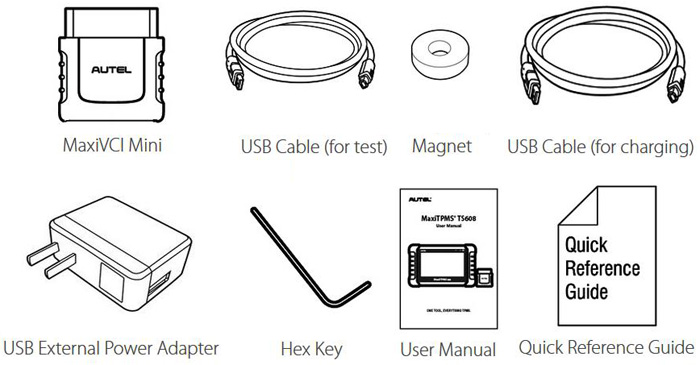

Packing List:

Autel MaxiTPMS TS608
Autel MaxiVCI Mini
USB Test Cable
Magnet
Hex Key
USB External Power Adapter
USB Charging Cable
User Manual
Quick Reference Guide

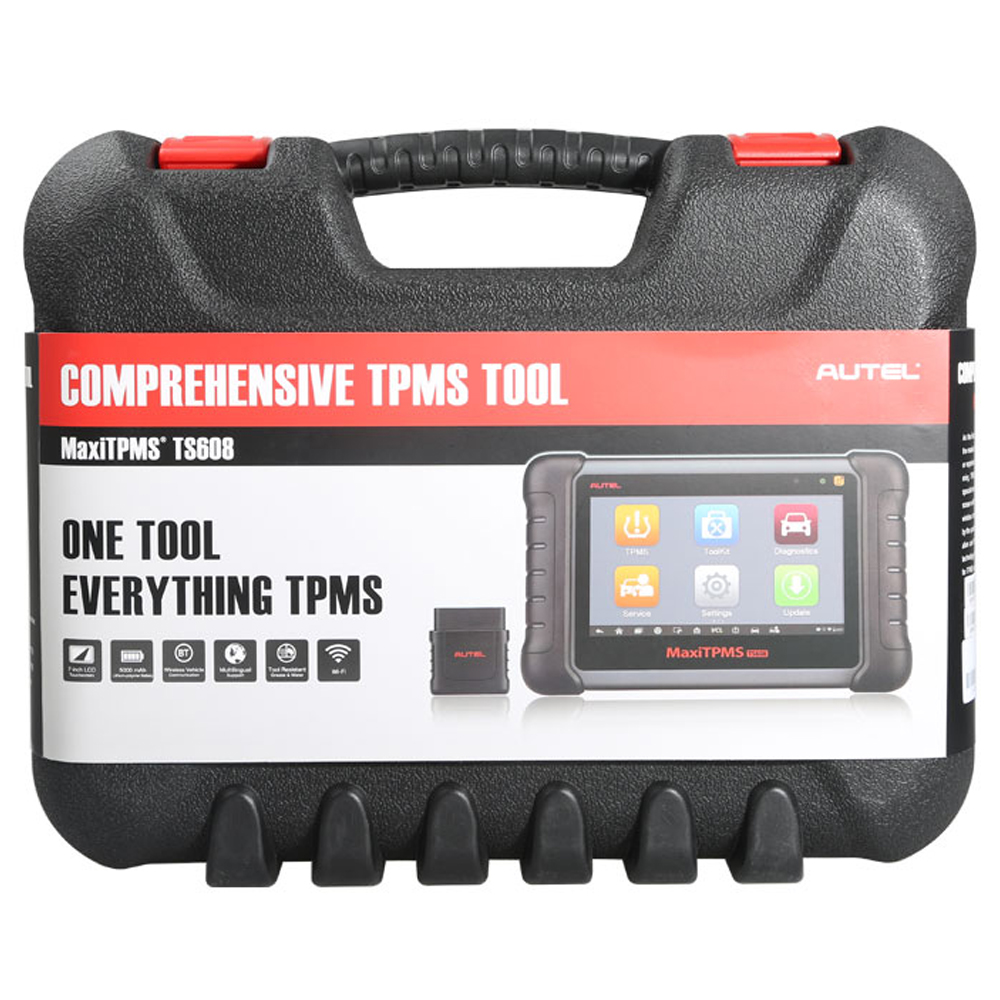

Plastic Toolbox
