Name: Launch EasyDiag 3.0 Bluetooth for Android / iOS

Description:

Launch EasyDiag 3.0 Bluetooth for Android /iOS is update version of Launch EasyDiag 2.0.

Launch EasyDiag 3.0 is only hardware without software. You need to buy original software from Launch website.

Launch EasyDiag 3.0 is an integrated service platform based on automotive diagnostic solutions. Its key features include automotive diagnostics, operational data query, vehicle maintenance, data and information sharing. The client communicates with the vehicle using a Bluetooth connector (DBScar connector). The data between the terminal and the connector is realized through Bluetooth. It realizes a complete diagnostic function, including a complete electronic control system.

Launch EasyDiag 3.0 is easy to work with your Android/iOS device, making your mobile phone or tablet pad be a powerful diagnostic scanner!

You can update software on Launch website. Once your register successfully, you can choose your desired car brands software and pay for it, then you can download to your Android/iOS device.

Then, connect your Android/iOS device with Launch X431 EasyDiag 3.0 via Bluetooth, you can diagnose the car now.

Launch EasyDiag 3.0 does not require any other more interface. A single Bluetooth connector along with the diagnostic software allows the user to select from over 30 manufacturers for Asian, European and Domestic cars.

Features:

1. Full OBD-II generic code reader/scanner capability included at no charge
2. Read and clear codes on all vehicle systems
3. Complete system and subsystem coverage (engine, ABS, SRS, transmission and more) with live date and color graphing
4. Enhanced live date and for all vehicle system

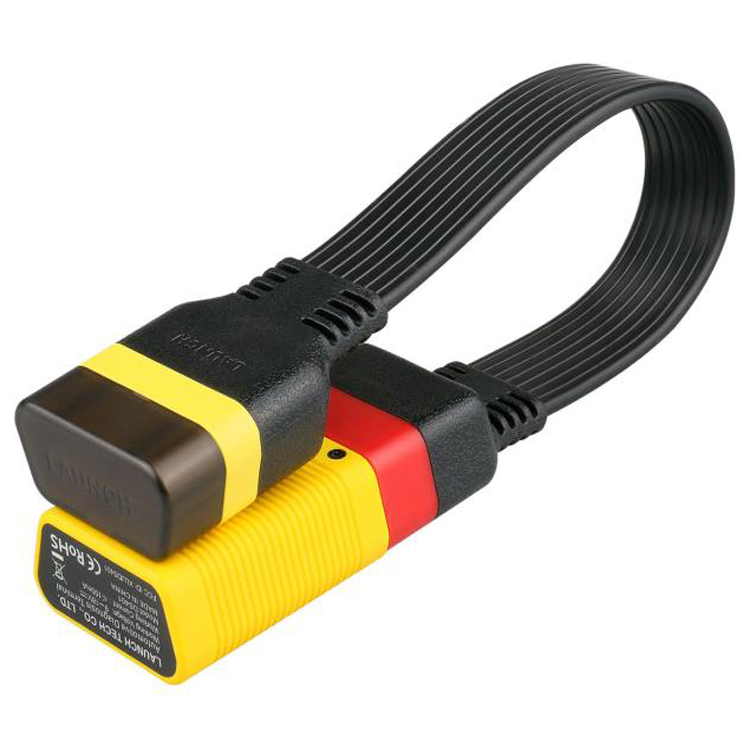

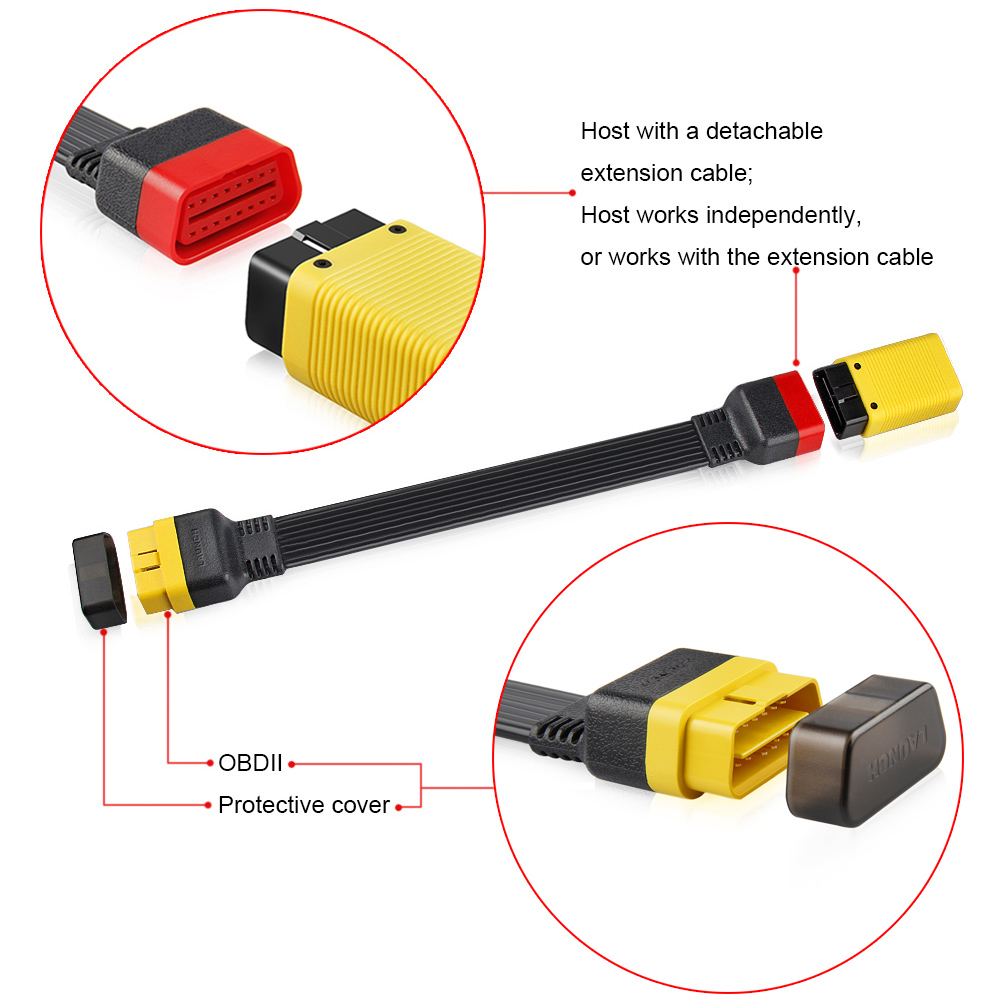

5. Includes Bluetooth OBD-II connector-optional extension cable available for easier plugging and unplugging of OBD-II connector
6. Intuitive interface and easy to use
7. Customizable software-choose from over 70 Asian, European and North American manufacturer for enhanced capability
8. Single car line software priced individually per vehicle manufacturer. Additional coverage, capabilities and functions with each new software update

Supported Languages:

English, French, German, Spanish, Portuguese, Italian, Russian, Turkish, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Serbian, Croatian, Chinese Simplified, Chinese Traditional, Japanese, Korean

Specifications:

Working Temperature: - 10 to 50 degree centigrade
Working Voltage: 9 to 18V
Working Current: ≤100mA
Bluetooth: 4.2

Important Notice:

1. Precautions on operating vehicle ECU
2. Do not disconnect the vehicle inner consume when the ignition switch is on, so as to avoid the sensors or the ECU damage.
3. Do not place the magnetic object near the ECU in order to avoid the failure of the circuitry and components.
4. Do cut off the power supply of ECU system before welding on the vehicle. Pay more attention to the ECU and the sensors when the operation is next to them.
5. Ground yourself when you disassemble PROM, otherwise ECU and sensors will be damaged by static electricity.
6. Do connect ECU harness connector firmly,otherwise electronic elements, such as IC inside ECU, will be damaged.
7. The instrument is a precision electronic instrument. Pay more attention when in use, do not have it dashed.
8. The equipment power is supplied by 12v battery voltage;do not use other voltage power.
9. Turn off the ignition switch when connect or disconnect the diagnostic connector.
10. Put the EasyDiag in its place on the back of the protective casing in order to avoid lost.

Supported Cars:

USA:
BXGM, Chrysler, GM, USA Ford

European:
Audi, Benz, BMW Citroen, Dacia, Euro Ford, Fiat, GAZ, GMSA, Jaguar, Lancia, Land Rover, Mini, Opel, Peugeot, Porsche, Renault, Romeo, Rover, SAAB, Seat, Skoda, Smart, Sprinter, VAZ, Volvo, VW, Ford

Aisan:
Acura, Daewoo, Daihatsu, Holden, Honda, Hyundai, Infiniti, JP Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Ssangyong, Sbaru, Suzuki, Tata, TL Isuzu, Toyota

Packing List:

Launch EasyDiag 3.0
OBD2 Extension Cable
Password Paper
Quick Start Guide
Packing Box
