Name: ThinkCar Pro ThinkDiag Mini OBD2 Full System Diagnostic Scanner with 5 Free Car Software
Description:
1. ThinkCar Pro is a portable, cost-effective automotive troubleshooting tool for DIYers and small workshops.

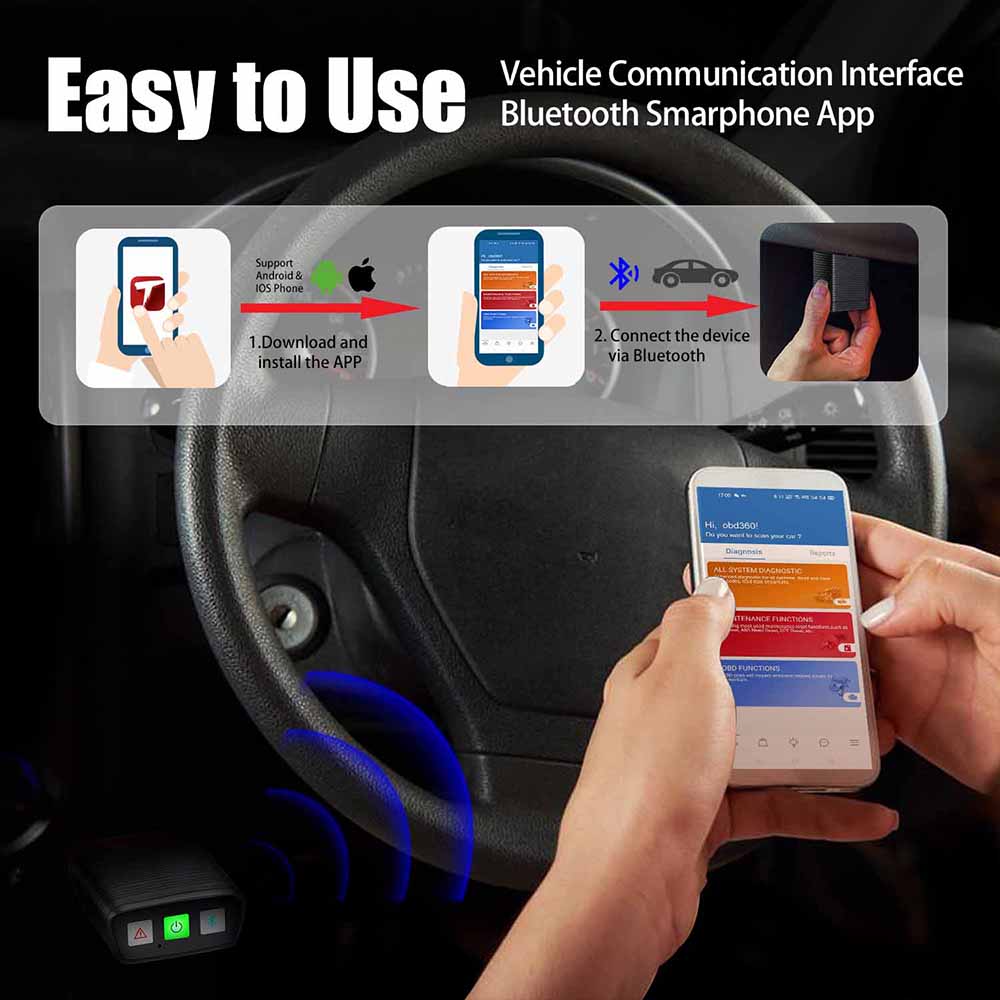

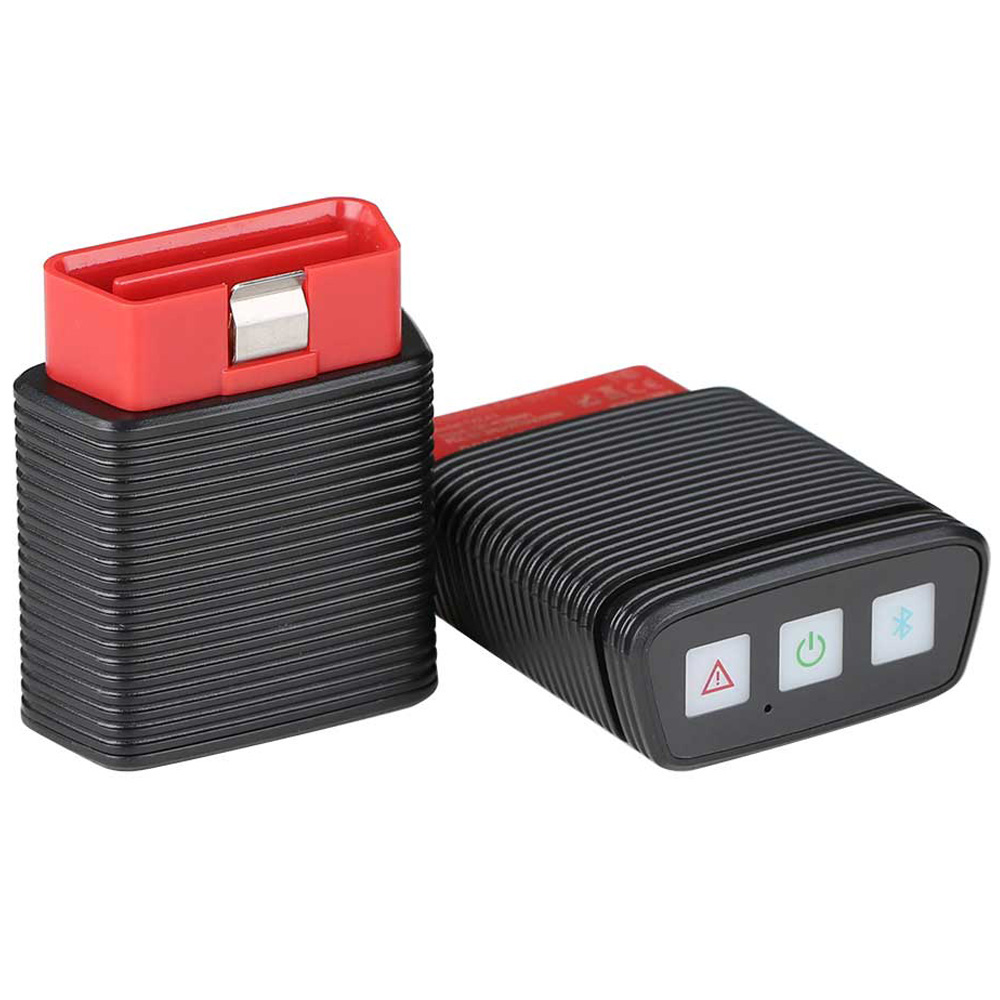

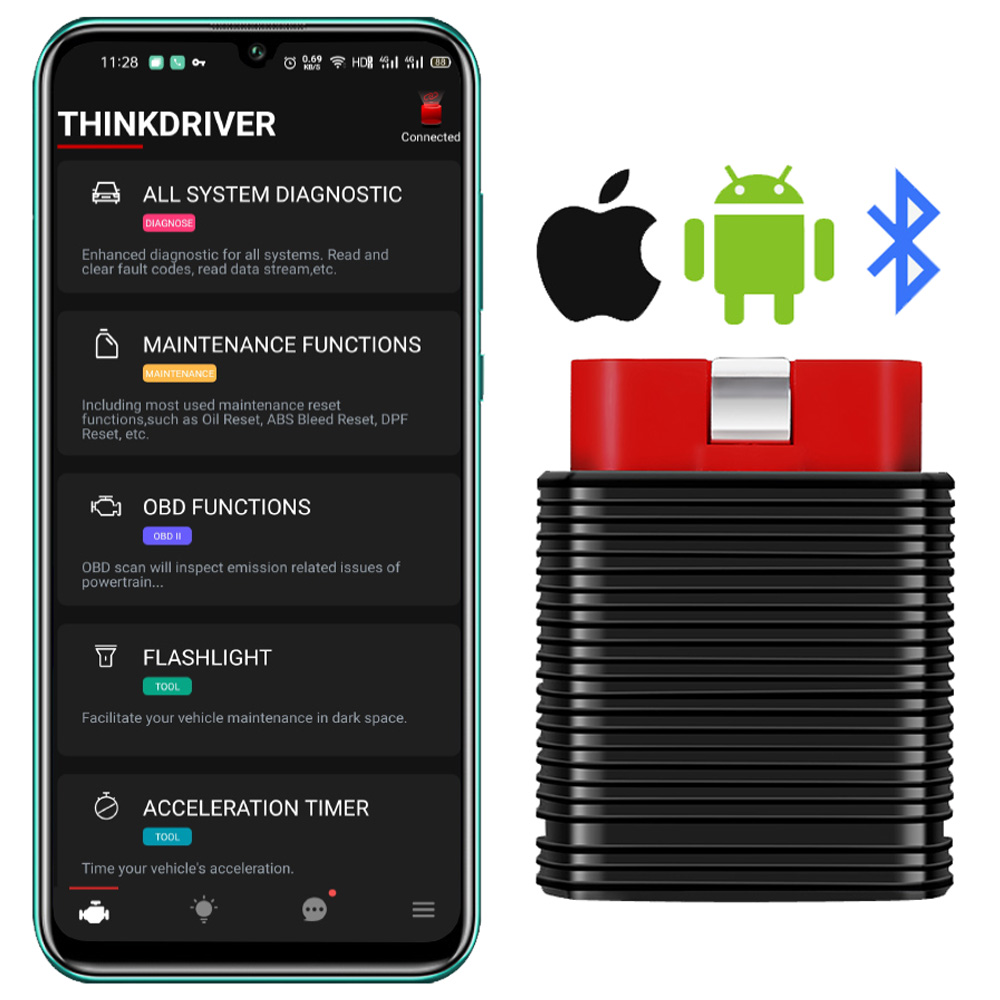

2. ThinkCar Pro consists of a diagnostic connector and an mobile APP. The connector is connected to the vehicle diagnostic socket and communicate wirelessly with a smart phone or tablet via Bluetooth, enabling the installation of App and diagnostic software in smart terminals for automotive diagnostics.
3. ThinkCar Pro is compatible with all cars after 1996 supporting OBD-II protocol.
4. ThinkCar Pro's diagnostic capabilities are comparable to professional, expensive integrated diagnostic equipments.

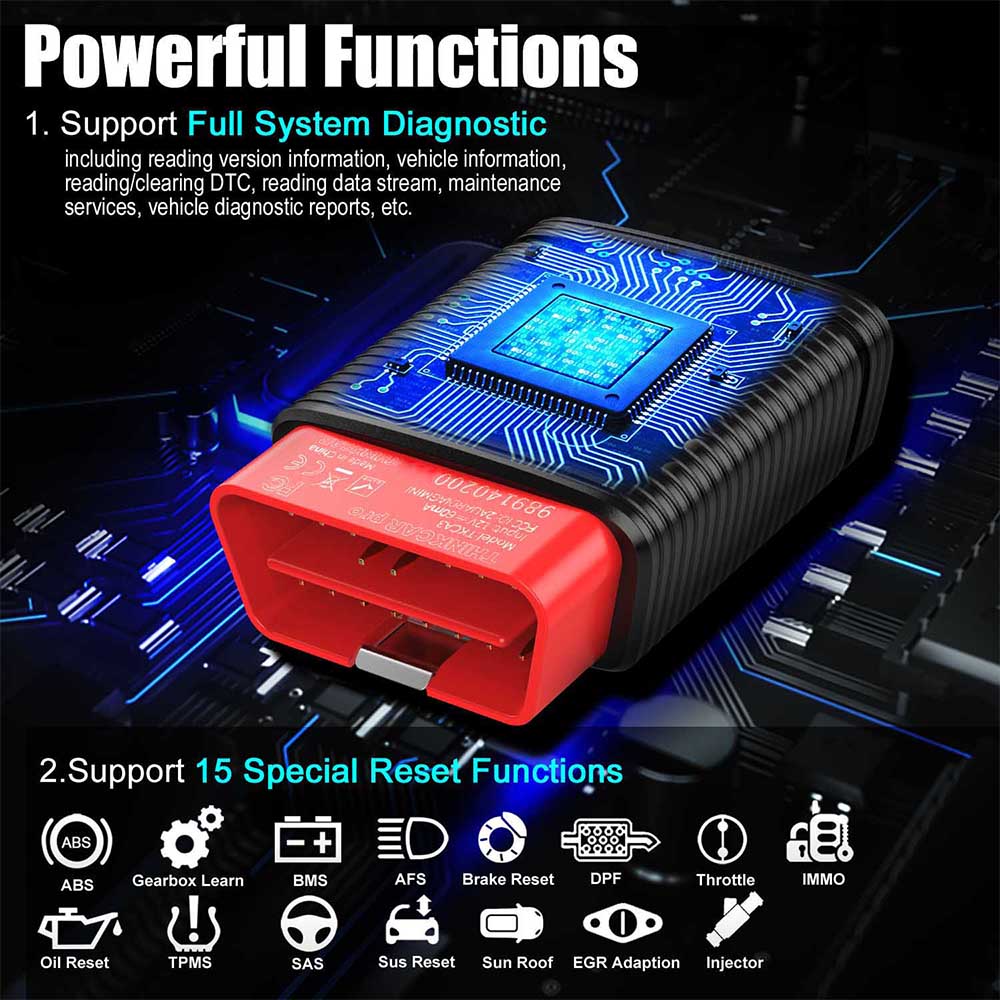

5. It supports full system, basic functions intelligent diagnosis, including reading version information, vehicle information, reading/clearing DTC, reading data stream, maintenance services, vehicle diagnostic reports, etc.
Highlights:
1. ThinkCar Pro comes with 5 Free Car Software.
2. Software free online upgrade.
3. ThinkCar Pro ThinkDiag Mini including car all system diagnosis function and 15 kinds of special reset functions.
4. Support Android and iOS, Auto VIN, ECU Coding, Bi-Directional Control, Actuation Test, Data Stream, Print Report.
5. ThinkCar Pro provides professional diagnostic reports. After the diagnosis, a complete diagnostic report will be automatically generated to clearly understand any malfunction of the vehicle.
You can also share the report to the community, facebook, twitter, to facilitate sharing and discussion with friends.
Supported Languages: English, French, Spanish, Portuguese, German, Italian, Russian, Japanese, Chinese
Functions:

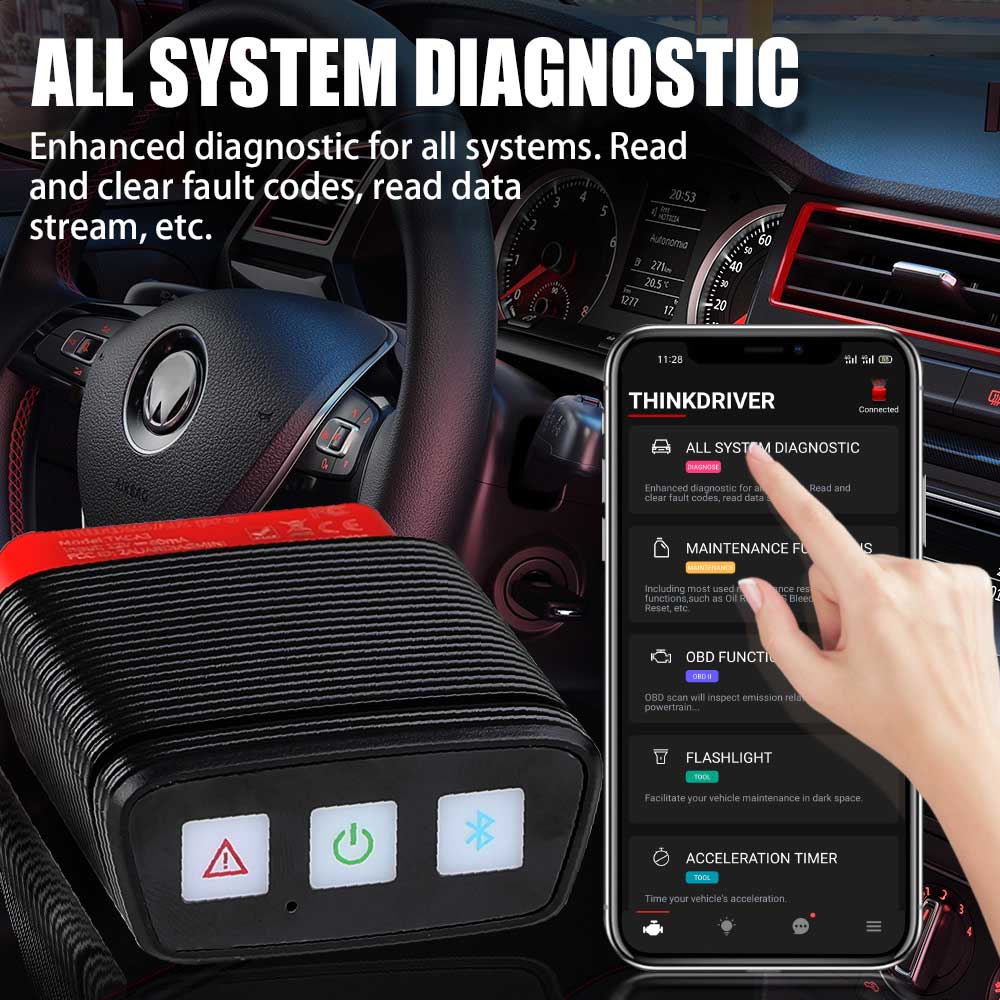

1. Traditional Diagnosis
Supports manual selection of car model software to complete vehicle diagnostics, including reading DTC, clearing DTC, reading data stream, reading version information, etc.

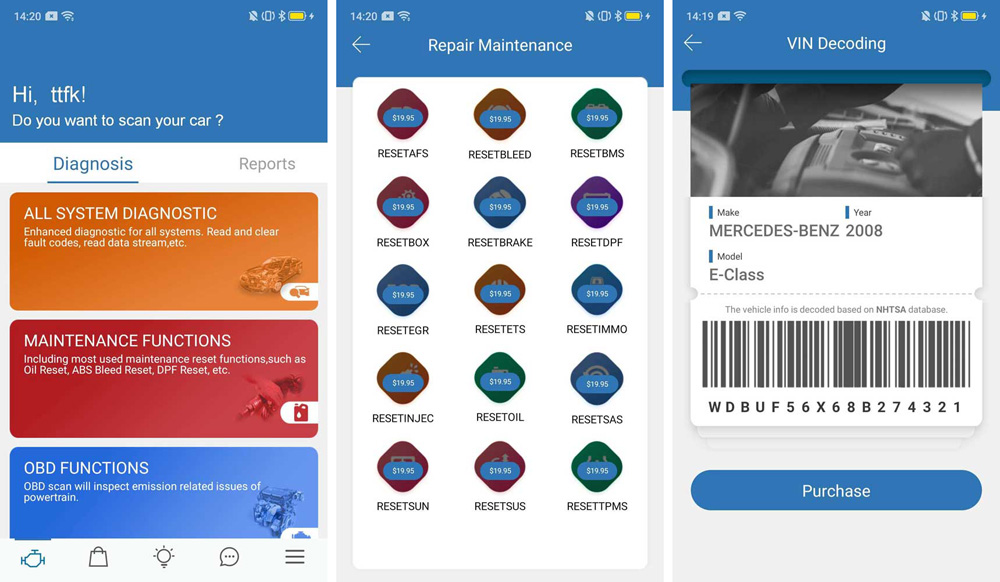

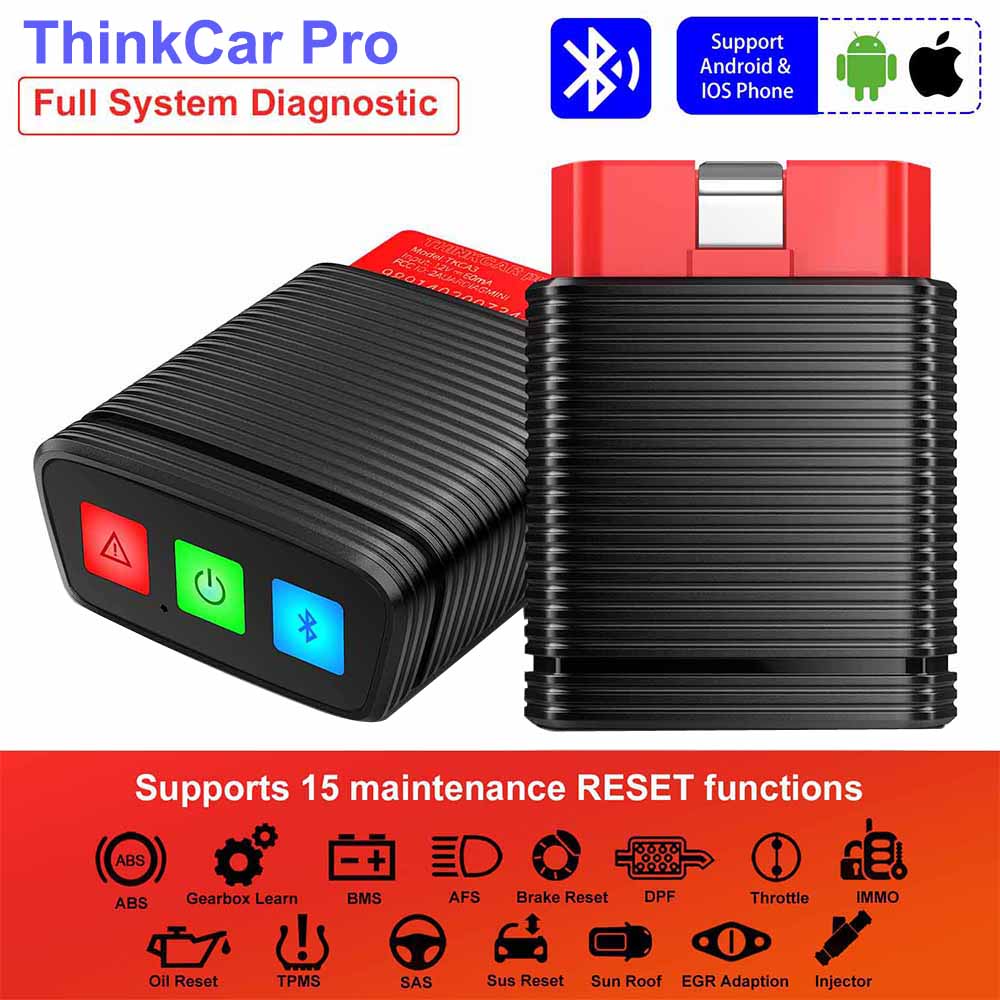

2. 15 Maintenance Functions
Reset Oil, Reset DPF, Reset Brake, Reset SAS, Reset BMS, Reset Bleed, Reset ETS, Reset TPMS, Reset SUS, Reset Sun, Reset EGR, Reset Brake, Reset Box, Reset INJEC, Reset IMMO
3. Full OBD2 and EOBD Functions
Mode 01 Real-time data, MIL, IM monitors
Mode 02 Freeze frame
Mode 03 Stored DTCs
Mode 04 Clear DTCs
Mode 05 O2 monitoring tests
Mode 06 Test results for continuously and non-continuously monitored systems
Mode 07 Pending DTCs
Mode 08 Request control of on-board-system or component
Mode 09 Request VIN and other data
Mode 0A Permanent DTCs

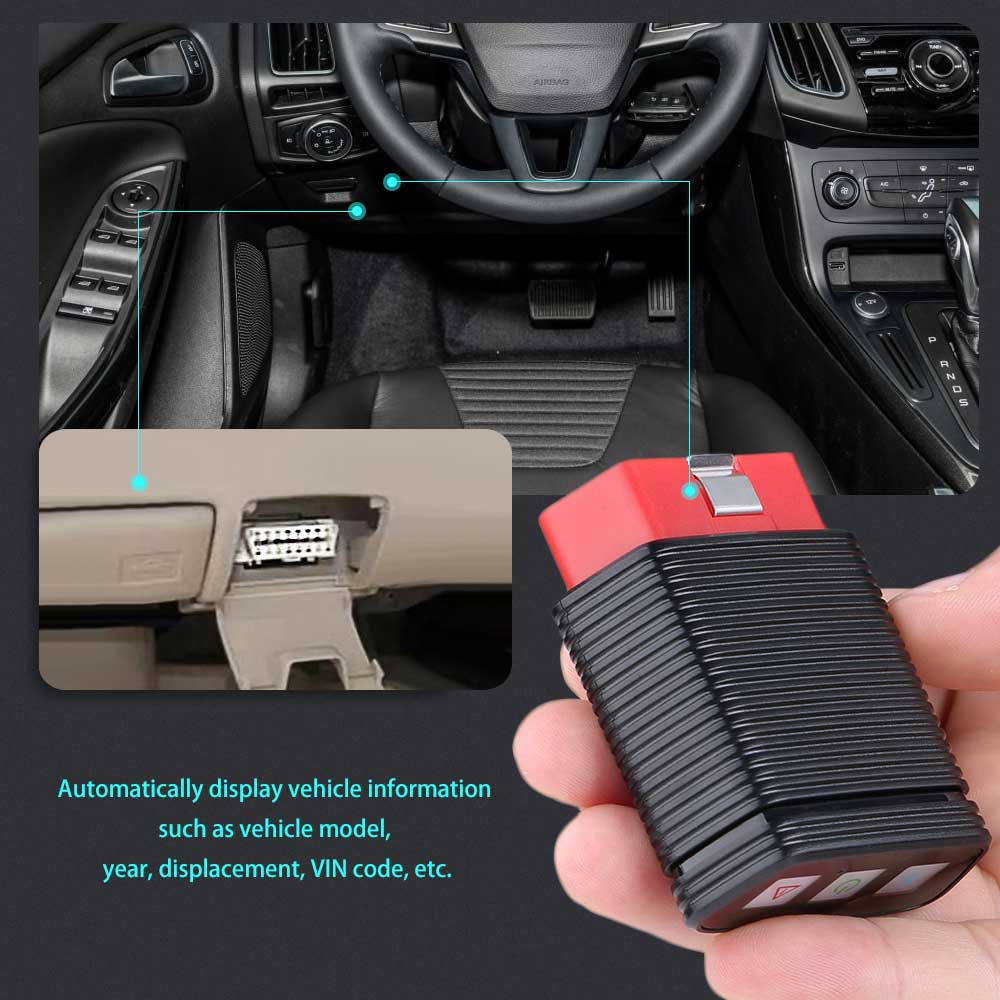

4. Intelligent Auto-VIN Diagnosis
Supports automatic VIN reading, automatic identification of vehicle models, and rapid generation of vehicle inspection reports
5. Diagnostic report
ThinkCar Pro provides a professional and complete diagnostic report after vehicle diagnostics. The report will be shared with the car owner to clearly understand what is wrong with the vehicle.

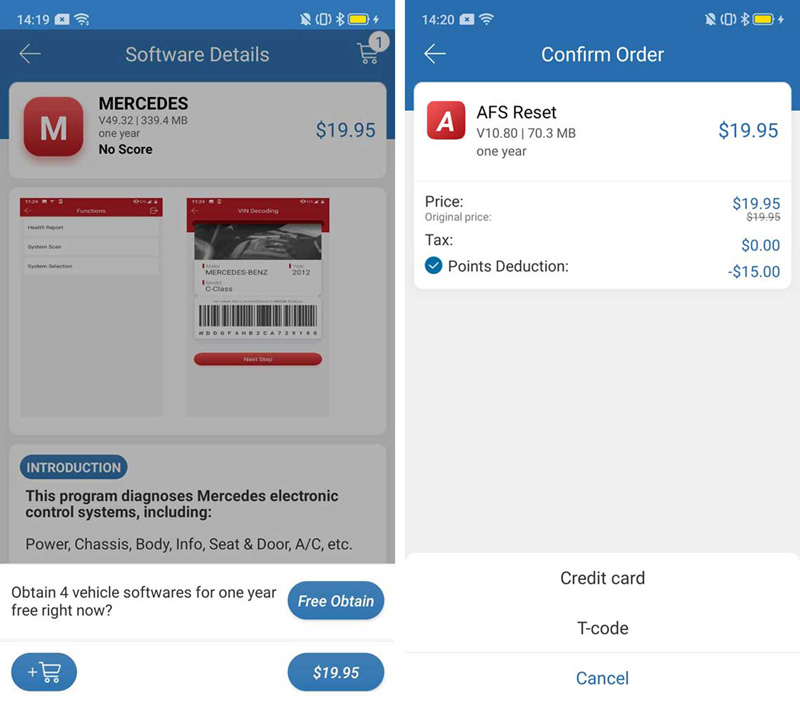

Software ThinkStore:
ThinkCar Pro is equipped with a software market in the APP and offers more than 98% of the car model software on the market. When using the diagnostic function, the required model software needs to be purchased before starting the diagnosis.
When ThinkCar Pro is activated, new users will receive free access to 1 free model software for 1 year.
Model diagnostic software supports online purchases (by credit card or T-code).
Operation Guide:
Registration Account - Login - Device Activation - Intelligent VIN Identification - Diagnosis

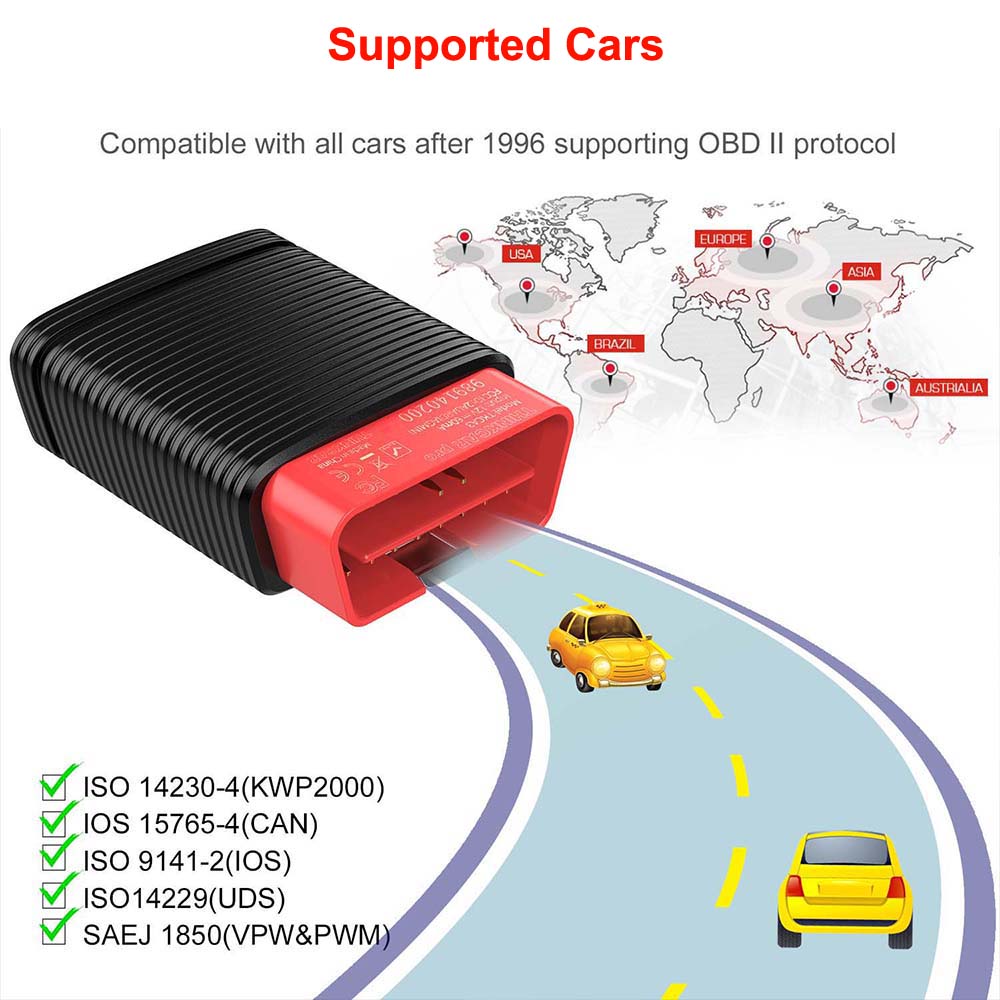

Supported Protocols:
ISO 14230-4 (KWP2000)
IOS 15765-4 (CAN)
ISO 9141-2 (IOS)
ISO14229 (UDS)
SAEJ 1850 (VPW&PWM)
Supported Cars:
Europe and America
Ford Europe, Mercedes Sprinter, MINI, Seat, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Citroen, Skoda, Porsche, Rover, Land Rover, Volvo, VAZ, Renault, Smart, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, Saab, US Ford, Chrysler, GM.
Asia Pacific
Isuzu Thailand, Acura, Daewoo, Jianghuai(GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling Auto, Mahindra, Isuzu, Suzuki, BYD, Nissan, Chery, Toyota, Zhongshu, Kia, GreatWall, Daihatsu, Changan, Geely, Xiamen Jinlong, ZX Auto, Hafei Auto, Xinkai Auto, Gonow, Changhe, Hyundai, Liuzhou Wuling, Subaru, Xiali, AU Ford, Mitsubishi, TATA, Zotye, Horton, Maruti, Lexus

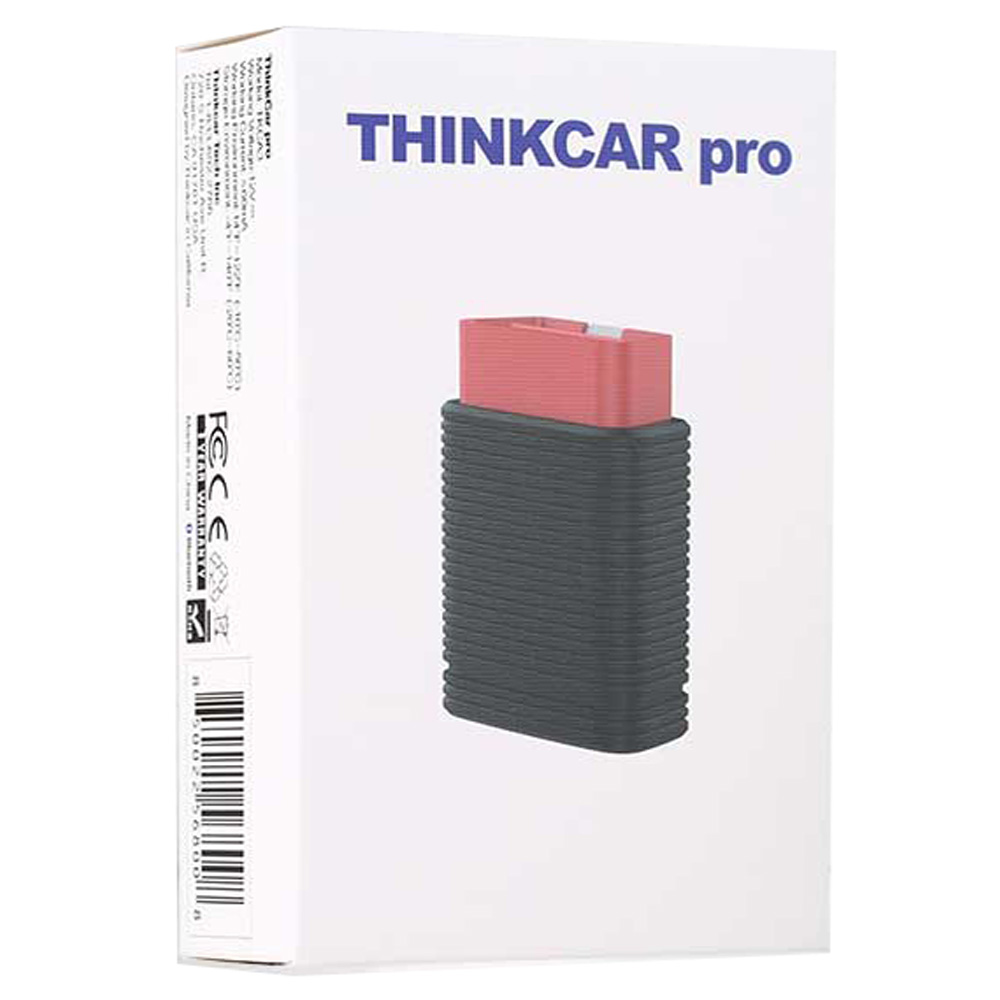

Packing List:
ThinkCar Pro
User Manual
Packing Box
|
