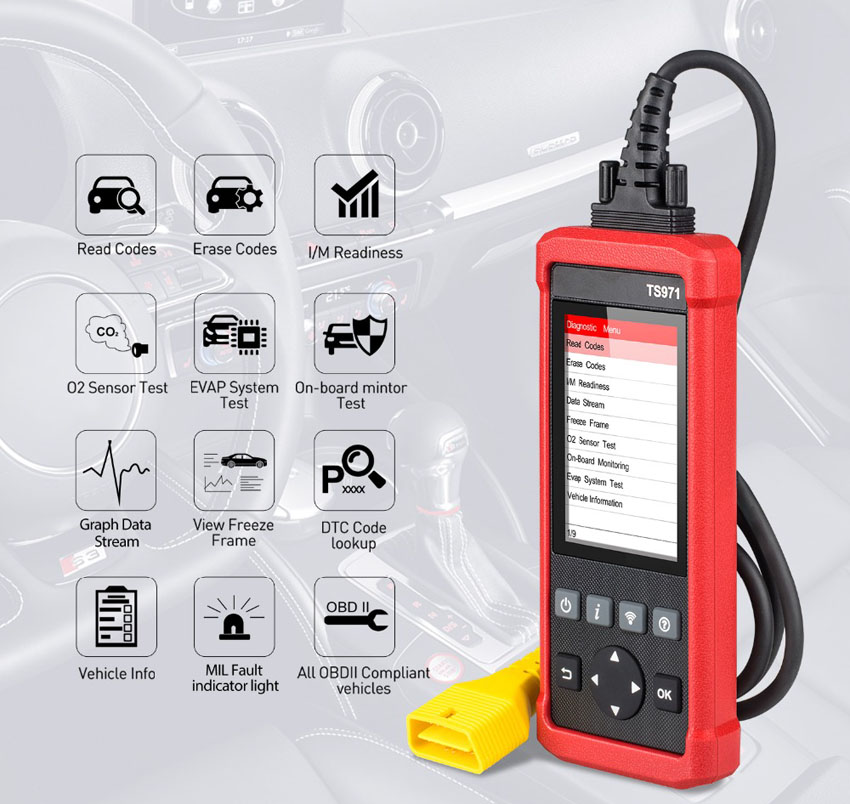

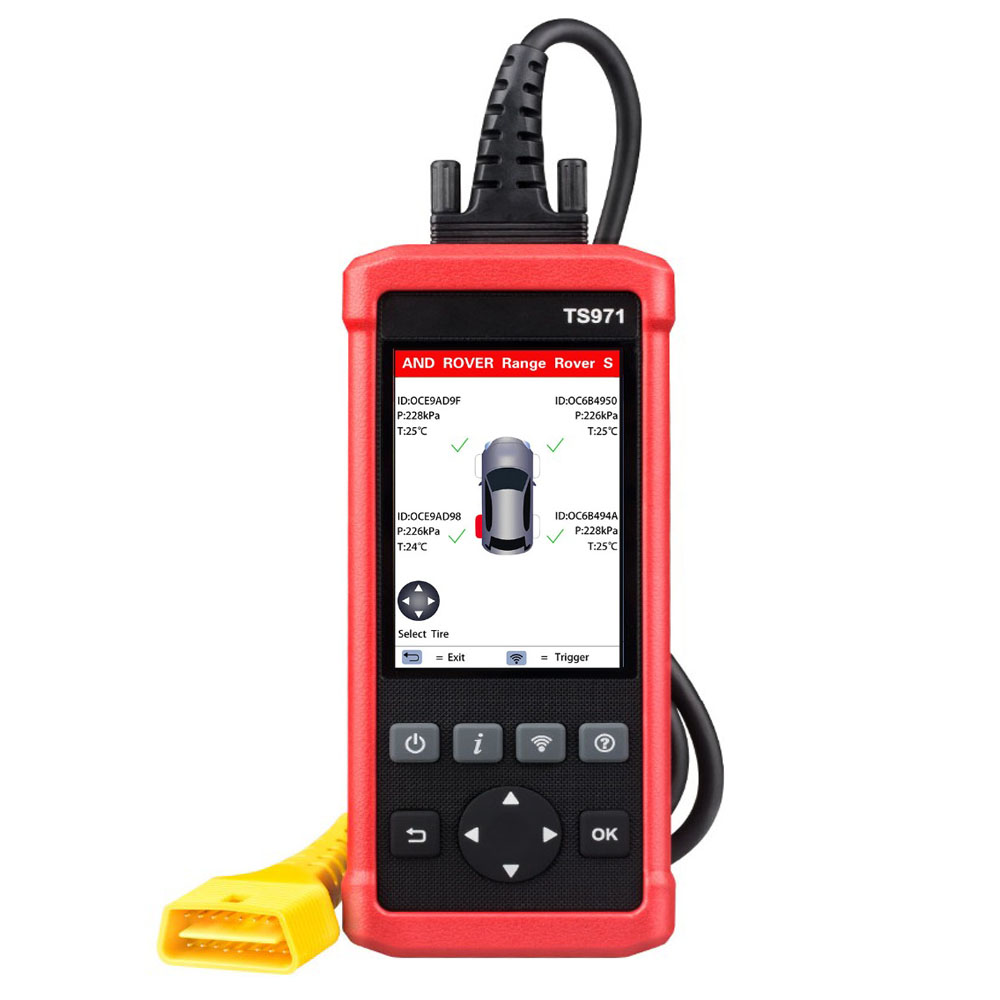

Name: Launch TS971 TPMS Activation and Diagnostic Tool
Description:

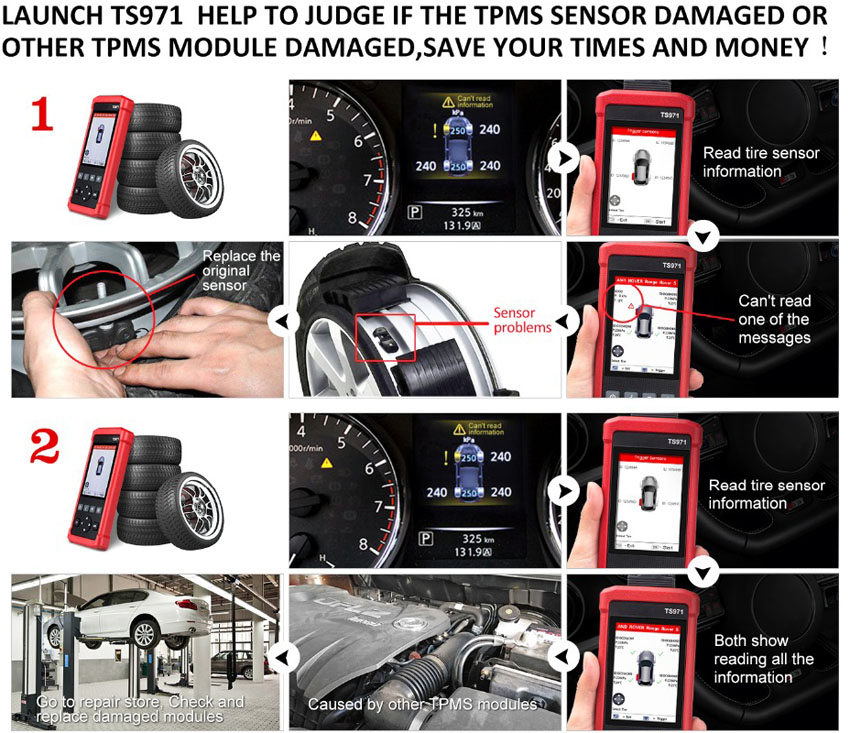

LAUNCH TS971 TPMS Bluetooth Sensor Tire Pressure Tester integrates diagnostic functions of a variety of car models, with TPMS trouble light reset, sensor ID, battery status, tire pressure and temperature read, TPMS sensor activation and matching as well.
It better meets the needs of auto repair shop, tire assembly line, individual owner and tire repair shop to diagnose, activate and match the TPMS system and the tire pressure sensors.
Features:
1. Activate the TPMS sensors of most vehicle brands globally with right protocols;
2. Read tire pressure, temperature sensor ID and battery level; Duplicate or generate the new sensor ID after sensor replacement;
3. Rewrite the sensor position into the ECU after sensor rotation;
4. Help guide and software update subscription; Search by make-mode-year;
5. Tested sensor history query; Read and clear TPMS fault code.
Specifications:
Display: 4-inch TFT screen with 320*480 resolution
OBD Supply Voltage: 9 to 18V
USB Supply Voltage: 5V
Battery: 3100mAh/3.7V lithium-ion battery
Activate Sensor Frequency: 125KHz
Receive Sensor Frequency: 315MHz/433MHz
Working Temperature: -10 to 50 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Storage Humidity: 10% to 93%
Dimension: 195*86*32mm
Weight : <460g
Drop Test: It will not be damaged in case of falling from 1 meter high.
Boot Time: <5s, time from pressing power button to the main menu
Button Response: 1 second
Working Hour: one and a half year in power off state; 5.5 hours in working condition.
Supported Cars:
Acura, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Coda, Dodge, Ferrari, Fiat, Fisker, Ford, Freightliner, Genesis, GMC, Honda Motorcycle, Honda, Hummer, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lamborghini, Land Rover, Lexus, Lincoln, Lotus, Maserati, Maybach, Mazda, Mclaren, Mercedes, Mercury, Mini, Mitsubishi, Nissan, Plymouth, Pontiac, Ram, Rolls Royce, Saab, Saturn, Scion, Smart, Subaru, Suzuki, Tesla, Toyota, Volkswagen, Volvo, VPG
Note:
The magnet is only used to activate the tire pressure sensors equipped by part old vehicle models. When using, please put the magnet near to the gas nozzle while receiving the signal sent from the sensor with the device.

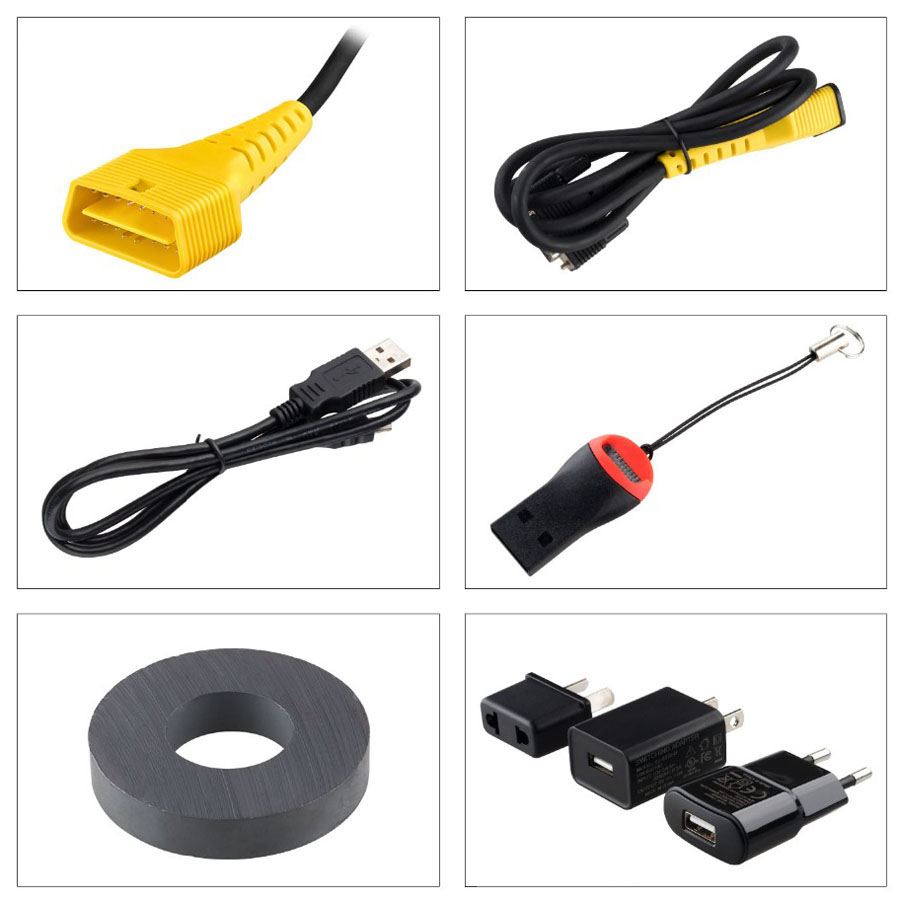

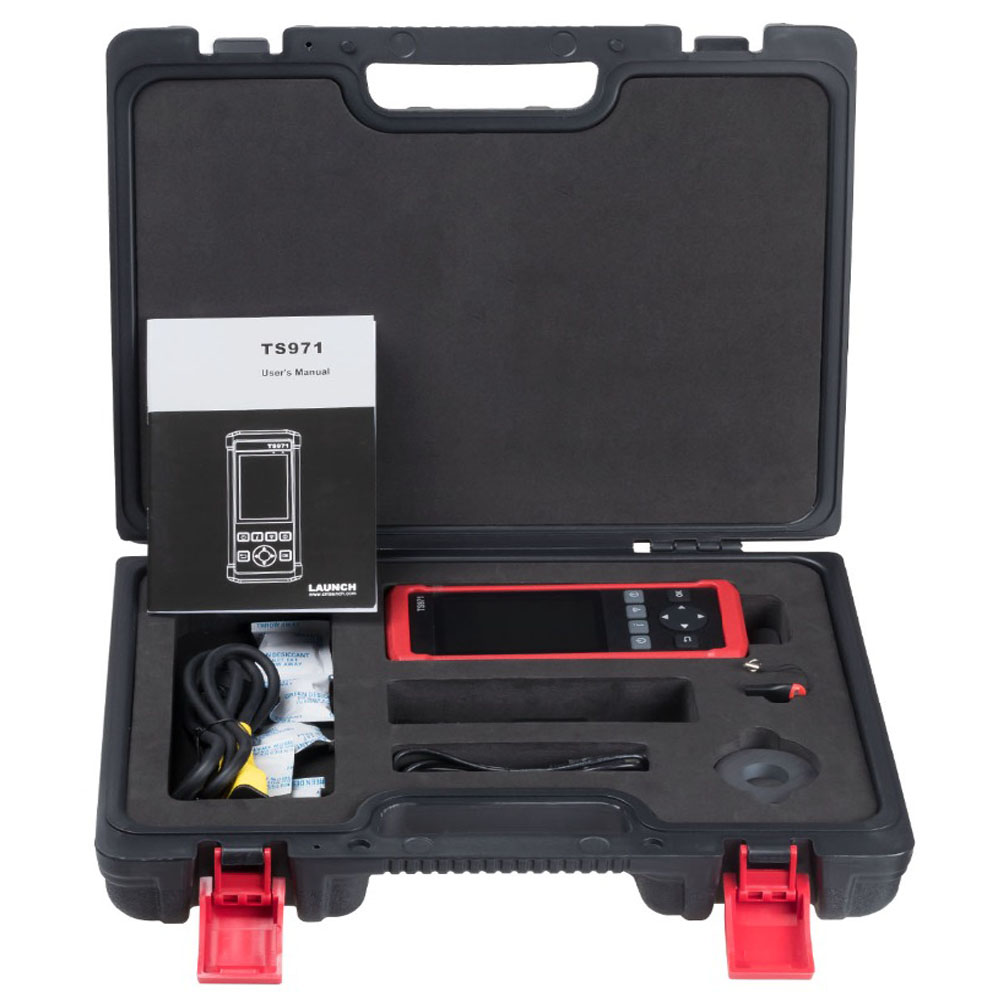

Packing List:
Launch TS971 TPMS Activation and Diagnostic Tool
OBD-II Cable
USB Cable
Magnet
Memory Card
Card Reader
Charger
User Manual

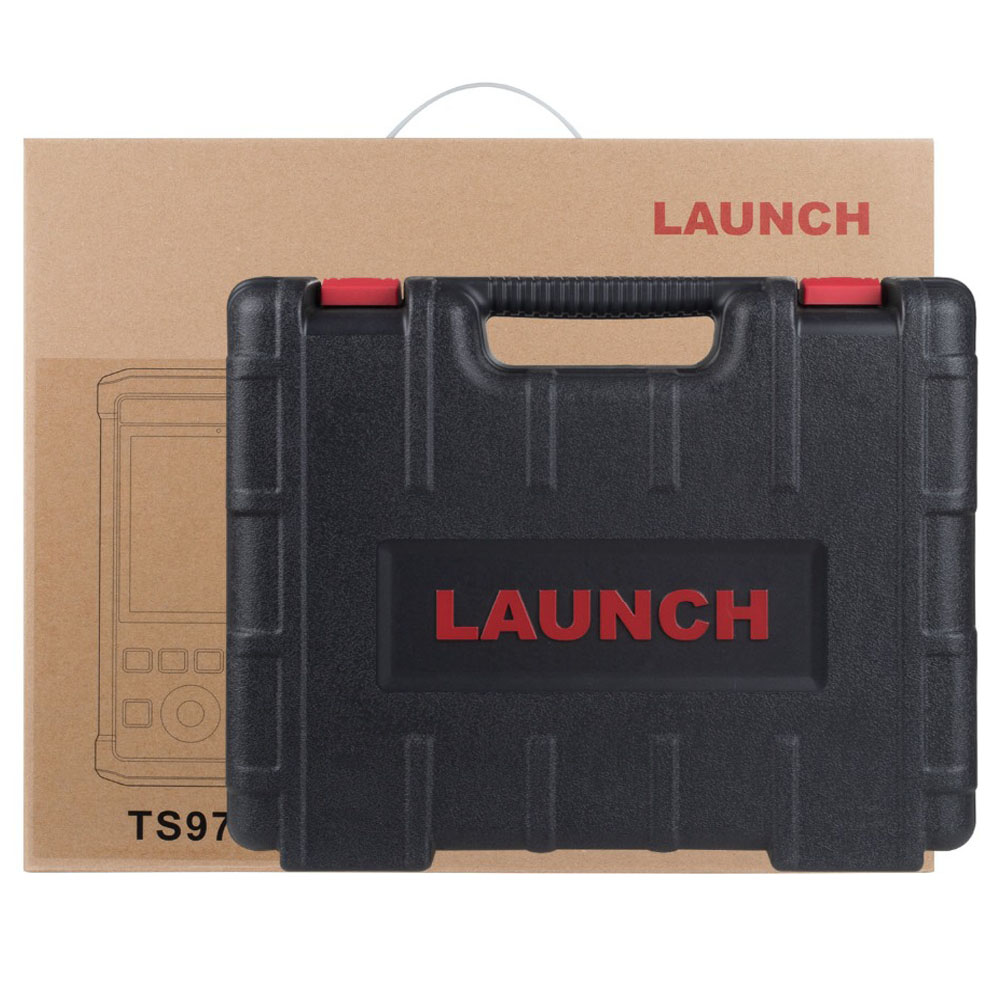

Plastic Toolbox
|
