  OBDSOS PRODUCTS Car Key Programmer

Product ID SK282-B
Product Name Autel XP400 Pro Key Programming Adapter for Autel IM508 / IM608
Product Price USD500
Actual Weight (Kg) 2.4
Volumetric Weight (Kg)
Package Size (cm)
Related Download
Order Quantity:
In Stock



Related Products
Description
Name: Autel XP400 Pro Key Programming Adapter for Autel MaxiIM IM508 / MaxiIM IM608

Description:

Autel XP400 Pro is a replacement for Autel XP400. It adds more functionality for BMW / Mercedes-Benz as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more.  Also, added functions for EWS3, W209, NEC, and more.

Software Update: one year free update online

Highlights:

1. XP400 Pro is an advanced All-In-One Key Programmer
2. Compatible with Autel MaxiIM IM508 and Autel MaxiIM IM608, Auro OtoSys IM100 and Auro OtoSys IM600.
3. Enables programming of infrared keys for Mercedes vehicles and IC chip keys on late model Hyundai Kia vehicles.
5. Supports key renewal on 11 key types with additional adapters - IMKPA Key Programming Accessories Kit.
6. Performs EEPROM data functions needed for European vehicles.
7. Supports data read/write of 3,000+ chip types (includes EEPROM, Engine ECU, MCU, IMMO ECU).

Notice:

1. Autel XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 do not have the 4 channel Labscope software and AutoAuth when used with Autel XP400Pro)

2. Please note that XP400 Pro does NOT support Read / Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.

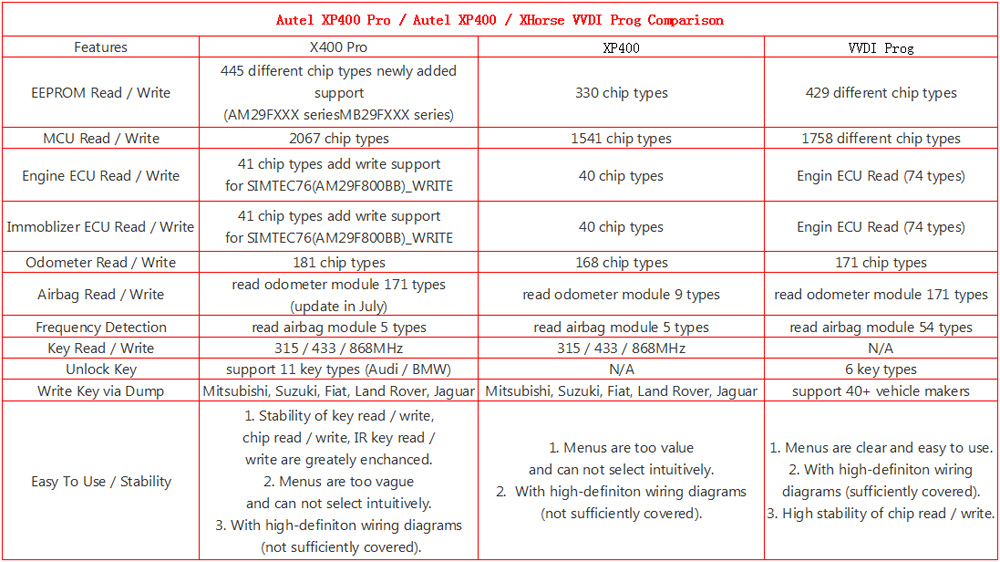

Why do you need XP400 Pro?

1. Expanded EEPROM functions for more component access
2. 170+ types Odometer Component Reading functions
3. 180+ Immobilizer ECU Component types
4. 40+ Engine ECU Component types
5. 2000+ MCU Component types
6. 440+ EEPROM Component types
7. Compatible with IM508 and IM608

Supported Cars:

Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost

BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost

Volkswagen / Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020

Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020

Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020

Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020

Land Rover / Jaguar
*Add Key/All Key Lost up to 2019

Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump

Powerful IMMO Functions:

1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset / Adaption
5. IMMO ECU Refresh / Coding
6. Remote Learning
7. Audi Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaptation
10. BMW CAS4 Key Learning and Adaptation

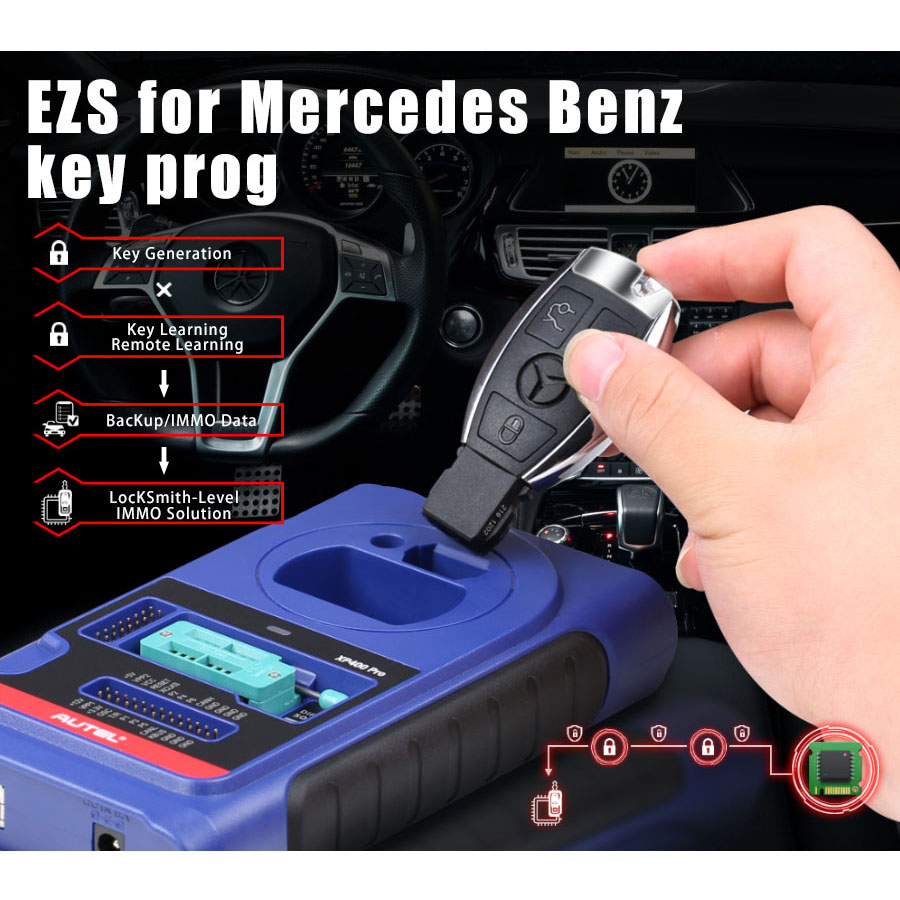

11. Mercedes Key Learning
12. 2015-2018 Land Rover & Jaguar write key via dump
13. Volvo Smart Key Learning / Knob-Style Smart Key

Advanced Programming Functions:

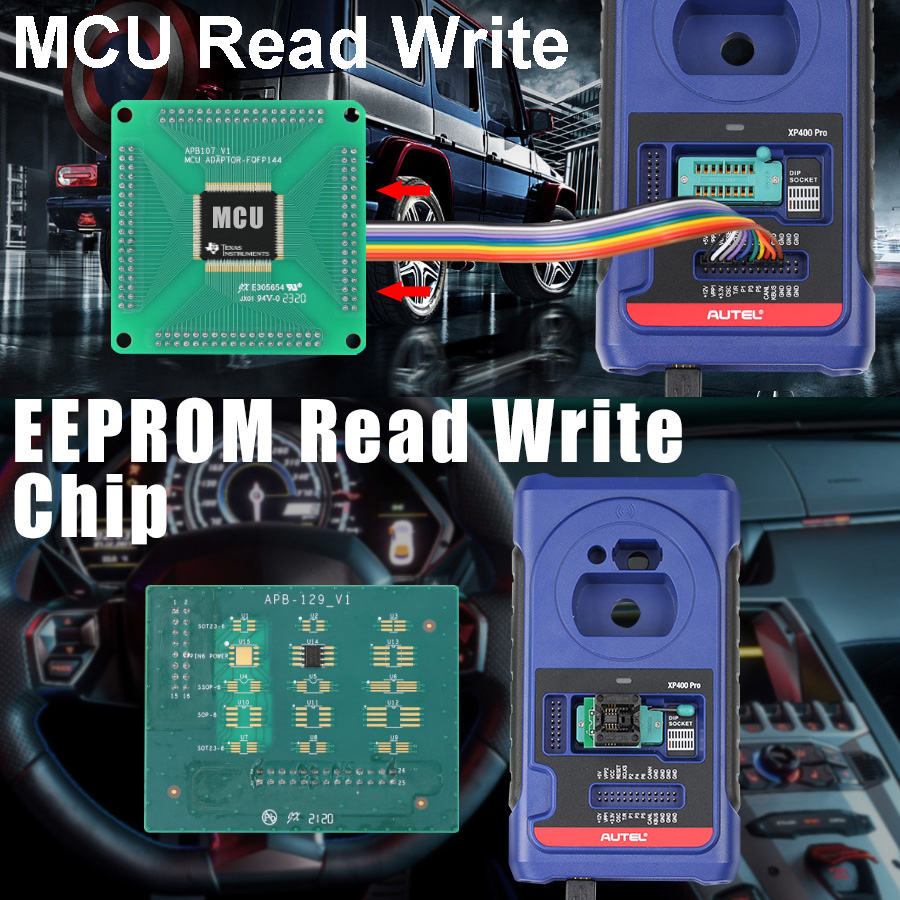

1. EEPROM Read / Write
2. MCU Read / Write
3. Key Programming
4. Mercedes Key Read / Write
5. Remote Frequency Detect

XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine Control Module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW (Renew Key)-->> NEC-->> V51 and V5 chip read / write / erase

XP400 Pro Adds Support for Autel IMKPA Key Programming Accessories Kit (need to buy separately):

APB113 PCF79XX Adapter Board
APB114 EWS3 Adapter Board
APB115 NEC Adapter Board
APB118 NEC ELV Adapter Board
APB119 TB28FXXX Adapter Board
APB120 TMS370 Adapter Board
APB121 AM29FXXX Adapter Board
APB122 AM29FXXX Adapter Board1
APB123 AM29FXXX Adapter Board2
APB126 M35080/D80 Adapter Board
APB127 MC68HC0(7)05BXX Adapter Board
APB128 MC68HC05X32 Adapter Board

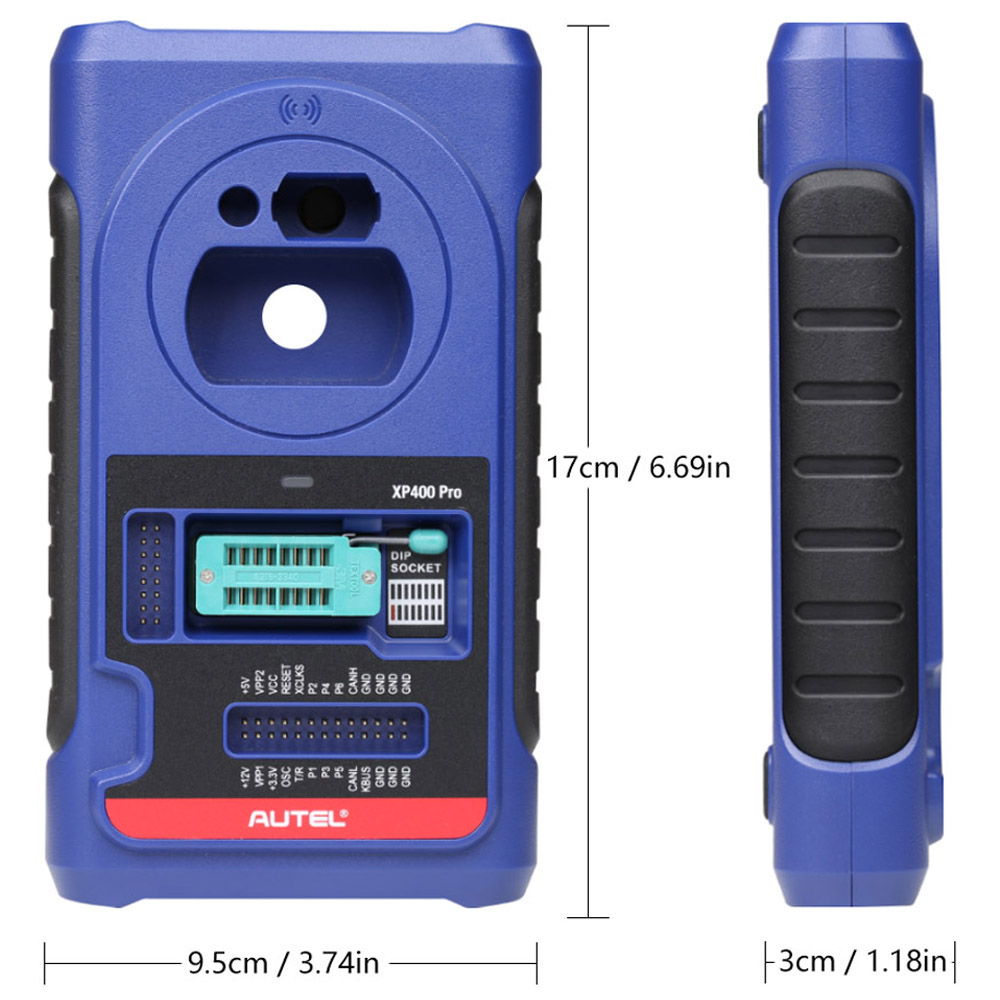

Specifications:

Operating Temperature: -10 to 70 degree centigrade
Storage Temperature: -20 to 85 degree centigrade

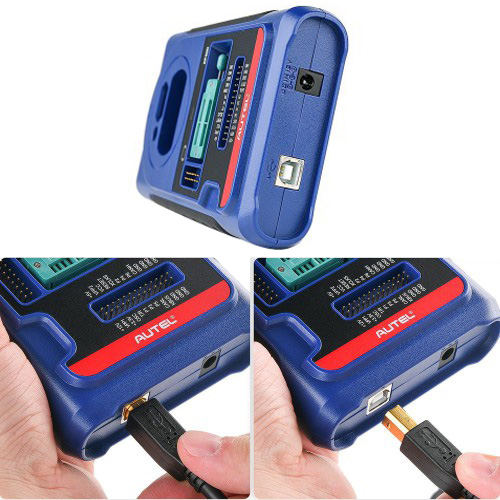

Port Type: USB-B, DB26, DC12
Input Voltage: 5V DC; 12V DC
Operating Current: < 500mA
Maximum Consumption: 2.5W

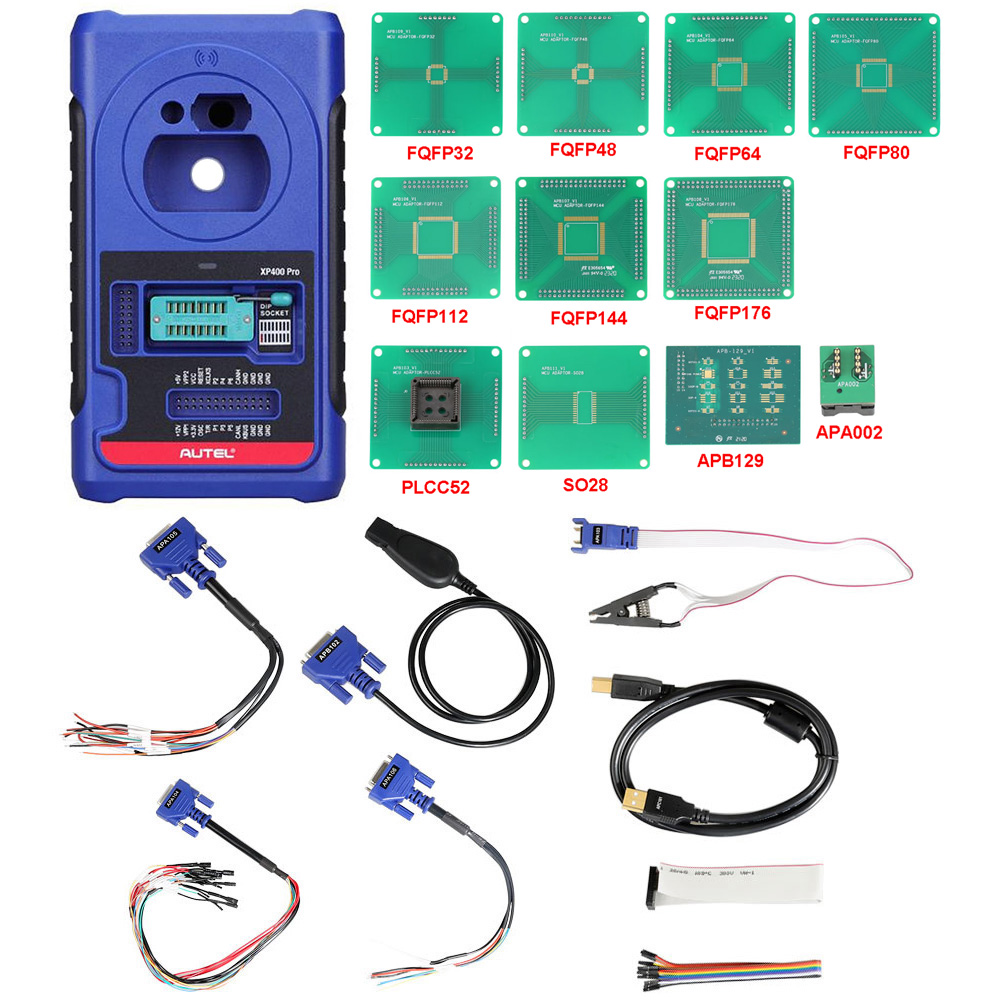

Packing List:

Autel XP400 Pro Key Prog Adapter

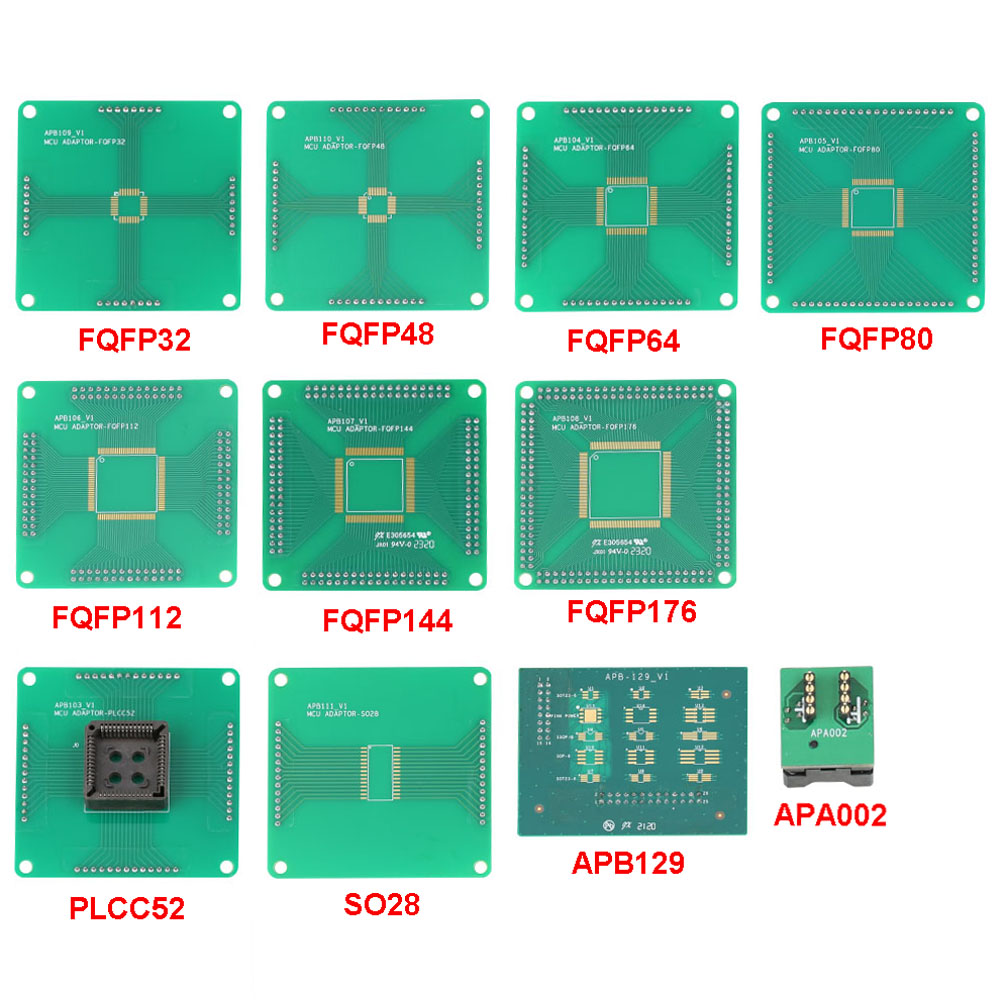

APB129 – EEPROM Adapter
APA002 – EEPROM Socket
APB125 – Mercedes Infrared Collector
APB103 – MCU_PLCC52 Adapter
APB104 – MCU_FQFP64 Adapter
APB105 – MCU_FQFP80 Adapter
APB106 – MCU_FQFP112 Adapter
APB107 – MCU_FQFP144 Adapter
APB108 – MCU_FQFP176 Adapter
APB109 – MCU_FQFP32 Adapter
APB110 – MCU_FQFP48 Adapter
APB111 – MCU_SO28 Adapter
APA101 – Spare Signal Cable
APC101 – USB Cable (Standard USB to Type USB-B)
APA103 – EEPROM Clamp
APA107 – ECU Cable
APA108 – MCU Cable
APA109 – MC9S12 Cable
Dupont Line

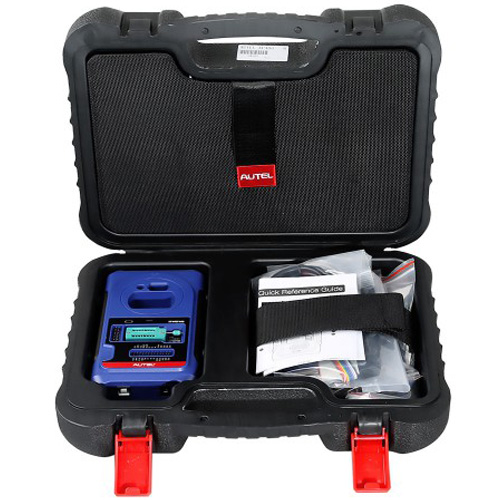

Plastic Toolbox
