Name: Autel APB112 Smart Key Simulator for Autel MaxiIM IM508 IM608
Description:
Autel APB112 Simulator is designed to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.
Currently, it supports to simulate the 4D type chip and more key chip types will be supported with subsequent upgrades.
Functions:
Smart key simulator
Compatible with Autel MaxiIM IM508, Autel MaxiIM IM608, MaxiCheck MX808
Used with the XP400
Can not be used with the XP200
46, 4D data collection
46 smart key password calculation
46 chip simulation
Toyota 4D (94/D4, 98) smart key simulation
Toyota H (88/A8, A9, 39) smart key simulation
Collects data from the ignition coil
Identifies ignition coil troubles
Decodes vehicle key chip data
Simulate vehicle key chip (ex - 4D chip)
Used with Autel diagnostic tool
Toyota/Lexus smart key all key lost
Chip decoding (Hyundai 46)
How to use Autel APB112?
1. Connect Autel APB112 Smart Key Simulator to Autel Diagnostic Device using the supplied USB cable.

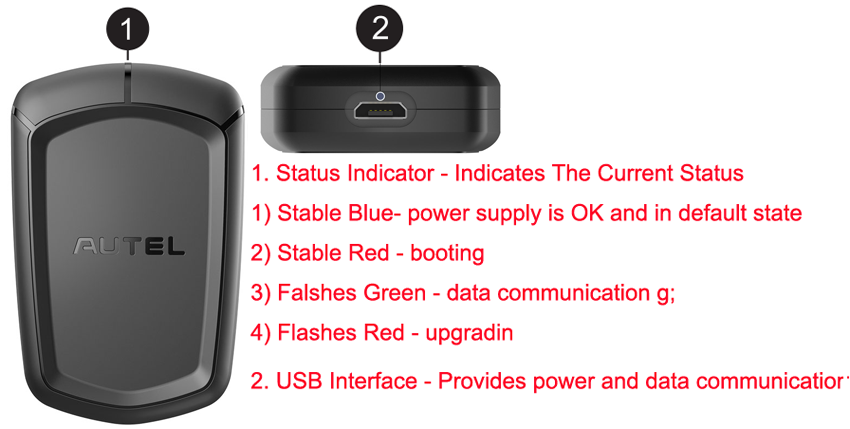

2. After connection, the status indicator lights in blue, indicating that the APB112 Smart Key Simulator is working properly and then automatically communicates with the Diagnostic Device.
3. Autel APB112 Smart Key Simulator application is automatically upgraded on Autel Diagnostic Device according to the selected vehicle system function.
4. Place the Smart Key Simulator close to the ignition coil for data collection, which is used for decoding the chip. After decoding, the original car chip data can be copied.
5. The emulator key chip can generate various types of key chips with subsequent upgrades according to requirements.

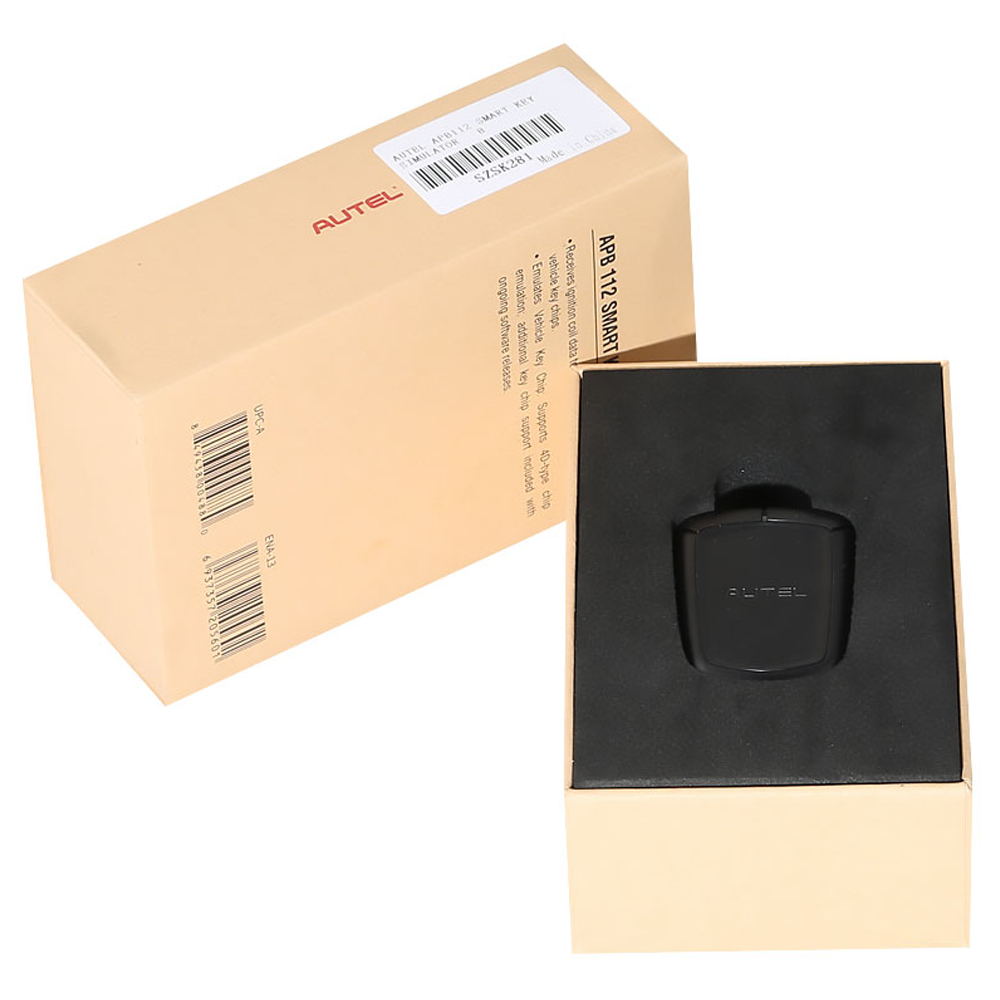

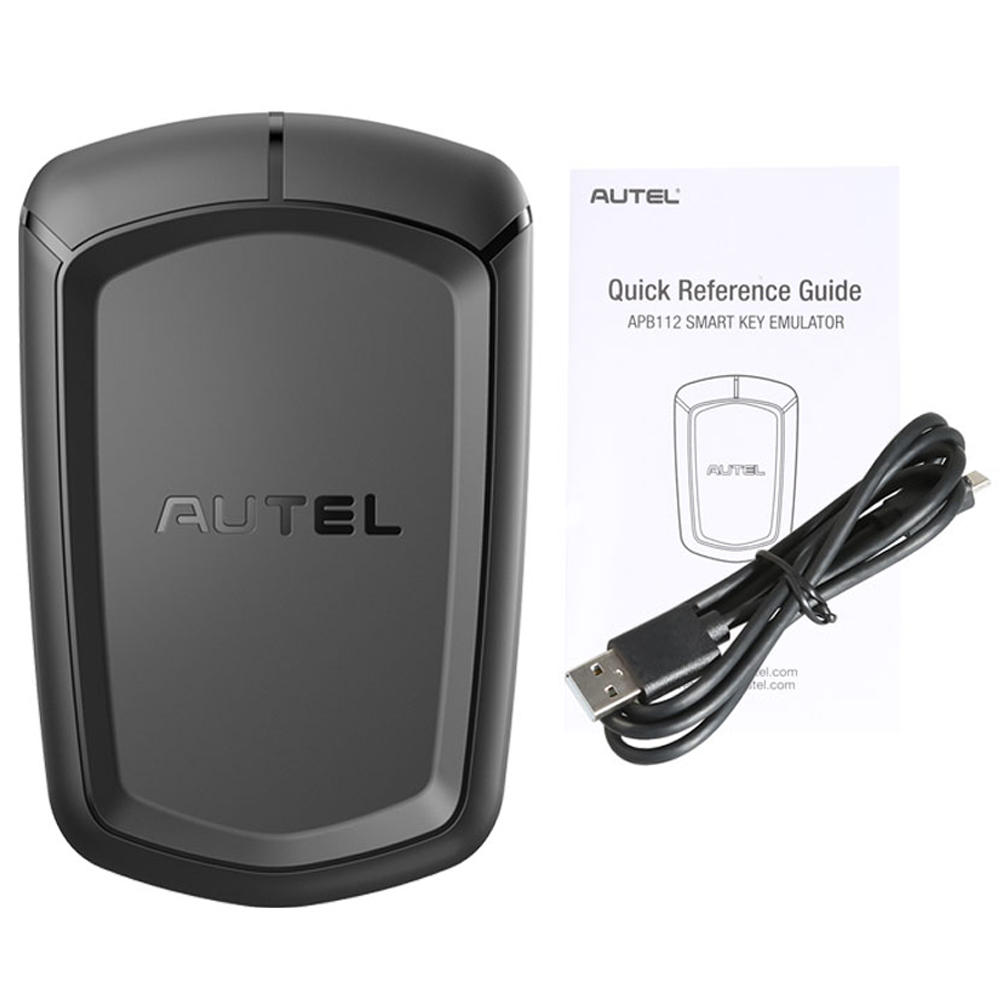

Packing List:
Autel APB112 Smart Key Simulator
USB Cable
Quick Reference Guide
Packing Box
 |
