Description:

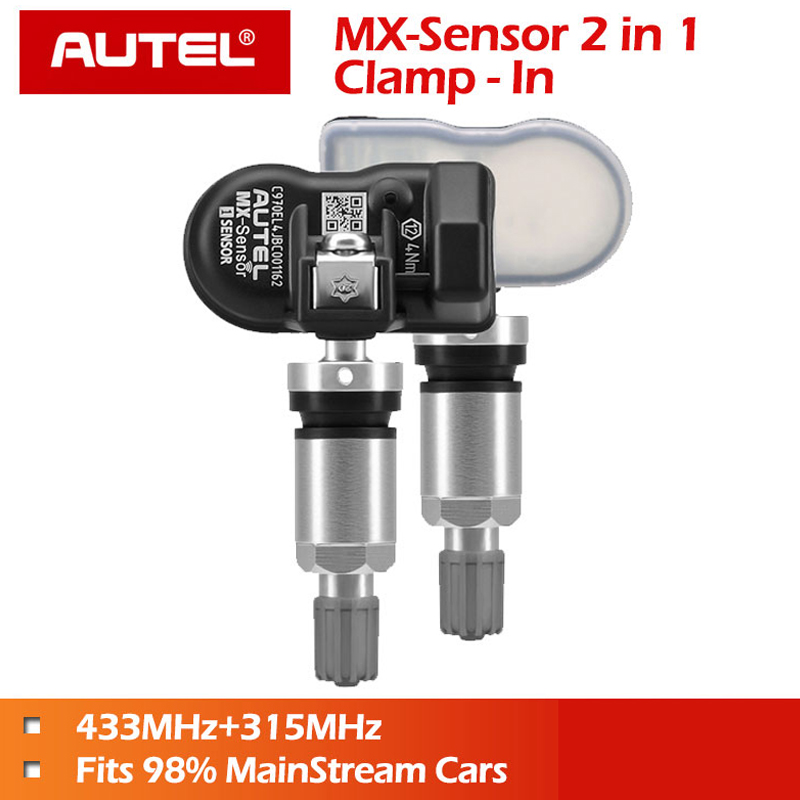

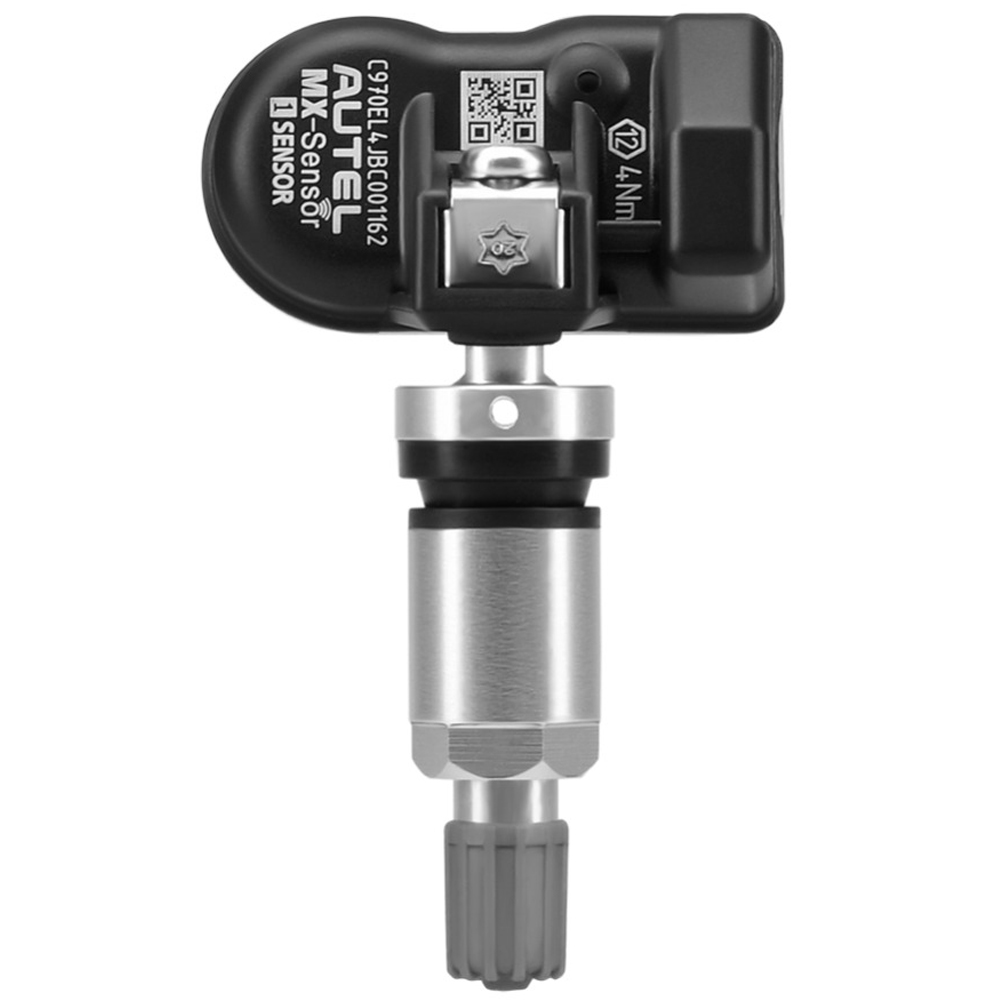

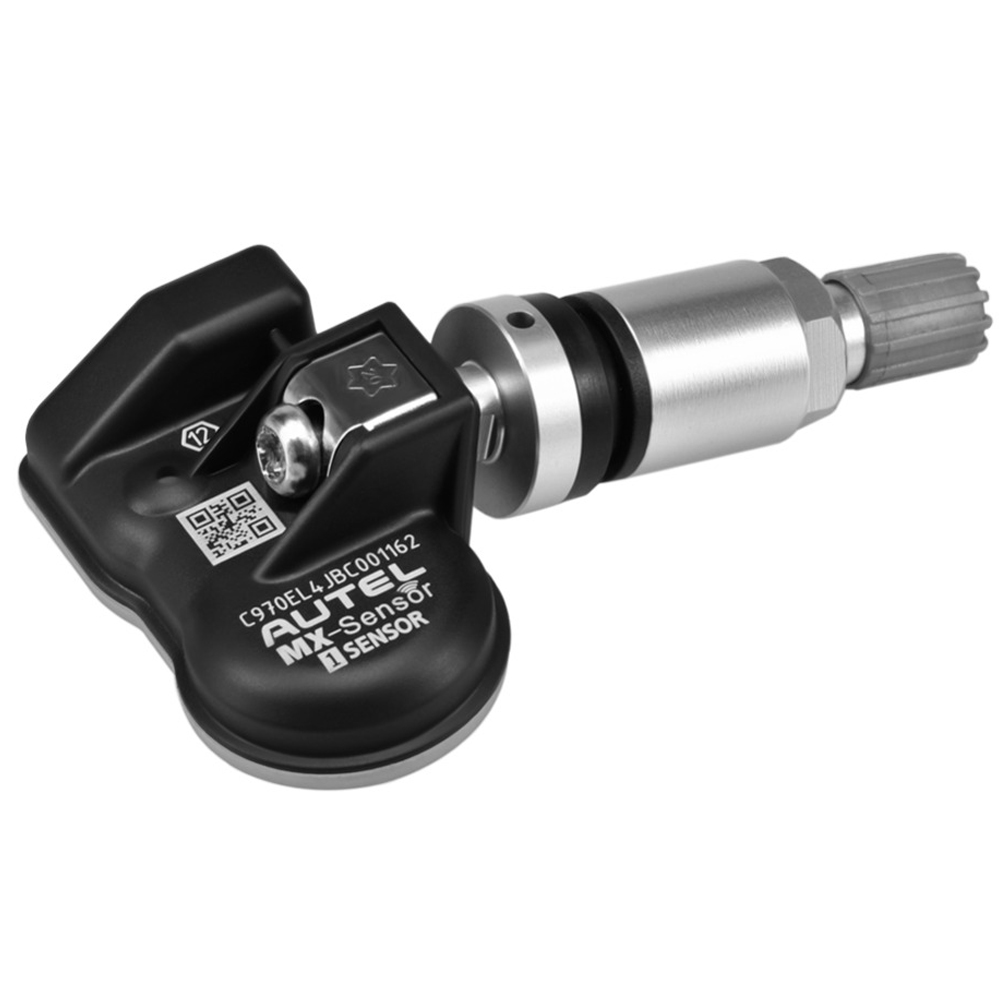

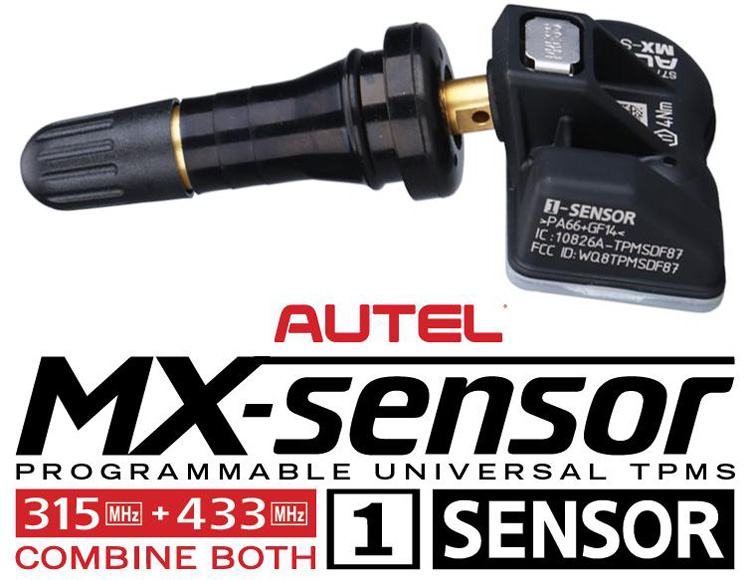

Autel 1-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor with the highest industry vehicle coverage. The exclusive MX-Sensor patented PRESS release valve stem design, allows rubber and metal valve stems to freely interchange by hand, without requiring a tool for sensor head fitting. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update during installation with Autel wireless programming tool.

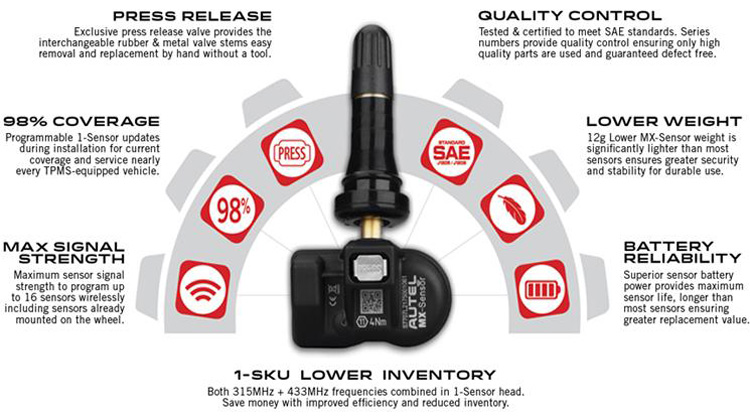

Features & Benefits:



Greatly reduce sensor inventory investment with the 1-SKU Autel MX-Sensor 1-Sensor solution providing 98% vehicle coverage. The easy to use exclusive PRESS release valve design reduces tire and wheel service time to increase profits. With both rubber and metal accessory valves available, easily choose the preferred valve stem to minimize installation time and provide a quick and simple assembly.



Autel MX-Sensor Complete TPMS Solution



Autel is the only manufacturer to produce both TPMS sensors and easy-to-use TPMS tools to offer a truly complete TPMS solution.

Most Current Vehicle Coverage

More Compatible Tools & Sensors

Easiest To Use Tool Navigation

Quicker TPMS Repairs & Service



Autel MX-Sensor 98% Vehicle Coverage Limited 1-Sku Inventory



An easy to use and cost effective necessity for any shop performing TPMS repairs, Autel 1-SKU sensor inventory solution with 98% vehicle coverage eliminates the need for distributors to carry the hundreds of sensors to fulfill shop orders. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.

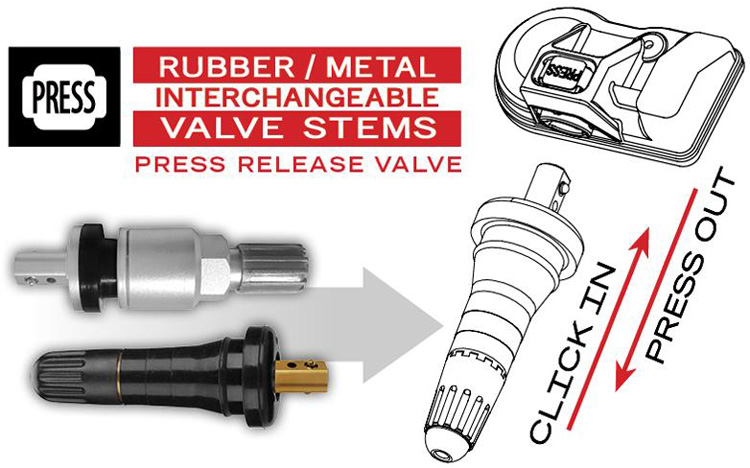

 Autel MX-Sensor Exclusive PRESS Release Interchangeable Valve Stems

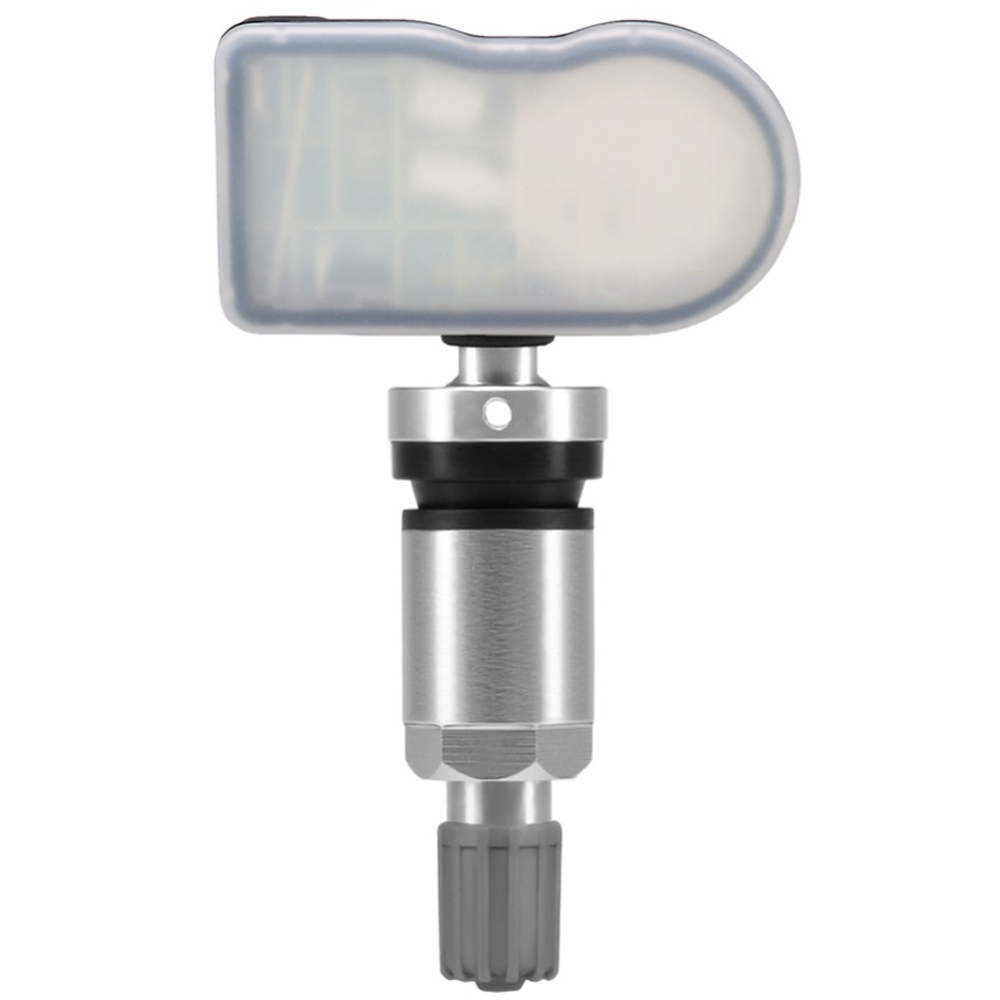

The patented PRESS release valve design allows interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required. Simply click in and press out. Installing TPMS sensors has never been so easy.

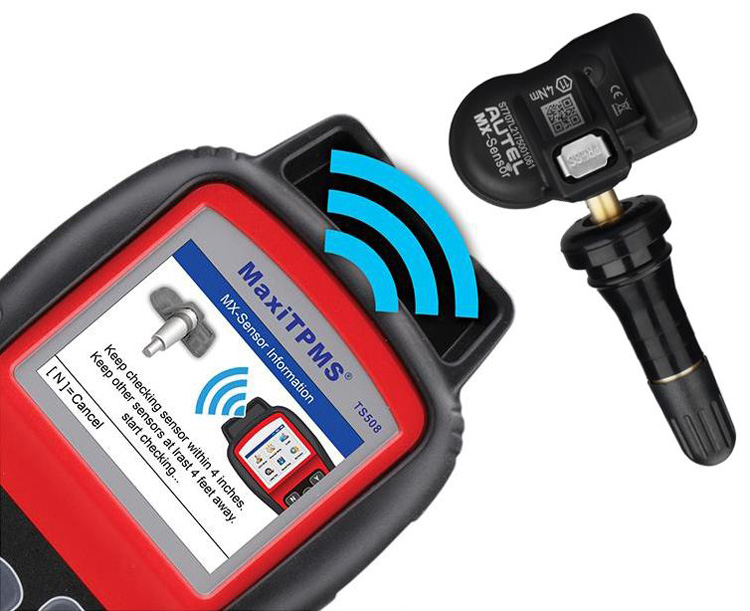

Autel MX-Sensor Maximum Signal Strength Wireless Programming



The extraordinary sensor signal strength allows AUTEL 1-Sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 16 sensors can be programmed in one session with AUTEL latest TPMS tools. AUTEL MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.



Autel MX-Sensor Superior Battery Reliability Lower Sensor Weight



With the highest quality materials and advanced TPMS technology, Autel 1-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The 1-Sensor body weighs only 12g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.

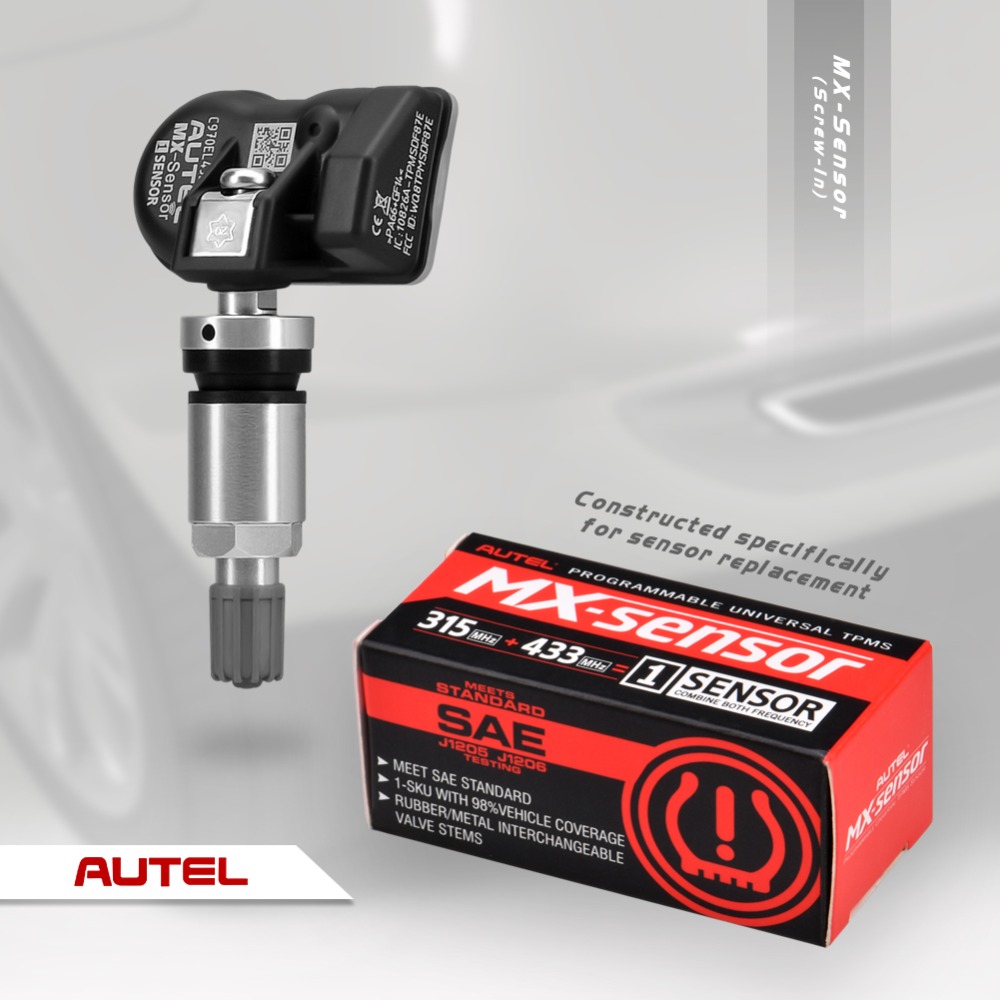

Autel MX-Sensor SAE Tested & Certified Strict Quality Control



Autel high-quality MX-Sensor is tested and certified to meet SAE industry standard J1205 / J1206 testing. AUTEL guarantees MX-Sensor are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first. Each Autel MX-Sensor has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with Autel TPMS tools. With the series number, Autel can track the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.



Specifications:



Battery Life: ≥5 years

Operating Temperature: -40 to 125 degree centigrade

Storage Temperature: -40 to 125 degree centigrade

Operating Humidity: ≤90%

Operating Frequency: 315 MHz / 433 MHz

Pressure Monitoring Range: 100 to 900 KPa

Pressure Reading Accuracy: ±10 kPa

Temperature Reading Range: -40 to +125 degree centigrade

Temperature Reading Accuracy: ±5°C

G Sensor Reading Accuracy: ±15%

Transmission Power: 5-8 dBm

Battery: 3.0 V

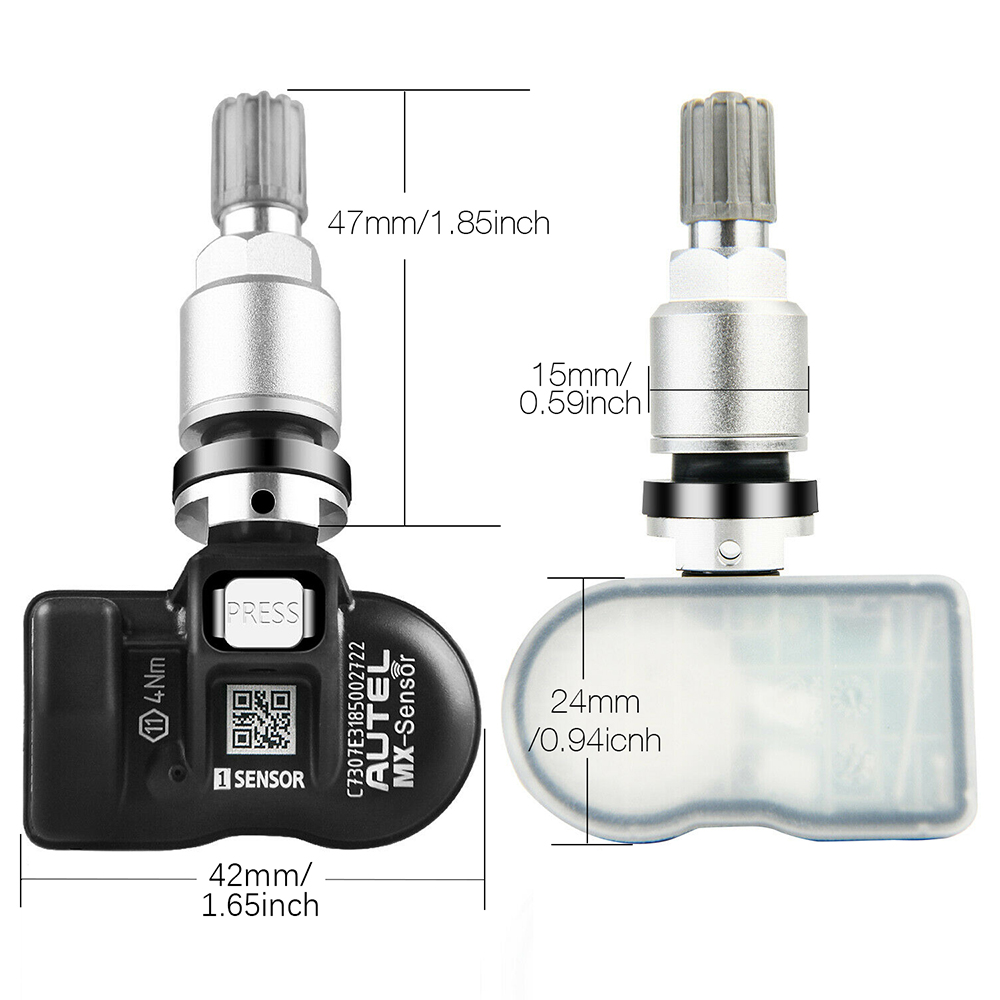

Dimensions (W*H*D): 42.2*27.9*17.4mm

Weight(without valve) 12g



Packing List:

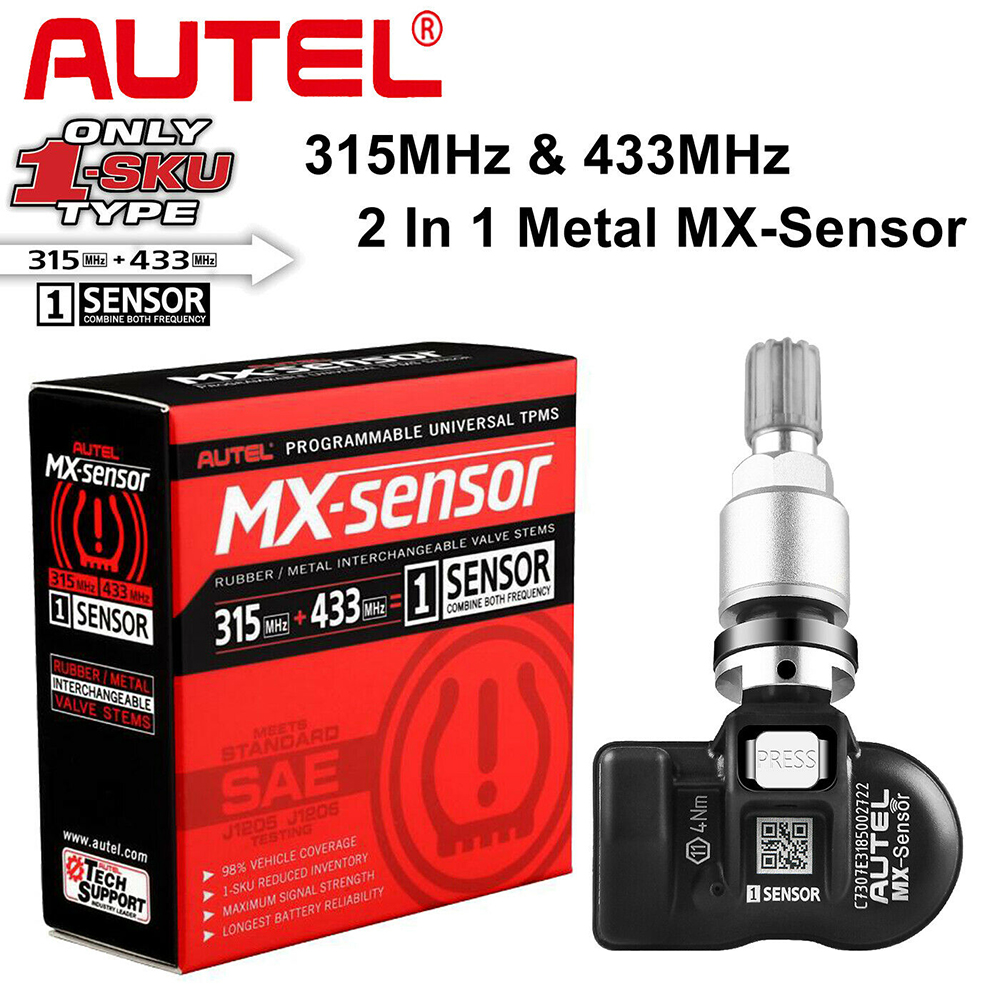

Autel MX-Sensor 433/315MHz 2 in 1 TPMS Sensor

User Manual

Packing Box
