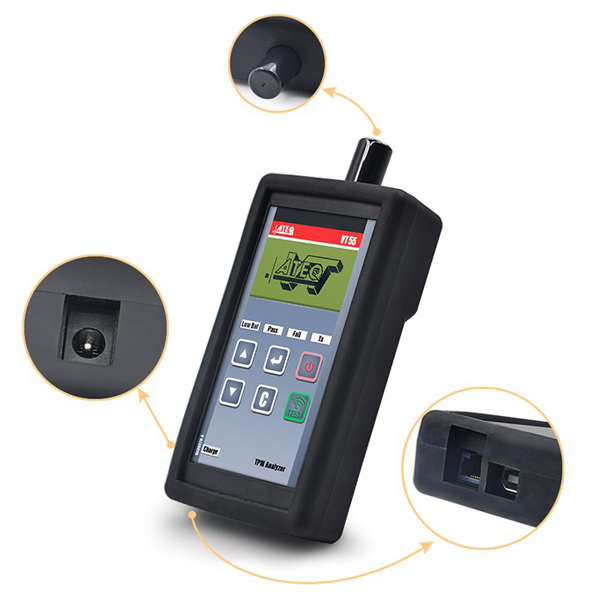

Description:



ATEQ VT55 OBD-II TPMS Diagnostic and Programming Tool activates and decodes TPMS sensors and displays data or faults. The best way to turn the tire warning light OFF!



On top of the US manufactured vehicles, the ATEQ VT55 OBD-II TPMS reprograms Asian or European vehicles (including for Toyota, for Honda, for Nissan, for Hyundai, for Kia, for Mitsubishi, etc) which do not feature a TPMS self reprogramming software.



VT55 OBD2 kit includes a universal OBD connector which connects to the vehicle ECU via CAN BUS and K-line. Technicians only need to select the make of the vehicle and press the START button. It is that easy and fast to accurately activate and decode TPMS sensors and displays their data or any faults they may have.



VT55 OBD-II is a universal TPMS sensor activator that can also program the vehicle ECU, if required. Compatible with all currently known TPMS sensors, it has a built in synchronization software which ensures that it stays up-to-date with all the new TPMS sensors introduced every year. Designed to last in forceful environments like tire repair shops, the VT55 OBD-II can handle high volume testing throughout the day due to its rechargeable battery. The VT55 OBD-II is equipped with the latest advanced stream decoding technology that can trigger and decode sensors much faster and more accurately than previous generation devices.



The VT55 OBD-II triggers all newly mounted TPMS sensors, reprograms the vehicle’s ECU and turns the warning light off. The VT55 OBD-II uses the relearn option of the vehicle ECU software, if available, or uses the OBD connector whenever required. ATEQ VT55 OBD-II decodes the sensor data and ensures that the correct Tire Pressure Monitoring Sensor is being read and that the RF transmission is not coming from key fobs or other sensors.



The process allows the operator to display the data on screen but also to transfer it to a PC and print out results to show the customer which TPMS sensor is faulty and why.



The VT55 OBD-II tool displays: sensor ID, pressure, battery status, temperature, accelerometer etc.



VT55 OBD-II software is compatible for all Asian and European vehicle brands that require OBD synchronization. Our very simple PC interface guides the user through a minimal number of steps. An upgradeable TPMS tool has never been such important as new Tire Pressure Monitoring Sensors are being fitted to new car models at an increasing rate.



ATEQ has a dedicated team that tracks all new TPM Sensors introduced on the market and that makes sure that ATEQ TPMS tools can be updated with those sensors months or years before they actually reach your garage.



You will not find a better service anywhere else, as ATEQ also supplies car assembly plants which gives us access to new TPMS protocols long before anyone else can.



The VT55 OBD-II comes equipped with an OBD universal connector, a charger for its battery, a rubber protection and carrying pouch, a magnet to trigger certain models of TPM sensors.



Specifications:



Equipment Required To Carry Out The Test:

ATEQ TPMS Box; Air Supply + Pressure Gauge; ATEQ VT55 TPMS ATEQ VT55 TPMS sensor decoder to read the pressure value of the sensor from within the box.

TPMS Sensor Compatibility: All currently known TPMS sensors on the market

New Sensors Compatibility: As long as they fit inside the box, they are compatible

Maximum Test Pressure (approx.): 5 Bars (73 PSI)

Connectors: Standard pneumatic dual connections on backside. One to connect air supply and an optional one to check the calibration of the gauge you are using.



Supported Languages:  English, French, Spanish, Polish German, Czech, Italian



Supported Protocols:



VPW

PWM

ISO 9141-2

KWP2000



How to test a remote control?



1. Power up the tool and select RKE TEST in the main menu.

2. Select the car manufacturer.

3. Press the key fob and wait for the result to display on the screen.

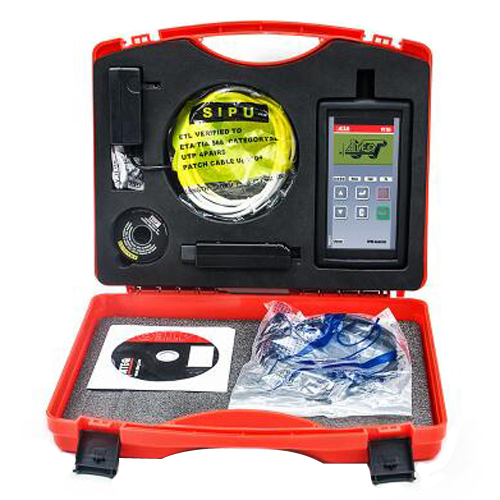

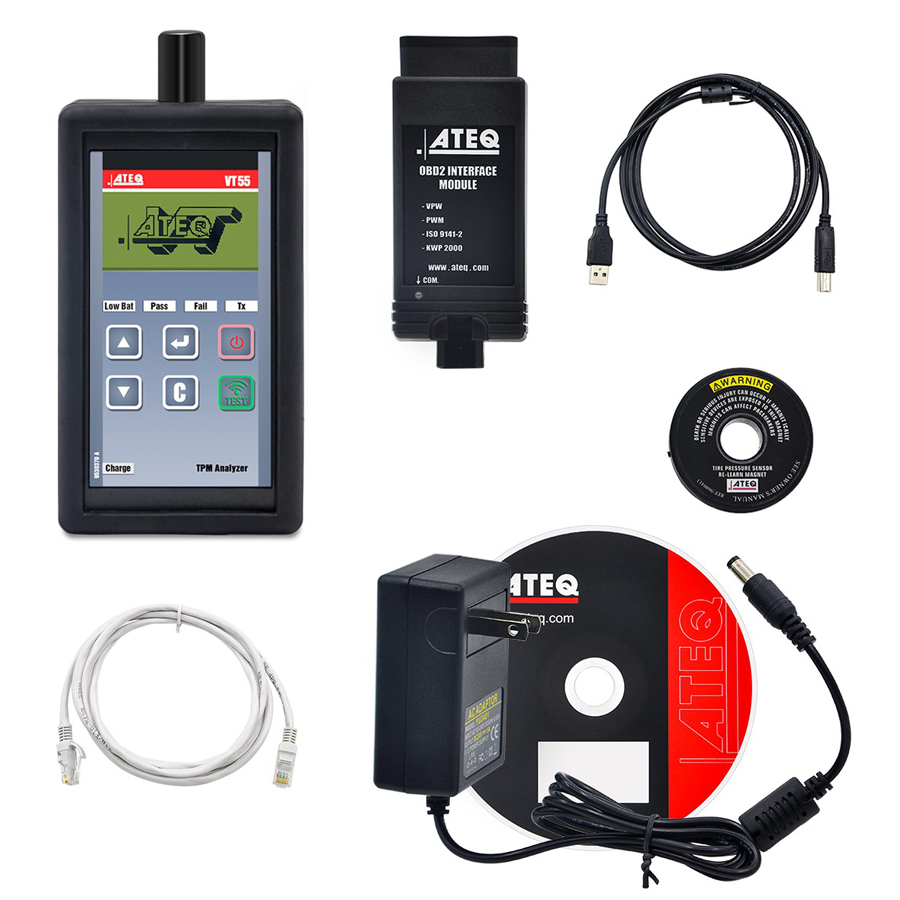

Packing List:



ATEQ VT55 OBD-II TPMS Diagnostic Tool

OBD2 Programmer

USB Cable
LAN Cable

Magnet

Power Supply Adapter

Software CD

Plastic Toolbox

Packing Box
