  OBDSOS PRODUCTS Car Universal Diagnostic Tool ThinkCar
Product ID
Product Name ThinkCar ThinkTool Pros with 2 Years Free Update
Product Price USD950
Actual Weight (Kg) 5.7
Volumetric Weight (Kg) 5
Package Size (cm) 47*15*32
Related Download
Order Quantity:
In Stock
Frequently Buy Together +

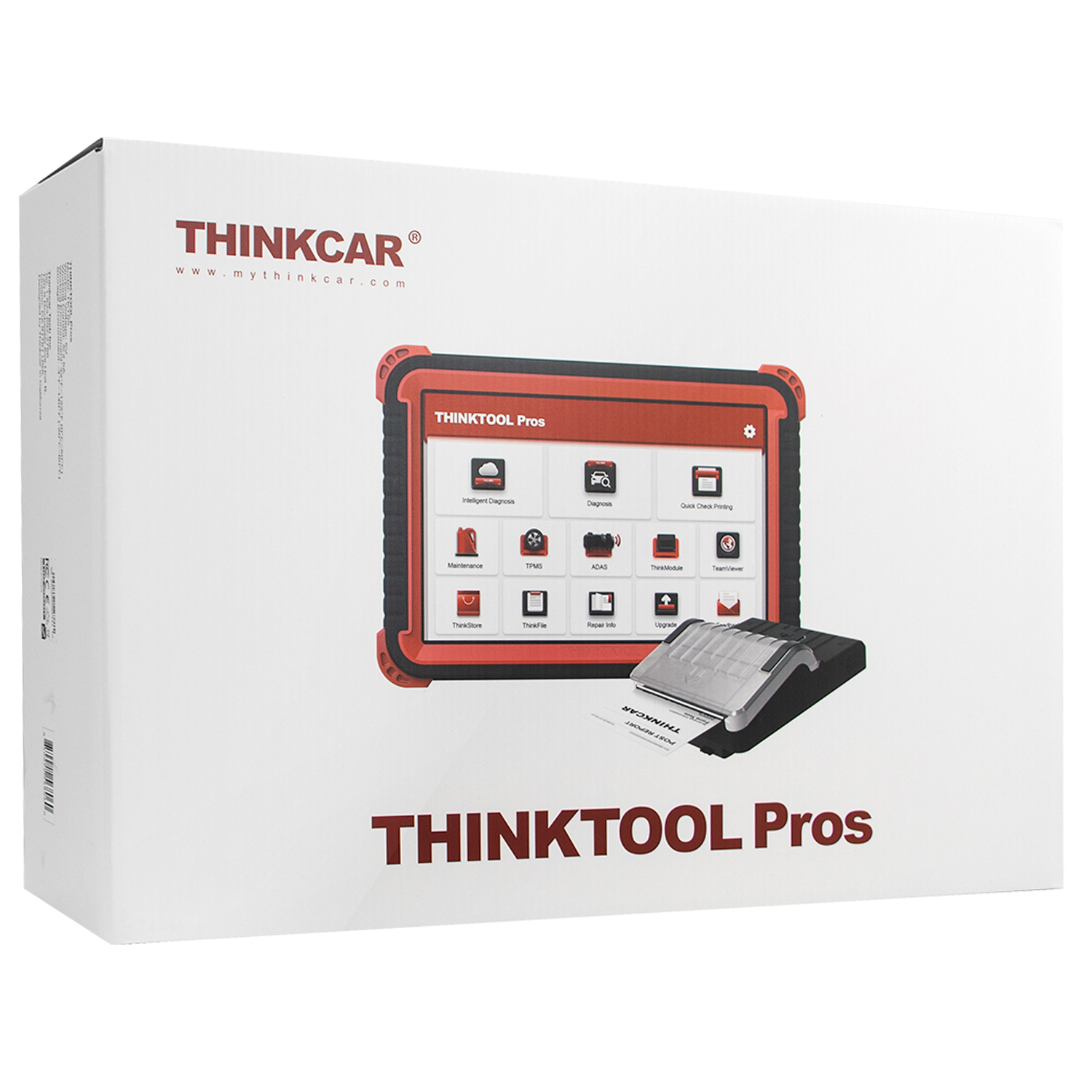

Name: ThinkCar ThinkTool Pros
ThinkCar ThinkTool Pros is 10 inch full system car scanner with Bluetooth WiFi. It supports 28 Special Service, ECU Coding, Online Programming, ADAS Calibration, Active Test.

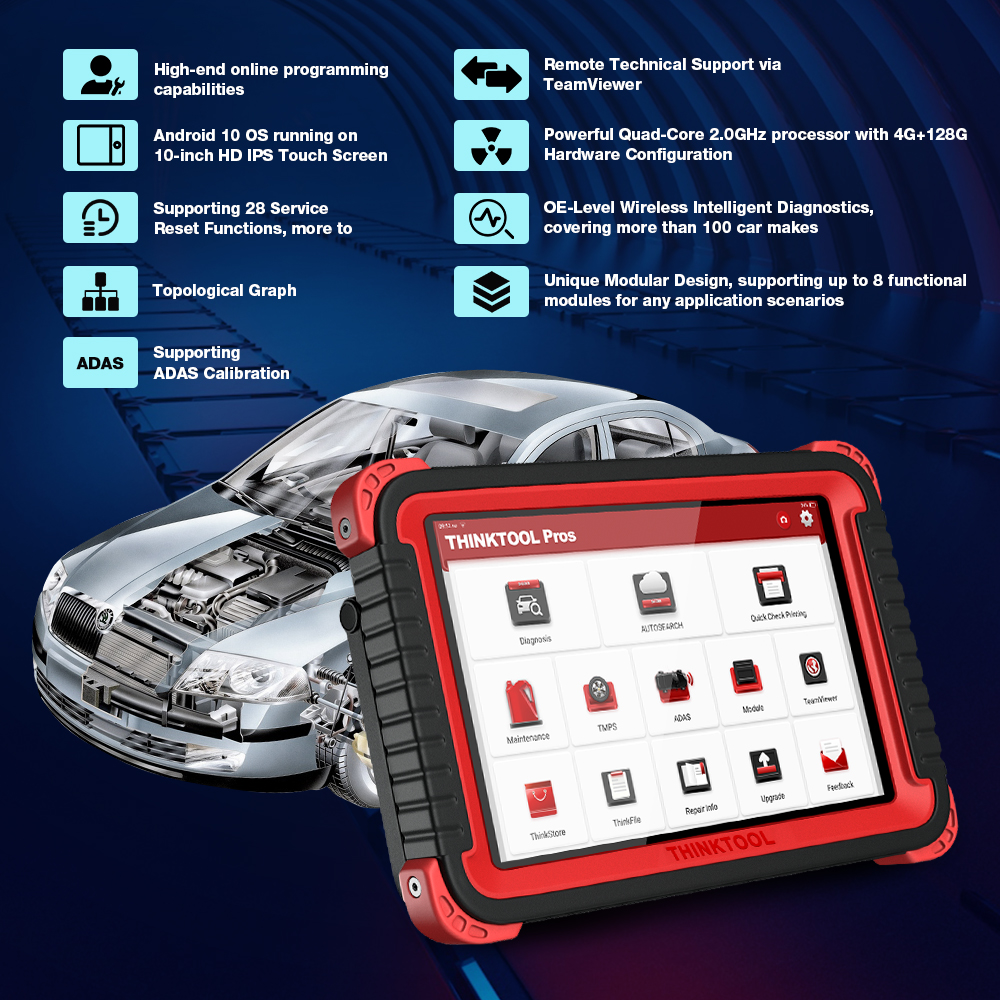

1. High-end online programming capabilities.
2. Powerful quad-core 2.0GHz processor with 4G RAM + 64G ROM hardware configuration.

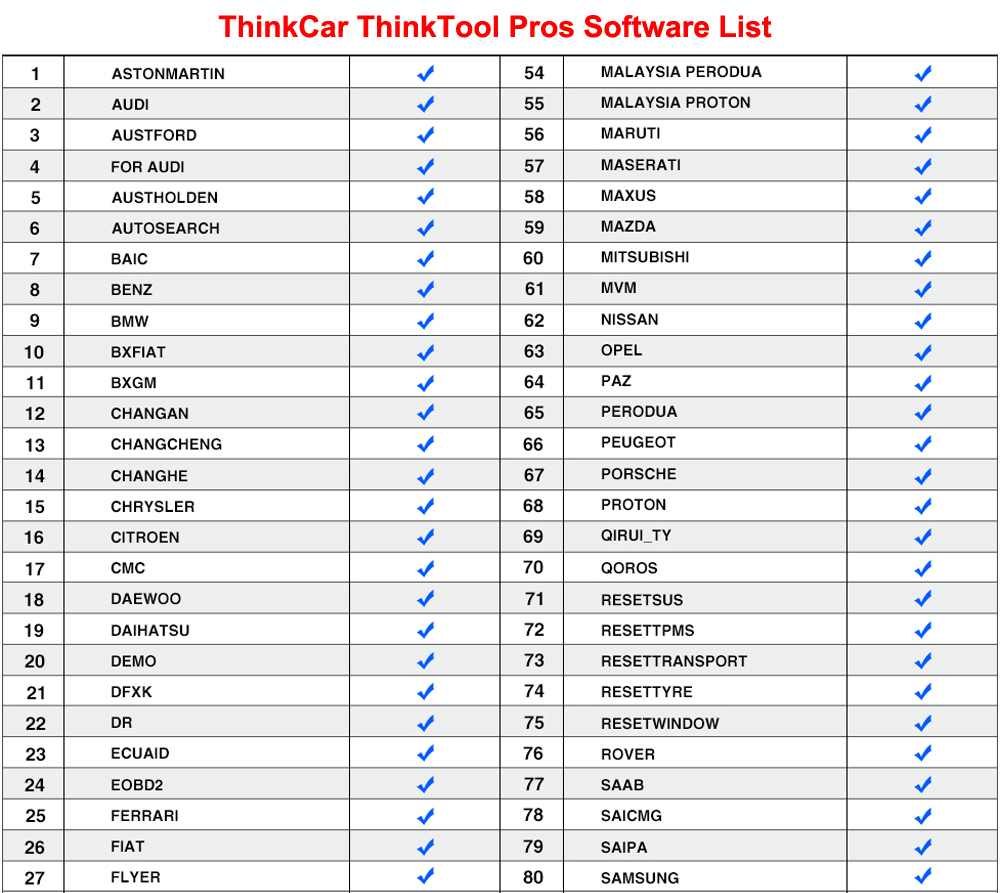

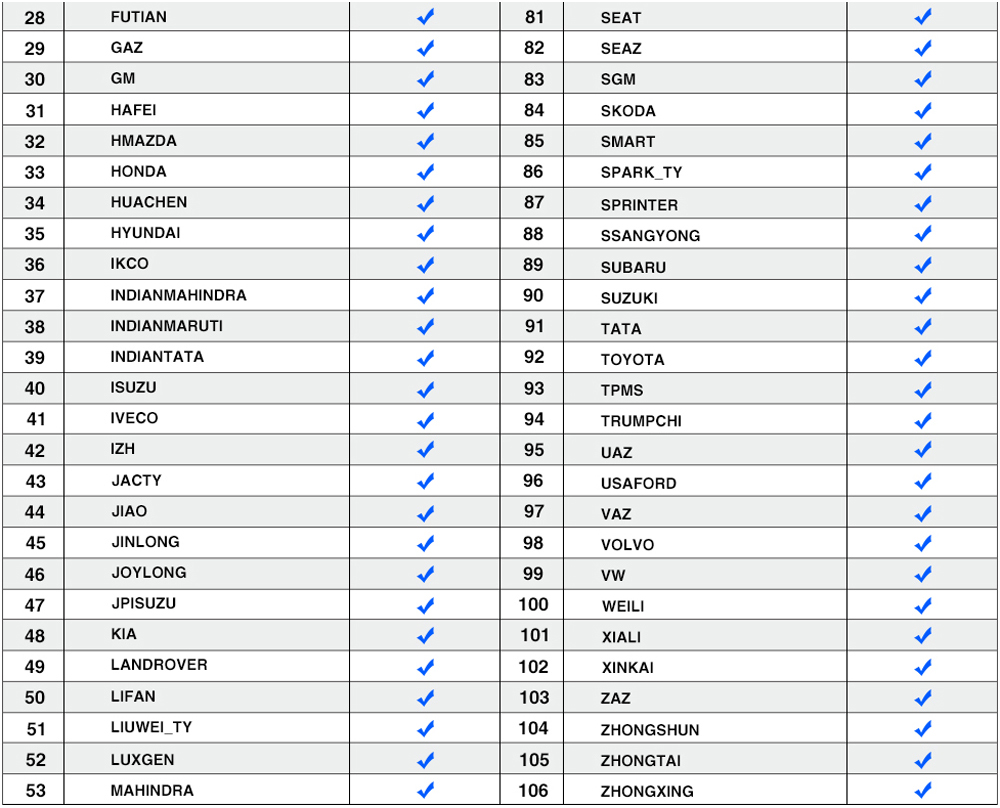

3. OE-level Wireless Intelligent Diagnostics. Covering more than 100 car makes.
4. Unique Modular Design. Supporting up to 8 functional modules for any application scenarios.
5. Android 10 OS running on 10-inch HD IPS touch screen.
6. Supporting 28 Service Reset Functions. More functions will be added soon.
7. Topological Graph.
8. Supporting ADAS Calibration.
9. Remote Technical Support via Team Viewer.

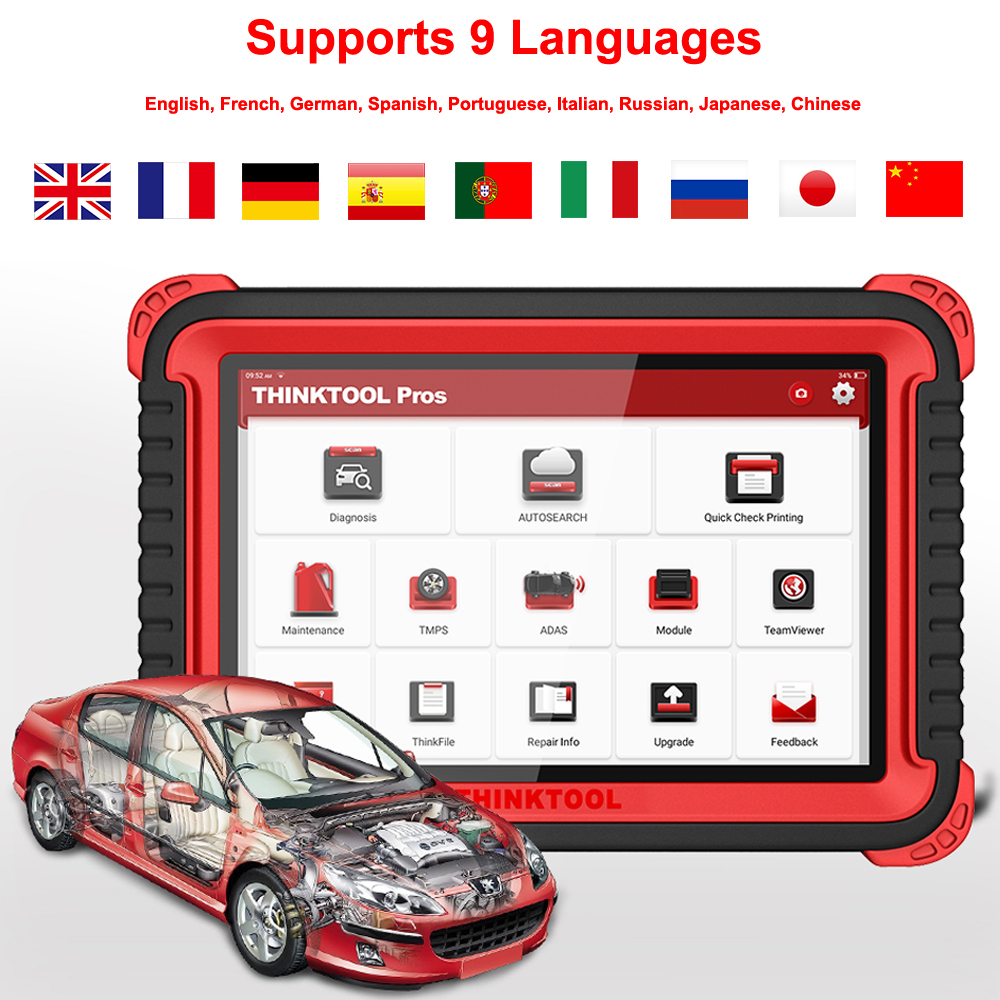

Supported Languages: English, French, German, Spanish, Portuguese, Italian, Russian, Japanese, Chinese
Software Update: 2 years free update online
Advanced Functions:

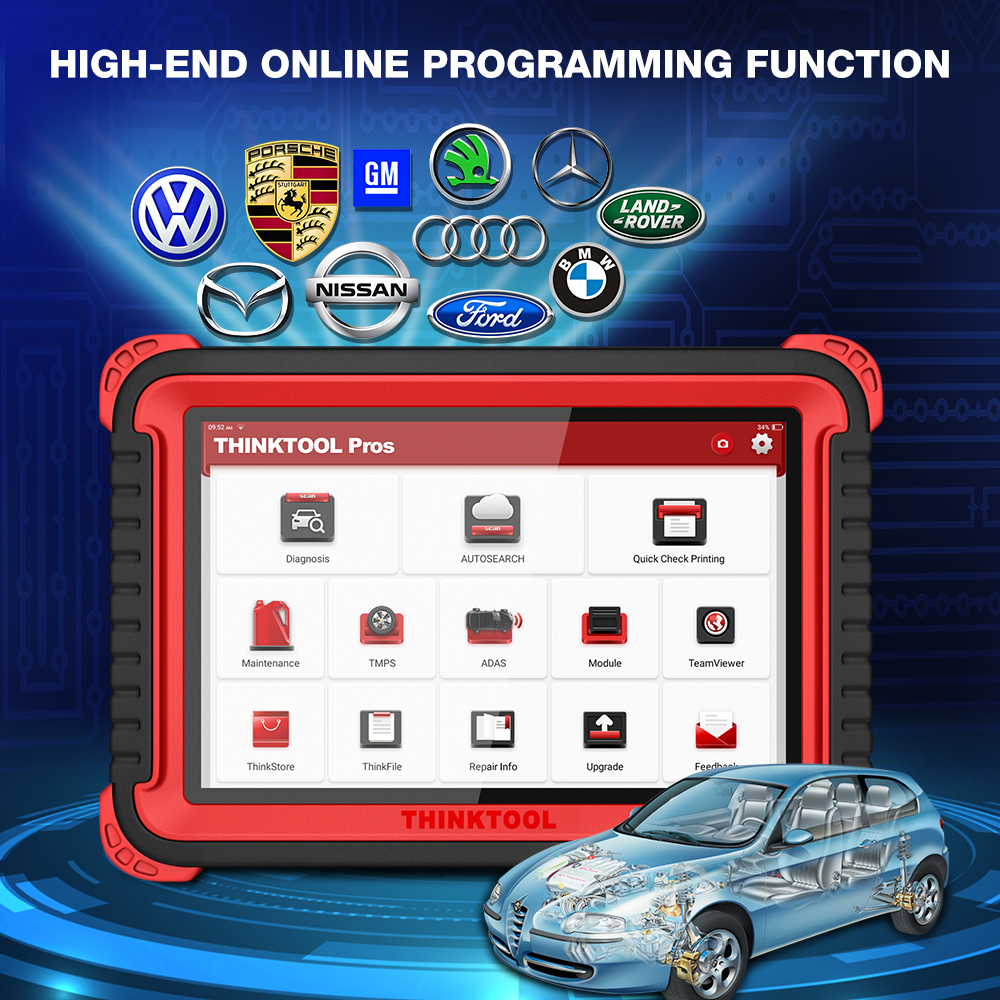

1. Online Programming (Need to pay for the function, waiting for ThinkCar open the purchase button, except USA & Spain.)
ThinkTool Pros supports programming and coding, which is to write the relevant control information of the software into the automotive computer's programmable EPROM or FLASH by making use of the electronic communication transmission technology.
ThinkTool Pros support intelligent recognition of programming files, convenient and quick operation. Support for Mercedes-Benz, for Benz New Energy, for BMW, for BMW New Energy, for GM, General New Energy, for Ford, Ford New Energy, for Volkswagen, for Volkswagen New Energy, for Audi, for Audi New Energy, for Land Rover, for Nissan, Skoda, for Sit, for Mazda and other models Programming function.
2. Complete 10 OBD2 functions
1). Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
2). Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.
3). Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4). I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5). Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6). View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7). O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8). On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
9). Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10). Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

3. ADAS Calibration
Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and adaptive lighting.
The function on the equipment is disabled by default, and the user needs to activate the function with an activation card before using it. And this function needs to be matched with ThinkCar ADAS calibration tools. Mainly used to calibrate various camera and radar of driver assistance systems
4. 28 Maintenance function :
1). Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.
2). Elec.Throttle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.
3). Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.
4). Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
5). ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.
6). Break-pad Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.
7). DPF Regeneration DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
8). Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.
9). IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced, anti-theft key matching must be performed.
10). Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
11). TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL. Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.
12). Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.
13). AFS Reset
This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
14). A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (or car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.
15). Sunroof Initialization
This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.
16). EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
17). ODO Reset
A. ODo reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
B. Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do odo reset after maintenance.
18). Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.
19). Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
20). A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
21). Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).
22). NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.
23). AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
24). Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
25). Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
26). Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.
27). Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.
28). Language Change
This function is used to change the system language of the vehicle central control panel.
More functions will be added with continuous update of ThinkCar ThinkTool Pro software and program.
Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, ) and more and more function will be improved and optimized ...

5. TPMS Diagnostic Function
ThinkTool Pros can work with wireless tire pressure diagnostic tool (optional accessory) to achieve the features of TPMS activation, programming and learning.
1). Activation: To activate the sensor's lD, wheel pressure, sensor frequency, tire temperature and battery status.
2). Programming: To program sensor data to a blank Thinkcar sensor, so as to replace a sensor that is in low battery and does not function properly. There are three sensor programming methods available: automatic, manual, and via activation replication.
3). Learning: To write the sensor ID into the vehicle ECU for sensor identification.

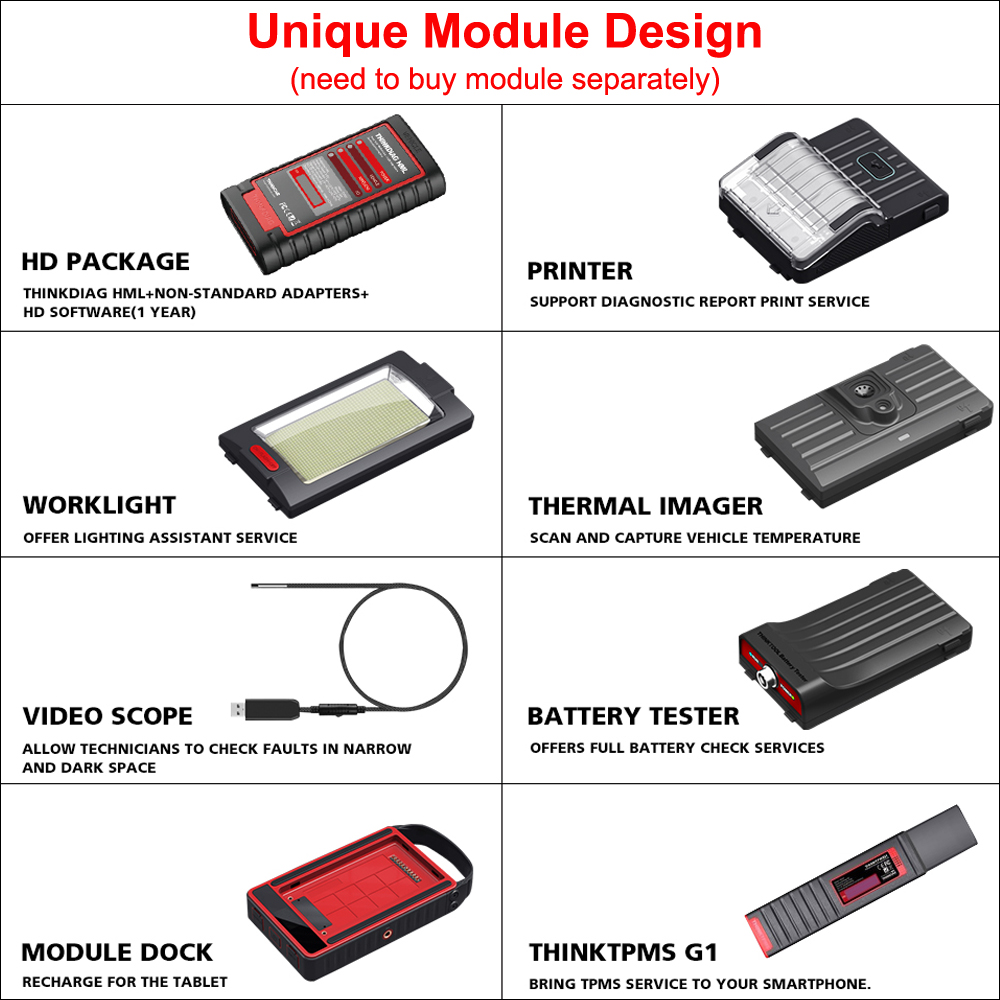

6. Module Expansion
Supported Optional Modules: Printer, Work light, Video Scope, Battery Tester, Scope Box, Thermal Imager, Module Dock, Wireless TPMS Tool, HD Package (Note: you can buy those model on ThinkStore)

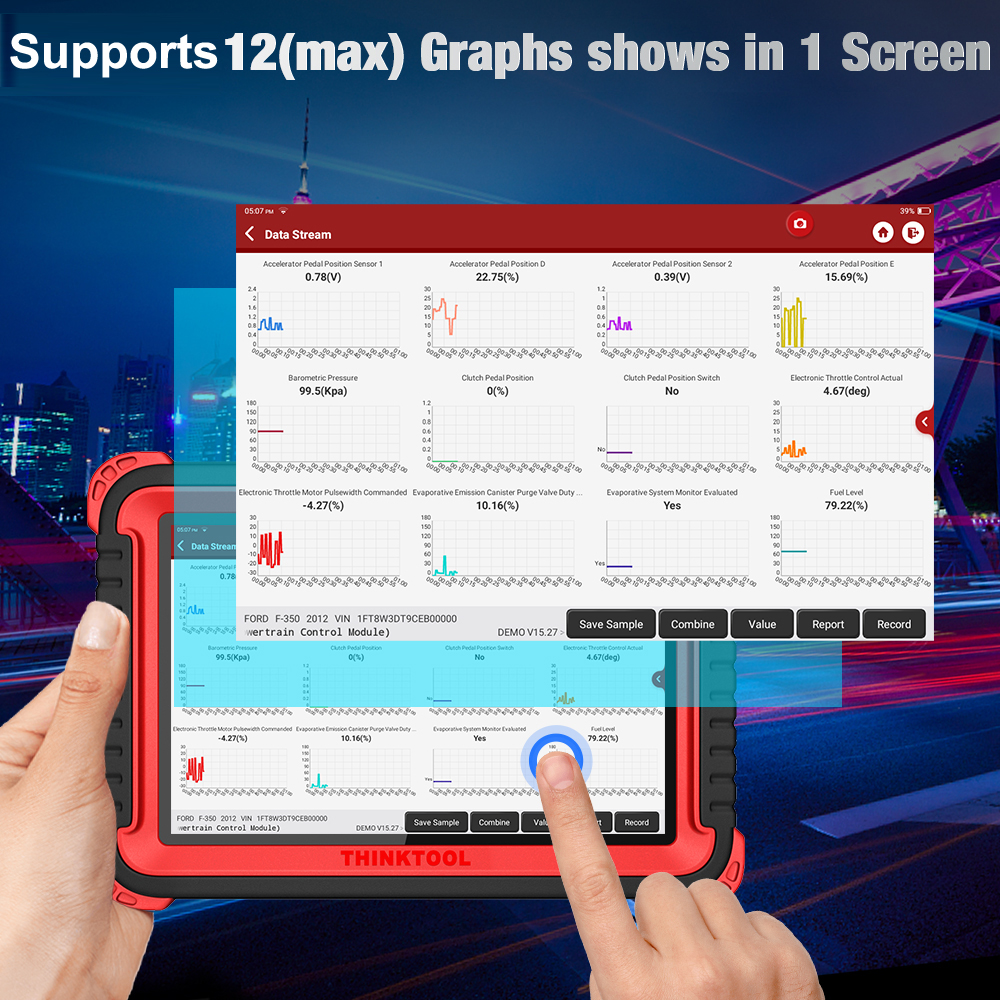

7. 12 Data Graphs shows in the Same Screen
It is better you can compare and analysis the data. Easy to find the problem of the car!

8. Supports HD Package
ThinkTool Pros Supports 12V cars and 24V trucks , but please note HD Package need to pay additional costs.

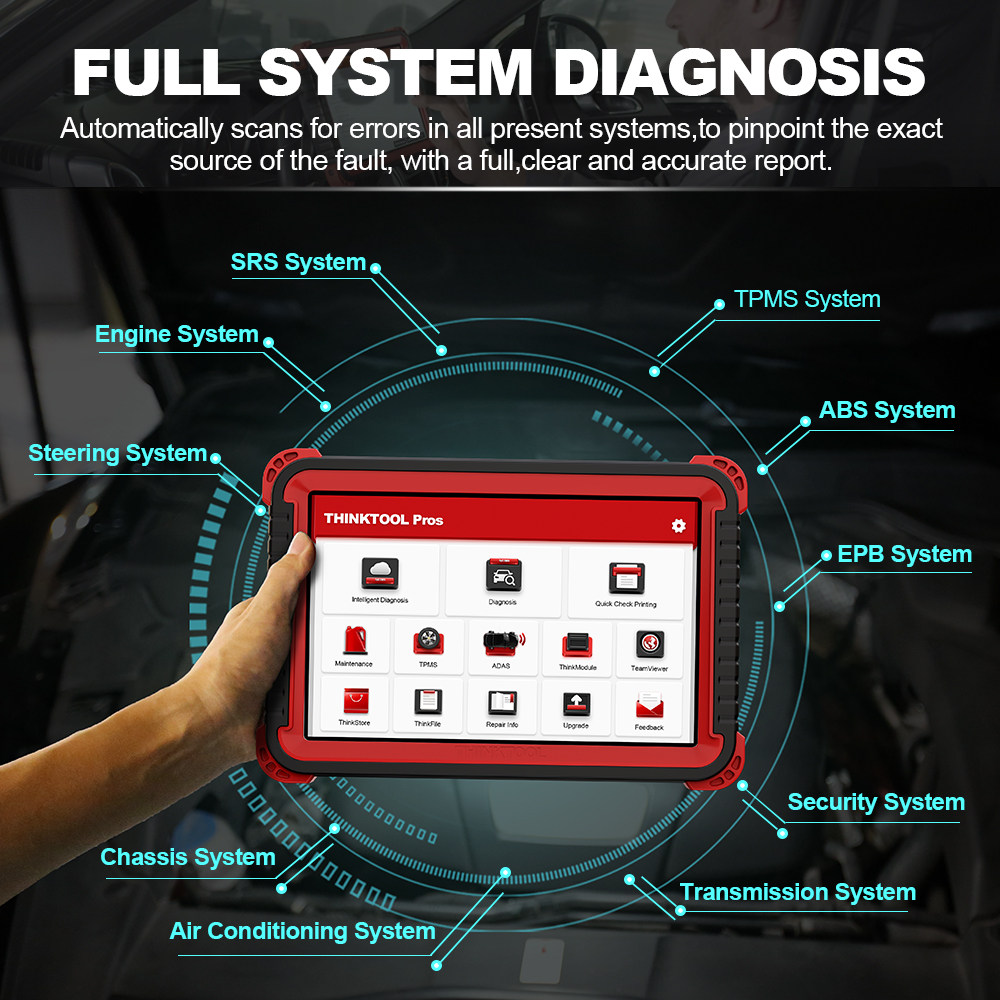

9. Supports Full System Diagnosis
Engines, Auto Transmission, Airbags, Immobilizer, Key Coding, ABS, Cruise Control, Instruments,  Self Leveling Suspension systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tyre Pressure, Rain Sensors, 4WD System, Stabilizer, Intelligent Parking Assist, Door Motors, Audio Systems, Air Conditioning, Tiptronic, Anti Theft, Soft Top, Headlamp Leveling, Central Locking, Automatic Clutch,  DPF Reset, Electric Windows, Plip Programming, Heated Rear Window, Xenon Headlights, Wash Wipe, Fuel Burning Heater, Transfer Box, Seat Memory, Oil Life Service Reset, Sliding Doors, Electronic Throttle, Navigation System, Rollover Sensor, Cruise Control,  Multi Function Steering Wheel, Aux Heating, Electronic Parking Brake, Clutch Electronics etc. (Great for car repair shops and mechanics to improve business.)
10. Quick Test
It enables you to quickly access all the electronic control units of the vehicle and generate a detailed report about vehicle health. Support system scan and system select.
11. System Scan
Automatically scan all systems of the vehicle.
12. System Selection
Manually choose the automotive electronic control system.
13. Quick Check and Printing
It adopts smart detection mode. After the vehicle is connected, the system will automatically recognize the vehicle information, automatically check the vehicle, and automatically generates a report. Automatic printing can be set so that no human intervention is needed throughout the process.

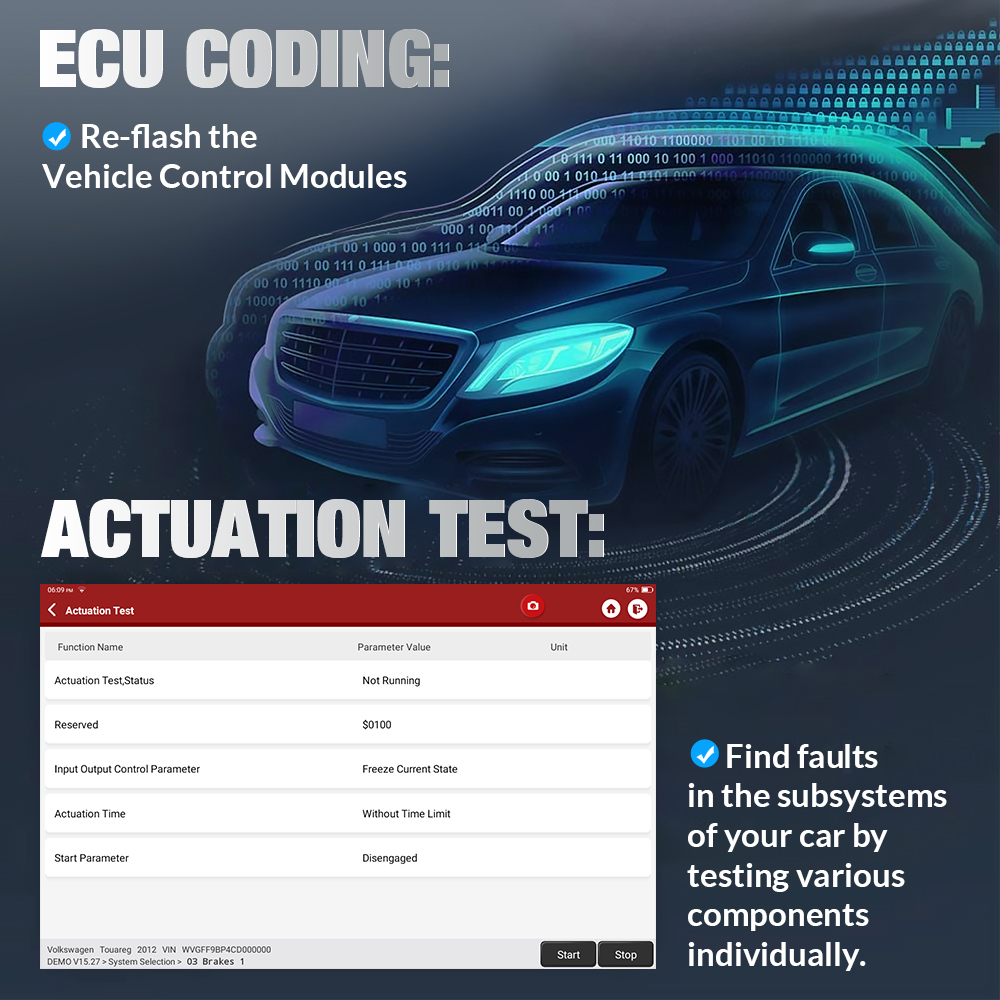

14. Actuation Test
This function is used to test whether the execution components in the electronic control system can work.
15. ECU Coding
Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.
16. Graphical Display Combine
Displayed in graph merge status for data comparison.
17. Value
Displayed the parameters in values and shown in list format.
18. Customize
Customize the data stream option to be viewed. Tap the button, a pull-down list of the data stream items appears on the screen. Select the desired items (maximum 12 items), and then screen will display the waveforms corresponding to these items immediately. If need to remove any items, just deselect them.
19. Multi-Language Supported
You can select the language of your country to operate ThinkCar ThinkTool Pros with one click.
20. Diagnostic Feedback
If you encounter an unresolved problem or diagnostic software bug during diagnosis, you can revert the most recent 20 test records to ThinkCar Team. When we receive your feedback, we will analyze and troubleshoot it in a timely manner, to improve the quality of our products and user experience.
21. Quick Print Diagnostic Reports
Optional Thermal Printer, works with the main unit, also can work with Module Dock. Quick print diagnostic reports anytime and anywhere.

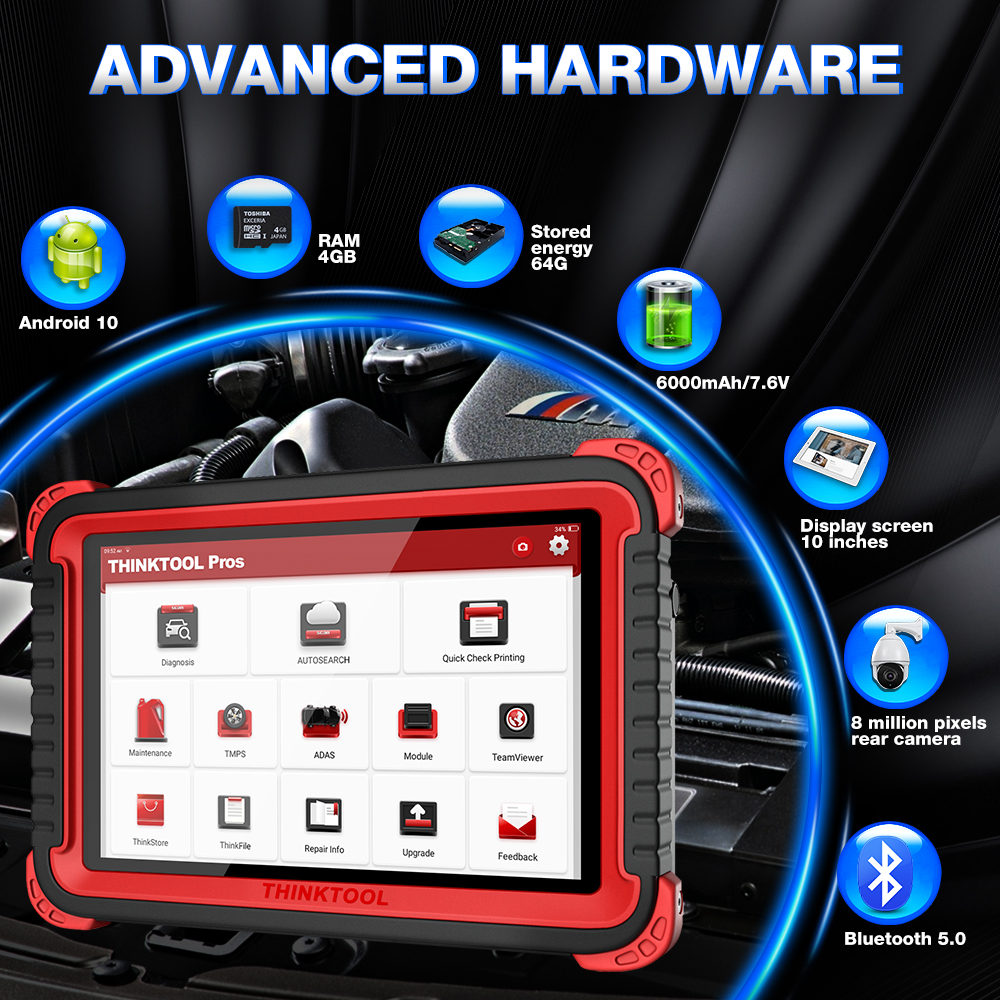

Display: 10-inch HD IPS screen
Operating System: Android 10
RAM: 4G
ROM: 64G
WiFi: WLAN 802.11b/g/n
Bluetooth: Bluetooth 5.0
Camera: 8.0MP rear camera
Battery: 6000mAh /7.6V
Working Temperature: 0 to 50 degree centigrade
Storage Temperature:-20 to 60 degree centigrade
