Description:

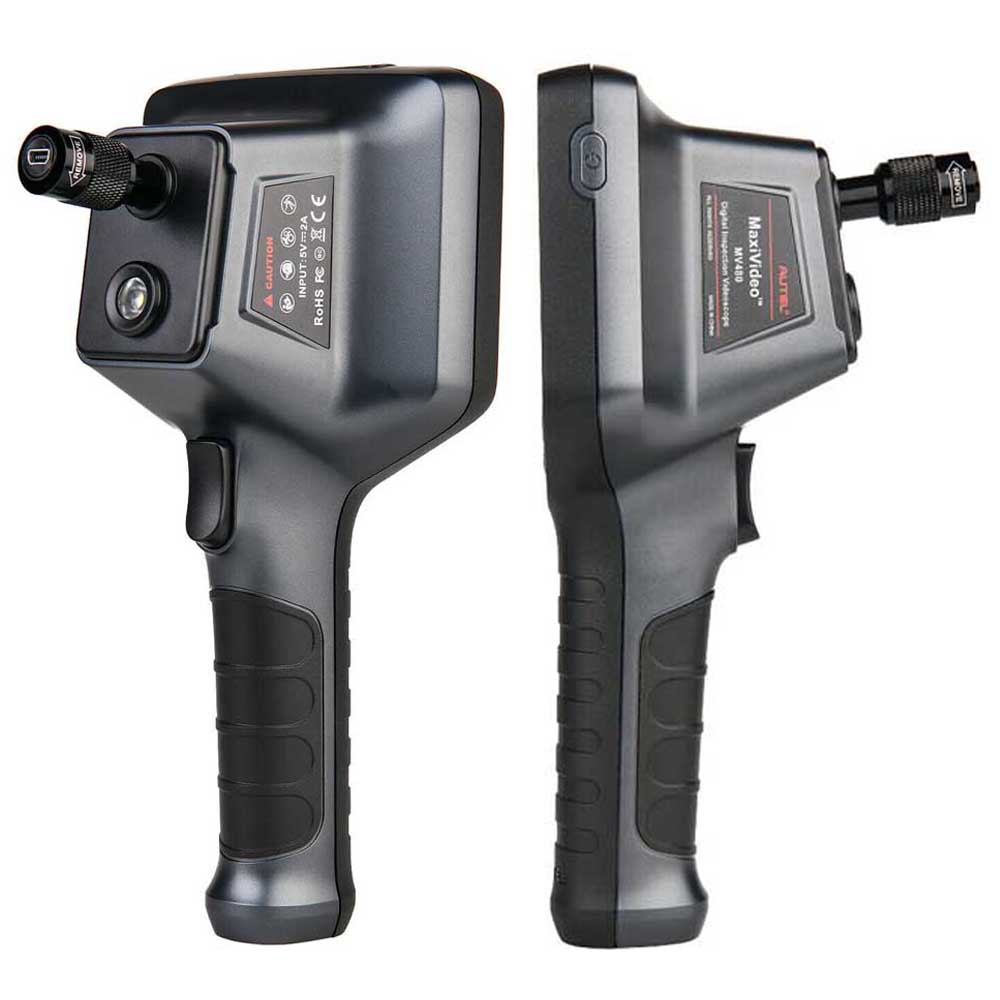

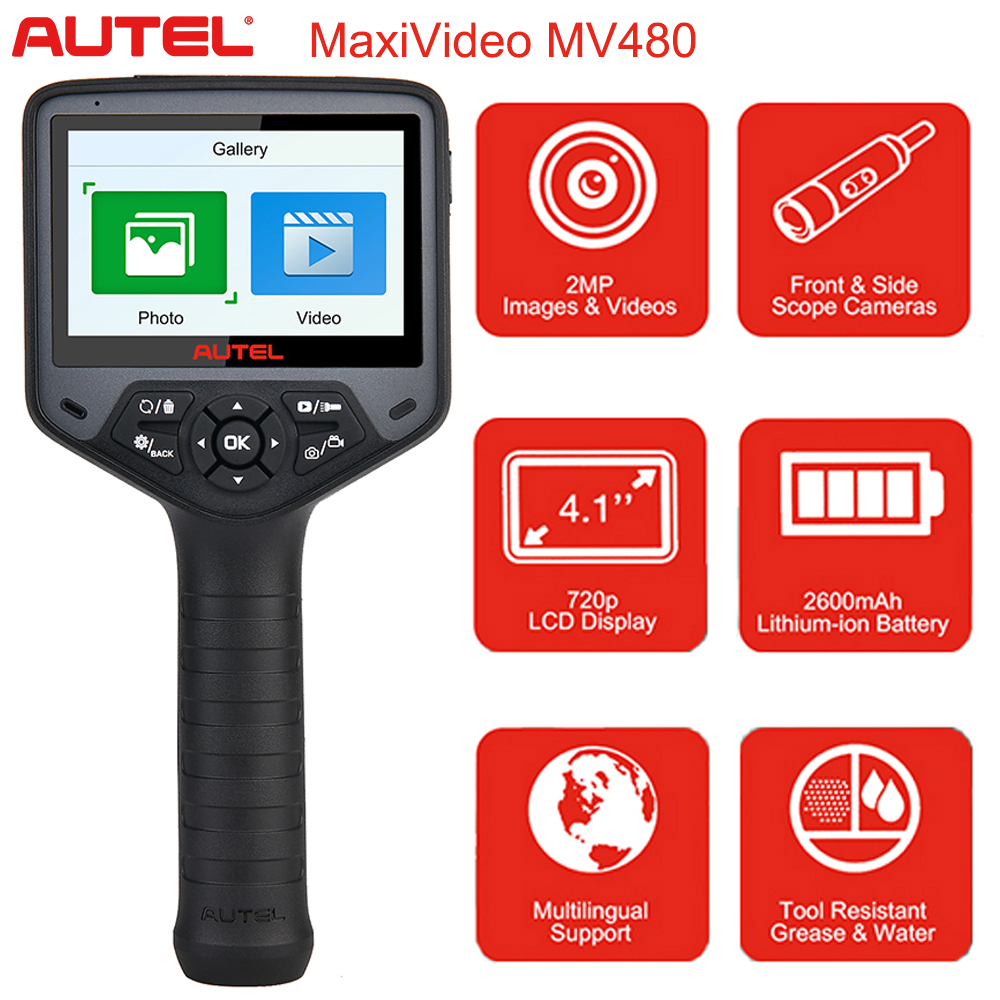

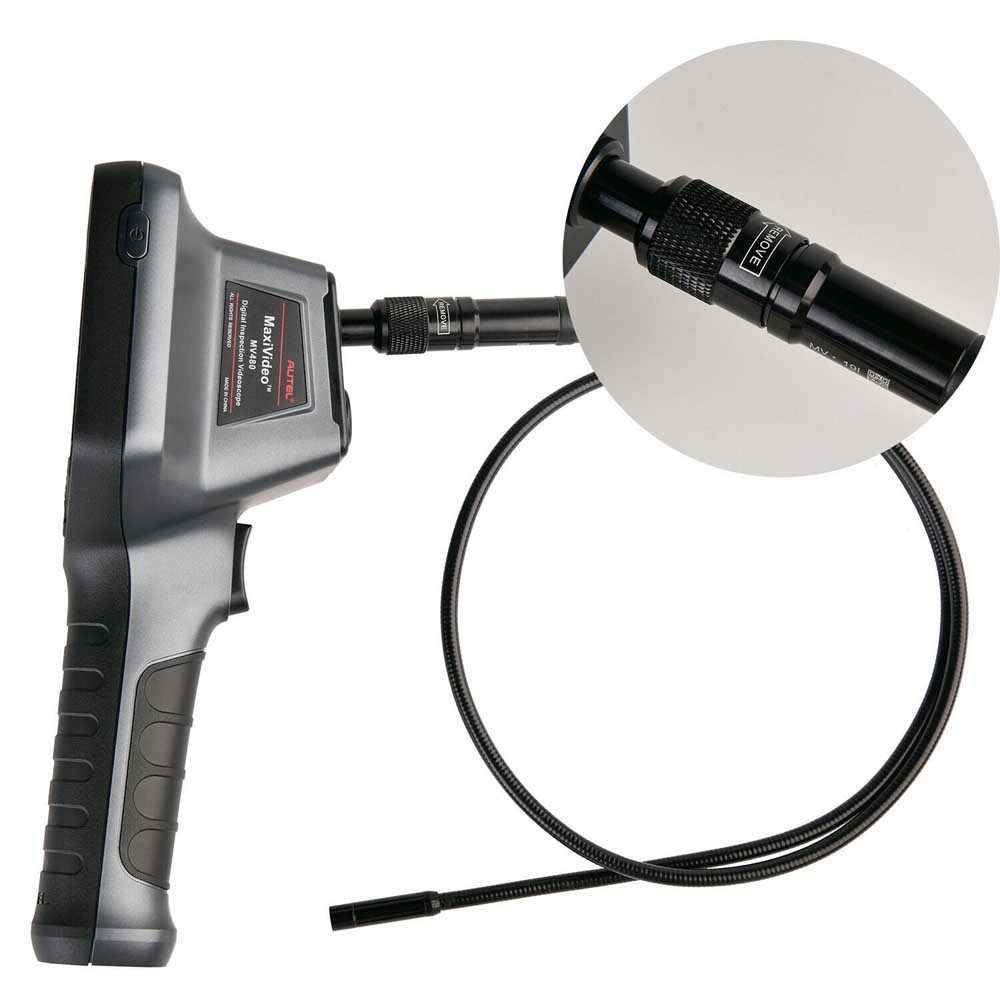

Autel MaxiVideo MV480 is new generation digital videoscope for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.



Supported Languages: English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Japanese



Highlights:

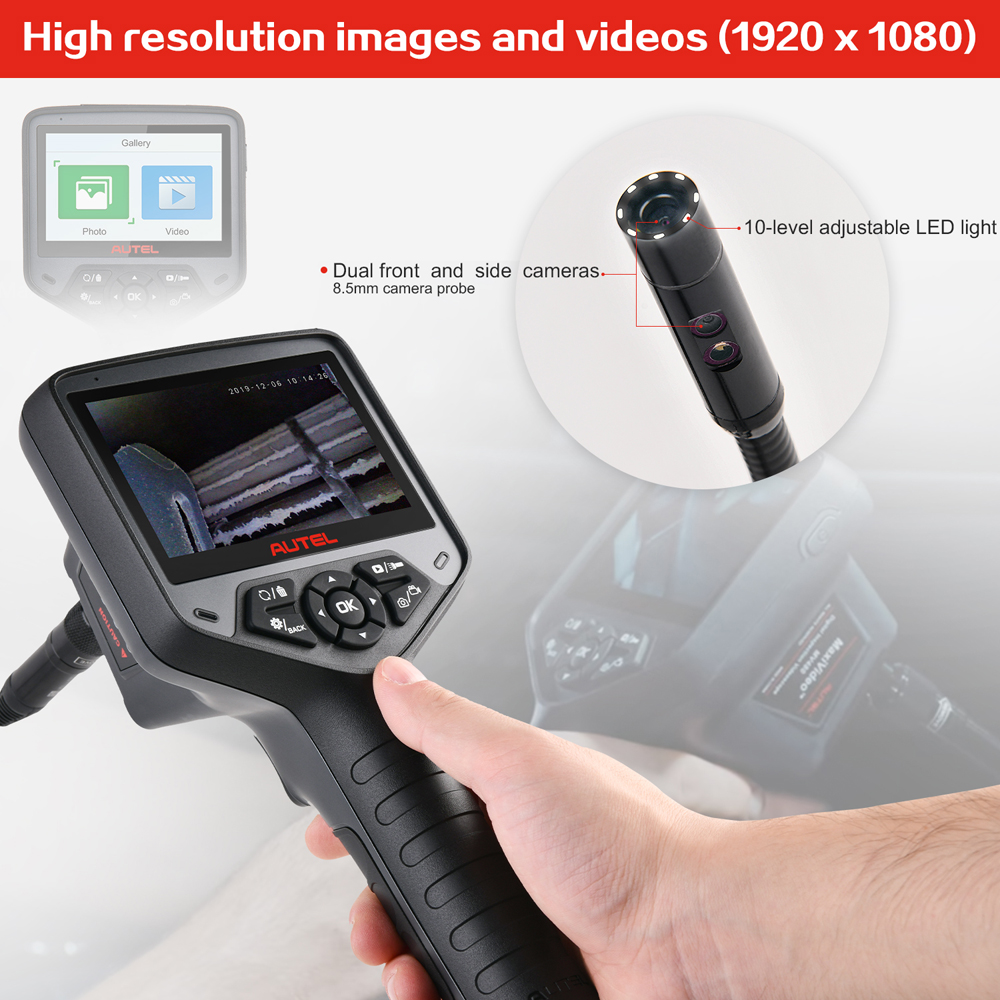

1. 1920*1080 high resolution images and videos.

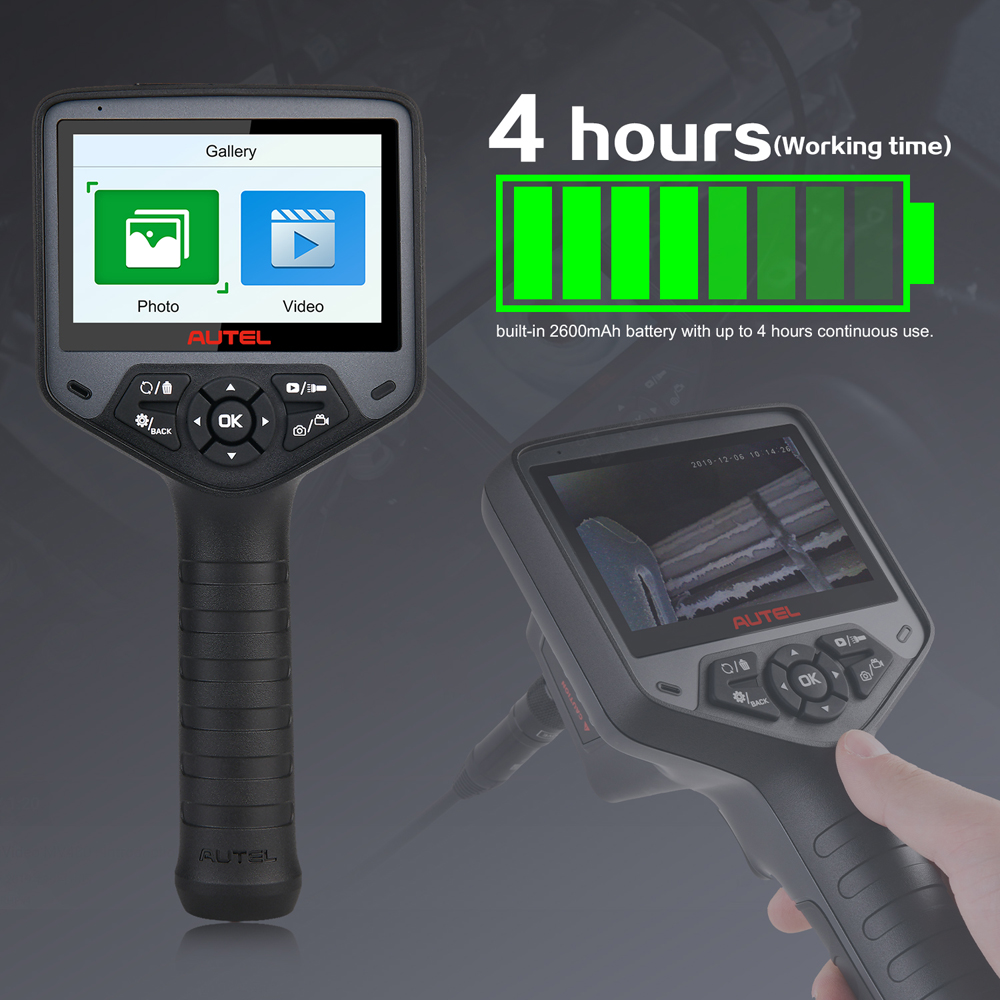

2. Built-in 2600mAh battery supports up to 4 hours continuous use.

3. Dual front and side cameras for wider viewing angle.

4. 4.1-inch full color LCD display with 1200*720 resolution.

5. 1-button quick image capture and video recording.

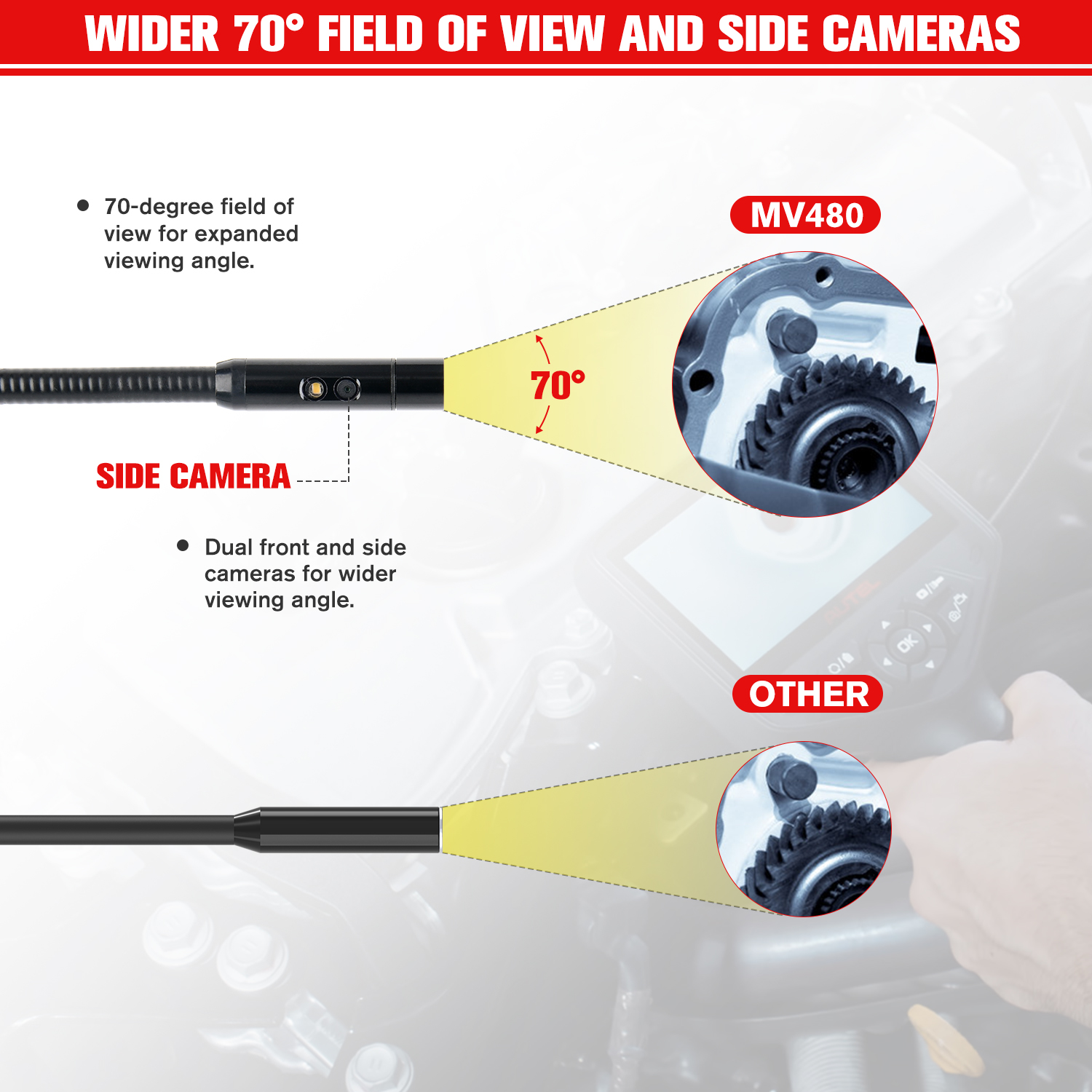

6. 70-degree field of view for expanded viewing angle.

7. Adds audio annotation for detailed review.

8. Micro HDMI-output enables streaming to larger monitors.

9. Freeze-frame camera stills or video recording.

10. On-screen horizontal / vertical reverse.

11. Records and plays back images and video clips.

12. 7X digital zoom for increased viewing.

13. 8GB Micro SD card (included), supports up to 128GB.

14. Mini-USB cable (included) for uploading images and videos.

15. More than 10,000 lux, adjustable 10-level LED illumination.

16. Flashlight for higher visibility in low-light environment.

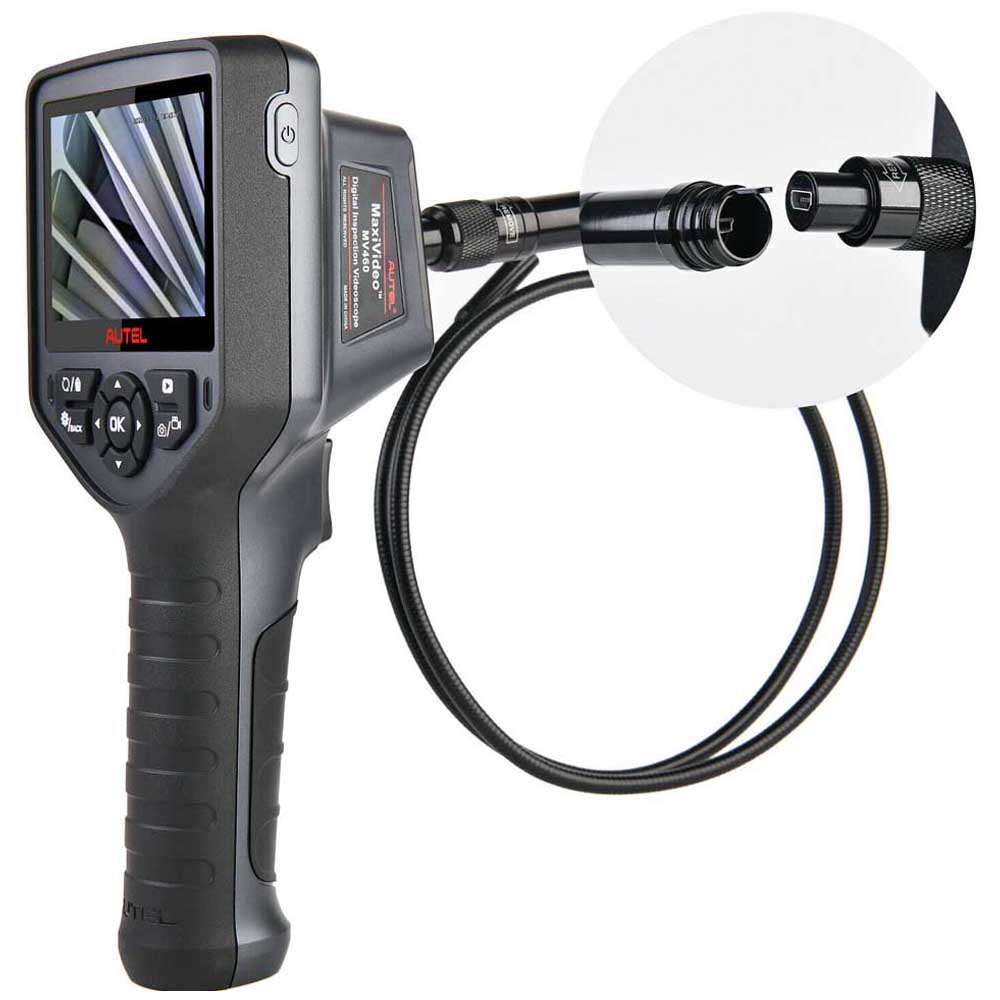

17. 1 meter (39.4 inch ) semi-rigid, flexible watertight cable.

18. Package includes magnet and hook cable accessories.

19. 8.5mm (0.33 inch) probe fits most spark plug holes.

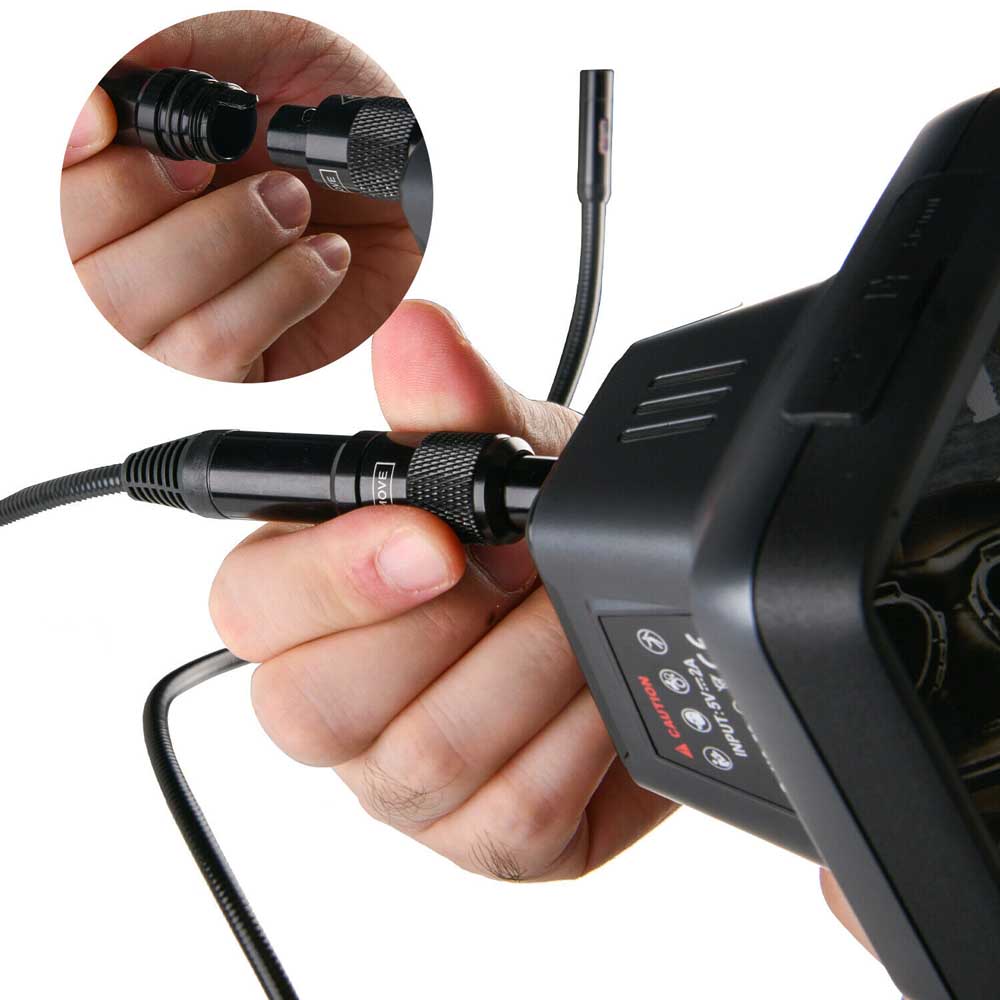

20. Compatible with 5.5mm (0.22 inch ) camera head (not included).



Specifications:



Recommended Use Environment: indoor

Optimal Viewing Distance: 2 to 5cm (0.79 to 2 inch)

Image Capture: JPG images (1920*1080 pixels) / MP4 videos (1920*1080 pixels)

Display: 4.1 inch TFT LCD

Display Resolution: 1200*720 pixels

Power Supply: built-in rechargeable lithium-ion battery pack (3.7V / 2600mAh)

Tested Battery Life: approximately 4 hours of continuous use

Recording Medium: micro SD card (8GB standard / 128GB maximum)

Image Controls: zoom / low light vision

Lighting: fully adjustable LED / flashlight

Cable Length: 1 meter (39.4 inch)

Imager Heads: 8.5mm (0.33 inch); 2 megapixel (1920*1080 pixels)

Waterproof: to a depth of 1 meter (39.4 inch) (imager heads and cable only)

Additional Ports: TF / Mini USB / Micro HDMI

Operating Temperature: main unit: -10 to 50 degree centigrade; Cable: -10 to 60 degree centigrade

Storage Temperature: -20 to 70 degree centigrade

Operating Humidity: 5% - 95% non-condensing

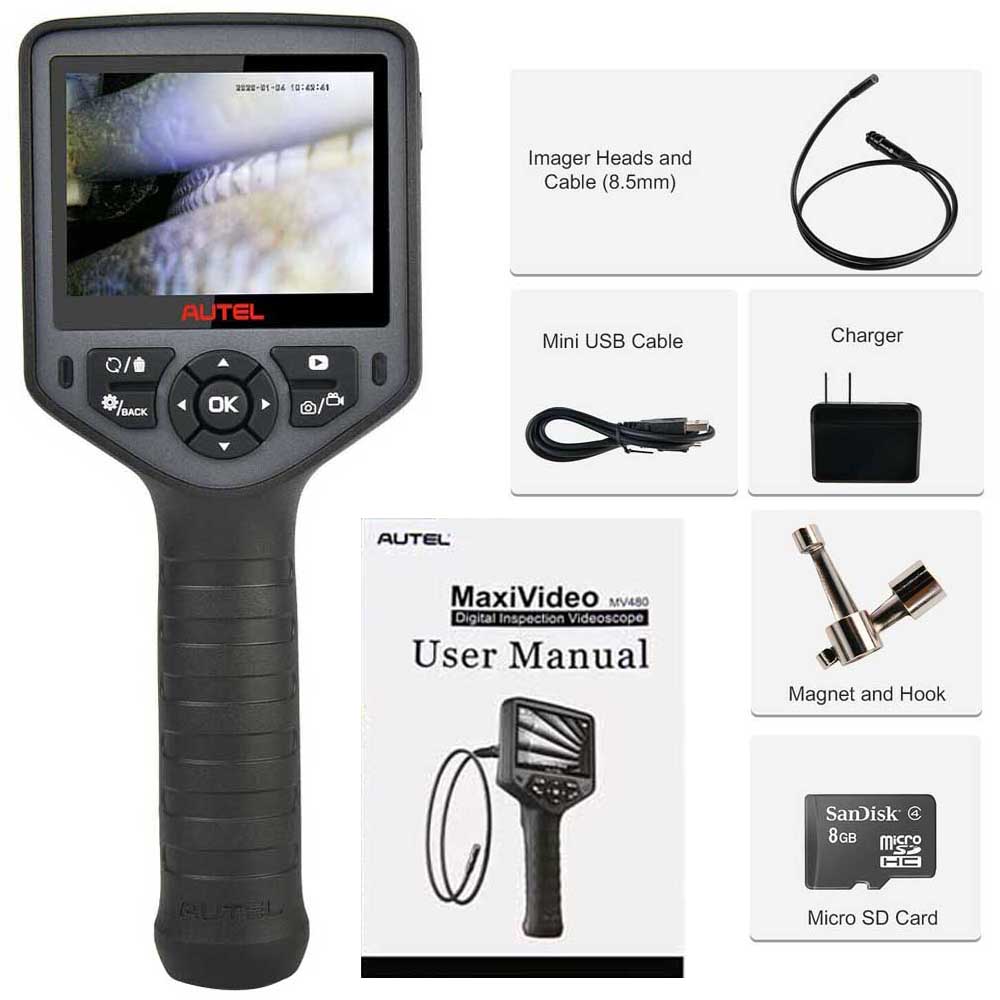

Packing List:



Autel MaxiVideo MV480 Videoscope

Imager Heads and Cable (8.5 mm)

Magnet and Hook

RS232 Serial Cable

Mini USB Cable

Micro SD card

Power Charger

User Manual

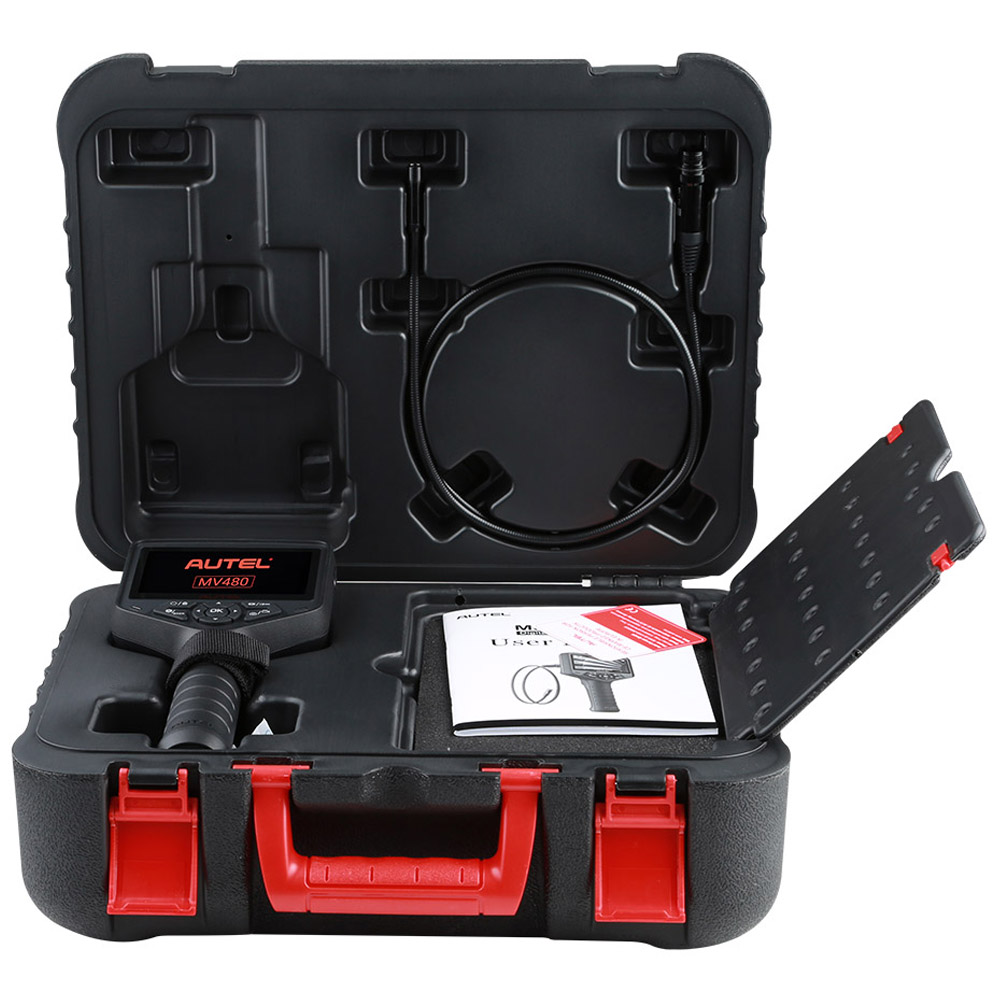

Plastic Toolbox
