Name: XTool XV100 VideoScope with 8 Adjustable LEDs
Description:
XTool XV100 Endoscope is mainly used for close-up visual inspection of difficult-to-reach automotive/home areas that are normally invisible, such as engine cylinders, most spark plug holes, small components, pipelines and sewers. Helps you to quickly locate confined area problems without disassembly.
XTool XV100 HD Inspection VideoScope works with XTool D8 / X100 PAD3 / A80
XTool XV100 Endoscope Inspection Camera will help you to inspect areas that is normally inaccessible, so that it is easier to find the solution.
XTool XV100 USB Endoscope works with XTool D8 / D8 BT / X100 PAD3 / X100 PAD3 SE / X100 MAX / A80 / A80 PRO / A80 PRO MASTER / D9 / D9 PRO...
XTool XV100 VideoScope is best tool for drivers, car enthusiasts, auto repair shops, mechanics, homes, offices, factories, etc.
Features:
1. 0.34'' (8.5mm) probe is easy to sneak into narrow places.
2. High-definition camera captures close-up images and records videos clearly.
3. 8 pcs LED lights with adjustable brightness according to the environment, to further illuminate low-light or dark areas to improve image clarity.
4. 80cm long flexible snake tube can be easily bent into various shapes to sneak into hard-to-reach areas.
5. IP67 waterproof, no worry in water or oil inspection.
6. Snapshot button, one-click snapshot and save it to your XTool diagnostic tool for later viewing.
Multi-Functional Application:
Vehicles:
Used for quality inspection and assembly inspection of auto parts (Such as engine, oil pressure parts, nozzle parts, etc.).
Check car internal parts for wear or damage without taking whole component apart.
Check car bottom components for rust, damage or wear without lifting up the car.
Check a used car before buying to avoid future expenses and troubles, etc.
Homes:
Used to check the rust, dirt and blockage of drain pipes or steel pipes, the internal diagnosis of walls, etc.
Locates cables, pipes, valves, leak sources, pests, etc.; find blockages, damage, and corrosion; find damaged parts; check machines; find missing items.....
Factories:
Used to check mechanical equipment and parts. Suitable for research and development work.

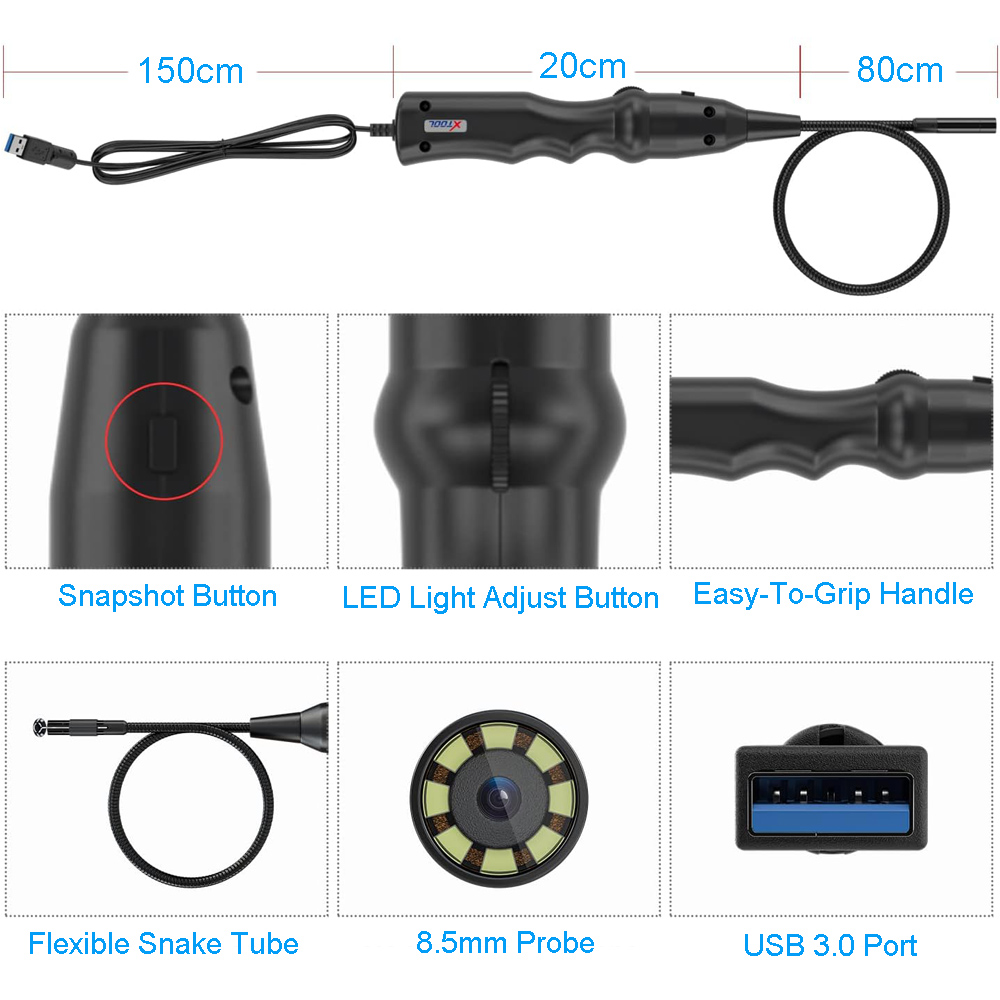

User-Friendly Design:
1. 8.5mm Probe + 80cm Flexible Snake Tube: Easier to sneak into hard-to-reach areas and places.
2. 1080P HD Camera: Easily view subtle details related to component wear or failure.

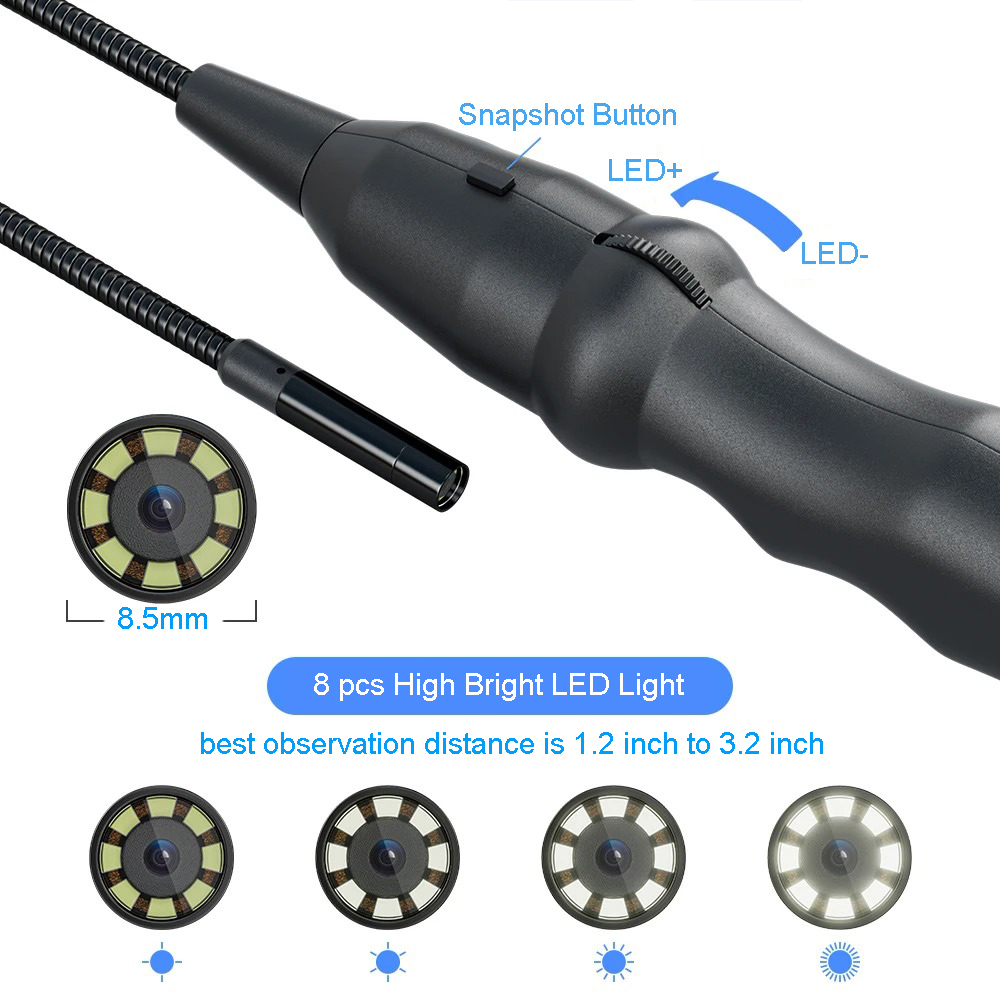

3. 8 pcs Bright LED Lights: Further illuminate low-light or dark areas to improve image clarity.

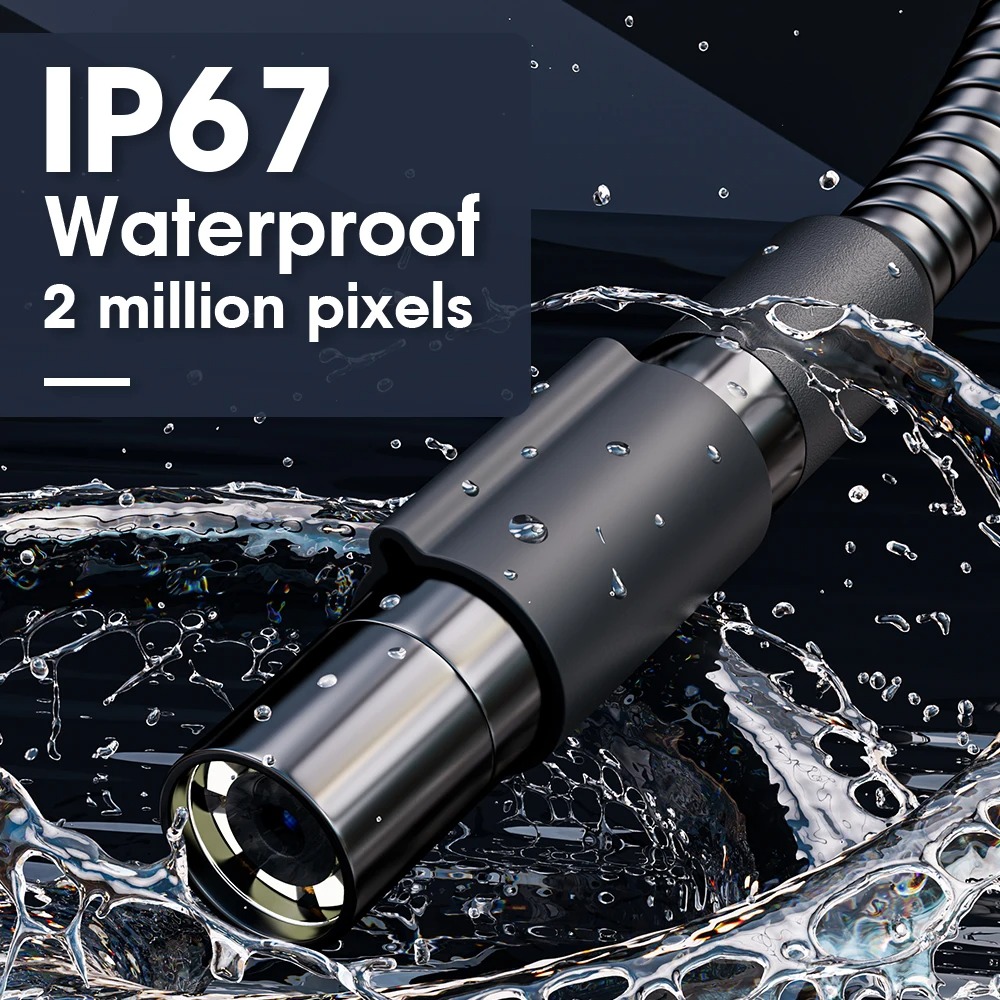

4. IP67 Waterproof: Can work at an underwater depth of 80cm. Do NOT worry about using the videoscope in wet places.
5. Easy to Use: Easy-to-grip handle with a snapshot button and a LED light adjust button.

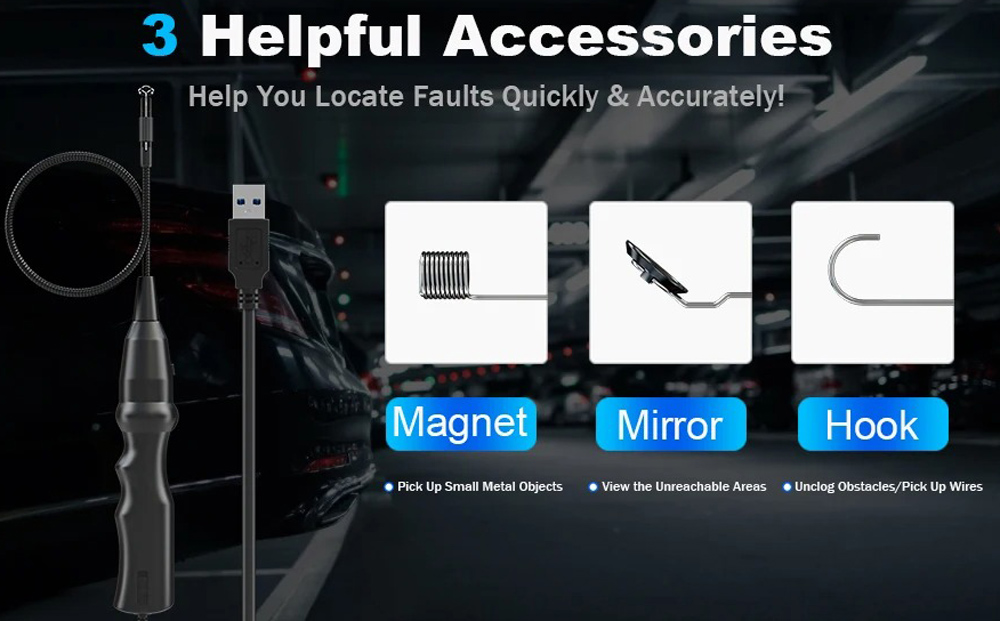

Useful Accessories:
Hook: Unclog obstacles/pick up wires.
Mirror: View the unreachable areas.
Magnet: Pick up small metal objects.

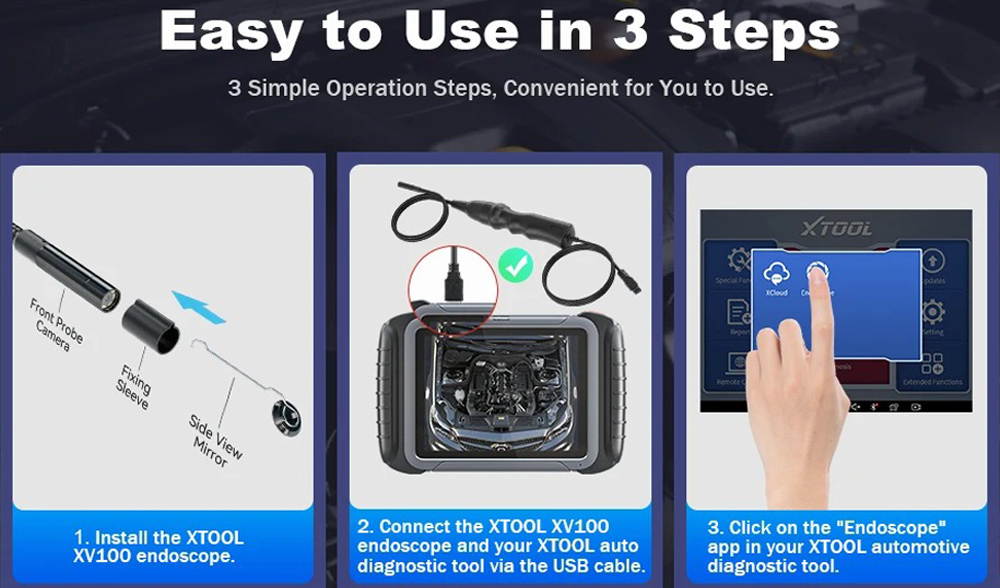

Operation Steps:

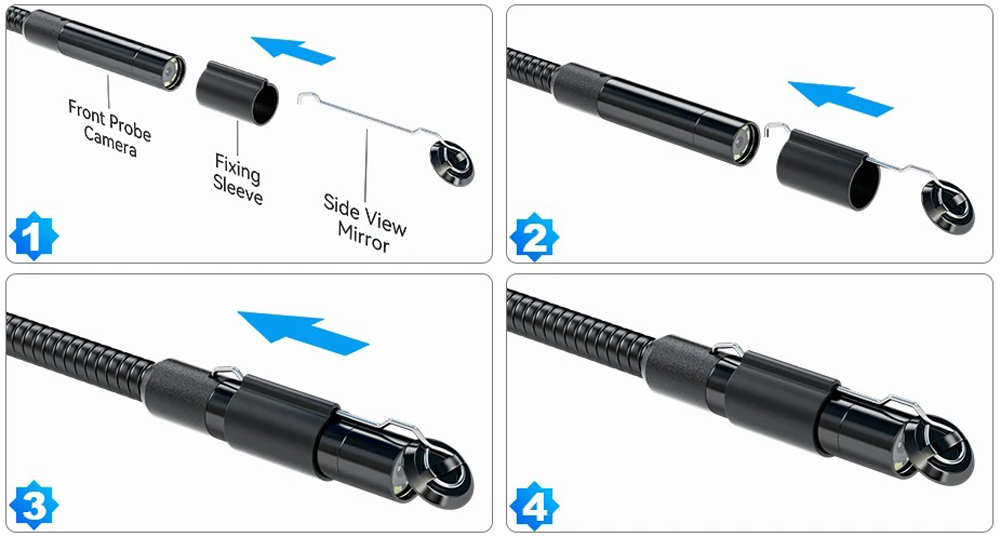

1. Install the XTool XV100 Endoscope.

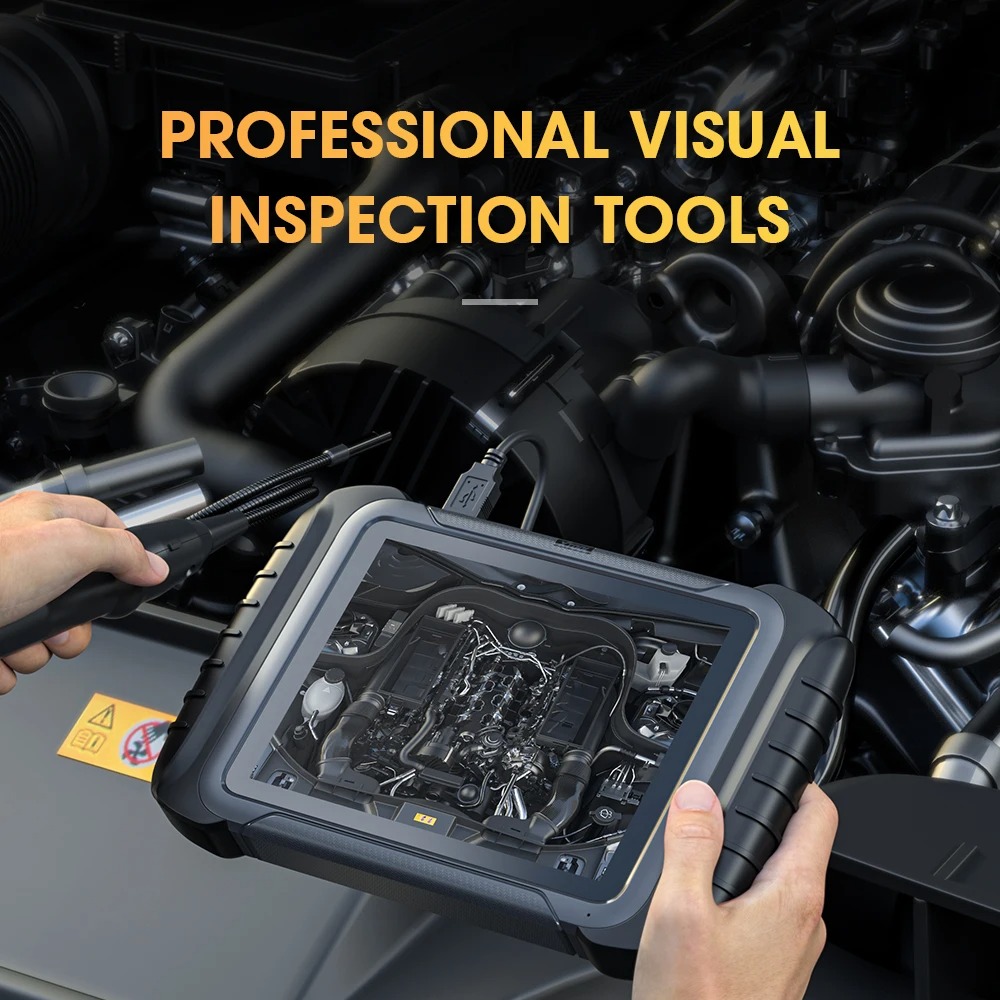

2. Connect the XTool XV100 Endoscope and your XTool tablet auto diagnostic tool by USB cable.
3. Go to "Extended Functions" and click "Endoscope" APP on your XTool automotive diagnostic tool.
Notes:
1. Do not bend the snake tube excessively to prevent it from losing its shaping ability.
2. Do not expose the endoscope to rain or humid environment.
3. Do not use the endoscope in an environment that exceeds the specified operating temperature. Too high or too low temperature will cause irreparable damage to the camera.
4. Do not use in certain areas that may be charged (such as charged cables, etc.) to avoid danger of electric conduction.
5. Keep the endoscope away from children to avoid danger.
Specifications:
Probe Outer Diameter: 8.5mm
Snake Tube Diameter: 6.4mm
Snake Tube Length: 80cm
Resolution: 1080*1920 (2.0 Megapixels)
Lens F/NO: 1.0
View Angle: 70 degree
Depth of Field: 4 ~ 7cm
Frame Rate: constant 20fps
USB Interface: USB 3.0
USB Cable Length:150cm
Waterproof Rate: IP67
Operating Temperature: 0 to 70 degree centigrade

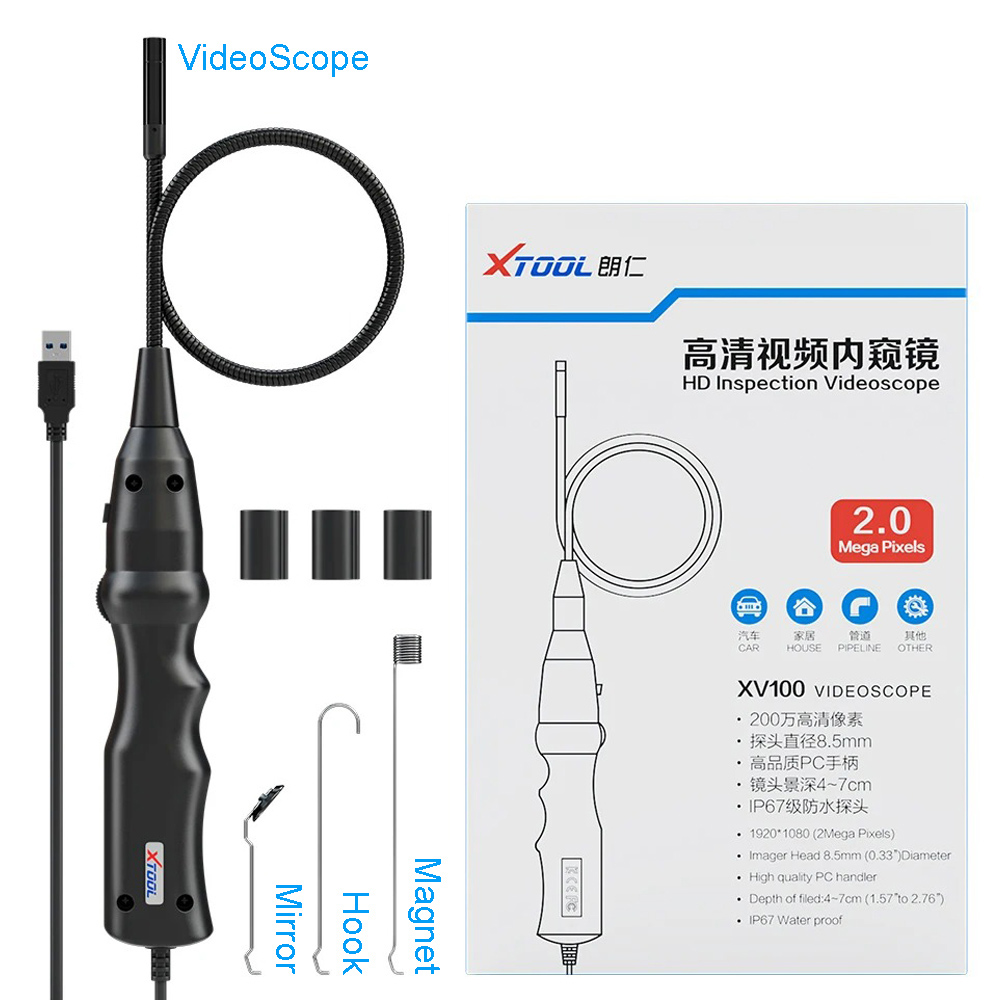

Packing List:
XTool XV100 Inspection Video Scope
Magnet
Mirror
Hook
User Manual
Packing Box
|
