Name: Autel MaxiVideo MV108S HD Digital Inspection Camera
Description:
Autel MaxiVideo MV108S 8.5mm Digital Inspection Camera Powerful for Autel MaxiSys Pro and PC support video inspection scope.
Autel MV108S digital inspection camera is designed to work with Autel MaxiSys series products (except MaxiSys 906) or PC. Autel MV108S turns your MaxiSys tablet scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

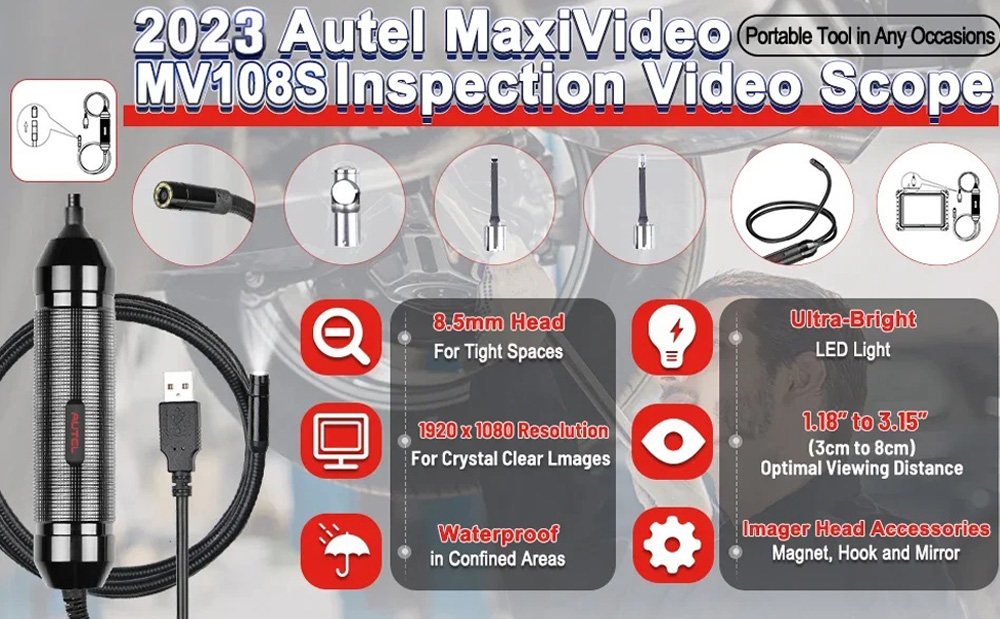

Features:
White LED lights to illuminate the inspection areas.
Small diameter allows it to be used in the tight spaces.

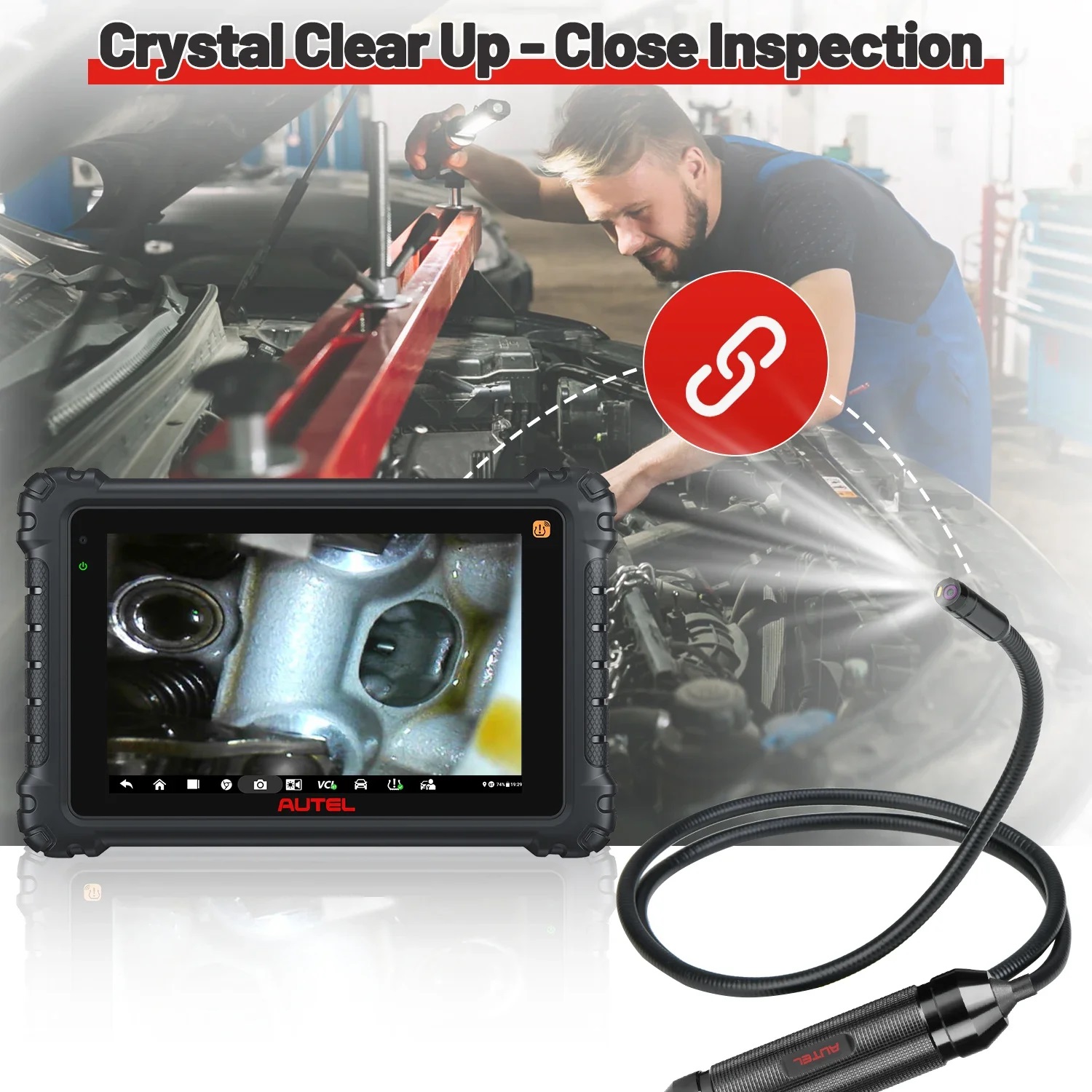

Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
Powerful and perfect for inspecting most spark plug holes.
Super bright LED and high resolution provide crystal clear images.

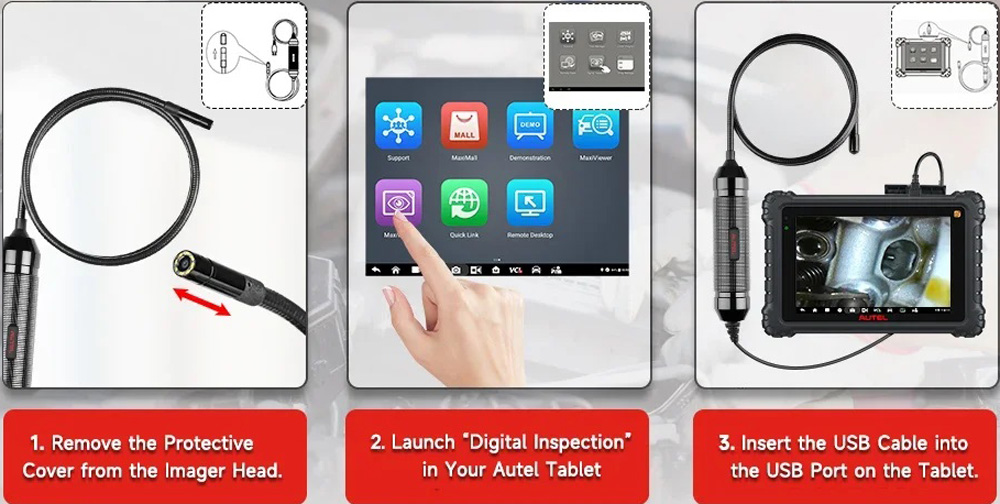

Easy Operation Steps:

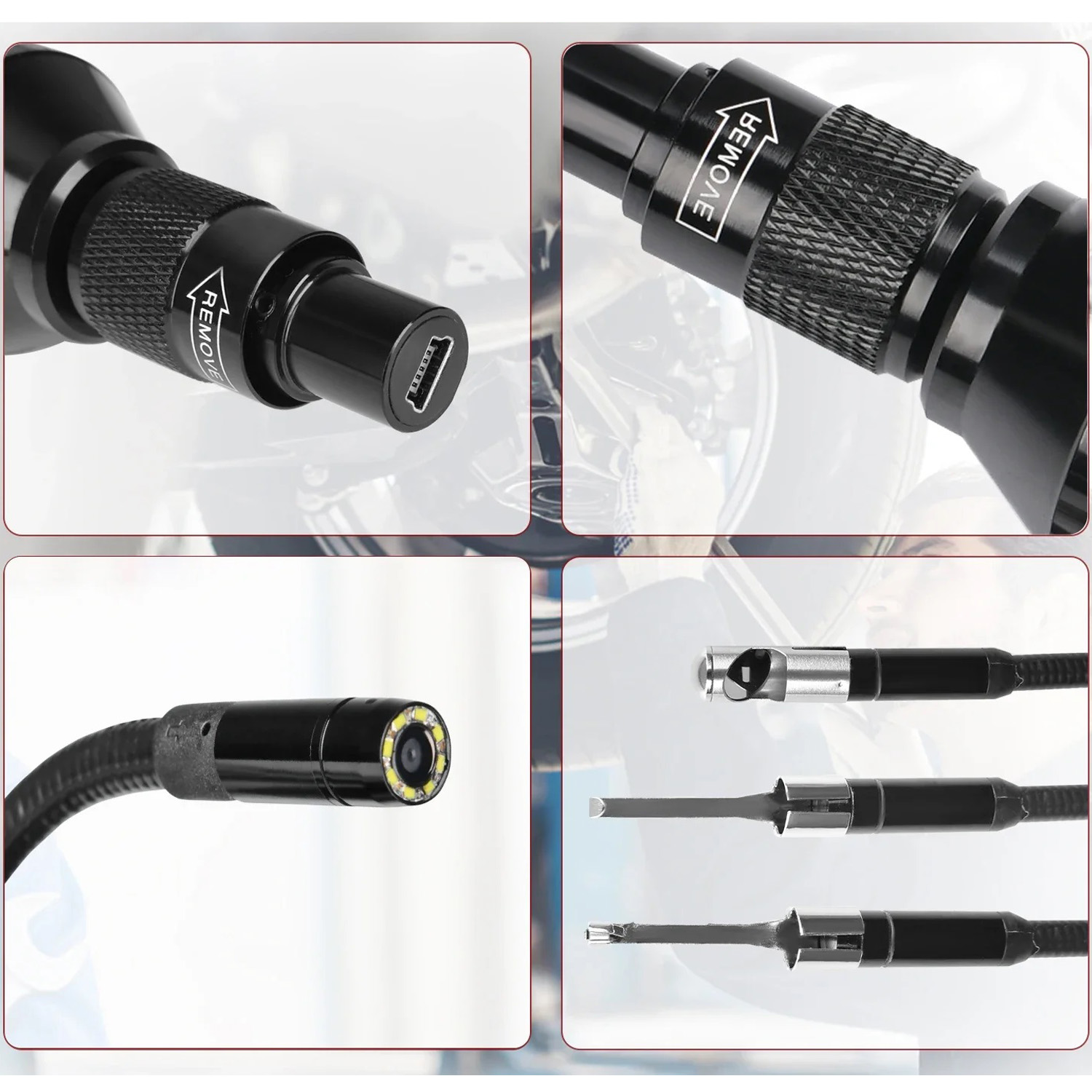

1. Connect the removable imager head cable to the handgrip. Make sure the key and slot are properly aligned. Once they are aligned, finger-tighten the knurled knob to hold the connection firmly in place.
2. Power on the MaxiSys tablet scanner, and select the “Digital Inspection” APP on the Job Menu.

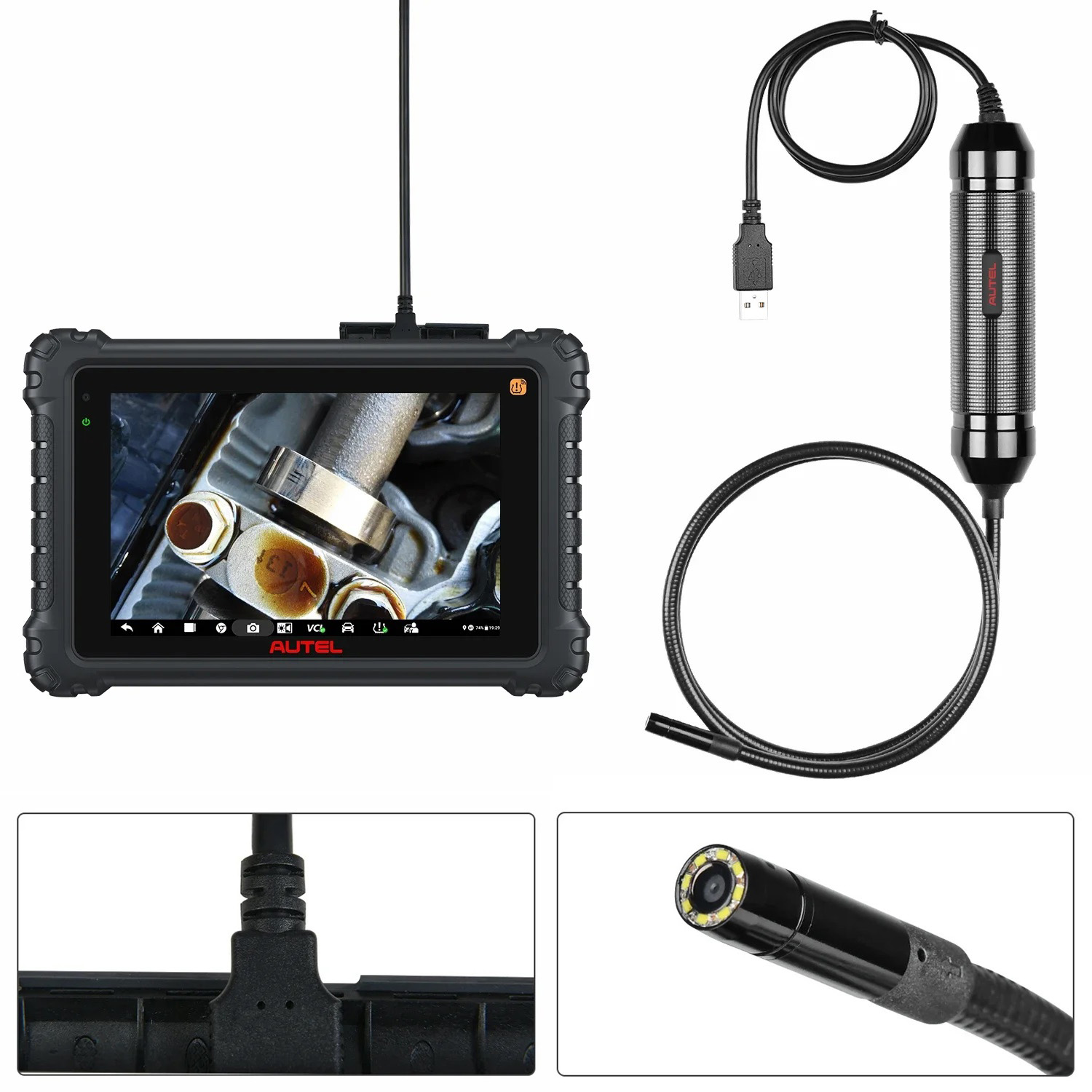

3. Connect Autel MaxiVideo inspection camera to Autel MaxiSys Tablet via the USB port. Now it is ready to use!
Notes:
1. The power of MaxiVideo inspection camera is directly supplied by the USB port, and no external power source is needed.
2. Removable Imager Head Cable – Connects to the tool when performing digital inspections for image and video viewing.
3. Handgrip – Ergonomically designed handle for comfortable grips and agile operation.
4. USB Cable – Connects the Digital Inspection Camera to MaxiSys tablet scanner.

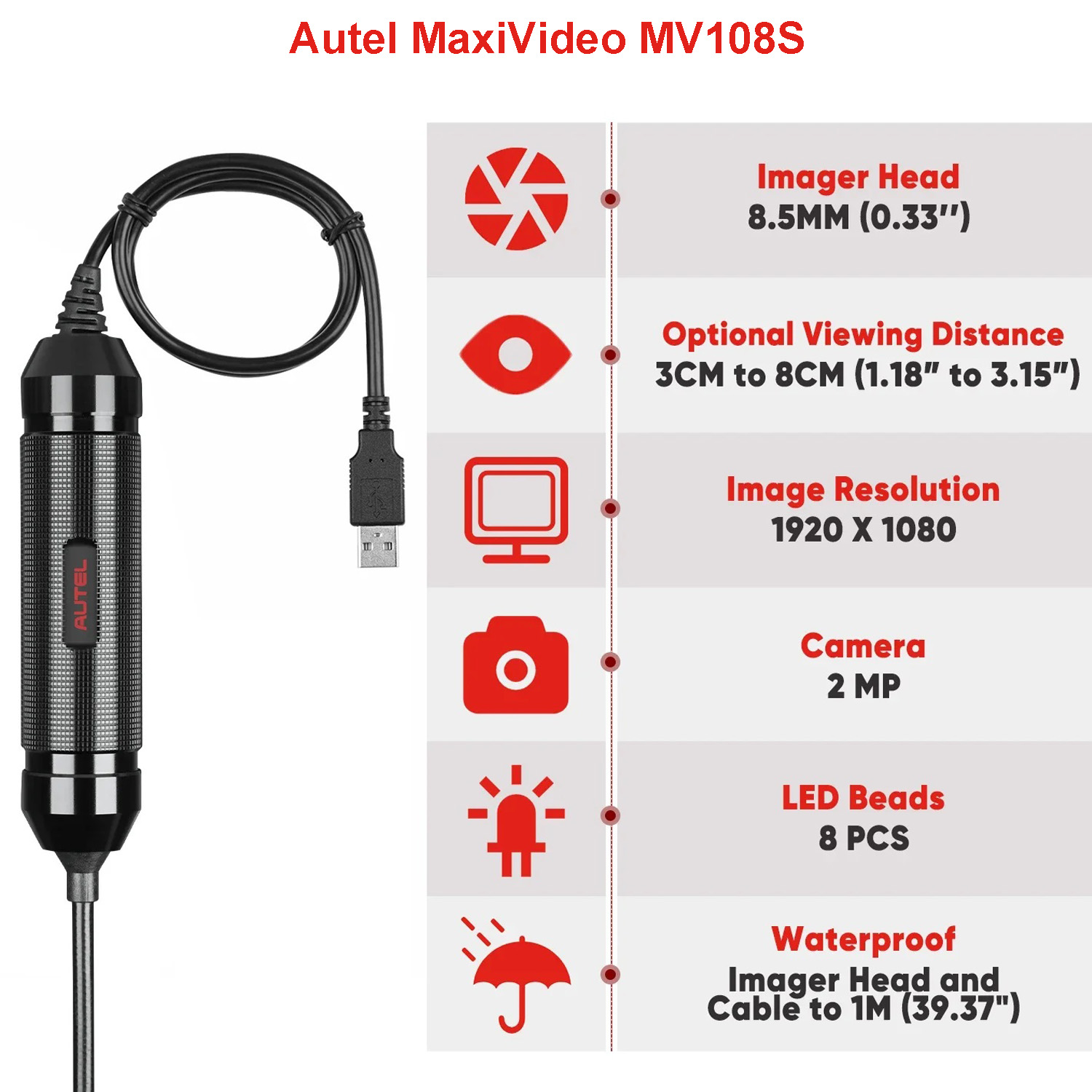

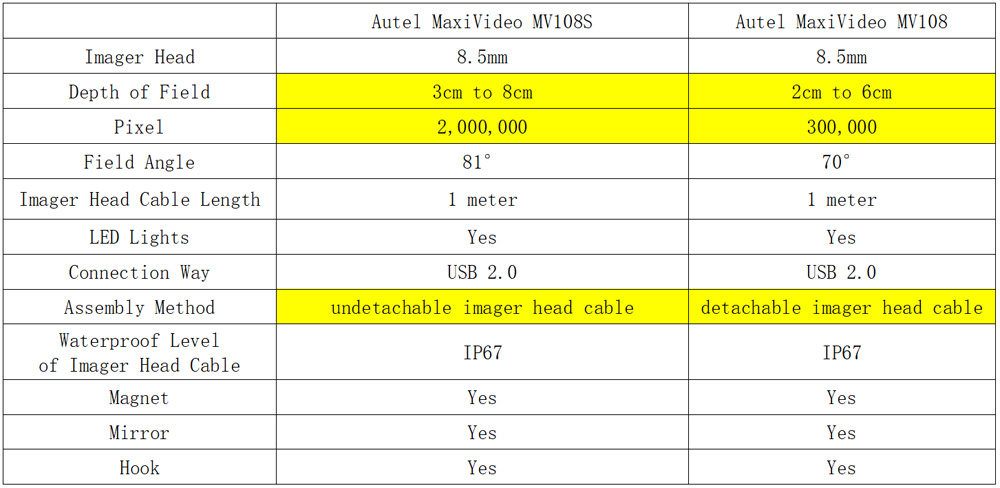

Specifications:
Imager Head Distance: 8.5mm
Camera: 2MP
Optimal Viewing Distance: 1 to 14 inch (2.54cm to 35.56cm)
Image Capture: 1920*1080
Waterproof Level(Imager Head): IP67
LED Beads: 8 pcs
Imager Head Cable Length: 1 meter
Operating Temperature: 0°C to 50°C(main unit); -10°C to 70°C(cable)
Storage Temperature: -20°C to 75°C
Accessories:

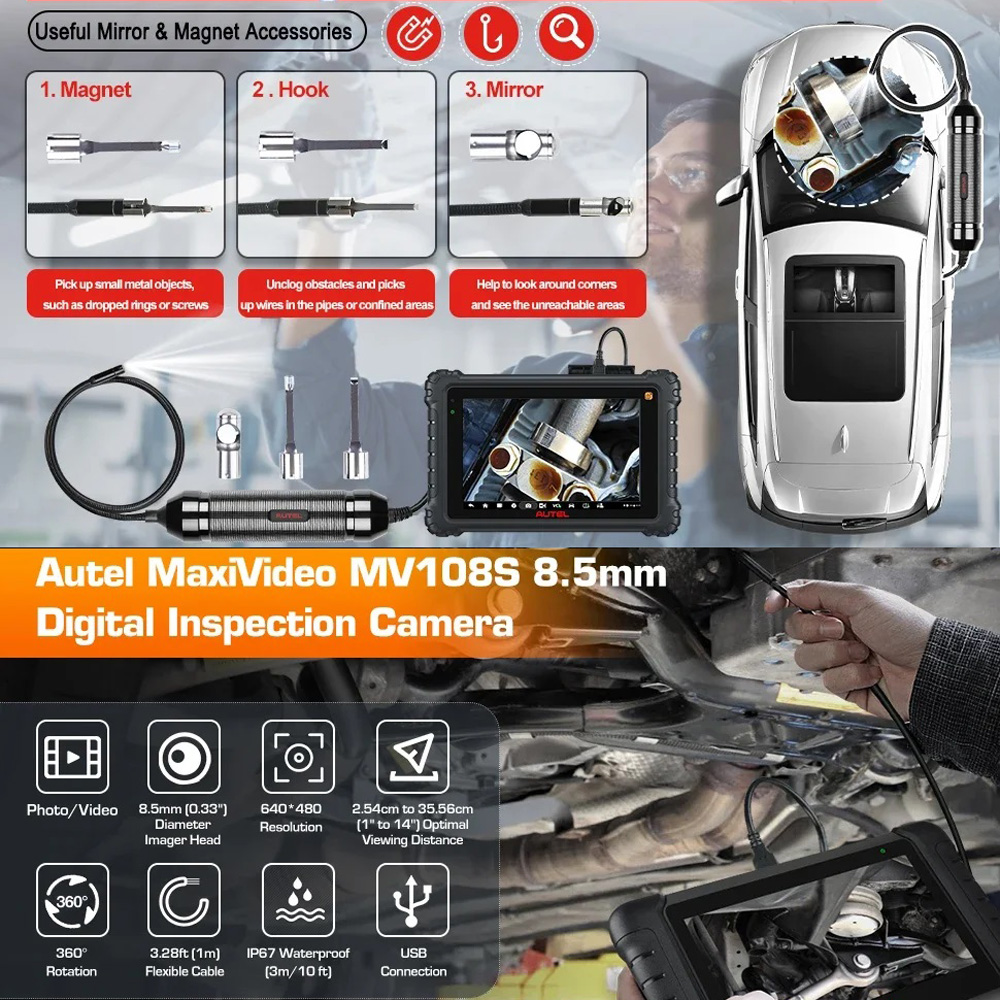

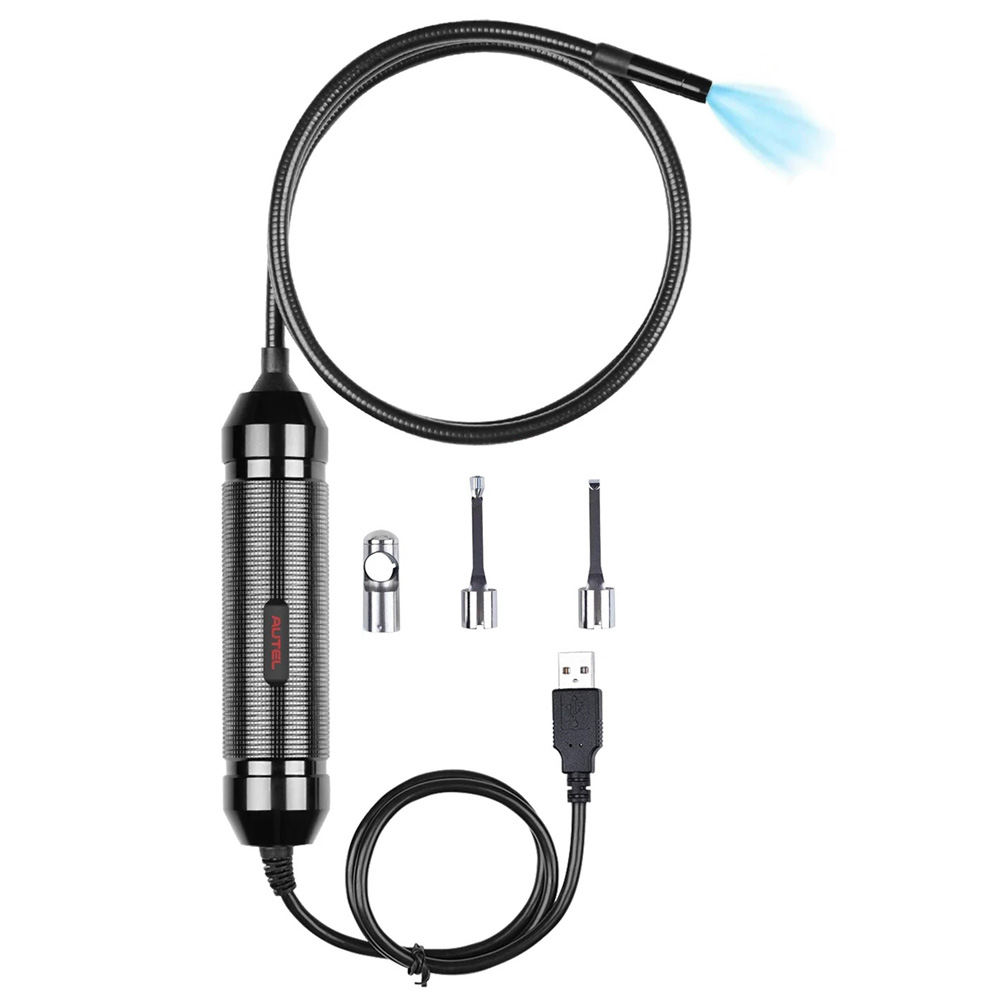

MV108S Autel MaxiVideo Inspection Camera Kit comes with useful accessories, such as magnet, hook and mirror, which enable the video scope to perform special tasks.
1. Magnet – Picks up small metal objects, such as dropped rings or screws
2. Hook – Unclogs obstacles and picks up wires in the pipes or confined areas
3. Mirror – Helps to look around corners and see the unreachable areas.

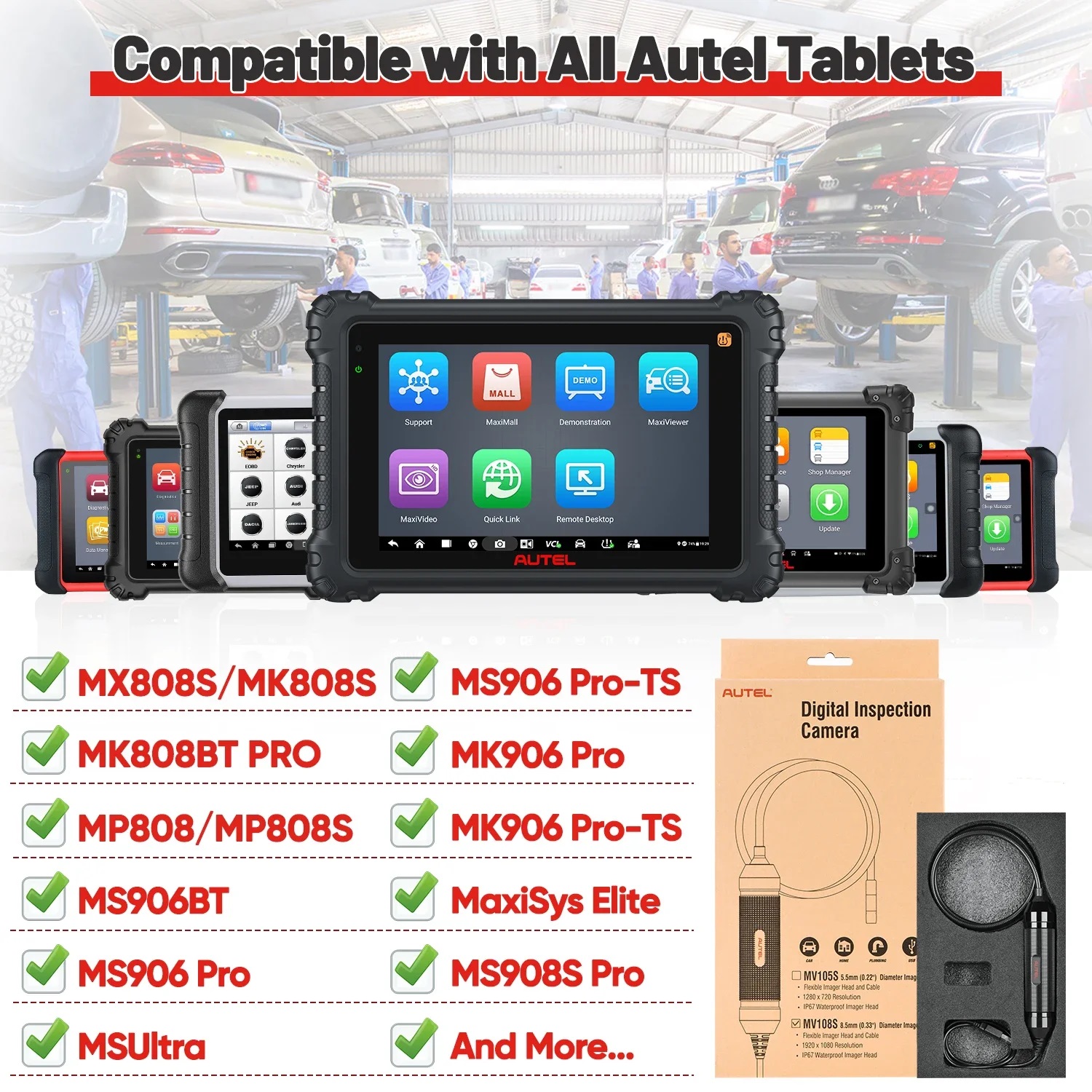

Compatible Autel Scanners:
MK808S
MK808BT PRO
MP808S
MP808BT PTO/MS906BT
MK906BT
MS906CV
MS906TS
MS919
MS909
MS908
MS908S PRO
MS908S
MK908
MK908P...

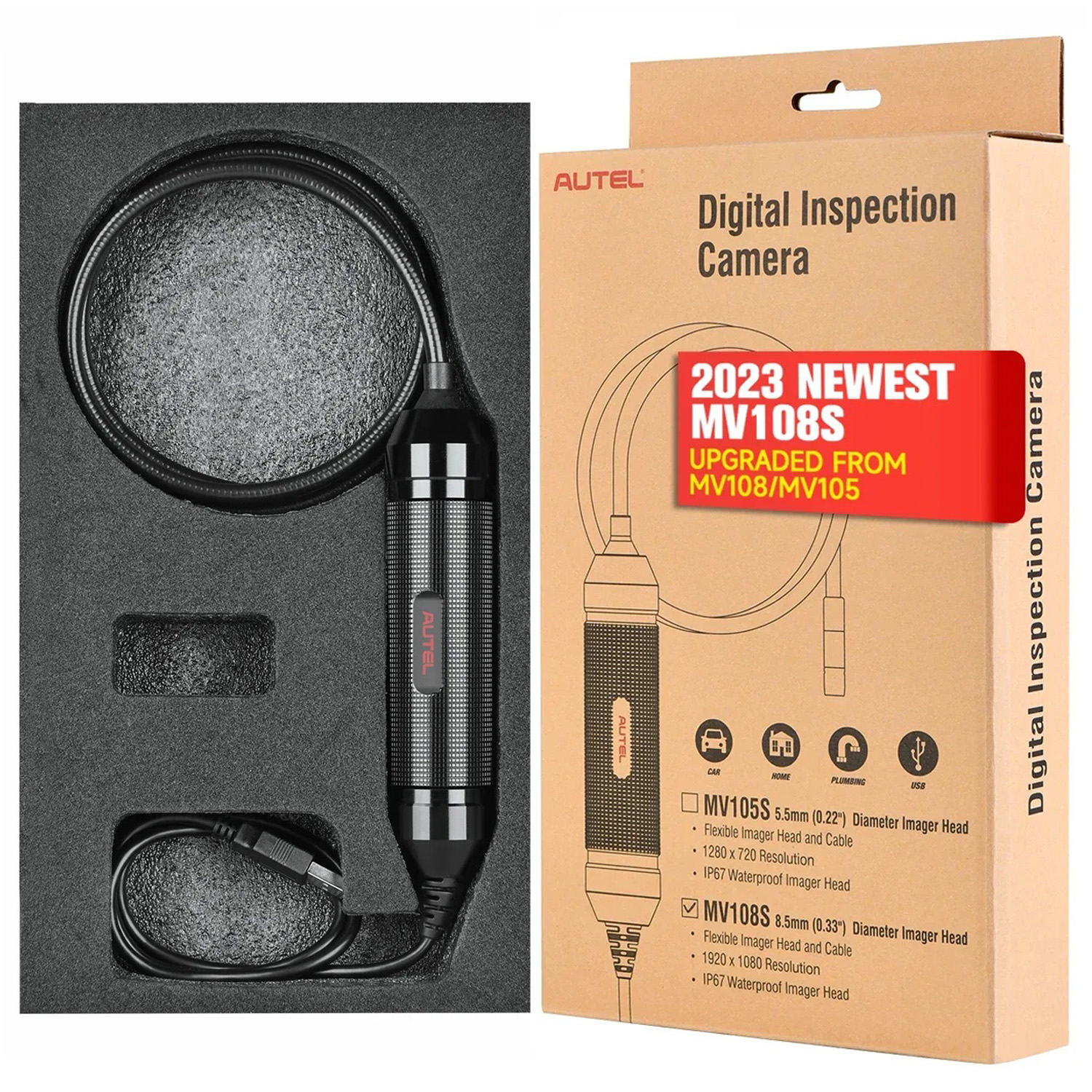

Packing List:
Autel MaxiVideo MV108S Videoscope
Magnet
Mirror
Hook
User Manual
Packing Box
|
