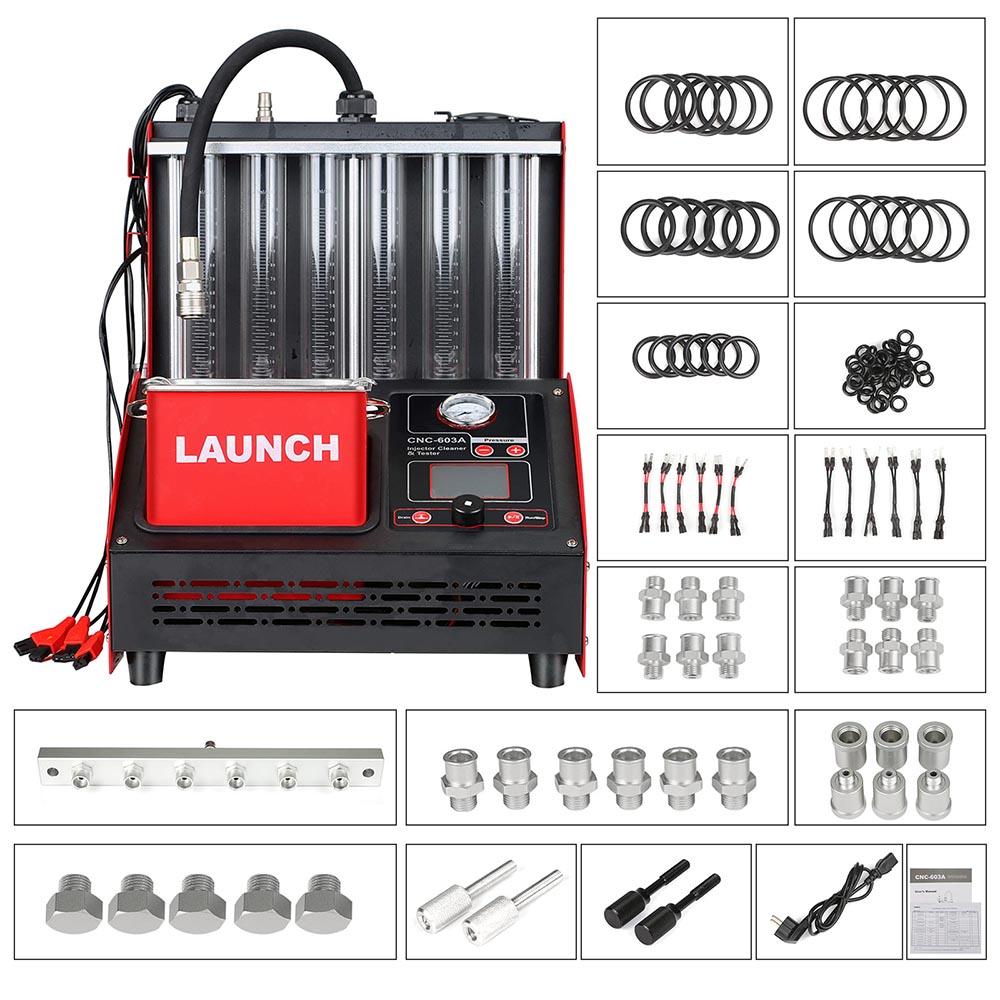

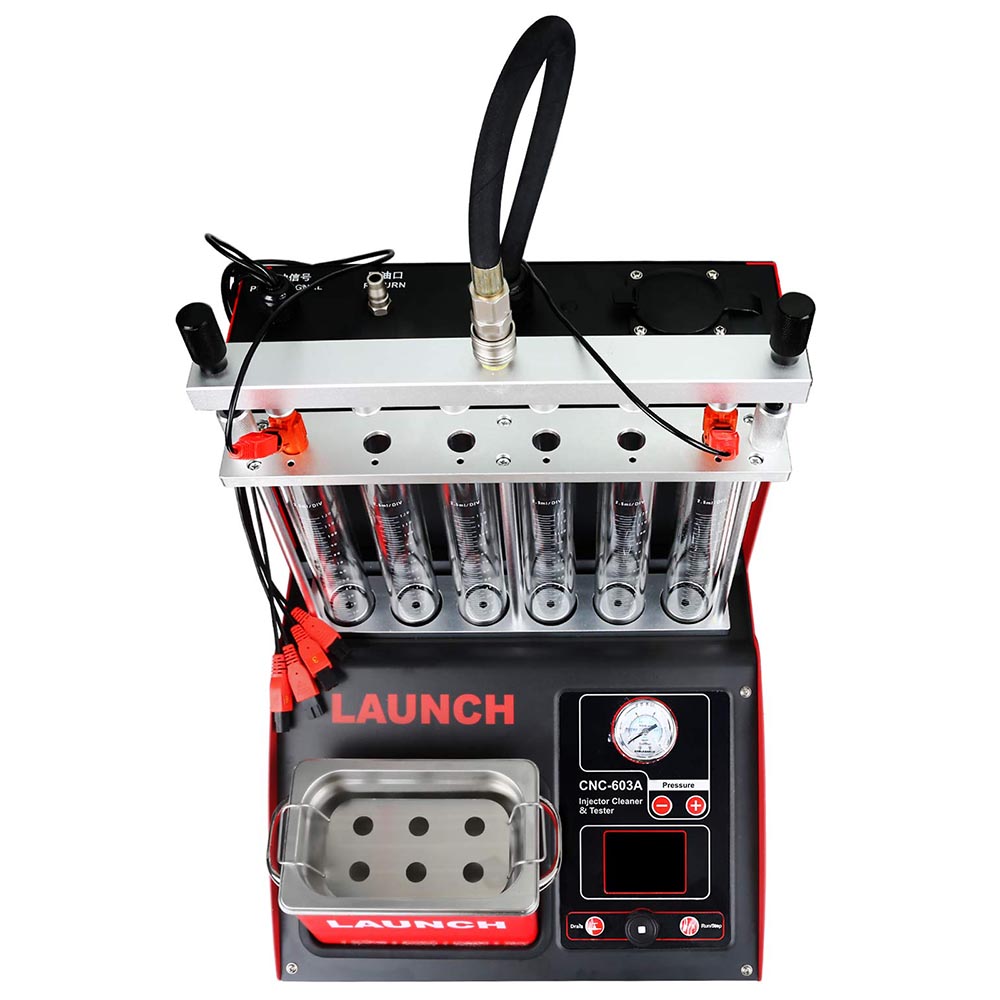

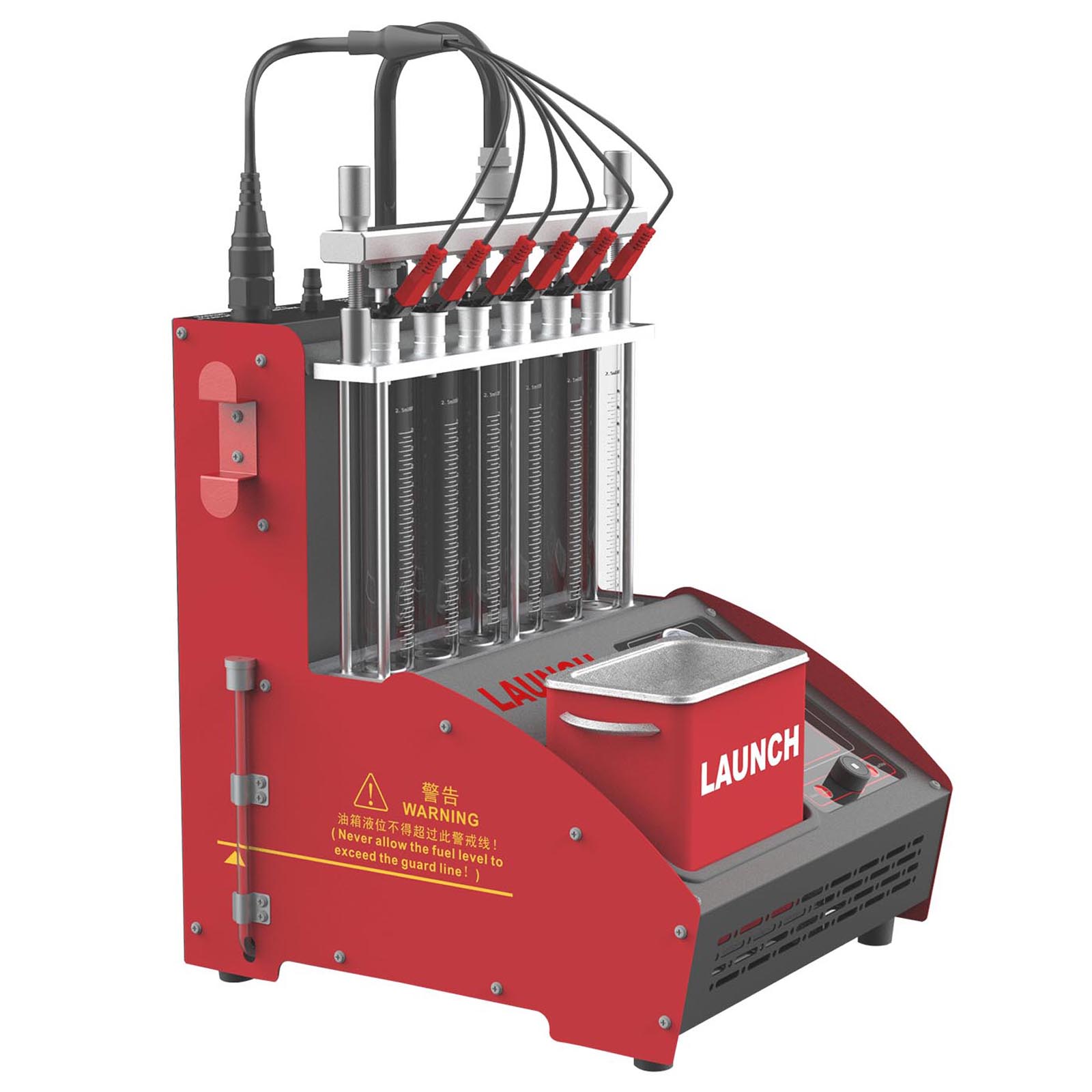

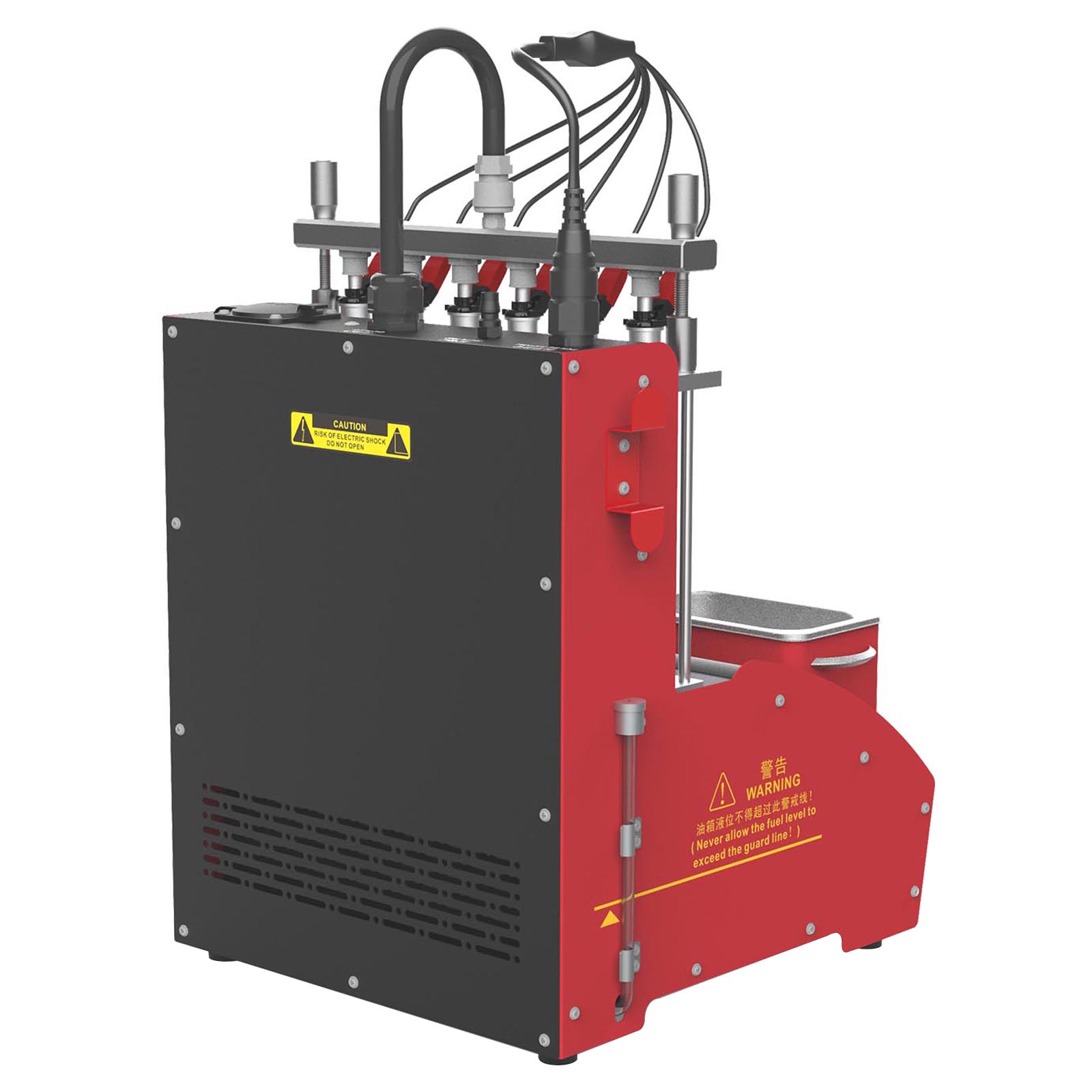

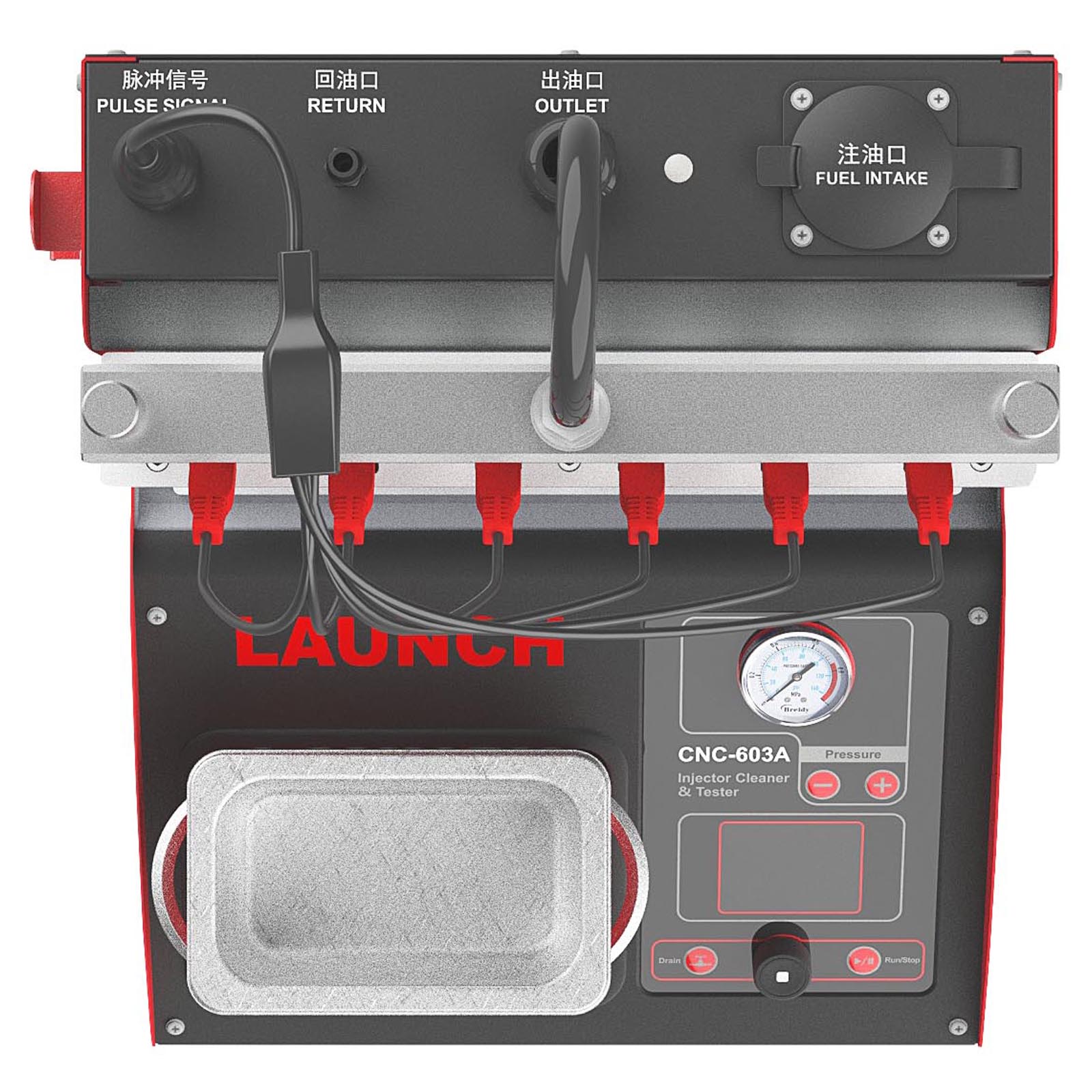

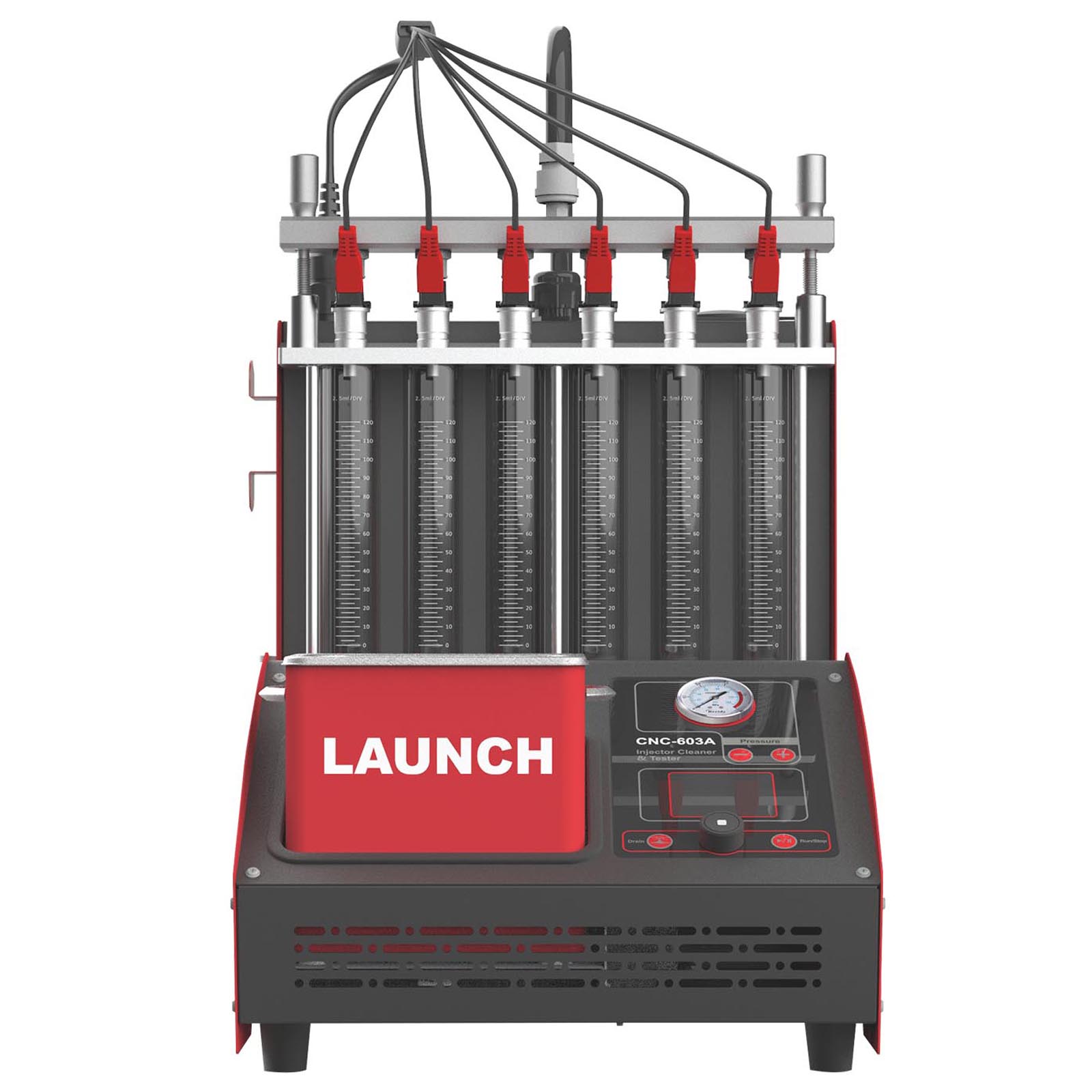

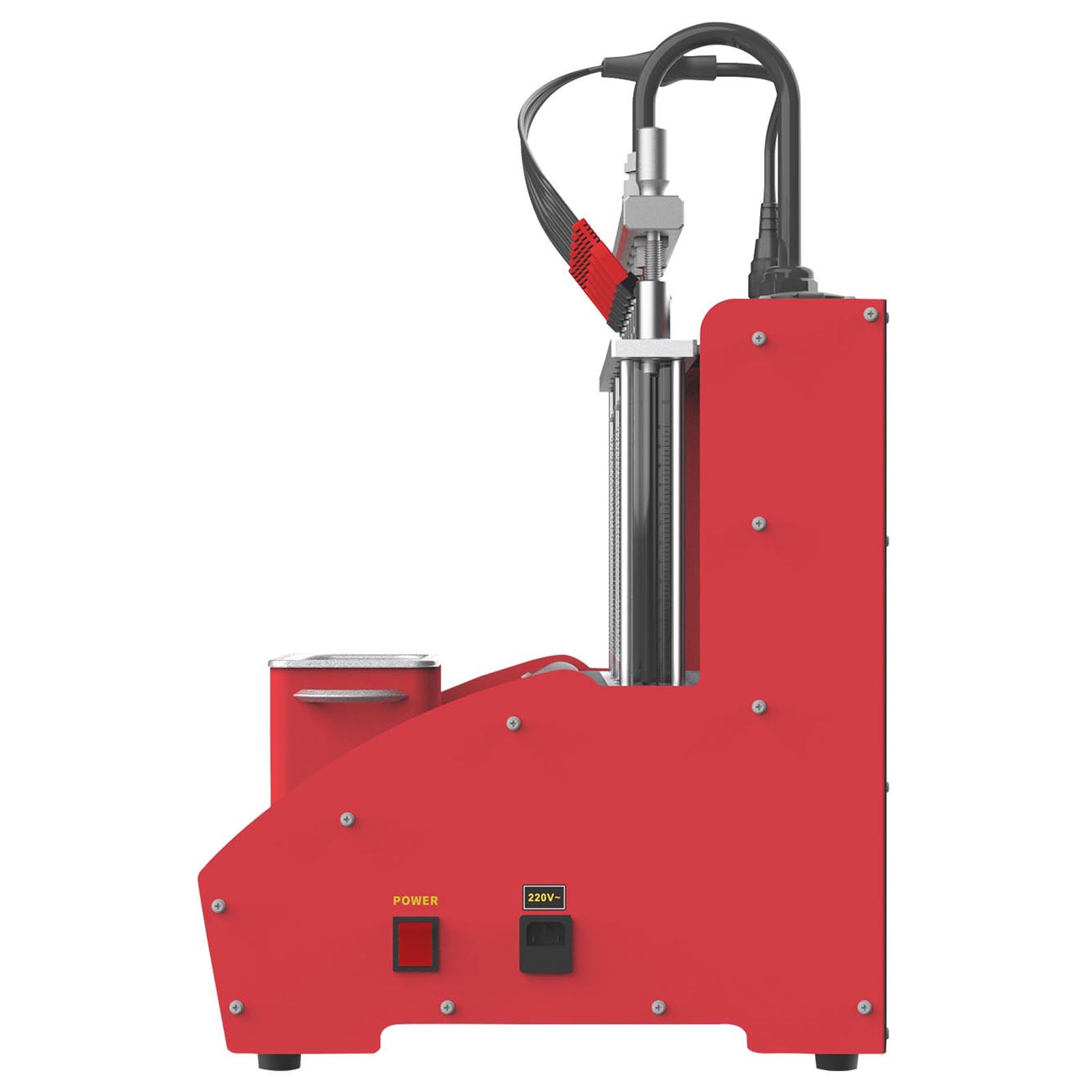

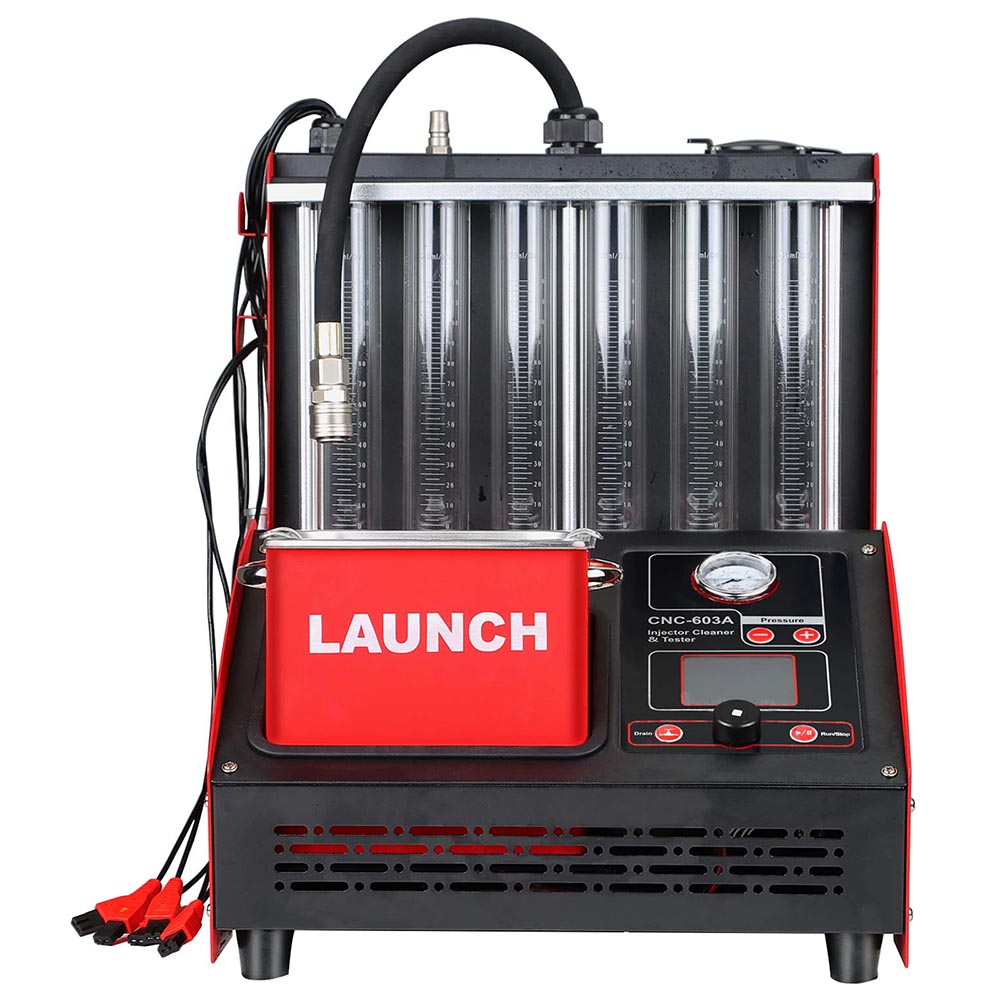

Name: Launch CNC603A Ultrasonic Fuel Injector Cleaner and Tester
Description:
Launch CNC 603A 4/6 Cylinder Fuel Injector Tester is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It also can perform cleaning on the injectors and fuel supply system on vehicles.
Features:
1. Adopting ultrasonic cleaning technology, Launch CNC603A Fuel Injector Cleaner & Tester presents a strong cleaning ability.
2. Launch CNC-603A also adopts fuel pressure adjustment and control technology by microcomputer, which can ensure stable fuel pressure and wide adjustable range. It is applicable to vehicles equipped with a variety of gasoline injection systems. Meanwhile, the automation of injectors’ cleaning and testing processes can be realized.
3. Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically and the parameters of the main status can be monitored in real time.
4. Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology. Start or [stop] fuel drainage via the [Drain] button on the control panel in running or stop state.
Supported Languages: English, French, Portuguese, Italian, Russian, Japanese, Korean, Chinese
Highlights:
1. Wide Application Range
CNC603A car fuel injector tester cleaner has a good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injector. And also can be used to ‘clean’ diesel fuel injectors.
2. Easy To Operate
When cleaning, fix the car injector in the socket of the washing tank, add an appropriate amount of cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube industrial alcohol, the test can be completed after power on.
3. Leading Technology
At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.
4. Safety
Its working voltage range is 110V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.
5. One Year Warranty
For damage caused by non-human factors, we promise to resend parts for free within 1 years.
Functions:
1. Uniformity / Spray Ability Test
To detect the uniformity of the fuel injection quantity of each injector and monitor the spray status of injectors thoroughly and carefully by using the backlight, and to back flush injectors.
2. Leakage Test
To test the leakage and dribbling conditions of injectors under system pressure.
3. Injecting Flow Test
To detect the amount of fuel injected normally by injectors in 15 seconds.
4. Auto Test
Under specific working conditions and parameters, the precise simulation of test of injectors.
5. Ultrasonic Cleaning
To perform ultrasonic cleaning on multiple injectors at the same time, removing carbon deposits on injectors completely.
6. On-vehicle Cleaning
Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.
7. Version Information
To check the software version information of the current device.
How to Use CNC603A Car Fuel Injector Tester Cleaner?
1. Clean injector outside with cleaning liquid before opening the machine. Putting injectors in ultrasonic bathtub after the outside of injector is free of dirt. The cleaning fluid does not exceed the connection port of the pulse line.
2. Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors. After cleaning, the remaining cleaning fluid can be recycled.
3. Fixed injectors on main machine, testing injectors for resistance, shorts, and current draw.The test liquid can be added to the half of the glass tube.
4. Performing leak test, spray pattern, and flow rate testing on flow bench.The injectors are now returned to the flow bench for retesting of all functions.
Supported Cars:
Audi, Australia Ford, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewoo, Daihatsu, Demo, Fiat, Ford, GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, SAAB, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha
Specifications:
Input Power: AC220V-230V / 1.5A max; 50Hz/60Hz
Mechanical Power: 300W
Ultrasonic Cleaning Power: 100W
Speed Range for Simulation Test: 10 to 9990rpm (step: 10rpm)
Timing Range: 1 to 9999s pulse
Width Range: 0.5 to 25ms (step: 0.1ms)
Operating Volume : 2000ml
Environment Temperature: 0 to 45 degree centigrade
Relative Humidity: <85%
Strength of External Magnetic Field: < 400A/m
Main Unit Dimension: 355*350*356mmPacking Dimension: 458*433*537mm
Net Weight: 10.5Kg
Gross Weight: 13Kg
Note: Open fire is strictly prohibited within 2 meter.
|
