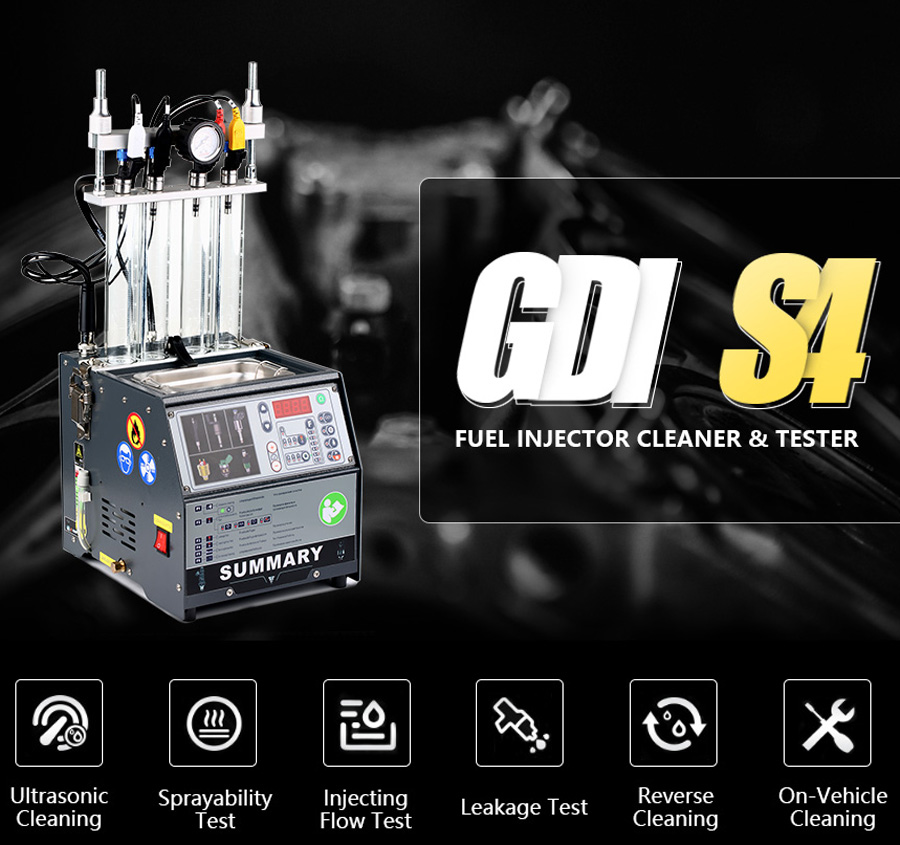

Name: SUMMARY PowerJet GDI S4 Injector Cleaner & Tester
Description:

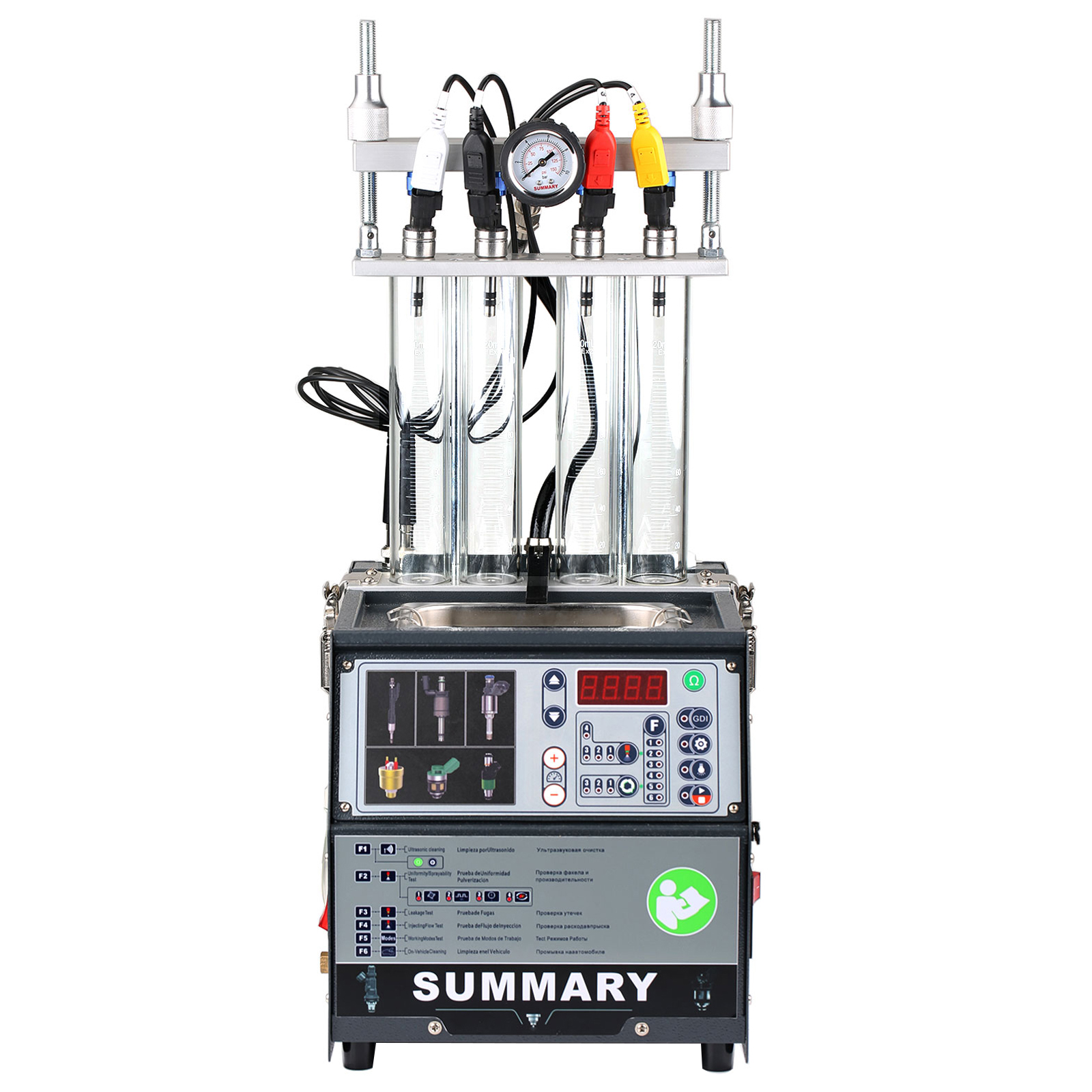

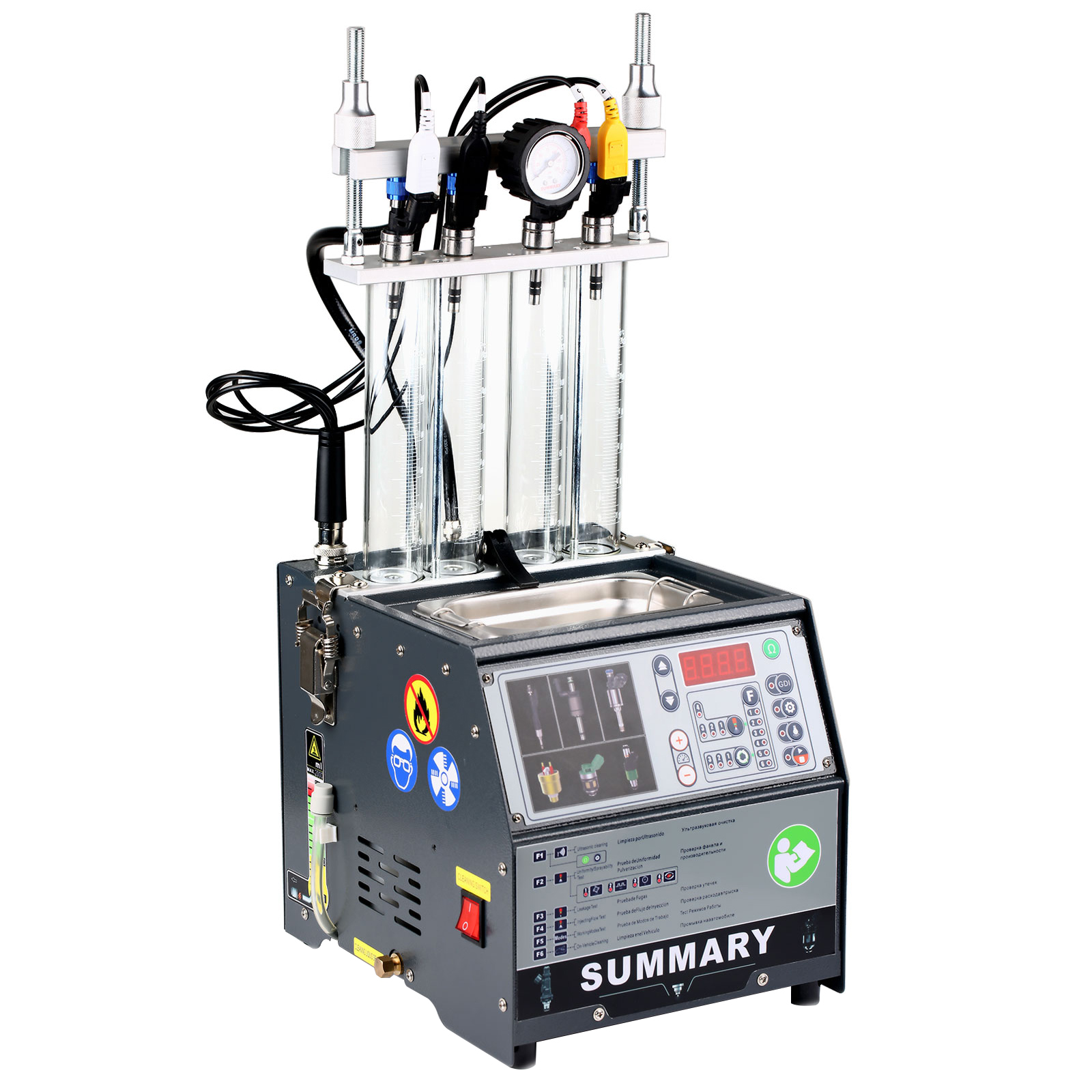

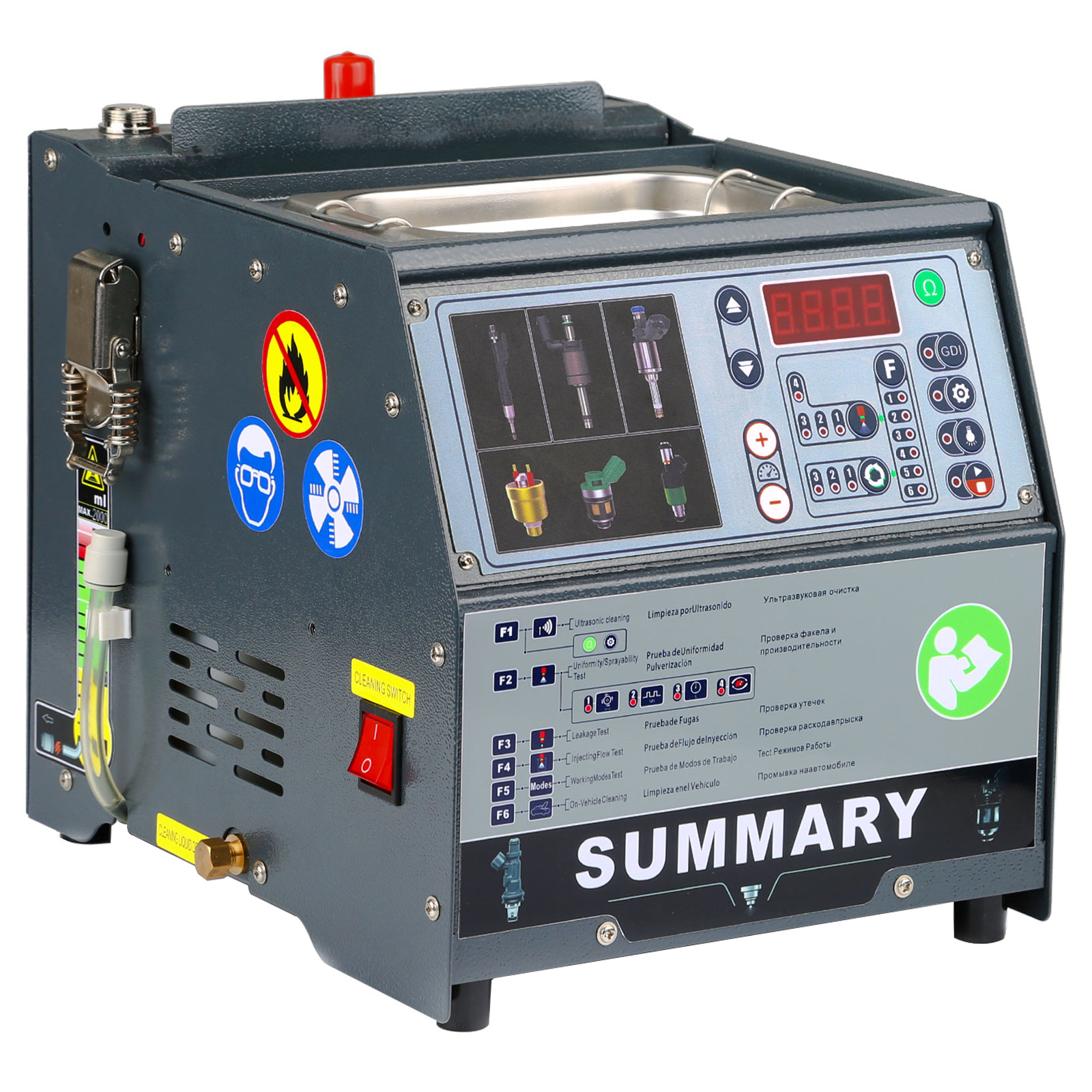

SUMMARY PowerJet GDI S4 Injector Cleaner & Tester Machine Kit support for 110V 4-cylinder petrol cars and motorcycles.
SUMMARY PowerJet GDI S4 injector cleaner & tester uses ultrasonic technology and microprocessor fuel pressure control cleaning and testing technology to quickly remove carbon from the vehicle fuel system, and test leaking, uniformity, inbreath of injectors, so that the injectors can discharge fluid more quickly.
SUMMARY PowerJet GDI S4 injector cleaner & tester fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors. It also can be used for cleaning and testing 4 injectors at the same time.
Features:
GDI Full Support
SUMMARY PowerJet GDI S4 supports testing of various GDI injectors, including Bosch, Denso, Delphi, etc. Supports long GDI injector detection, such as Mercedes-Benz and BMW.
Resistance Test
Supports the resistance measurement of the fuel injector to know the performance status of the fuel injector.
Quick Disassembly
The special structure design makes the disassembly and assembly of the fuel separator more efficient and quicker.
Small and Lightweight

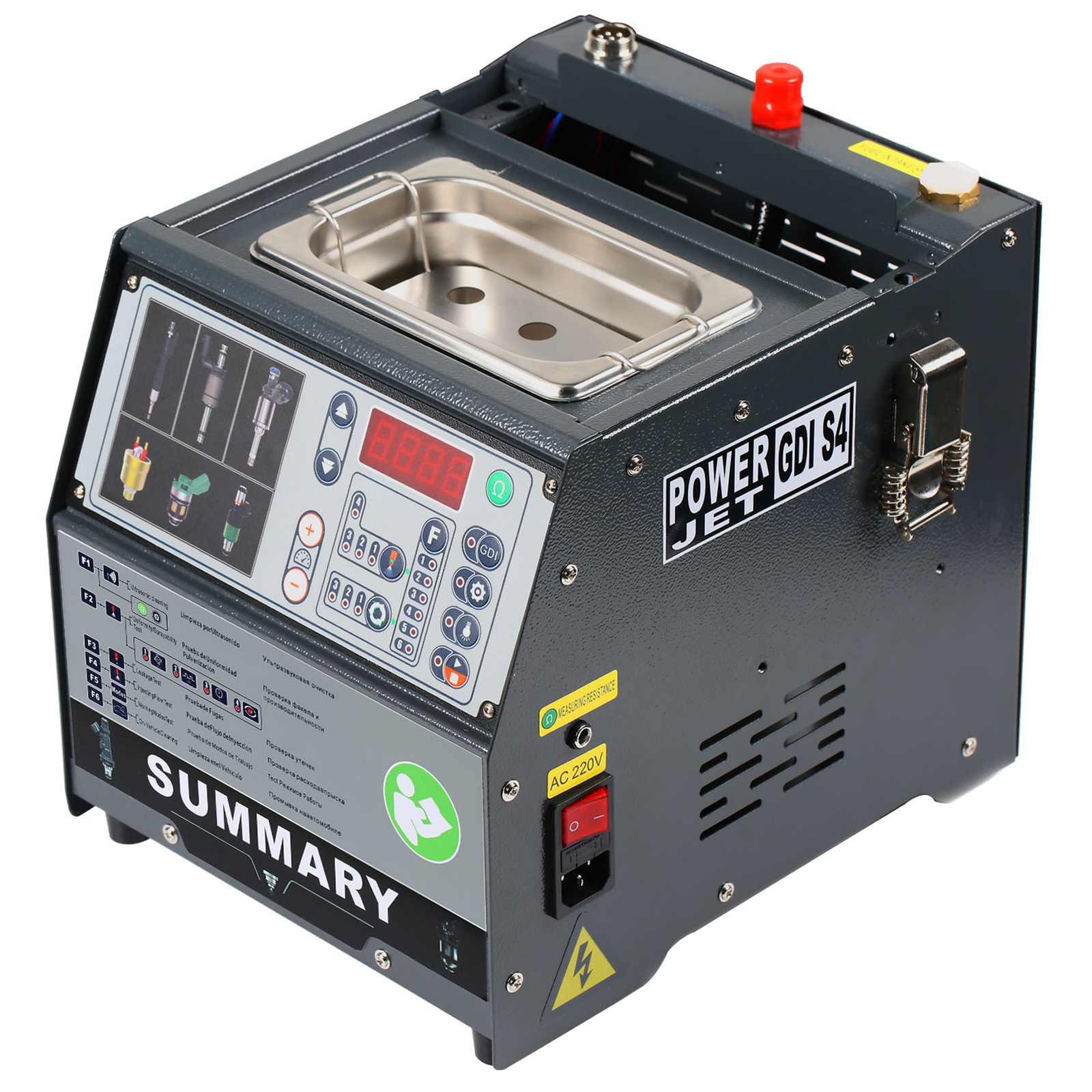

SUMMARY PowerJet GDI S4 is very small and light and easy to move. It is currently the smallest full-function test equipment for GDI injectors.
Strong Cleaning

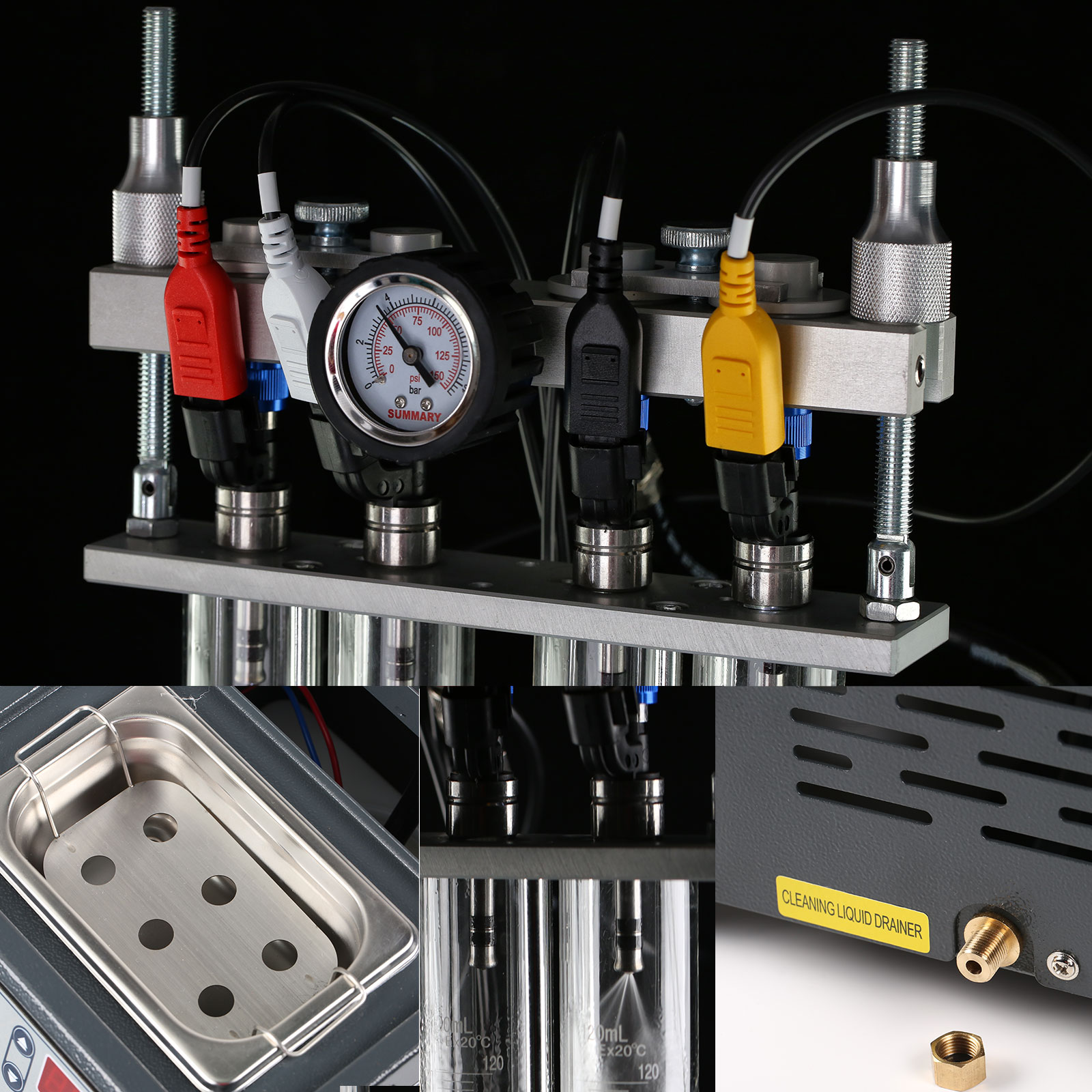

SUMMARY PowerJet GDI S4 has a strong ultrasonic cleaning ability, which can remove carbon deposits and impurities on the fuel injection nozzle to the greatest extent.
Humanization Design
Adopting humanization design can make the system pressure fast restored to the default values.

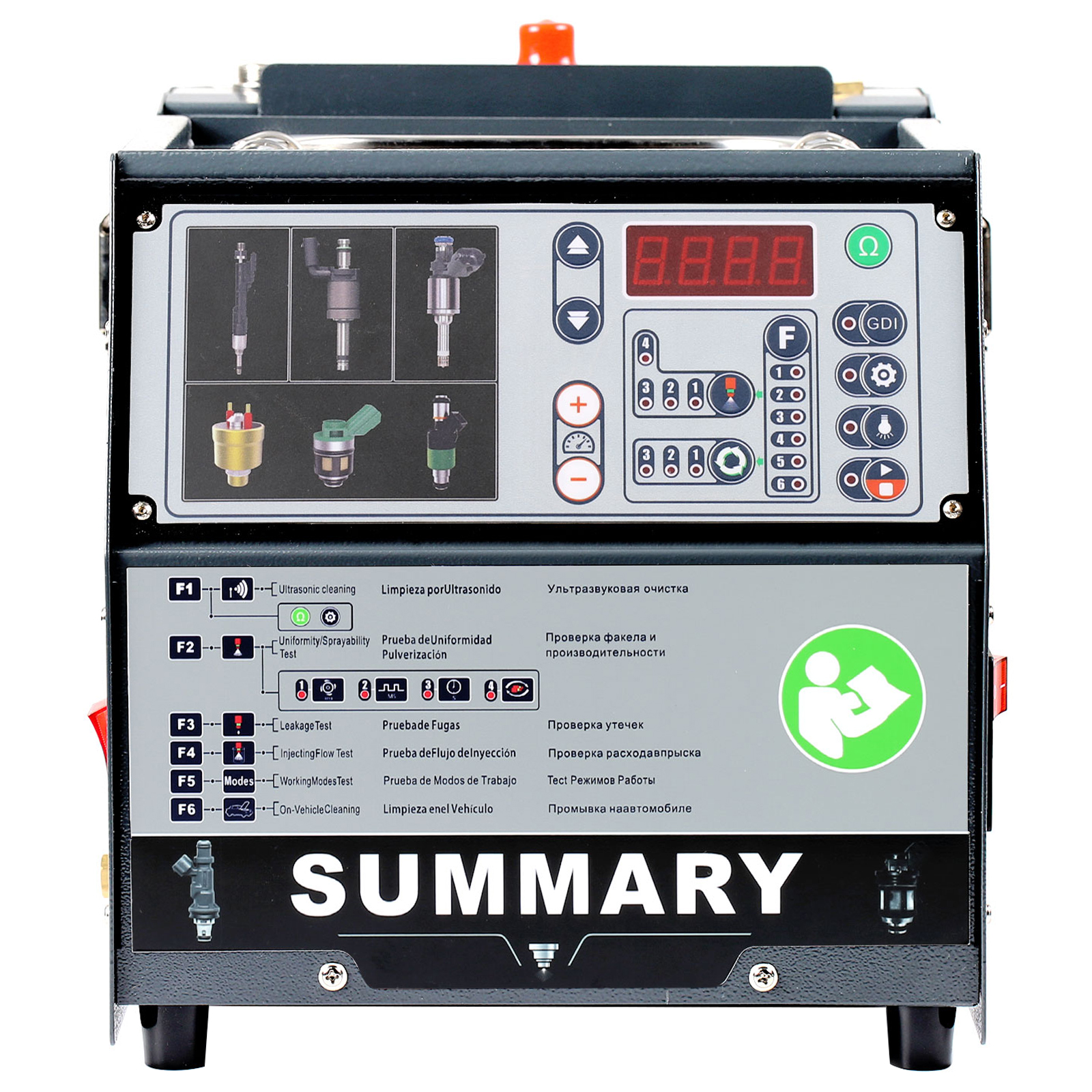

Functions:
Supports Various GDI Injectors
Injector Resistance Test
Full Test for Low Resistance Injectors
Side Feed Injectors Support (with Optional Spare Parts)
Ultrasonic Cleaning
Uniformity & Sprayability Test
Leakage Test
Injecting Volume Test
Working Modes Test
On-Vehicle Cleaning
Specifications:
Power Supply: AC 220V/110V±10% 60Hz
Input Power: 230W
Ultrasonic Cleaner Power: 100W
Fuel Tank Capacity: 2000ml
Simulated RPM Range: 100 to 9900rpm; step:10rpm
Time Range: 5 to 300s; step: 5s
Pulse Width: 0.1 to 25ms; step: 0.1ms
Work Pressure: 0 - 7bar

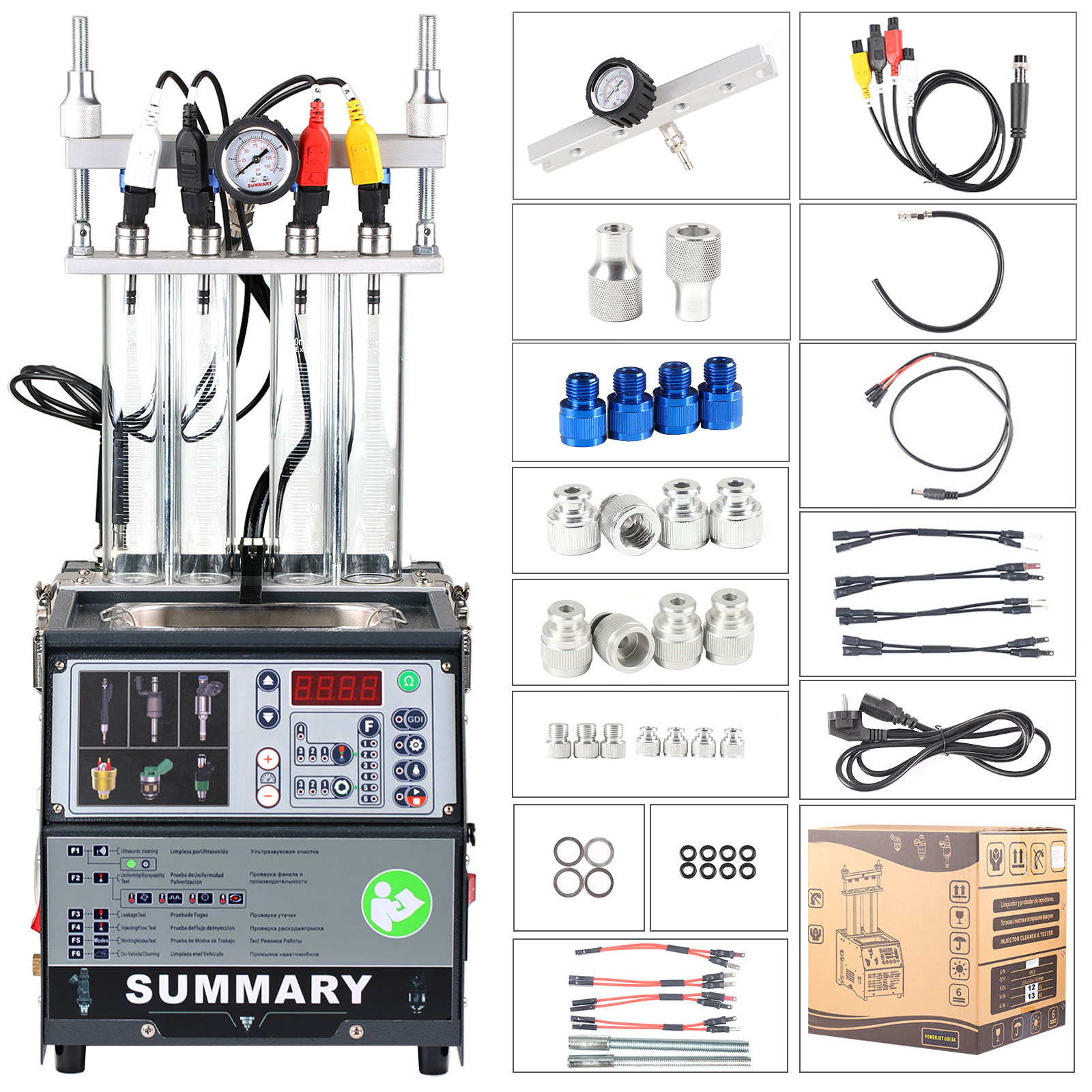

Packing List:
SUMMARY PowerJet GDI S4 Injector Cleaner & Tester
Main Adapter
Vice Adapter
Main Pulse Cable
Pulse Signal Cable
Universal GDI Adapter
Thread GDI Adapter
GM GDI Adapter
Fuel Separator
Fuel Separator Stopper
Resistance Test Cable
Extended Pole
Lock Handwheel
Injector Shims
O-Ring
Power Cable
User Manual
Packing Box
|
