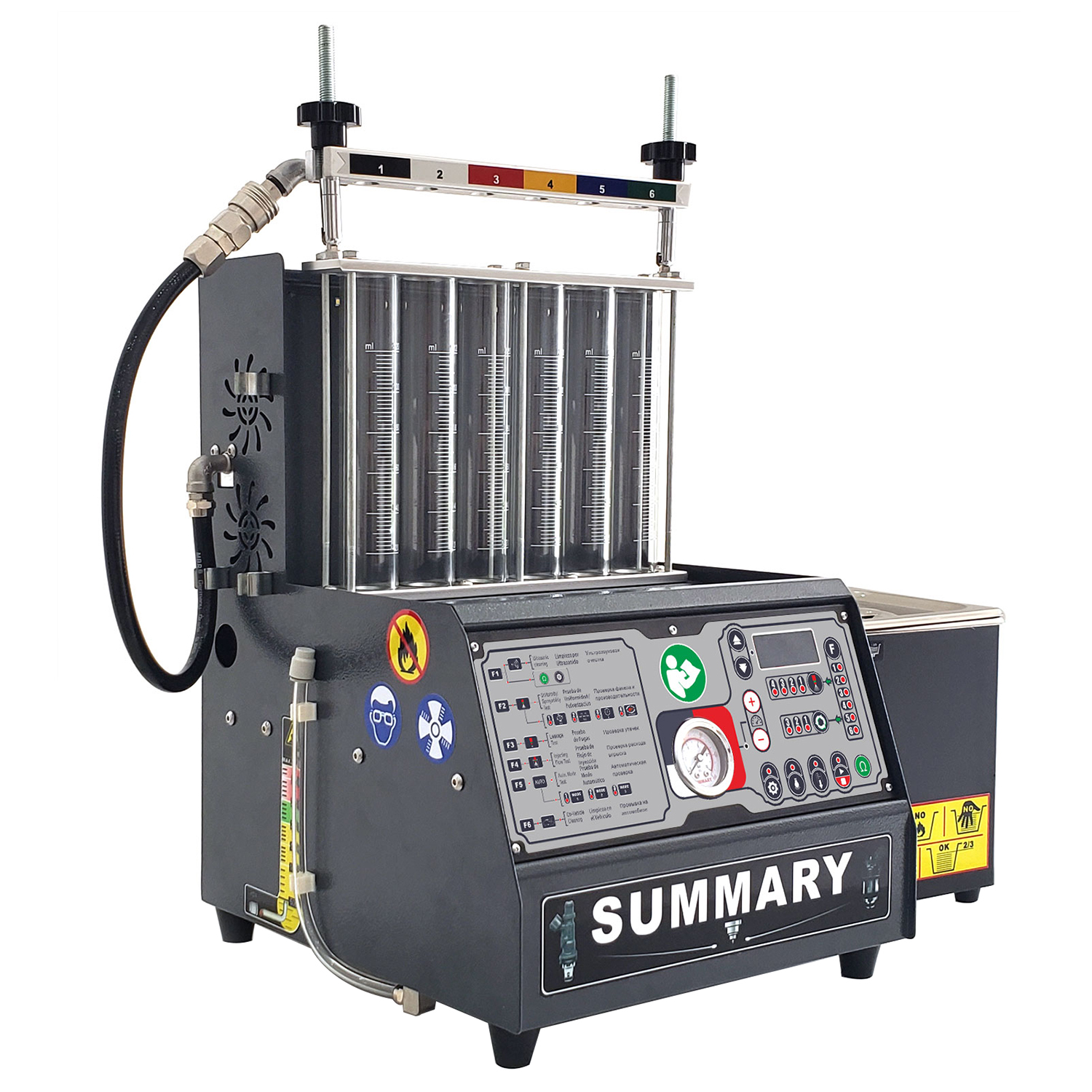

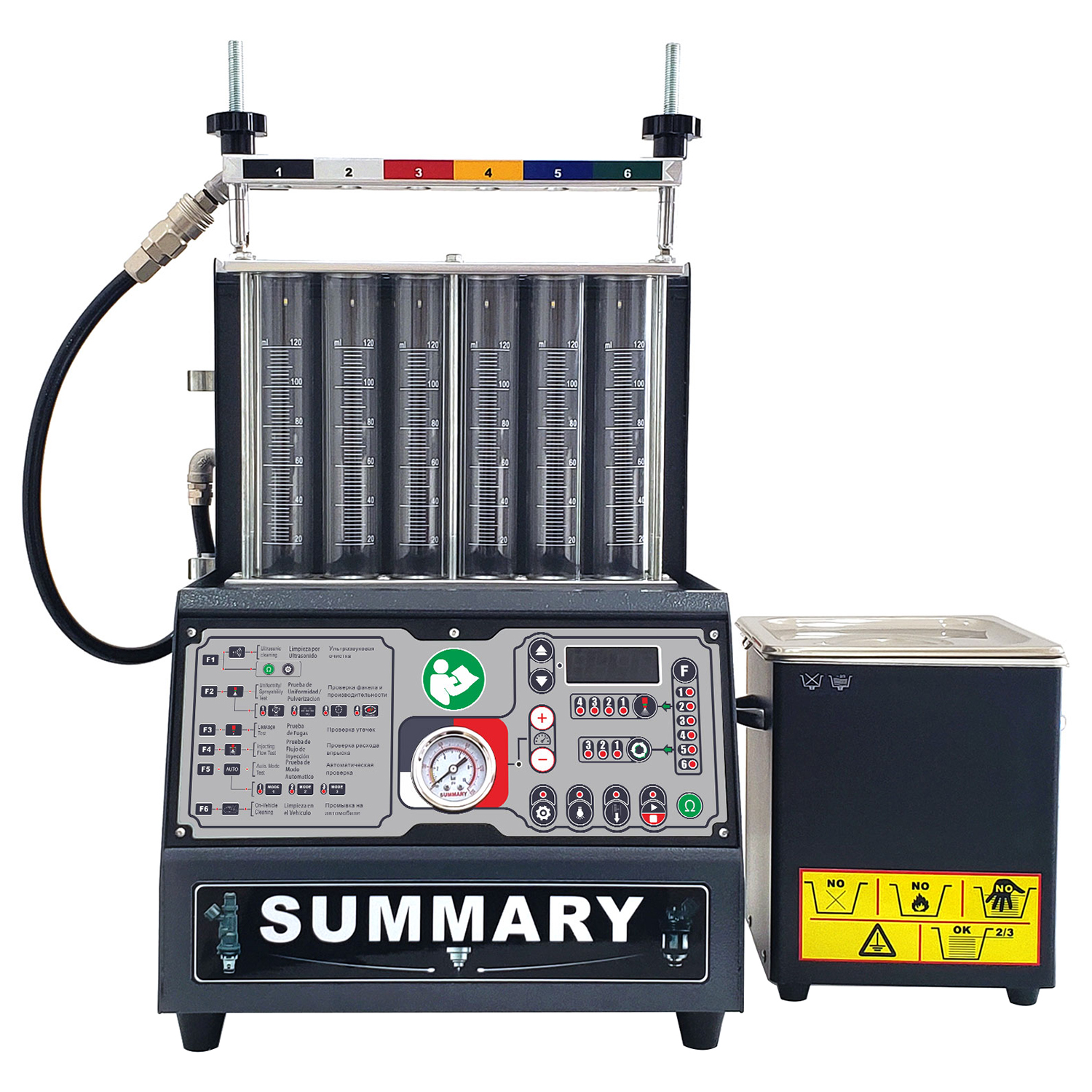

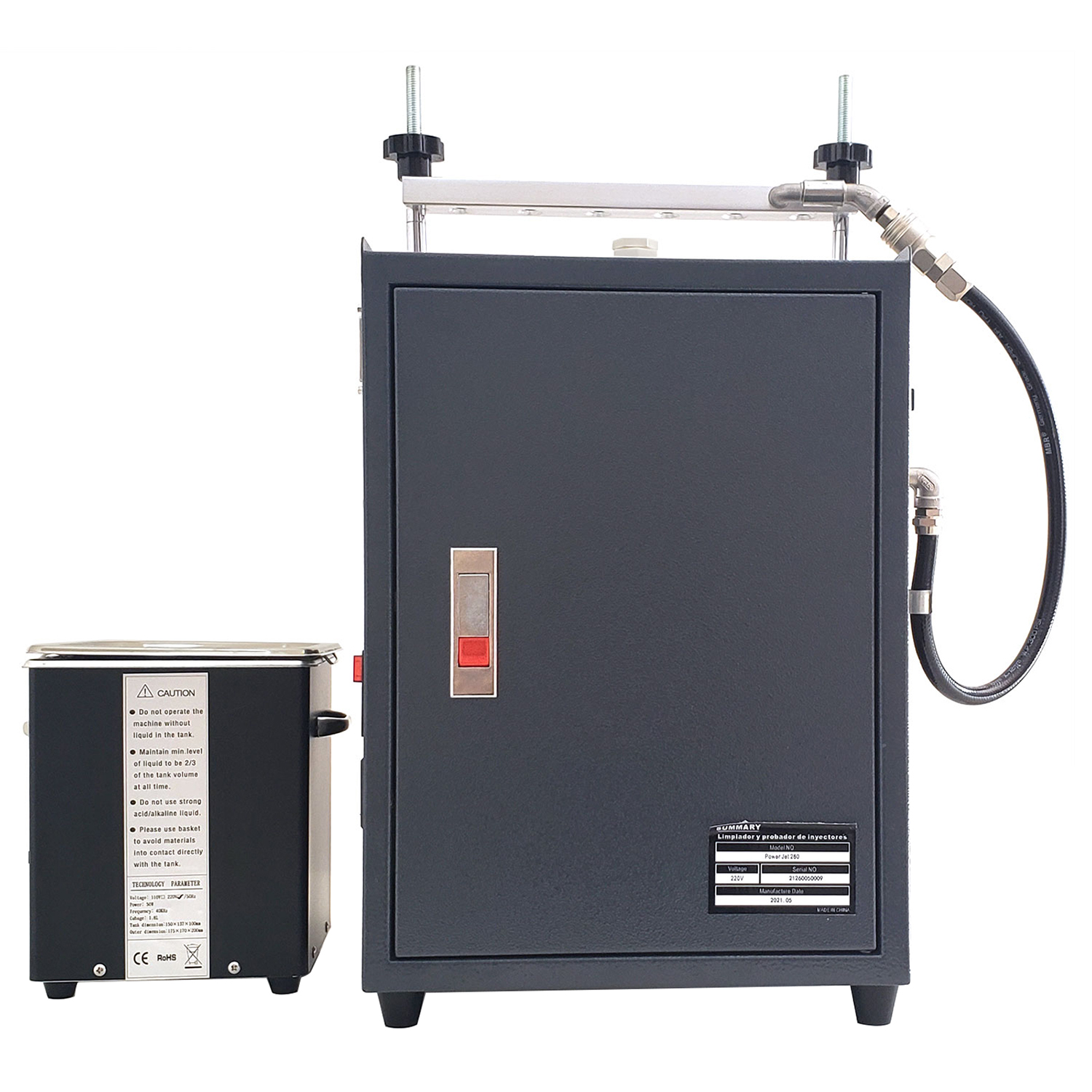

Name: SUMMARY PowerJet Pro 260 Injector Cleaner & Tester
Description:
SUMMARY PowerJet Pro 260 Injector Cleaner & Tester uses ultrasonic technology to quickly remove carbon from the vehicle fuel system, and test leaking, uniformity, inbreath of injectors, so that the injectors can discharge fluid more quickly.
SUMMARY PowerJet Pro 260 Injector Cleaner & Tester fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors. It also can be used for cleaning and testing six injectors at the same time.
Features:
High Efficiency
The special structure design makes the disassembly and assembly of the oil separator easier.
High Security
The unique oil circuit depressurization technology can make the machine automatically depressurize in the case of sudden shutdown, avoiding equipment damage or personal injury.
Strong Cleaning
The machine has a strong ultrasonic cleaning ability, which can remove carbon deposits and impurities on the fuel injection nozzle to the greatest extent.
Real Time Monitoring
Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically and the parameters of the main status can be monitored in real time.
Easy to Control
Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology. Start or [Stop] fuel drainage via the [Drain] button on the control panel in running or stop state.
Humanization Design
Adopting humanization design can make the system pressure fast restored to the default values.
Functions:

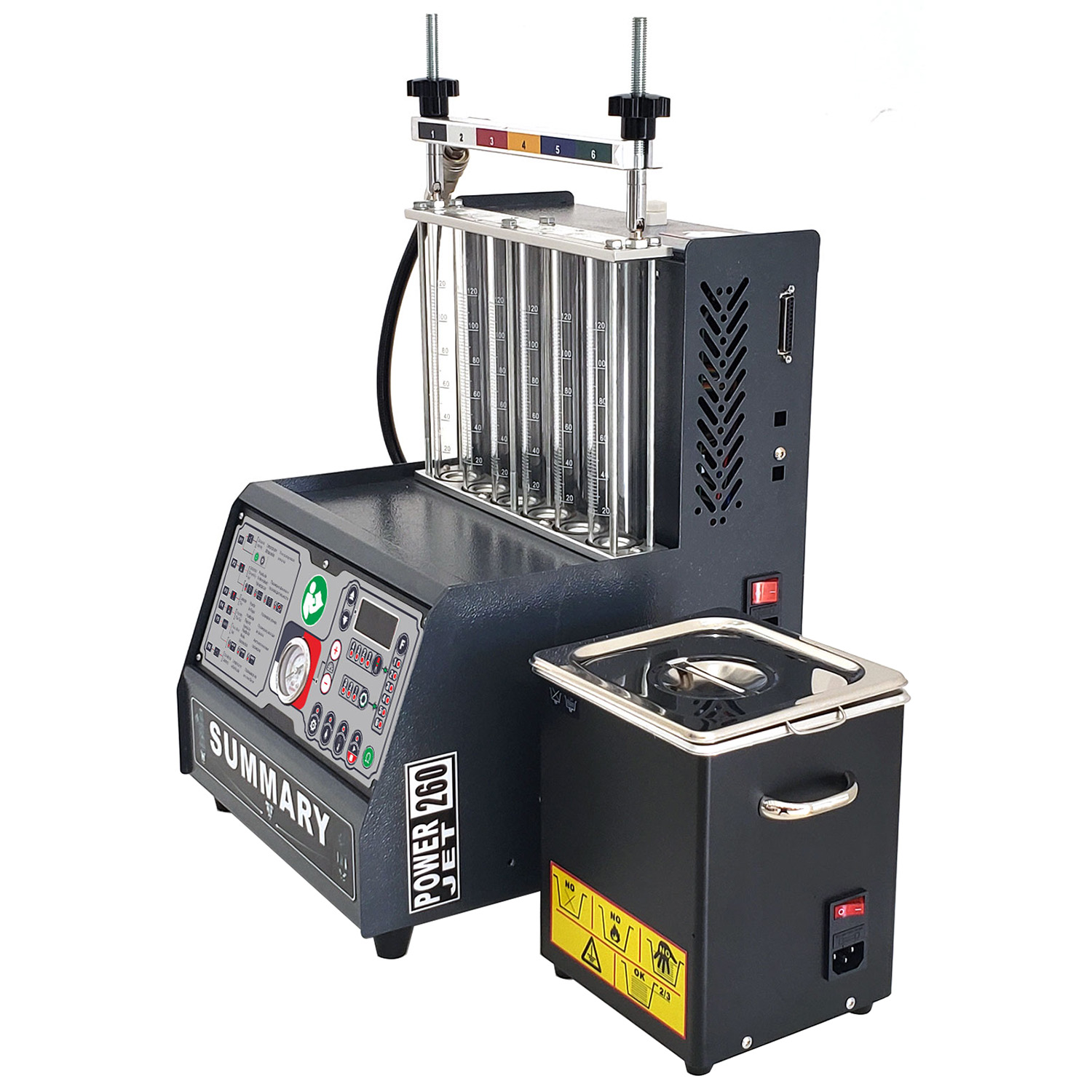

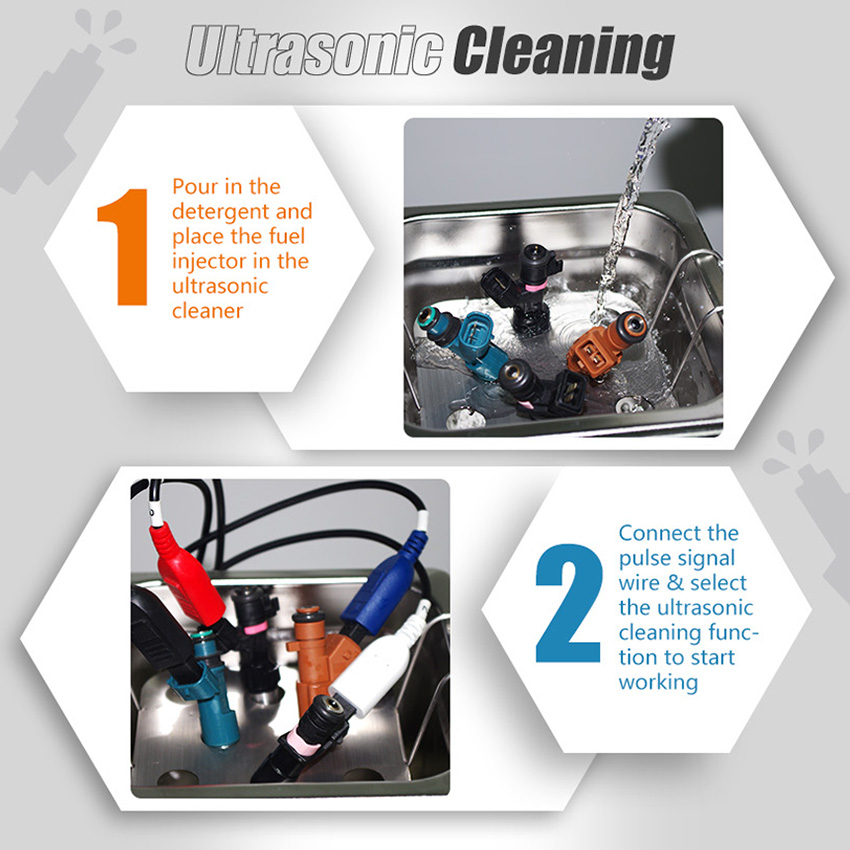

Ultrasonic Cleaning
To clean injectors to remove the carbon deposition on them completely.

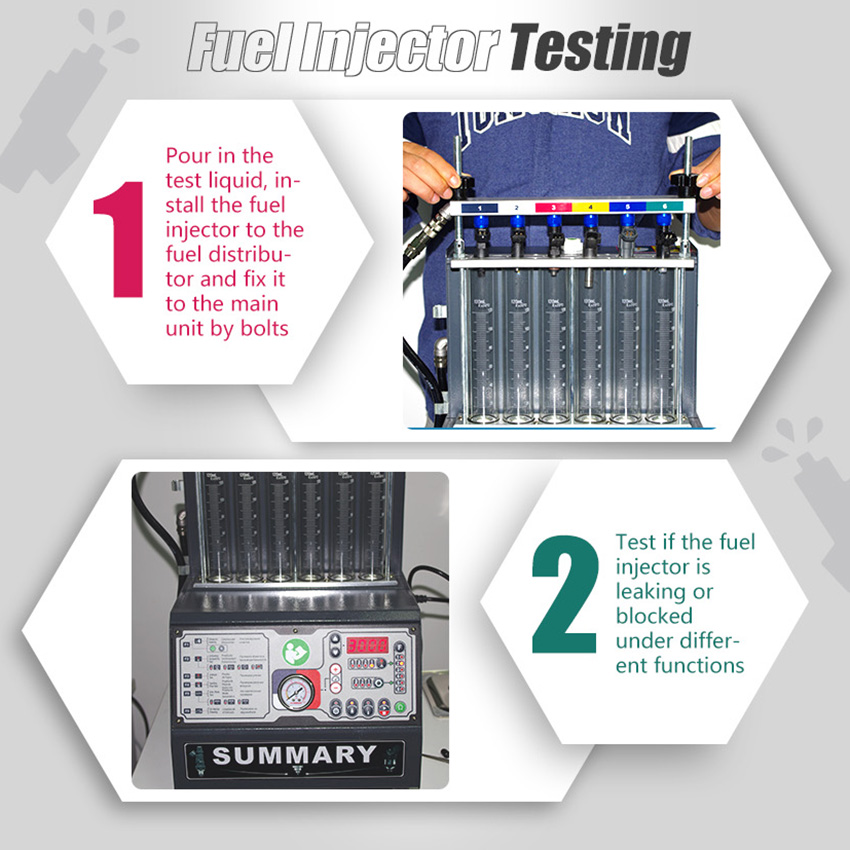

Uniformity Test
To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.
Leakage Test
To test the sealing and dribbling conditions of injectors under system pressure.
On-Vehicle Cleaning
Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.
Automatic Test
Automatic fuel drain during a certain test can be realized via a routine, owing to the adoption of automatic fuel drain control technology.
Multi Items Setting
Set different parameters of the device, including the buzzer sound level, display brightness and backlight brightness.
Specifications:
Power Supply: AC 220V/110V±10% 60Hz
Input Power: 230W
Ultrasonic Cleaner Power: 100W
Fuel Tank Capacity: 3300ml
Simulated RPM Range: 100 to 9900rpm; step: 10rpm
Time Range: 5 to 300s; step: 5s
Pulse Width: 0.1 to 25ms; step: 0.1ms
Work Pressure: 0 - 7bar

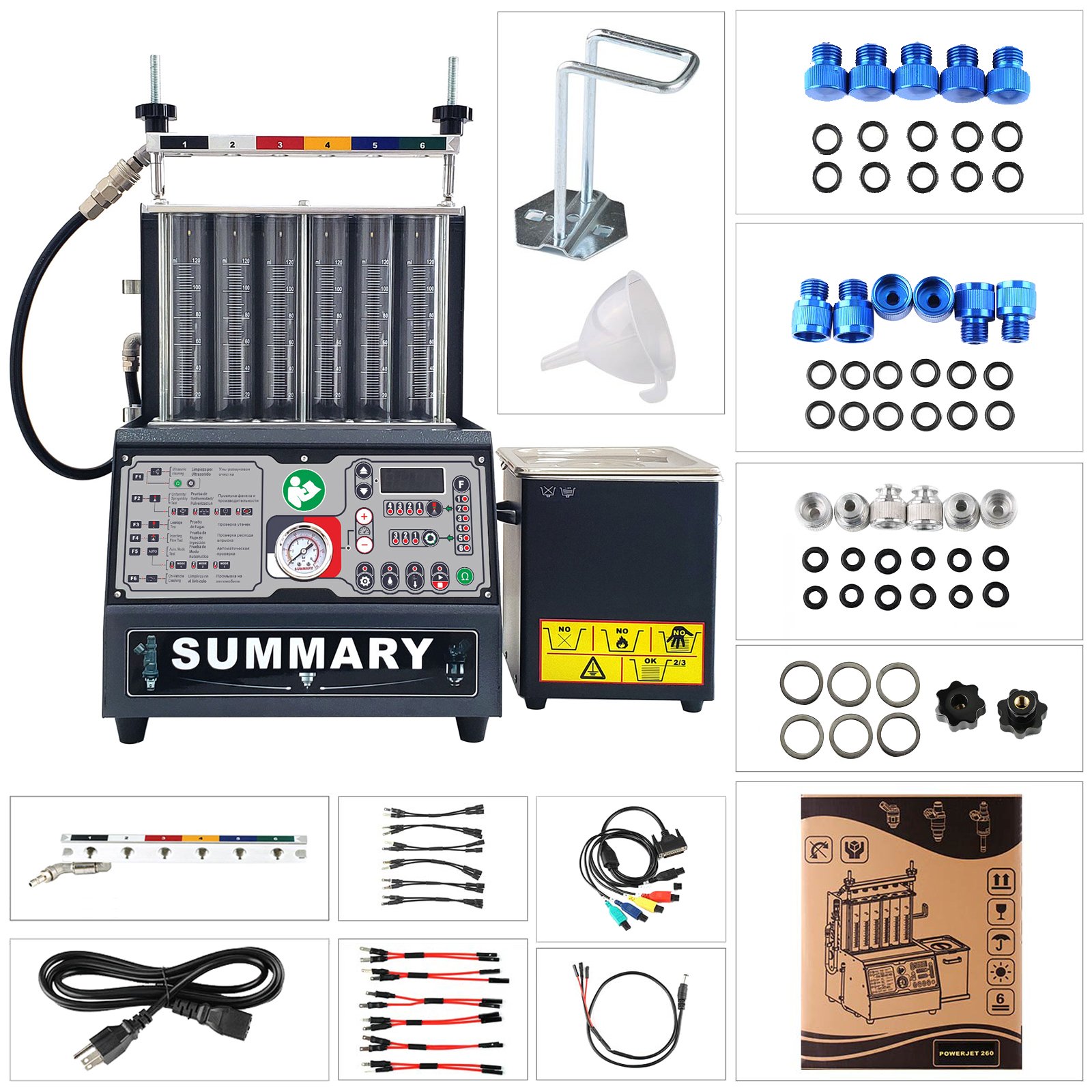

Packing List:
SUMMARY PowerJet Pro 260 Injector Cleaner & Tester
Main Adapter
Vice Adapter
Main Pulse Cables
Pulse Signal Cable
Liquid Filler
Fuel Separator
Fuel Separator Stopper
Hole Stopper
Lock Handwheel
Hook
Power Cable
User Manual
|
