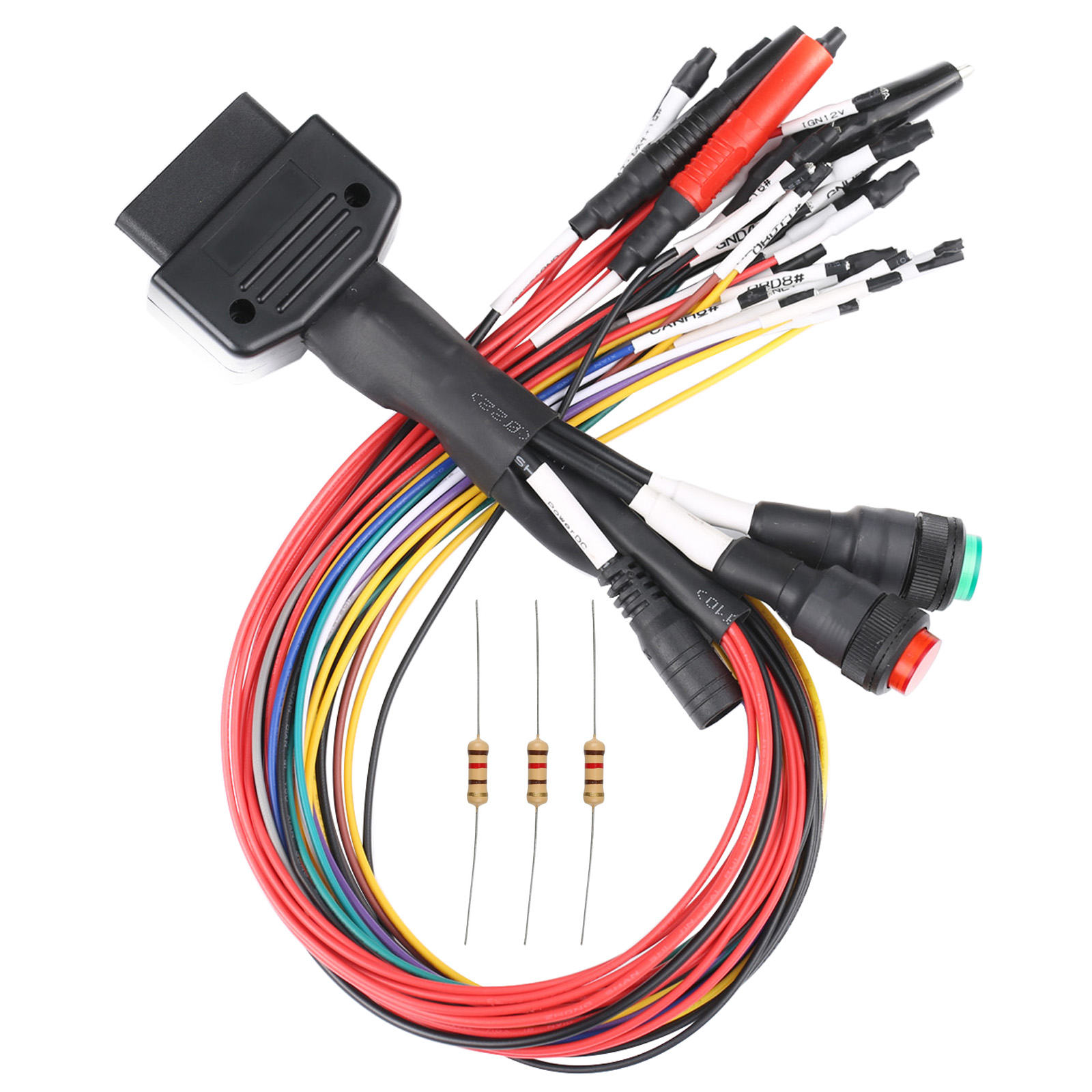

Name: GODIAG Full Protocol OBD2 Jumper Breakout Tricore Cable
Description:

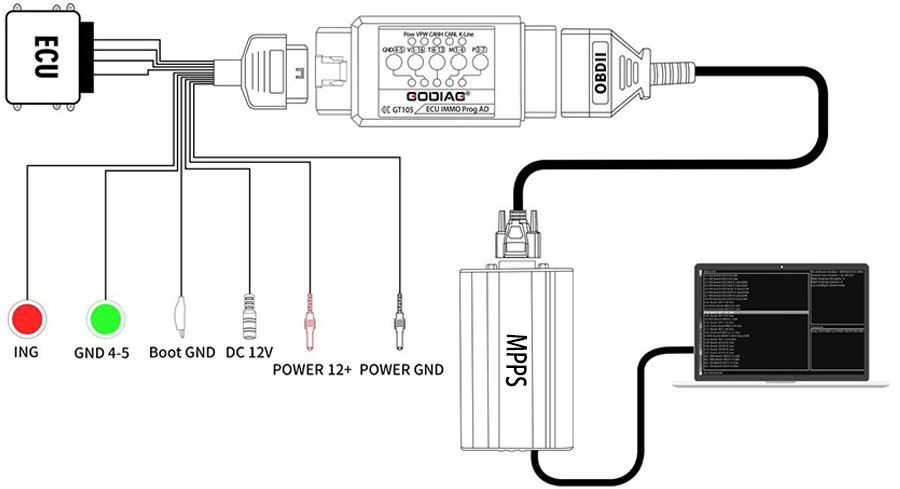

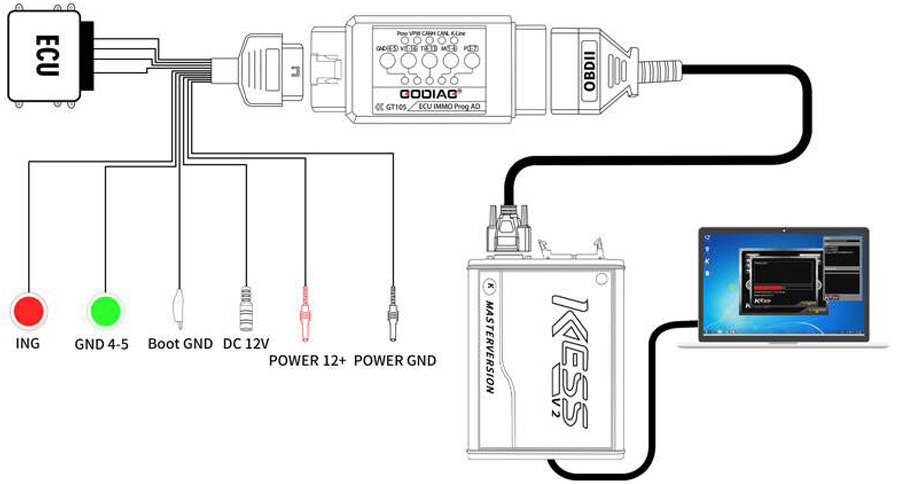

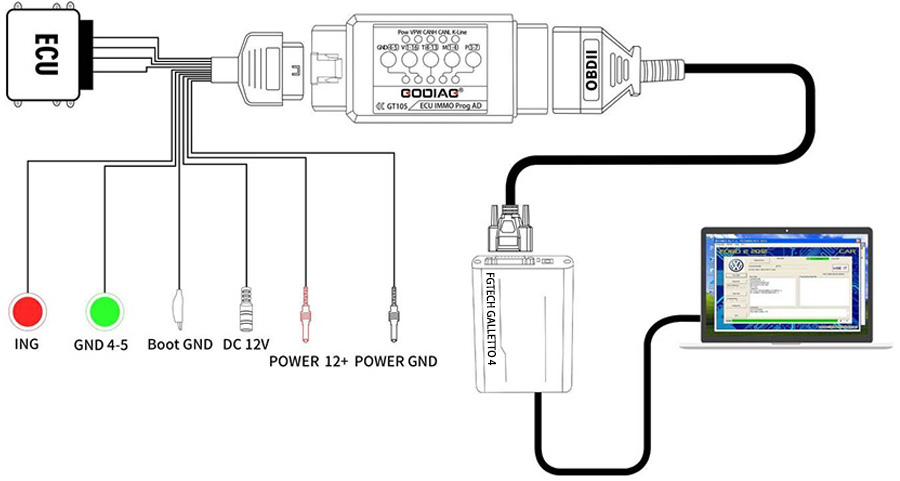

GODIAG Full Protocol OBD2 Jumper Breakout Tricore Cable is used to connect ECU for ECU programming via OBD2 for using with MMPS, FGTECH, KESS V2, BYSHUT, DISPROG, PCMTuner, etc.
Functions:
1. Supports DC power supply.

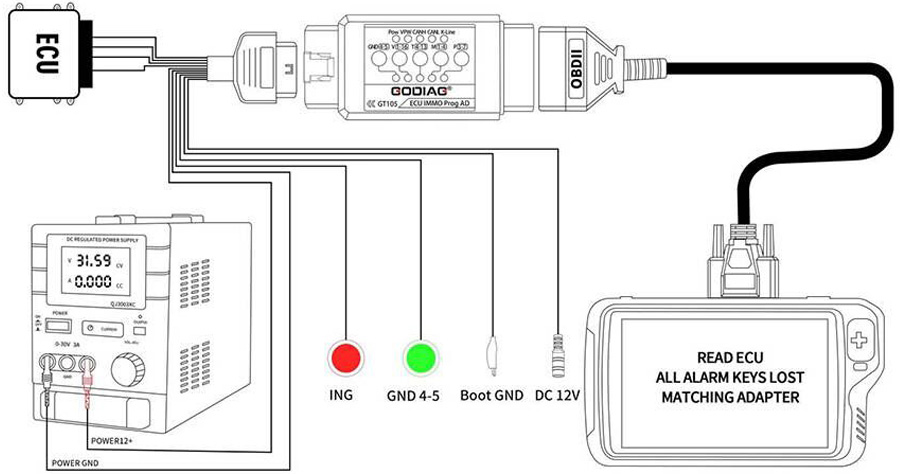

2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 (Meet the needs of special ECU programming).
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESS V2.

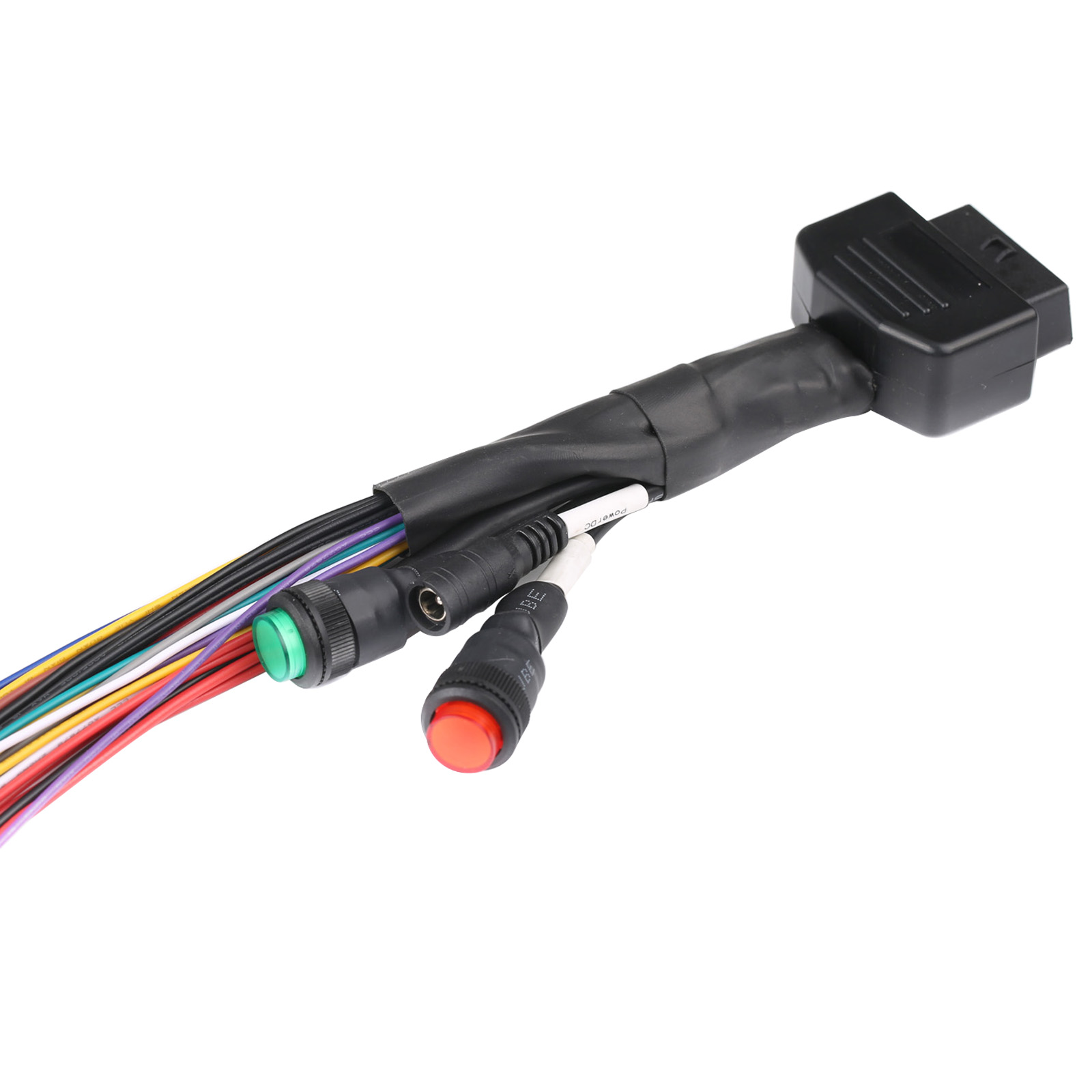

5. With GND4 GND5 short-circuit switch (Some ECUs need to be switched to short-circuit mode when programming.).
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

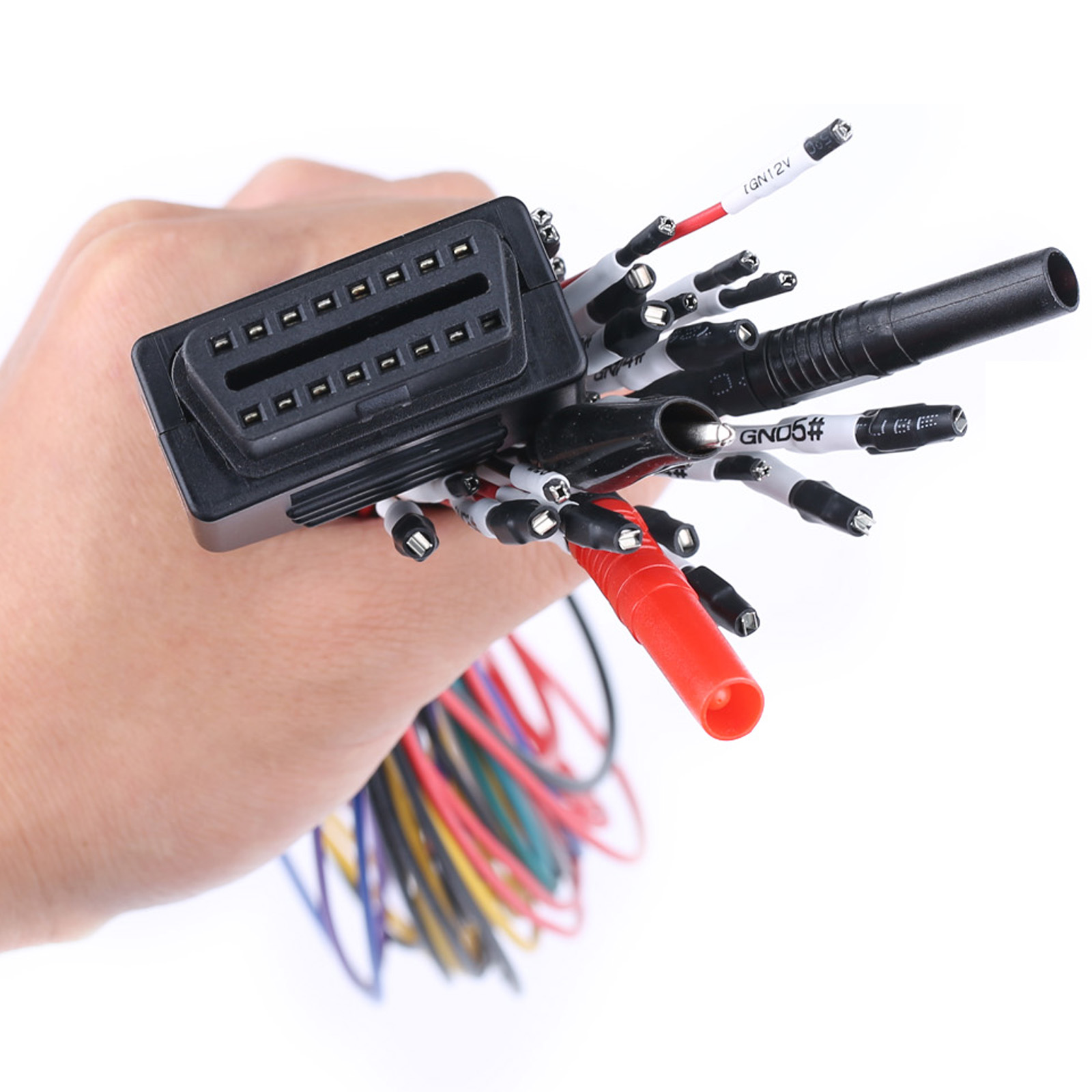

6. With ignition analog switch (Equipped with 1 large and 2 small dedicated ignition cables).

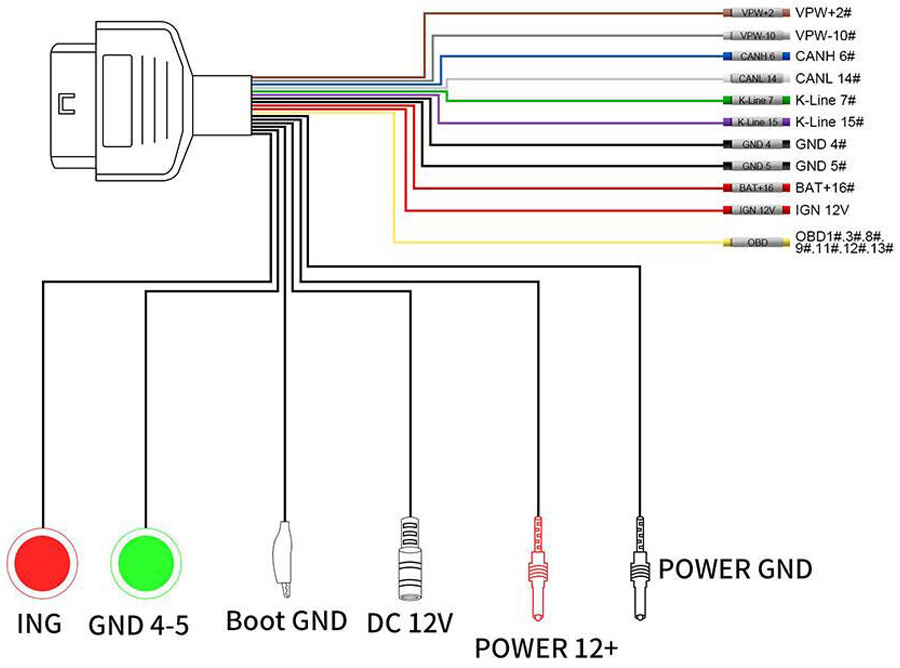

7. Support standard OBD2 full protocol connection (double K line, double CAN line), 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.
What is the analog ignition switch?
After the ING ignition switch is pressed, the line marked with ING12V will have 12V, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.
Cable Kit Contents:
7-Pin Knorr / Wabco Trailer Cable
8-Pin Volvo Cable
12-Pin MAN Cable
12-Pin Renault Cable
14-Pin Benz Cable
16-Pin Scania Cable
30-Pin Iveco Cable
|
