Name: Module 28 ZF-9HP Gearbox Computer Clone with A703 License
Description:
Yanhua ACDP Module 28 ZF-9HP Gearbox Computer Clone with A703 License Authorization.
YANHUA ACDP Module 28 comes with authorization number A703.
Authorized Function: ZF-9HP Gearbox Computer Clone
Functions:
Support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models of the ZF-9HP gearbox computer BOOT mode clone.
Features:
1. The interface board can be inserted blindly to align with the boot test point, no need magnifying glass for calibration or complex probe workbench operation.
2. BOOT test point with pin detection function, data read and write safe and reliable.
3. The special interface board replaces the cable, which is simple, efficient, safe and reliable.
Connection Diagram Comparison:

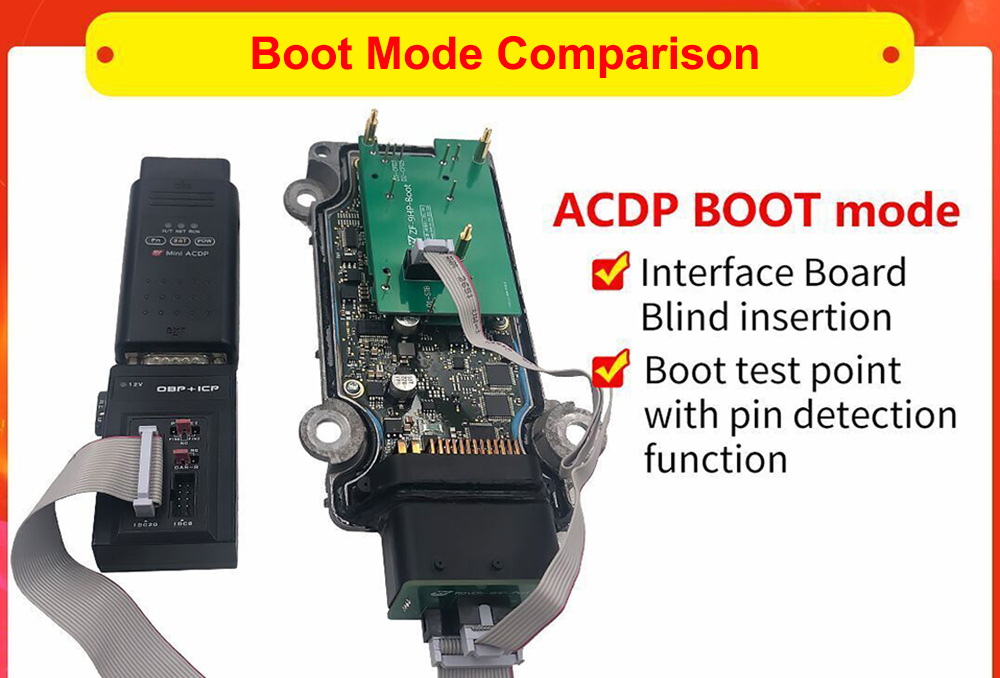

ACDP BOOT Mode:
1. Interface Board blind insertion.
2. Boot test point with pin detection function.

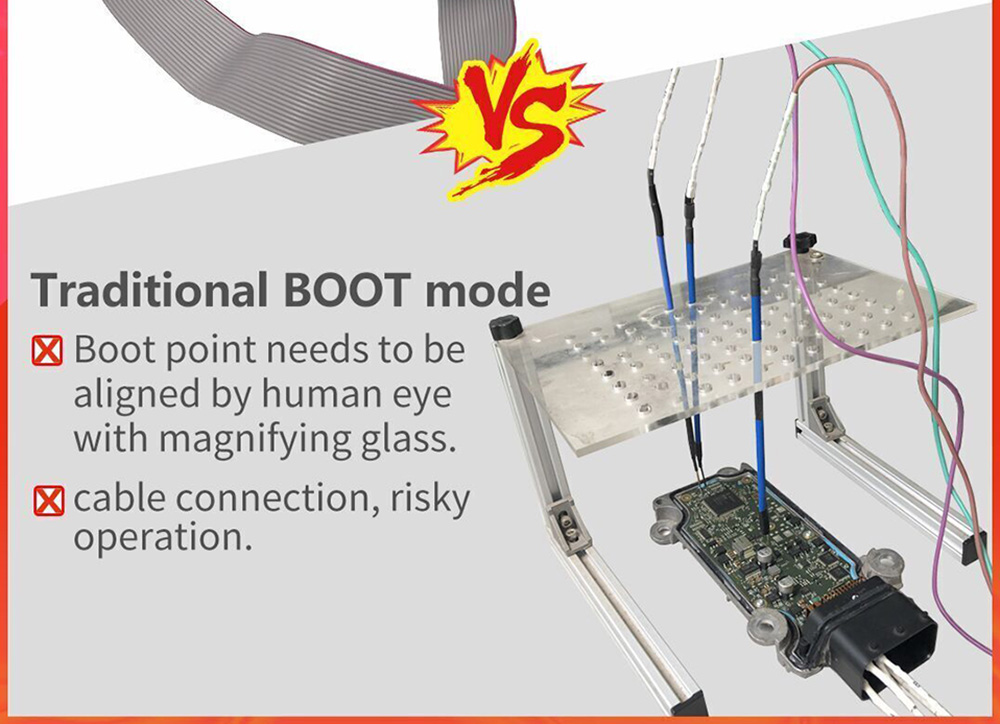

Traditional BOOT Mode:
1. Boot point needs to be aligned by human eye with magnifying glass.
2. Cable connection, risky operation.
|
