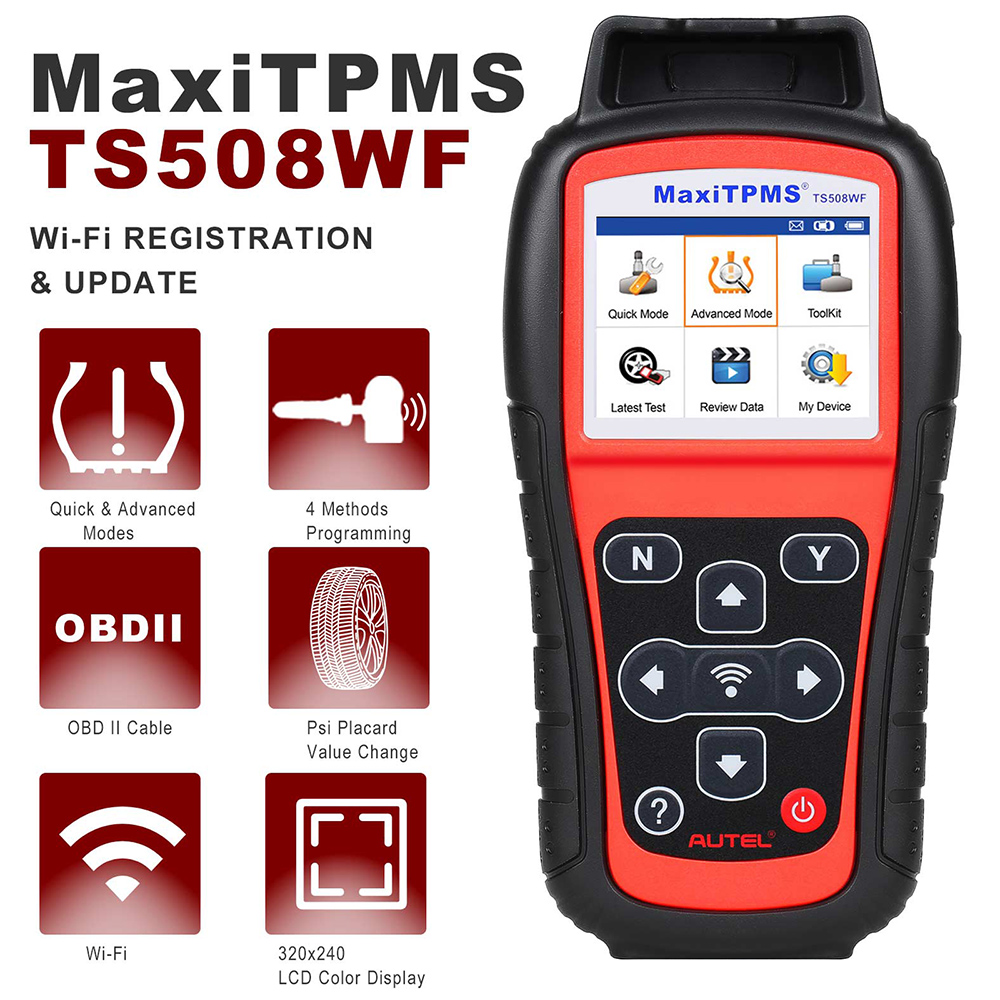

Name: Autel MaxiTPMS TS508WF Newest WiFi Version
Description:
Autel MaxiTPMS TS508WF Newest WiFi Version is upgraded version of Autel MaxiTPMS TS508, TS501, TS408, TS401.
Autel MaxiTPMS TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-Sensors and conduct TPMS relearn.
With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The update by Wi-Fi function helps the update experience more convenient. It can be your right choice to experience Autel TPMS lines.
Software Update: free update online for lifetime
Upgraded Functions:
1. Wi-Fi Update
2. Two TPMS Service Modes
3. Quick Mode / Advanced Mode Comparison

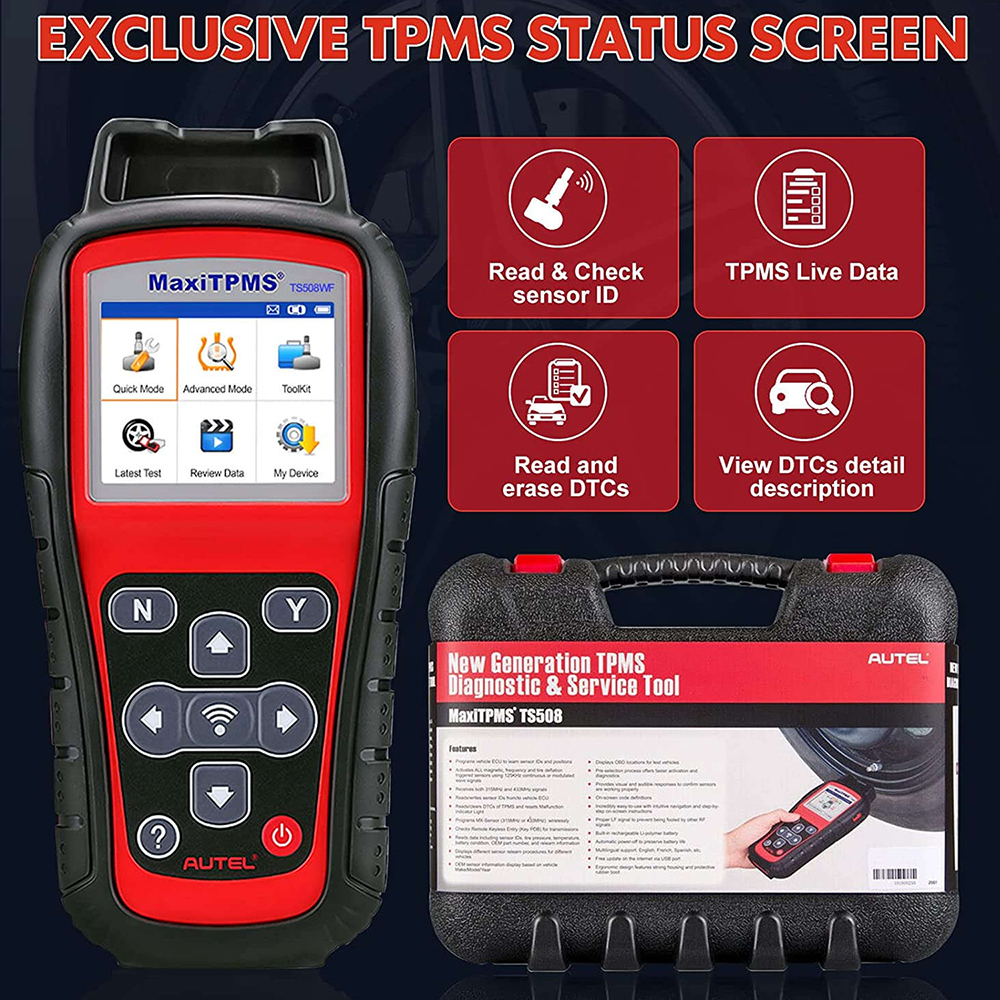

4. Exclusive TPMS Status Screen
5. Four MX-Sensor Programming Options
Advantages:
1. Comparing with Autel MaxiTPMS TS501, TS508WF has added Quick & Advanced Modes for faster and smarter TPMS repairs, added Tire Type/Pressure Selection for added TPMS services.
2. Comparing with Autel MaxiTPMS TS508, Autel TS508WF has added Wi-Fi Connection functions for faster & more convenient software updation by just one click operation.
3. Comparing with Autel MaxiTPMS TS408 & TS401, Autel MaxiTPMS TS508WF has added TPMS diagnose capability to read and clear TPMS DTCs, added OBD2 connector to enable users to program sensors by “Copy by OBD” and relearn sensors via “OBD Relearn”
Functions:

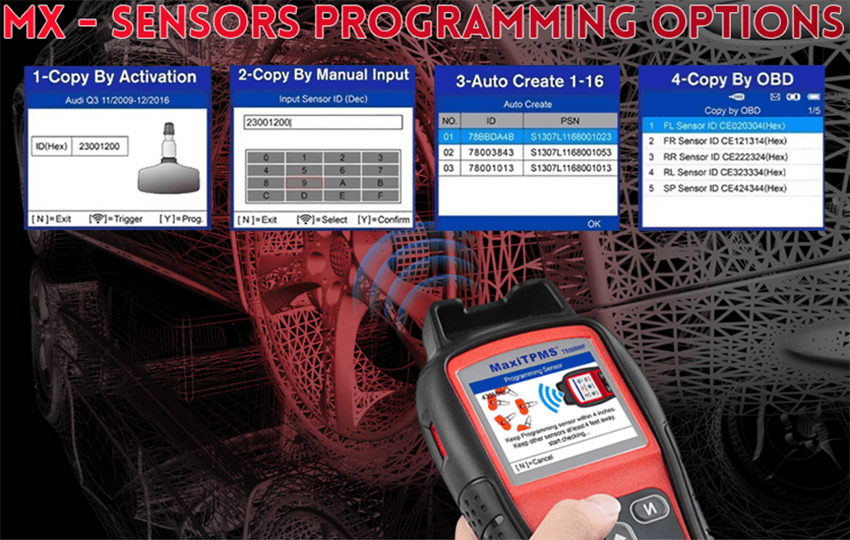

1. 4 Modes to Program Autel MX-Sensors
Autel MaxiTPMS TS508WF Wifi TPMS Programming Tool can program all 315MHz and 433MHz Autel MX-Sensors to replace the broken sensors.
1). Copy By Activation: Requires activate the original sensors first.
2). Copy By Manual Input: You can manually input the original ID.
3). Auto Create 1-16: Sensors makes it possible to program up to 16 sensors simultaneously.
4). Copy By OBD: You should connect OBD cable to retrieve the sensor ID from the ECU.
Note: Autel TS508WF can program Autel MX-sensors only, does NOT program OEM sensors.
2. Relearn All Sensors

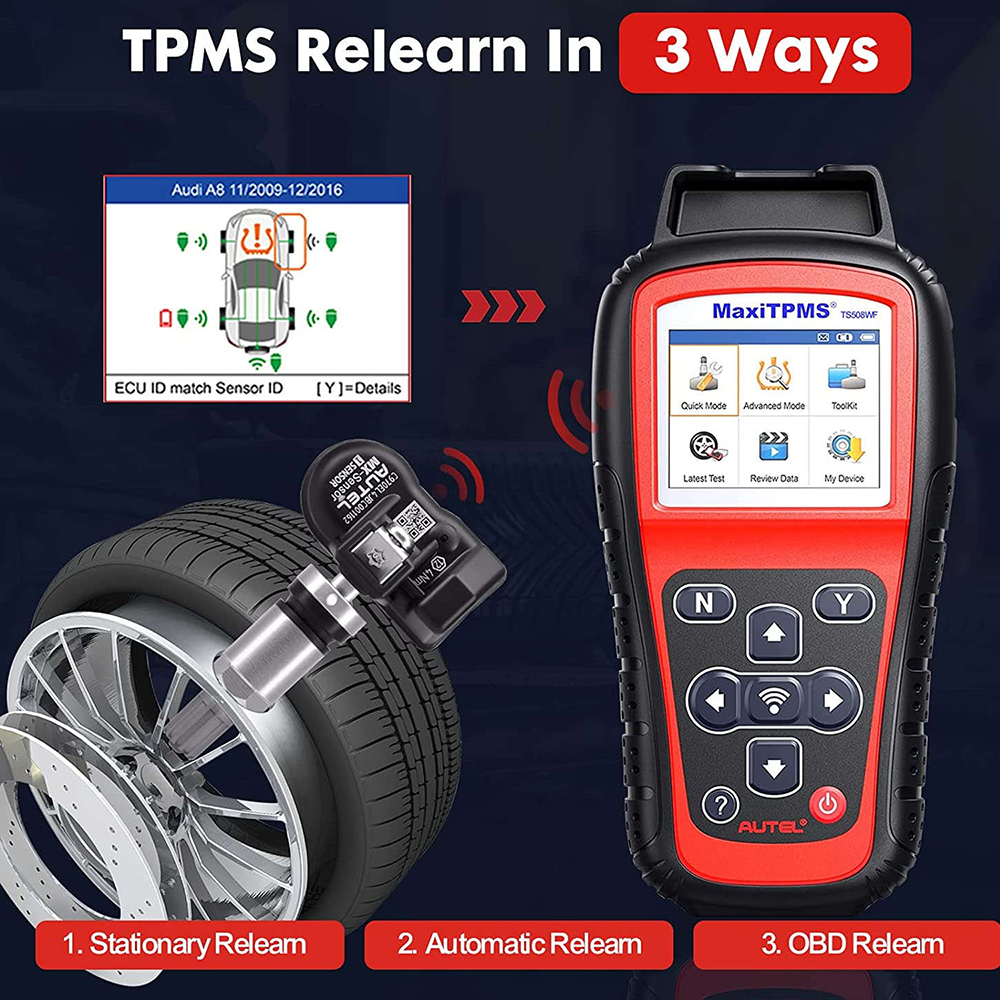

Autel TS508WF TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles(American, European and Asian) to the vehicle ECU. It can perform 3 ways of TPMS sensors relearning:
1). Stationary Relearn: Requires the vehicle be placed in the “Learn Mode”.
2). Automatic Relearn: For some vehicles, can be completed by driving.
3). OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.
3. Activate / Reset All Known TPMS Sensors & Read / Clear TPMS DTCs
1). Read ECU sensor ID;
2). Check sensor ID and ECU ID matching condition;
3). Read DTCs from ECU and erase DTCs;
4). View DTCs detail description.
4. Activate / Reset All Known TPMS Sensors
Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels.
5. Read/Clear TPMS DTCs
Autel TS508WF can read or clear TPMS DTCs, on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.

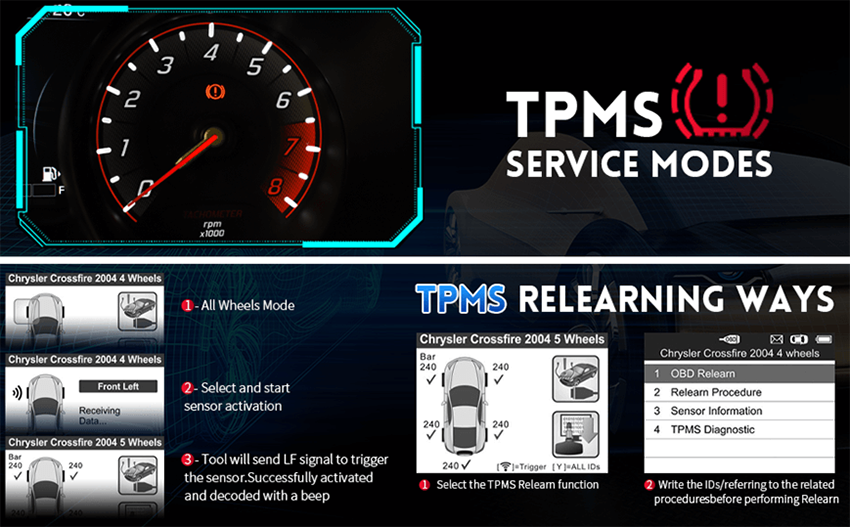

6. Quick Mode / Advanced Mode Comparison
TPMS Quick Mode: Basic TPMS functions to check TPMS sensors and program MX-Sensors quickly.
TPMS Advanced Mode: Complete TPMS functions to perform sensor check, TPMS diagnose, MX-Sensor program and sensor position relearn.
7. Check Key Fob
When your remote key starts to fail or stop working, you can directly use the TS508WF in the tool library to test the signal strength of the remote key through WiFi or USB connection, which is simple to use but quickly obtains results. Save your time by not having to go to the auto repair shop.
8. Data Printing
Autel TS508WF TPMS diagnose Tool can print TPMS DTC recorded data. Connect the tool to computer with USB cable. Saved and view TPMS DTCs, tire type and pressure information and print it out via PC for further analysis.
This function can help users analyze and save data more conveniently.
Specifications:
Display: 3 inches 320*240dpi TFT color display
Diagnostic Method: wired
Upgrade Method: Wi-Fi
Boot Time: 3 seconds
Power: 3.7V
Battery Capacity: 3200mAh lithium polymer battery
Working Temperature: 0 to 50 degree centigrade
Storage Temperature: -20 to 70 degree centigrade
Weight: 2Kgs
Dimensions : 215*105*37mm
|
