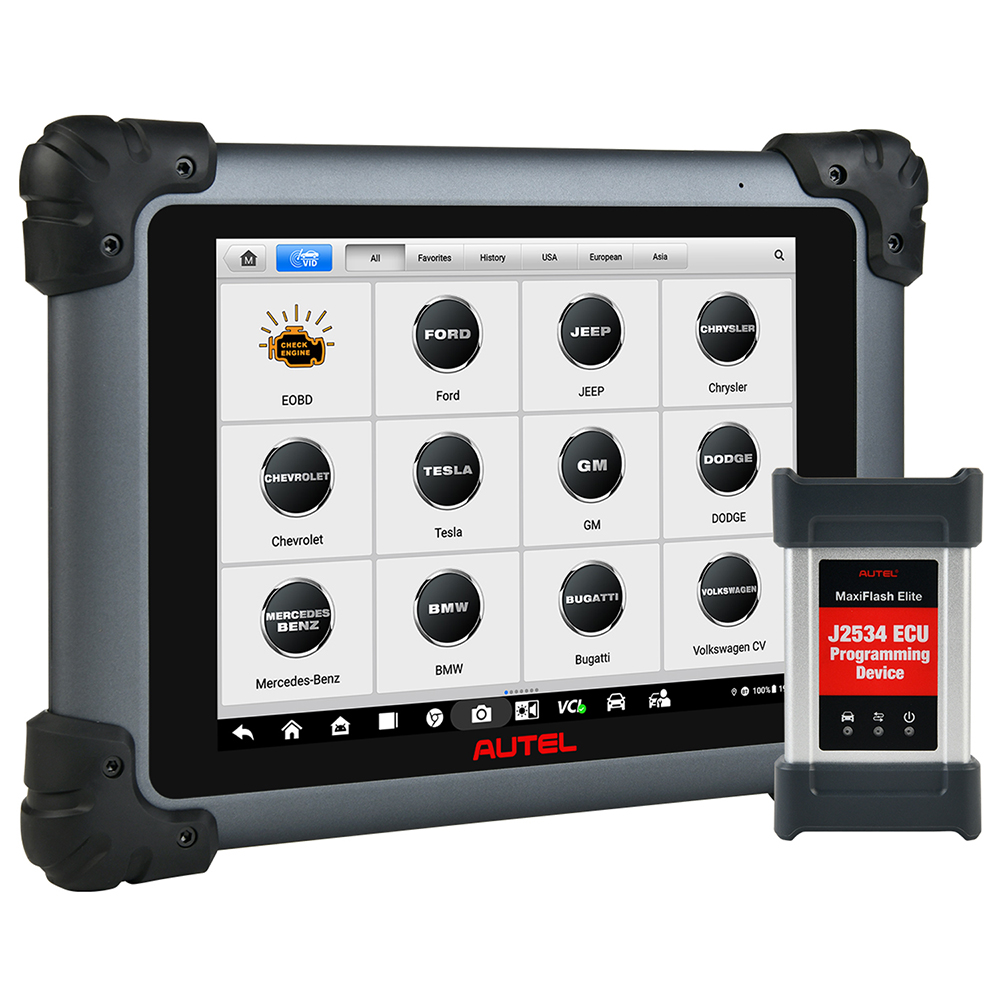

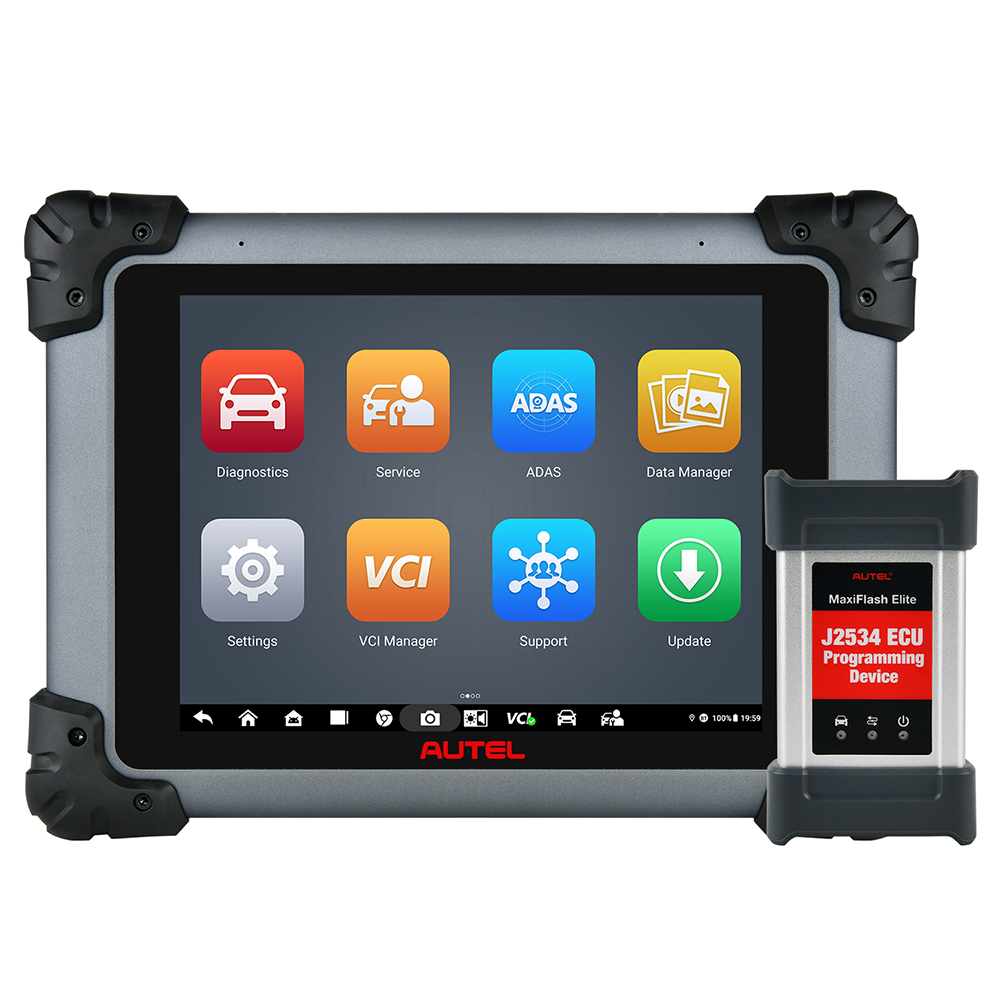

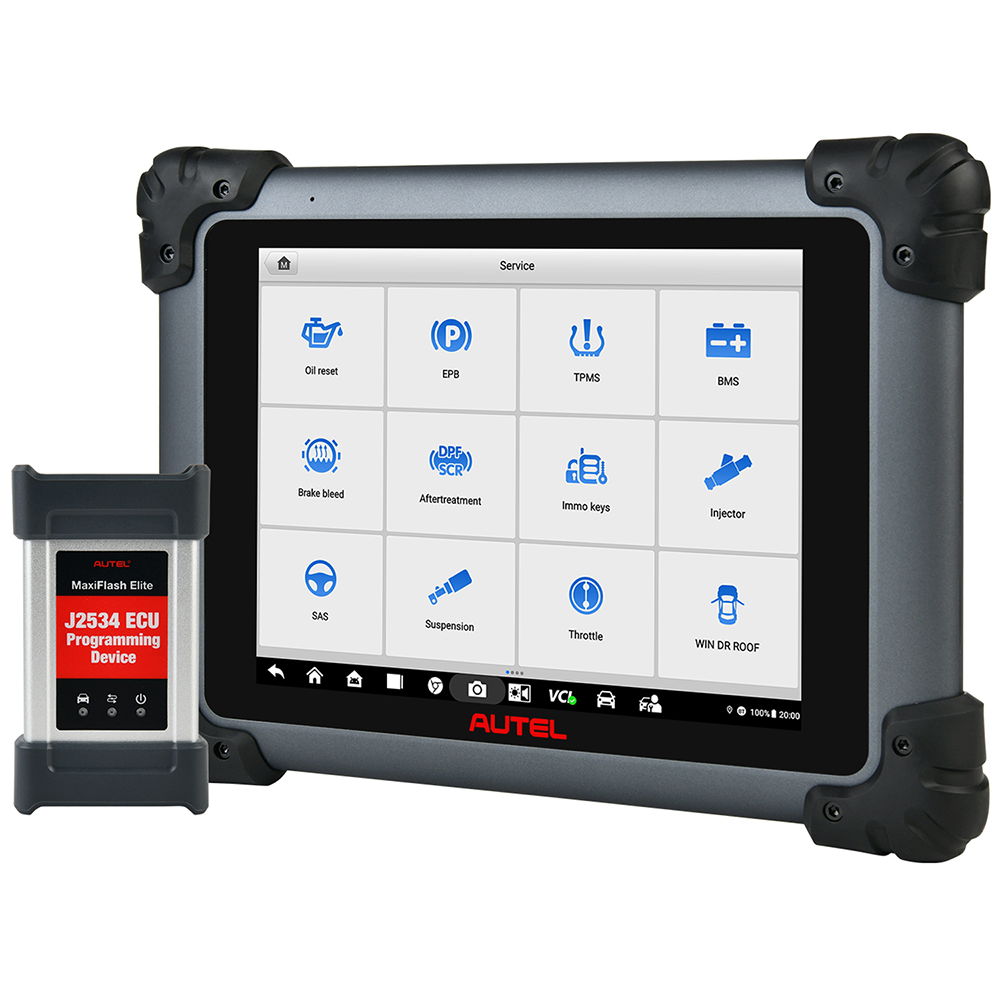

Name: Autel MaxiSys MS908S Pro II
Description:
Autel MaxiSys MS908S Pro II Diagnostic Scanner isUpgraded of Autel MaxiSys MK908P / MS Elite / MS908S Pro. Autel MS908 Pro II supports ECU Programming Coding, 36+ Services, Active Tests, Full Systems Diagnosis, FCA AutoAuth...
Autel MS908S Pro II is Autel latest high-end car comprehensive diagnostic scanner based on the Android 10 operating system in 2023. Autel MS908S Pro II inherits many advantages of Autel MaxiSys MS908S Pro / MK908P / MK908 II in car fault diagnostic technologies, including powerful diagnostic functions, ECU programming specially designed for Mercedes-Benz and BMW, etc
Version: global version without IP limit
Software Update: one year free update online
Supported Language: English
Note: The default language is English, if you need other languages, you need to apply for activation separately.
Highlights:
1. Upgraded version of Autel MK908P, MaxiSys Elite, MS908S Pro: Compare with Autel MK908P, Autel MS908S Pro II with more functions (Cloud Service / Remote Expert (since 05-15-2021), wider vehicle coverage(support MacLaren and Tesla diagnostic), and better technical support (both online seller and US local agents support ). Autel MS908S Pro 2 same functions as MaxiSys Elite but lower costs.
2. J2534 ECU Programming for BMW/Benz: Equipped with valued J2534 Programmer, Autel MS908S Pro II is able to replace the existing software & firmware and program new ECUs (PCM, ECM) for specific BMW and Benz cars.
3. Advanced Online ECU Coding: Upgraded from Autel MaxiSys MK906BT / MK906 Pro / MS906BT / MS906S / MS906, Autel MS908S Pro II comes with online ECU Coding for software modifications to a vehicle, allowing the use of functions not available in the car when it left the factory. Online coding for VW/ Audi / Porsche/ Benz/BMW.
4. VAG Guided & Refresh Hidden for VW / Audi / Skoda / Seat: MS908S Pro has VAG Guided functions with simple step-by-step procedures for quick and accurate car diagnostics. Refresh Hidden can change the settings already in the software and turn on or off some functions according to your needs.
5. Bi-directional Control / Active Tests: Active Tests to determine whether a specific subsystem or component in vehicles goes well.
6. 36+ Functions: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, IMMO Keys, Injector Coding, SAS, Suspension, Throttle Matching, WIN DR ROOF, Seats, A/F, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, still keep increasing.
7. OE-Level Full Systems: MaxiSYS MS908S Pro ii is able to access all available modules like Engine, ABS, SRS, Trans, EPB, Chassis, Steering, Emission System, Fuel system, TPMS and etc to read/clear codes, view live data in text or graph, retrieve freeze frame data, perform active tests and special functions for accurate diagnosis.
8. 10000+ Extensive Vehicle Coverage: KWP/CAN/UDS/OBDII, D-PDU/J2534/RP1210, 2018+ FCA SGW (AutoAuth); cover the overwhelming majority of vehicles made in US, Asia, and Europe.

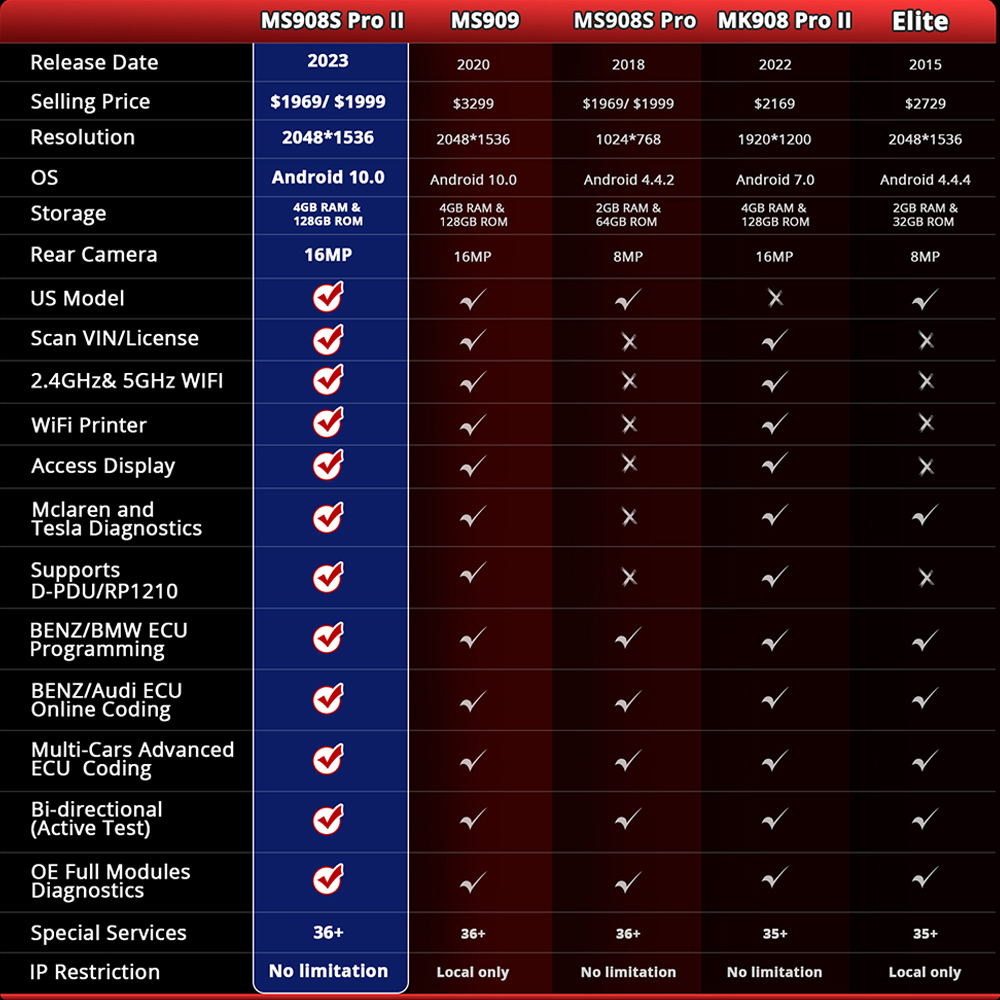

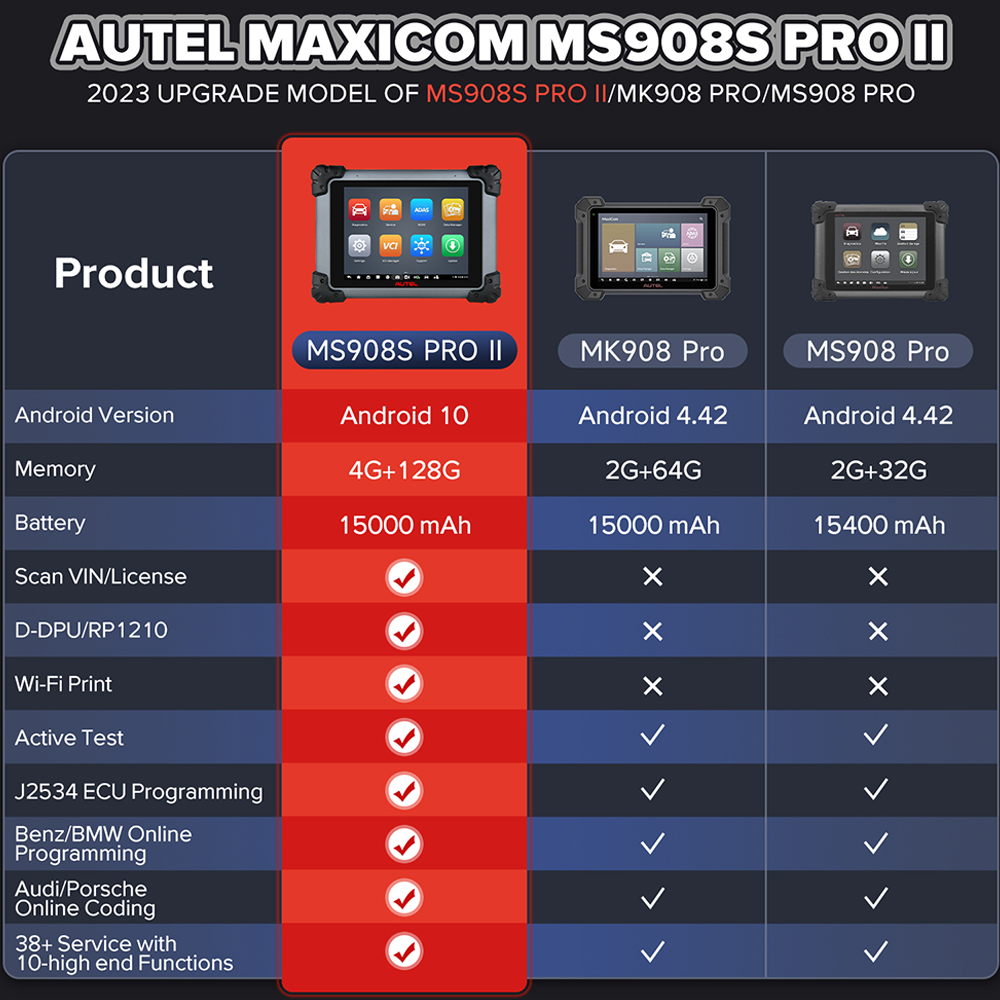

5X Faster Higher Hardware Configuration:
1). Android 4.4.2 to Android 10: The operating system is upgraded from 4.4.2 to the fastest Android 10, which runs faster and smoother.
2.) Exynox 5260 to Qualcomm 660 CPU: Core Processor has upgraded to Qualcomm 660 to enhance the diagnostic speed of the multitasking process.
3). 2G+64G to 4G+128 GB Memory: More storage space to ensure the smooth multitask operation and keeps all the customer information, diagnostic data & files, and repair recordings.
4). 1024*768 to 2048*1536 Screen Resolution: Provide you with a clearer and smoother viewing experience.
5). 8M Pixel to 16M Pixel Ream Camera: The rear camera upgraded to 16 Megapixels, able to capture details more clearly and record clearer video to analyze problems.
6). 2.4G WiFi to 2.4G & 5G Wi-Fi Communication: Upgraded to dual 2.4G & 5G Wi-Fi, far better in transmission rate, diagnostic distance, and anti-interference.
2023 Newly Added Functions:
1. Full Diagnostics for McLaren & Tesla: Autel MS908S Pro II can work on McLaren, Tesla new energy vehicles to complete full system diagnosis, which other scanners cannot do.
2. FCA Vehicle Access: For the FCA vehicle equipped with the Security Gateway module, MS908S Pro II diagnostic scan tool can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations. Compatible with Fiat, Chrysler, Alfa Romeo, etc.
3. Battery Tests (work with BT506): Combined with the BT506 battery detector, MS908S Pro II can scan the BMS module, detect the battery type, aging condition, and storage condition, and give appropriate maintenance advice. (Note: BT506 needs extra purchases.)
4. Compatible with MV105/MV108: This bundle includes Autel MaxiVideo MV108 digital inspection camera. It can turn your Autel MaxiSys MS908S Pro II scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
5. Pre & Post-Scan: Pre- and post-scan reports keep your clients informed of the repair details and provide them with the evidence to settle insurance claims.
6. Scan VIN and Scan License: These two methods provide faster access to car information such as car manufacturer, model year, model, body type and code, engine code, and assembly location. This saves more time than manually entering the VIN.
7. Wi-Fi Printing: You can easily print the above diagnostic reports wirelessly from your diagnostic scanner via a Wi-Fi printer.
8. D-PDU/RP1210 New Protocols: Adds the latest D-PDU/RP1210 Protocols to cover newer vehicles.
Advantages:
1. New Android 10.0 OS
2. Qualcomm 660 Octa-Core Processor (2.2GHz Quad-Core A73 + 1.8 GHz Quad-Core A53).
3. 2048*1536 high resolution 9.7-inch touch screen tablet with Wi-Fi.
4. Bluetooth-enabled VCI/J2534 pass thru programming device with wireless range up to 70 meters.
5. Rechargeable lithium battery ensures 7.5 hours of continuous performance.
6. Comprehensive Service Menu for direct access to most commonly performed service tasks.
7. 128G large storage memory for maintaining of all needed brand diagnostics software.
Extensive vehicle coverage •Comprehensive Service Menu for direct access to most commonly performed service tasks.
8. Perform Adaptations and coding View Freeze Frame data and view and graph systems live data.
OE Level Full-system Diagnostic:
As a professional auto diagnostic tool, MS908S Pro II can access ALL available vehicle modules including but not limited to PCM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc to retrieve diagnostic fault codes and view live data in graph and text, to pinpoint which cylinder has a misfire, check transmission temperature, oil temperature & pressure, camshaft position sensor status and etc.
36+ Advanced Service and Special Functions:
Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, IMMO Keys, Injector Coding, SAS, Suspension, Throttle Matching, WIN DR ROOF, Seats, A/F, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, still keep increasing.
Note: All service functions can not work on all cars. Please send us the VIN number (17 digits) to check compatibility before purchase.
Advanced ECU Programming for Specific BMW & Benz:
Autel MaxiSys MS908S Pro II with J2534 ECU programming device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues for some BMW and Benz.
Note: ECU Programming applies to specific BMW & Benz vehicles ONLY.
Online ECU Coding for VW/ Audi / Porsche/ Benz/BMW:
Autel MS908S Pro II has the capability of ECU coding to optimally code your car by changing some settings to fit your needs, such as setting alarms, door locking, etc. Access the ECU to make full use of the hidden features or disable the car annoying functions:
1. Changing the color of interior lights.
2. Switching on/off the auto hold.
3. Customizing dash kits.
4. Activating the auto side mirrors folding function.
5. Disable auto start-stop.
It provides excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car performance.
ECU Online Programming & Coding:
Autel MaxiSys MS908S Pro II is equipped with J2534 ECU programming device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues for some BMW and Benz.
- Advanced ECU Programming for Specific BMW & Benz
- Online ECU Coding for VW/ Audi/ Porsche/ Benz/ BMW
Autel MS908S Pro II supports advanced ECU coding to help mechanics unfold the hidden features or disable annoying functions such as setting alarms, doors, and outdoor lighting, etc to suit car owners' customized needs.
Computers and software in cars have been expanding at an exponential rate. In-car software is becoming one of the leading needs for service, and updating software may be the only way to fix some of these issues:
- Drivability
- Fuel Efficiency
- Power Loss
- Fault Codes
- Durability of Mechanical Parts
The Programming and Coding function is used to “re-flash” the vehicle control modules,
it allows you to update the computer software on the vehicle to the latest version, as well
as to reprogram adaptive data for certain components after making repairs or
replacements.
J2534 Programming Capability:
J2534 ECU Programming VCI is a SAE J2534-1 & J2534-2 compliant PassThru
programming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
J2534 programming device supports both Bluetooth and USB communication. It can
transmit vehicle data to the tablet with or without a physical connection. The working range of the transmitter through Bluetooth communication is about 210 feet (about 70 m).
Active Test & Bi-directional Control:
Autel MaxiSys MS908S Pro 2 can output the commands to ECUs, read the ECU data and monitor the operation of the actuators. Through active tests, also called actuator tests, this bi-directional diagnostic scanner can precisely locate the car problems, letting you quickly know whether a specific system, component, or subsystem is functioning properly or not, such as:
Door Locking Test
Turn Light On/Off
Lock/unlock door
Turn on/off Cooling Fan
Roll window up/down
Turn the Sound Horn On/Off
Open/Close the Sunroof
...
Excellent Autel Compatibility:
The compatibility of Autel series products is always excellent, with various accessories to meet your needs for all functions.
1. Work with Autel MaxiVideo MV108 Inspection Tool:
Diagnose car breakdowns and find the causes
2. Work with Autel Battery Tester BT506
Unlock the ability to detect Battery Status and all Battery Testing functions
3. Work with Autel MaxiScope MP408 Oscilloscope
Unlock one-click auto setup of voltage scale and time base Features
Supported Protocols:
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, High-Speed, Middle-Speed, Low-Speed and Single-Wire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN
Specifications:
Operating System: Android™ 10.0
Processor: Qualcomm 660 Octa-Core Processor (2.2GHz Quad-Core A73 + 1.8GHz Quad-Core A53)
Display: 9.7 inch LED capacitive touch screen with 2048*1536 resolution
Memory: 4GB RAM &128GB onboard memory
Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 (2 USB TYPE-A ports and a Mini USB port), BT V5.0 + BR/EDR, SD card (Support up to 64GB), HDMI
Rear Camera: 16 megapixel, AF with flashlight
Sensors: gravity accelerometer, ambient light sensor (ALS)
Audio Input/Output: Microphone, dual speakers, 3-Band 3.5mm stereo/standard headset jack
Battery: 11000mAh 3.7V lithium-polymer battery charging via 12V AC/DC power supply with the temperature 0 and 45 degree centigrade
Input Voltage: 12V (9-24V)
Power Consumption: 6.5W
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Dimensions(W*H*D): 300*220*50mm
Net Weight: 1.42Kg
Gross Weight: 8.052Kg

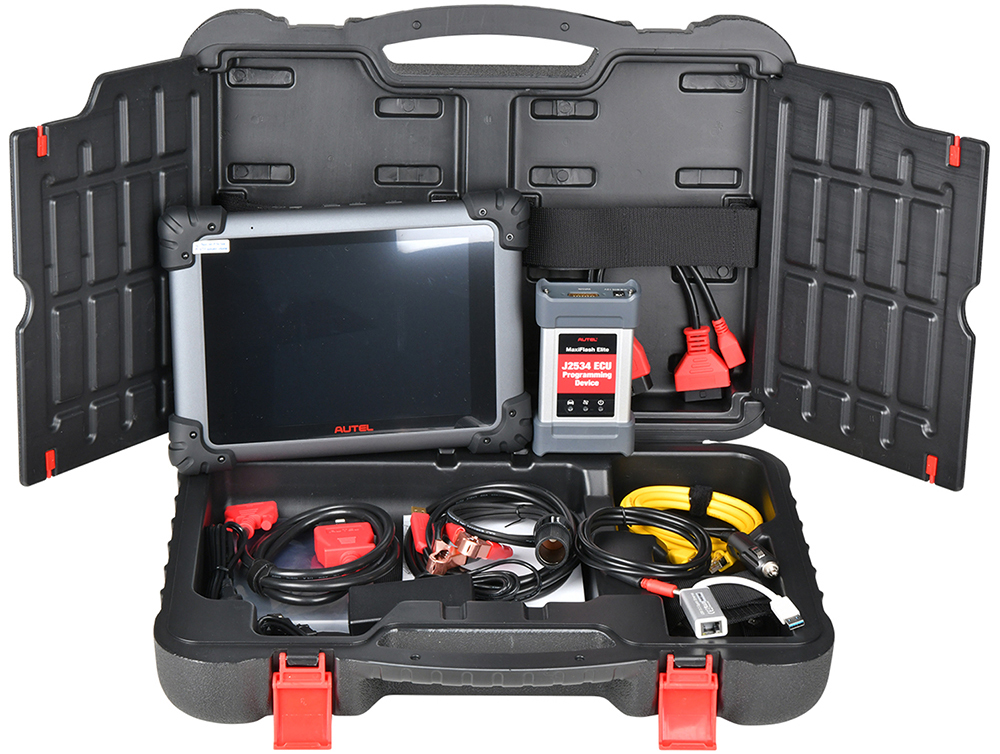

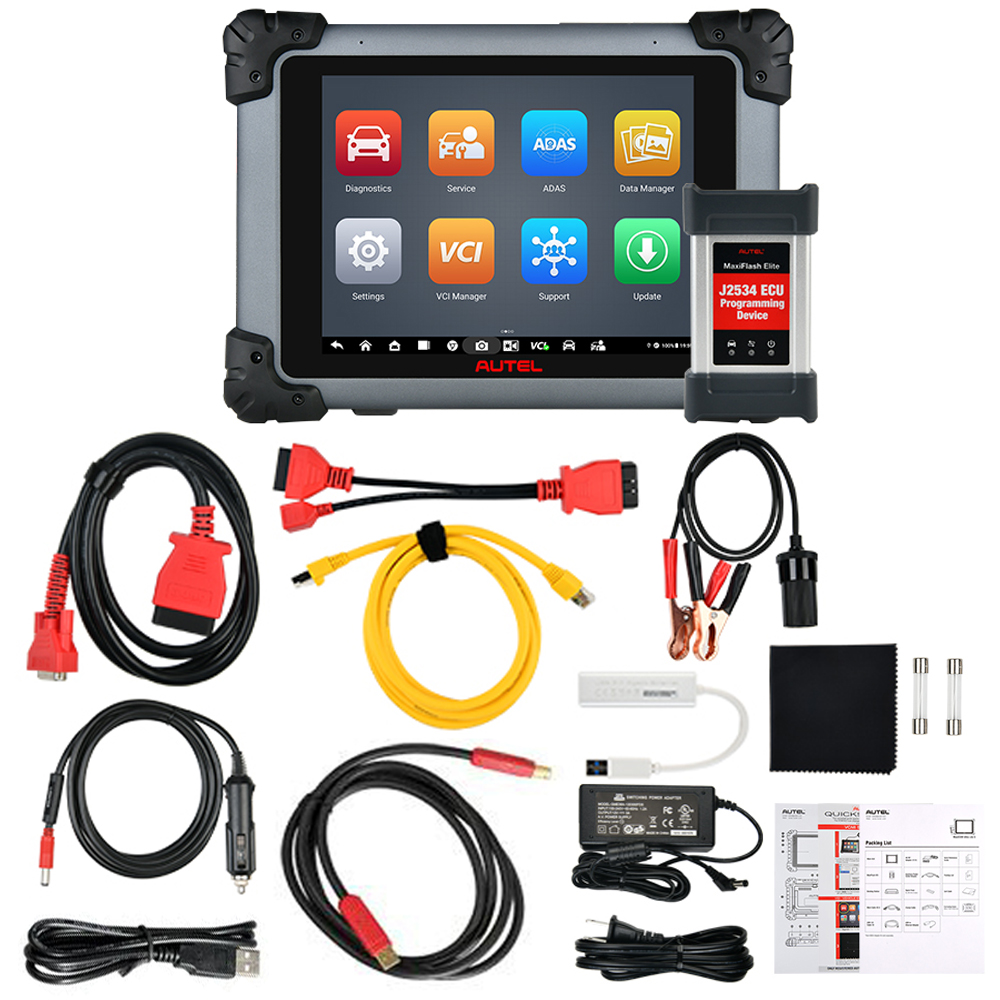

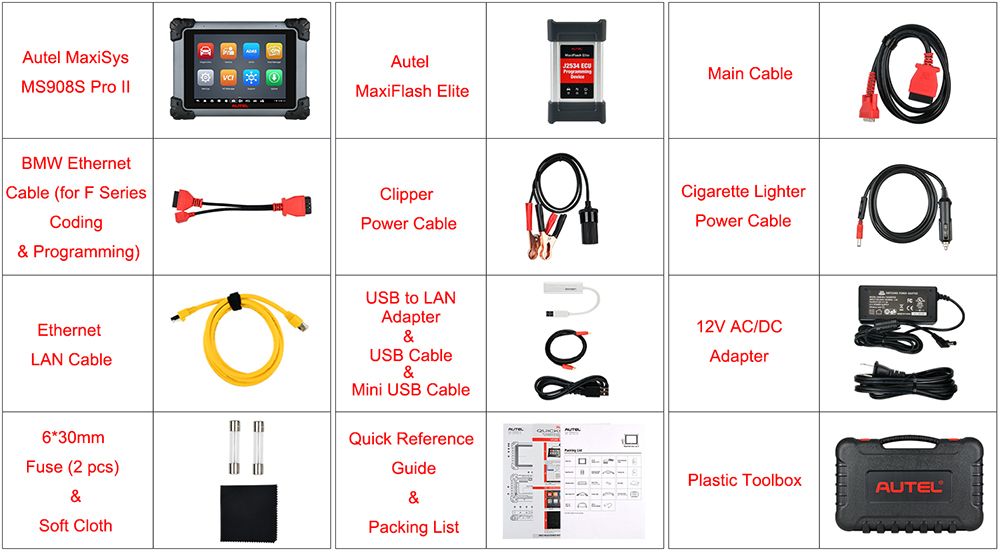

Packing List:
Autel MaxiSys MS908S Pro II
Autel MaxiFlash Elite
Main Cable
USB Cable
Mini USB Cable
USB Ethernet Adapter
BMW Ethernet Cable(for F Series Coding & Programming)
Ethernet LAN Cable
Cigarette Lighter Power Cable
Clipper Power Cable
12V AC/DC Adapter
6*30mm Light Fuse (2 pcs)
Soft Cloth
Quick Reference Guide
Packing List
Plastic Toolbox
|
