  OBDSOS PRODUCTS Car Universal Diagnostic Tool Autel MaxiSys

Product ID SP359
Product Name Autel MaxiSys MS909
Product Price USD3000
Actual Weight (Kg)
Volumetric Weight (Kg)
Package Size (cm)
Related Download
  Autel MaxiSys MS909 User Manual.pdf
Order Quantity:
In Stock



Frequently Buy Together +
Description
Name: Autel MaxiSys MS909

Description:

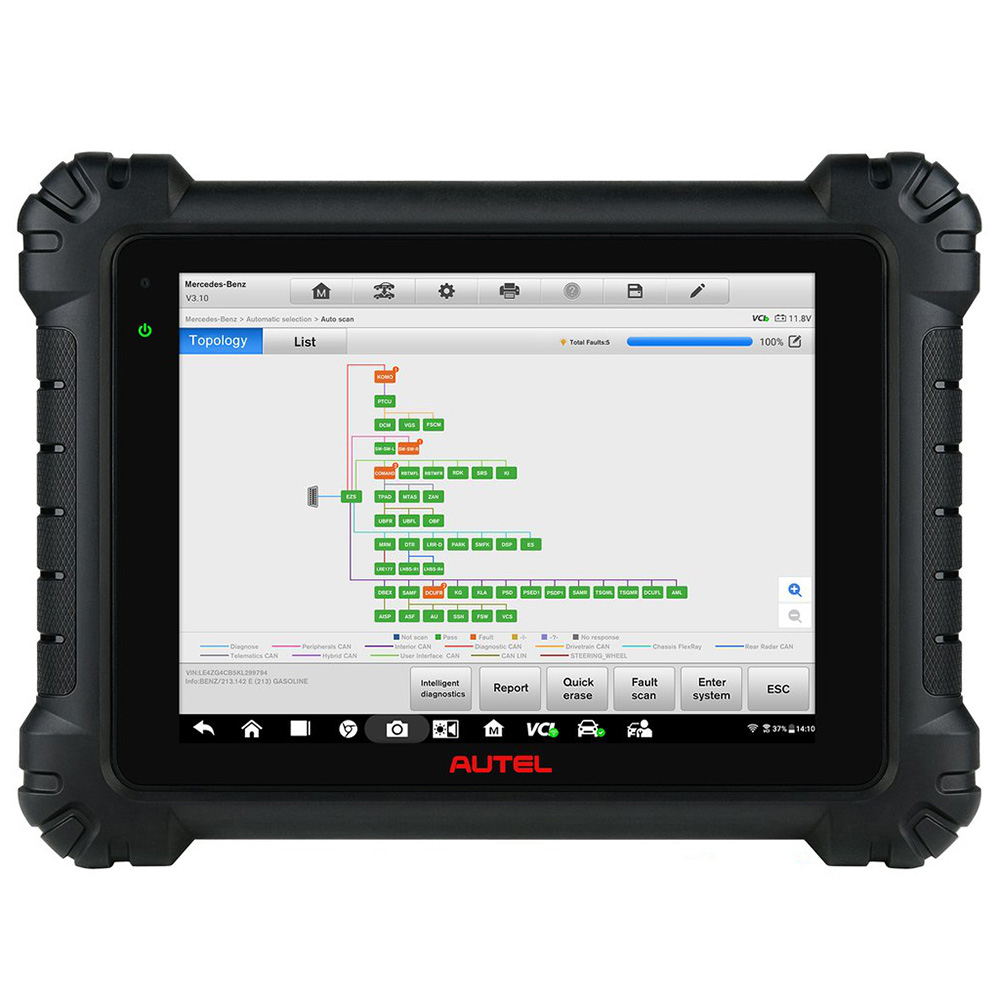

Autel MaxiSys MS909 features a 10-inch touch screen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs.

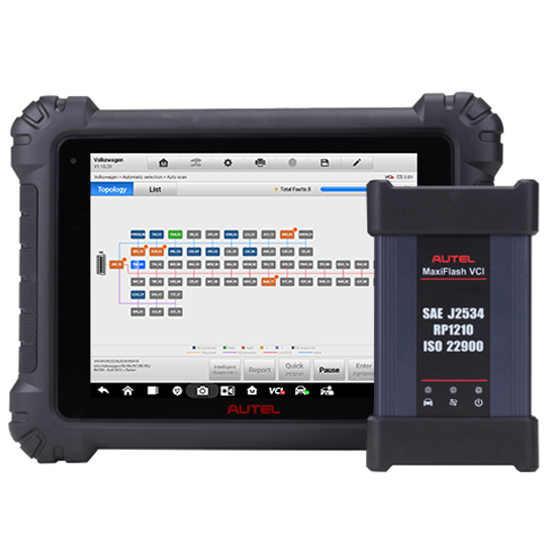

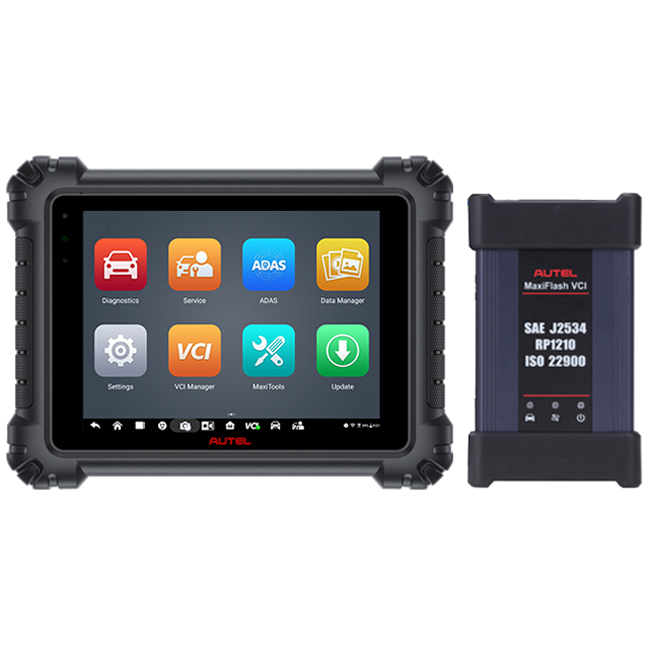

Autel MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications.

Autel MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Features:

1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Automatic system and software updates with real-time push message notifications via internet
4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specifications:

Operating System: Android 7.0
Processor: Samsung Exynos 8895V octa-core processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 128GB on-board memory
Display: 9.7-inch TFT-LCD with 1536*2048 resolution & capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO): BT v.2.1 + EDR: GPS: USB 2.0 (2 USB Host Type A, 1 USB mini); HDMI 2.0; SD Card (support up to 256GB)
Camera: Rear: 16 megapixel auto focus with flashlight; Front: 5.0 megapixel
Sensors: Gravity Accelerometer; Ambient Light Sensor (ALS)
Audio Input/Output: microphone; dual speakers; 3-band 3.5mm stereo/standard headset jack
Power and Battery: 15000mAH 3.8V lithium-polymer battery charging via 12V AC/DC power supply with the temperature between 0 to 45 degree centigrade
Input Voltage: 12V/3A Adapter
Operating Temperature: 0 to 50 degree centigrade
Storage Temperature: -20 to 60 degree centigrade
Dimensions (W*H*D): 304.4mm(11.98")*227.8mm(8.97")*42.5 mm(1.67")
Weight: 1.66Kg(3.66 lb.)
Supported Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

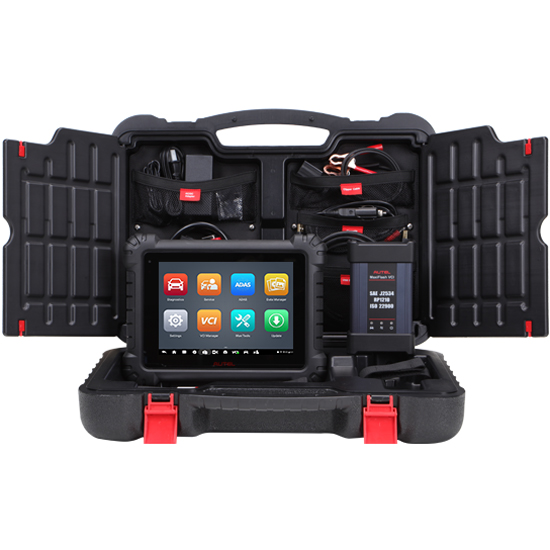

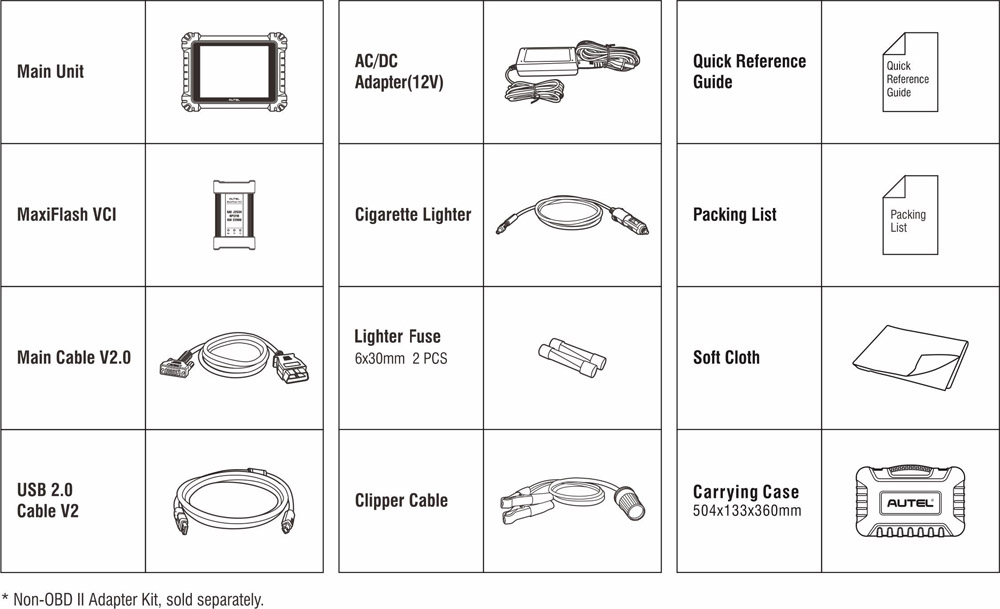

Packing List:

Autel MaxiSys MS909
MaxiFlash VCI
Main Cable V2.0
USB Cable 2.0 V2
12 AC/DC Adapter
Clipper Power Supply Cable
Cigarette Lighter Power Supply Cable
6*30mm Lighter Fuse (2 pcs)
Soft Cloth
Quick Reference Guide
Packing List
Plastic Toolbox
Packing Box
