Autel MaxiSys Ultra

Autel MaxiSys Ultra is Autel most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touch screen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs.

Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance.

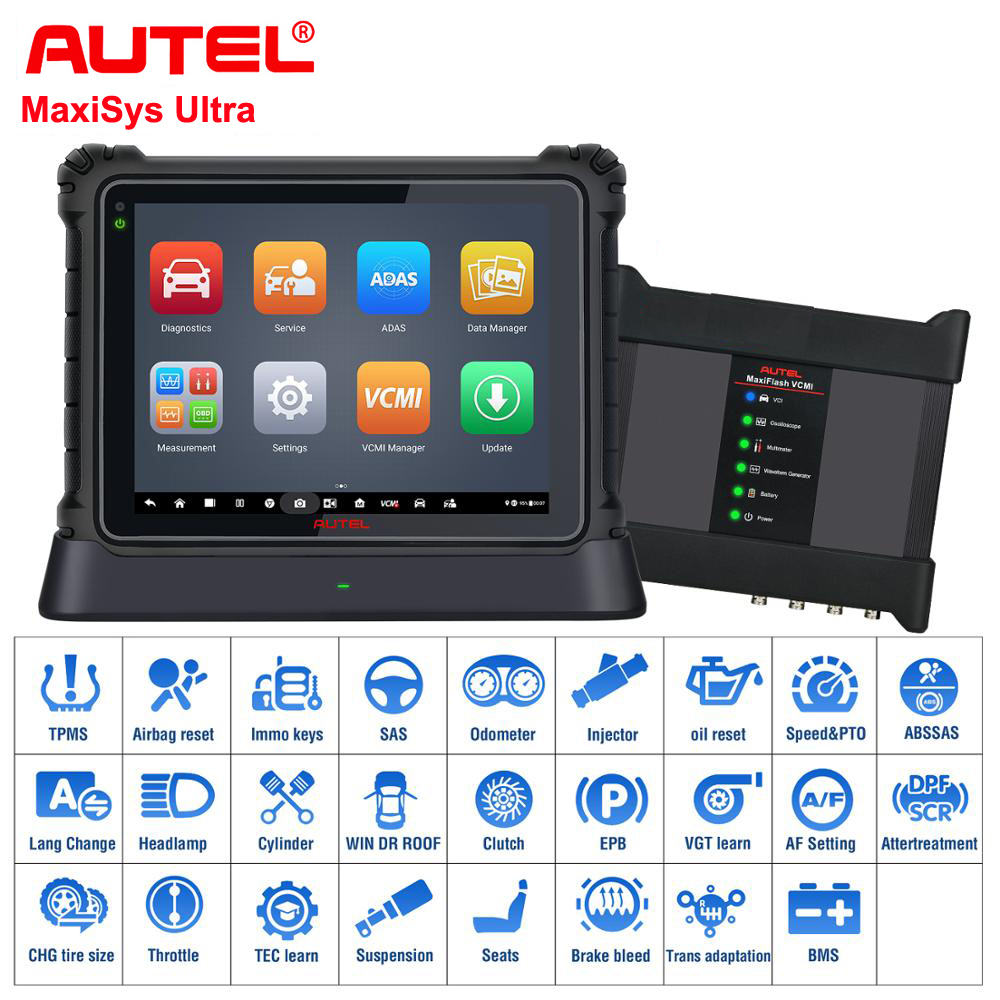

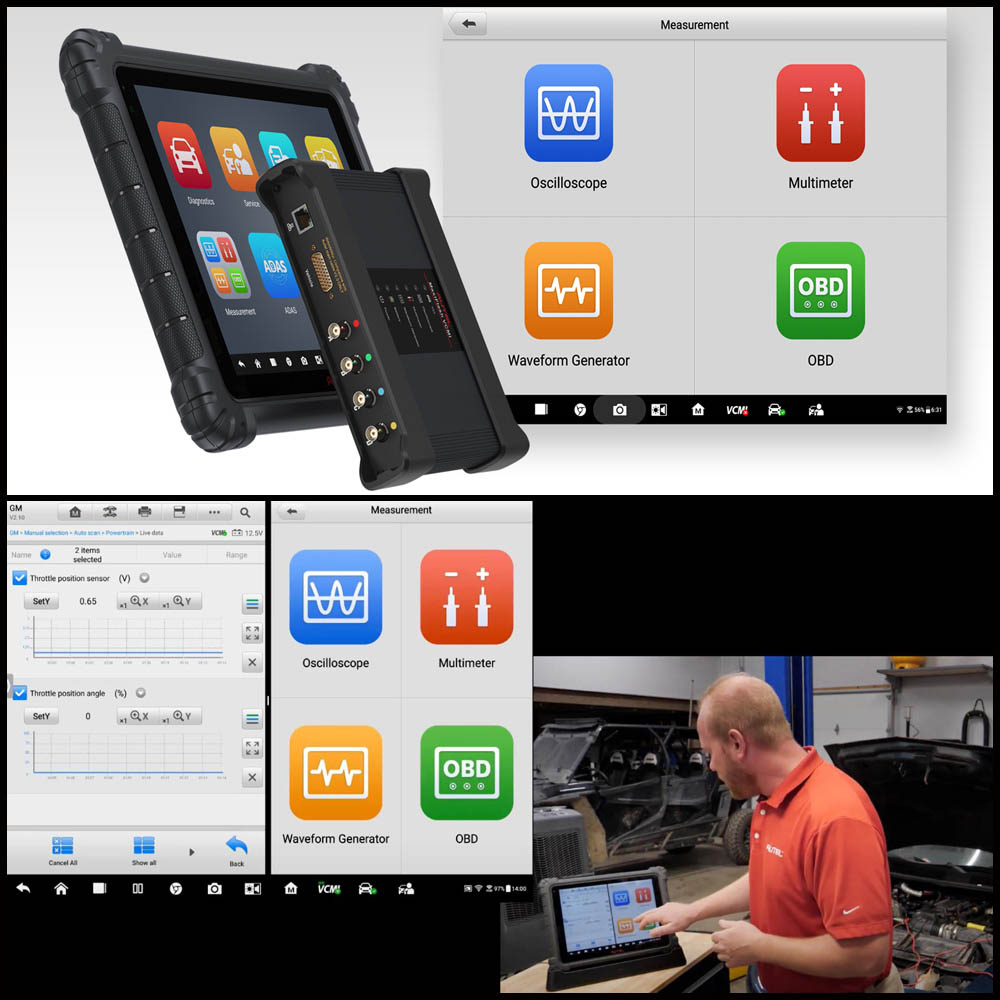

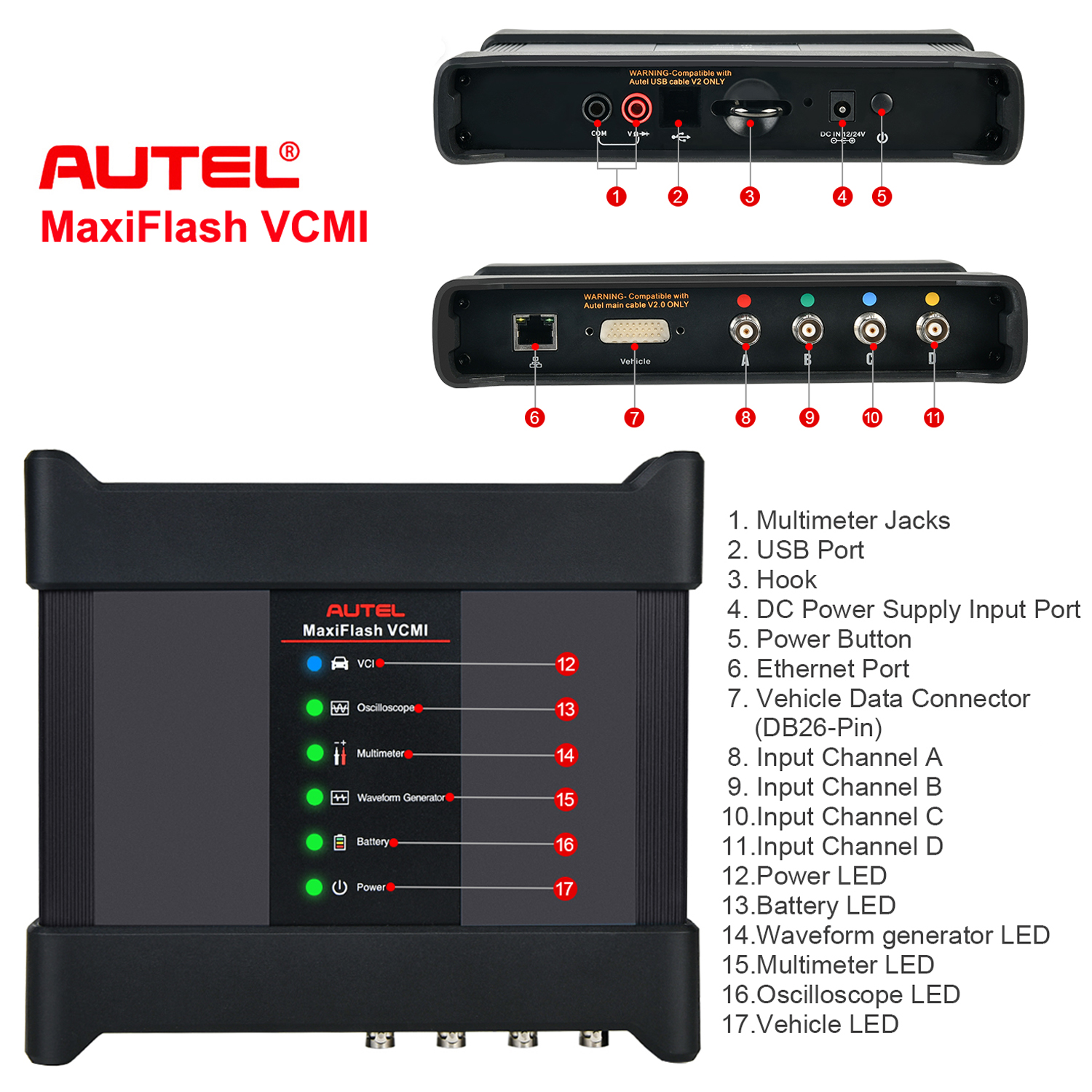

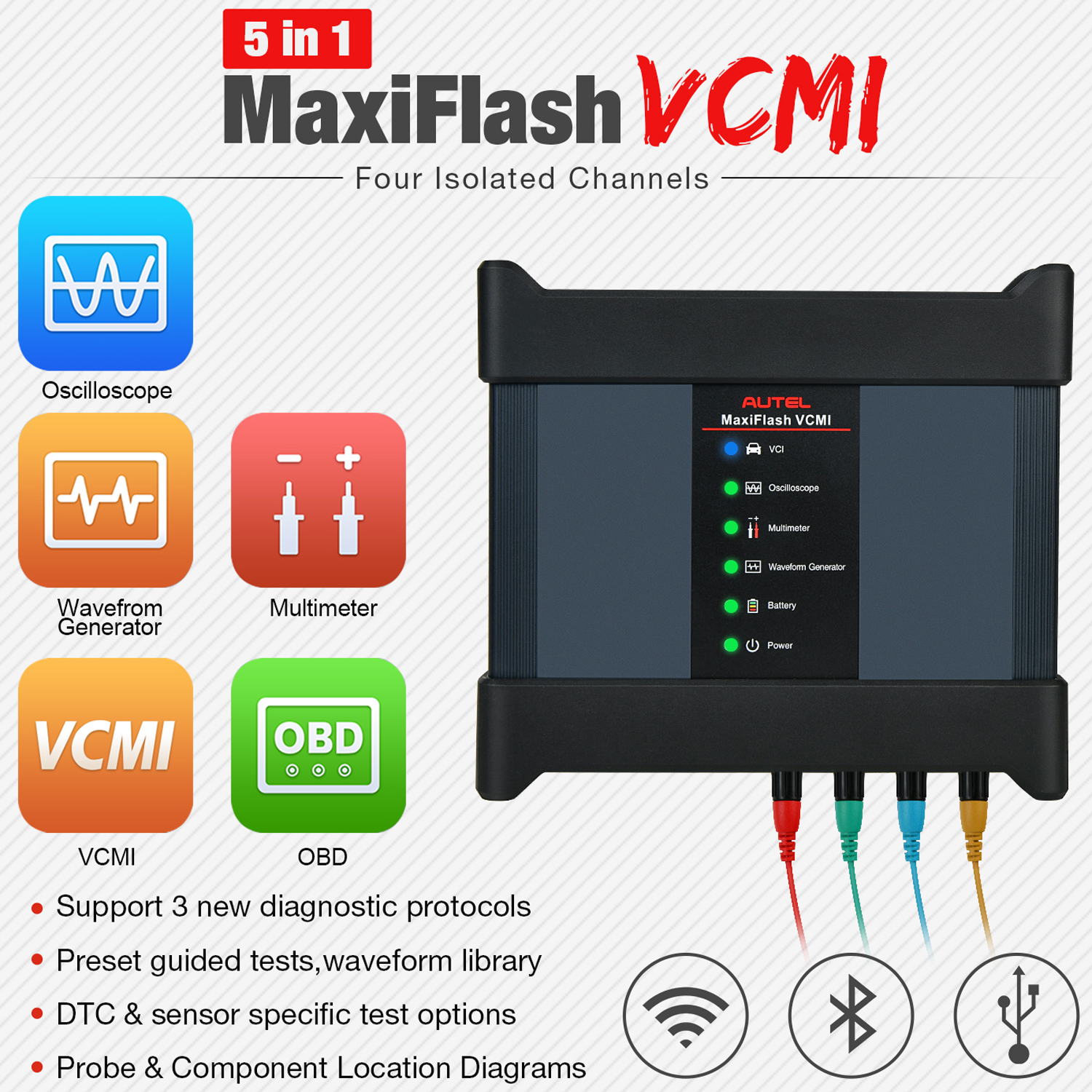

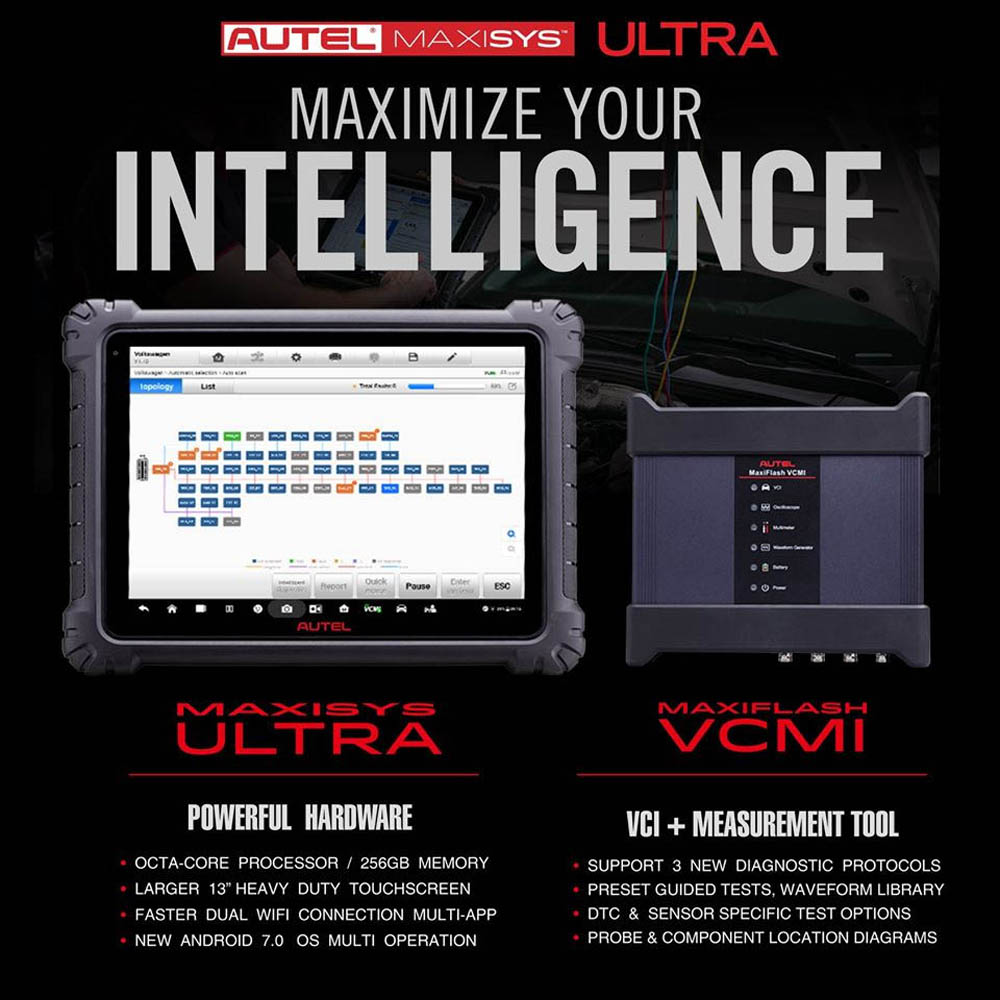

The new Autel MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Features:

1. Oscilloscope Preset Guided & Component Tests / Waveform Library.

2. Split Screen Multi-Application Function / Dual Wi-Fi Connection.

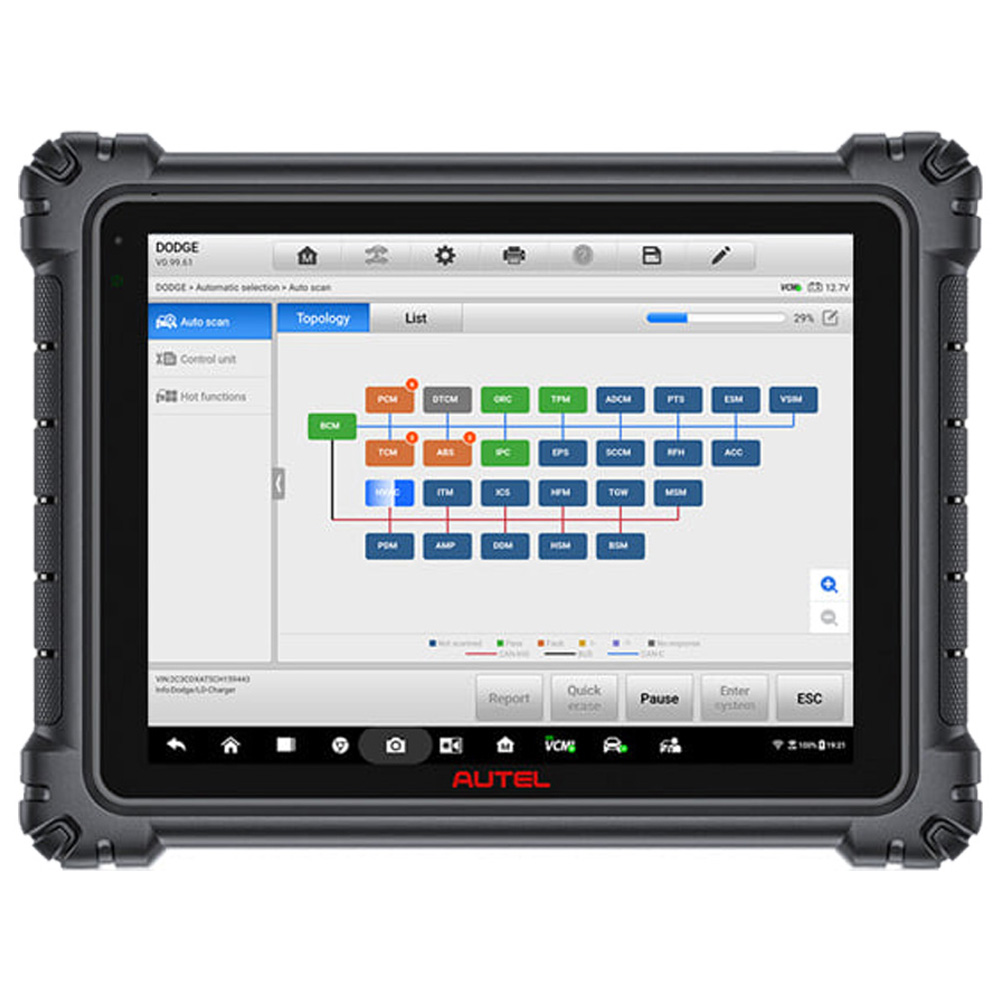

3. Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles).

4. Relevant Cases: DTC Troubleshooting / Repair Tips Video Library.

5. Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions.

6. Code-Related Technical Service Bulletins (on select vehicles).

7. License Plate Reader

8. ScanVIN: Barcode or Text Recognition with Camera

9. Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

10. Enhanced Diagnostic Reports: PreSCAN & PostSCAN

11. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors.

12. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.

13. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.

Functions:

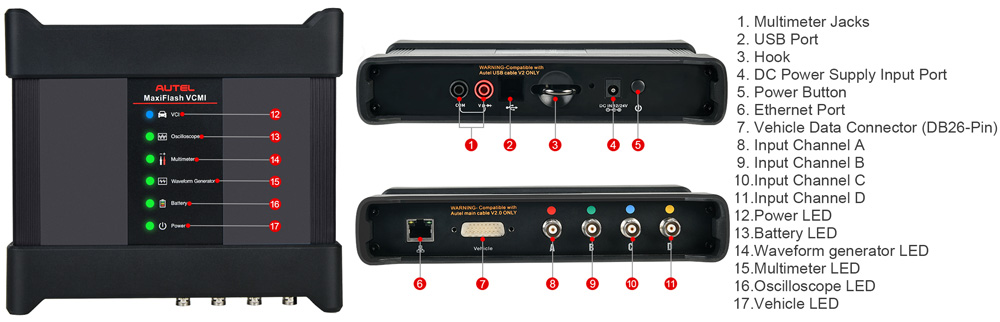

1. VCMI 5-in-1 Device

1). NEW Combination Vehicle Communication and Measurement Interface

* D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types

* DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models

* NEW Oscilloscope - Faster Bandwidth 20MHz / Sample Rate 80MS/s

* Higher 12-Bit Resolution / Larger Memory 32Mil Samples

2). Affordable Test Component Combination for Repair Confirmation

* Combined Signal Detection and Signal Stimulation

* OBD-II Channel Detection / DLC Pin Location and Direct Measurement

* Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming

3). Easier Operation of Built-In Preset Guided Tests for Faster Operation

* Custom Probe Specification & Reference Waveform Libraries

* Saved Test Configurations / Component Tests / Data Graphs

2. Faster Scanning

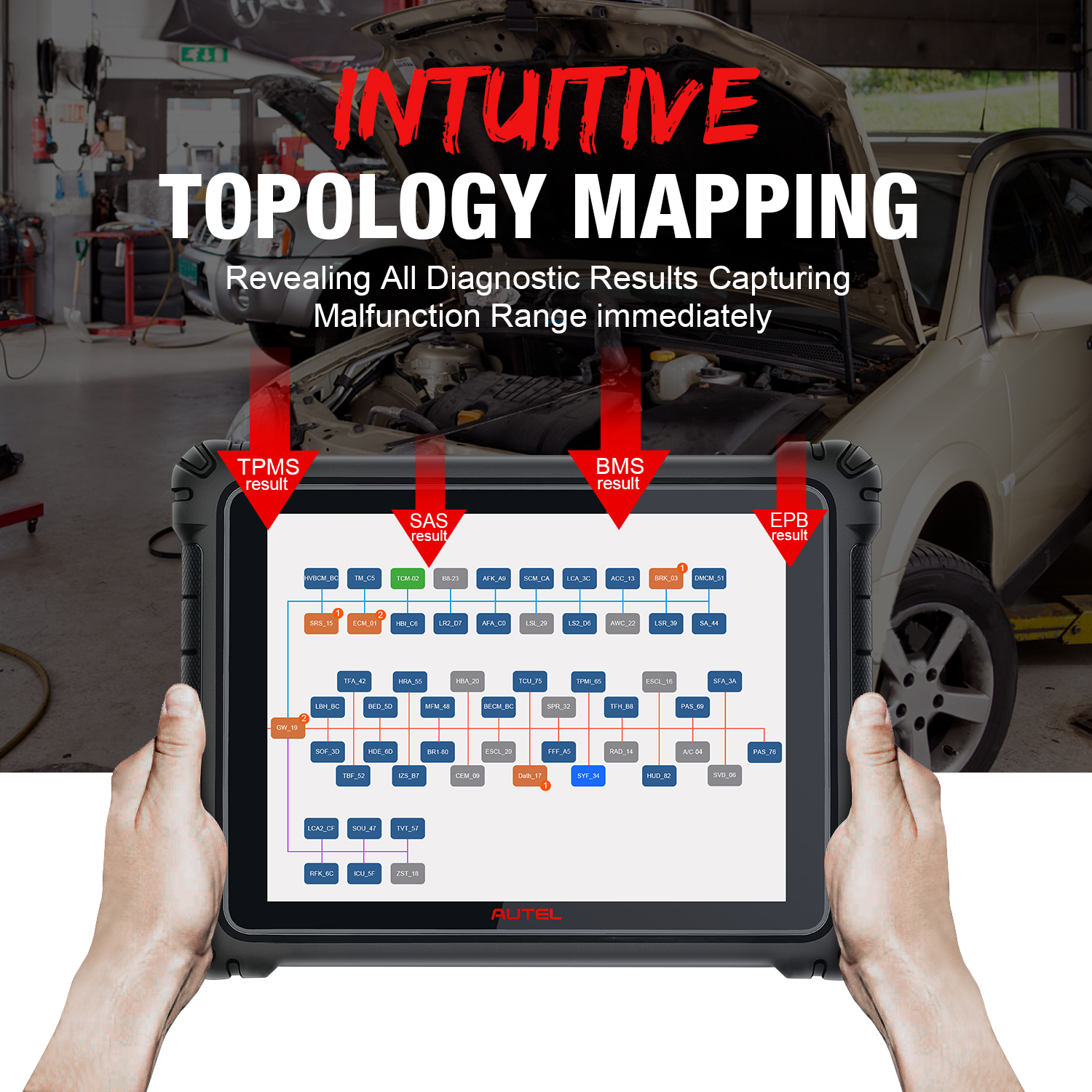

1). NEW Topology Module Listing CAN BUS Tree

* Single Page Color Coded Module Status Mapping

2). Enhanced DTC Guided AutoScan Module Listing

* Review Module DTCs From AutoScan With Greater Detail

3). Scan VIN NEW Feature - Barcode or Text Recognition

* Easily Scan Vehicle ID by Camera to Identify

3. Intelligent Diagnosis

1). DTC and Symptom Based Repair Guided Assistance

2). Single Screen - Multiple Repair Guidance Options

* Technical Service Bulletin Search Listing

* DTC Analysis - Repair Advice From OE Repair Library

* Repair Assist - OE Repair Content Library Access

* Repair Tips - MaxiFIX Community User Based Advice

* Relevant Cases - OE Repair History Library Access

* VCMI Component Measurement - Guided Test Plans

4. Secure Gateway Access

Easier Automatic Scan Tool Authentication

* Authorized OEM Access Account Registration

* Confirmation of Compatible Diagnostic Platform

* Approved Credential Stored in Maxisys Software

* Immediate Authorized Secure Gateway Access

* Management of Registered Account Use

Operating System: Android 7.0

Processor: Samsung Exynos 8895V octa-core processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory: 4GB RAM & 256GB on-board memory

Display: 12.9-inch TFT-LCD with 2732*2048 resolution & capacitive touch screen

Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO): BT v.2.1 + EDR: GPS: USB 2.0 (2 USB Host Type A, 1 USB mini); HDMI 2.0; SD Card (support up to 256GB)

Camera: Rear: 16 megapixel auto focus with flashlight; Front: 5.0 megapixel

Sensors: Gravity Accelerometer; Ambient Light Sensor (ALS)

Audio Input/Output: microphone; dual speakers; 3-band 3.5mm stereo/standard headset jack

Power and Battery: 18000mAH 3.8V lithium-polymer battery charging via 12V AC/DC power supply with the temperature between 0 to 45 degree centigrade

Input Voltage: 12V/3A Adapter

Operating Temperature: 0 to 50 degree centigrade

Storage Temperature: -20 to 60 degree centigrade

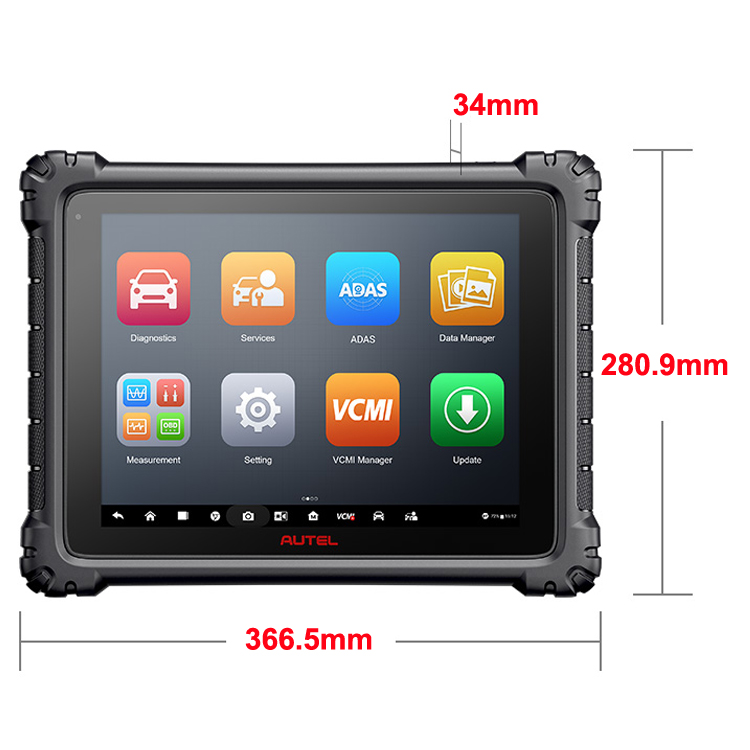

Dimensions (W*H*D): 366.5mm(14.43")*280.9mm(11.06")*34mm(1.34")

Weight: 2.18Kg(4.81 lb.)

Supported Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

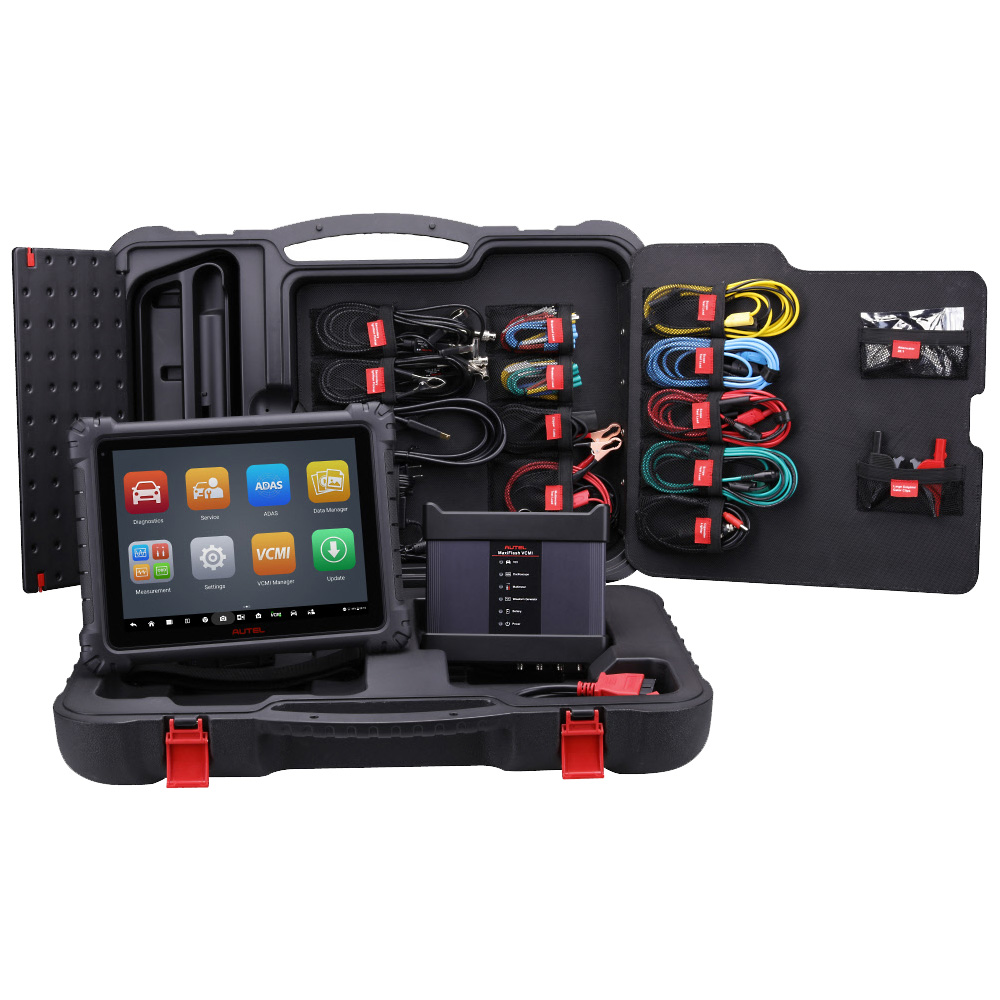

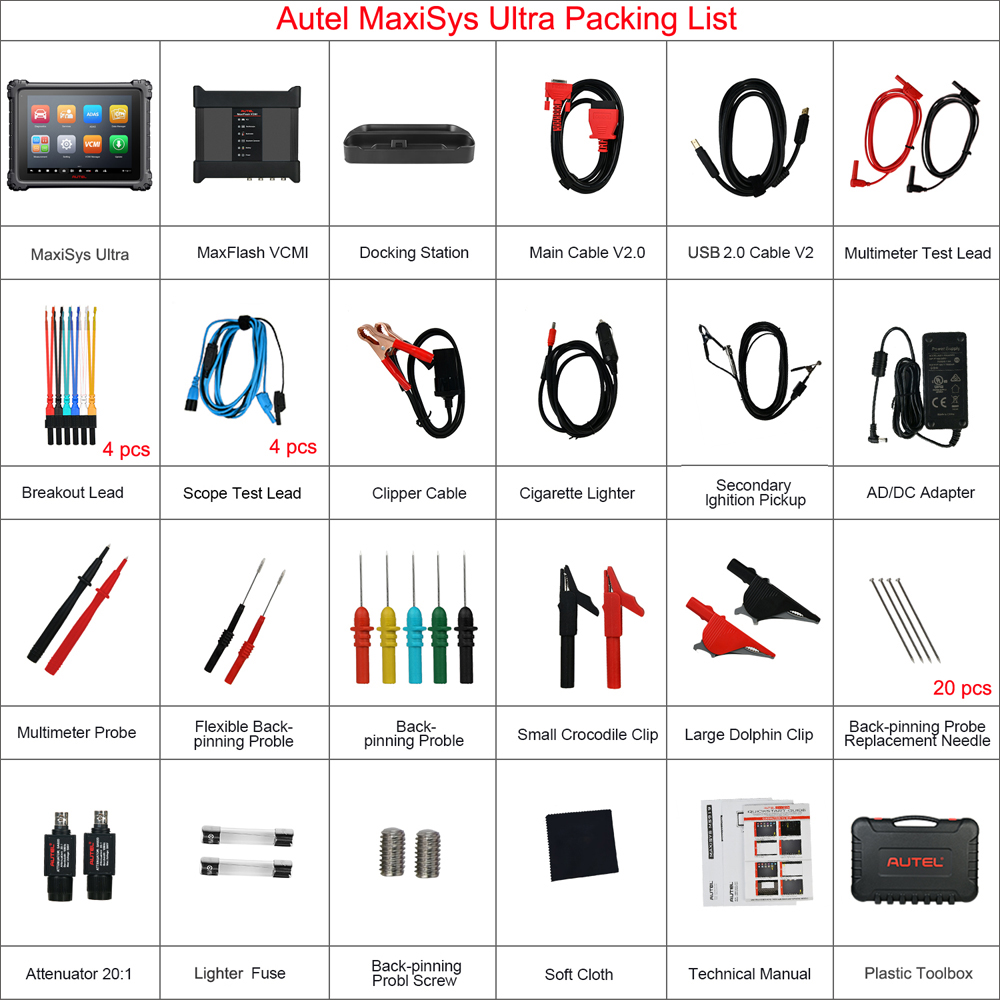

Packing List:

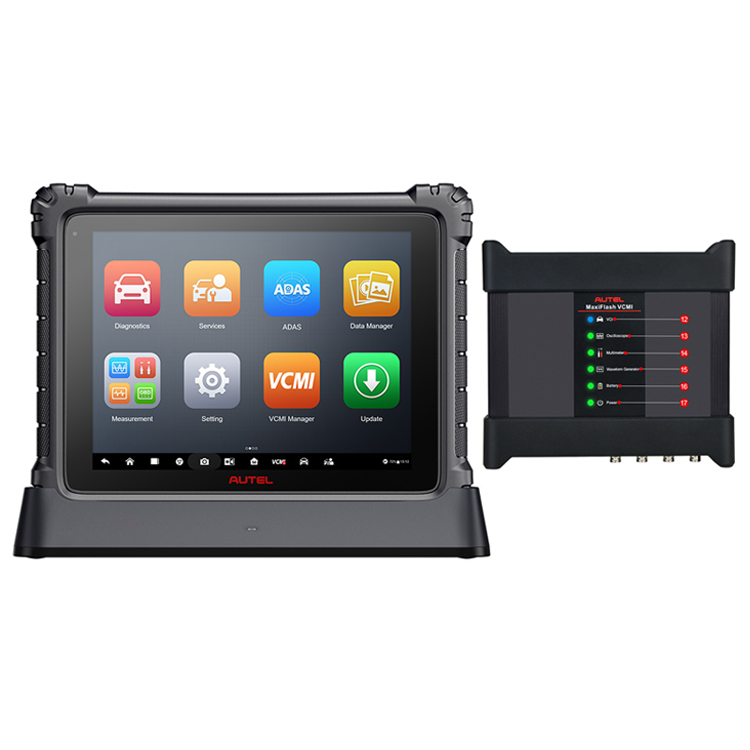

Autel MaxiSys Ultra

Autel MaxiFlash VCMI

Docking Station

Main Cable

USB 2.0 Cable

Cigarette Lighter Cable
12V AC / DC Adapter

Clipper Power Cable

Scope Test Lead (4 pcs)

Multimeter Test Lead (2 pcs)

Secondary Ignition Pickup (2 pcs)

Attenuator 20:1 (2 pcs)

Breakout Lead (4 pcs)

Multimeter Probe (2 pcs)

Flexible Back-pinning Probe (2 pcs)

Back-pinning Probe - Red/Green/Blue/Yellow/Black (5 pcs)

Back-pinning Probe Screw (2 pcs)

Back-pinning Probe Replacement Needle (20 pcs)

Small Crocodile Clip (2 pcs)

Large Dolphin Clip (2 pcs)

6*30mm Light Fuse (2 pcs)
Soft Cloth
Quick Reference Guide
Packing List

Plastic Toolbox

Packing Box
